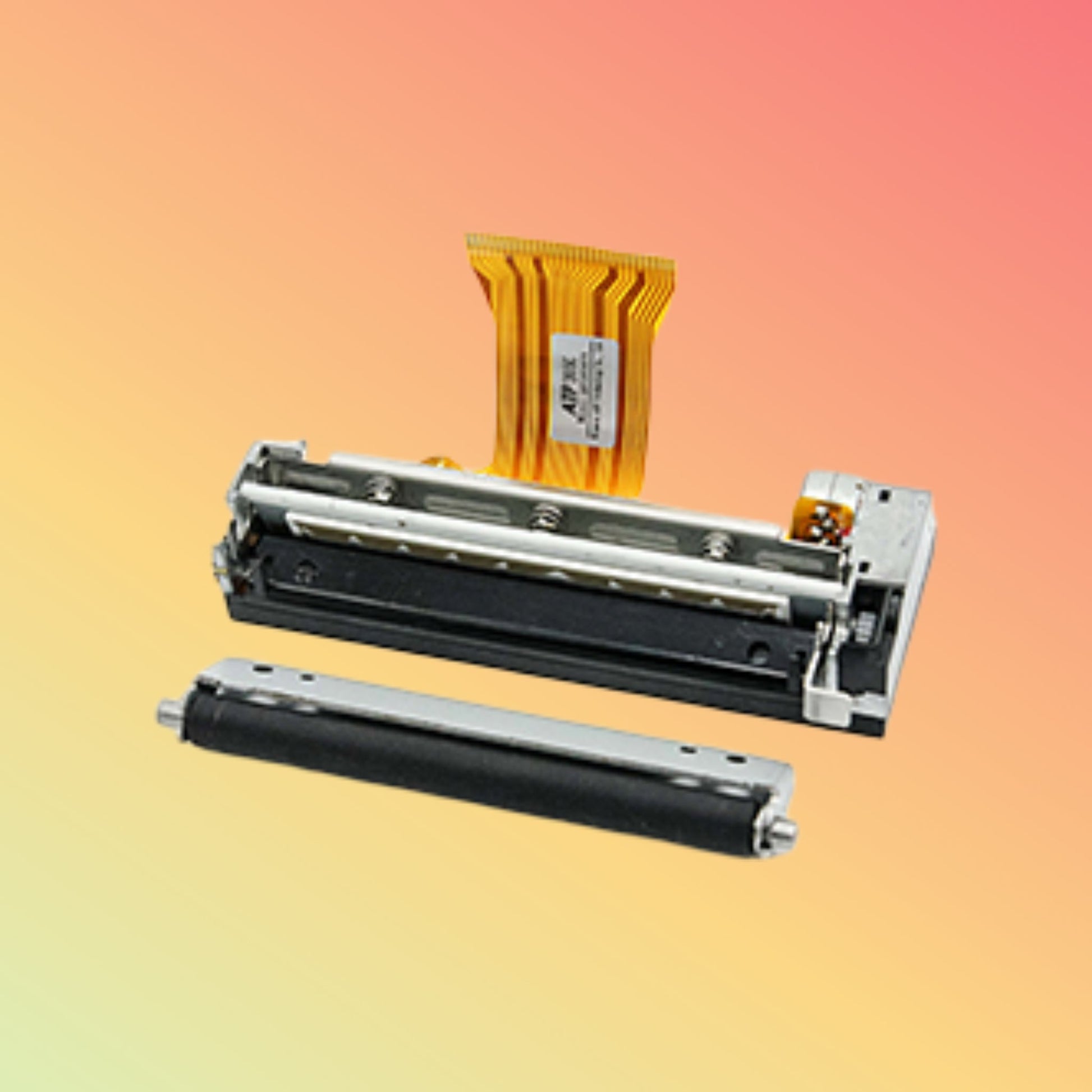

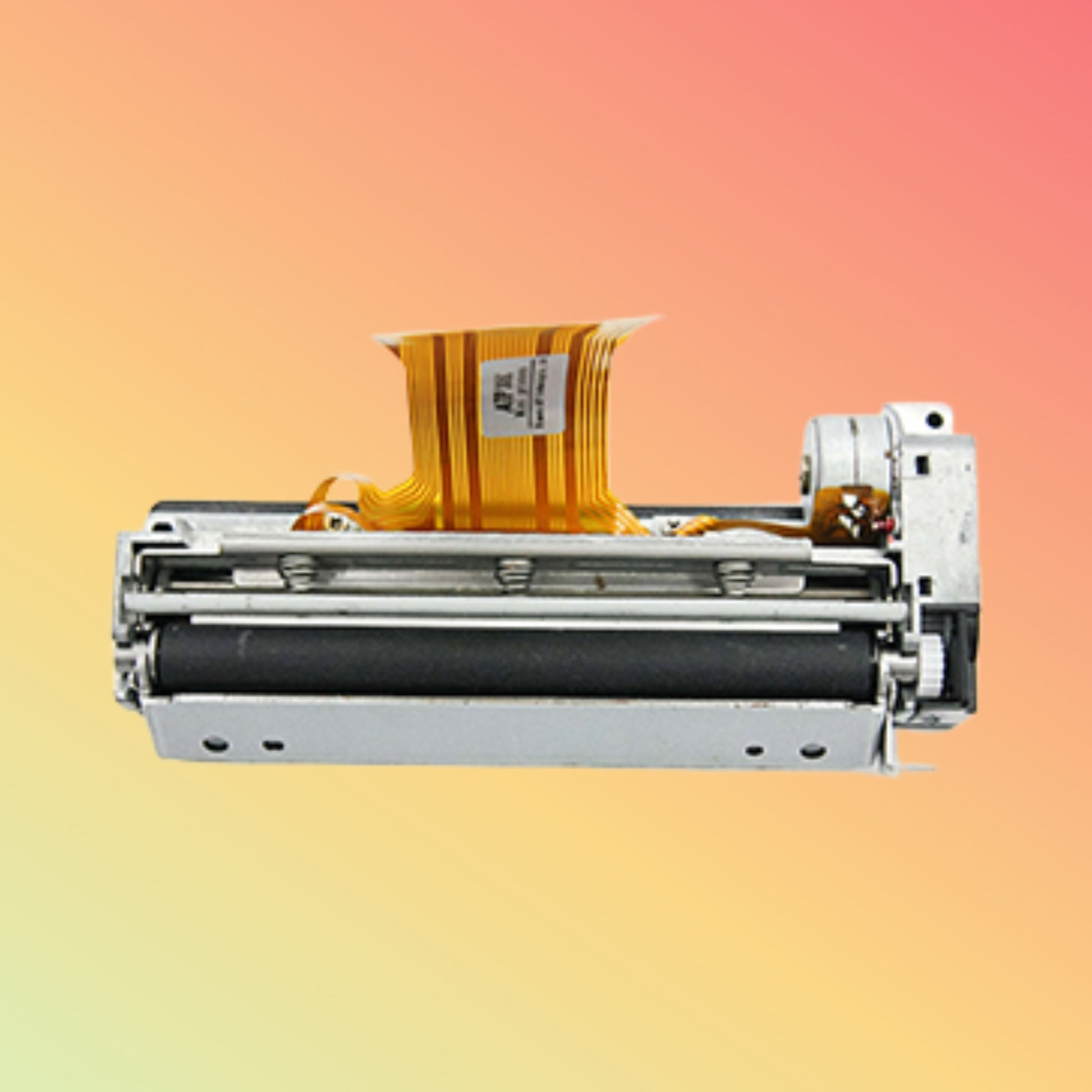

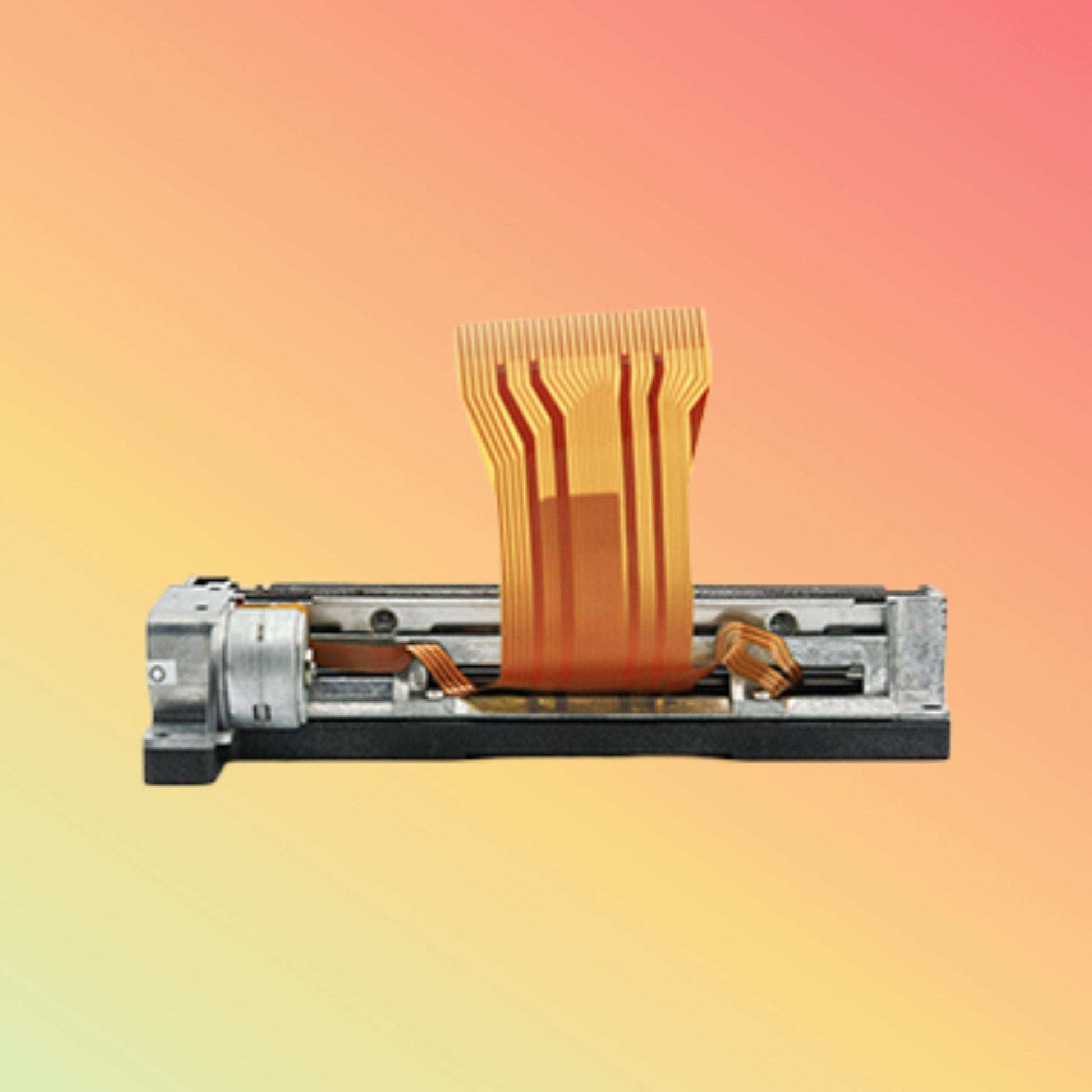

80mm Thermal Printer Mechanism-ATP305

ATP305 80 mm thermal mechanism—200 mm/s, 203 dpi, auto-cutter ready, jam-free. Shop at NEOTECH.

Overview

Streamline your self-service stations—kiosks, POS, ticketing—with the NEOTECH ATP305. This direct-thermal engine handles 80 mm rolls on a 12.7 mm core, prints at 200 mm/s, and delivers 203 dpi clarity. Integrated auto-cutter and jam-free mechanism ensure 24/7 uptime.

Internal Link: Discover our full Thermal Mechanism lineup.
External Link: Learn about thermal printing on the IPC website.

Product Description

The ATP305 blends industrial-grade performance with plug-and-play simplicity. Its precision stepper motor and optimized paper path deliver smooth, continuous prints. Load an 80 mm thermal roll, and the auto-cutter slices receipts cleanly—full or partial cuts. Rated MTBF ≥ 35 000 hrs and housed in a sealed chassis, it fights dust and debris for reliable operation.

Key Features

• 80 mm print width on 12.7 mm core

• 200 mm/s top print speed

• 203 dpi high-resolution thermal head

• Auto-cutter ready for full/partial cuts

• Jam-free paper path design

• RS232, USB 2.0 & TTL interfaces

• MTBF ≥ 35 000 hrs industrial reliability

• Compact: 210 × 125 × 110 mm chassis

Specifications

Supported OS / Applications / Industries

• OS: Windows, Linux, Android (via SDK)

• Apps: ATM firmware, POS controllers, kiosk software

• Industries: Retail, Banking, Ticketing, Vending, Self-Service

Benefits & Compatibility

• Plug-and-play integration via standard interfaces

• Low maintenance: jam-free, auto-cutter feed

• High uptime: sealed design + long MTBF

• Clean cuts: pro-grade receipt trim

• Space-saving: fits tight enclosures

Purpose of Use

Ideal for embedding in ATMs, self-service kiosks, vending machines, and any terminal requiring automatic paper handling.

How to Use

1. Mount ATP305 in your chassis

2. Connect RS232, USB, or TTL to your host

3. Load 80 mm thermal roll

4. Power on and run test print via SDK

5. Auto-feed and auto-cut engage during printing

Packaging / Weight / Dimension

• Includes: ATP305 mechanism, cables, mounting hardware, user manual

• Unit size: 210 × 125 × 110 mm

• Unit weight: 1.35 kg

• Package weight: ~1.6 kg

Warranty & FAQs

• Warranty: 12-month limited

• FAQs:

  • Q: What roll size fits?
    A: 80 mm rolls on 12.7 mm core.

  • Q: How to replace cutter blades?
    A: Snap-in design—see manual schedule.

  • Q: Is it dust-protected?
    A: Sealed path resists debris.

Performance, Quality, Durability & Reliability

Built with an industrial thermal head and sealed chassis, ATP305 delivers consistent print density, jam-free operation, and long-life performance in demanding settings.

Best Price Guarantee

Found a lower price on a comparable mechanism? NEOTECH will match it—no hassle.

Shop Today & Delivery Across the UAE!

Order ATP305 now for express shipping to Dubai, Abu Dhabi, Sharjah, Ajman, and beyond. Track in real time.

Customer Reviews & Testimonials

Installed your ATP305? Drop a quick review on our site and help fellow integrators choose smart.

After-Sales Support

Need integration help or troubleshooting? Our UAE support team is a call or email away. If remote fixes don’t cut it, we’ll guide you through an easy RMA.

Get in Touch

For bulk quotes, custom firmware, or SDK access, contact our sales team for samples, demos, and pro advice.

Stock Availability

Check live inventory with our sales team before ordering—lead times may vary for custom builds.

Disclaimer

Specs, pricing, and availability subject to change without notice. Images are illustrative; actual mechanism may vary. Always verify details with NEOTECH before purchase.
