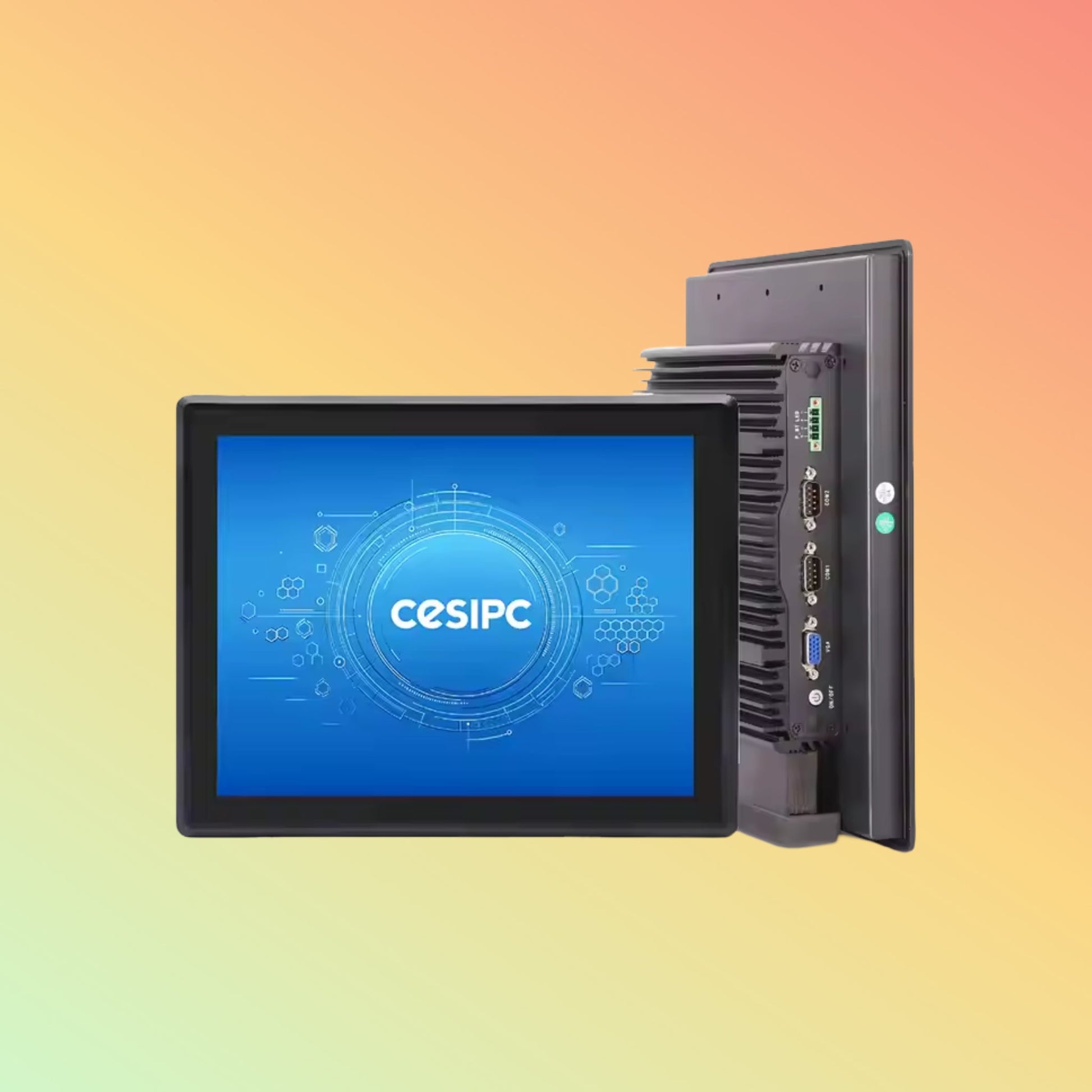

CESIPC 10 Inch 1000 Nits Touch Pc Linux Touch Panel Pc Embedded Android All in One Pc

Rugged IP65 10″ 1000 nits high-brightness touch PC, fanless, 16 GB DDR4, 128 GB SSD, Windows/Linux/Android ready. Silent, wash-down-proof HMI.

Overview

CESIPC’s 10″ 1000 nits Touch Panel PC pairs ultra-bright PCAP touch with a fan-free IP65 chassis. Preloaded for Windows 10/11 IoT, Linux or Android, it delivers silent, maintenance-free HMI in sunlight, wash-down zones, and vibration-intense environments.

Product Description

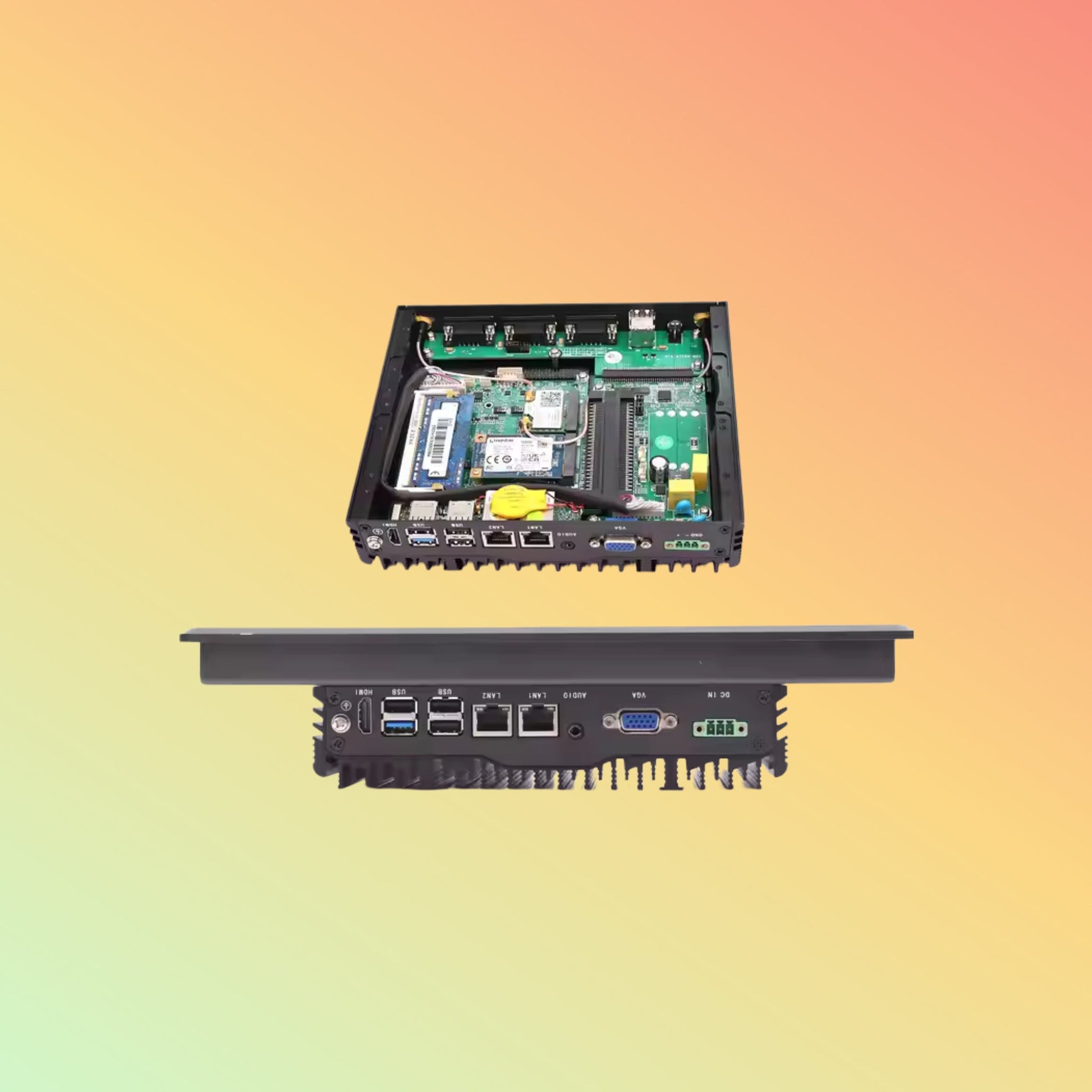

At its core sits an Intel® Celeron® J6412 quad-core CPU (1.5 GHz) or optional Core™ i3-10110U (2.1–4.1 GHz), backed by 16 GB DDR4 and a 128 GB M.2 SSD (upgradeable). The 1000 nits IPS display remains legible in bright light and supports multi-finger touch—even with gloves. IP65-rated die-cast aluminum housing repels dust, jets of water, and debris. M12-sealed I/O (6× USB 3.0, 2× RS-232/485), HDMI output, dual-band Wi-Fi, Bluetooth 5.0, and optional 4G provide turnkey connectivity. Passive cooling ensures truly silent 24/7 operation from –10 °C to +60 °C on 9–36 V DC with surge/reverse-polarity protection.

Key Features

• 1000 nits High-Brightness Display: sunlight-readable 10″ IPS PCAP

• IP65 Fanless Chassis: dust- and wash-down-proof, zero maintenance

• Dual-OS Support: Windows IoT, Linux, or Android Embedded

• 16 GB DDR4 & 128 GB SSD: fast multitasking & data storage

• Powerful CPU: J6412 (1.5 GHz) or Core™ i3-10110U (2.1–4.1 GHz)

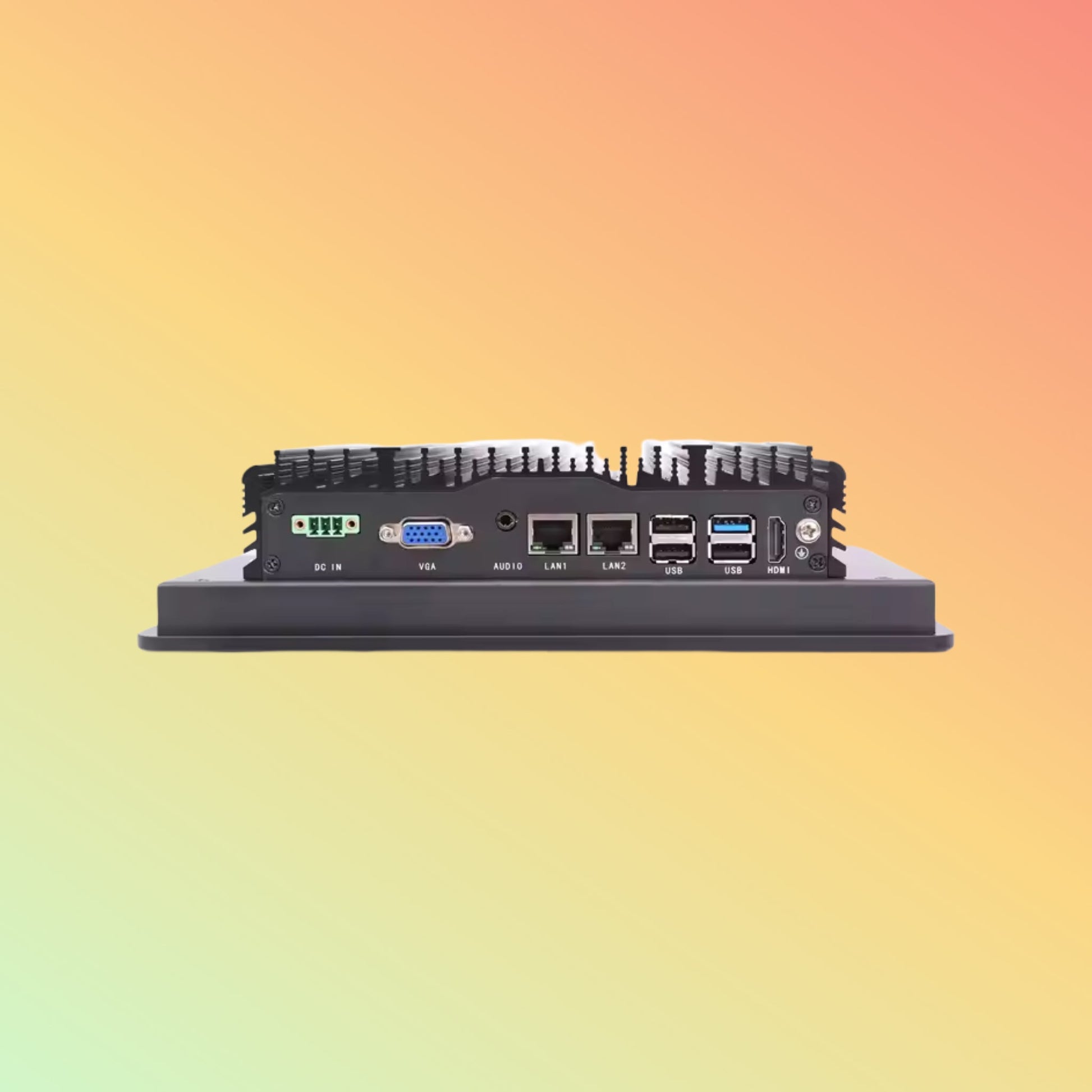

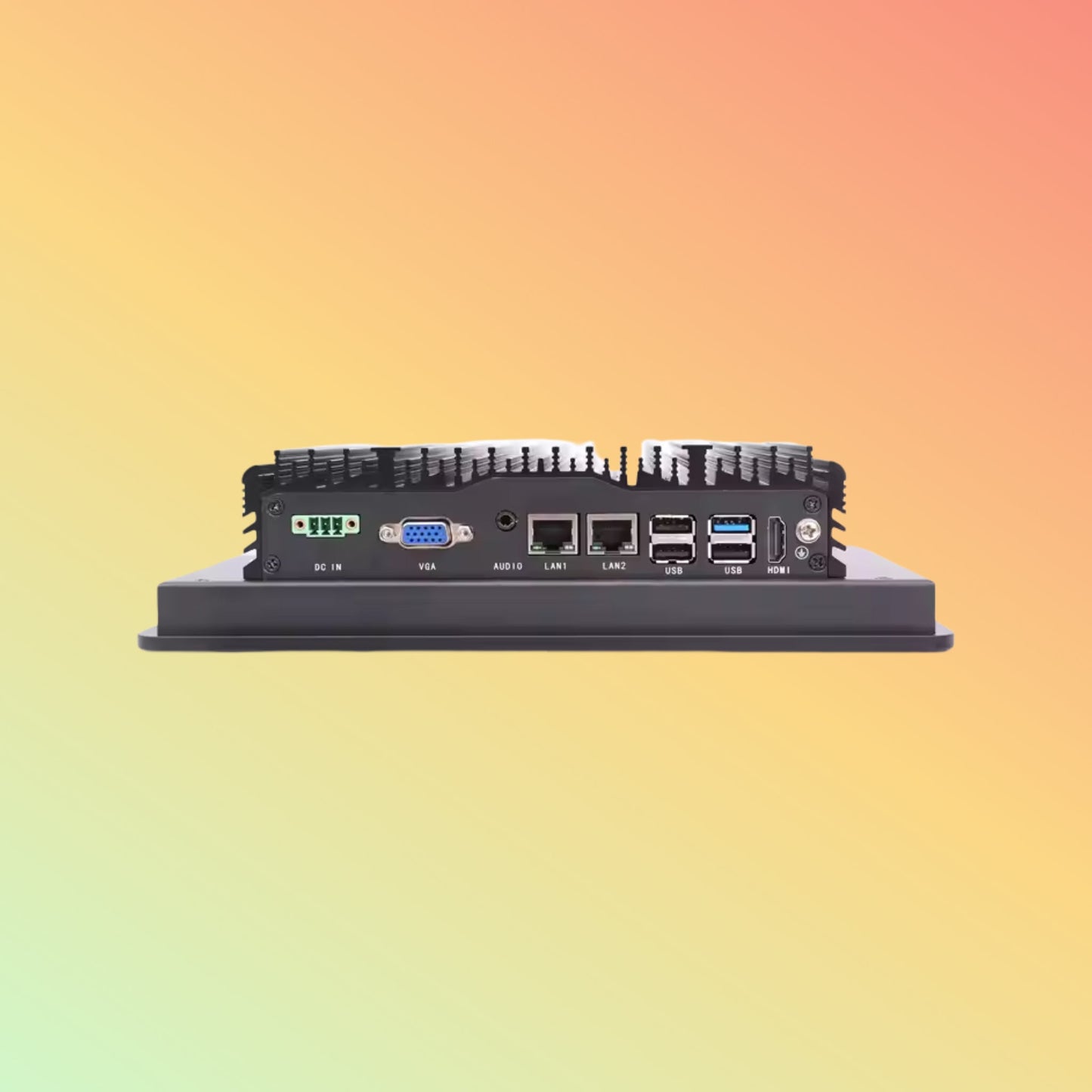

• M12-Sealed I/O: 6× USB 3.0, 2× RS-232/485, HDMI output

• Wireless: Wi-Fi 802.11ac, Bluetooth 5.0; optional 4G LTE

• Passive Cooling: silent operation, no moving parts

• Wide-Voltage Input: 9–36 V DC w/ surge & reverse-polarity protection

• Mounting: panel-cut & VESA 75×75 mm brackets

Specifications

Supported OS / Applications / Industries

• OS: Windows 10/11 IoT, Linux (Ubuntu/Debian), Android Embedded

• Applications: HMI, kiosks, digital signage, outdoor info-points

• Industries: Manufacturing, food & beverage, logistics, retail

Benefits & Compatibility

• Sunlight-Readable: 1000 nits for outdoor/bright settings

• Zero-Maintenance: fanless avoids clogging & noise

• Wash-Down Ready: IP65 seals tolerate high-pressure cleaning

• Multi-OS Flexibility: choose Windows, Linux, or Android

• Robust I/O: ample USB, serial, HDMI, and wireless options

Purpose of Use

Perfect for outdoor kiosks, outdoor machine-side operator panels, wash-down food/bev environments, and bright-light signage.

How to Use

1. Cut panel opening per supplied template

2. Mount with panel clamps or VESA brackets

3. Connect 9–36 V DC, network, USB/serial, and antenna

4. Boot into your chosen OS and launch HMI/signage app

5. Clean front with low-pressure water spray—no fans to service

Warranty & FAQs

Warranty: 1 year standard; extensions to 3 years available.
FAQs:

• Is the display legible under sunlight? Yes—1000 nits ensures high visibility.

• Can I install Android? Yes—Android Embedded images supported out-of-the-box.

After-Sales Support

24/7 remote diagnostics, firmware updates, and optional on-site service ensure continuous uptime.

Get in Touch

Questions or custom configurations? Email sales@neotech.ae for expert assistance.

Disclaimer

All specifications subject to change without notice. Images are illustrative—verify details with our sales team prior to deployment.
