Durable BYX Smart RFID reader: IP65, 125 kHz & 13.56 MHz, Wiegand output. Ideal for outdoor access. Order at NEOTECH UAE today!

Overview

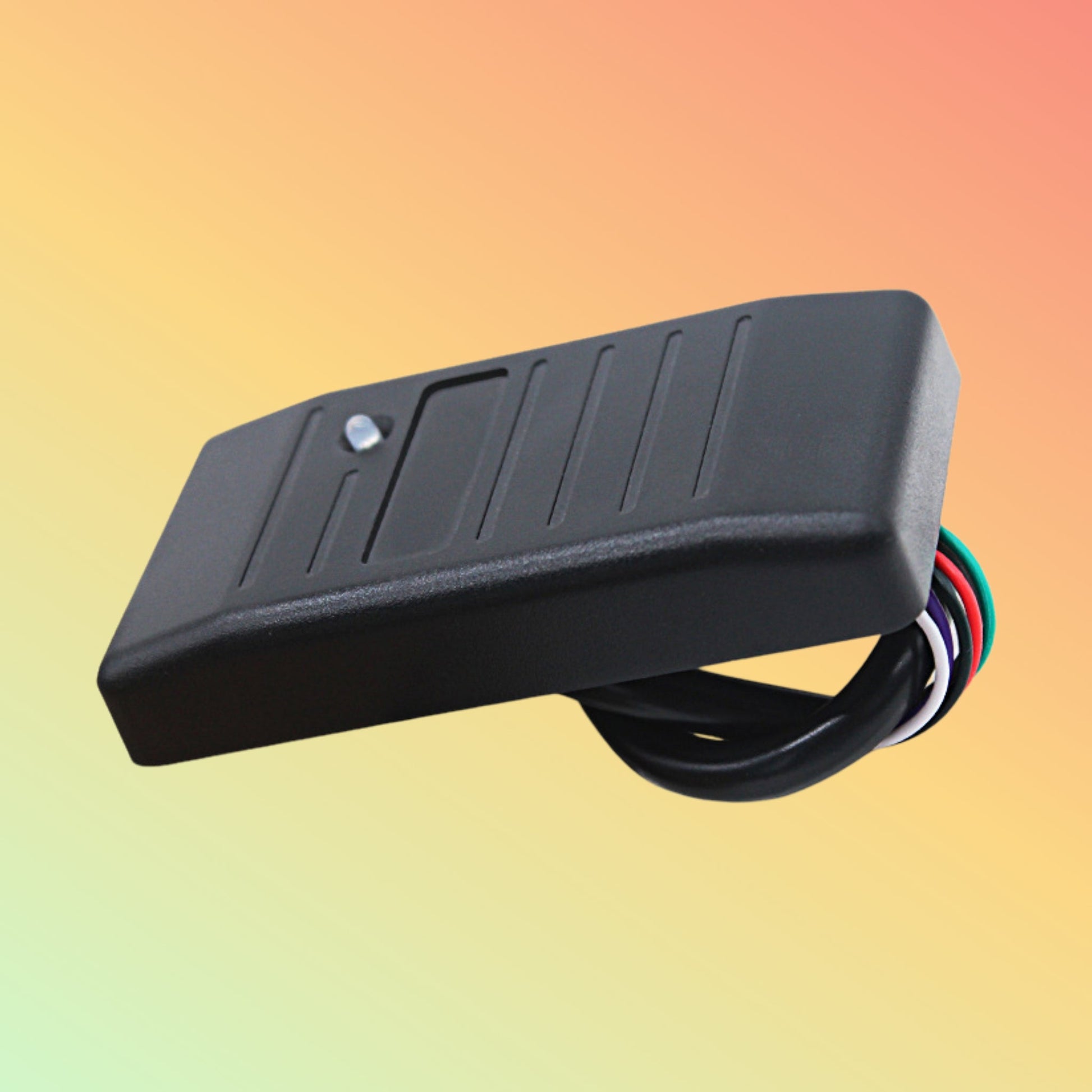

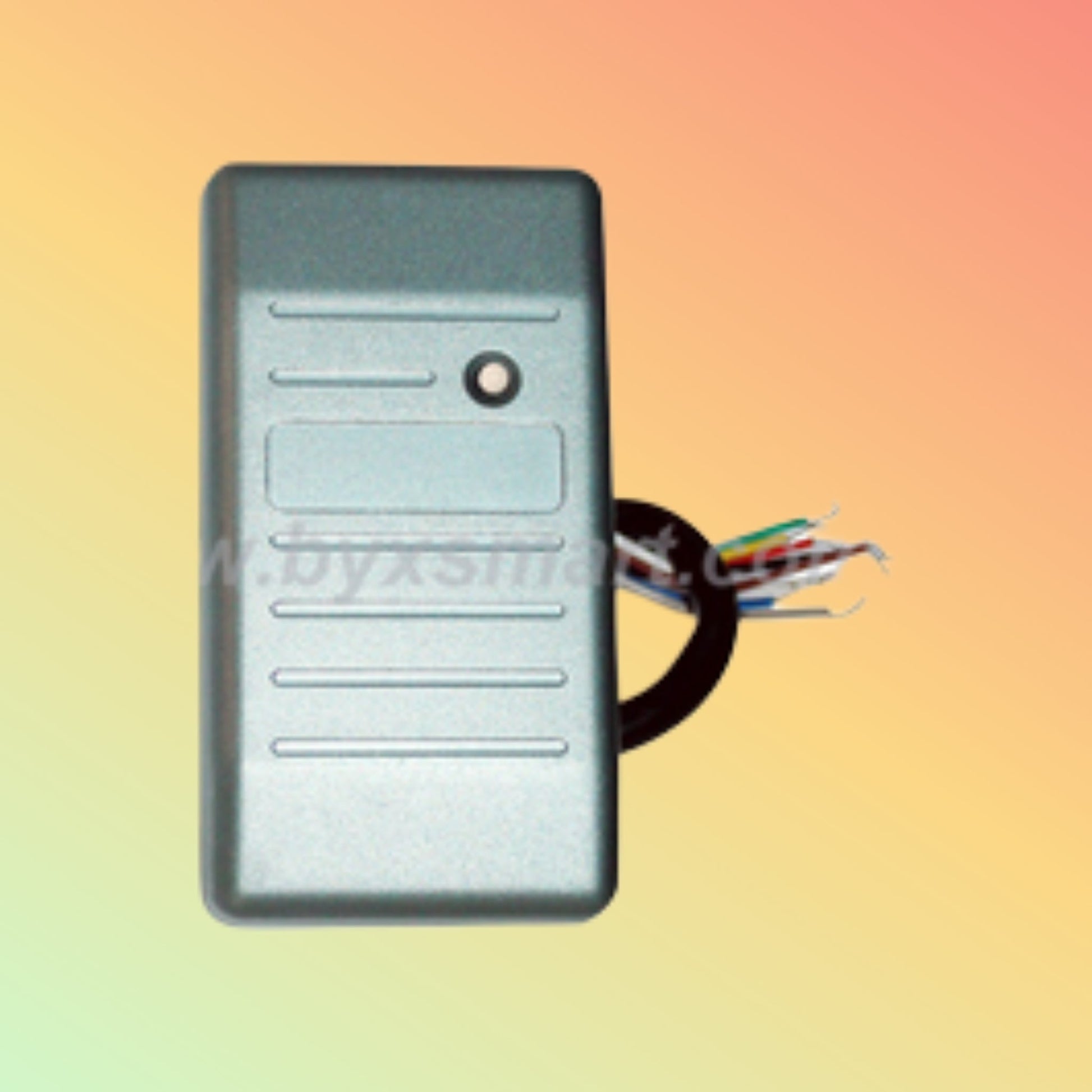

The BYX Smart RFID Waterproof Access Reader provides reliable, weatherproof credential reading for both 125 kHz and 13.56 MHz cards and tags. Its rugged IP65 housing and tamper-resistant design make it perfect for gates, turnstiles, and outdoor entry points.

Product Description

This wall-mount reader features dual-frequency electronics that automatically detect EM and MIFARE/DESFire credentials up to 8 cm away. The UV-resistant polycarbonate enclosure seals out dust and rain, while integrated LEDs and buzzer offer clear feedback. It connects via Wiegand 26/34 to any NEOTECH or third-party access controller.

Key Features

• Dual-frequency: 125 kHz EM & 13.56 MHz MIFARE/DESFire

• Wiegand 26/34 bit output

• IP65 waterproof & dustproof housing

• Read range up to 8 cm (credential dependent)

• UV-stabilized polycarbonate, IK07 vandal-resistant

• Status LEDs (red/green) and audible buzzer

• Surface- or flush-mount installation

• Tamper-detect output for alarm integration

• Operating voltage: 12 V DC ± 10%

Specifications

• Frequency: 125 kHz & 13.56 MHz

• Read Range: 2–8 cm (card/tag dependent)

• Output: Wiegand 26/34 bit

• Housing: UV-stabilized polycarbonate, IP65, IK07

• LED Indicators: Tri-color (red/green/amber)

• Buzzer: 1 kHz tone, adjustable volume

• Power Supply: 12 V DC ± 10%

• Current Draw: < 50 mA standby; < 150 mA active

• Operating Temp.: –20 °C to +65 °C

• Dimensions: 110 × 70 × 22 mm

• Weight: 150 g

Supported Systems / Applications / Industries

• Integrates with NEOTECH and standard Wiegand access panels

• Ideal for commercial buildings, parking entrances, turnstiles, and outdoor gates

• Used in corporate, residential, healthcare, education, and industrial sites

Benefits & Compatibility

• Weatherproof reliability for outdoor and wash-down areas

• Dual-frequency support eases migration from legacy to MIFARE systems

• Tamper detection enhances security posture

• Low-power, maintenance-free passive operation

• Universal Wiegand output for seamless panel integration

Purpose of Use

Deploy this reader to:

• Authenticate employees, visitors, and vehicles

• Control doors, gates, turnstiles, and barriers

• Implement multi-site credential management

• Log entry/exit events in your security system

How to Use

1. Mount the reader on a flat wall or backbox using included screws.

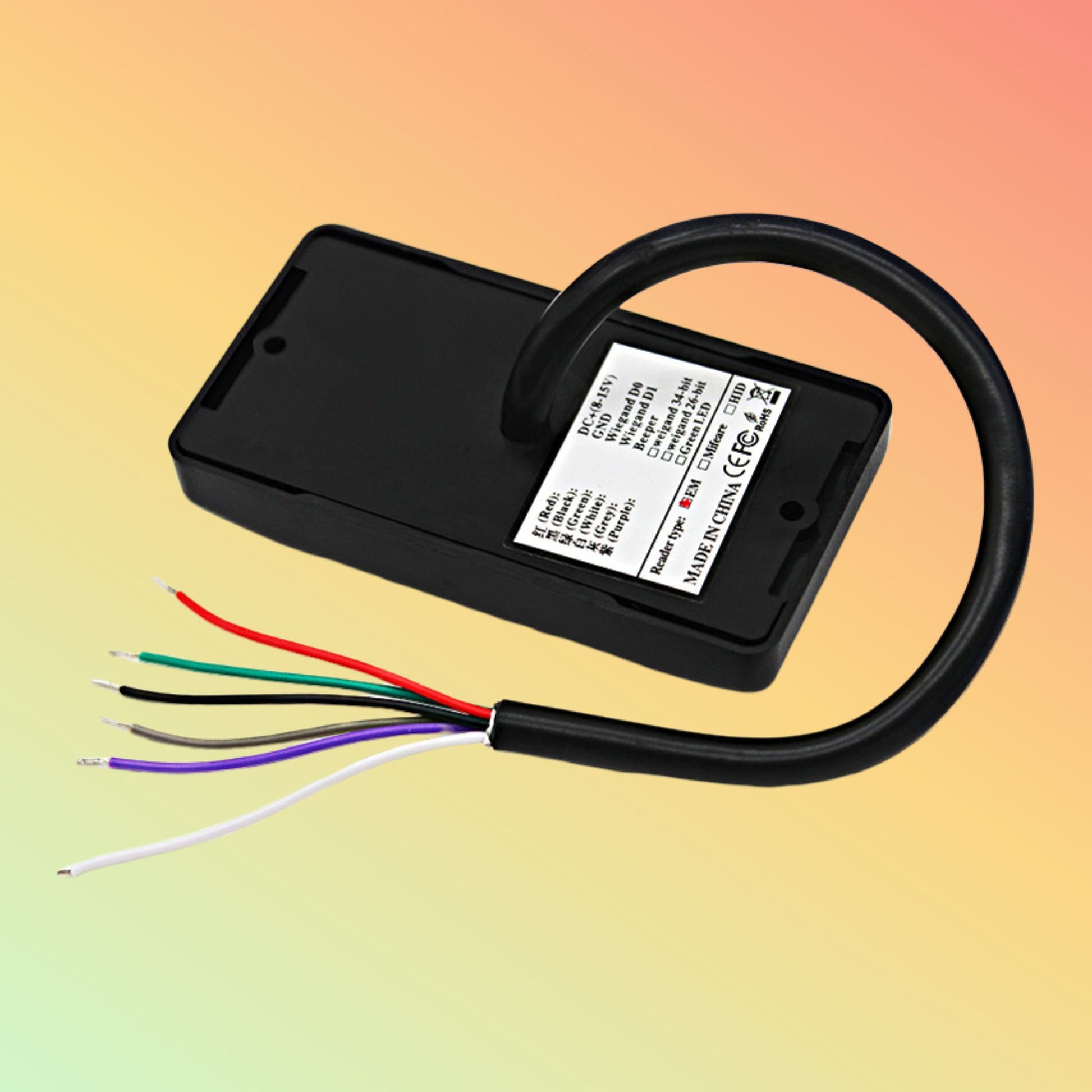

2. Wire 12 V DC, ground, Wiegand Data0/Data1, and tamper lines to your controller.

3. Program credentials (cards/tags) in your access-control panel.

4. Present credential—reader outputs Wiegand code to grant or deny access.

5. Monitor LED and buzzer feedback for user guidance.

Packaging / Weight / Dimensions

• Includes: RFID reader, backbox bracket, mounting kit, user manual

• Reader Size: 110 × 70 × 22 mm

• Packaged Weight: 200 g

• Box Dimensions: 130 × 90 × 40 mm

After Sales Support

NEOTECH’s support team is on call via email, phone, or live chat—providing configuration guidance, firmware updates, and rapid RMA service to keep your access system up and running.

Get in Touch

Need custom bulk pricing or integration help? Contact our access-control specialists:

📧 support@neotech.ae
📞 +971-XXX-XXXX
💬 Live Chat 9 AM–6 PM GST

Stock Availability

🟢 In Stock
✔️ Ships in 1–2 Business Days UAE-wide
🔄 Bulk orders (10+): lead time 7–10 business days

Disclaimer

Specifications are for general guidance and may change without notice. Product images are illustrative. Verify final details and pricing with our sales team before ordering.
