1½-Pocket Mixed-Denomination Banknote Counter with Automatic Currency Selection, Dual-CIS Detection, Reject Pocket, Serial Number Reading and Up to 1,200 Notes/Minute

Product Overview

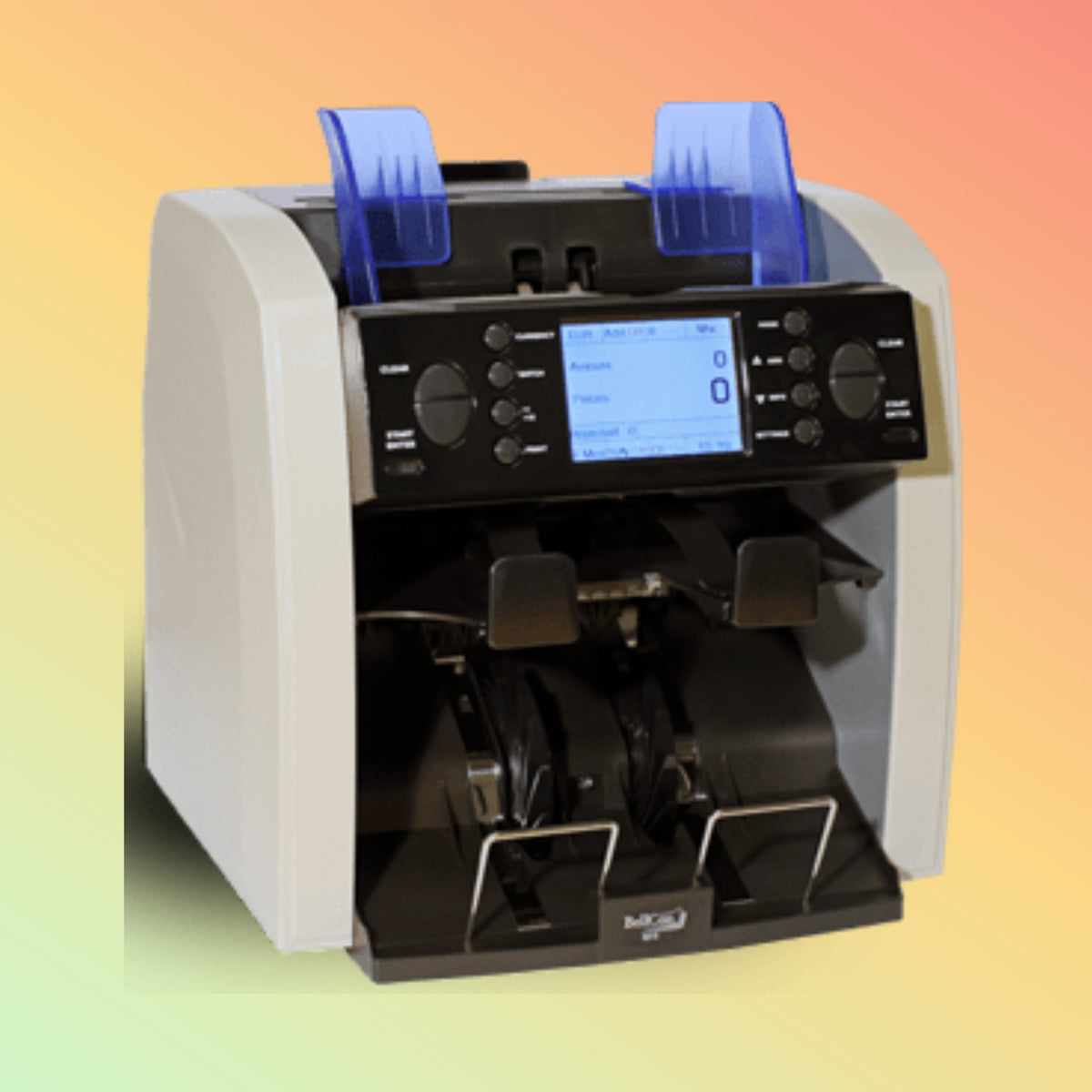

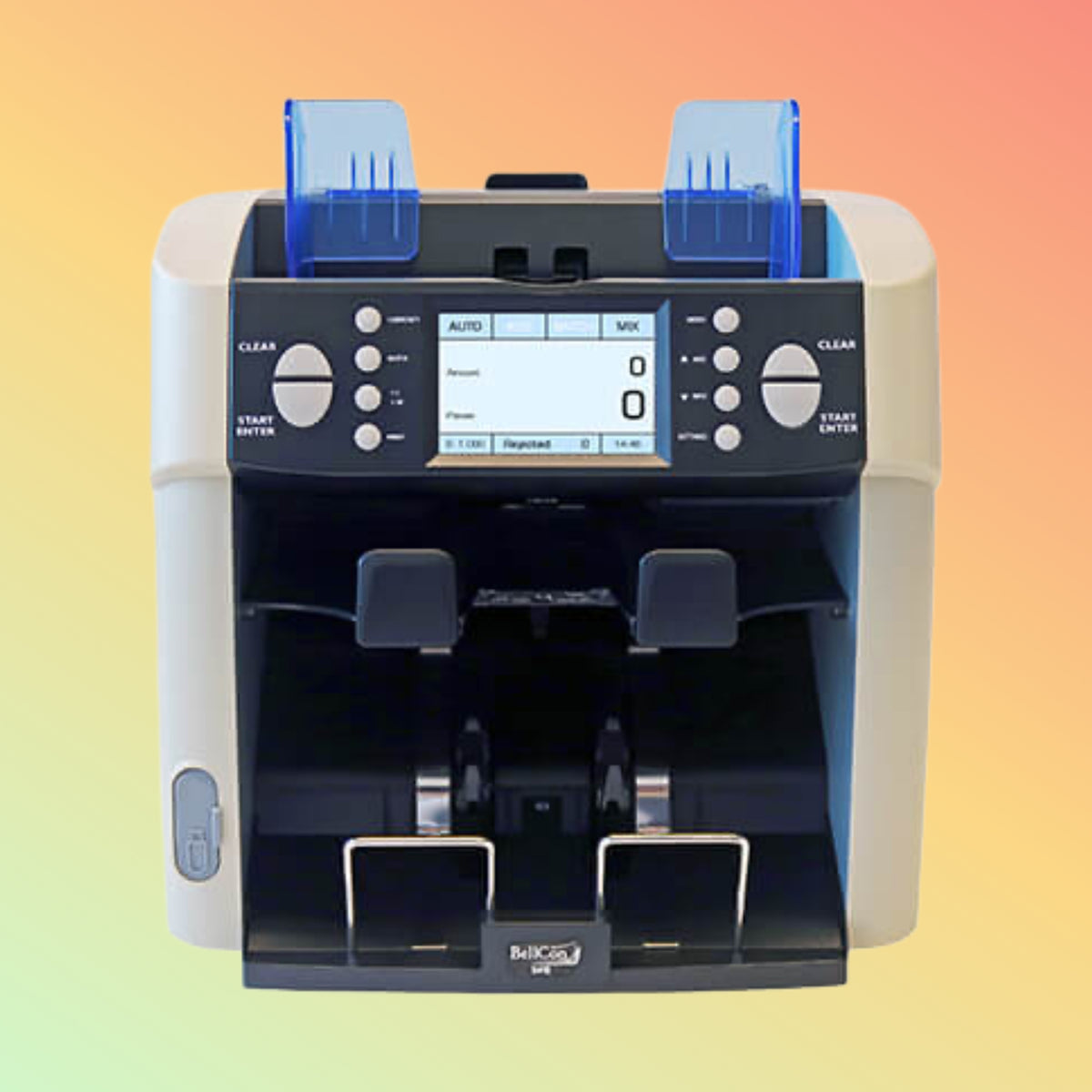

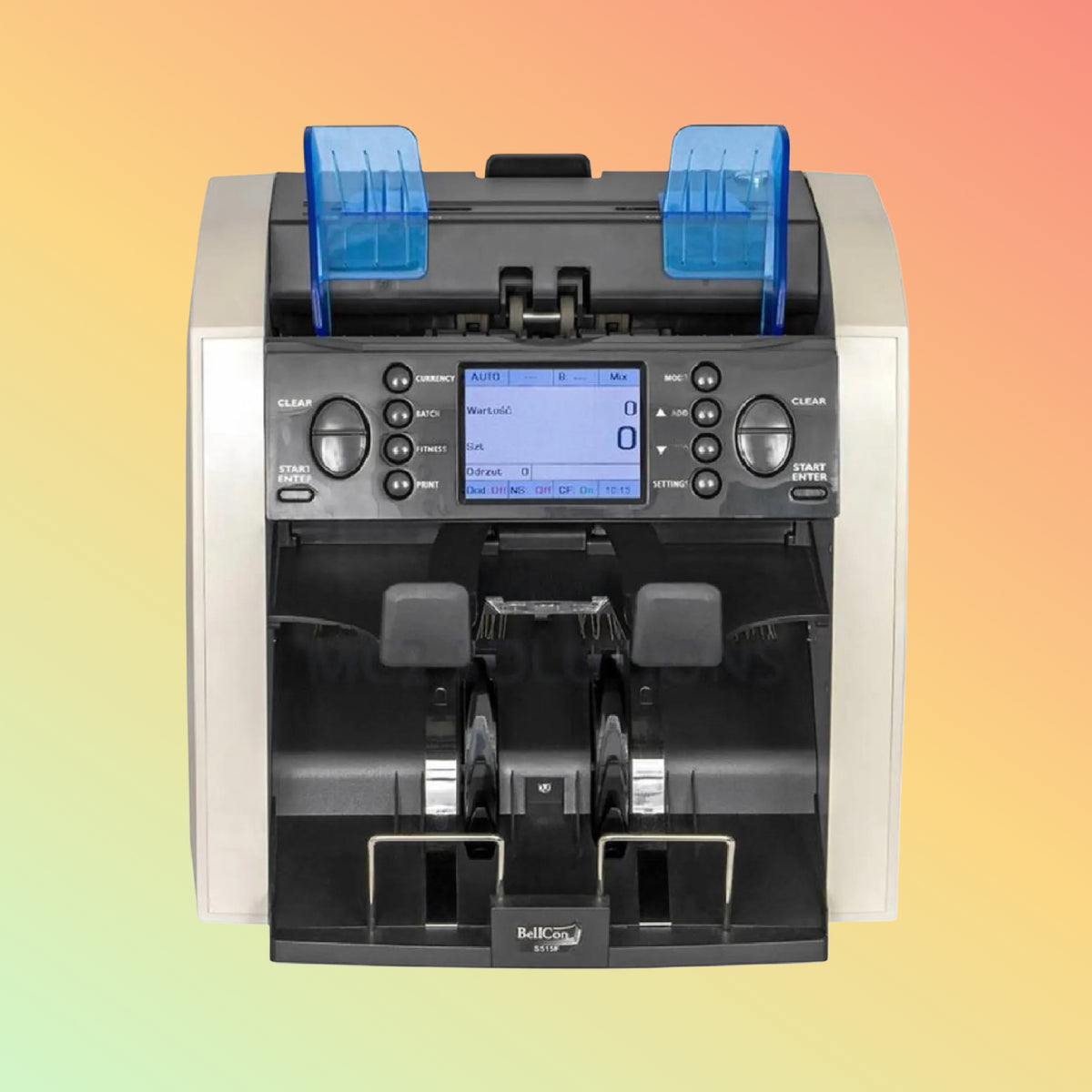

The BellCount S515 is an advanced 1½-pocket multicurrency banknote counter and sorter designed for professional cash-processing environments that need more than basic note counting.

It combines mixed-denomination value counting, automatic currency selection, banknote sorting, suspect-note rejection and OCR-based serial-number reading in one compact desktop machine.

Unlike a basic banknote counter that stops when an unwanted or suspicious note is encountered, the S515 uses a dedicated reject pocket. Suspect notes and notes that do not meet the selected sorting criteria can be diverted to the reject pocket while accepted notes continue through the counting process.

The S515 can handle up to 30 installed currencies and uses advanced dual full-width CIS image scanning together with infrared, visible-light, magnetic, thickness, dimensional and UV detection technologies.

With selectable piece-counting speeds of 800, 1,000 or 1,200 notes per minute, a 500-note hopper and multiple sorting modes, the BellCount S515 is designed for professional cash-handling environments such as banks, exchange houses, cash offices, retail operations and other businesses processing significant volumes of banknotes.

Professional Highlights

• 1½-pocket multicurrency banknote counter
• Mixed-denomination value counting
• Automatic currency selection
• Up to 30 installed currencies
• Advanced dual-CIS image scanning
• Full-width banknote image inspection
• Dedicated reject pocket
• Suspect-note rejection without interrupting normal counting
• Denomination sorting
• Face sorting
• Orientation sorting
• Banknote issue sorting
• OCR-based serial-number reading
• Black List function for applicable serial-number workflows
• Four-orientation banknote recognition
• Selectable 800 / 1,000 / 1,200 notes per minute piece counting
• 800 / 1,000 notes per minute value counting
• 800 notes per minute with serial-number reading
• Up to 500-note hopper capacity
• Up to 200-note stacker capacity
• Up to 50-note reject-pocket capacity
• 3.5-inch colour display with touch functionality
• Batch counting
• Detailed counting reports
• Rejected-note information
• USB software updating
• SD-card software updating
• Optional external display
• Optional external printer
• Compact professional desktop design
• Protective dust cover included according to manufacturer documentation

Multicurrency Banknote Counting

The BellCount S515 is designed to process multiple currencies rather than being restricted to a single banknote family.

BellCon specifies capacity for:

Up to 30 installed currencies

The exact currency package installed on an individual machine can vary.

For UAE customers, the required currencies should therefore be confirmed before ordering rather than assuming every S515 automatically contains every available currency.

Typical requirements may include:

• AED
• USD
• EUR
• GBP
• Other required regional or international currencies

The exact currency combination and software version should be verified for the machine being supplied.

Automatic Currency Selection

One of the important operational features of the BellCount S515 is:

Automatic currency selection

In the appropriate AUTO mode, banknotes can be placed into the hopper and the S515 can automatically identify the applicable installed currency before counting.

This can reduce the need for operators to manually select a currency for every counting job.

Automatic recognition remains dependent on the currency being supported and installed in the machine.

Mixed-Denomination Value Counting

The BellCount S515 can perform value counting of mixed-denomination banknotes.

Instead of requiring notes to be separated into individual denominations before counting, compatible mixed notes of a selected currency can be processed and their total monetary value calculated.

The machine can report information including:

• Total amount
• Total pieces
• Denomination breakdown
• Rejected notes
• Other applicable counting details

This is a major distinction between the S515 and a basic piece-counting machine.

MULTI Currency Mode

The S515 also provides an applicable MULTI operating mode.

In this mode, the machine can be configured to count up to four different currencies simultaneously in mixed counting mode.

The actual supported combination depends on the installed currency software and machine configuration.

For businesses regularly processing mixed currencies, the intended combination should be verified before purchase.

1½-Pocket Design

The BellCount S515 is described as a:

One-and-a-half-pocket banknote counter

The architecture consists of the normal counting/stacking path plus a dedicated reject pocket.

This allows the machine to separate unwanted or suspect notes from accepted banknotes without requiring the entire counting operation to stop.

Dedicated Reject Pocket

The reject pocket is one of the S515's most important workflow advantages.

Depending on the selected operating mode, the machine can divert:

• Suspect banknotes
• Different denominations
• Different orientations
• Different face positions
• Different banknote issues
• Other notes not matching the selected sorting criteria

into the reject pocket.

The operator can then inspect the rejected notes separately.

The reject pocket holds up to approximately:

50 banknotes

Dual-CIS Image Scanning

The S515 uses advanced:

Dual full-width CIS image scanning

This allows the machine to inspect both sides of a banknote using image-processing technology.

The detection system combines multiple sensing methods rather than relying on one simple sensor.

Banknote Detection Technology

BellCon specifies detection using:

• Dual full-width IR inspection
• Visible-light transmissive inspection
• Visible-light reflective inspection
• Image processing
• Magnetic sensing
• Thread detection
• Value-code detection
• Magnetic-print detection
• Thickness sensing
• Width and height sensing
• 3D dimensional detection
• UV reflection sensing

These technologies are used as part of the machine's banknote-recognition and suspect-note detection process.

No banknote counter should be represented as providing an absolute guarantee that every counterfeit or altered banknote will always be detected.

Suspect notes should be manually examined and handled according to the organization's cash-control procedures.

Sorting by Denomination

The BellCount S515 provides denomination sorting.

In Sort Mode, the denomination of the first accepted note can establish the sorting criterion.

Banknotes of a different denomination can then be diverted to the reject pocket.

This can help when preparing denomination-specific cash bundles.

Face Sorting

The S515 supports face sorting.

This allows banknotes to be organized according to whether the note face corresponds with the selected/reference orientation.

It can be useful when businesses need banknotes arranged consistently before bundling, storage or further cash processing.

Orientation Sorting

The S515 can also sort according to banknote orientation.

The machine supports recognition of banknotes in:

Four orientations

This can help cash-processing teams prepare uniformly oriented banknote bundles.

Issue Sorting

The BellCount S515 includes:

Banknote issue sorting

This allows banknotes from a different issue or series to be separated where supported by the installed currency software.

For example, an organization may need to identify an older banknote issue separately from the current issue.

Notes that do not correspond to the selected issue can be sent to the reject pocket.

OCR Serial Number Reading

The BellCount S515 incorporates an:

OCR-based banknote serial-number reading system

For supported currencies, the machine can read and record banknote serial numbers.

This capability can be useful for appropriate:

• Cash-control workflows
• Audit processes
• Transaction documentation
• Banknote tracking
• Internal security procedures

Serial-number capability depends on the particular currency and software support.

It should therefore be verified for the currency required by the customer.

Black List Function

The S515's serial-number functionality also supports an applicable:

Black List function

This can assist specialized cash-processing workflows where specific supported serial numbers need to be checked.

The suitability of this function for a particular operational or compliance requirement should be verified before deployment.

Counting Speeds

For piece counting, the BellCount S515 provides selectable speeds of:

• 800 notes/minute
• 1,000 notes/minute
• 1,200 notes/minute

For value counting, BellCon specifies:

• 800 notes/minute
• 1,000 notes/minute

When serial-number reading is enabled, the specified speed is approximately:

800 notes/minute

Available speeds can depend on the selected operating mode.

500-Note Hopper

The input hopper can accommodate up to approximately:

500 banknotes

This supports efficient processing of larger cash batches without repeatedly loading small quantities of notes.

Actual capacity can vary with the physical condition and thickness of the banknotes.

200-Note Stacker

The main stacker has a capacity of up to approximately:

200 banknotes

The operator should remove processed notes as required during larger counting jobs.

50-Note Reject Pocket

The dedicated reject pocket can hold up to approximately:

50 banknotes

Rejected notes should be reviewed rather than automatically treated as counterfeit.

A note may be rejected because of the selected sorting criteria, its physical condition, recognition difficulty or other reasons.

3.5-Inch Colour Display

The BellCount S515 uses a:

3.5-inch graphic colour display with finger-touch functionality

The interface is designed around menu-based operation and provides access to counting modes, settings, reports and other functions.

Physical control keys are also provided for commonly used operations.

Batch Counting

The S515 supports batch counting.

Operators can select preset batch values or enter an individual batch quantity using the numerical touch interface.

This can be useful when preparing standardized bundles of banknotes.

Add Function

For applicable counting workflows, results can be accumulated across multiple batches using the machine's add functionality.

This can reduce manual calculation when a cash quantity exceeds the hopper or stacker capacity.

Detailed Counting Reports

After processing banknotes, the S515 can provide a detailed counting report.

Depending on the operating mode and configuration, information can include:

• Total amount
• Total number of notes
• Denomination information
• Rejected-note information
• Applicable serial-number information

This provides more operational detail than a basic piece counter.

Rejected-Note Information

Rejected notes can be reviewed after a counting job.

This helps the operator understand why individual notes require further attention rather than simply seeing that a rejection occurred.

The operator remains responsible for examining and appropriately handling rejected notes.

BASIC Counting Mode

The S515 also includes an applicable BASIC mode for piece counting of items that do not require normal currency-value recognition.

Depending on configuration, this may be used for compatible:

• Vouchers
• Tickets
• Other note-like documents

In BASIC mode, monetary value is not calculated and normal security-feature detection may be disabled or limited depending on setup.

This function should not be interpreted as universal compatibility with every document type.

Software Updates

BellCount S515 software can be updated through:

• SD memory card
• PC connection using USB

Software updates can be important for banknote-processing equipment because currencies and banknote issues can change over time.

Before purchasing an older or previously deployed S515, the installed software and required currency support should be checked.

Optional External Display

An external display can be connected to the BellCount S515.

This can be useful at:

• Exchange counters
• Customer-facing cash desks
• Financial-service counters
• Other front-office environments

The external display is an optional accessory and should not be assumed to be included with the machine.

Optional External Printer

An external printer can also be connected for applicable reporting workflows.

The printer is optional and should be selected according to the required S515 configuration.

Easy Access for Cleaning & Maintenance

The S515 is designed so the banknote transport path and sensors can be accessed for routine cleaning and removal of problematic notes.

The top section can be opened for access to the banknote path, while the rear provides additional service access.

Regular cleaning is particularly important for banknote counters because paper dust and contamination can affect sensors and feeding performance.

Applications

The BellCount S515 can be considered for professional cash-processing environments including:

• Banks
• Currency exchange houses
• Money exchange counters
• Cash offices
• Large retail stores
• Supermarkets
• Hypermarkets
• Hotels
• Hospitality cash offices
• Corporate cash rooms
• Post offices
• Trade centres
• Financial-service operations
• Other businesses processing substantial banknote volumes

Technical Specifications

Brand: BellCon
Product Family: BellCount
Model: S515
Product Type: Multicurrency Banknote Counter & Sorter
Pocket Configuration: 1½ pocket
Mixed-Denomination Value Counting: Yes
Automatic Currency Selection: Yes
Maximum Installed Currencies: Up to 30

Detection

• Dual full-width CIS image scanning
• Infrared transmissive and reflective inspection
• Visible-light transmissive and reflective inspection
• Image processing
• Magnetic thread detection
• Magnetic value-code detection
• Magnetic print detection
• Thickness sensing
• Width/height sensing
• UV reflection sensing

Sorting

• Denomination
• Face
• Orientation
• Banknote issue

Serial Number

Technology: OCR-based serial-number recognition

Availability depends on supported currency/software configuration.

Piece Counting Speed

Selectable:

800 / 1,000 / 1,200 notes per minute

Value Counting Speed

Selectable:

800 / 1,000 notes per minute

Serial Number Reading Speed

Approximately:

800 notes per minute

Hopper Capacity

Up to approximately:

500 notes

Stacker Capacity

Up to approximately:

200 notes

Reject Pocket Capacity

Up to approximately:

50 notes

Banknote Recognition

Four orientations

Display

3.5-inch graphic colour display with finger-touch functionality

Software Update

• SD memory card
• USB / PC

Optional Accessories

• External display
• External printer

Power Supply

100–240 VAC, 50/60 Hz

Power Consumption

Less than 50 W

Dimensions

Approximately:

264 × 300 × 258 mm

Width × Height × Depth

Weight

Approximately:

9.2 kg

BellCount S515 Counting Modes

Depending on configuration, the S515 provides modes including:

MIX
Counts mixed denominations and calculates the total value for the selected currency.

SORT
Processes the selected denomination while diverting different denominations to the reject pocket.

FACE
Sorts banknotes according to face position.

ORIENT
Sorts according to banknote orientation.

ISSUE
Separates different supported banknote issues or series.

MULTI
Can process an applicable configured combination of multiple currencies in mixed counting mode.

BASIC
Provides piece counting for compatible non-currency-specific notes, vouchers or similar documents without normal value counting.

BellCount S515 vs Basic Banknote Counter

A basic banknote counter normally answers:

“How many notes are there?”

The BellCount S515 is designed to provide considerably more information.

Depending on configuration and mode, it can determine:

• Number of banknotes
• Monetary value
• Denominations
• Currency
• Orientation
• Face position
• Banknote issue
• Suspect/rejected notes
• Applicable banknote serial numbers

For a business that only needs basic piece counting of pre-sorted notes, the S515 may provide more functionality than necessary.

For professional mixed-cash processing, its additional functions can substantially reduce manual sorting and recounting.

UAE & AED Currency Requirement

For customers in the UAE, AED support should be specifically confirmed for the exact machine and installed currency software before ordering.

The S515 platform supports multiple currencies, but the precise currency package installed on an individual machine can vary.

If your operation also processes currencies such as USD, EUR or GBP, provide the complete required currency list before quotation so that the appropriate configuration can be verified.

Counterfeit Detection - Important Guidance

The BellCount S515 uses multiple advanced banknote-recognition and detection technologies.

However, a banknote counter should not be treated as an absolute guarantee of banknote authenticity.

A rejected or suspicious note requires appropriate manual review.

Similarly, rejection does not automatically mean that a banknote is counterfeit. Notes may be rejected because of:

• Physical condition
• Feeding irregularity
• Selected sorting criteria
• Recognition difficulty
• Unsupported issue
• Other detection conditions

Businesses should maintain appropriate cash-handling and suspect-banknote procedures.

Purpose of Use

The BellCount S515 is particularly suited to organizations requiring a combination of:

• Mixed-denomination value counting
• Multicurrency processing
• Automatic currency recognition
• High-speed banknote counting
• Suspect-note separation
• Uninterrupted counting with reject pocket
• Denomination sorting
• Face/orientation sorting
• Issue sorting
• Serial-number reading
• Detailed counting reports
• Professional cash-room operation

Things to Verify Before Ordering

Please confirm:

• Exact model: BellCount S515
• New or existing installation
• AED support requirement
• Complete required currency list
• Installed currency software
• Mixed-currency requirement
• Serial-number reading requirement
• Required serial-number currencies
• Issue-sorting requirement
• Daily cash volume
• External display requirement
• External printer requirement
• Software version
• Quantity
• Current availability
• Package contents
• Applicable UAE warranty
• Local service/support arrangement

For professional financial environments, the required currency software and current banknote-series support should be verified before deployment.

Who Should Consider the BellCount S515?

The S515 may be suitable for:

• Banks
• Exchange houses
• Cash-intensive retailers
• Supermarkets
• Hypermarkets
• Hotels
• Hospitality groups
• Corporate cash offices
• Post offices
• Trade centres
• Cash rooms
• Businesses processing mixed denominations
• Businesses processing multiple currencies
• Operations requiring a reject pocket
• Workflows requiring serial-number capture

Who May Need a Different Machine?

A different model may be more appropriate if the requirement is only:

• Basic piece counting
• Low-volume cash counting
• Single-denomination counting
• Portable battery operation

A higher-level cash-processing system may also be required where the organization needs:

• Multiple full sorting pockets
• Advanced banknote fitness sorting
• Large-scale centralized cash processing
• Specialized regulatory or bank-grade processing workflows beyond the S515 configuration

Choose according to the actual cash-processing requirement rather than purchasing more functionality than the business needs.

How to Use

1. Connect the S515 to the appropriate power supply.
2. Switch on the machine and allow its startup/self-test process to complete.
3. Select the required currency or applicable automatic currency mode.
4. Select the required counting mode.
5. Choose the appropriate counting speed where applicable.
6. Remove clips, rubber bands and foreign objects from the banknotes.
7. Align the banknotes before placing them in the hopper.
8. Place the notes correctly into the hopper.
9. Allow the machine to count and sort the banknotes.
10. Review the displayed total amount and number of notes.
11. Check the reject pocket for any diverted notes.
12. Review the detailed counting/rejection report where required.
13. Manually inspect suspicious or rejected banknotes.
14. Clean the banknote path and sensors according to the maintenance instructions.

Avoid feeding wet, excessively dirty, severely damaged or unsuitable notes into the machine.

Why NEOTECH® UAE?

NEOTECH® focuses on helping UAE customers verify cash-handling equipment according to their actual operational requirements.

• Exact BellCount model verification
• AED and required-currency verification
• Currency-software configuration checking
• Mixed-denomination requirement guidance
• Reject-pocket workflow guidance
• Sorting-function verification
• Serial-number requirement checking
• External display and printer configuration guidance
• Transparent availability and lead-time communication
• UAE-focused quotation and delivery support
• No pressure to purchase when a simpler machine is sufficient

Learn First. Decide Second.

Request a Quote or Order in the UAE

Looking for the BellCount S515 Multicurrency Banknote Counter & Sorter in the UAE?

For an accurate quotation, please provide:

• Quantity
• Required currencies
• AED requirement
• Daily approximate banknote volume
• Mixed-denomination counting requirement
• Serial-number reading requirement
• Issue-sorting requirement
• External display requirement
• External printer requirement
• Existing machine/model if this is a replacement

For exchange houses, banks and other professional cash-processing applications, providing the complete required currency list before ordering is particularly important.

For price, availability or a formal quotation:
Email: support@neotech.ae

Learn First. Decide Second.

Delivery - UAE

Delivery is available within the United Arab Emirates.

Order Cut-Off: 14:00 GST
Handling: 1–2 business days where applicable
Standard Transit: Approximately 3–5 business days after handling
Typical Total Delivery: Approximately 4–7 business days for confirmed available products

For non-stock or special-order configurations, delivery may extend to approximately 10–15 working days or up to 25 working days after payment/order confirmation, depending on supplier/manufacturer availability.

Current availability, required currency software, accessories and exact configuration should be confirmed before ordering.

FAQ - BellCount S515

Q: What is the BellCount S515?
A: The BellCount S515 is a professional 1½-pocket multicurrency banknote counter with mixed-denomination value counting, sorting, reject-pocket and serial-number functions.

Q: Can the BellCount S515 count mixed denominations?
A: Yes. It can count mixed denominations and calculate their monetary value for supported currencies.

Q: How many currencies can the S515 handle?
A: BellCon specifies up to 30 installed currencies. The exact currency package should be confirmed for the machine being supplied.

Q: Does the BellCount S515 support AED?
A: AED is supported in applicable S515 currency configurations. Confirm that the exact machine being supplied has current AED software before ordering.

Q: Can the S515 automatically recognize the currency?
A: Yes. It provides an automatic currency-selection function for supported installed currencies.

Q: Can it count multiple currencies together?
A: The applicable MULTI mode can be configured to count up to four currencies simultaneously in mixed counting mode. Confirm the required currency combination before deployment.

Q: How fast is the BellCount S515?
A: Piece-counting speeds are selectable at approximately 800, 1,000 or 1,200 notes per minute. Value-counting speeds are approximately 800 or 1,000 notes per minute.

Q: Does the S515 have a reject pocket?
A: Yes. It has a dedicated reject pocket with capacity for up to approximately 50 notes.

Q: Does counting stop when a suspicious note is detected?
A: The 1½-pocket design allows suspect or non-conforming notes to be diverted to the reject pocket while normal processing can continue.

Q: Does the BellCount S515 detect counterfeit banknotes?
A: It uses multiple detection technologies to identify suspect notes. No banknote counter should be treated as providing an absolute guarantee of authenticity; rejected notes require appropriate review.

Q: What detection technology does it use?
A: The S515 uses dual full-width CIS imaging together with infrared, visible-light, magnetic, thickness, dimensional and UV detection technologies.

Q: Does it read banknote serial numbers?
A: Yes, for supported currencies. The system uses OCR-based serial-number recognition.

Q: Can it sort banknotes by denomination?
A: Yes.

Q: Can it sort banknotes by orientation?
A: Yes.

Q: Can it sort banknotes by face?
A: Yes.

Q: Can it sort old and new banknote issues?
A: The S515 includes issue sorting for supported currencies and banknote series.

Q: What is the hopper capacity?
A: Up to approximately 500 notes.

Q: What is the stacker capacity?
A: Up to approximately 200 notes.

Q: What is the reject-pocket capacity?
A: Up to approximately 50 notes.

Q: Does the BellCount S515 have a touchscreen?
A: It has a 3.5-inch graphic colour display with finger-touch functionality together with physical controls.

Q: Can the software be updated?
A: Yes. BellCon specifies updates using an SD memory card or PC/USB connection.

Q: Can an external display be connected?
A: Yes. Compatible external displays are available as optional accessories.

Q: Can an external printer be connected?
A: Yes. An external printer is listed as an optional accessory.

Q: What are the dimensions of the S515?
A: Approximately 264 × 300 × 258 mm.

Q: How much does the S515 weigh?
A: Approximately 9.2 kg.

Q: What power supply does it use?
A: 100–240 VAC, 50/60 Hz, with manufacturer-specified consumption below 50 W.

Q: Is a protective dust cover included?
A: BellCon's S515 documentation states that a protective dust cover is included. Confirm current package contents when ordering.

Q: What warranty applies?
A: BellCon's published S515 datasheet states a 12-month warranty against defects in material and labour. The actual UAE warranty and service arrangement should be confirmed for the specific supply channel.

Q: What should I verify before ordering?
A: Confirm the exact S515 configuration, required currencies including AED, current currency software, serial-number requirements, sorting functions, accessories, quantity, availability and applicable UAE warranty/service arrangement.

Related Products

• BellCon BellCount Banknote Counters
• Multicurrency Banknote Counters
• Mixed-Denomination Money Counters
• Currency Sorting Machines
• Banknote Counters with Reject Pocket
• Banknote Serial Number Readers
• Cash Handling Equipment

Helpful Internal Links

• Banknote Counters UAE
• Currency Counters UAE
• Money Counting Machines UAE
• Multicurrency Banknote Counters UAE
• Cash Handling Equipment UAE
• Currency Sorting Machines UAE
• Exchange House Equipment UAE
• Retail Cash Management UAE

Contact - NEOTECH® UAE

For BellCount S515 configuration, currency support, accessories or quotation:

Email: support@neotech.ae
Address: Store 13, Computer Building, Al Fahidi, Bur Dubai, Dubai 44245, UAE

Disclaimer - NEOTECH® UAE

BellCon, BellCount, S515 and related names are trademarks or product identifiers of their respective owners.

Currency availability, banknote-series recognition, serial-number reading and sorting functionality depend on the installed software and exact machine configuration. Required currencies, including AED, should be verified before ordering.

The S515 uses multiple technologies to identify suspect banknotes, but no automated banknote counter should be treated as an absolute guarantee of authenticity. Rejected or suspicious notes should be manually reviewed and handled according to applicable organizational and regulatory procedures.

Counting speed, hopper capacity, stacker capacity, reject-pocket capacity and other technical figures are manufacturer specifications under defined conditions. Actual performance may vary according to banknote condition, currency, operating mode and machine configuration.

Optional external displays, printers and other accessories should not be assumed to be included unless specifically stated in the quotation.

Package contents, software version, current currency support, availability and applicable UAE warranty/service arrangements should be confirmed before ordering.

Last Updated: 29 September 2026 (GST, UTC+4)
