25.4mm Handheld and Inline Coding for Larger Variable Product and Packaging Information.

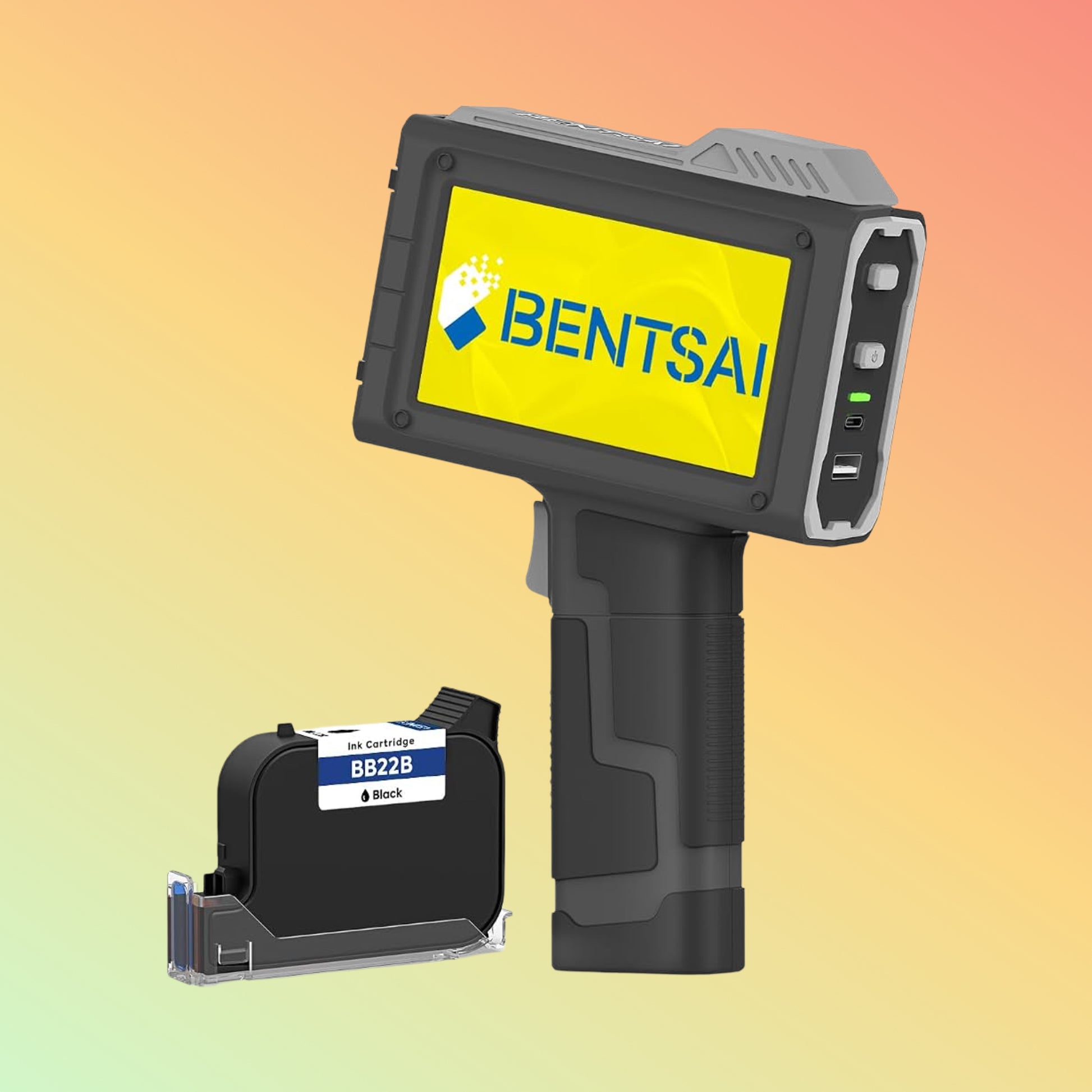

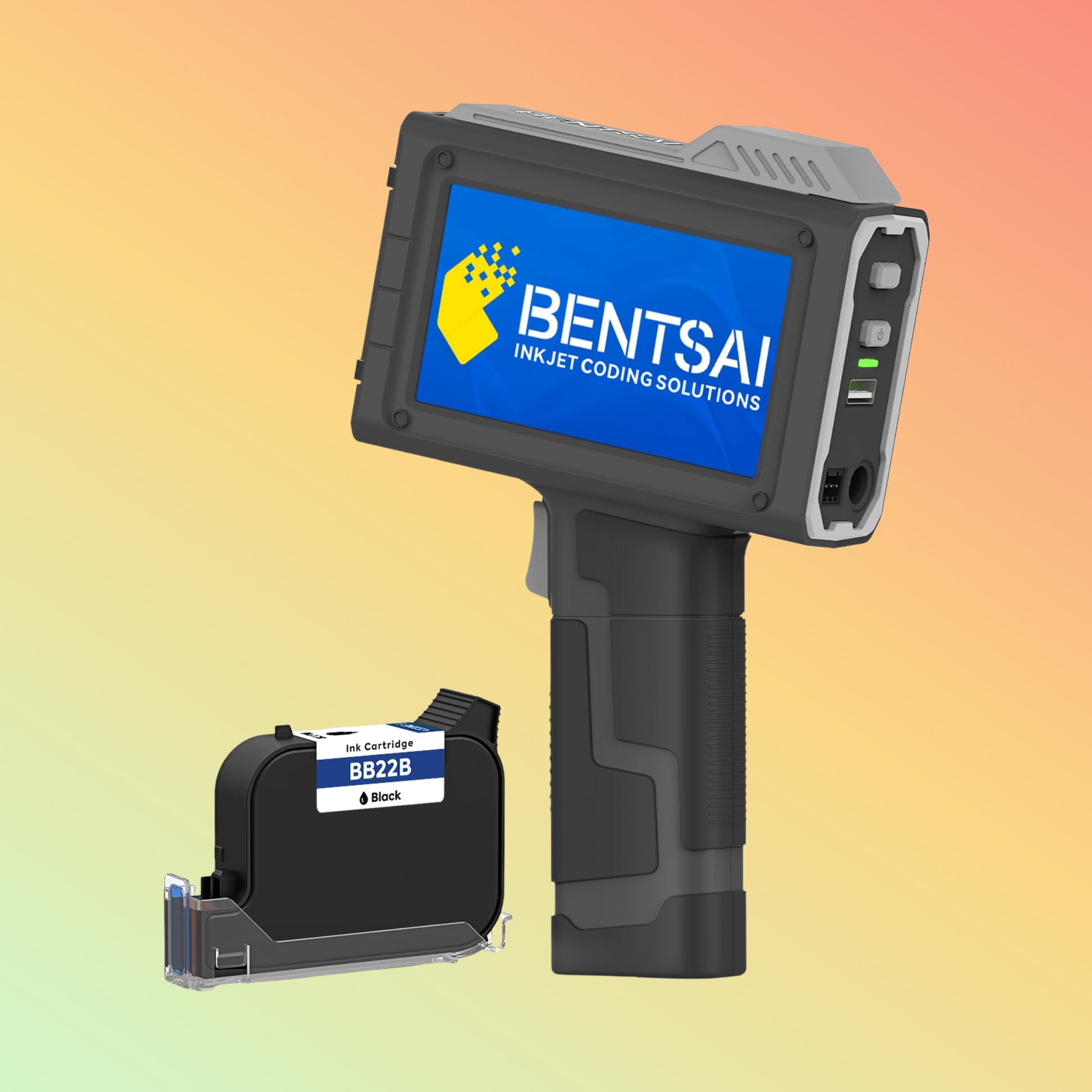

BENTSAI BT-HH6210BL 6210BL Online Handheld Inkjet Printer The BENTSAI BT-HH6210BL is a 25.4 mm / 1-inch thermal inkjet coding printer designed to support both portable handheld marking and compatible inline/conveyor applications.

The 6210BL combines the larger print area of BENTSAI's 6210 series with external sensor support for automated product detection in suitable production-line configurations.

It can be considered for printing variable information such as text, dates, batch numbers, lot numbers, serial numbers, counters, barcodes, QR codes, Data Matrix codes, images and logos on compatible products and packaging.

The exact printer, ink cartridge and online accessories should be selected according to the actual material and production workflow.

Overview

The BT-HH6210BL provides a larger coding area than BENTSAI's 12.7 mm 6205 series.

Key characteristics include:

• 25.4 mm / 1-inch printhead
• Handheld printing
• Supported inline/conveyor operation
• External sensor / photocell capability
• Up to 25.4 mm print height
• Multi-line printing
• 300 dpi print resolution
• Text and numeric information
• Date and time coding
• Batch and lot numbers
• Serial numbers and counters
• 1D barcodes
• QR Code
• Data Matrix
• Images and logos
• Variable-data printing
• USB file transfer
• Water-based and solvent-based cartridge options depending on substrate

25.4mm / 1-Inch Print Height

The BT-HH6210BL belongs to BENTSAI's 25.4 mm coding class.

Maximum Print Height: Up to 25.4 mm / 1 inch

The larger print area can be useful where a 12.7 mm printer does not provide sufficient vertical space for the required message.

Potential content includes:

• Larger text
• Multiple lines
• Batch information
• Lot numbers
• Production dates
• Expiry-related dates
• Product identification
• Larger QR codes
• Barcodes
• Logos
• Variable production information

The actual printable layout depends on font size, code dimensions, content and printer settings.

Handheld Printing

The BT-HH6210BL can be operated as a portable handheld printer.

A typical workflow is:

Create Print Message → Select Correct Ink → Position Printer → Move Across Surface → Print

Handheld operation may be useful for:

• Corrugated cartons
• Outer packaging
• Large boxes
• Stored inventory
• Irregular products
• Items that are difficult to move to a fixed coding station

The operator's movement and positioning can affect the final print result.

Inline / Online Conveyor Coding

The important difference between BT-HH6210B and BT-HH6210BL is the BL model's support for external triggering for compatible inline applications.

A typical arrangement may operate as:

Conveyor → Product Approaches → Sensor Detects Product → Printer Triggered → Code Printed

This can be considered for repeatable coding of products moving through a suitable production or packaging workflow.

Important Inline Installation Guidance

The printer alone does not create a complete automated coding line.

Depending on the installation, additional components may be required, including:

• Photocell / product sensor
• Printer mounting hardware
• Suitable bracket
• Power arrangement
• Conveyor
• Position adjustment
• Cabling
• Other application-specific accessories

Exact package contents should therefore be confirmed before ordering.

Print Resolution

Print Resolution: 300 dpi

The 6210 series prioritises a larger 25.4 mm print area compared with the smaller 6205 series.

Actual print quality depends on several factors, including:

• Ink cartridge
• Substrate
• Print distance
• Hand movement or conveyor movement
• Surface condition
• Message design
• Code density

Variable Data Printing

The BT-HH6210BL supports variable information for applications where the printed content changes between products, batches or production cycles.

Depending on the configured content, this may include:

• Sequential numbers
• Serial numbers
• Counters
• Batch numbers
• Lot numbers
• Dates
• Variable text
• Variable barcodes
• Variable QR codes
• Variable Data Matrix codes

The printer provides the marking capability. Database, ERP, production-control and traceability systems remain separate unless specifically integrated.

Barcode Printing

Supported barcode formats across the relevant BENTSAI 6205/6210 platform include formats such as:

• Code 128
• Code 39
• EAN-8
• EAN-13
• UPC-A
• UPC-E
• Interleaved 2 of 5
• ITF-14 on supported configurations

QR Code & Data Matrix Printing

Supported two-dimensional code capabilities include:

• QR Code
• Data Matrix
• GS1 Data Matrix on supported configurations

For regulated GS1 or automated scanning applications, the final printed code should be tested and validated against the customer's required scanner and workflow.

Date, Batch & Lot Coding

The BT-HH6210BL may be considered for variable product information such as:

• Production date
• Manufacturing date
• Expiry-related date
• Batch number
• Lot number
• Serial number
• Product reference
• Internal tracking information

The printer does not determine the legally required information or appropriate expiry date. The operator remains responsible for entering and validating the correct data.

Image & Logo Printing

The BENTSAI platform supports suitable monochrome image content and logos.

Supported image formats may include:

• JPG / JPEG
• PNG
• BMP

Complex artwork should be tested before production because print reproduction differs from conventional desktop or commercial graphics printing.

Choosing the Correct Ink

Printer selection and ink selection should be considered together.

Water-Based Ink

Water-based cartridges are generally intended for compatible porous and semi-porous materials such as:

• Paper
• Corrugated cardboard
• Fiberboard
• Wood
• Selected textile materials

Solvent-Based Ink

Solvent-based cartridges are generally intended for selected semi-porous and non-porous materials such as:

• Plastic
• Metal
• Glass
• Aluminium
• Foil
• Cable
• Coated packaging

Material descriptions provide general guidance only.

Why Surface Testing Matters

A material being called “plastic,” “metal” or “cardboard” does not guarantee a particular print result.

Ink adhesion, drying and durability can be influenced by:

• Material composition
• Surface coating
• Surface energy
• Oil
• Dust
• Moisture
• Ink formulation
• Ambient temperature
• Print distance
• Required abrasion resistance

For important production applications, NEOTECH® recommends testing the intended ink on the actual material before full deployment.

Packaging & Carton Coding Applications

The 25.4 mm print area can make the BT-HH6210BL relevant for compatible:

• Corrugated cartons
• Product boxes
• Outer packaging
• Shipping cartons
• Batch identification
• Date coding
• Lot coding
• Product identification
• QR code marking
• Barcode marking

Manufacturing Applications

Potential applications include:

• Production identification
• Batch tracking
• Serialisation
• Component marking
• Product references
• Internal traceability
• Variable production information
• Logo marking

Suitability depends on the actual substrate, ink and required durability.

Warehouse & Logistics Applications

The printer may also be considered for compatible:

• Carton identification
• Inventory codes
• Warehouse references
• Product codes
• Variable barcodes
• QR identification
• Internal tracking information

It does not replace warehouse-management, inventory or ERP software.

Technical Specifications

Brand: BENTSAI

Model: BT-HH6210BL / HH6210BL

Series: 6210

Product Type: Handheld & Online Thermal Inkjet Coding Printer

Printhead Class: 25.4 mm / 1 inch

Maximum Print Height: Up to 25.4 mm

Print Lines: Up to 10 according to relevant BENTSAI 6210-series documentation

Print Resolution: 300 dpi

Printing Technology: Thermal Inkjet

Operating Modes: Handheld + supported inline operation

External Trigger: Supported on BL configuration

Print Content: Text, numbers, dates, counters, barcodes, QR codes, Data Matrix, images, logos and variable data

Image Formats: JPG/JPEG, PNG and BMP on supported configuration

Interface: USB plus external sensor interface associated with BL configuration

Ink Options: Water-based or solvent-based depending on cartridge and substrate

Print Distance: A small controlled gap between printhead and substrate is required according to the manufacturer's operating guidance.

Exact physical dimensions, battery specifications, accessories and package contents should be confirmed against the supplied configuration because these can vary by version and market.

BT-HH6210BL vs BT-HH6210B

The distinction is important for searchers choosing between these two models.

BENTSAI BT-HH6210B

• 25.4 mm / 1-inch printhead
• Handheld operation
• 300 dpi
• Variable-data coding
• Suitable where portable manual printing is required

BENTSAI BT-HH6210BL

• 25.4 mm / 1-inch printhead
• Handheld operation
• Supported inline/conveyor operation
• External trigger / photocell capability
• 300 dpi
• Variable-data coding

If the requirement is exclusively handheld, the 6210B may be sufficient.

If both handheld and compatible sensor-triggered line operation are required, the 6210BL is the relevant model to evaluate.

6205BL vs 6210BL

Print height is another important selection factor.

BT-HH6205BL

Print Class: 12.7 mm / 0.5 inch
Operation: Handheld + inline
Suitable for: Compact coding and smaller print areas

BT-HH6210BL

Print Class: 25.4 mm / 1 inch
Operation: Handheld + inline
Suitable for: Larger text, multi-line information and larger coding areas

A larger printhead is not automatically better. The correct size depends on the actual message that needs to be printed.

Purpose of Use

The BT-HH6210BL is intended for businesses requiring a flexible coding device capable of being used manually and, when appropriately configured, as part of an inline workflow.

It may be relevant where the same business has both:

Portable Coding Requirements

and

Repeatable Production-Line Coding Requirements

For demanding continuous industrial production, the application should be assessed carefully to determine whether a dedicated fixed industrial coding system would be more appropriate.

Buyer Guidance – What to Confirm Before Ordering

Before selecting the BT-HH6210BL, consider:

• Is 25.4 mm print height required?
• How many lines are needed?
• Is the printer required for handheld use?
• Is inline/conveyor operation required?
• Is a photocell required?
• What mounting arrangement is needed?
• What is the conveyor speed?
• What material will be printed?
• Is the surface porous or non-porous?
• Which ink formulation is required?
• Which ink colour is required?
• Is a barcode required?
• Is QR Code required?
• Is Data Matrix required?
• Is variable data required?
• What print durability is expected?
• Which accessories are included?

These questions are more useful than selecting a printer solely because it has a larger printhead.

Learn Before Choosing Your Coding Equipment

NEOTECH® Learning Center is free and open to everyone. You do not need to be a NEOTECH® customer to access or benefit from our educational content. Learn at your own pace, explore the information freely, and make informed decisions based on your own needs. There is no obligation or pressure to purchase from NEOTECH®.

Educational information can help buyers understand subjects such as thermal inkjet technology, ink selection, substrate compatibility, barcode requirements and handheld versus inline coding before deciding which equipment is appropriate.

Why Choose NEOTECH® UAE

NEOTECH® focuses on helping customers understand the equipment before making a purchasing decision.

For BENTSAI requirements, we can assist with:

• 6205 vs 6210 model comparison
• B vs BL configuration differences
• 12.7 mm vs 25.4 mm print height
• Handheld vs inline requirements
• Water-based vs solvent-based ink considerations
• Substrate compatibility considerations
• Barcode, QR and Data Matrix requirements
• UAE product availability

Learn First. Decide Second. Buy Only If It Is Right for Your Needs.

There is absolutely no obligation or pressure to proceed with the purchase with us.

UAE Delivery

NEOTECH® supplies within the United Arab Emirates.

Shipping: Free Standard Shipping
Order Cut-Off: 2:00 PM GST
Handling: 1–2 business days
Transit: 3–5 business days
Estimated Total Delivery: 4–7 business days

Availability can vary according to printer configuration, cartridge, ink colour and accessories. Please confirm availability for time-sensitive requirements.

FAQ - BENTSAI BT-HH6210BL

Q: What is the print height of the BENTSAI BT-HH6210BL?
A: The BT-HH6210BL belongs to BENTSAI's 1-inch coding family and supports a maximum print height of approximately 25.4 mm. The usable layout depends on content, font size and print settings.

Q: What is the difference between BENTSAI BT-HH6210B and BT-HH6210BL?
A: Both belong to the 25.4 mm 6210 family. The BT-HH6210B is intended for handheld operation, while the BT-HH6210BL additionally supports external triggering for compatible inline/conveyor applications.

Q: Can the BT-HH6210BL print on cardboard, plastic, metal and glass?
A: Suitable ink systems are available for different substrate categories, but compatibility is not universal. Water-based ink is generally used for porous materials, while solvent-based cartridges are intended for selected non-porous materials. Testing the actual substrate is recommended when adhesion or durability is important.

Helpful Internal Links

• BENTSAI Handheld & Industrial Inkjet Coding Printers
• BENTSAI BT-HH6205BL 12.7mm Online Handheld Inkjet Printer
• BENTSAI BT-HH6210B 25.4mm Portable Handheld Inkjet Printer

Contact NEOTECH® UAE

NEOTECH®
Operated by NEOLYN TECHNOLOGY LLC

Email: support@neotech.ae

Address:
Store 13, Computer Building
Al Fahidi, Bur Dubai
Dubai 44245
United Arab Emirates

Disclaimer – NEOTECH® UAE

BENTSAI and associated product names and trademarks belong to their respective rights holders. NEOTECH® does not claim manufacturer authorization, distributorship or partnership unless separately supported by current documentation.

Product specifications, firmware, cartridge compatibility, ink colours, accessories and package contents may vary by configuration or production revision.

Inline operation requires an appropriate installation and may require a sensor, mounting hardware, conveyor or other accessories. These should not be assumed to be included unless specifically stated for the supplied configuration.

Printing on a general material category such as paper, cardboard, plastic, glass or metal does not guarantee adhesion or durability on every substrate. The correct ink should be selected and critical applications tested using the actual material.

References to manufacturing, food packaging, logistics, traceability or other industries describe potential applications only and do not constitute certification, regulatory approval or guaranteed suitability.

Please verify the exact model, ink cartridge, substrate, accessories and application requirements before ordering.

Last Updated: 16 August 2026  (GST, UTC+4)
