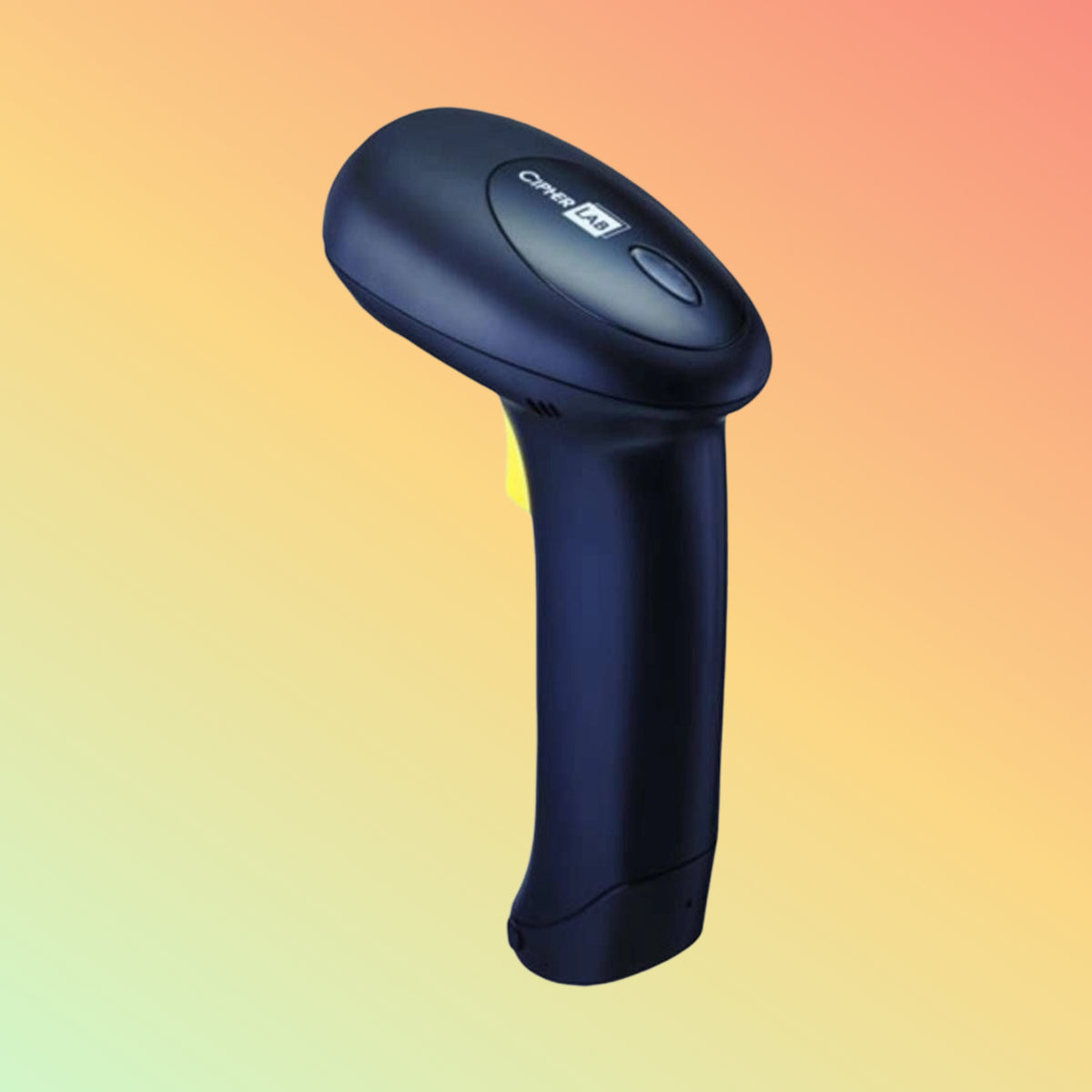

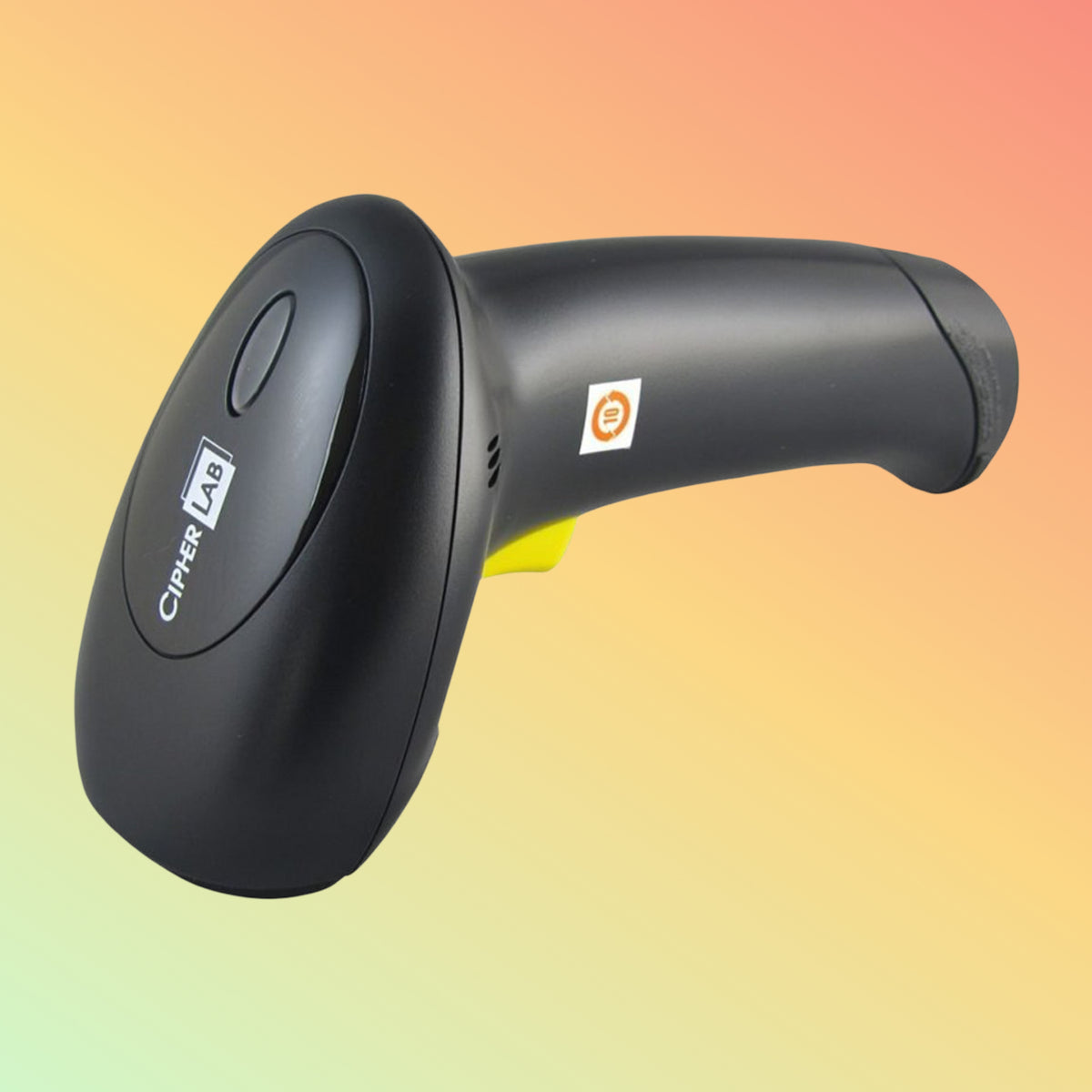

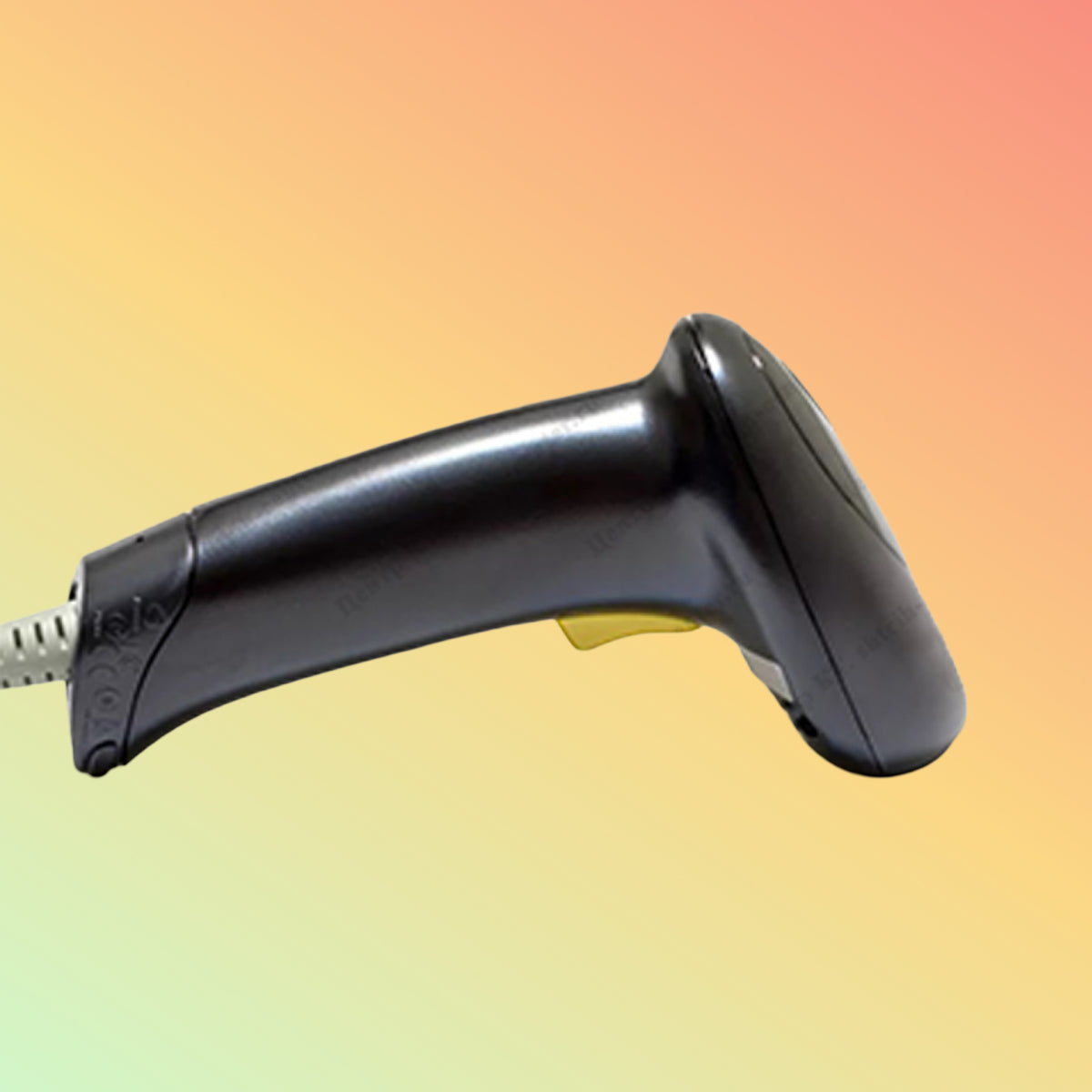

CipherLab 1564A Bluetooth 1D/2D Barcode Scanner | NEOTECH® UAE

(369)

AED 0.00

Sale Available on Request

Shipping calculated at checkout.

Cordless 2D Area Imager with 1280 × 960 CMOS Sensor, Bluetooth 4.0+EDR, Up to 90 m Line-of-Sight Communication, QR Code, Data Matrix, PDF417, Han Xin and Postal Code Support

Product Overview

The CipherLab 1564A is a cordless Bluetooth 1D/2D area-imaging barcode scanner designed for applications that require both modern 2D barcode capture and freedom of movement away from a fixed workstation.

It combines a 1280 × 960-pixel CMOS image sensor, 3 mil 1D / 5 mil 2D resolution and Bluetooth Class 2 connectivity with support for major barcode formats including QR Code, Data Matrix, PDF417, MicroPDF417, Aztec, MaxiCode and Han Xin Code.

The 1564A also supports several postal barcode formats and provides auto-sense and presentation scanning modes for appropriate hands-free workflows.

With the applicable communication setup, CipherLab specifies Bluetooth communication of up to approximately 90 metres / 295 feet line of sight.

This makes the 1564A particularly relevant to retail, healthcare, pharmacy, inventory, public-sector and document-processing environments where operators need to capture both 1D and 2D barcodes without remaining connected by a scanner cable.

Professional Highlights

Bluetooth cordless 1D/2D barcode scanner
2D area-imaging technology
1280 × 960-pixel CMOS image sensor
White LED illumination
3 mil minimum 1D resolution
5 mil minimum 2D resolution
Up to approximately 30 scans per second
Bluetooth Class 2, 2.4 GHz
Bluetooth Version 4.0+EDR
SPP and HID Bluetooth profiles
Up to approximately 90 m / 295 ft line-of-sight communication
QR Code support
Micro QR Code support
Data Matrix support
PDF417 and MicroPDF417 support
Aztec support
MaxiCode support
Han Xin Code support
Multiple postal barcode formats
Auto-sense scanning
Presentation scanning mode
Pitch ±60°
Skew ±60°
Multiple 1.2 m drops onto concrete
IP30 enclosure rating
Approximately 185 g with battery
CipherLab ScanMaster support
Suitable for retail, healthcare, pharmacy and general business workflows

Bluetooth 2D Barcode Scanning

The main reason to choose the CipherLab 1564A is the combination of:

Cordless Bluetooth mobility + 1D/2D barcode capture

This gives operators greater freedom than the corded 1504A while maintaining the same general high-resolution 2D imaging category.

Potential applications include:

Retail-floor scanning
Pharmacy
Healthcare
Inventory
Stock receiving
Document processing
Public-sector operations
Back-room scanning
Mobile workstation workflows

Bluetooth 4.0+EDR

CipherLab specifies:

Bluetooth Class 2, 2.4 GHz, Version 4.0+EDR

with support for:

The appropriate profile should be selected according to the host system and software.

Bluetooth capability alone does not guarantee compatibility with every computer, POS terminal, tablet, mobile device or application.

Up to 90 m Line-of-Sight Communication

With the applicable communication setup, CipherLab specifies wireless coverage of up to approximately:

90 metres / 295 feet line of sight

This can provide useful freedom of movement in larger work areas.

Actual indoor Bluetooth range may be reduced by:

Walls
Metal shelving
Building structure
Equipment
Radio interference
Host location
Scanner orientation
Communication configuration

The 90 m figure should therefore be treated as a line-of-sight manufacturer specification, not a guaranteed indoor operating radius.

1280 × 960 CMOS Image Sensor

The CipherLab 1564A uses a:

1280 × 960-pixel CMOS image sensor

with:

White LED illumination

The area-imaging architecture allows the scanner to capture both conventional linear barcodes and supported two-dimensional symbols.

This is fundamentally different from the 1560P linear imager and 1562 laser scanner, which are 1D-only models.

1D + 2D Barcode Support

The 1564A can handle common traditional 1D barcodes while also supporting modern 2D symbols.

1D Barcode Support

The scanner supports the applicable major 1D formats of the CipherLab 1500 Series, including:

UPC
EAN
Code 39
Code 93
Code 128
GS1-128
GS1 DataBar
Codabar
Interleaved 2 of 5
Industrial 2 of 5
ISBT-128
MSI
Plessey
Telepen
Pharmacode

and other supported linear formats.

2D Barcode Support

The 1564A supports:

PDF417
MicroPDF417
Data Matrix
QR Code
Micro QR Code
Aztec
MaxiCode
Han Xin Code

This broader barcode capability can reduce the need for separate scanners when an organization works with both traditional and modern barcode formats.

3 Mil 1D Resolution

CipherLab specifies minimum 1D resolution down to approximately:

3 mil

For Code 39 at 3 mil, the specified reading range is approximately:

6.9–10.7 cm

This can be useful for appropriately printed high-density linear barcodes.

Actual performance depends on barcode size, contrast, print quality, surface and environmental conditions.

5 Mil 2D Resolution

For 2D symbols, CipherLab specifies minimum resolution down to approximately:

5 mil

This capability can be important where compact Data Matrix, PDF417 or other high-density 2D symbols are used.

For critical deployments, representative production barcodes should be tested before quantity ordering.

QR Code Scanning

Yes, the CipherLab 1564A reads QR Codes.

It also supports:

Micro QR Code

For a 10 mil QR Code, CipherLab specifies an approximate reading range of:

2.5–16.5 cm

Actual distance varies according to code size, printing, contrast and scanning conditions.

Data Matrix Scanning

The 1564A supports Data Matrix.

This makes it suitable for consideration in applications involving compact 2D product-identification codes, including appropriate:

Pharmacy workflows
Healthcare
Manufacturing
Electronics
Product traceability
Inventory
Document processing

Barcode support should not be confused with complete software or regulatory compatibility.

PDF417 Scanning

The 1564A supports:

PDF417
MicroPDF417

This can be relevant to document, identification and other workflows where PDF417-family symbols are used.

Actual production codes should be tested when symbol density or print quality is demanding.

Han Xin Code Support

The CipherLab 1564A supports:

Han Xin Code

This extends its 2D capability beyond the more common QR Code and Data Matrix formats.

It may be useful to businesses processing barcode formats originating from different international markets.

Postal Barcode Support

CipherLab lists postal-code support including:

US PostNet
US Planet
UK Postal
Australian Postal
Japan Postal
Dutch Postal / KIX

This can make the 1564A relevant to compatible postal, document and administrative workflows.

Healthcare Applications

The 1564A is particularly relevant where healthcare personnel require 2D barcode capability plus cordless movement.

Potential applications include:

Medicine-package scanning
Supply identification
Inventory
Patient-related barcode workflows
Equipment identification
Document identification
Internal tracking

CipherLab has also documented deployment of the 1564A in drug-administration workflows where Bluetooth mobility allowed healthcare personnel to move around the working environment.

The scanner captures encoded barcode information; the complete healthcare application, software and clinical process must be validated separately.

Pharmacy Applications

The 1564A can be considered for pharmacy environments requiring both conventional 1D codes and supported 2D formats such as Data Matrix.

Potential uses include:

Medicine identification
Stock receiving
Inventory
Product lookup
Data Matrix capture
Product traceability workflows

The scanner does not independently determine medicine authenticity, regulatory compliance or clinical suitability.

Retail Applications

The CipherLab 1564A can support retail environments that require greater flexibility than a conventional corded checkout scanner.

Potential applications include:

Product identification
UPC/EAN scanning
Inventory lookup
Stock checking
Goods receiving
Returns processing
Membership barcodes
Supported QR workflows
Back-room scanning

For a permanently fixed checkout where mobility provides little benefit, a corded 1504A or 1504P may be simpler.

Inventory & Stockroom Applications

Bluetooth mobility can be valuable when employees need to move around products rather than bring every item to a fixed scanning station.

Potential applications include:

Inventory counting
Goods receiving
Stock verification
Product lookup
Replenishment
Internal stock movement
Back-room operations
Packing and dispatch identification

The host ERP, POS, inventory or warehouse application determines how decoded barcode information is processed.

Public-Sector & Document Applications

The 1564A can also support compatible public-sector and document workflows requiring a mixture of 1D and 2D codes.

Potential applications include:

Document identification
Account lookup
Reference-number capture
File tracking
Administrative processing
Postal-code capture
Counter and back-office operations

Software and barcode compatibility should be verified before deployment.

Auto-Sense Scanning

CipherLab specifies:

Auto-sense mode

for the 1564A.

This can be useful in an appropriate stand arrangement where barcodes are repeatedly presented to the scanner.

Presentation Mode

The 1564A also supports:

Presentation mode

This can reduce repeated trigger use in suitable hands-free workflows.

The actual stand, scanner positioning and application should be configured and tested before deployment.

Scanning Angles

CipherLab specifies:

Pitch: ±60°

Skew: ±60°

This provides flexibility when the barcode is not presented perfectly perpendicular to the scanner.

Reading Ranges

Representative CipherLab specifications for the 1564A imaging platform include:

Code 39, 3 mil: Approximately 6.9–10.7 cm

Code 39, 5 mil: Approximately 3.6–18.5 cm

UPC-A, 13 mil: Approximately 4–30.5 cm

PDF417, 5 mil: Approximately 7.1–11.4 cm

QR Code, 10 mil: Approximately 2.5–16.5 cm

Actual reading distance varies with barcode type, density, print quality, contrast and operating conditions.

30 Scans per Second

CipherLab specifies:

Up to approximately 30 scans per second

for the 1564A imaging platform.

This figure should not be directly compared with the much higher scan-rate figures of 1D linear imagers.

A 2D area imager captures and processes two-dimensional barcode images and serves a broader barcode requirement.

Communication Stand

CipherLab provides applicable communication-stand architecture for its Bluetooth scanner models.

The exact:

Communication stand
Host interface
Charging arrangement
Power supply
Accessories

should be confirmed for the configuration being ordered.

Do not assume every 1564A package contains the same accessories.

Rechargeable Cordless Operation

The 1564A uses rechargeable battery-powered operation to provide Bluetooth mobility.

Actual operating time depends on factors such as:

Scan frequency
Bluetooth activity
Wireless conditions
Scanner configuration
Battery age
Charging condition
Operating environment

Battery runtime should therefore be treated as application-dependent.

1.2 m Drop Resistance

CipherLab specifies:

Multiple 1.2 m / 3.9 ft drops onto concrete

for the 1564A.

This provides protection against ordinary accidental drops in commercial environments.

It does not mean the scanner is indestructible.

IP30 Protection

The CipherLab 1564A carries an:

IP30

ingress-protection rating.

It is primarily intended for normal indoor commercial environments.

IP30 should not be interpreted as suitable for:

Rain
Water exposure
Wash-down areas
Wet processing
Heavy dust
Unprotected outdoor use

A more rugged scanner should be considered for harsher operating conditions.

Compact Cordless Design

Dimensions are approximately:

153 × 61 × 93 mm

Weight is approximately:

185 g / 6.5 oz with battery

This maintains the familiar CipherLab 1500 Series handheld format while adding battery-powered Bluetooth operation.

Technical Specifications

Brand: CipherLab
Model: 1564A
Series: CipherLab 1500 Series
Product Type: Bluetooth Handheld 1D/2D Barcode Scanner
Scanning Technology: 2D Area Imager
Optical Sensor: CMOS image sensor
Sensor Resolution: 1280 × 960 pixels
Light Source: White LED
Connectivity: Bluetooth cordless

Barcode Resolution

1D: Approximately 3 mil minimum

2D: Approximately 5 mil minimum

Scan Rate

Up to approximately:

30 scans/second

Bluetooth

Class: Bluetooth Class 2
Frequency: 2.4 GHz
Version: Bluetooth 4.0+EDR
Profiles: SPP, HID
Coverage: Up to approximately 90 m / 295 ft line of sight with applicable communication setup

Scanning Angle

Pitch: ±60°

Skew: ±60°

Hands-Free Modes

Auto-sense
Presentation mode

Supported 2D Barcodes

PDF417
MicroPDF417
Data Matrix
QR Code
Micro QR Code
Aztec
MaxiCode
Han Xin Code

Supported Postal Codes

US PostNet
US Planet
UK Postal
Australian Postal
Japan Postal
Dutch Postal / KIX

Dimensions

Approximately:

153 × 61 × 93 mm

Weight

Approximately:

185 g / 6.5 oz with battery

Colour

Black

Impact Resistance

Multiple drops from approximately:

1.2 m / 3.9 ft onto concrete

Ingress Protection

IP30

CipherLab 1564A vs 1504A

These models share closely related 2D imaging characteristics, but connectivity is the major difference.

CipherLab 1564A

Bluetooth cordless
Bluetooth 4.0+EDR
SPP and HID
Up to approximately 90 m line of sight
Battery-powered
Approximately 185 g with battery

CipherLab 1504A

Corded
No Bluetooth battery management
Fixed-workstation operation
Approximately 154 g without cable

Both use a 1280 × 960 CMOS imaging platform and support high-density 1D/2D barcode capture.

Choose the 1564A when cordless movement provides meaningful operational value.

Choose the 1504A when the scanner remains at a fixed workstation and a cable is acceptable.

CipherLab 1564A vs 1560P

Both provide Bluetooth mobility, but their barcode capabilities are fundamentally different.

CipherLab 1564A

2D area imager
Reads supported 1D + 2D barcodes
QR Code
Data Matrix
PDF417
Han Xin Code
3 mil 1D / 5 mil 2D resolution

CipherLab 1560P

1D linear imager
520 scans/sec
3 mil resolution
Long 1D barcode capability
Does not provide general 2D scanning

Choose according to the actual barcode requirement rather than assuming the 2D model is necessary for every application.

CipherLab 1564A vs 1562

CipherLab 1564A

Bluetooth 2D area imager
1D + 2D capability
QR Code
Data Matrix
PDF417
Bluetooth 4.0+EDR

CipherLab 1562

Bluetooth 1D laser scanner
Traditional linear barcode capture
100 scans/sec
4 mil resolution
Bluetooth 2.1+EDR
No general 2D scanning

If the workflow requires QR Code or Data Matrix, the 1564A is the relevant category.

CipherLab 1564A vs 1504P

Both can read supported 1D and 2D barcodes, but they serve different deployment requirements.

CipherLab 1564A

Bluetooth cordless
1280 × 960 CMOS sensor
30 scans/sec
Han Xin and specified postal-code support
Greater operator mobility

CipherLab 1504P

Corded
1280 × 800 CMOS sensor
60 scans/sec
Fixed-workstation simplicity

The correct choice depends on barcode requirements and whether cordless mobility is genuinely useful.

Purpose of Use

The CipherLab 1564A is intended for applications requiring:

Bluetooth cordless scanning
1D and 2D barcode capture
QR Code scanning
Data Matrix scanning
PDF417 scanning
High-density barcode capture
Pharmacy workflows
Healthcare workflows
Retail-floor mobility
Inventory
Stock receiving
Document processing
Postal barcode capture
Public-sector applications

Compatibility

Before ordering, verify compatibility with:

Required barcode symbologies
Host device
Bluetooth profile
POS software
ERP software
Inventory application
Pharmacy system
Healthcare application
Communication stand
Charging arrangement
Barcode dimensions
Required reading distance
Hands-free requirement

Bluetooth connectivity and barcode support do not automatically guarantee compatibility with every host or software application.

Things to Verify Before Ordering

Please confirm:

Exact model: CipherLab 1564A
Required 1D symbologies
Required 2D symbologies
QR Code requirement
Data Matrix requirement
PDF417 requirement
Han Xin requirement if applicable
Postal-code requirement if applicable
Smallest barcode size
Bluetooth mobility requirement
Required Bluetooth profile
Required communication range
Host equipment
Software compatibility
Communication stand requirement
Charging arrangement
Quantity
Current availability
Package contents
Applicable UAE warranty entitlement

For pharmaceutical, healthcare or high-density applications, testing representative production barcodes before larger deployment is recommended.

Who Should Consider the CipherLab 1564A?

The 1564A may be suitable for:

Retail stores
Pharmacies
Healthcare facilities
Inventory teams
Goods receiving
Stockrooms
Public-sector environments
Document-processing operations
Businesses requiring QR Code and Data Matrix scanning
Workflows requiring both 2D capability and Bluetooth mobility

Who May Need a Different Scanner?

Consider another model if you require:

Only basic fixed 1D scanning
A permanently corded checkout scanner
Heavy industrial ruggedness
Water resistance
Higher ingress protection
Extended-range warehouse scanning
Specialized Direct Part Marking
Outdoor operation

Bluetooth and 2D capability add value when the workflow actually requires them; they should not be selected merely because they provide more features.

How to Use

Confirm the required host and Bluetooth configuration.
Charge the scanner before cordless operation.
Pair or configure the CipherLab 1564A with the applicable host or communication setup.
Select the appropriate SPP or HID workflow.
Configure the required 1D and 2D barcode symbologies.
Open the target POS, ERP, pharmacy, healthcare or inventory application.
Present the complete barcode within the scanner's imaging field.
Pull the trigger or use an appropriately configured hands-free mode.
Confirm that decoded data reaches the correct application field.
Test every production barcode format used by the organization.
Test Bluetooth coverage throughout the intended operating area before full deployment.

Why NEOTECH® UAE?

NEOTECH® focuses on helping UAE customers choose scanners according to the actual barcode, mobility and application requirement.

Exact CipherLab model verification
1D versus 2D scanner guidance
Corded versus Bluetooth selection guidance
QR Code and Data Matrix requirement checking
Barcode symbology verification
Bluetooth profile and range guidance
Pharmacy and healthcare barcode guidance
POS and application compatibility guidance
Transparent availability and lead-time communication
UAE-focused quotation and delivery support
No pressure to purchase when the scanner is unsuitable

Learn First. Decide Second.

Request a Quote or Order in the UAE

Looking for the CipherLab 1564A Bluetooth 1D/2D Barcode Scanner?

For accurate selection, please provide:

Quantity
Application or industry
Barcode type
Sample barcode where possible
Required operating distance
Host equipment
POS/ERP/pharmacy/software name
Communication stand requirement
Hands-free scanning requirement

For pharmaceutical, healthcare or specialized high-density barcodes, providing an actual barcode sample can help confirm suitability before ordering.

For price, availability or a formal quotation:
Email: support@neotech.ae

Learn First. Decide Second.

Delivery - UAE

Delivery is available within the United Arab Emirates.

Order Cut-Off: 14:00 GST
Handling: 1–2 business days where applicable
Standard Transit: Approximately 3–5 business days after handling
Typical Total Delivery: Approximately 4–7 business days for confirmed available products

For non-stock or special-order items, delivery may extend to approximately 10–15 working days or up to 25 working days after payment/order confirmation, depending on supplier/manufacturer availability.

Current availability, communication stand, charging arrangement and package configuration should be confirmed before ordering.

FAQ - CipherLab 1564A

Q: What is the CipherLab 1564A?
A: The CipherLab 1564A is a Bluetooth cordless handheld 2D area-imaging scanner capable of reading supported 1D and 2D barcodes.

Q: Is the CipherLab 1564A wireless?
A: Yes. It uses Bluetooth for cordless operation.

Q: What Bluetooth version does the 1564A use?
A: CipherLab specifies Bluetooth Class 2, 2.4 GHz, Version 4.0+EDR.

Q: Which Bluetooth profiles does it support?
A: SPP and HID.

Q: What is the Bluetooth range?
A: CipherLab specifies up to approximately 90 m / 295 ft line of sight with the applicable communication setup. Actual indoor range varies.

Q: Does the CipherLab 1564A read QR Codes?
A: Yes. It supports QR Code and Micro QR Code.

Q: Does it read Data Matrix?
A: Yes.

Q: Does it read PDF417?
A: Yes. PDF417 and MicroPDF417 are supported.

Q: Does it support Han Xin Code?
A: Yes.

Q: Does it read normal UPC and EAN product barcodes?
A: Yes. The 1564A supports major 1D formats in addition to 2D barcodes.

Q: What image sensor does the 1564A use?
A: CipherLab specifies a 1280 × 960-pixel CMOS image sensor.

Q: What is its minimum 1D resolution?
A: Approximately 3 mil.

Q: What is its minimum 2D resolution?
A: Approximately 5 mil.

Q: How fast does it scan?
A: CipherLab specifies up to approximately 30 scans per second.

Q: Can the CipherLab 1564A be used in pharmacies?
A: It can be suitable for compatible pharmacy workflows requiring supported 1D or 2D barcodes, including Data Matrix. The actual barcode and software should be verified.

Q: Can it be used in healthcare?
A: Yes, for compatible barcode workflows. The complete healthcare application and operational process must still be validated separately.

Q: Does it support postal barcodes?
A: Yes. CipherLab lists several postal formats including US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal and Dutch Postal/KIX.

Q: Can the CipherLab 1564A operate hands-free?
A: Yes. CipherLab specifies auto-sense and presentation scanning modes.

Q: Is the communication stand always included?
A: It should not be assumed to be included. Package contents and required accessories should be confirmed in the quotation.

Q: What is the drop specification?
A: CipherLab specifies multiple 1.2 m drops onto concrete.

Q: What is its IP rating?
A: IP30.

Q: Is the CipherLab 1564A waterproof?
A: No. IP30 does not provide water protection.

Q: What are its dimensions?
A: Approximately 153 × 61 × 93 mm.

Q: How much does it weigh?
A: Approximately 185 g with battery.

Q: What is the difference between CipherLab 1564A and 1504A?
A: Both use a 1280 × 960 2D imaging platform, but the 1564A provides Bluetooth cordless operation while the 1504A is corded.

Q: What is the difference between CipherLab 1564A and 1560P?
A: The 1564A is a 1D/2D area imager supporting QR Code and Data Matrix, while the 1560P is a faster 1D linear imager and does not provide general 2D barcode scanning.

Q: What should I verify before ordering?
A: Confirm the exact 1564A model, required barcode formats, Bluetooth profile and range, host/software compatibility, communication stand and charging requirements, quantity, package contents, availability and applicable warranty.

Contact - NEOTECH® UAE

For scanner selection, Bluetooth requirements, barcode compatibility or quotation:

Email: support@neotech.ae
Address: Store 13, Computer Building, Al Fahidi, Bur Dubai, Dubai 44245, UAE

Disclaimer - NEOTECH® UAE

CipherLab, 1564A, 1500 Series, ScanMaster, Bluetooth and related names are trademarks or product identifiers of their respective owners.

The CipherLab 1564A is a Bluetooth cordless 1D/2D area-imaging barcode scanner. Specifications belonging to other CipherLab 1500 Series models should not be attributed to the 1564A.

Wireless range, barcode resolution, scan rate, reading distance, impact resistance and other performance figures are manufacturer specifications measured under defined conditions. Actual performance depends on barcode type, dimensions, print quality, wireless environment, building layout, scanner configuration, battery condition and operating conditions.

The stated 90 m Bluetooth coverage refers to line-of-sight conditions with the applicable communication setup and should not be treated as guaranteed indoor range.

Barcode support does not independently establish compatibility with a particular healthcare, pharmaceutical, payment, postal, POS or regulatory workflow. The complete application should be verified before deployment.

Communication stands, chargers and other accessories vary by configuration and should not be assumed to be included unless specifically stated in the quotation.

Package contents, battery configuration, host/software compatibility, current availability and applicable UAE warranty entitlement should be confirmed before ordering.
