Configurable Windows Field Computing for Industrial, Mobile and Data-Capture Workflows.

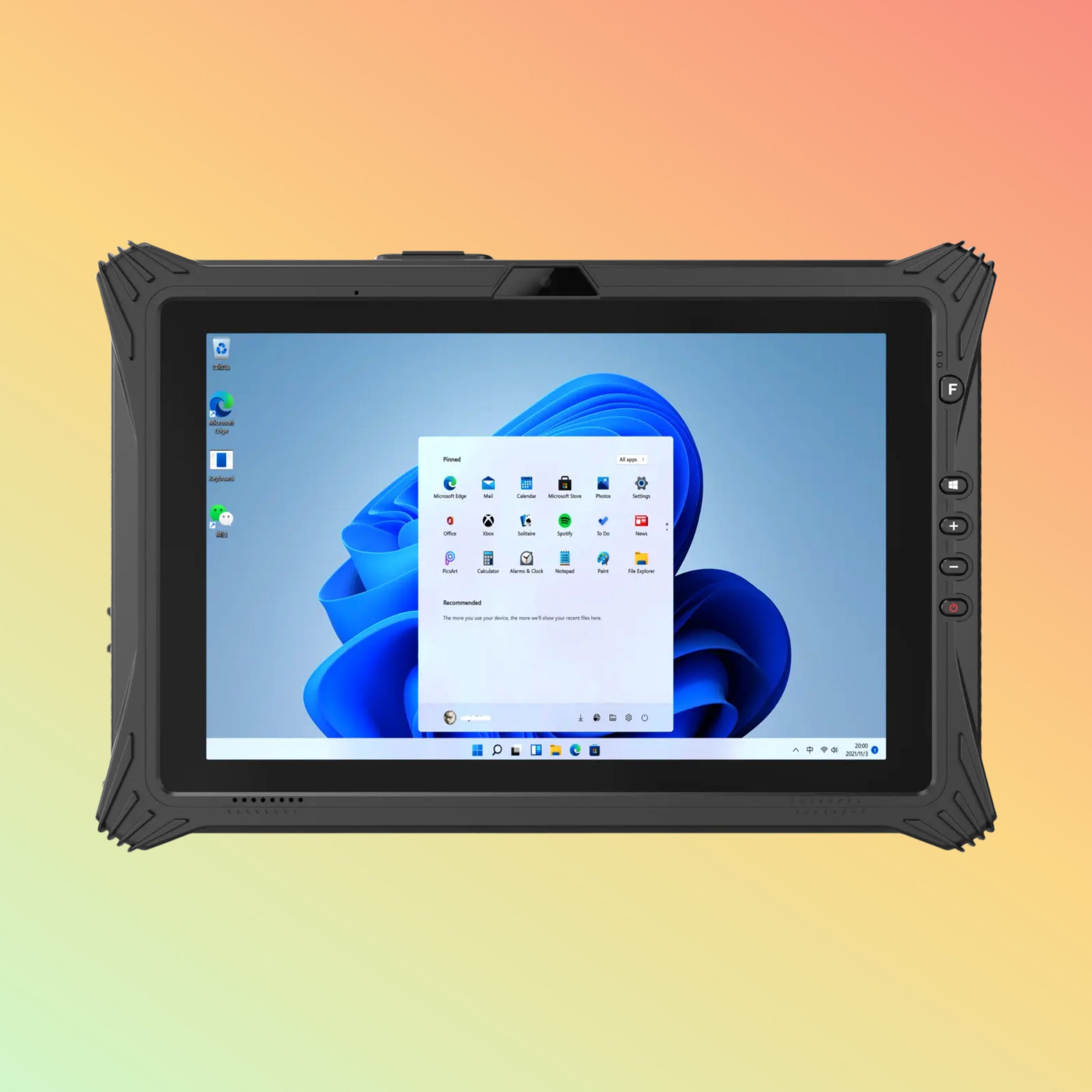

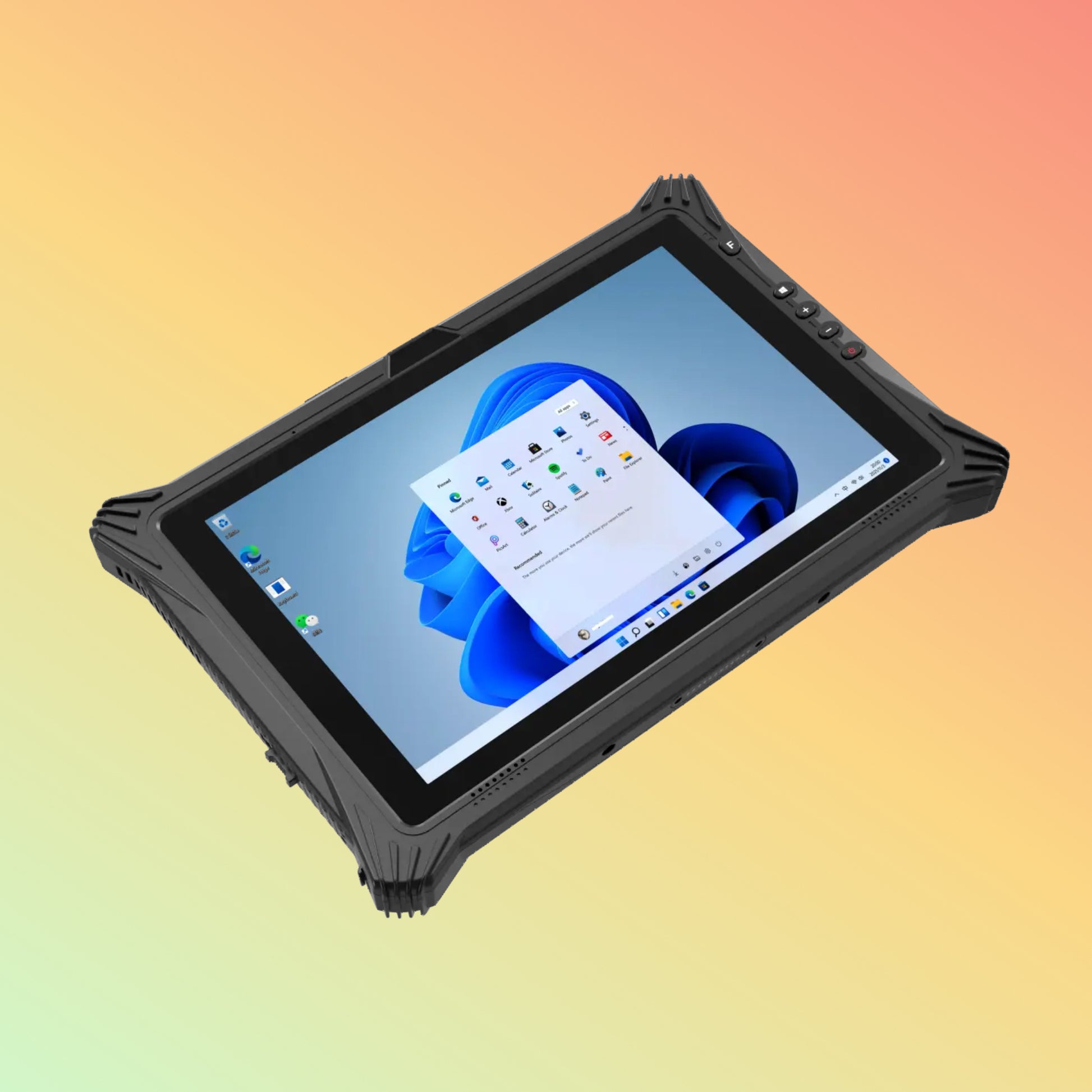

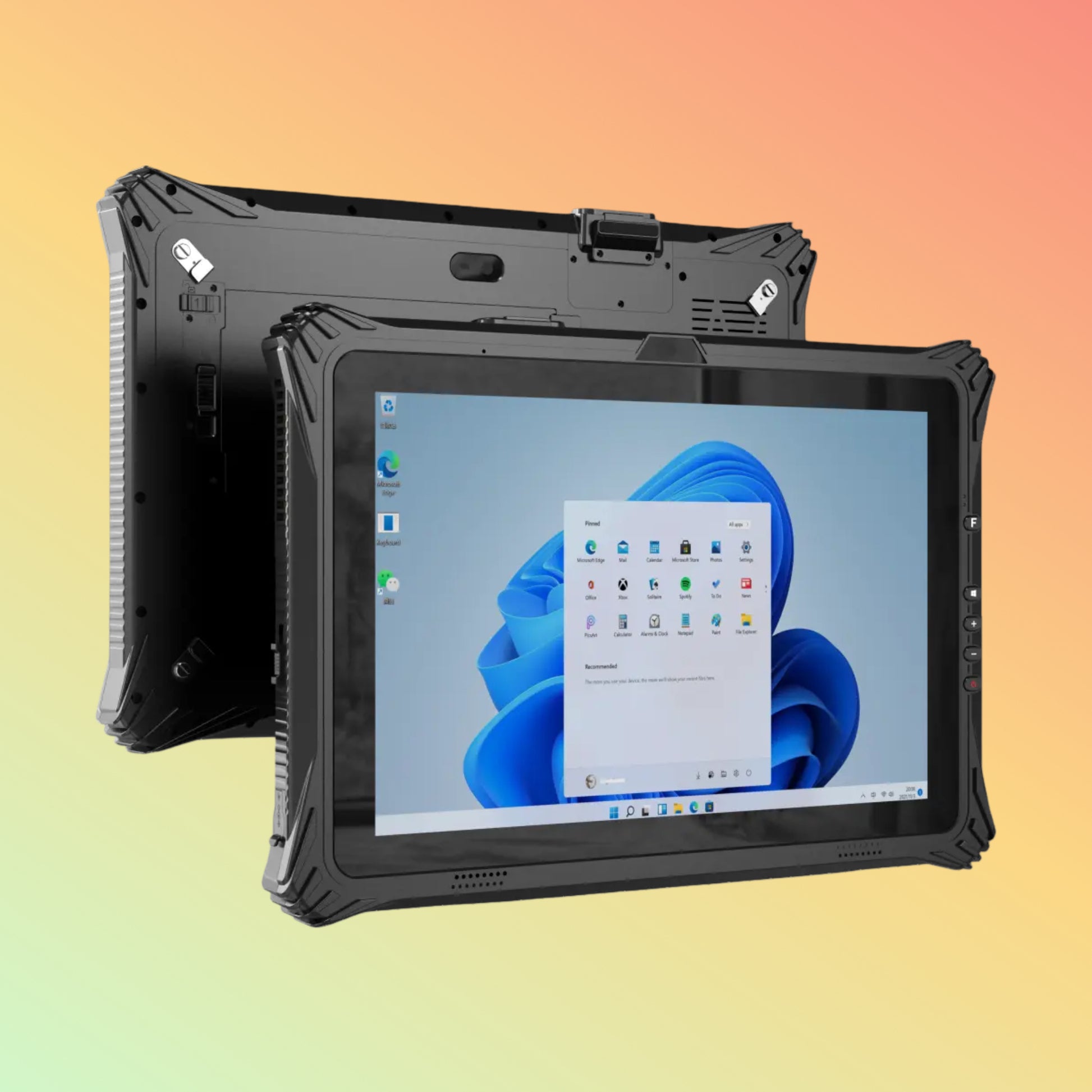

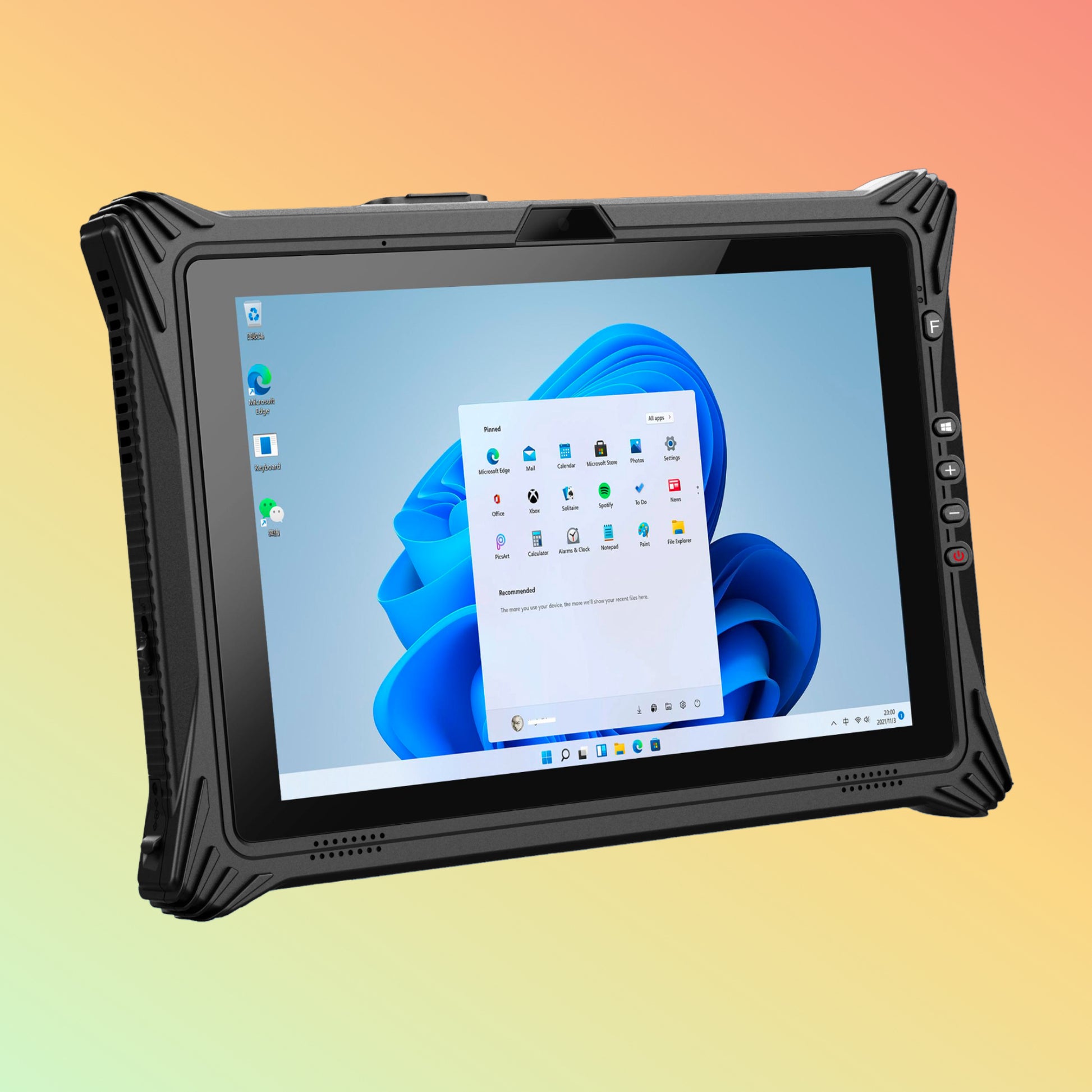

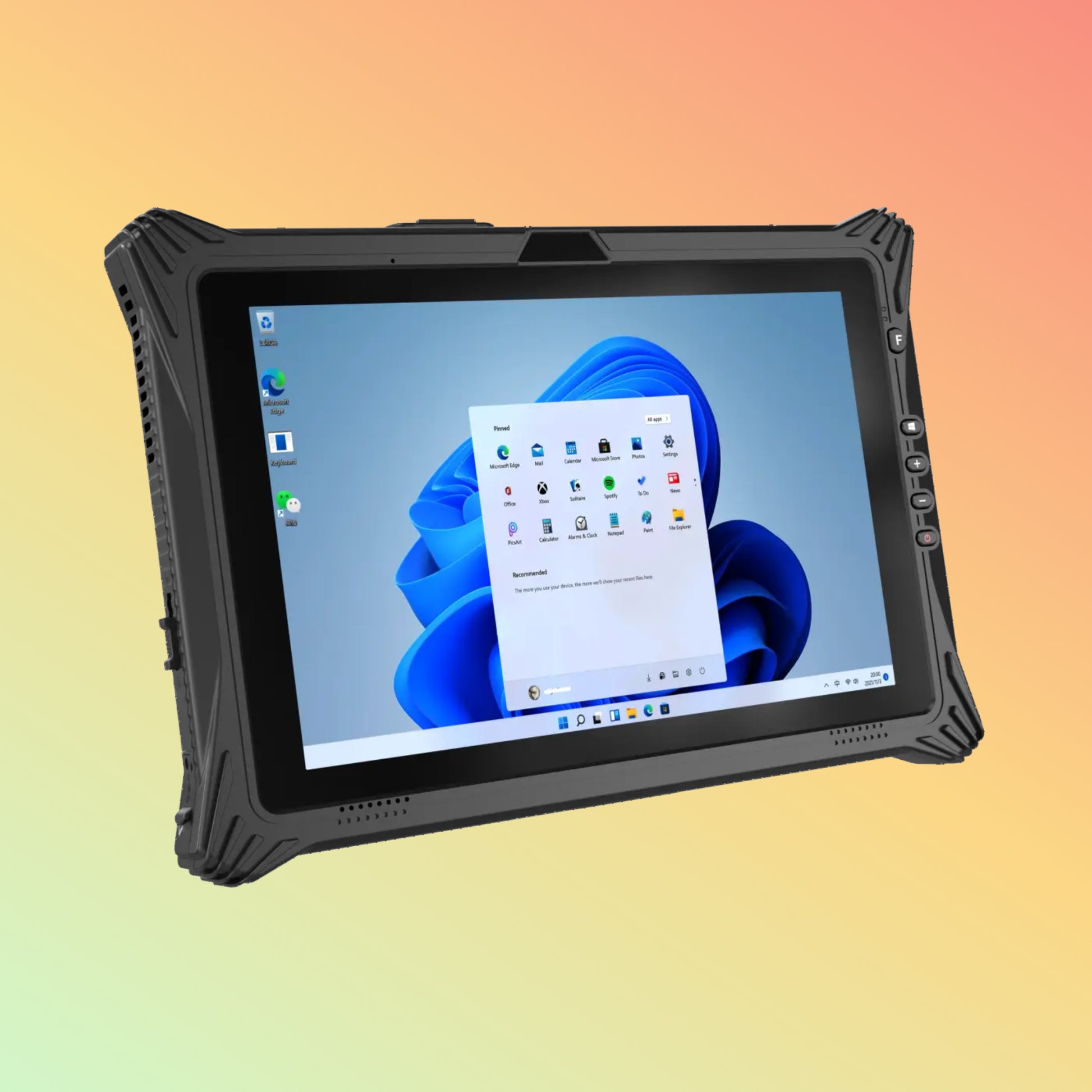

EMDOOR EM-I10J Rugged Tablet PC The EMDOOR EM-I10J is a 10.1-inch rugged Windows tablet designed for industrial, field-service and mobile-computing environments where users may require Windows applications, wireless connectivity, GNSS positioning and specialised data interfaces in a portable device.

The platform uses an Intel Celeron N5100 processor as standard, with the N5105 available as an option, together with Windows 11, 8GB or 16GB RAM and 128GB storage.

Its configurable design makes it particularly relevant for manufacturing, field inspection, mobile service, utilities, logistics and other workflows where a standard consumer tablet may not provide the required ports, protection or battery arrangement.

Overview

The EM-I10J combines general Windows computing with features intended for field deployment.

The manufacturer documentation identifies:

• 10.1-inch Full HD IPS display
• Dual-band Wi-Fi
• Bluetooth 5.0
• 4G LTE
• GPS and GLONASS
• Built-in and removable battery system
• Optional NFC
• Fingerprint reader
• Optional 2D scanning
• Selectable Ethernet, RS232 or USB expansion
• IP65-rated enclosure
• MIL-STD-810G certification
• 1.22 metre drop specification

These features allow the device to be configured around the work environment rather than forcing every deployment to use the same hardware arrangement.

Key Features

• 10.1-inch rugged Windows tablet
• Windows 11 operating system
• Intel Celeron N5100 standard processor
• Optional Intel Celeron N5105
• 8GB or 16GB RAM
• 128GB storage
• 1200 × 1920 IPS display
• Up to 700 nits brightness
• 10-point capacitive touchscreen
• Corning Gorilla Glass touch panel
• Dual-band Wi-Fi
• Bluetooth 5.0
• 4G LTE support
• GPS and GLONASS
• Fingerprint reader
• Optional NFC
• Optional 2D barcode scanner
• Built-in + removable dual-battery arrangement
• IP65-rated ingress protection
• 1.22 metre drop specification
• MIL-STD-810G listed by the manufacturer
• Optional docking and vehicle-mount accessories

Performance

Intel Celeron N5100 / N5105

The EM-I10J is configured with:

Standard Processor: Intel Celeron N5100
Optional Processor: Intel Celeron N5105

Both are quad-core processors designed for business and embedded computing workloads.

The manufacturer lists processor speeds up to 2.8 GHz for the platform.

The correct CPU choice should be based on the actual Windows application workload rather than assuming the optional processor is necessary for every deployment.

Memory & Storage

The EM-I10J supports:

RAM: 8GB or 16GB DDR

Internal Storage: 128GB

For field deployments, available storage should be considered alongside:

• Application size
• Offline data
• Image capture
• Local databases
• Windows updates
• Diagnostic software
• Mapping applications

10.1-Inch Field Display

The tablet uses a:

Display Size: 10.1 inches

Resolution: 1200 × 1920

Aspect Ratio: 16:10

Panel: IPS

Brightness: 700 nits

Touch: 10-point G+G capacitive

The datasheet also identifies Corning Gorilla Glass for the touch-panel surface.

The higher-brightness display can be useful in mobile environments, although outdoor visibility still varies according to direct sunlight, reflection, brightness settings and viewing angle.

Technical Specifications

Brand: EMDOOR

Model: EM-I10J

Product Type: Rugged Windows Tablet PC

Operating System: Windows 11

Processor: Intel Celeron N5100 standard

Optional Processor: Intel Celeron N5105

RAM: 8GB / 16GB DDR

Storage: 128GB

Display: 10.1-inch IPS

Resolution: 1200 × 1920

Brightness: 700 nits

Touchscreen: 10-point G+G capacitive touch

Front Camera: 5MP

Rear Camera: 8MP

Wi-Fi: IEEE 802.11 a/b/g/n/ac, 2.4 GHz + 5.8 GHz

Bluetooth: Bluetooth 5.0

4G: LTE/WCDMA/GSM support as specified by manufacturer

GNSS: GPS and GLONASS

NFC: Optional

Fingerprint Reader: Standard according to supplied datasheet

SIM Slot: 1

TF / microSD Slot: 1

USB: 1 × USB 3.0 Type-A

USB Type-C: 1

Video Output: Mini HDMI 2.0a

Pogo Interface: 12-pin

Audio: 3.5 mm earphone jack

DC Input: 5.5 mm DC jack

Dimensions: 289.9 × 196.7 × 27.4 mm

Weight: Approximately 1.19 kg

Power Adapter: AC 100–240 V, output DC 19 V / 3.42 A

These specifications are taken from the supplied EMDOOR product datasheet.

Selectable Industrial Expansion Module

A useful feature of the EM-I10J is its 1-out-of-4 expansion-module design.

The manufacturer lists the following selectable modules:

• 2D barcode scanner
• RJ45 Ethernet
• DB9 RS232 serial
• USB 2.0

Only one of these modules is selected for the applicable expansion position, so the required interface should be confirmed before ordering.

RJ45 Ethernet Option

The Ethernet module provides:

RJ45: 10/100/1000 Mbps

This can be useful where a wired network connection is required for:

• Machine-side applications
• Diagnostic environments
• Industrial networks
• Commissioning
• Secure local infrastructure

RS232 Serial Option

The optional DB9 RS232 interface can be relevant where the tablet must communicate with compatible:

• Industrial equipment
• Measurement systems
• Legacy machinery
• Controllers
• Diagnostic hardware

Software and serial parameters should be verified for the intended equipment.

2D Barcode Scanner Option

The optional 2D scanning module is specified with:

Optical Resolution: 5 mil
Scanning Speed: 50 scans/sec

This can support applications such as:

• Inventory identification
• Asset tracking
• Manufacturing traceability
• Warehouse workflows
• Equipment inspection

Barcode performance should still be evaluated with the actual symbols, distances and operating environment.

NFC

NFC is listed as an optional configuration.

Manufacturer specifications include:

Frequency: 13.56 MHz

Supported Protocols: ISO/IEC 14443A/B, 15693, 18092 and MIFARE

Specified Reading Distance: approximately 4 cm

Actual performance depends on the card/tag type and deployment conditions.

4G Mobile Connectivity

The manufacturer lists 4G support across selected bands, including LTE FDD and LTE TDD, plus WCDMA and GSM.

For UAE deployments, the exact modem configuration and carrier compatibility should be verified before ordering.

Do not assume global 4G compatibility solely from the presence of a SIM slot.

GNSS Positioning

The EM-I10J supports:

• GPS
• GLONASS

This can support applications involving:

• Field service
• Vehicle-based operations
• Mobile inspection
• Site work
• Asset location
• Outdoor data collection

GNSS accuracy depends on the environment, satellite visibility and software implementation.

Dual-Battery Design

The EM-I10J uses two battery elements:

Built-In Battery

Capacity: 7.4 V / 860 mAh
Type: Built-in Li-polymer battery

Removable Battery

Capacity: 7.4 V / 5000 mAh
Type: Removable Li-polymer battery

This arrangement is useful where a removable main battery is needed while the internal battery helps maintain device operation during the change process.

The datasheet describes the device as a dual-battery platform.

Battery Runtime

EMDOOR lists approximately 5.5 hours under its specified test conditions:

• 50% audio volume
• 50% screen brightness
• Continuous 1080p HD video playback

This should not be treated as guaranteed field runtime.

Actual runtime varies with:

• Windows applications
• CPU workload
• 4G activity
• Wi-Fi
• Barcode scanning
• GNSS
• Display brightness
• Connected peripherals
• Battery age
• Operating temperature

Rugged Protection

The supplied EMDOOR documentation specifies:

Ingress Rating: IP65

MIL Standard: MIL-STD-810G certified

Drop Height: 1.22 metres

Operating Temperature: -20°C to 60°C

Storage Temperature: -30°C to 70°C

Humidity: Up to 95% non-condensing

These figures describe tested conditions and do not mean the tablet is indestructible or suitable for every hazardous environment.

Manufacturing Applications

The manufacturer specifically identifies manufacturing as one of the EM-I10J application areas.

Potential workflows include:

• Production records
• Machine-side data access
• Barcode scanning
• Quality inspections
• Maintenance
• Work orders
• ERP/MES access
• Equipment documentation

The optional serial and Ethernet interfaces may be particularly relevant in manufacturing environments.

Field Service & Outdoor Applications

The EM-I10J can also be considered where technicians need Windows applications away from a conventional office.

Possible uses include:

• Field inspections
• Utilities
• Maintenance
• Construction
• Mobile diagnostics
• Service documentation
• Technical manuals
• Site records
• GPS-based field applications

Finance & Mobile Business Applications

EMDOOR’s supplied datasheet also identifies finance as an application area.

Possible use should be evaluated according to the organisation’s security, application and regulatory requirements rather than assuming that the hardware itself is approved for financial transactions.

Accessories

The manufacturer documentation identifies accessories including:

Standard / Available

• Hand strap
• Carry handle
• 19 V / 3.42 A power adapter

Optional

• Docking charger
• Vehicle mount
• Quad battery charger
• Removable battery
• Stylus

Accessory inclusion should always be confirmed in the quotation.

Typical Applications

The EMDOOR EM-I10J may be considered for:

• Manufacturing
• Warehousing
• Logistics
• Field service
• Utilities
• Construction
• Equipment maintenance
• Asset inspection
• Outdoor operations
• Mobile data collection
• Vehicle diagnostics
• Agricultural and animal-husbandry operations
• Enterprise Windows applications

Purpose of Use

The EM-I10J is intended to provide Windows-based mobile computing in environments where users may require:

Windows applications + field protection + mobile connectivity + GNSS + specialised interfaces

A typical deployment could be:

Worker → EM-I10J → Barcode / Industrial Equipment → Wi-Fi or 4G → Enterprise Application

The exact workflow depends on the selected expansion module and installed business software.

Things to Verify Before Ordering

Please confirm:

• Intel N5100 or N5105
• 8GB or 16GB RAM
• Windows licence/edition
• 4G modem requirement
• UAE mobile-network compatibility
• NFC requirement
• 2D scanner requirement
• RJ45 requirement
• RS232 requirement
• USB expansion requirement
• Storage requirement
• Docking charger requirement
• Vehicle mount requirement
• Spare battery requirement
• Application compatibility
• Required accessories

Because the EM-I10J is configurable, the quotation should clearly identify the exact hardware combination.

Why Choose NEOTECH® UAE

NEOTECH® helps customers evaluate rugged tablets according to their real operational requirements.

We can assist with:

• Processor and memory selection
• Windows configuration
• 4G requirements
• Barcode scanning requirements
• RJ45 / RS232 selection
• NFC requirements
• Battery and charging options
• Docking and vehicle accessories
• Industrial deployment planning
• UAE availability information

Learn First. Decide Second. Buy Only If It Is Right for Your Needs.

There is absolutely no obligation or pressure to proceed with the purchase with us.

UAE Delivery

NEOTECH® supplies within the United Arab Emirates.

Standard Shipping: Free
Order Cut-Off: 2:00 PM GST
Handling: 1–2 business days
Transit: 3–5 business days
Estimated Total Delivery: 4–7 business days

Special-order configurations may require additional preparation or supplier lead time.

FAQ - EMDOOR EM-I10J

Q: What processor does the EMDOOR EM-I10J use?
A: The supplied manufacturer datasheet lists the Intel Celeron N5100 as standard and the Intel Celeron N5105 as an optional processor. The tablet supports 8GB or 16GB RAM with 128GB storage.

Q: Can the EM-I10J include a barcode scanner or industrial ports?
A: Yes. The platform supports a selectable 1-out-of-4 expansion option consisting of a 2D scanner, RJ45 Ethernet, DB9 RS232 or USB 2.0 module. The required module should be specified before ordering.

Q: Is the EM-I10J waterproof?
A: It should not be described as waterproof. The manufacturer specifies IP65 ingress protection, MIL-STD-810G certification and a 1.22 m drop specification. IP65 indicates tested resistance to dust and water ingress under defined conditions, not immersion protection.

Helpful Internal Links

• Rugged Windows Tablets
• Industrial Mobile Computers
• Barcode Data Collection Solutions

Contact NEOTECH® UAE

NEOTECH®
Operated by NEOLYN TECHNOLOGY LLC

Email: support@neotech.ae

Address:
Store 13, Computer Building
Al Fahidi, Bur Dubai
Dubai 44245
United Arab Emirates

Disclaimer – NEOTECH® UAE

Specifications, RAM, processor, cellular modem, NFC, scanner module, industrial interface, batteries and accessories may vary by exact EM-I10J configuration.

IP65 and MIL-STD-810G describe defined test conditions and should not be interpreted as waterproofing, indestructibility or suitability for every industrial or hazardous environment. Battery runtime is based on manufacturer test conditions and will vary according to actual use.

The supplied EMDOOR datasheet also states that technical data, specifications and performance figures are subject to change without notice.

EMDOOR and related product names are trademarks of their respective owner. NEOTECH® is operated by NEOLYN TECHNOLOGY LLC. No manufacturer-authorised reseller or distributor status is claimed unless separately documented.

Last Updated: 08 August 2026  (GST, UTC+4)
