24-Inch A1 Large Format Printer for CAD Drawings, Technical Plans, Maps, Posters and Professional Design Workflows

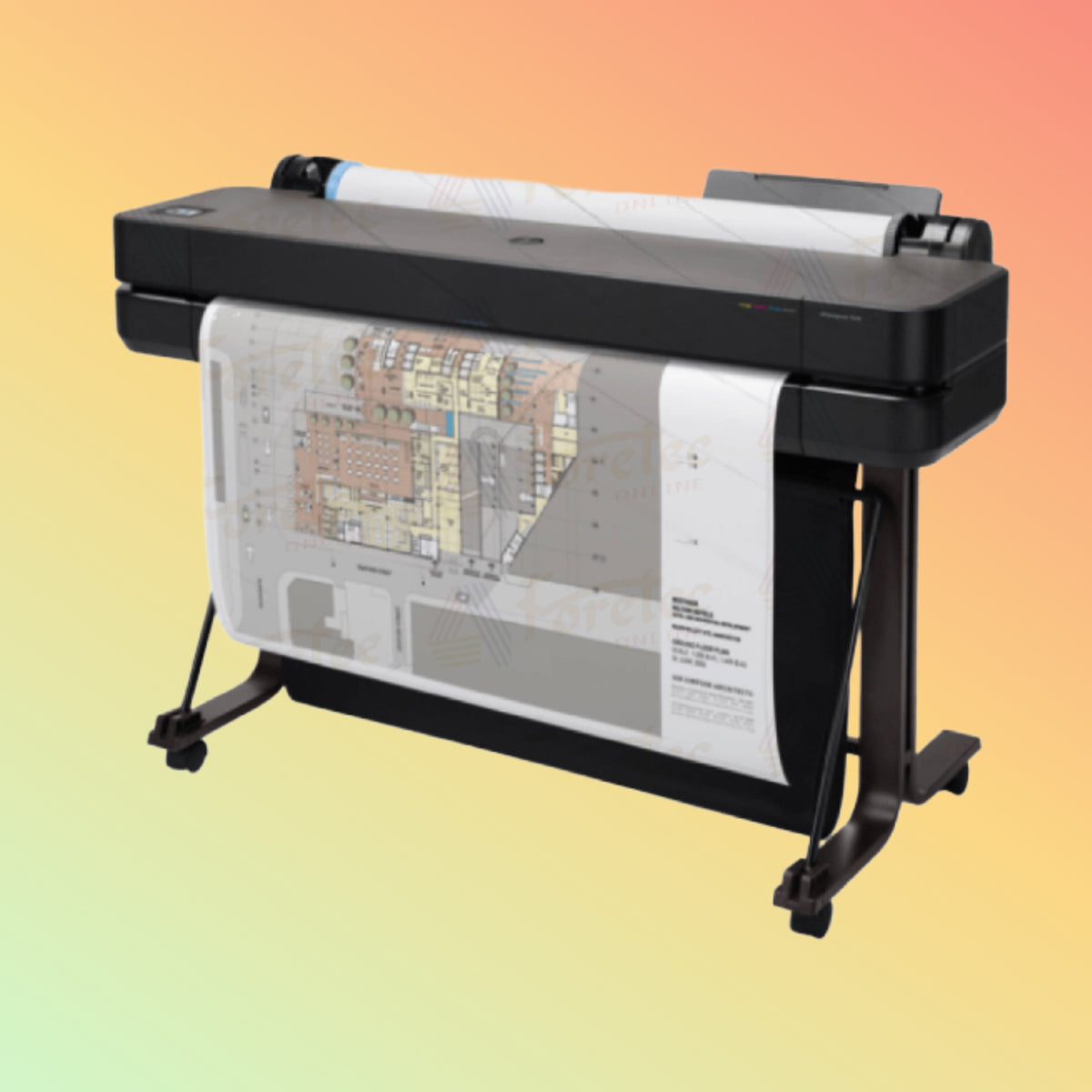

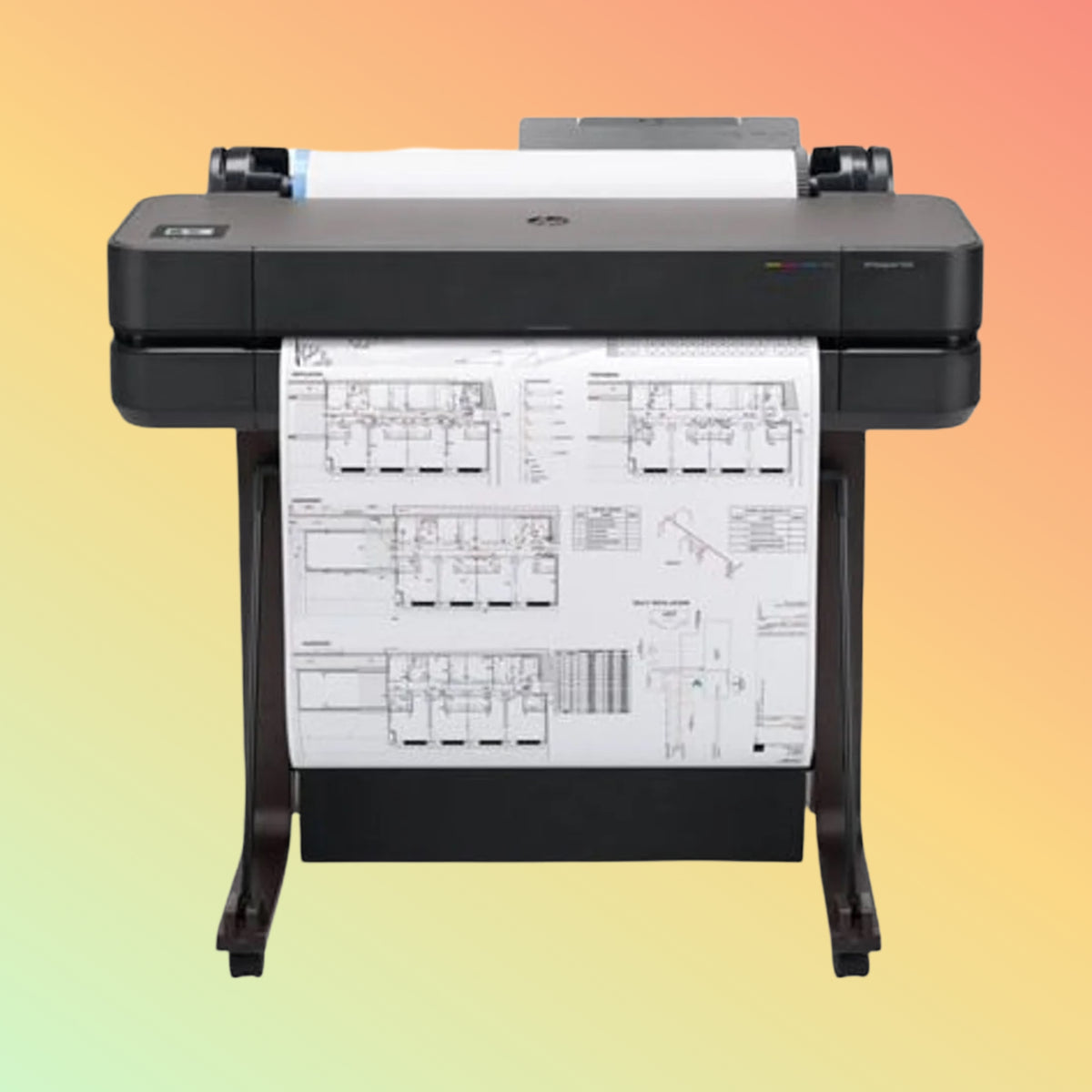

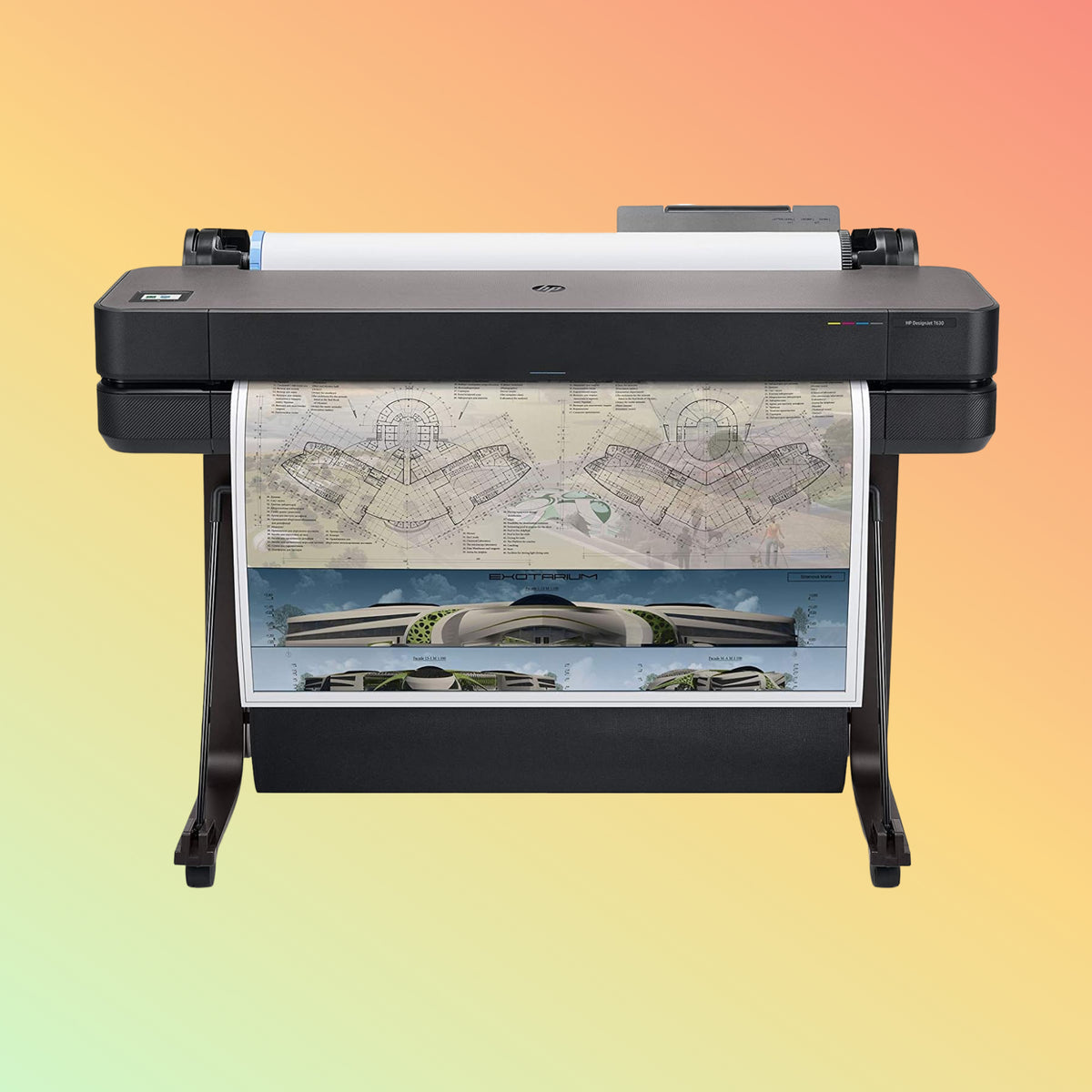

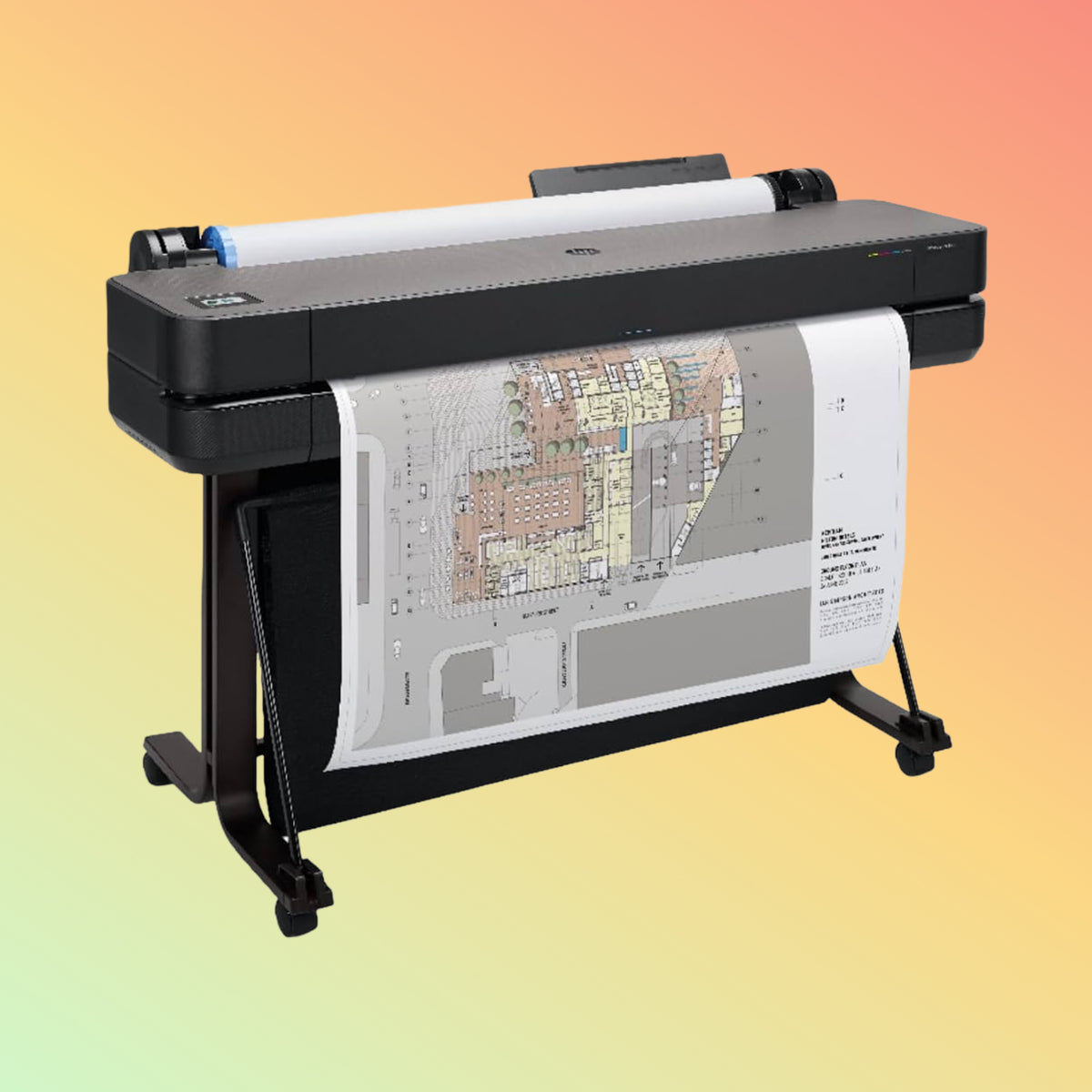

The HP DesignJet T630 24-in Printer (5HB09D) is a compact 24-inch large-format inkjet printer designed for architects, engineers, construction professionals, designers and businesses that need accurate A1 technical drawings and large-format graphics without the footprint of a production plotter.

The T630 24-inch prints an A1 page in as little as 30 seconds, producing up to 76 A1 prints per hour under HP's specified test conditions. It supports roll media up to 610 mm / 24 inches, automatic sheet feeding, an integrated stand and media bin, automatic horizontal cutting, Wi-Fi, Wi-Fi Direct, Gigabit Ethernet and USB connectivity.

Product Overview

The HP DesignJet T630 24-in is primarily a technical large-format printer, not a scanner or multifunction copier.

It is designed for businesses that need to print:

• Architectural drawings
• CAD plans
• Engineering drawings
• Construction plans
• Floor plans
• Electrical drawings
• Mechanical drawings
• Maps and GIS output
• Technical diagrams
• Presentations
• Posters
• Large-format business graphics

The exact product reference 5HB09D is important because HP has marketed the T630 platform under more than one regional/product-number variation. NEOTECH® recommends matching the exact product number when checking supply, accessories and warranty. HP's current product documentation specifically identifies 5HB09D as the HP DesignJet T630 24-in Printer.

Key Features

• 24-inch / 610 mm large-format printer
• A1 printing
• Up to 30 seconds per A1 page
• Up to 76 A1 prints per hour
• HP Thermal Inkjet technology
• Up to 2400 × 1200 optimized dpi
• Four-colour CMYK printing
• Dye-based cyan, magenta and yellow inks
• Pigment-based black ink
• Roll feed
• Manual sheet feed
• Automatic sheet feeder
• Automatic horizontal cutter
• Integrated printer stand
• Media bin
• 1 GB memory
• Gigabit Ethernet
• Hi-Speed USB 2.0
• Wi-Fi 802.11a/b/g/n
• Wi-Fi Direct
• HP-GL/2 support
• HP Click printing workflow
• Apple AirPrint support
• Remote/mobile printing capabilities
• Compact professional large-format design

Technical Specifications

Brand: HP
Product: DesignJet T630 24-in Printer
Product Number: 5HB09D
Printer Type: Large Format Colour Inkjet Printer / Technical Plotter
Functions: Print only

Maximum Model Width: 610 mm / 24 inches
Large Format Class: A1 / 24-inch

Print Technology: HP Thermal Inkjet

Print Speed: Up to 30 seconds per A1 page
Throughput: Up to 76 A1 prints per hour

Best Colour Print Quality: Up to 2400 × 1200 optimized dpi

Line Accuracy: ±0.1% under HP's specified test conditions
Theoretical Minimum Line Width: 0.02 mm

Ink Colours: Cyan, Magenta, Yellow, Black
Number of Ink Cartridges: 4

Ink Technology:

• Dye-based Cyan
• Dye-based Magenta
• Dye-based Yellow
• Pigment-based Black

Ink Drop: 5.5 pl C/M/Y; 12 pl Black

Printhead: One CMYK printhead
Printhead Nozzles: 1,376

Memory: 1 GB
Internal Storage: None

Standard Connectivity:

• Gigabit Ethernet 1000Base-T
• Hi-Speed USB 2.0
• Wi-Fi 802.11a/b/g/n
• Wi-Fi Direct

Print Languages:

• HP-GL/2
• HP-RTL
• CALS G4
• JPEG
• URF

Media Handling:

• Roll feed
• Sheet feed
• Automatic sheet feeder
• Media bin
• Automatic horizontal cutter

Roll Width: Approximately 279–610 mm
Maximum Roll Outside Diameter: 100 mm
Maximum Number of Rolls: 1
Maximum Roll Weight: Approximately 4.1 kg

Maximum Media Thickness: Approximately 0.3 mm / 11.8 mil

Dimensions: Approximately 1013 × 605 × 932 mm
Weight: Approximately 28.9 kg

Power Consumption:

• Printing: <35 W
• Ready: <5.6 W
• Sleep: <2.1 W
• Off: <0.2 W

Operating Temperature: Approximately 5–40°C
Operating Humidity: Approximately 20–80% RH

24-Inch A1 Large Format Printing

The DesignJet T630 5HB09D accepts roll media up to 610 mm / 24 inches wide, making it suitable for A1 technical documents and other large-format output.

This is particularly useful for architecture, engineering and construction businesses that need to review plans at a practical working size rather than scaling them down to A3 or A4.

The 24-inch format can accommodate applications including:

• A1 architectural plans
• Site plans
• Building layouts
• CAD drawings
• Engineering schematics
• Maps
• Technical diagrams
• Project presentations
• Large spreadsheets
• Posters

Up to 30 Seconds per A1 Print

HP specifies a fastest print speed of approximately 30 seconds per A1 page, equivalent to as many as 76 A1 prints per hour under the manufacturer's test conditions.

This can help small technical teams produce working drawings quickly without requiring a larger production-class printer.

Actual throughput depends on quality settings, file complexity, connectivity, media and operating conditions.

Up to 2400 × 1200 Optimized dpi

Best colour print quality reaches up to 2400 × 1200 optimized dpi.

This resolution, combined with the printer's technical line capabilities, makes the T630 relevant for documents requiring clear:

• Fine lines
• Annotations
• Dimensions
• Symbols
• Colour-coded plan information
• Maps
• Diagrams
• Presentation graphics

Resolution alone does not determine final print quality; source-file quality, media and print settings also matter.

CAD and Technical Drawing Applications

The DesignJet T630 is particularly relevant for CAD-oriented environments.

HP specifies ±0.1% line accuracy and a theoretical minimum line width of 0.02 mm, subject to HP's specified test conditions.

Potential professional applications include:

• AutoCAD drawings
• Architectural layouts
• Structural drawings
• MEP plans
• Electrical schematics
• Plumbing plans
• Mechanical drawings
• Construction drawings
• GIS maps
• Engineering documentation

Customers should verify application, operating-system and driver compatibility for their specific CAD workflow.

Roll and Sheet Printing

The T630 supports both roll-fed and sheet-fed media.

This allows a business to use large-format roll paper for technical drawings while also handling compatible individual sheets through the appropriate feed path.

The printer includes:

• Roll feed
• Manual sheet feed
• Automatic sheet feeder
• Automatic horizontal cutter
• Media bin

This multi-size media handling can be useful where the same office produces both ordinary documents and large technical output.

Automatic Horizontal Cutter

The integrated automatic horizontal cutter cuts roll-fed output after printing.

This reduces the need to manually cut individual drawings from the roll and helps simplify routine technical printing.

The cutter should not be confused with a trimming or finishing system; it provides the horizontal cut required to separate roll-fed prints.

Supported Media Types

HP lists support for a broad range of compatible large-format media, including:

• Bond paper
• Plain paper
• Bright white paper
• Coated paper
• Heavyweight coated paper
• Blueprint paper
• Natural tracing paper
• Clear film
• Matte film
• Satin photographic paper
• Gloss photographic paper
• Semi-gloss photographic paper
• Polypropylene media
• Compatible self-adhesive media

The appropriate media should be selected according to the required application, print quality and durability.

Four-Colour HP Ink System

The T630 uses four ink colours:

• Black
• Cyan
• Magenta
• Yellow

HP specifies dye-based colour inks and pigment-based black ink.

The pigment-based black is particularly relevant for technical drawings where line definition and text clarity are important.

HP 712 Ink Cartridges

The DesignJet T630 5HB09D uses HP 712 DesignJet ink cartridges.

Current HP specifications list cartridge capacities including:

• HP 712 38-ml Black
• HP 712 80-ml Black
• HP 712 29-ml Cyan
• HP 712 29-ml Magenta
• HP 712 29-ml Yellow

HP also offers selected multi-packs depending on region and availability.

Customers should verify the exact cartridge part number and regional compatibility before ordering consumables.

HP 713 Printhead

The printer uses a single replaceable CMYK printhead.

HP currently identifies the HP 713 DesignJet Printhead Replacement Kit among the accessories/supplies for the T630 24-inch platform.

A printhead should not normally be purchased with every set of inks; it is a separate service consumable that is replaced when required.

Gigabit Ethernet

The T630 supports Gigabit Ethernet (1000Base-T), making it suitable for shared wired-network deployment.

A wired connection can be useful in professional offices where stable network access to the plotter is preferred.

Wi-Fi and Wi-Fi Direct

Wireless connectivity includes:

• Wi-Fi 802.11a/b/g/n
• Wi-Fi Direct

This gives businesses more flexibility when the printer cannot conveniently be positioned next to a network outlet.

Network and security configuration should follow the organization's IT policies.

HP Click Printing

HP provides HP Click software and printing workflows for the DesignJet T630.

HP Click is designed to simplify large-format printing, particularly where users need to submit technical files or multi-size projects without repeatedly adjusting complex print settings.

Software availability and supported file formats should be checked against the current HP Click version and the user's operating system.

Mobile and Remote Printing

HP lists several supported printing paths for the T630 platform, including:

• HP Click App
• HP Click Driver
• HP app
• Windows printer drivers
• macOS printer drivers
• Apple AirPrint
• Android printing support
• ChromeOS printing support
• Email printing

Specific functions can depend on software version, network configuration and service availability.

1 GB Memory

The T630 includes 1 GB of memory and does not include internal storage.

This distinction can matter for customers comparing technical plotters with higher-end DesignJet platforms that may incorporate additional storage and workflow features.

Compact Large-Format Design

Despite supporting 24-inch roll media, the T630 is designed to occupy relatively little office space for its format.

Approximate dimensions with stand are:

1013 × 605 × 932 mm

and weight is approximately:

28.9 kg.

Businesses should still allow adequate working space for:

• Roll loading
• Sheet feeding
• Output collection
• Ink replacement
• Printhead access
• Ventilation
• Routine servicing

Printer Stand and Media Bin

HP lists the printer stand and media bin as part of the standard T630 24-inch package configuration.

This is an important distinction from certain smaller DesignJet models or configurations where a stand may be optional.

The exact contents of the locally supplied 5HB09D package should nevertheless be confirmed before purchase.

What's in the Box

According to HP's current T630 documentation, the standard package includes:

• HP DesignJet T630 printer
• Printer stand
• Automatic sheet feeder
• Printhead
• Introductory ink cartridges
• Spindle
• Quick reference guide
• Setup poster
• Power cord

Package contents can vary by country or distribution configuration, so the actual supplied contents should be verified for UAE orders.

Dynamic Security – Important Cartridge Information

The HP DesignJet T630 is a dynamic-security-enabled printer.

HP states that the printer is intended to work with cartridges containing a new or reused HP chip, and firmware updates may block cartridges using non-HP chips. HP also states that a reused HP chip can enable reused, remanufactured and refilled cartridges.

Customers should consider this before purchasing third-party consumables.

NEOTECH® recommends checking current cartridge compatibility rather than assuming that any physically similar cartridge will function.

Architecture and Engineering Applications

The T630 24-inch can be considered for:

• Architects
• Civil engineers
• Mechanical engineers
• Electrical engineers
• MEP consultants
• Interior designers
• Construction companies
• Contractors
• Surveyors
• GIS professionals
• Property developers
• Technical departments

Construction and Site Drawings

Construction businesses can use the T630 for documents such as:

• Floor plans
• Elevations
• Sections
• Site layouts
• MEP drawings
• Structural plans
• Coordination drawings
• Tender drawings
• Revision drawings
• As-built drawings

The required media durability should be considered where prints will be used extensively on construction sites.

Maps and GIS Printing

The combination of large-format output, fine-line capability and colour printing can also make the T630 useful for:

• GIS maps
• Site maps
• Utility plans
• Land-use plans
• Survey drawings
• Location plans

For specialized GIS environments, software and driver compatibility should be verified before purchase.

Posters and Presentations

Although primarily positioned for technical printing, the T630 can also produce compatible:

• Posters
• Presentation boards
• Business graphics
• Charts
• Educational displays
• Colour diagrams

Customers whose primary requirement is high-volume photographic, graphics or production-poster printing should compare dedicated graphics-oriented large-format printers rather than assuming the T630 is intended for every wide-format application.

Purpose of Use

The HP DesignJet T630 24-in (5HB09D) is best suited to businesses that require:

• A1 technical printing
• 24-inch roll printing
• CAD and engineering drawings
• Colour technical documents
• Fast A1 output
• Automatic roll cutting
• Wired and wireless networking
• A compact floor-standing plotter
• Straightforward large-format printing

It is not a scanner, copier or multifunction printer.

Businesses requiring large-format scanning or copying should consider an appropriate multifunction DesignJet or separate large-format scanner.

HP DesignJet T630 24-in vs 36-in

The T630 family is available in different print widths.

T630 24-in

• Up to 610 mm / 24-inch media
• Suitable for A1-class workflows
• Approximately 1013 mm wide
• Approximately 28.9 kg

T630 36-in

• Up to 914 mm / 36-inch media
• Suitable for A0-class workflows
• Approximately 1317 mm wide
• Approximately 34.7 kg

Customers who routinely need A0 drawings should not purchase the 24-inch T630. The 36-inch version is the more appropriate format.

HP DesignJet T630 vs T650

The T630 and T650 belong to HP's compact technical DesignJet family but should not be treated as identical products.

The appropriate choice should be based on:

• Required print width
• Print volume
• Productivity requirement
• Workflow features
• Exact product generation
• Current regional availability
• Budget

NEOTECH® recommends comparing the exact manufacturer product numbers rather than purchasing based only on the T600-series family name.

Things to Verify Before Ordering

Please confirm:

• Exact model: HP DesignJet T630 24-in Printer
• Exact product number: 5HB09D
• 24-inch / 610 mm maximum roll width is sufficient
• A1 rather than A0 printing is required
• Print-only functionality is suitable
• No scanner or copier is required
• Required CAD/application compatibility
• Required media type
• Ethernet or Wi-Fi connectivity
• HP 712 cartridge availability
• HP 713 printhead availability
• Exact package contents
• Regional electrical configuration
• Current UAE warranty
• Current availability and lead time

Who Should Consider the HP DesignJet T630 24-in?

This printer may be suitable for:

• Architects
• Engineers
• Contractors
• Construction companies
• Interior designers
• Consultants
• Surveyors
• GIS teams
• Technical departments
• Small design studios
• Educational technical departments
• Businesses regularly printing A1 drawings

Customers requiring only A4/A3 office documents generally do not need a large-format printer.

Customers requiring A0 output should consider a 36-inch model.

Why NEOTECH® UAE

NEOTECH® focuses on identifying the correct large-format printer according to the customer's actual document size and workflow.

Before selecting the HP DesignJet T630 24-in, we recommend checking:

• A1 versus A0 requirement
• CAD application
• Expected print volume
• Roll width
• Media type
• Network environment
• Ink requirements
• Available installation space
• Scanning requirement
• Current consumable availability

For this page, the exact reference is HP DesignJet T630 24-in Printer – 5HB09D. HP's current documentation continues to identify this product number specifically with the 24-inch model.

Delivery – UAE

Delivery is available within the UAE.

Order Cut-off: 14:00 GST
Handling: 1–2 business days where applicable
Standard Transit: Approximately 3–5 business days after handling
Typical Total Delivery: Approximately 4–7 business days for confirmed available products

For non-stock or special-order units, delivery may extend to approximately 10–15 working days or up to 25 working days, depending on supplier availability.

Current availability should be confirmed before ordering.

FAQ - HP DesignJet T630 5HB09D

Q: What is the HP DesignJet T630 5HB09D?
A: It is the 24-inch / 610 mm HP DesignJet T630 large-format printer, designed primarily for A1 technical drawings, CAD plans, maps and professional large-format documents.

Q: What is the exact product number?
A: 5HB09D.

Q: Can the HP DesignJet T630 24-in print A1?
A: Yes. The 24-inch model is designed for A1-class large-format printing.

Q: Can the 24-inch T630 print A0?
A: Not at full A0 size. A0 requires a wider printing platform; customers routinely producing A0 drawings should consider the 36-inch T630 or another suitable 36-inch DesignJet.

Q: How fast does the T630 print A1?
A: HP specifies as little as 30 seconds per A1 page, or up to 76 A1 prints per hour, under its specified test conditions.

Q: What is the maximum print resolution?
A: Up to 2400 × 1200 optimized dpi.

Q: Does it use roll paper?
A: Yes. It supports roll media up to approximately 610 mm / 24 inches wide.

Q: Does it also accept sheets?
A: Yes. The T630 supports roll feed, manual sheet feed and an automatic sheet feeder.

Q: Does it automatically cut roll prints?
A: Yes. An automatic horizontal cutter is included in the media-handling system.

Q: Does the HP DesignJet T630 have Wi-Fi?
A: Yes. Standard connectivity includes Wi-Fi 802.11a/b/g/n and Wi-Fi Direct, together with Gigabit Ethernet and USB 2.0.

Q: Does it support HP-GL/2?
A: Yes. HP lists HP-GL/2 among the supported print languages.

Q: Which ink cartridges does it use?
A: The T630 uses the HP 712 DesignJet ink family, including black, cyan, magenta and yellow cartridges.

Q: Which printhead does it use?
A: HP lists the HP 713 DesignJet Printhead Replacement Kit for this platform.

Q: Does the printer include a stand?
A: HP's current package specification lists the printer stand as part of the standard box contents. The exact locally supplied package should still be confirmed before ordering.

Q: Can the T630 scan or copy drawings?
A: No. The T630 5HB09D is a print-only large-format device.

Q: Is it suitable for AutoCAD drawings?
A: It is designed for technical and CAD-oriented large-format printing. Customers should still confirm compatibility with their particular operating system, CAD application and required driver workflow.

Related Products

• HP DesignJet T630 36-in Printer
• HP DesignJet T650 Series
• HP DesignJet T250 Series
• HP DesignJet T850 Series
• HP DesignJet 24-in Large Format Printers
• HP 712 DesignJet Ink Cartridges
• HP 713 DesignJet Printhead
• HP DesignJet 24-in Spindle
• HP DesignJet T200/T600 24-in Roll Cover
• A1 Large Format Printers
• CAD Plotters

Helpful Internal Links

• HP DesignJet Printers UAE
• Large Format Printers UAE
• A1 Plotters UAE
• CAD Printers UAE
• Engineering Plotters
• Architectural Printers
• HP DesignJet Ink Cartridges
• Large Format Printing Supplies

Contact - NEOTECH® UAE

For exact product identification, availability or quotation:

Email: support@neotech.ae
Address: Store 13, Computer Building, Al Fahidi, Bur Dubai, Dubai 44245, UAE

Disclaimer - NEOTECH® UAE

HP, DesignJet and related product names are trademarks of HP Inc. and/or its affiliates. NEOTECH® is an independent UAE technology supplier and does not claim HP authorization unless expressly documented.

Specifications, software compatibility, supplies, accessories, warranty and regional configurations may change. The T630 is a dynamic-security-enabled printer; cartridge compatibility can be affected by cartridge-chip and firmware requirements. Confirm the exact 5HB09D product, regional configuration, package contents, warranty and availability before ordering.

Last Updated: 24 September 2026 (GST, UTC+4)
