2 MP / 1080p in-ceiling environmental PTZ dome with 20X optical zoom, smoked dome, heater/fan and IK10 protection

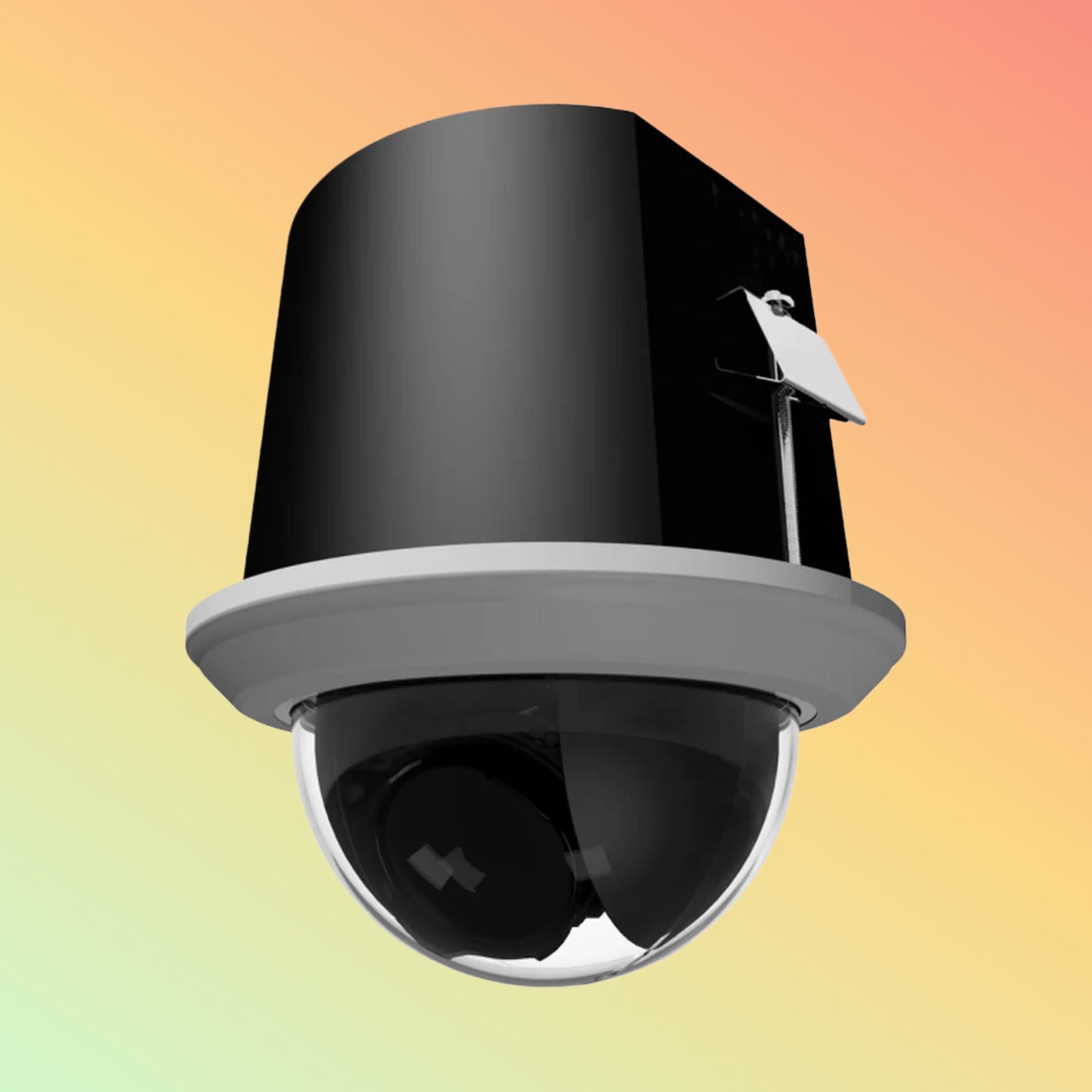

The Pelco P1220-YSR0 is an in-ceiling environmental configuration from the Pelco Spectra Professional Series.

Pelco identifies this exact model as a 2.0 MP, 20X optical zoom IP PTZ dome with a smoked dome and light-gray trim ring. The related P1220-YSR1 version uses a clear dome.

The environmental in-ceiling housing is designed for suspended or hard-ceiling installations and includes a heater and fan. It uses aluminum and stainless-steel construction and is rated for IK10 impact resistance.

Exact Model Identification

Brand: Pelco
Series: Spectra Professional
Model: P1220-YSR0
Camera Type: IP PTZ dome camera
Installation: In-ceiling environmental
Resolution: 2 MP / up to 1920 × 1080
Optical Zoom: 20X
Digital Zoom: 12X
Dome: Smoked
Trim Ring: Light gray
Finish: RAL 7047

Related clear-dome model: P1220-YSR1

Pelco’s archived technical documentation confirms these exact model distinctions.

In-Ceiling Environmental Housing

The P1220-YSR0 uses an environmental in-ceiling back box intended for either suspended or hard ceilings.

Pelco specifies:

• Single back box for suspended or hard ceiling applications
• Approximately 14.01 cm / 5.51 in. space required above the ceiling
• Minimum ceiling thickness: 1.27 cm / 0.50 in.
• Maximum ceiling thickness: 3.81 cm / 1.5 in.
• Heater and fan included
• Aluminum and stainless-steel construction
• Suitable for environmental air-handling / plenum spaces
• IK10 / 20 J impact resistance
• Light-gray finish, RAL 7047
• Smoked or clear dome depending on model

The smoked-dome version is P1220-YSR0; the clear-dome version is P1220-YSR1.

20X Optical Zoom

The camera module uses a motorized zoom lens with:

Focal Length: 4.3 mm wide to 86.0 mm telephoto
Aperture: F1.6 to F4.2
Optical Zoom: 20X
Digital Zoom: 12X

Horizontal Field of View:
55.4° at wide angle
2.9° at telephoto

This allows the operator to move between broader scene monitoring and narrower zoomed views.

Imaging System

Image Sensor: 1/3-inch CMOS
Maximum Resolution: 1920 × 1080
Aspect Ratio: 16:9
Shutter Range: 1 sec to 1/8,000 sec
Dynamic Range: 60 dB
Signal-to-Noise Ratio: 50 dB
White Balance: 2500 K to 8000 K
3D Noise Reduction: Selectable
Day/Night: Yes
IR Cut Filter: Yes
Iris Control: Auto iris
Automatic Gain Control: Yes
Active Noise Filtering: Yes

These camera characteristics apply across the P1220 Spectra Professional 20X platform.

Low-Light Performance

Pelco’s published sensitivity figures include:

Color, 33 ms: 0.3 lux
Color, 200 ms: 0.08 lux
Monochrome, 33 ms: 0.1 lux
Monochrome, 200 ms: 0.015 lux

Pelco notes that these figures were measured under defined test conditions, including f/1.6 at wide angle and specified signal/noise conditions.

Actual field performance depends on scene lighting, camera settings, reflectance and zoom position.

PTZ Functions

The Spectra Professional platform includes:

• 128 presets
• 16 tours
• Pan preset accuracy around ±0.1°
• Tilt preset accuracy around ±0.05°
• Maximum pan preset speed up to 430°/sec
• Maximum tilt preset speed up to 200°/sec
• Auto Flip
• Configurable park actions
• Proportional pan/tilt
• Eight configurable window blanks

These functions support repeatable camera positioning and automated tour workflows.

Auto Flip

The camera supports Auto Flip, allowing the dome to rotate when it reaches the bottom of its tilt travel so the operator can continue tracking in the same direction.

Proportional Pan and Tilt

Proportional pan/tilt reduces movement speed as optical zoom increases.

This can make fine movement easier at telephoto settings where the field of view is narrow.

Network Video

The Spectra Professional P1220 platform supports IP-based video streaming and integration with compatible video-management systems.

For replacement deployments, it is important to confirm:

• VMS compatibility
• firmware version
• supported network protocols
• ONVIF compatibility
• current driver/device-pack support

Because this is an older platform, these checks are more important than simply matching resolution.

Environmental vs Indoor In-Ceiling Models

The P1220-YSR0 should not be confused with the indoor in-ceiling variants.

P1220-FWH0
In-ceiling indoor, smoked dome, white trim

P1220-FWH1
In-ceiling indoor, clear dome, white trim

P1220-YSR0
In-ceiling environmental, smoked dome, light-gray trim

P1220-YSR1
In-ceiling environmental, clear dome, light-gray trim

Pelco’s model table clearly separates these four configurations.

Related Pendant Models

The same P1220 camera platform was also offered in pendant housings:

P1220-PWH0
Indoor pendant, smoked dome

P1220-PWH1
Indoor pendant, clear dome

P1220-ESR0
Environmental pendant, smoked dome

P1220-ESR1
Environmental pendant, clear dome

Dome Assembly Reference

For service and replacement reference, Pelco identifies:

LDP-YSR-0
In-ceiling environmental, light-gray trim ring, smoked dome

LDP-YSR-1
In-ceiling environmental, light-gray trim ring, clear dome

For the P1220-YSR0, the relevant smoked dome assembly is LDP-YSR-0.

Applications

The P1220-YSR0 may still be relevant for:

• Existing Pelco Spectra Professional installations
• Legacy PTZ replacement projects
• Indoor areas requiring environmental ceiling housing
• Transportation facilities
• Warehouses
• Industrial premises
• Commercial buildings
• Public-space surveillance
• Plenum-space installations
• Sites requiring concealed in-ceiling PTZ mounting

Suitability depends on the installation environment, VMS, mounting space, required zoom and lifecycle considerations.

Legacy Product Guidance

The P1220-YSR0 belongs to an older Pelco Spectra Professional generation.

Pelco still maintains archived documentation for the product family, but archived documentation should not be mistaken for proof of current production.

For new projects, buyers should compare current PTZ alternatives.

For existing Pelco installations, the P1220-YSR0 may still be important for:

• exact replacements
• housing compatibility
• dome assembly identification
• legacy VMS continuity
• repair projects
• migration planning

Buyer Guidance

Before ordering, confirm:

• Exact model number
• Smoked or clear dome requirement
• P1220-YSR0 vs P1220-YSR1
• Available ceiling space
• Ceiling thickness
• Existing back-box compatibility
• Environmental/plenum requirement
• Required optical zoom
• VMS compatibility
• Firmware availability
• Power requirements
• Product lifecycle status
• Condition of the supplied unit
• Availability of replacement dome components

For legacy surveillance equipment, matching the complete model number is especially important.

Why NEOTECH® UAE

NEOTECH® aims to provide accurate product identification for both current and legacy surveillance hardware.

✔ Exact model and variant identification
✔ Clear indoor vs environmental distinctions
✔ UAE-based supply through NEOLYN TECHNOLOGY LLC
✔ Compatibility-focused guidance
✔ Transparent legacy-product information
✔ No unsupported Pelco authorization claims

Learn First. Decide Second. Buy Only If It Is Right for Your Needs.

There is no obligation or pressure to purchase from NEOTECH®.

NEOTECH® Learning Center

NEOTECH® Learning Center is free and open to everyone. You do not need to be a NEOTECH® customer to access or benefit from our educational content.

Learn at your own pace, explore the information freely, and make informed decisions based on your own needs. There is no obligation or pressure to purchase from NEOTECH®.

FAQ - Pelco P1220-YSR0

Q: What is the Pelco P1220-YSR0?
A: It is a Spectra Professional 2 MP / 1080p, 20X optical zoom IP PTZ camera in an environmental in-ceiling housing with a smoked dome and light-gray trim ring.

Q: What is the difference between P1220-YSR0 and P1220-YSR1?
A: Both are environmental in-ceiling models. P1220-YSR0 has a smoked dome, while P1220-YSR1 has a clear dome.

Q: Is P1220-YSR01 an official Pelco model number?
A: I could not verify P1220-YSR01 in Pelco’s archived model tables. Pelco documents P1220-YSR0 and P1220-YSR1. If your physical product label specifically shows P1220-YSR01, that should be checked before publishing it as the official model.
