Compact Fixed-Mount Barcode Scanner for DPM Reading, Industrial Automation, Manufacturing, and Warehouse Applications.

Its compact design allows installation in production equipment, automation systems, manufacturing lines, warehouse stations, and industrial work cells where space may be limited.

The FC80 supports Ethernet and RS232 connectivity for integration with industrial control and automation environments.

Overview

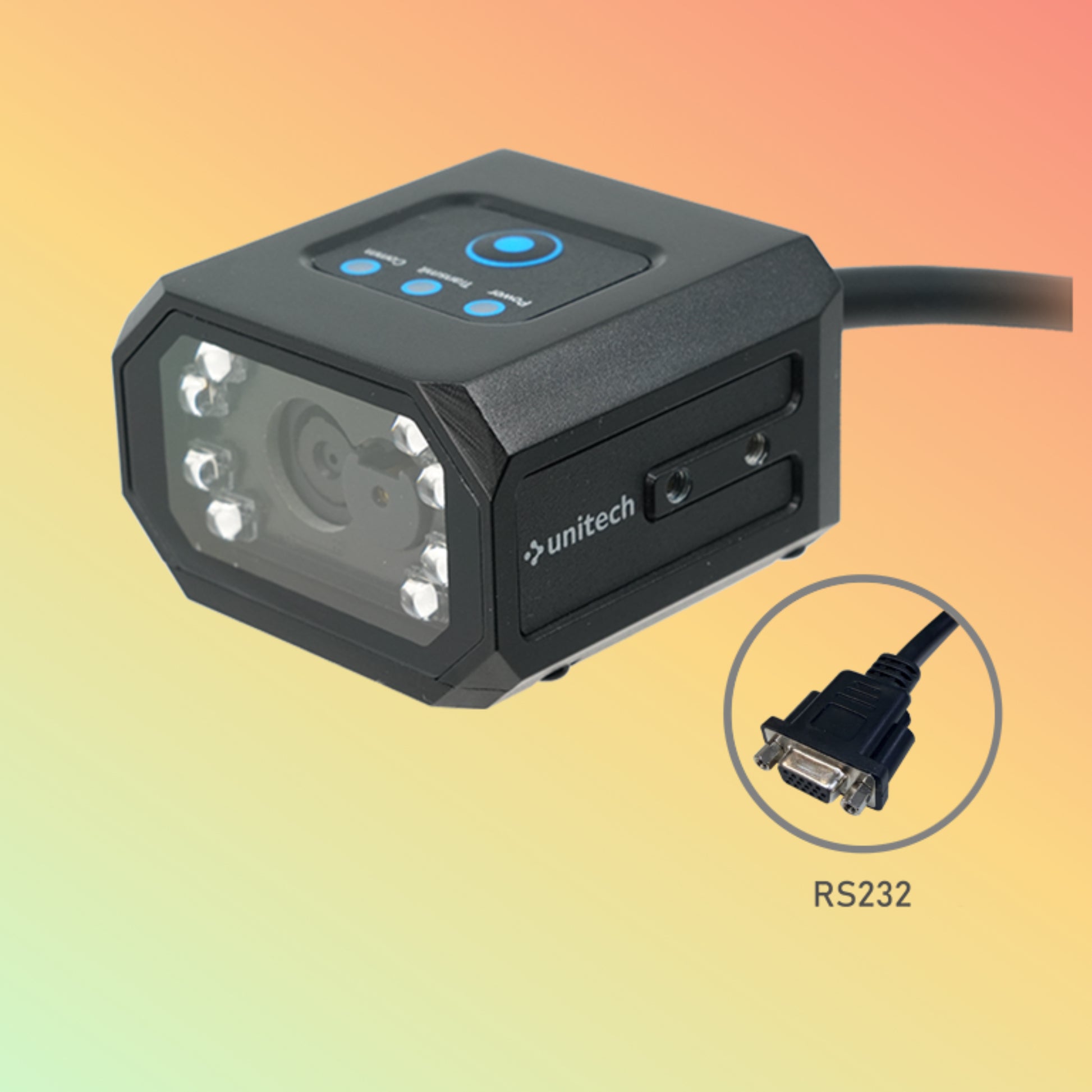

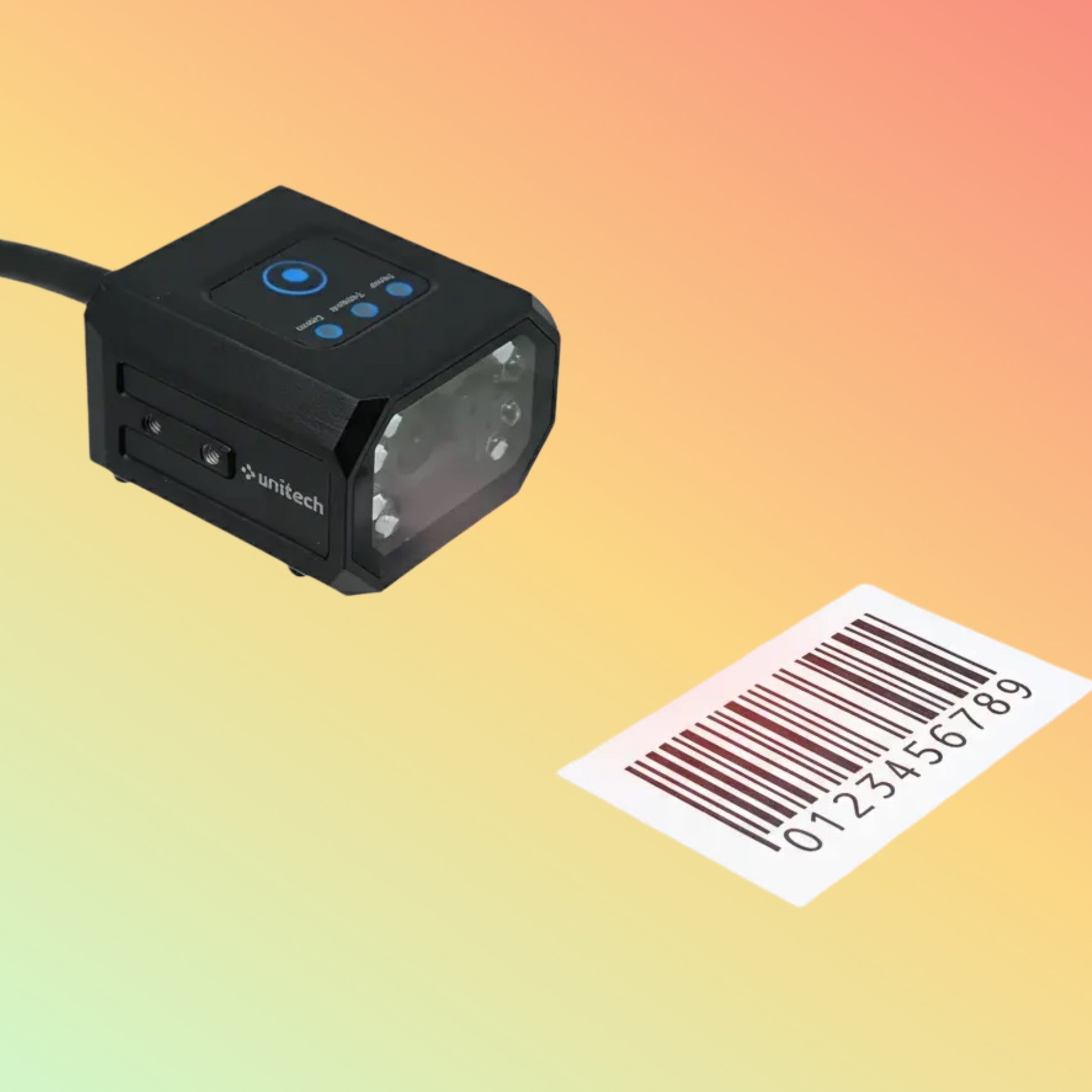

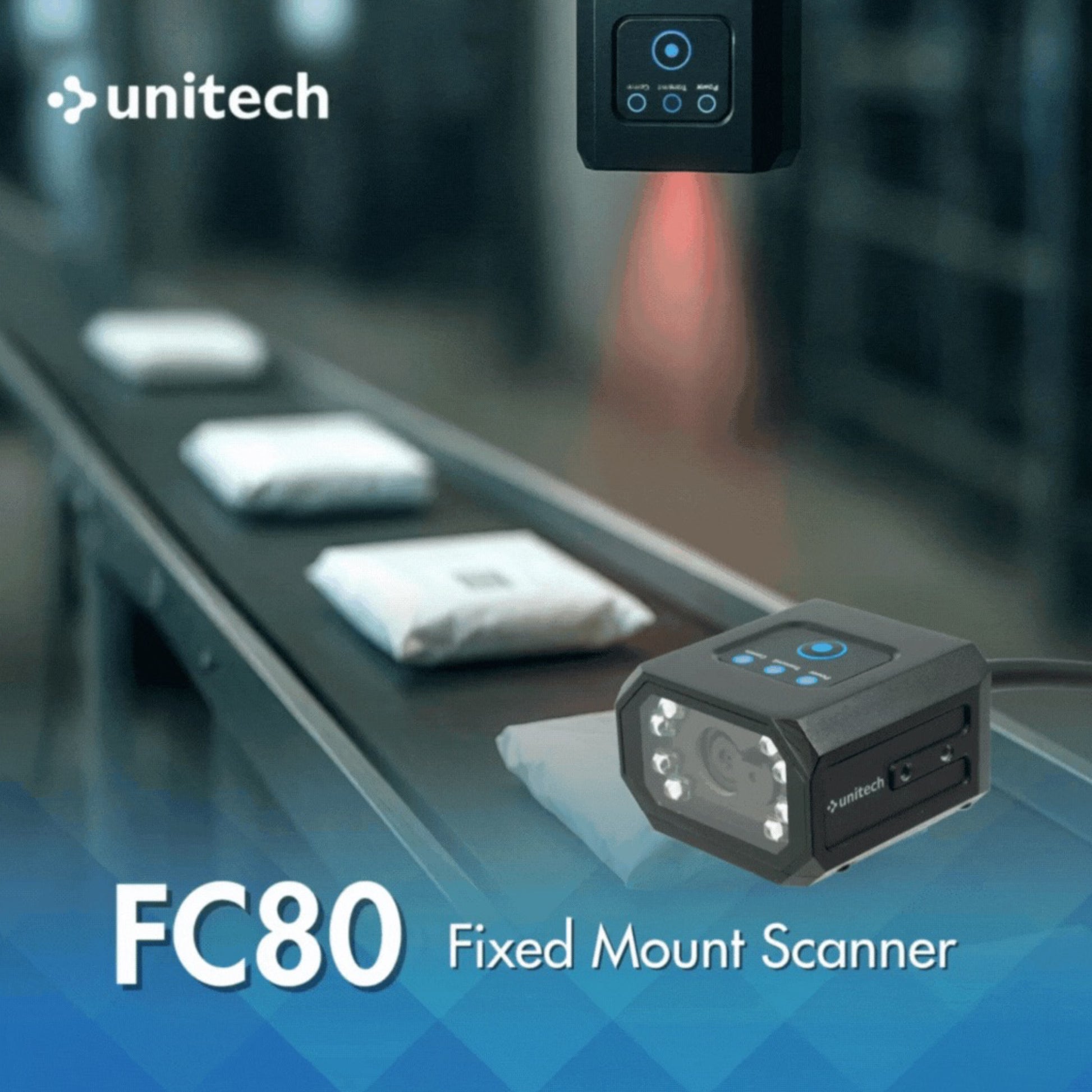

The Unitech FC80 is a fixed-mount industrial barcode scanner designed for automated identification and data capture applications. It supports 1D barcodes, 2D barcodes, and Direct Part Mark (DPM) code reading on a variety of surfaces including metal, plastic, and manufactured components.

Key Features

• Fixed-mount industrial barcode scanner
• Supports 1D and 2D barcode reading
• Supports Direct Part Mark (DPM) codes
• Ethernet and RS232 interfaces
• Trigger mode and presentation mode operation
• Compact housing for space-constrained installations
• IP54 environmental protection rating
• Drop resistance up to 1.2 meters
• Suitable for manufacturing and warehouse applications

Barcode Support

1D Barcode Formats

• Codabar
• Code 39
• Code 93
• Code 128
• GS1-128
• UPC-A
• UPC-E
• EAN-8
• EAN-13
• MSI
• GS1 DataBar
• Korea Post
• China Post

2D Barcode Formats

• QR Code
• Data Matrix
• PDF417
• Micro PDF417
• MaxiCode
• Aztec
• HANXIN
• GS1 Composite Codes

DPM Support

• Data Matrix
• QR Code

Applications

Manufacturing

Suitable for:

• Production line identification
• Work-in-process tracking
• Component traceability
• DPM code reading

Warehouse Operations

Suitable for:

• Automated scanning stations
• Conveyor systems
• Product identification
• Warehouse automation

Industrial Automation

Suitable for:

• Machine integration
• Automated inspection stations
• Industrial control systems
• Production equipment

Logistics & Distribution

Suitable for:

• Package identification
• Sorting operations
• Automated verification processes

Connectivity

Supported interfaces:

• DB9 RS232
• Ethernet TCP/IP
• Profinet
• Modbus TCP
• Ethernet/IP

Technical Specifications

Optical Performance

• Sensor: 1920 × 800 pixels
• Scan Rate: 60 fps
• Aiming Element: 650nm Red Laser
• Illumination: Red LED
• Ambient Light: 0–100,000 Lux
• Field of View:
• Horizontal: 52°
• Vertical: 23°

Mechanical Specifications

• Dimensions: 45.4 × 47 × 29.87 mm
• Weight: 133 g
• Trigger Life: 2,000,000 activations

Electrical

• Operating Voltage: 24V DC ±10%
• Standby Current: 200mA (Typical)
• Working Current: 700mA (Typical)

Environmental

• Operating Temperature: -10°C to +50°C
• Storage Temperature: -20°C to +70°C
• Humidity: 5% to 85% Non-Condensing

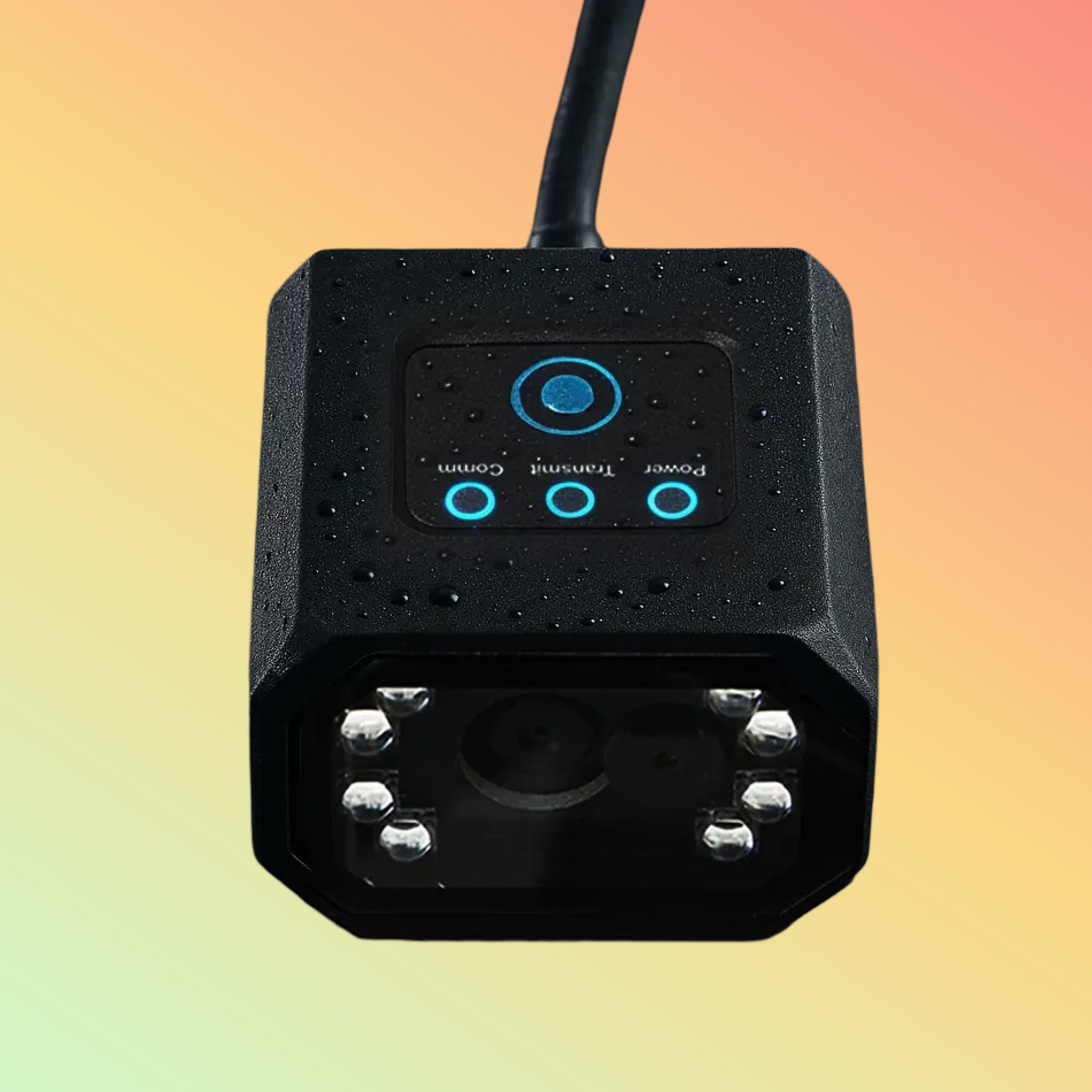

• IP Rating: IP54

Protection

• Drop Resistance: 1.2 meters
• ESD Protection:
• ±8KV Air Discharge
• ±4KV Contact Discharge

Included / Available Accessories

• Ethernet Cable (3m)
• RS232 Cable (2m)
• RS232 Cable (3m)
• Fixed Mount Bracket
• 24V / 2.5A Power Adapter
• EU Power Cord
• UK Power Cord
• US Power Cord

Accessory availability may vary.

Industries

• Manufacturing
• Warehousing
• Logistics
• Industrial Automation
• Distribution Centers
• Electronics Manufacturing
• Automotive Components
• Industrial Production Facilities

Why Choose NEOTECH® UAE

✔ UAE-based supplier operated by NEOLYN TECHNOLOGY LLC

✔ Industrial barcode and automation hardware solutions

✔ Support for warehouse and manufacturing applications

✔ Professional B2B supply approach

✔ Transparent product information

✔ UAE-focused delivery and support

FAQ - Unitech FC80 Fixed Mount Barcode Scanner

Q: Does the Unitech FC80 support Direct Part Mark (DPM) codes?

A: Yes. The FC80 supports DPM reading for compatible Data Matrix and QR code applications.

Q: Can the FC80 be integrated into automation systems?

A: Yes. The scanner supports Ethernet and RS232 communication interfaces commonly used in industrial environments.

Q: Is the FC80 suitable for manufacturing applications?

A: Yes. The scanner is designed for industrial identification and data capture applications including manufacturing and warehouse operations.
