Understanding print height, cartridge configuration, compatibility, and application requirements in Thermal Inkjet coding.

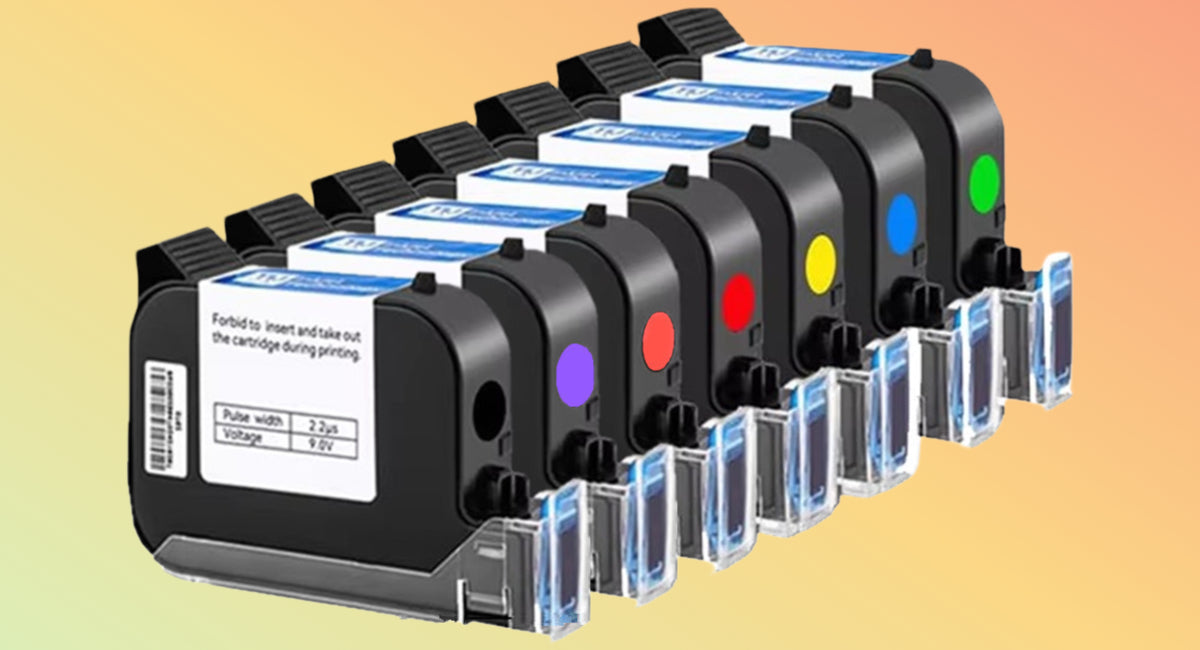

What Is the Difference Between 12.7 mm and 25.4 mm TIJ Ink Cartridges ? NEOTECH® Learning Center
Learning Principle
Learn First. Decide Second. Buy Only If It Is Right for Your Needs.
Introduction
Thermal Inkjet (TIJ) printers are widely used for product and packaging coding applications such as dates, batch numbers, lot codes, text, logos, barcodes, QR codes, and other variable information.
When comparing TIJ equipment, users frequently encounter two measurements:
12.7 mm (0.5 inch)
and
25.4 mm (1 inch)
These measurements can easily be misunderstood.
In this context, they generally refer to the maximum vertical print height or print swath available from a particular cartridge or printhead configuration, rather than simply describing how much ink is inside the cartridge.
Understanding this distinction is important when choosing a printer or replacement cartridge.
What Is a 12.7 mm TIJ Ink Cartridge?
A 12.7 mm TIJ cartridge configuration provides a print swath of approximately 12.7 mm, or 0.5 inch.
HP identifies its TIJ 2.5 technology as having a 12.7 mm (0.5-inch) printhead size, with resolutions up to 600 dpi depending on the implementation.
This format has become common in industrial coding and marking equipment.
Depending on the printer and software, a 12.7 mm system may be used to print:
- Manufacturing dates
- Expiry or best-before dates
- Batch and lot numbers
- Serial numbers
- Product codes
- Short text
- Logos
- Linear barcodes
- QR codes
- Data Matrix codes
- Other variable information
The actual supported content, resolution, speed, barcode formats, and message dimensions depend on the printer and software rather than cartridge height alone.
What Is a 25.4 mm TIJ Cartridge Configuration?
A 25.4 mm configuration provides a maximum print height of approximately 25.4 mm, or 1 inch, on equipment designed to support that format.
The additional vertical area can be useful when a message requires:
- Larger characters
- Taller logos
- More information vertically
- Larger machine-readable codes
- Multiple lines of information
- Larger outer-carton markings
Current commercial TIJ systems are available with both 12.7 mm and 25.4 mm maximum print-height configurations. For example, Linx specifies up to 12.7 mm for its TJ127 and up to 25.4 mm for its TJ250.
This does not mean that every 25.4 mm system uses the same cartridge architecture. Printer manufacturers may implement the larger print area differently.
12.7 mm vs 25.4 mm: What Actually Changes?
The most obvious difference is the available vertical printing area.
A 12.7 mm system provides up to approximately half an inch of print height.
A 25.4 mm system provides up to approximately one inch.
That additional height can change how a message is designed.
For example, a simple batch code such as:
LOT 260822
may require very little vertical space.
A message containing:
PRODUCT NAME
LOT 260822
EXP 08/2028
QR CODE
may benefit from a larger printing area, depending on the required character and symbol sizes.
However, larger print height is not automatically better. If the application requires only a small date or batch code, a 12.7 mm configuration may already provide sufficient space.
Does 25.4 mm Mean Twice as Much Ink?
Not necessarily.
This is an important misconception.
Print height and ink capacity are different specifications.
The 12.7 mm or 25.4 mm measurement describes the printing swath/configuration. Ink capacity is normally stated separately in millilitres.
Cartridge capacities vary by manufacturer and product family. Therefore, it would be incorrect to assume that every 25.4 mm cartridge contains twice as much ink as every 12.7 mm cartridge.
Always check both:
- Maximum print height
- Actual ink capacity
as separate specifications.
Is a 25.4 mm Cartridge Simply a Larger 12.7 mm Cartridge?
Not universally.
Some printers are designed around dedicated 12.7 mm or 25.4 mm cartridge configurations. Other systems may achieve larger print areas using multiple printheads or cartridges.
For example, some industrial systems combine two 12.7 mm printheads to produce a wider total print area, while other printers support a dedicated one-inch configuration. Commercial systems using both approaches exist.
Therefore, a user should never purchase a cartridge based only on the required print height.
The exact printer model and supported cartridge specification must be confirmed.
Can 12.7 mm and 25.4 mm Cartridges Be Interchanged?
Only when the printer manufacturer specifically supports both configurations and the required hardware or setup is correctly installed.
Some printers are designed exclusively for one cartridge format.
Others may support both sizes through a compatible printhead assembly, cartridge plate, or other manufacturer-specified configuration. For example, one documented commercial system uses different front printhead plates for its 12.7 mm and 25.4 mm configurations.
A cartridge that appears physically similar is therefore not automatically compatible.
Compatibility can depend on:
- Printer model
- Printhead design
- Cartridge dimensions
- Electrical contacts
- Cartridge recognition or chip requirements
- Firmware
- Ink chemistry
- Printer configuration
Always confirm compatibility before installation.
What Ink Types Are Available?
TIJ systems can use different ink formulations depending on the printer and application.
Examples can include:
- Water-based inks
- Solvent-based inks
- Dye-based formulations
- Pigment-based formulations
- Specialized inks for particular applications
HP's current TIJ technology information, for example, lists aqueous and solvent ink capability for TIJ 2.5.
Ink selection should be based on the printer and substrate, not simply the cartridge's print height.
A water-based formulation may be appropriate for certain porous materials such as paper or corrugated board.
A compatible solvent formulation may be considered for certain non-porous surfaces where suitable adhesion and drying characteristics are required.
Actual performance must be verified for the specific ink, printer, and substrate.
Where Are 12.7 mm Systems Commonly Useful?
A 12.7 mm printing area may be sufficient for many routine coding applications, including:
- Date coding
- Batch coding
- Lot identification
- Small barcodes
- QR or Data Matrix codes of appropriate size
- Product identification
- Serial numbers
- Carton coding
- Basic variable-data printing
It can be a practical choice when the required message comfortably fits within the available vertical print area.
When Might 25.4 mm Be Useful?
A 25.4 mm configuration may be worth considering when the application genuinely requires additional vertical printing space.
Examples may include:
- Larger carton markings
- Taller characters
- Larger logos
- Multiple lines of information
- Larger barcodes or 2D codes
- Combined text-and-code layouts
The decision should be based on the actual message design rather than choosing the larger option automatically.
Advantages of a 12.7 mm Configuration
Depending on the printer and application, potential advantages include:
- Adequate height for many routine date and batch codes
- Widely established half-inch TIJ format
- Compact printing configuration
- Suitable for many text, barcode, logo, and variable-data applications
- Broad availability of compatible systems and ink formulations
Advantages of a 25.4 mm Configuration
Potential advantages include:
- Greater vertical print area
- Ability to accommodate larger characters
- More flexibility for multi-line layouts
- Additional space for logos and machine-readable codes
- Useful for larger packaging and outer-carton coding
These benefits apply only when the larger print area is actually needed.
Limitations and Points to Verify
Neither format should be selected solely from the number printed on a product listing.
Before purchasing, verify:
- Exact printer brand and model
- Supported cartridge format
- Maximum required print height
- Required message layout
- Ink type
- Ink color
- Substrate
- Porous or non-porous surface
- Drying requirements
- Adhesion requirements
- Barcode or 2D-code requirements
- Cartridge recognition or chip compatibility
- Manufacturer-approved consumables
Print resolution and maximum production speed should also be checked independently. A larger print height does not automatically mean higher resolution or faster printing. Commercial specifications demonstrate that these characteristics vary by printer model and configuration.
Best Practice: Start With the Message and Material
Rather than asking:
“Should I buy 12.7 mm or 25.4 mm?”
start by defining:
What needs to be printed?
Then confirm:
How tall must the complete message be?
Next identify:
What material will receive the print?
Finally confirm:
Which printer and approved ink configuration can produce that message reliably?
This approach reduces the risk of selecting a larger or more complicated system than the application requires.
Common Misconceptions
“25.4 mm is always better than 12.7 mm.”
No. It provides a larger potential print area, but that is useful only when the application requires it.
“25.4 mm means twice the ink.”
Not necessarily. Print height and cartridge ink capacity are separate specifications.
“Any 12.7 mm cartridge will fit any 12.7 mm printer.”
No. Matching print height does not establish cartridge compatibility.
“Two 12.7 mm cartridges always equal a perfect 25.4 mm print.”
Not automatically. Multi-head printing requires a printer specifically designed and configured for that arrangement, and alignment can be an important consideration.
Frequently Asked Questions (FAQ)
Q: What does 12.7 mm mean on a TIJ ink cartridge?
A: In this context, 12.7 mm generally refers to the maximum vertical print swath, equivalent to approximately 0.5 inch. It does not by itself specify ink volume, print speed, cartridge compatibility, or the dimensions of the complete printed message.
Q: Should I choose a 12.7 mm or 25.4 mm TIJ system?
A: Choose according to the required message height and printer compatibility. A 12.7 mm system may be sufficient for dates, batch numbers, smaller codes, and routine identification. A 25.4 mm configuration can provide additional vertical space for larger text, multiple lines, logos, or larger codes.
Q: Can I install a 25.4 mm cartridge in my existing 12.7 mm printer?
A: Do not assume so. Some equipment supports only one cartridge format, while certain printers support different configurations using manufacturer-specified hardware. Confirm the exact printer model and approved cartridge specification before purchasing or installing a different format.
Q: Does cartridge size determine whether I need water-based or solvent ink?
A: No. Print height and ink chemistry are different considerations. Ink selection depends primarily on printer compatibility, substrate, drying behavior, adhesion, durability, and application requirements.
Q: What information should I provide when asking for a replacement TIJ cartridge?
A: Provide the printer manufacturer and exact model, existing cartridge model or part number where available, required print height, ink color, substrate material, current ink type, and a photograph of the existing cartridge if identification is uncertain. This is safer than ordering by “12.7 mm” or “25.4 mm” alone.
