QR Code, Barcode and NFC Identification in a Compact Embedded Module

Fixed-mount 1D/2D barcode scanner with optional 13.56 MHz NFC, USB, RS232, RS485, TTL and Wiegand interfaces for kiosks, access control and self-service equipment

Overview

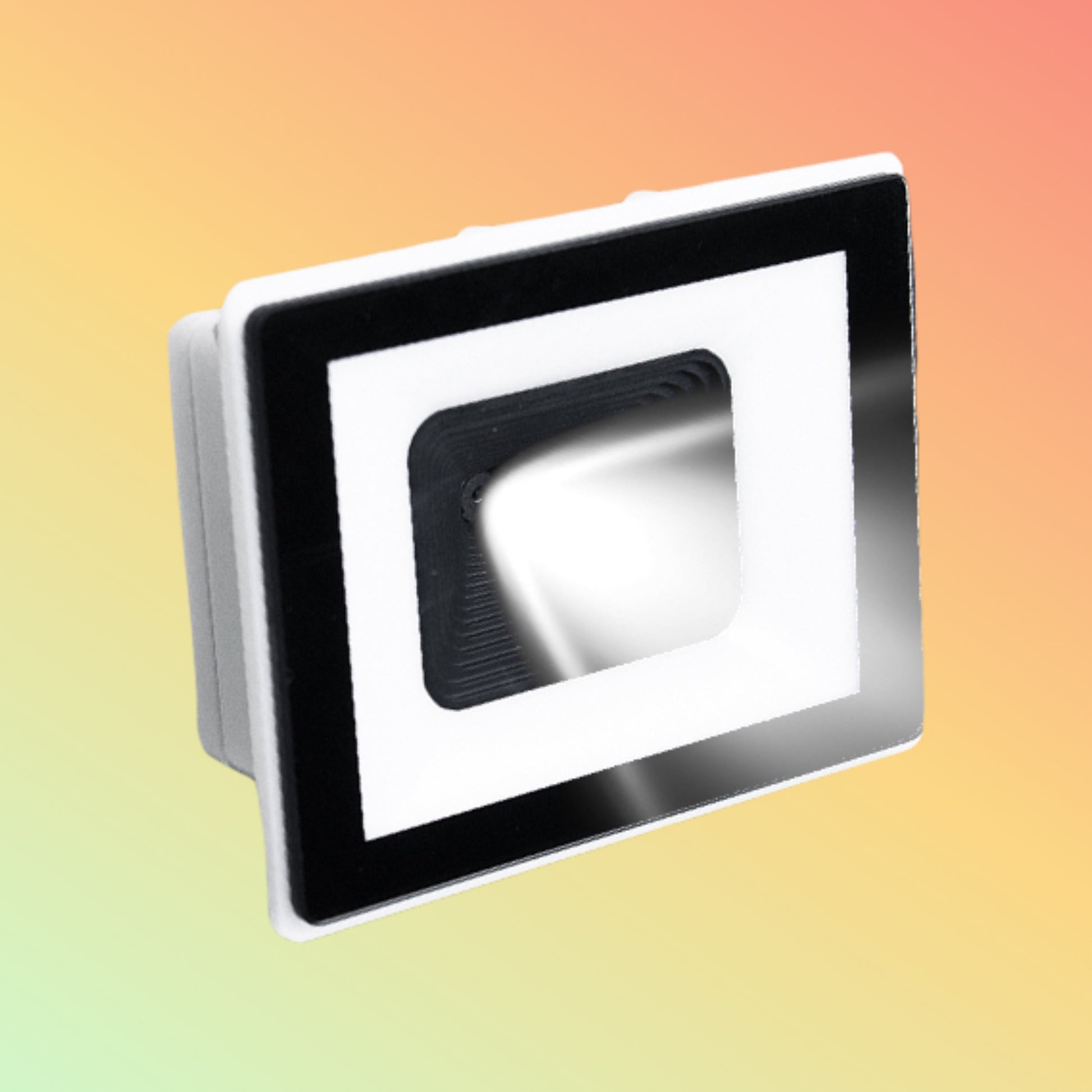

The MASUNG MS-E200N is a compact fixed-mount barcode scanning module designed for embedded and self-service applications requiring 1D barcode, 2D QR code and optional NFC card reading.

The unit uses a 640 × 480 CMOS image sensor with white LED illumination and is designed to read codes displayed on both printed media and electronic screens.

Depending on configuration, communication interfaces can include USB, RS232, RS485, TTL, GPIO and Wiegand, making the MS-E200N relevant to access-control terminals, turnstiles, kiosks, vending systems, self-service equipment and other embedded identification applications.

Key Features

• 640 × 480 CMOS image sensor
• White LED illumination, approximately 6500K
• Reads printed and screen-displayed barcodes
• Supports common 1D barcode symbologies
• Supports QR Code, Data Matrix, PDF417 and Han Xin Code
• Optional 13.56 MHz NFC/contactless IC card reader
• NFC Type A/B card support on applicable configuration
• Optional OCR-A and OCR-B reading
• USB communication
• RS232 communication
• Optional RS485
• Optional TTL
• Optional GPIO
• Optional Wiegand
• Compact 69 × 55 × 27 mm housing
• Approximate weight: 35 g
• Wide-voltage options depending on configuration
• Designed for embedded kiosk and access-control applications

These specifications are supported by MASUNG's manufacturer material for the MS-E200N/MS-200N platform.

1D & 2D Barcode Reading

The MS-E200N supports both conventional linear barcodes and 2D codes.

Manufacturer-listed 2D formats include:

• QR Code
• Data Matrix
• PDF417
• Han Xin Code

Supported 1D formats include:

• Code 128
• Code 39
• Code 93
• Code 11
• EAN-13
• EAN-8
• UPC-A
• UPC-E
• Interleaved 2 of 5
• Industrial 2 of 5
• Matrix 2 of 5
• Standard 2 of 5
• Codabar
• MSI-Plessey
• GS1 DataBar
• GS1 Composite
• ISBN
• UCC/EAN-128

Actual readability depends on code quality, size, contrast, distance, screen brightness and installation conditions.

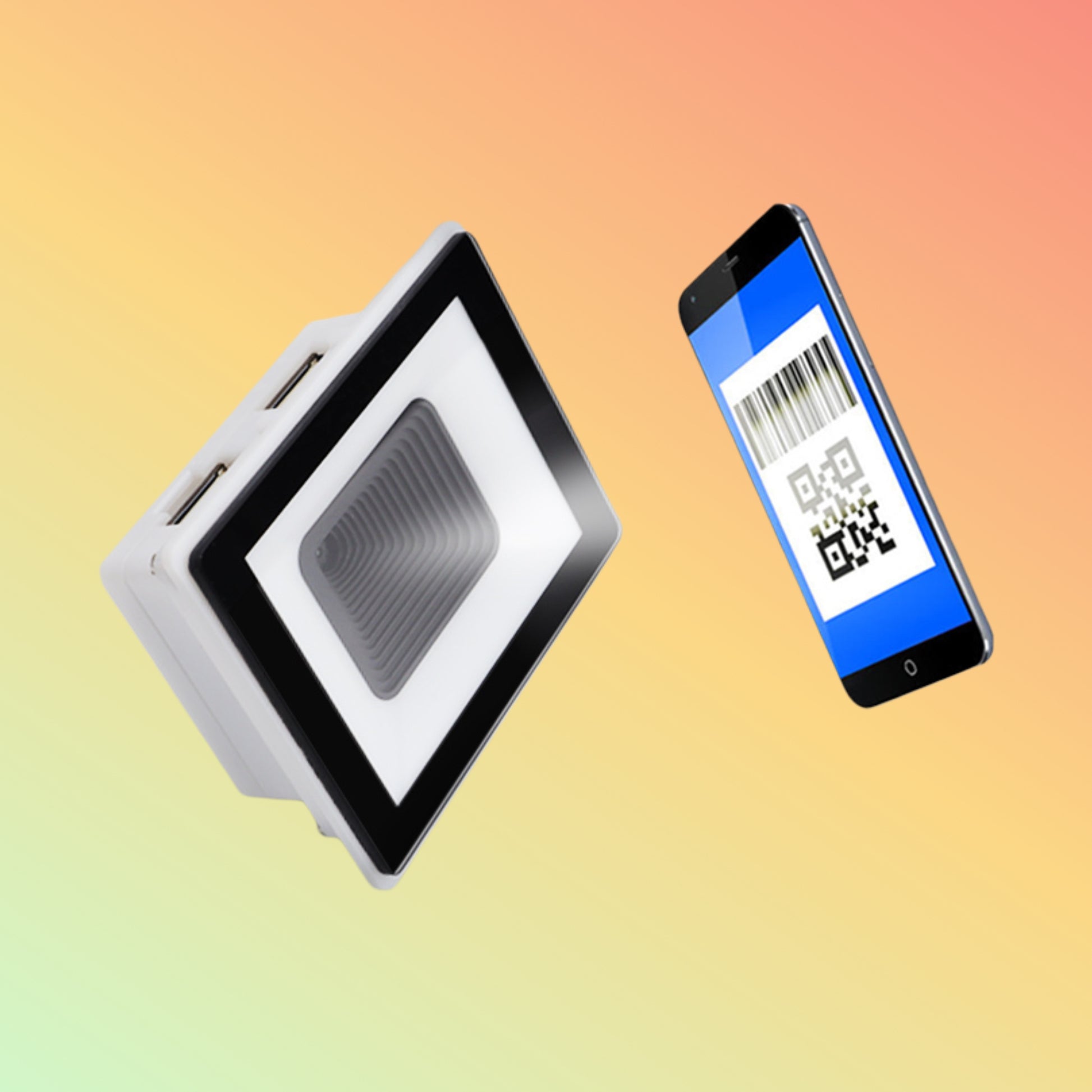

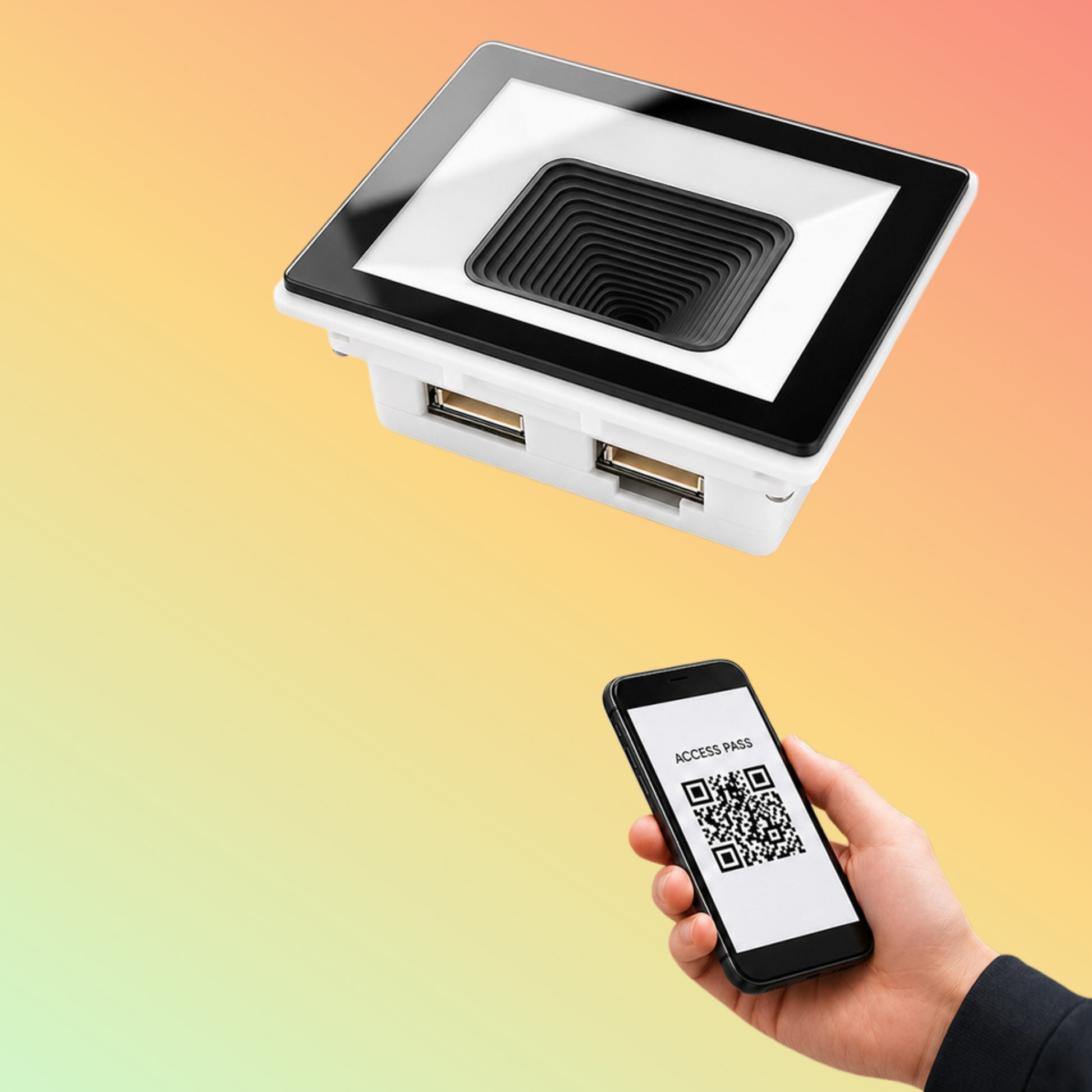

QR Codes from Phones and Screens

The module is intended to read both paper-based and mobile-screen codes.

This makes it relevant for applications such as:

• Digital entry passes
• Electronic tickets
• Visitor QR codes
• Membership QR codes
• Mobile payment identifiers
• Self-service authentication
• Kiosk transactions

The scanner itself only reads and transmits barcode data. The surrounding access-control, payment or ticketing system determines what happens after the code is read.

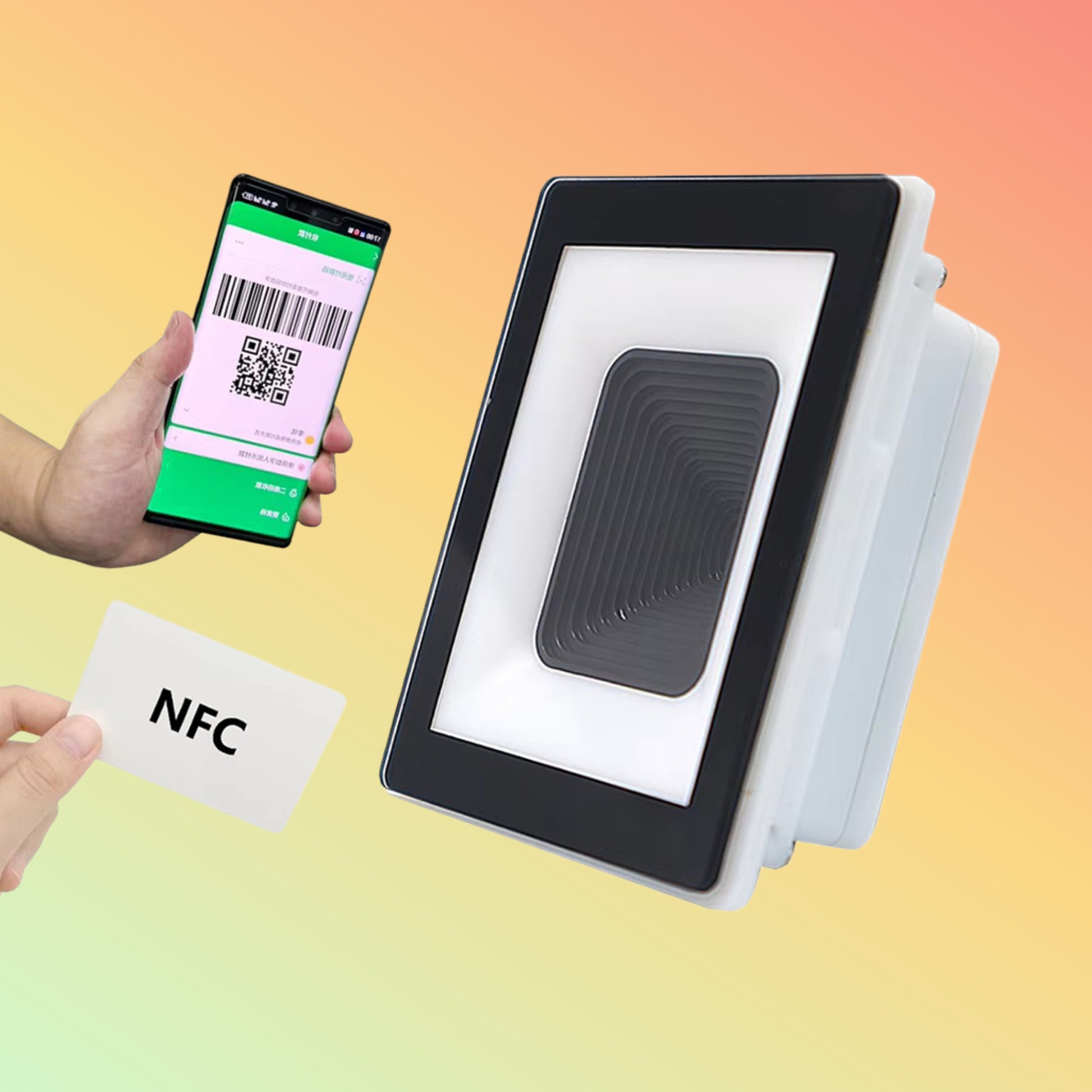

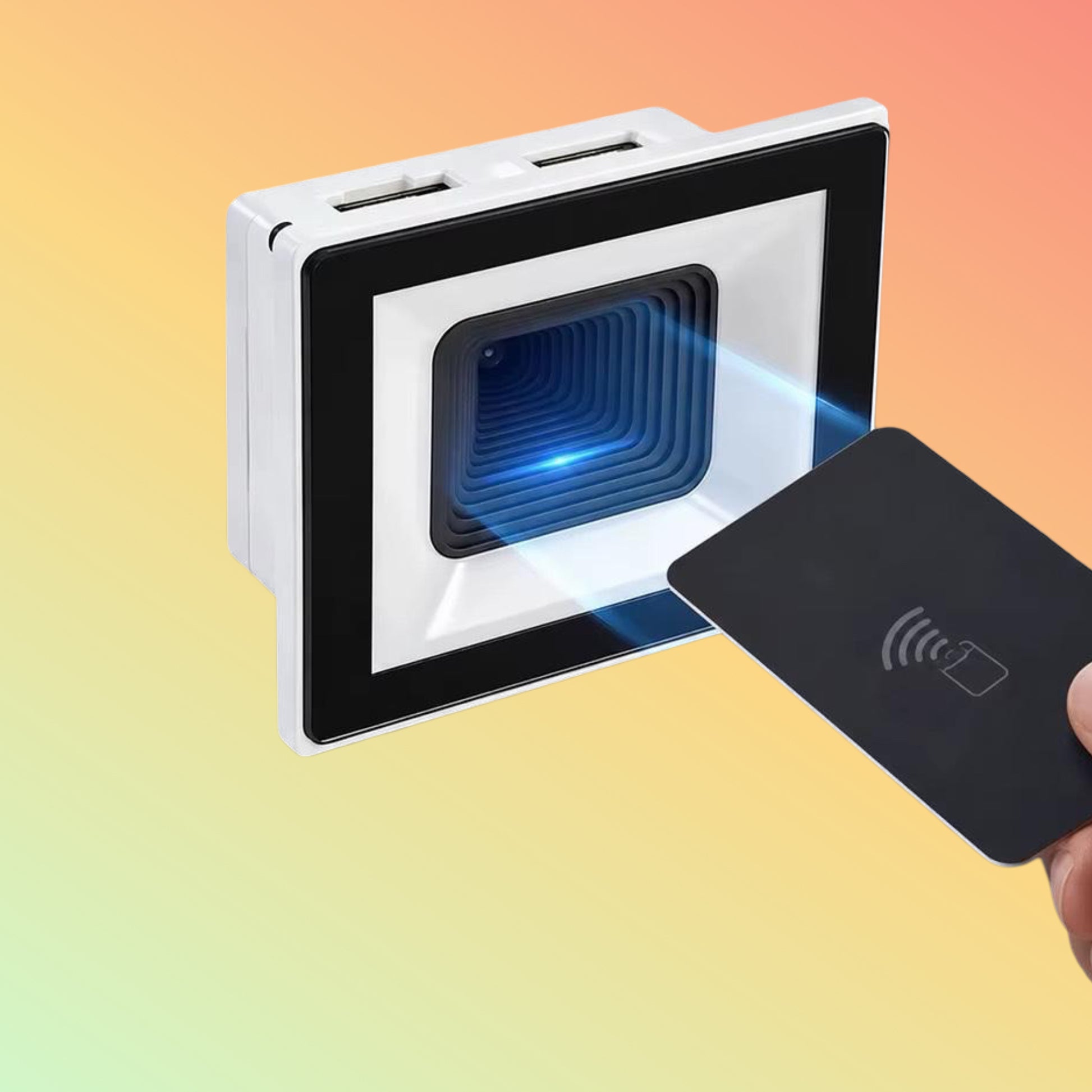

13.56 MHz NFC Reader

An important configuration option is the integrated 13.56 MHz contactless NFC/IC card reader.

MASUNG states that the NFC-equipped version supports:

Frequency: 13.56 MHz
Card Interface: Contactless IC card reader
Card Types: Type A / Type B

Some MASUNG documentation also references MIFARE-family and other compatible contactless credentials for particular configurations. Exact card technology should therefore be confirmed before purchase rather than assuming universal NFC/RFID compatibility.

Important NFC Clarification

“NFC reader” does not mean the module will automatically work with every contactless card, access-control credential or mobile-wallet application.

Before ordering, confirm:

• Card frequency
• ISO/card technology
• Type A or Type B requirement
• MIFARE requirement, if applicable
• Required data output
• Host interface
• Access-control controller compatibility

This is particularly important for door access, turnstile and membership systems.

Image Sensor & Reading Performance

Image Sensor: 640 × 480 CMOS

Illumination: White LED, approximately 6500K

1D Minimum Resolution: ≥5 mil

2D Minimum Resolution: ≥7.5 mil

Minimum Symbol Contrast: ≥20%

Viewing Angle: approximately 84° diagonal

Barcode Orientation Tolerance:
Tilt ±60°
Deflection ±55°
Rotation 360°

Motion Tolerance: ≥0.2 m/s according to MASUNG's official parameter table.

I would use these manufacturer-supported values instead of the “300 scans/sec” claim appearing in some reseller listings.

Multiple Communication Interfaces

The MS-E200N platform is designed for integration into different equipment architectures.

Depending on configuration, interfaces include:

• USB
• USB COM
• RS232
• RS485
• TTL
• GPIO
• Wiegand

MASUNG identifies USB and RS232 as standard on one official product description, with RS485, TTL, GPIO and Wiegand available as additional interface options.

Important: Do not assume every interface is simultaneously present on every unit. The exact interface configuration should be confirmed before ordering.

Access Control & Turnstile Applications

The combination of QR/barcode reading, optional NFC and Wiegand/serial communication makes this platform particularly relevant for:

• Access-control terminals
• Turnstiles
• Visitor entry systems
• Membership access
• Attendance/sign-in terminals
• Ticket validation
• Self-service access points

MASUNG specifically markets the MS-E200N family for access-control, turnstile and sign-in applications.

Kiosk & Self-Service Integration

The compact scanner can also be considered for integration into:

• Self-service kiosks
• Vending machines
• Ticketing machines
• Payment terminals
• Check-in stations
• Information terminals
• Embedded scanning panels

Its small physical footprint can help where installation space is limited.

Physical Dimensions

Dimensions: 69 × 55 × 27 mm

Weight: Approximately 35 g

The official MASUNG MS-200N specification lists these dimensions for the compact module.

Some reseller pages show a 42 mm depth for other MS-E200N housing variants, so the exact enclosure should be confirmed against the actual supplied configuration before designing a mounting panel.

That distinction is important for OEM integration.

Power Requirements

MASUNG's official specification lists:

Standard Working Voltage: approximately 3.61–5 V

Optional Wide-Voltage Configuration: 5–16 V

Typical Current: less than 190 mA at 5 V input

Other connector/configuration variants may use different voltage ranges, so confirm the electrical specification before integrating the reader into a controller or kiosk.

Optional OCR Reading

MASUNG lists OCR-A and OCR-B recognition as an optional/customized function.

This should therefore not be presented as standard functionality on every MS-E200N.

Where OCR is required, the specific customized firmware/configuration should be confirmed before ordering.

Environmental Specifications

Manufacturer-listed operating parameters include:

Operating Temperature: -20°C to +60°C

Storage Temperature: -40°C to +70°C

Operating Humidity: 5%–95% RH, non-condensing

Ambient Light: 0–100,000 lux

These figures describe component operating limits and do not by themselves mean the reader is suitable for every outdoor or exposed installation.

Wall-Mount or 86-Box Installation

Some OEM/reseller variants of this module are promoted for installation into 86-type wall boxes/panels.

However, the official core specification I found describes the reader primarily as an embedded scanning module rather than defining every version as a complete wall-mounted finished product.

For that reason, NEOTECH® should use:

“fixed-mount / embedded QR and NFC reader”

as the primary description.

If the exact unit you receive includes an 86-box wall plate or finished wall-mount housing, we can create a separate configuration-specific page or update the page after verifying it physically.

Applications

The MS-E200N may be considered for:

• QR access control
• NFC access control
• Turnstile systems
• Ticket validation
• Visitor management
• Membership systems
• Self-service kiosks
• Vending machines
• Payment terminals
• Attendance systems
• Embedded barcode scanning
• Digital pass scanning
• Mobile-screen QR code reading

The scanner provides identification/data capture. It does not itself provide the complete access-control, payment, vending or ticketing application.

Purpose of Use

The MASUNG MS-E200N is intended for projects requiring a compact reader that can combine:

1D barcode + 2D QR code + optional 13.56 MHz NFC + multiple host interfaces

within an embedded system.

Its value is therefore in integration flexibility rather than functioning as a conventional handheld barcode scanner.

Buyer Guidance

Before ordering, confirm the exact configuration, particularly:

• MS-E200N model/version
• Barcode-only or barcode + NFC
• Required NFC/card technology
• USB / USB COM / RS232 / RS485 / TTL requirement
• GPIO requirement
• Wiegand requirement
• Required operating voltage
• Housing dimensions
• Wall/86-box mounting requirement
• OCR requirement
• Host controller compatibility
• Software/protocol requirements

For access-control projects, confirm these details before placing the order rather than adapting the system after receiving the reader.

Why NEOTECH® UAE

NEOTECH® focuses on clear configuration and compatibility information for barcode, Auto-ID and embedded data-capture equipment.

✔ Exact-model research
✔ UAE-based supply through NEOLYN TECHNOLOGY LLC
✔ Interface and compatibility guidance
✔ Barcode and QR-code product knowledge
✔ Transparent configuration information
✔ No unsupported manufacturer-authorization claims

Learn First. Decide Second. Buy Only If It Is Right for Your Needs.

There is no obligation or pressure to purchase from NEOTECH®.

NEOTECH® Learning Center

NEOTECH® Learning Center is free and open to everyone. You do not need to be a NEOTECH® customer to access or benefit from our educational content.

Learn at your own pace, explore the information freely, and make informed decisions based on your own needs. There is no obligation or pressure to purchase from NEOTECH®.

FAQ - MASUNG MS-E200N

Q: Can the MASUNG MS-E200N scan QR codes displayed on mobile phones?
A: Yes. MASUNG identifies the platform as supporting both printed and mobile-screen 1D/2D code reading. Actual reading performance depends on code quality, display brightness and scanning conditions.

Q: Does the MS-E200N include an NFC reader?
A: An NFC-equipped configuration is available with a 13.56 MHz contactless IC-card reader supporting Type A/B cards. NFC is configuration-dependent and should be confirmed before ordering.

Q: What interfaces can the MS-E200N support?
A: MASUNG documents USB, RS232, RS485, TTL, GPIO and Wiegand options. The exact combination varies by configuration, so interface requirements should be confirmed before purchase.
