Rugged IP65 fanless all-in-one PC: 7″–24″ capacitive touch, Intel® CPU, Win10 Pro/IoT, Linux support, sealed I/O. Ideal for industrial HMI.
Overview

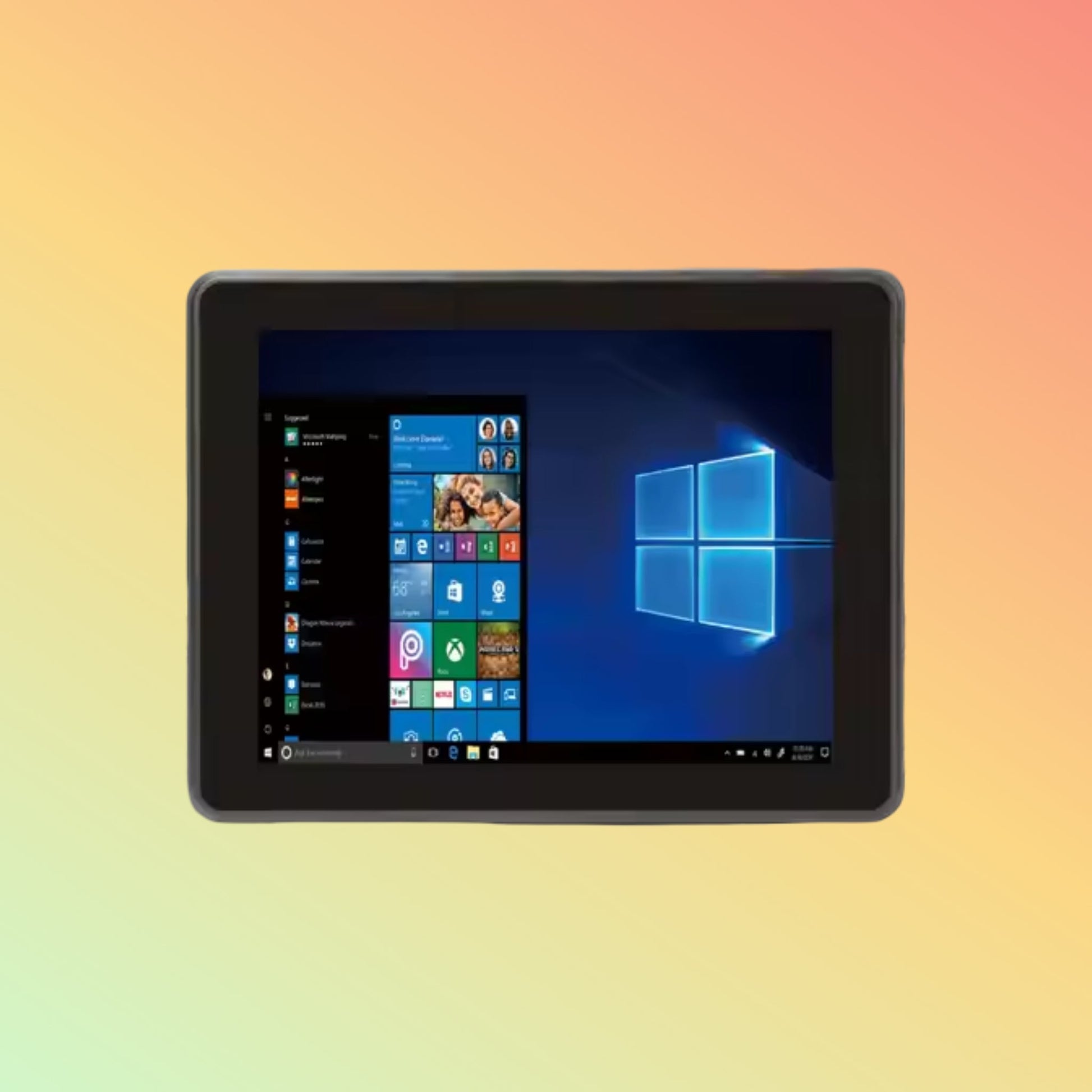

The CESIPC 7″–24″ Embedded Panel PC integrates a bright PCAP touchscreen with an Intel® embedded processor in a fanless, IP65-sealed chassis. Preconfigured for Windows 10 Pro/IoT or Linux, it delivers maintenance-free HMI across sizes—from compact kiosks to large control panels.
Product Description

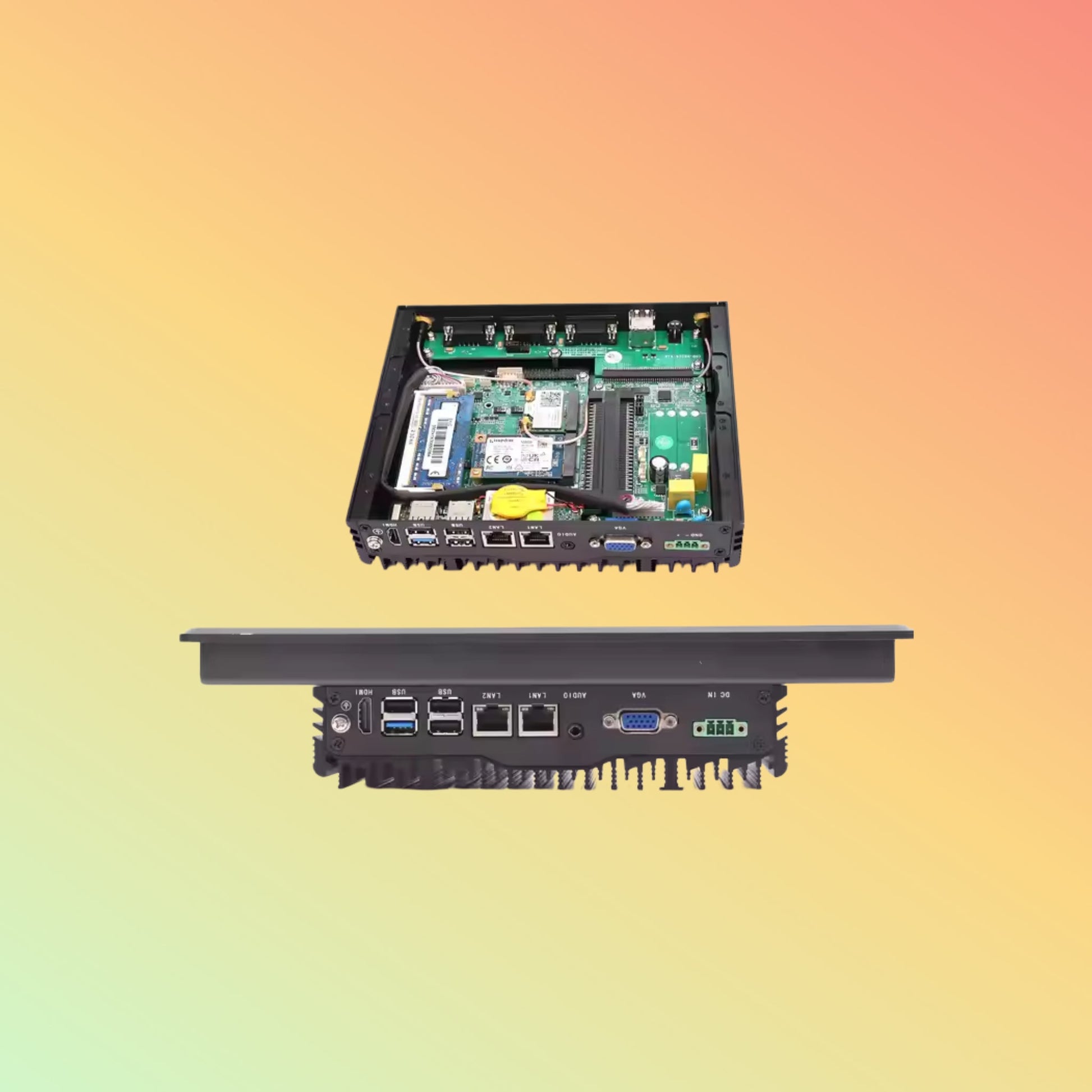

Choose display sizes (7″, 10″, 12″, 15″, 17″, 19″, 21.5″, 24″) with 1280×800 to 1920×1080 resolution. Behind the true-flat PCAP glass sits your choice of Intel® Celeron® or Core™ i3/i5 CPU, 4–16 GB DDR4, and 64 GB–1 TB NVMe SSD. M12-sealed I/O (USB 3.0, GigE LAN, RS-232/485, HDMI) plus dual-band Wi-Fi 5/6 and Bluetooth 5.0 ensure robust connectivity. A 9–36 V DC input with surge/reverse-polarity protection and passive cooling guarantee silent 24/7 operation from –10 °C to +60 °C.
Key Features
-
Multi-Size Touch: 7″–24″ PCAP multi-touch, glove-compatible
-
IP65 Fanless Chassis: wash-down & dust-proof, zero moving parts
-
Embedded Intel® CPUs: Celeron® J series or 10th-Gen Core™ i3/i5
-
Memory & Storage: 4–16 GB DDR4; 64 GB–1 TB NVMe SSD
-

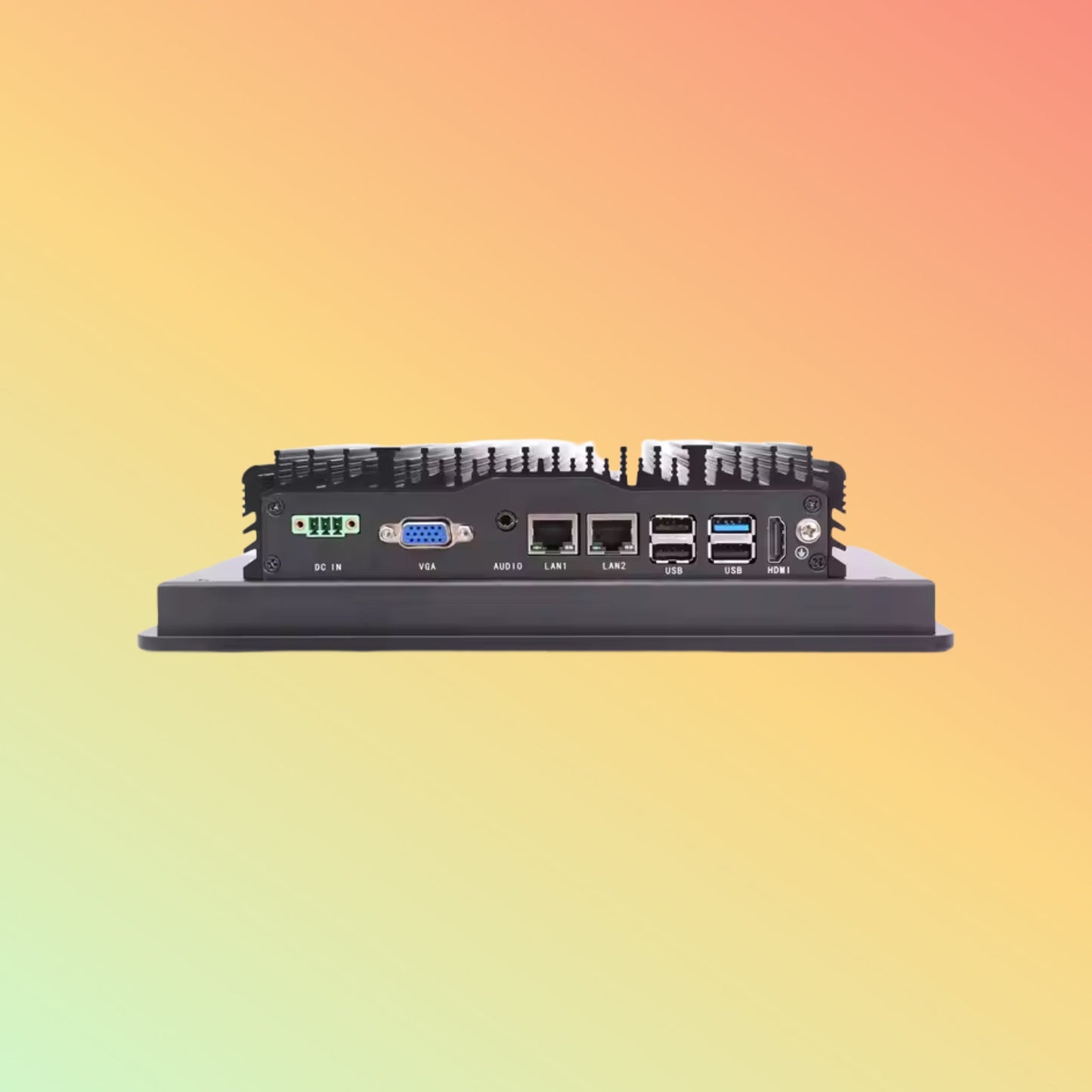

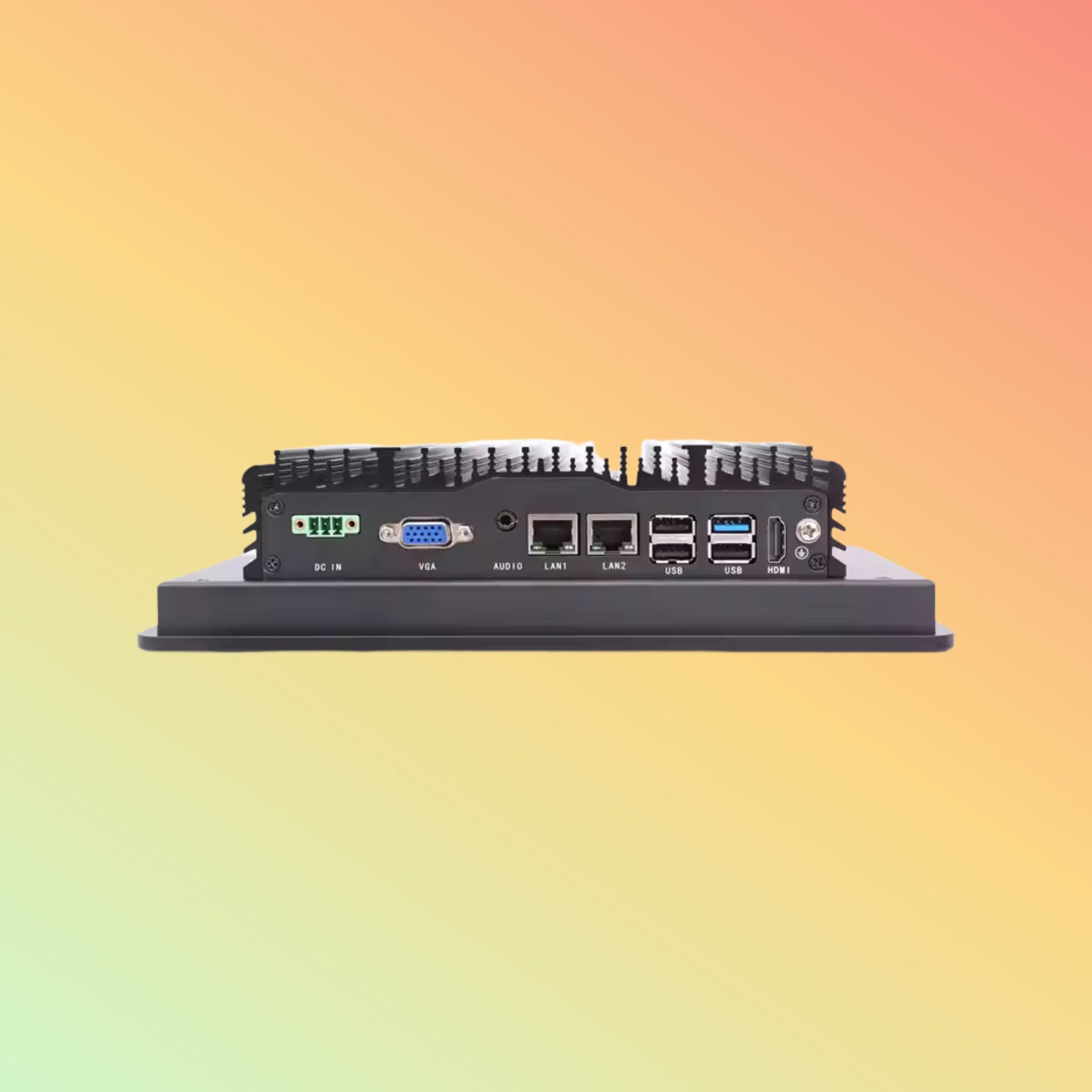

Sealed I/O: USB 3.0, GbE LAN, RS-232/485, HDMI (all M12-sealed)
-
Wireless: Wi-Fi 5/6 & Bluetooth 5.0
-
Wide-Voltage Input: 9–36 V DC w/ protection
-
Mounting: panel-cutout & VESA (75×75 mm or 100×100 mm)
Specifications
| Feature |
Details |
| Sizes |
7″, 10″, 12″, 15″, 17″, 19″, 21.5″, 24″ |
| Resolutions |
1280×800 (7″–12″) or 1920×1080 (15″–24″) |
| CPU |
Intel® Celeron® J4125/J6412 or Core™ i3-10110U/i5-10210U |
| Memory |
4 GB–16 GB DDR4 |
| Storage |
64 GB–1 TB M.2 NVMe SSD |
| USB Ports |
2× USB 3.0 |
| Ethernet |
1× GigE LAN |
| Serial |
1× RS-232/485 |
| Video |
1× HDMI |
| Wireless |
Wi-Fi 5/6; Bluetooth 5.0 |
| Power Input |
9–36 V DC, surge & reverse-polarity protected |
| Protection |
IP65 front & full-body sealing |
| Operating Temp |
–10 °C to +60 °C |
| Mounting |
Panel cutout & VESA 75×75 mm (7″–15″) or 100×100 mm (17″–24″) |
| Dimensions |
Varies by size |
| Weight |
Varies by size |
Supported OS / Applications / Industries
-
OS: Windows 10 Pro/IoT Enterprise, Linux (Ubuntu/Debian)
-
Applications: HMI, SCADA, digital signage, kiosk control
-
Industries: Manufacturing, food & beverage, logistics, water treatment
Benefits & Differentiation
-
Size Flexibility: one platform across 7″–24″ touch panels
-
Zero-Maintenance: fanless design avoids clogging & noise
-
Wash-Down Rated: IP65 seals tolerate daily cleaning
-
Glove-Friendly UX: precise PCAP touch under PPE
-
Sealed I/O: M12 connectors ensure reliable wiring
Purpose of Use
Ideal for panel-mount HMIs on machine tools, clean-room kiosks, outdoor signage, and any environment demanding sealed, high-visibility touch computing.
How to Use
-
Cut panel opening per supplied template
-
Mount with clamp brackets or VESA kit
-
Connect 9–36 V DC, network, USB/serial, HDMI, and antenna
-
Boot into Windows 10 or Linux; deploy HMI/SCADA software
-
Clean with low-pressure spray—no fans to service
Warranty & FAQs
Warranty: 1 year standard; extensions to 3 years available.
FAQs:
After-Sales Support
24/7 remote diagnostics, firmware & driver updates, and optional on-site service ensure continuous uptime.
Get in Touch
For custom configs or volume quotes, email sales@neotech.ae or visit neotech.ae/contact.
Disclaimer
Specifications subject to change without notice. Images are illustrative—verify details with our sales team before deployment.
