Secure entry with the BYX 13.56 MHz Access Control Reader. Fast MIFARE® & NFC card reads. Order now at NEOTECH UAE—plug-and-play integration.

Overview

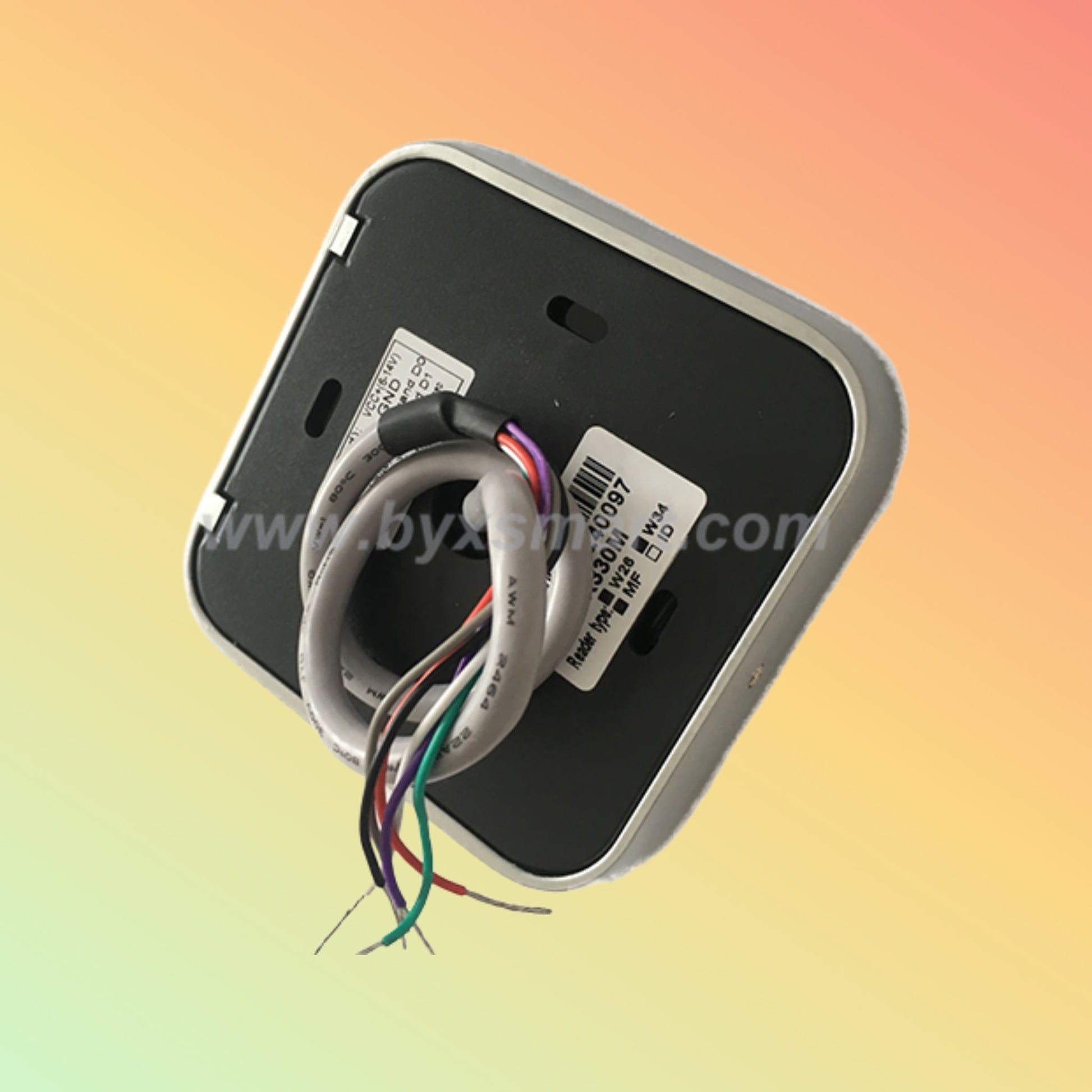

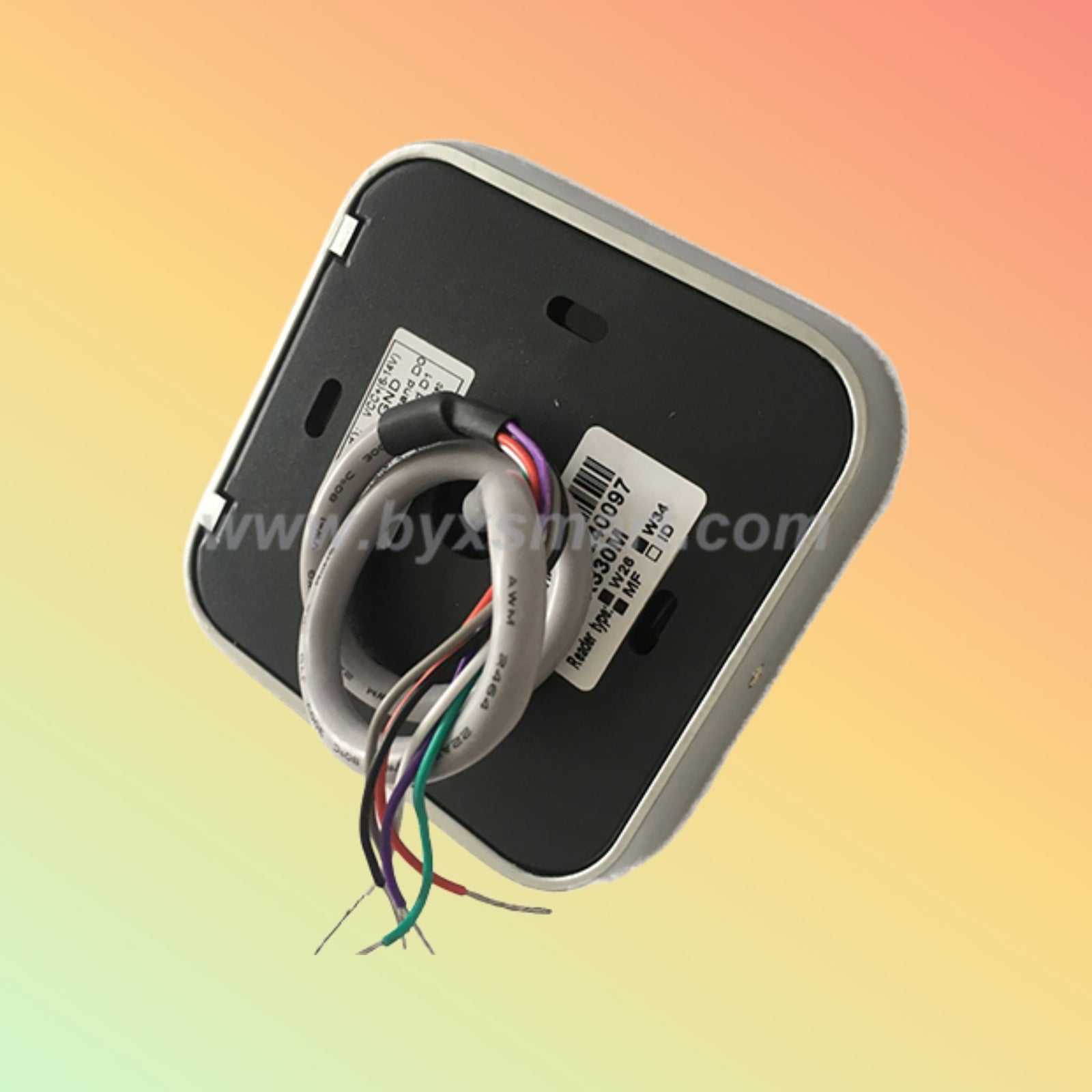

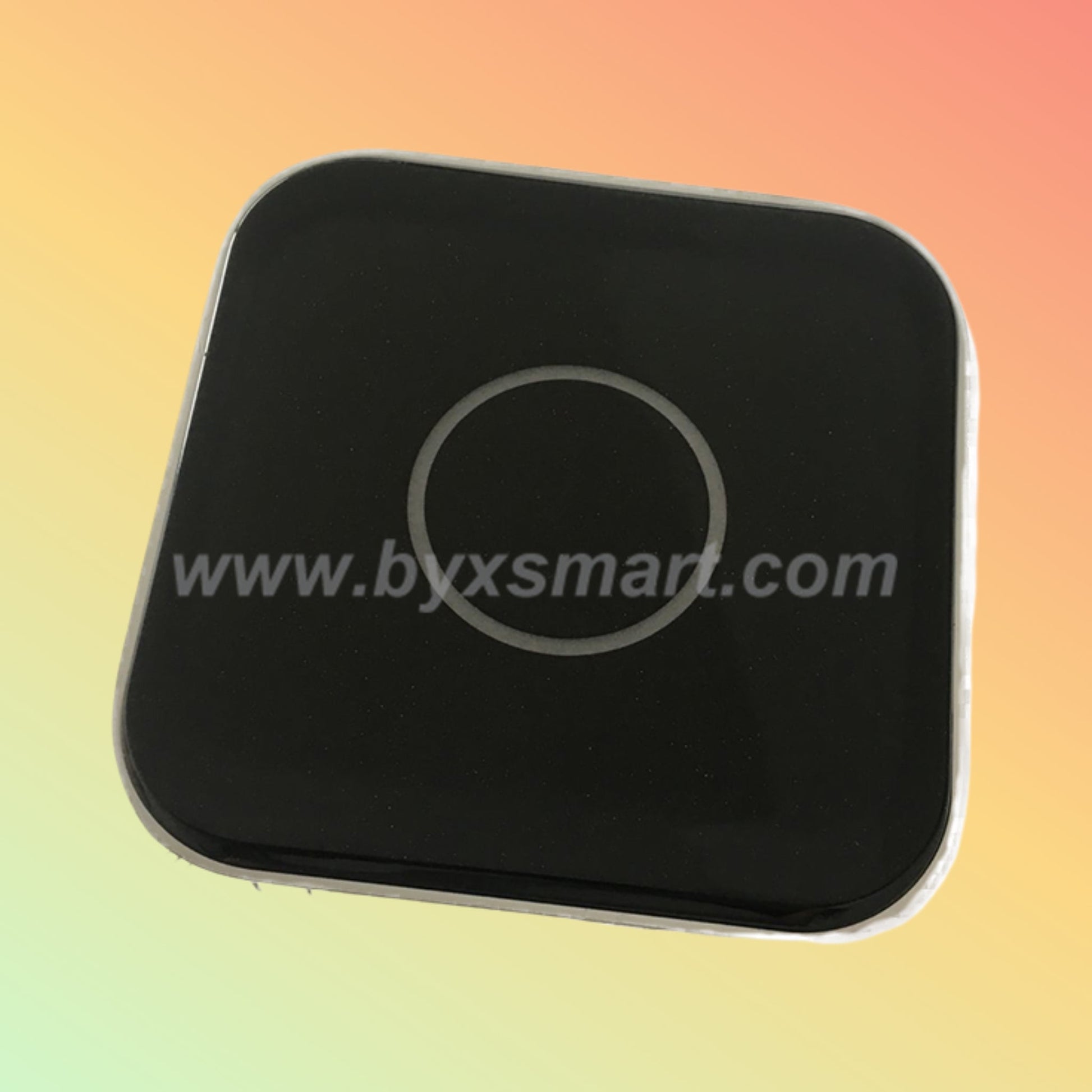

The BYX Smart 13.56 MHz Access Control Reader delivers reliable, high-speed credential reads for door controllers and turnstiles. Engineered for MIFARE®, NTAG®, DESFire®, and NFC-B cards, it boasts a rugged IP54 housing and simple Wiegand or OSDP interfaces—ideal for retrofits or new installations.

Product Description

Featuring a precision HF antenna and on-board decoder, the BYX Reader captures 13.56 MHz tag data up to 50 mm away. It outputs in Wiegand 26/34 or OSDP by firmware selection, enabling seamless integration with legacy panels and modern controllers. Dual-color LEDs, buzzer feedback, and an anti-tamper switch ensure clear status and security in any indoor or sheltered-outdoor setting.

Key Features

• HF support: ISO 14443 A/B (MIFARE®, NTAG®, DESFire®) & NFC-Forum

• Output: Switchable Wiegand 26/34 or OSDP v2

• Read range: Up to 50 mm (card dependent)

• Housing: IK08 impact, IP54 dust/splash proof

• Feedback: Dual-color LEDs, buzzer, bargraph

• Tamper switch: Built-in anti-tamper detection

• Power: 12–24 V DC, PoE-ready

• Mounting: Surface mount or panel cut

• Operating Temp: –20 °C to +60 °C

• Dimensions: 105 × 45 × 20 mm

Specifications

Supported OS / Application / Industries

Operating Systems
Integrates with any Windows, Linux, or embedded controller via Wiegand or OSDP.

Applications

• Door access control

• Turnstile integration

• Elevator & barrier gates

• Time & attendance panels

Industries

• Corporate offices

• Education & campuses

• Healthcare & labs

• Retail & hospitality

• Industrial facilities

Benefits & Compatibility

• Legacy & future-ready: Works with existing Wiegand panels and OSDP-enabled controllers

• High reliability: Rapid reads under 0.3 s, minimal false triggers

• Robust build: IK08 & IP54 rated for harsh environments

• Clear user feedback: LEDs, buzzer, and bargraph for successful/authentication

• Easy integration: Standard Wiegand wiring or secure OSDP bus

Purpose of Use

Deploy the BYX 13.56 MHz Reader at access points where you need to modernize security without replacing control infrastructure. It’s perfect for retrofits, mixed-technology deployments, and scalable access projects.

How to Use

1. Mount reader using surface bracket or panel cut template.

2. Wire power (12–24 V DC) and DATA0/DATA1 or OSDP bus to your controller.

3. Select output mode (Wiegand 26/34 or OSDP) via DIP switch or configuration tool.

4. Present card or NFC device within read zone.

5. Monitor LED/bargraph and buzzer for confirmation.

Packaging / Weight / Dimensions

• Included: Reader unit, mounting hardware, quick-start guide

• Weight: 130 g

• Box Size: 120 × 60 × 30 mm

Warranty & FAQs

Warranty
1-year NEOTECH warranty on parts and labor.

FAQs
Q: Does it support NFC mobile wallets?
A: Yes—reads standard NFC-Forum cards on smartphones.
Q: How do I switch output format?
A: Flip the DIP switch or use the NEOTECH config tool.
Q: Is it PoE compatible?
A: Yes, with optional PoE module.

Performance, Quality, Durability & Reliability

Tested for 100 000+ read cycles, impact-resistant to IK08 standards, and IP54-rated against dust and splashes. Firmware-controlled anti-spoofing algorithms minimize unauthorized reads.
