Configurable Full HD self-service kiosk with integrated 80 mm printing and 2D scanning.

Flexible 21.5-inch self-service kiosk platform with Full HD display, integrated 80 mm printer, 2D scanner and Windows or Android configuration options.

The 21.5-Inch Self-Service Kiosk with Built-in Printer and 2D Scanner is a compact interactive terminal designed for businesses that require customer-facing self-service functionality from a single hardware platform.

The supplied configuration combines a 21.5-inch Full HD display, integrated 80 mm printer, built-in 2D scanner, Wi-Fi or Bluetooth connectivity, and a choice of Intel- or Android-based computing platforms.

Depending on the selected configuration and compatible software, the kiosk may be considered for applications such as self-service ordering, check-in, ticketing, queue management, information access, barcode or QR-code scanning, receipt printing and other customer-facing workflows.

Because kiosk requirements vary significantly by application, software, payment functionality, peripheral compatibility and system integration should be verified before ordering.

Key Features

• 21.5-inch display
• 1920 × 1080 Full HD resolution
• 300 cd/m² specified brightness
• Built-in 80 mm printer
• Built-in 2D scanner
• Intel Core i5 4th-generation configuration option
• RK3576 configuration option
• 4 GB RAM
• 128 GB SSD specified for the supplied configuration
• Windows 10 or Android 14 configuration indicated by supplier
• Built-in Wi-Fi or Bluetooth
• DC 12 V / 5 A power
• Black or white enclosure options
• Designed as a configurable self-service terminal

Technical Specifications

Product Type: Self-service kiosk

Display Size: 21.5 inch

Display Resolution: 1920 × 1080

Display Brightness: 300 cd/m²

Processor Option 1: Intel Core i5, 4th generation

Processor Option 2: RK3576

Memory: 4 GB

RAM Type: DDR3 stated in supplied specification

Storage: 128 GB SSD

Operating System Options: Windows 10 / Android 14, depending on selected hardware configuration

Integrated Printer: 80 mm printer

Integrated Scanner: 2D scanner

Wireless Connectivity: Wi-Fi or Bluetooth

Power Input: DC 12 V / 5 A

Color Options: Black / White

Integrated 80 mm Printer

The kiosk incorporates an 80 mm printer, allowing printed output to be produced directly from the self-service terminal when supported by the selected software.

Potential uses may include:

Receipts

Order slips

Queue tickets

Collection tickets

Transaction records

Visitor information

Other application-generated printouts

The supplied information does not specify the printer mechanism, print speed, cutter specification, interface or supported paper dimensions beyond the stated 80 mm printer.

These details should be confirmed when they are important to the intended application.

Built-In 2D Scanner

An integrated 2D scanner provides data-capture capability directly from the kiosk.

Depending on the scanner specification and application software, a 2D scanner may be used in workflows involving barcodes or QR codes.

Potential applications can include:

Order retrieval

Ticket verification

Membership identification

Visitor processing

Product lookup

Check-in workflows

Queue management

The exact barcode symbologies, reading distance, scan engine and screen-reading capability have not been specified, so these should be verified before deployment.

Intel Core i5 or RK3576 Platform Options

The supplied configuration identifies two processor/platform options:

Intel Core i5 4th Generation

or

RK3576

These represent substantially different computing platforms and should not be treated as interchangeable configurations.

The Intel-based configuration may be relevant where the intended kiosk application requires a compatible Windows environment.

The RK3576 configuration may be considered for compatible Android-based kiosk applications.

Customers should select the computing platform based primarily on the software that will actually operate the kiosk, rather than processor terminology alone.

Windows or Android Configuration

The supplied information identifies:

Windows 10

and

Android 14

as operating-system options.

The actual operating system depends on the selected hardware configuration.

Important Windows Licensing Note

The source specification states “Beta Windows 10.”

NEOTECH® does not interpret this wording as confirmation of a licensed Microsoft Windows installation.

Before ordering a Windows configuration, customers should confirm:

• Exact Windows edition
• Activation status
• Licensing
• Driver availability
• Application compatibility
• Update/support requirements

This is particularly important for commercial kiosk deployments.

Full HD 21.5-Inch Display

The kiosk is specified with a 21.5-inch display providing:

Resolution: 1920 × 1080

Brightness: 300 cd/m²

This Full HD display size provides a practical interface area for customer-facing menus, instructions, forms, product information and other interactive content.

However, the supplied specification does not identify the touch technology.

Customers requiring capacitive touch, multi-touch, specific touch-point support or other touchscreen functionality should confirm these specifications before ordering.

Wi-Fi and Bluetooth Connectivity

The kiosk specification indicates built-in Wi-Fi or Bluetooth connectivity.

Wireless connectivity can provide additional deployment flexibility where supported by the selected operating system and application.

The exact Wi-Fi standard, Bluetooth version, antenna configuration and whether both interfaces are supplied simultaneously should be confirmed for the selected configuration.

For business-critical kiosk applications, customers should also determine whether wired Ethernet connectivity is required. Ethernet is not confirmed in the supplied specification.

Self-Service Applications

Depending on the selected software, peripherals and system integration, this kiosk hardware may be considered for:

Self-service ordering

Restaurant ordering

Retail self-service

Customer check-in

Visitor registration

Queue management

Ticketing

Barcode and QR-code scanning

Information kiosks

Membership services

Reception areas

Collection-point terminals

Service counters

Hospitality applications

The hardware itself does not provide these business functions automatically. Appropriate software and, where required, integration with the customer's existing systems are necessary.

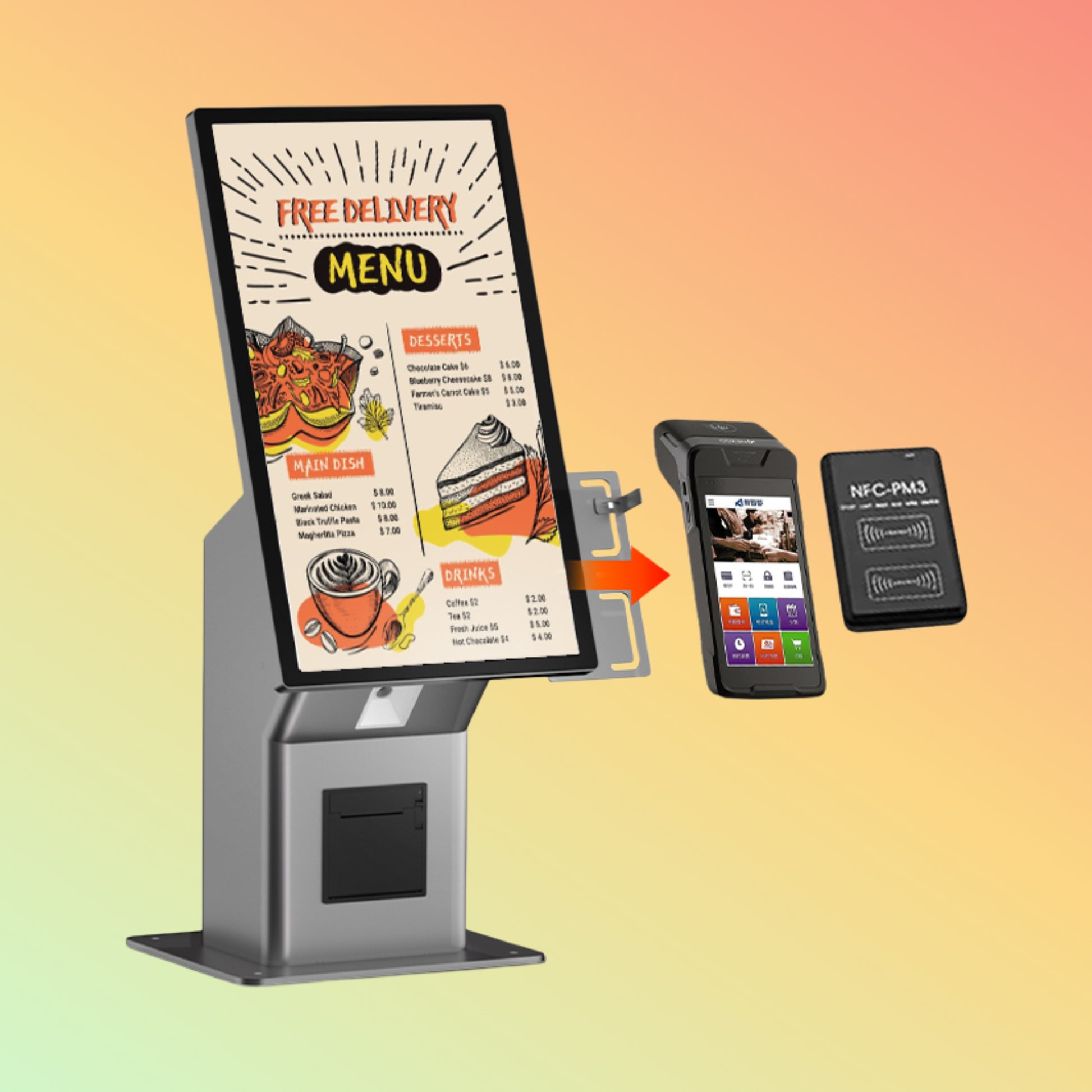

Can This Be Used as a Payment Kiosk?

Potentially, but this distinction is important.

The supplied hardware specification does not identify an integrated payment terminal, card reader, NFC reader or payment acceptance device.

Therefore, NEOTECH® would describe this product primarily as a self-service kiosk, not promise it as a complete payment kiosk.

For a payment application, customers should verify whether their required payment terminal can be physically and technically integrated and whether the relevant software/payment provider supports the intended configuration.

This keeps the product description accurate while still addressing customers searching for a 21.5-inch payment kiosk.

Purpose of Use

This product provides a configurable hardware platform for organizations seeking to move suitable customer interactions to a self-service interface.

By combining the display, computing platform, printer and scanner into one kiosk, it can reduce the need to deploy these components as completely separate customer-facing devices.

The final functionality depends on the operating system, application software, peripherals and integration selected for the project.

Compatibility

Compatibility should be evaluated at the complete system level, particularly for a kiosk.

Before ordering, verify compatibility with:

Required kiosk application

Windows or Android software

Printer drivers or SDK

2D scanner

Backend system

POS software, where applicable

Ordering platform

Queue-management software

Ticketing platform

Network environment

Payment terminal, if required

Peripheral interfaces

Remote management requirements

Security policies

Things to Verify Before Ordering

This section is especially important for a configurable kiosk.

Please confirm:

Exact CPU configuration required

Intel Core i5 or RK3576 platform

Required operating system

Windows licensing requirements

RAM requirement

Storage requirement

Touchscreen type and functionality

Required display brightness

Printer mechanism and specifications

Printer cutter requirement

Required receipt-paper specification

2D scanner specifications

Required barcode symbologies

QR-code reading requirements

Wi-Fi specifications

Bluetooth specifications

Ethernet requirement

USB and other physical ports

Payment terminal requirement

NFC or contactless requirement

Software compatibility

Mounting or floor-standing configuration

Overall kiosk dimensions

Kiosk weight

Power requirements

Black or white enclosure

Required certifications

Warranty terms

Software/integration responsibility

These details should be confirmed before quotation or procurement where they are relevant to the intended deployment.

Who Should Consider This Kiosk?

This 21.5-inch kiosk may be worth considering for businesses seeking a configurable self-service terminal with integrated printing and barcode/QR data capture.

It may be particularly relevant where a customer already has, or intends to develop, compatible kiosk software and needs suitable hardware to run that application.

Organizations looking for a completely pre-integrated payment or self-service solution should first identify their software, payment and integration requirements before selecting the hardware.

Why NEOTECH® UAE?

NEOTECH® takes an education-first approach to configurable business technology.

With a self-service kiosk, appearance and screen size are only part of the decision. The processor platform, operating system, software, scanner, printer, networking, payment requirements and integration all need to work together.

We therefore encourage customers to provide their intended application and required configuration before ordering.

Learn First. Decide Second. Buy Only If It Is Right for Your Needs.

The NEOTECH® Learning Center is free and open to everyone. You do not need to be a NEOTECH® customer to access or benefit from our educational content. Learn at your own pace, explore the information freely, and make informed decisions based on your own needs. There is no obligation or pressure to purchase from NEOTECH®.

There is no obligation or pressure to purchase. Customers are encouraged to verify the required hardware configuration, operating system, software compatibility, printer, scanner, connectivity and payment requirements before ordering.

Delivery – UAE

NEOTECH® supplies within the United Arab Emirates.

Availability, configuration, lead time and exact specifications should be confirmed before ordering.

FAQ - 21.5-Inch Self-Service Kiosk

Q: What size display does this self-service kiosk have?
A: The supplied configuration specifies a 21.5-inch display with 1920 × 1080 Full HD resolution.

Q: Does the kiosk include a printer?
A: Yes. An integrated 80 mm printer is specified. Exact printer mechanism, speed, cutter and other specifications should be confirmed.

Q: Does it include a barcode or QR-code scanner?
A: The supplied specification identifies an integrated 2D scanner. Exact supported symbologies and scanner capabilities should be confirmed for the selected configuration.

Q: Is this a touchscreen kiosk?
A: The product is intended as an interactive kiosk, but the supplied technical information does not specify the touch-panel technology. The exact touchscreen specification should therefore be confirmed before ordering.

Q: Can I order it with Windows?
A: Windows 10 is listed as an option in the supplied information. However, Windows edition, licensing and activation should be verified before ordering.

Q: Is Android available?
A: Android 14 is listed for the applicable configuration. Software compatibility should be checked before selecting the Android platform.

Q: Does it have Wi-Fi?
A: The supplied specification indicates built-in Wi-Fi or Bluetooth. Exact wireless specifications should be confirmed for the selected configuration.

Q: Can it be used for restaurant self-ordering?
A: The hardware may be suitable for a self-ordering application when paired with compatible ordering software and any other required peripherals or integrations.

Q: Is a card payment terminal built in?
A: A payment/card terminal is not identified in the supplied configuration. If payment acceptance is required, the appropriate terminal and software integration should be specified separately.

Q: Can the kiosk be used for check-in or queue management?
A: Potentially, yes, when used with compatible software designed for that purpose.

Q: Is the kiosk available in different colors?
A: The supplied information identifies black and white color options.
