Portable and Online Variable-Data Coding for Packaging, Cartons and Production Workflows.

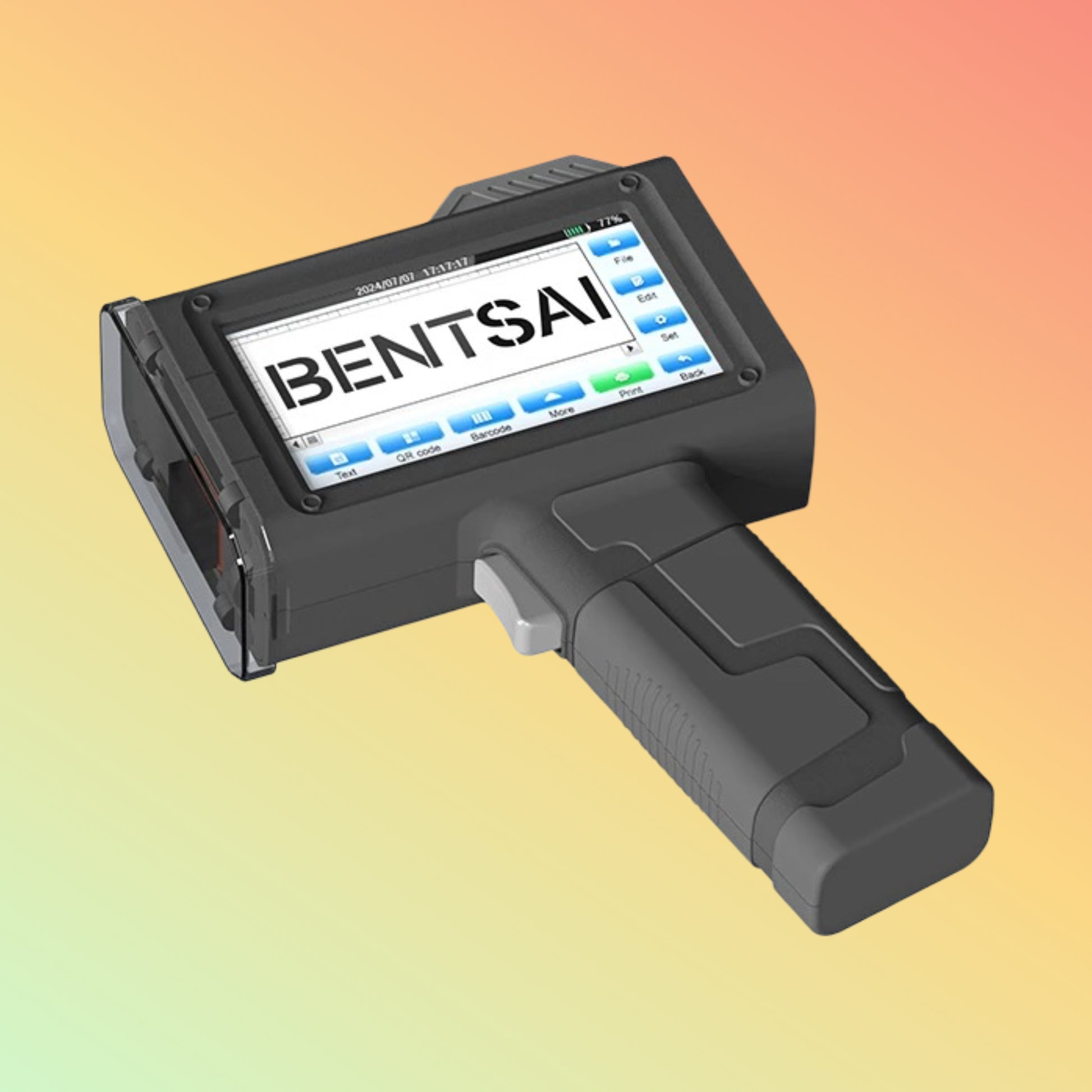

BENTSAI BT-HH6205BL Online Handheld Inkjet Printer The BENTSAI BT-HH6205BL is a portable thermal inkjet coding printer designed for both handheld marking and online production-line applications.

Compared with the standard BT-HH6205B, the 6205BL is intended for workflows where the printer may also be used with an external trigger or photocell for repeatable coding on moving products or packaging.

The platform supports compact variable-data printing, including text, date/time, barcodes, QR codes, Data Matrix, logos, images and variable content.

Overview

The BT-HH6205BL can be considered for businesses that need one printer platform for:

• Handheld coding
• Conveyor or online coding
• Carton marking
• Batch and lot coding
• Date coding
• Product identification
• QR code printing
• Data Matrix printing
• Variable serial numbers
• Small-character marking

The exact online setup depends on the required trigger, mounting arrangement, conveyor speed and accessory configuration.

Key Features

• Handheld and online coding capability
• Approx. 0.8–12.7 mm print height
• Up to 5 lines of print
• 300 dpi / 600 dpi print modes
• Text printing
• Numeric printing
• Date and time
• 1D barcodes
• QR Code
• Data Matrix
• Variable text and codes
• Logo and image printing
• USB file import
• External trigger / photocell support on 6205BL configuration
• Portable battery-powered operation
• Suitable for porous or selected non-porous materials with the correct ink

Handheld + Online Operation

The main distinction of the 6205BL is its ability to support both manual and line-based coding workflows.

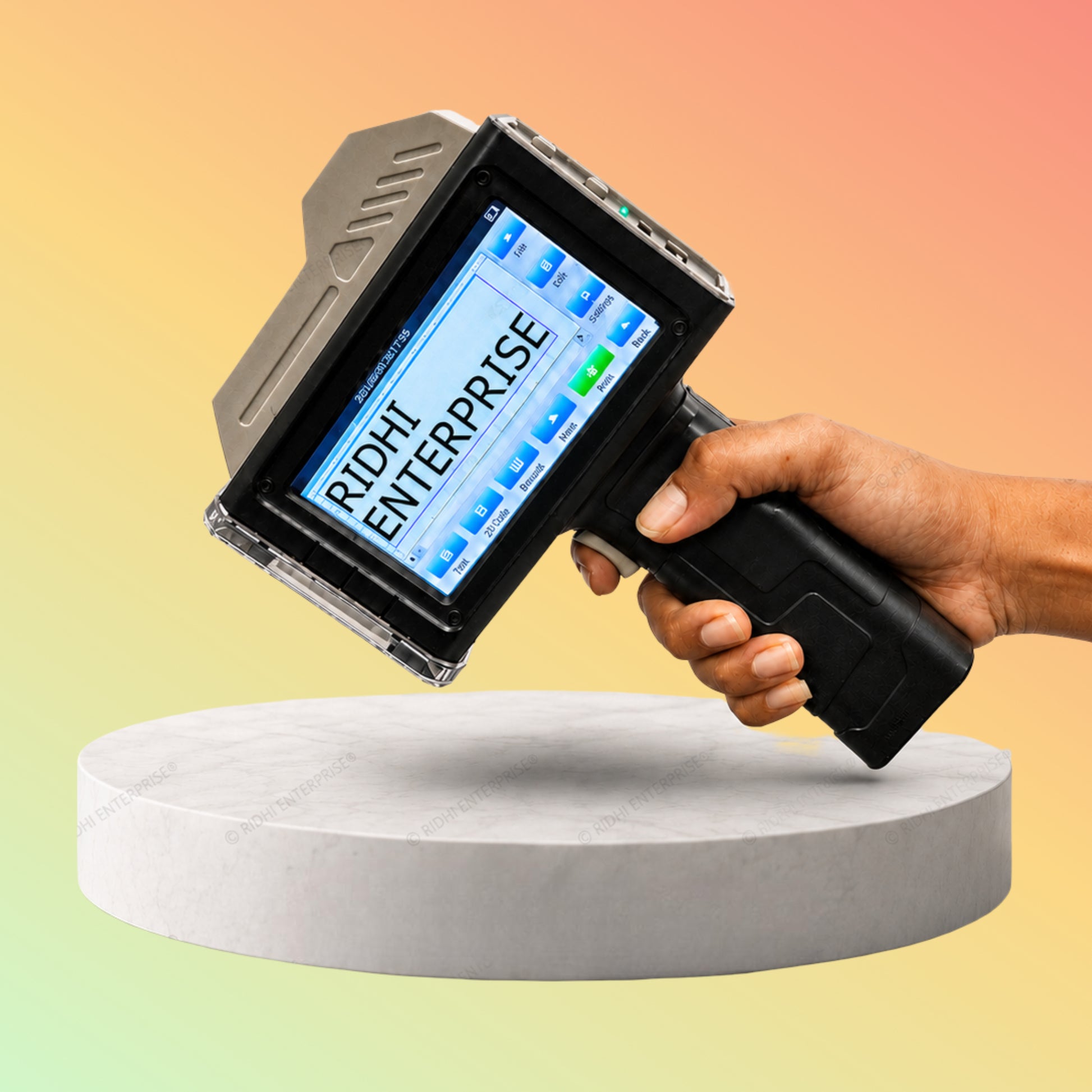

Handheld Use

The operator moves the printer across the surface manually.

Typical applications include:

• Boxes
• Cartons
• Large packaging
• Stored products
• Irregular items

Online / Conveyor Use

The printer may be mounted and used with an external trigger or photocell so printing occurs as the product passes the print position.

A typical workflow is:

Product Arrives → Sensor Detects Product → Printer Receives Trigger → Code Printed

The exact mounting and trigger arrangement should be confirmed for the intended production line.

Fine-Character Printing

The BT-HH6205BL shares the compact print-height capability of the 6205 series.

Approximate Print Height: 0.8 mm to 12.7 mm

This makes it relevant for:

• Batch numbers
• Lot codes
• Dates
• Serial numbers
• Compact barcodes
• QR codes
• Small product references

Actual readability depends on the font, code density, substrate and print resolution.

Print Resolution

The platform supports:

• 300 dpi
• 600 dpi

Higher resolution may be useful for finer text or denser coding, while 300 dpi may be suitable for faster general marking depending on the application.

Supported Print Content

The 6205BL can be used for:

• Text
• Numbers
• Date
• Time
• Batch number
• Lot number
• Serial number
• Counters
• 1D barcode
• QR Code
• Data Matrix
• Logos
• Images
• Variable data

The printer provides the print output; ERP, database and production-control functions remain separate.

Barcode Support

Common supported barcode types across the 6205 family include formats such as:

• Code 128
• Code 39
• EAN-8
• EAN-13
• UPC-A
• UPC-E
• Interleaved 2 of 5

2D support includes:

• QR Code
• Data Matrix

Specialised GS1 or regulated coding requirements should be verified before deployment.

USB File Import

The BT-HH6205BL supports USB-based file transfer for content such as:

• Text
• Images
• Logos
• Variable data
• Font files

This can be useful where content is prepared externally and transferred to the printer.

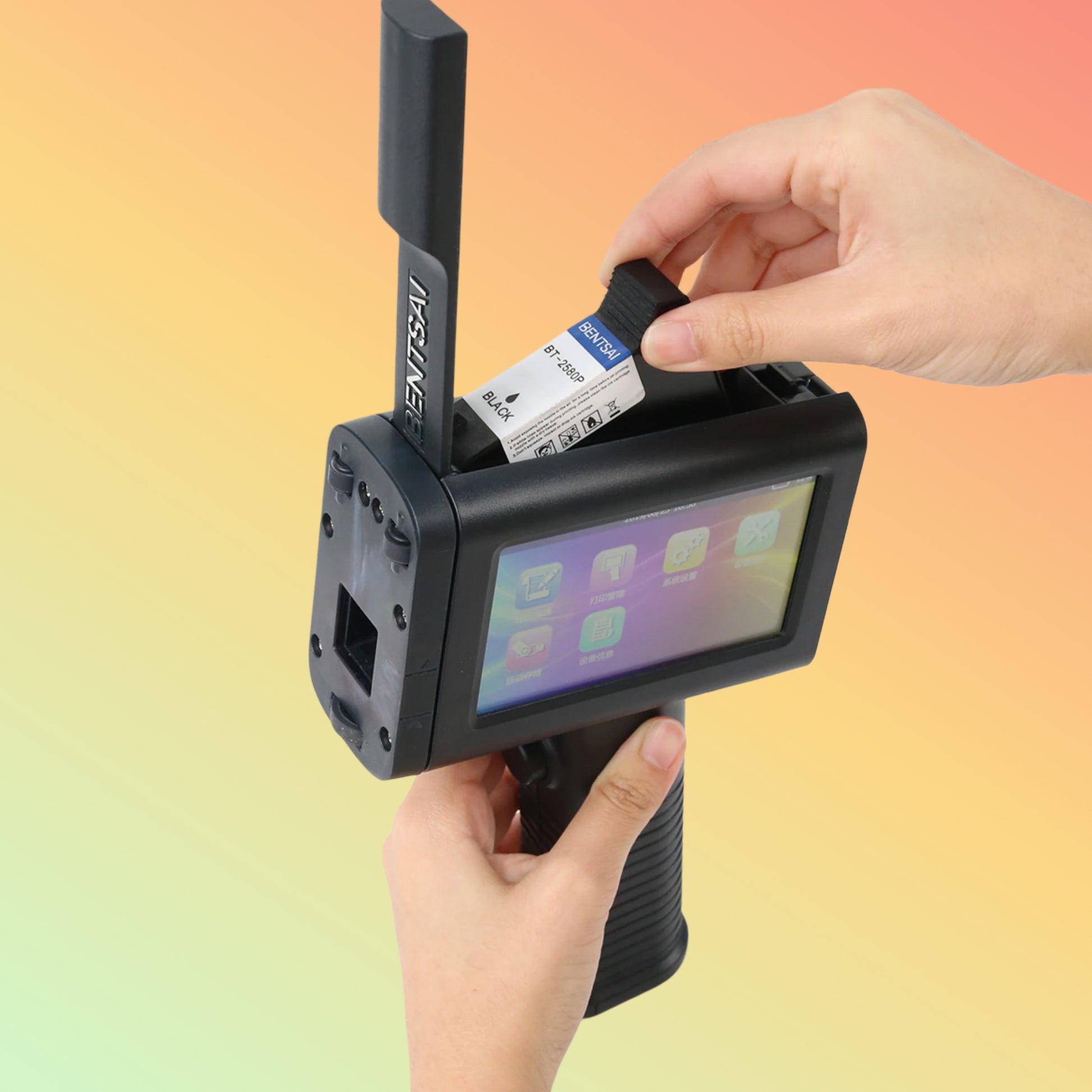

Ink Cartridge Selection

The correct cartridge depends on the substrate.

Water-Based Ink

Generally intended for porous materials such as compatible:

• Paper
• Cardboard
• Fiberboard
• Some textiles

Solvent-Based Ink

Generally intended for selected semi-porous or non-porous surfaces such as compatible:

• Plastic
• Metal
• Glass
• Aluminium
• Coated packaging
• Film
• Cable

Surface compatibility should always be tested on the actual production material.

Important Surface Guidance

No handheld inkjet printer should be advertised as suitable for every surface without testing.

Print result can depend on:

• Material chemistry
• Surface coating
• Cleanliness
• Surface energy
• Ink type
• Drying conditions
• Printing distance
• Conveyor speed
• Ambient temperature

A sample print test is recommended where adhesion or durability is important.

Online Coding Applications

The 6205BL may be useful for:

• Carton coding
• Packaging date coding
• Batch coding
• Lot number printing
• Production identification
• Product traceability
• Variable QR codes
• Serialisation
• Box marking

The exact line performance depends on the conveyor setup, trigger arrangement and print layout.

Manufacturing Applications

Potential uses include:

• Component marking
• Work-in-process identification
• Batch information
• Product codes
• Serial numbers
• Traceability references

Food & Beverage Packaging

Possible uses may include:

• Batch codes
• Lot numbers
• Production dates
• Expiry-related information
• Packaging identification

For regulated food-contact or packaging requirements, the ink and application must be validated separately.

Technical Specifications

Brand: BENTSAI

Model: BT-HH6205BL

Series: 6205

Product Type: Handheld / Online Thermal Inkjet Printer

Print Height: Approx. 0.8–12.7 mm

Print Lines: Up to 5

Resolution: 300 dpi / 600 dpi

Display: Touchscreen

Operating System: Linux-based platform

Supported Content: Text, numbers, date/time, barcode, QR Code, Data Matrix, images, variable data

USB: File transfer supported

Online Trigger: External photocell / trigger support on BL version

Battery: Rechargeable lithium-ion platform

Printing Method: Thermal inkjet

Ink Types: Water-based and solvent-based cartridge options depending on substrate

Exact cartridge type, mounting accessories, photocell, cables and package contents should be confirmed before ordering.

BT-HH6205BL vs BT-HH6205B

These two models should remain on separate pages because their intended workflows differ.

BT-HH6205B

• Handheld-focused model
• Portable coding
• Fine-character printing
• 0.8–12.7 mm print height
• Variable data
• USB file import

BT-HH6205BL

• Handheld + online/conveyor use
• External trigger / photocell capability
• Suitable for repeatable line coding
• Same compact print-height class

If the application is purely handheld, the standard 6205B may be sufficient.

If the printer must also be mounted on a conveyor or production line, the 6205BL is the more relevant model to evaluate.

Purpose of Use

The BT-HH6205BL is intended for businesses that need flexible direct coding and may want to use the same printer both manually and as part of an online production process.

A typical online workflow is:

Conveyor → Product Detection → Trigger → BT-HH6205BL → Printed Variable Code

The printer does not independently manage production databases, ERP, traceability or regulatory validation.

Things to Verify Before Ordering

Please confirm:

• Exact model: BT-HH6205BL
• Handheld-only or online requirement
• Photocell / trigger requirement
• Mounting bracket requirement
• Conveyor speed
• Print distance
• Required print height
• Barcode type
• QR / Data Matrix requirement
• Ink type
• Surface material
• Required ink colour
• USB file transfer
• Battery requirement
• Package contents

Why Choose NEOTECH® UAE

NEOTECH® can assist with:

• 6205B vs 6205BL model selection
• Handheld vs online coding requirements
• Photocell / trigger considerations
• Print-height requirements
• Water-based vs solvent ink selection
• Surface compatibility guidance
• Barcode / QR requirements
• UAE availability confirmation

Learn First. Decide Second. Buy Only If It Is Right for Your Needs.

There is absolutely no obligation or pressure to proceed with the purchase with us.

UAE Delivery

NEOTECH® supplies within the United Arab Emirates.

Shipping: Free Standard Shipping
Order Cut-Off: 2:00 PM GST
Handling: 1–2 business days
Transit: 3–5 business days
Estimated Total Delivery: 4–7 business days

Availability and exact online accessories should be confirmed before ordering.

FAQ - BENTSAI BT-HH6205BL

Q: What is the difference between BENTSAI BT-HH6205B and BT-HH6205BL?
A: The 6205B is primarily the handheld version, while the 6205BL adds support for online/conveyor-style operation using an external trigger or photocell.

Q: Can the BT-HH6205BL print QR Codes and Data Matrix?
A: Yes, the 6205 series supports QR Code and Data Matrix together with common 1D barcode formats and variable-data printing.

Q: Can the BT-HH6205BL print on plastic, metal and cardboard?
A: It may be suitable when the correct ink is selected, but compatibility should be tested on the actual substrate. Water-based ink is generally used for porous media, while solvent-based ink is intended for selected non-porous materials.
