BIXOLON BK5-41 4-Inch Kiosk Label Printer in UAE

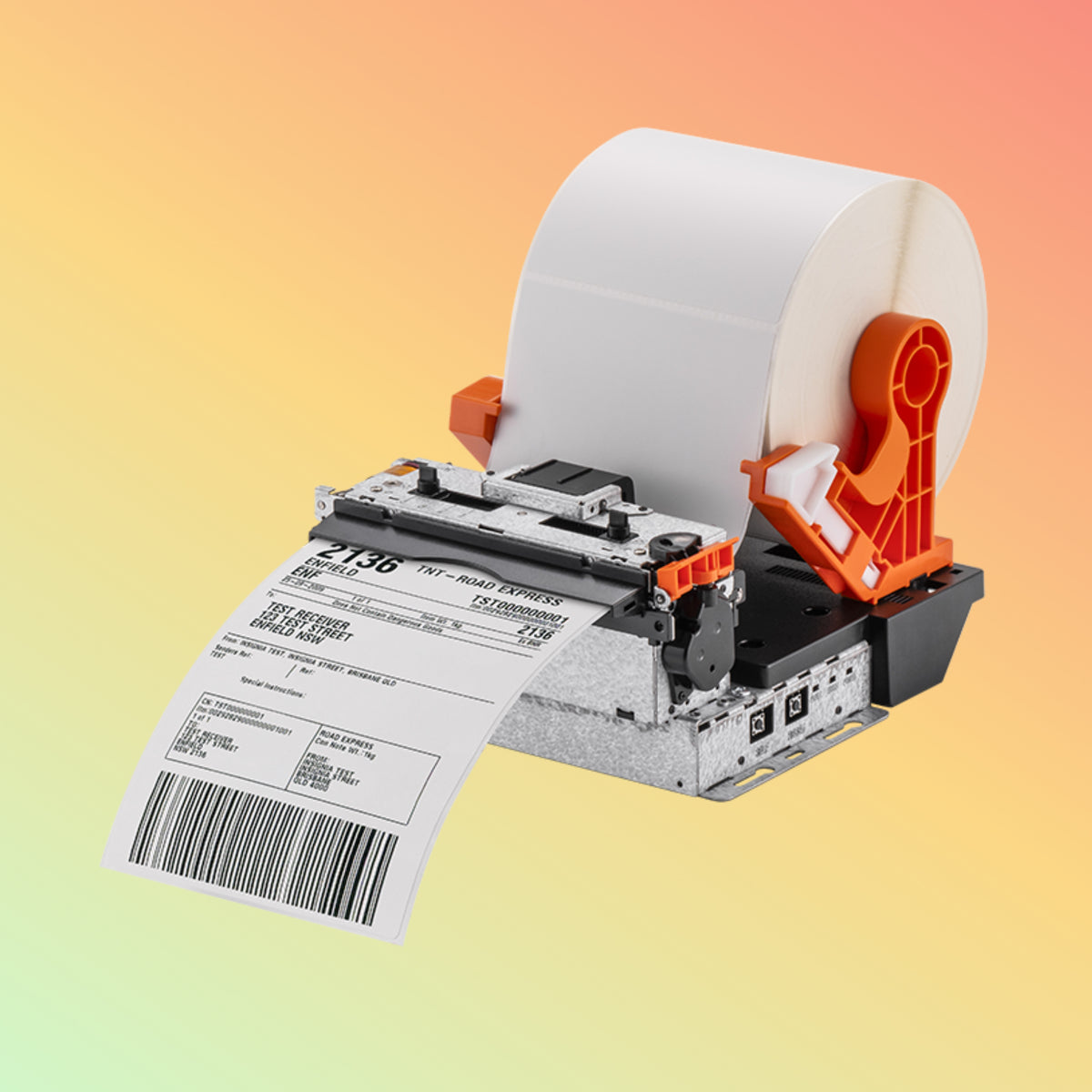

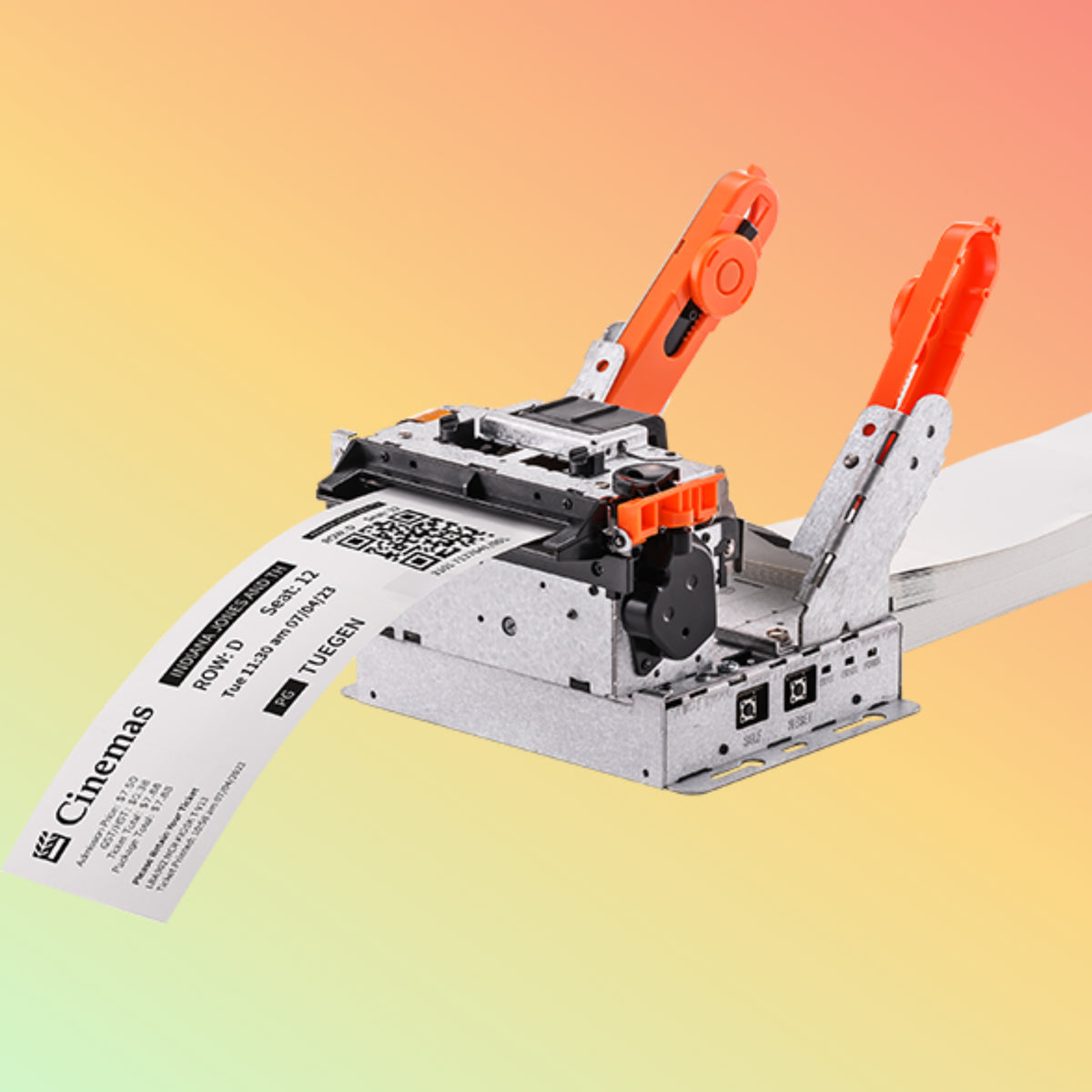

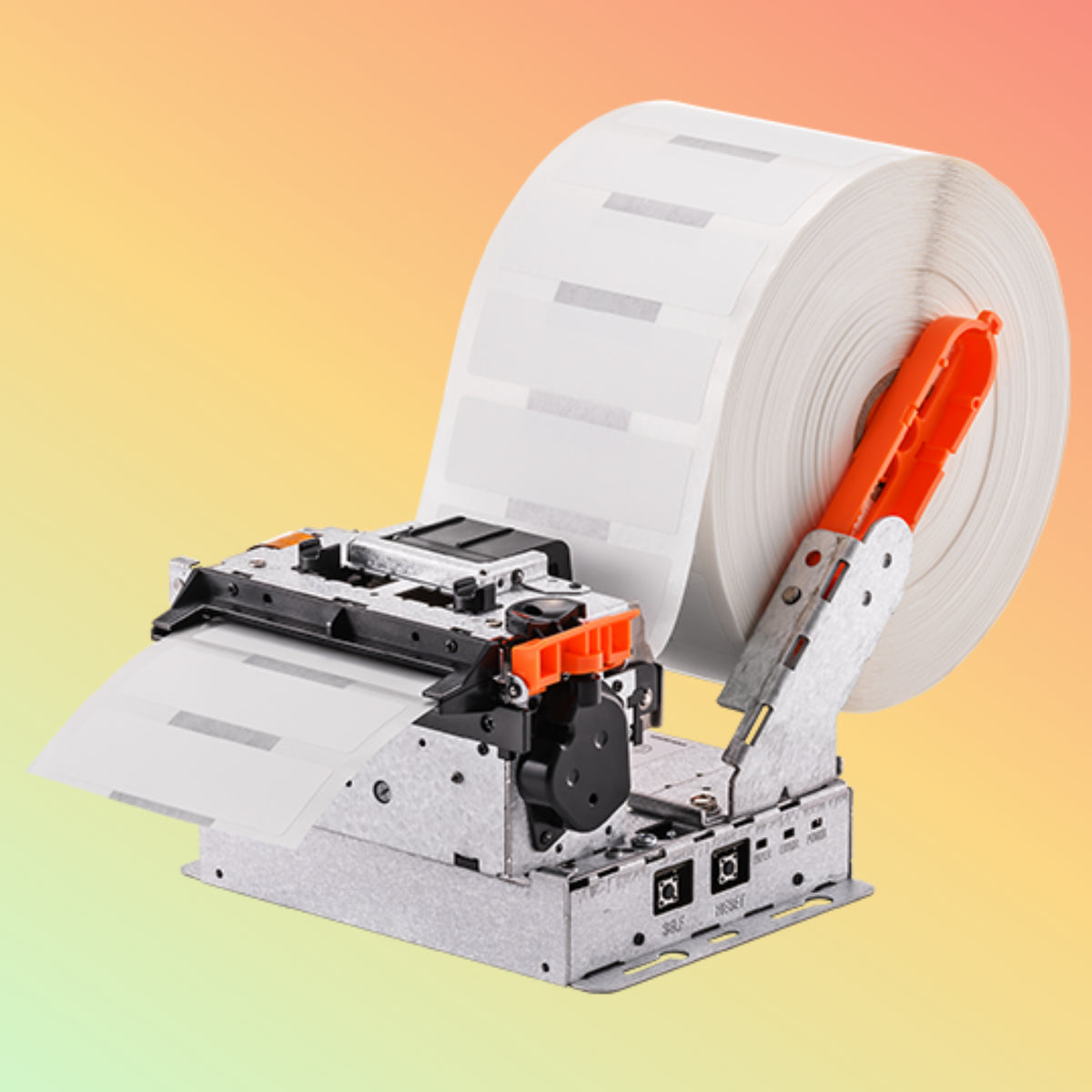

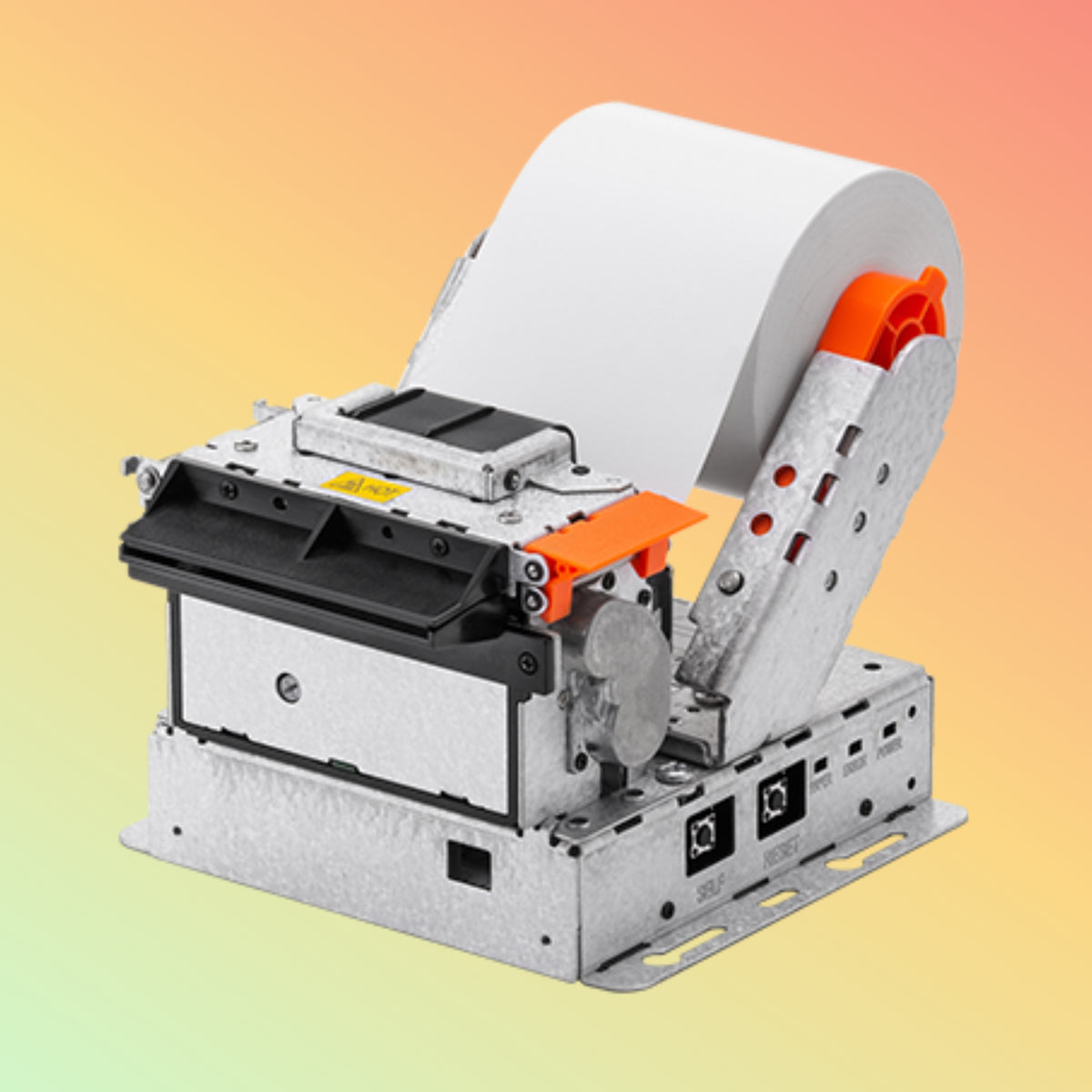

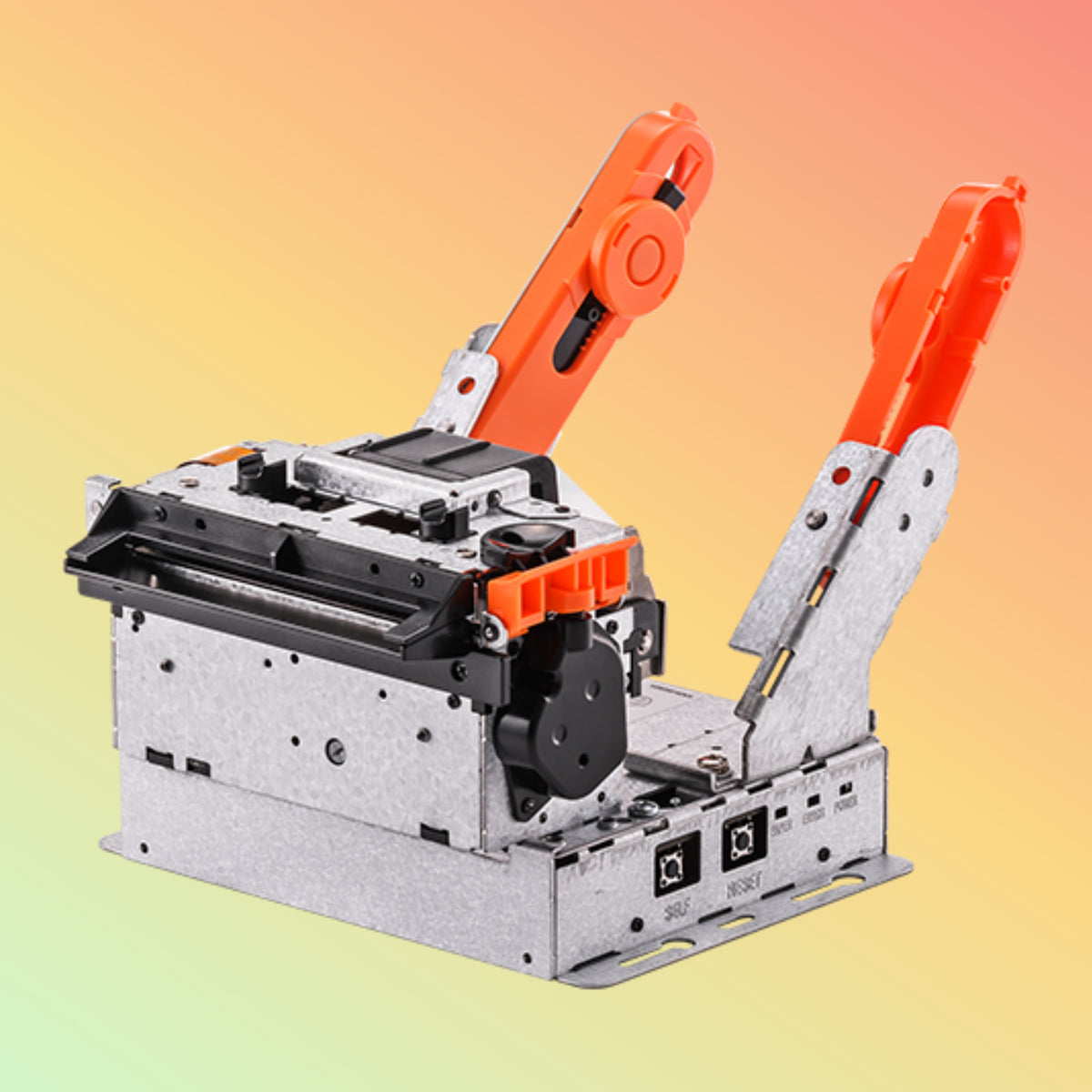

The BIXOLON BK5-41 is a compact 4-inch direct thermal kiosk printer designed for embedded and self-service printing applications.

BIXOLON positions the BK5-41 for tickets, labels and wristbands, with support for media widths from approximately 20 mm to 118 mm, print resolution of 203 dpi, and print speeds up to 150 mm/sec. The platform also supports media thickness up to approximately 0.15 mm and includes adjustable thermal printhead pressure to help optimize printing across different media types.

The BK5-41 may be considered for kiosk environments such as transportation ticketing, parking systems, entertainment, hospitality and other self-service workflows where a compact embedded printer is required.

Overview

A kiosk printer is designed to operate as part of a larger self-service or embedded system.

A typical workflow may be:

Kiosk Application

↓

BIXOLON BK5-41

↓

Printed Ticket / Label / Wristband

The printer provides the physical print engine, while the kiosk controller or application determines the content being printed.

This makes the BK5-41 suitable for applications where space is limited and the printer needs to be integrated inside a terminal, kiosk or machine rather than used as a conventional desktop printer.

Exact Product Identification

Brand: BIXOLON

Model: BK5-41

Product Type: 4-Inch Kiosk Label Printer

Printing Method: Direct Thermal

Print Resolution: 203 dpi

Maximum Print Speed: 150 mm/sec

Media Width: Approximately 20–118 mm

Maximum Media Thickness: Approximately 0.15 mm

Primary Applications: Labels, tickets and wristbands

BIXOLON identifies the BK5-41 specifically as a 4-inch kiosk label printer for self-service applications.

Key Features

• 4-inch kiosk printing platform
• Direct thermal printing
• 203 dpi print resolution
• Print speed up to 150 mm/sec
• Adjustable media width from approximately 20–118 mm
• Supports media thickness up to approximately 0.15 mm
• Adjustable thermal printhead pressure
• Compact embedded design
• Suitable for labels
• Suitable for tickets
• Suitable for wristbands
• Supports Windows environments
• Supports Android integration
• Linux and Mac CUPS support available
• OPOS and JavaPOS support available
• Windows SDK available
• Android SDK available
• Linux SDK available
• Web Print SDK available
• Multiple cable and power accessories available

Technical Specifications

Brand: BIXOLON

Model: BK5-41

Printer Type: Kiosk / Embedded Label Printer

Printing Technology: Direct Thermal

Resolution: 203 dpi

Maximum Print Speed: 150 mm/sec

Media Width: 20–118 mm

Maximum Media Thickness: 0.15 mm

Media Types: Compatible direct thermal labels, tickets and wristbands

Printhead Pressure: Adjustable

Operating Environment: Designed for self-service and embedded applications

Software Support: Windows, Android, Linux and web-based integration tools available

POS Middleware Support: OPOS and JavaPOS drivers available

Exact interfaces, power supply and accessory configuration should be confirmed against the selected BK5-41 part number or supplier quotation.

Labels, Tickets and Wristbands

The BK5-41 is designed around flexible 4-inch media handling.

Possible output formats include:

• product labels
• parcel labels
• ticket stock
• queue tickets
• transport tickets
• parking tickets
• event tickets
• admission labels
• wristbands
• identification labels

The exact media type should be selected according to the kiosk mechanism and application.

A label, ticket or wristband that is physically within the supported width range may still require testing for thickness, sensing, print quality and feed reliability.

203 dpi Printing

The BK5-41 provides 203 dpi resolution.

This is commonly suitable for:

• standard barcodes
• receipt-style text
• transport tickets
• parking tickets
• general labels
• wristbands
• logos and graphics
• QR codes and other 2D symbols where properly sized

For very small text or highly dense barcode applications, 203 dpi suitability should be tested with the actual artwork and media.

Up to 150 mm/sec Print Speed

BIXOLON specifies print speeds up to 150 mm/sec.

This can help support self-service applications where the customer expects a ticket, label or wristband to be produced without a long delay.

Actual print speed may vary depending on:

• print density
• graphics
• barcode content
• media thickness
• power configuration
• application
• driver
• operating temperature

The maximum speed should therefore be treated as a manufacturer-rated capability rather than a guaranteed speed for every job.

Adjustable Media Width

The BK5-41 supports media widths from approximately 20 mm to 118 mm.

This broad range helps one printer platform support multiple kiosk applications.

For example:

Narrow Media

• small labels
• wristbands
• compact tickets

Wider Media

• parcel labels
• transport tickets
• large-format kiosk labels

The media path and kiosk design should still be tested with the actual roll and stock being used.

Media Thickness up to 0.15 mm

BIXOLON specifies support for media thickness up to approximately 0.15 mm.

This can be useful for applications that use thicker ticket or wristband stock.

Media thickness alone does not guarantee compatibility.

The complete media construction should also be checked for:

• thermal coating
• liner
• stiffness
• curl
• adhesive
• notch or gap sensing
• feed behaviour

Adjustable Thermal Printhead Pressure

One notable BK5-41 feature is adjustable TPH pressure.

TPH refers to the thermal printhead.

Adjustable pressure can help optimize contact between the printhead and different media types, which may improve print consistency when using labels, tickets or wristbands with different constructions.

Adjustment should follow BIXOLON's setup guidance rather than being changed arbitrarily.

Self-Service Kiosk Applications

The BK5-41 is specifically designed for embedded self-service environments.

Possible uses include:

• ticketing kiosks
• parking kiosks
• check-in kiosks
• queue-management kiosks
• visitor-management terminals
• entertainment kiosks
• self-service food ordering
• transportation terminals
• label-printing stations
• public-service kiosks

BIXOLON explicitly identifies self-service and kiosk use under food/hospitality and transport-related applications.

Public Transportation Applications

BIXOLON identifies public transportation ticketing as a target application.

Potential use cases include:

• bus-ticket kiosks
• train-ticket kiosks
• metro-ticketing
• boarding documents
• transport labels
• route tickets
• passenger self-service

The actual ticket media, layout, security features and backend integration should be verified for the specific transport system.

Parking Management Applications

BIXOLON also lists parking management among its target applications.

Possible workflows include:

• parking tickets
• entry tickets
• exit tickets
• validation slips
• payment receipts
• parking labels

The printer itself does not provide parking logic; it prints data sent from the kiosk or parking application.

Entertainment and Hospitality

The BK5-41 may also be suitable for:

• cinema tickets
• event admission
• attraction tickets
• amusement venues
• hotel self-service
• queue tickets
• food-ordering kiosks
• wristband printing

BIXOLON places BK5-41 under food/hospitality and entertainment self-service applications.

Wristband Printing

Wristbands are one of the media types specifically highlighted by BIXOLON.

Potential industries include:

• events
• entertainment
• hospitality
• healthcare identification workflows
• visitor management
• attractions
• recreation

The exact wristband stock should be tested for thickness, print quality, durability and kiosk feed performance.

For regulated or clinical use, the complete wristband solution should be validated separately.

Barcode and QR-Code Applications

The BK5-41 can be used in systems where printed tickets or labels include machine-readable data such as:

• 1D barcodes
• QR codes
• Data Matrix codes
• ticket identifiers
• transaction IDs
• reservation references

Actual barcode support can depend on driver, command set and application.

For critical scanning workflows, the printed result should be tested with the intended scanner or camera.

Windows Support

BIXOLON provides Windows drivers for the BK5-41, including support for contemporary Windows versions and Windows Server environments.

This can help integrate the printer with Windows-based kiosk applications.

Driver availability does not guarantee compatibility with every kiosk software package.

The application vendor should confirm support where the printer is part of a business-critical deployment.

Android Support

BIXOLON provides Android SDK resources for the BK5-41 platform.

This can support kiosks or embedded terminals using Android-based applications.

The exact Android version and SDK requirements should be checked before development or deployment.

Linux and macOS Support

BIXOLON also provides:

• Linux support
• Mac CUPS driver support

for applicable printing workflows.

This can be useful for kiosk controllers or development environments using these platforms.

OPOS and JavaPOS

BIXOLON provides:

• OPOS drivers
• JavaPOS drivers

for the BK5-41.

These can be relevant for POS and self-service applications built around standard retail middleware.

Compatibility should still be confirmed with the actual software stack.

SDK and Web Printing Support

BIXOLON lists:

• Windows SDK
• Android SDK
• Linux SDK
• Web Print SDK

for the BK5-41 platform.

This can help developers integrate the printer into:

• native kiosk applications
• browser-based systems
• POS software
• ticketing systems
• self-service interfaces

Complex software development remains separate from the printer hardware.

Available Accessories

BIXOLON lists accessories including:

• USB A-to-B cable
• AC/DC adapter with 2-pin connector
• AC/DC adapter with DC jack
• serial cable with 5-pin to D-SUB 9-pin connector
• D-SUB 9-pin serial cable

Accessories may vary by regional bundle and supplier configuration.

Do not assume that every cable or adapter is included unless specifically stated in the quotation.

Purpose of Use

The BIXOLON BK5-41 is intended for integration into kiosks and self-service equipment where labels, tickets or wristbands need to be printed automatically.

A simplified system may look like:

User Interface / Kiosk Application

↓

Kiosk Controller

↓

BIXOLON BK5-41

↓

Ticket / Label / Wristband

The printer performs the physical printing stage, while the kiosk software manages transactions, data and business logic.

Compatibility

Before ordering, verify compatibility with:

• kiosk enclosure
• media width
• media thickness
• roll diameter
• mounting arrangement
• power supply
• interface requirements
• Windows application
• Android application
• Linux environment
• browser-based software
• ticketing system
• parking system
• barcode format
• wristband stock
• label stock

Things to Verify Before Ordering

Please confirm:

• Exact BK5-41 part number
• Required quantity
• Application type
• Kiosk enclosure dimensions
• Media width
• Media thickness
• Media roll dimensions
• Label / ticket / wristband type
• Required print speed
• Barcode requirements
• Required interface
• USB requirement
• Serial requirement
• Network requirement if applicable
• Operating system
• Software/SDK requirement
• Power-supply requirement
• Cable requirement
• Mounting requirement
• Warranty terms

For new kiosk projects, sample-media and mechanical-fit testing are advisable before larger deployment.

Who Should Consider the BIXOLON BK5-41?

The BK5-41 may be worth considering for organizations requiring:

• 4-inch kiosk printing
• direct thermal ticket printing
• label printing
• wristband printing
• self-service kiosks
• parking systems
• transport ticketing
• entertainment ticketing
• hospitality kiosks
• embedded printer integration
• Android or Windows kiosk applications

If the printer will be used on a desk rather than integrated inside a kiosk, a conventional desktop label printer may be easier to service and operate.

Why NEOTECH® UAE?

A kiosk printer should be selected around both print requirements and mechanical integration.

For the BK5-41, useful questions include:

What will you print: label, ticket or wristband?

What is the media width and thickness?

How much space is available inside the kiosk?

Which operating system controls the printer?

Which interface is required?

Which power adapter and cable are needed?

Does the kiosk software already support BIXOLON?

Confirming these details before ordering can reduce mechanical, media and software compatibility problems.

NEOTECH® primarily focuses on straightforward hardware supply and product suitability.

Complex kiosk design, enclosure engineering, custom software development, installation and commissioning should be handled by an appropriately qualified kiosk or system-integration provider.

Learn First. Decide Second. Buy Only If It Is Right for Your Needs.

There is absolutely no obligation or pressure to proceed with the purchase with us.

Delivery – UAE

NEOTECH® supplies within the United Arab Emirates only.

Standard Shipping: Free

Order Cut-Off: 14:00 GST

Handling Time: 1–2 business days for applicable available items

Standard Transit: 3–5 business days

Estimated Standard Delivery: 4–7 business days

Availability depends on the exact BK5-41 configuration, quantity and required accessories.

Project quantities, special cables, power adapters or kiosk integration accessories may require additional lead time.

Please confirm availability before placing a time-sensitive order.

FAQ

Q: What is the BIXOLON BK5-41?
A: The BK5-41 is a compact 4-inch direct thermal kiosk printer designed for labels, tickets and wristbands.

Q: What is the print resolution?
A: BIXOLON specifies 203 dpi.

Q: What is the maximum print speed?
A: Up to 150 mm/sec.

Q: What media width does it support?
A: Approximately 20–118 mm.

Q: What is the maximum media thickness?
A: BIXOLON specifies up to approximately 0.15 mm.

Q: Can it print wristbands?
A: Yes. BIXOLON specifically lists wristbands among the intended media types.

Q: Can it print tickets?
A: Yes. Ticketing is one of the primary application areas.

Q: Can it print standard labels?
A: Yes, provided the media dimensions and thermal characteristics are compatible.

Q: Does the BK5-41 use ribbon?
A: No. It is a direct thermal printer and uses compatible heat-sensitive media.

Q: Does it support Windows?
A: Yes. BIXOLON provides Windows drivers for the BK5-41.

Q: Does it support Android?
A: Yes. BIXOLON provides Android SDK resources.

Q: Does it support Linux?
A: Yes. Linux SDK and driver resources are available.

Q: Does it support macOS?
A: BIXOLON provides a Mac CUPS driver.

Q: Does it support OPOS?
A: Yes. BIXOLON provides an OPOS driver.

Q: Does it support JavaPOS?
A: Yes. JavaPOS driver support is available.

Q: Does BIXOLON provide SDKs?
A: Yes. Windows, Android, Linux and Web Print SDK resources are listed for the BK5-41.

Q: Is the power adapter always included?
A: It should not be assumed. BIXOLON lists AC/DC adapters as accessories, and the exact bundle should be confirmed before ordering.

Q: Can it be used in a parking kiosk?
A: Yes. BIXOLON identifies parking management as an intended application.

Q: Is it suitable for public-transport ticketing?
A: Yes. BIXOLON specifically lists public transportation ticketing.

Q: Can it be used in entertainment kiosks?
A: Yes. Entertainment and self-service applications are among BIXOLON's stated use cases.

Q: Can it be used for healthcare wristbands?
A: It may print compatible wristband media, but regulated healthcare use requires validation of the complete media, software and identification workflow.

Q: Can NEOTECH® design the entire kiosk?
A: NEOTECH® primarily focuses on hardware supply and product suitability. Complex kiosk engineering, enclosure design, software development and commissioning should be handled by a qualified system integrator.

Q: What information should I send for a quotation?
A: Please provide the required quantity, intended kiosk application, media width/thickness, operating system, required interface, and whether power adapters or cables are needed.

Related Products

• BIXOLON Kiosk Printers
• 4-Inch Kiosk Printers
• Ticket Printers
• Wristband Printers
• Direct Thermal Label Printers
• Parking Kiosk Printers
• Self-Service Printers
• Kiosk Printer Accessories

Helpful Internal Links

• BIXOLON Printers
• Kiosk Printers
• Ticket Printers
• Wristband Printers
• Direct Thermal Label Printers
• Self-Service POS Systems
• Barcode Labels
• NEOTECH® Learning Center

Contact

For product inquiries, configuration verification and availability:

Email: support@neotech.ae

Address: Store 13, Computer Bldg, Al Fahidi, Bur Dubai, Dubai 44245, UAE

Please provide the BIXOLON BK5-41 model, required quantity, kiosk application, media dimensions, operating system and required accessories where available.

Disclaimer

NEOTECH® is operated by NEOLYN TECHNOLOGY LLC in the UAE.

BIXOLON, BK5-41 and associated product names and trademarks belong to their respective owners. NEOTECH® does not claim to be the manufacturer, authorized distributor or authorized reseller unless such status is separately documented.

Print speed, media width, media thickness and other performance figures are based on BIXOLON's published technical information and may vary according to media, application, driver, power configuration and operating conditions.

Accessories such as power adapters, USB cables and serial cables should not be assumed to be included unless specifically stated in the quotation.

Third-party kiosk software, ticketing applications, parking systems, enclosures and integration services are separate from the printer unless expressly included.

Images may be illustrative. Exact interfaces, accessories, regional configuration and availability should be verified against the selected BK5-41 part number before ordering.

Last Updated: 13 September 2026 (GST, UTC+4)
