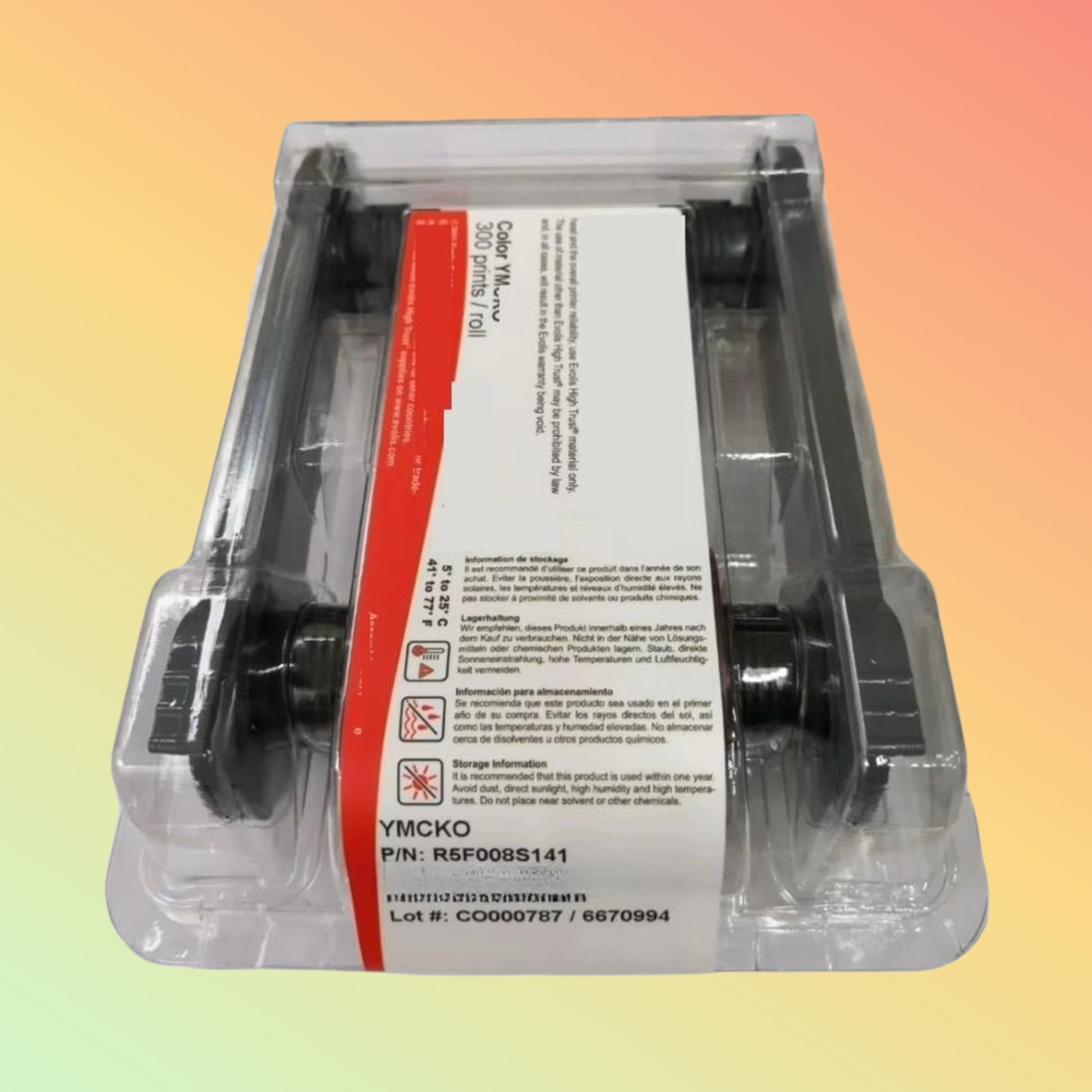

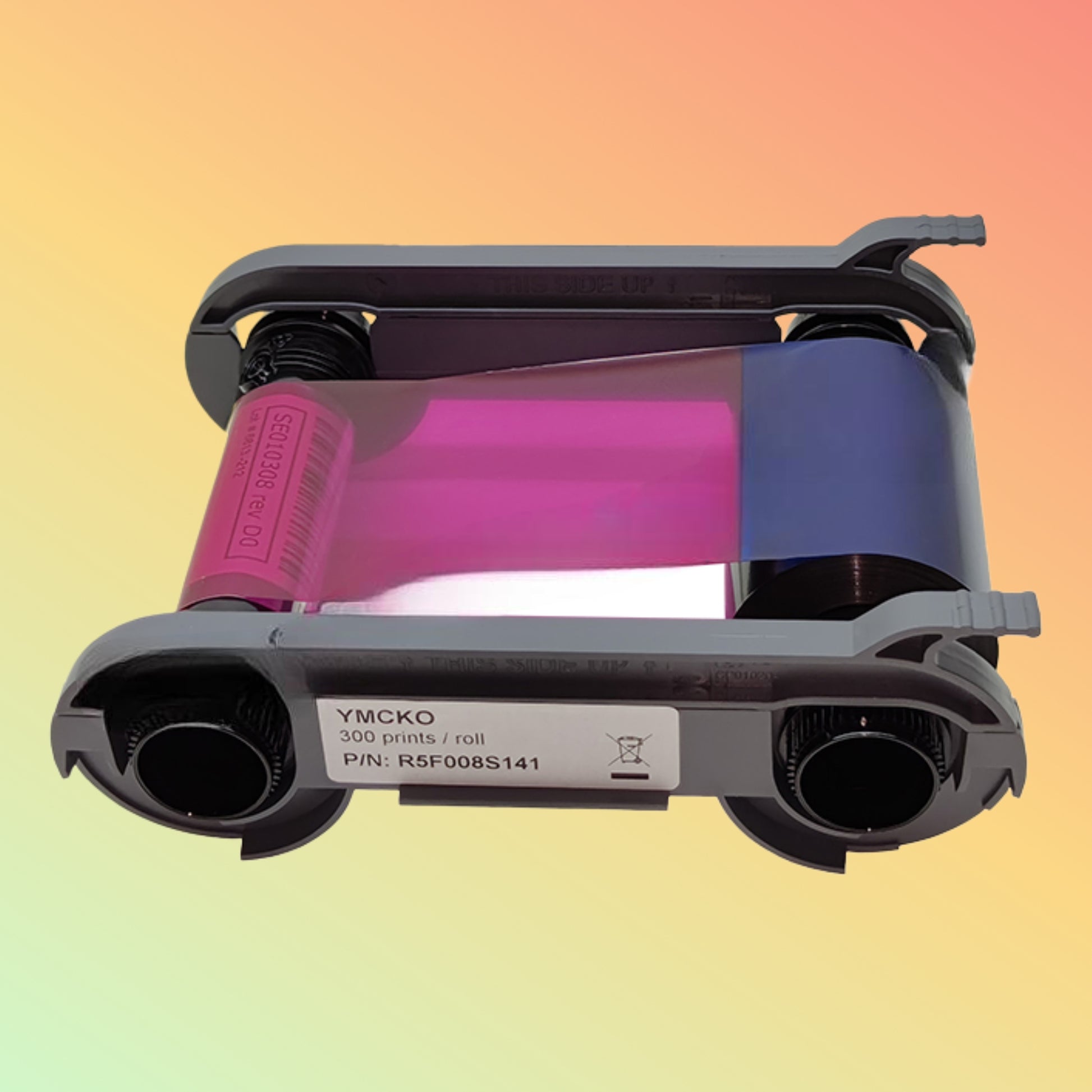

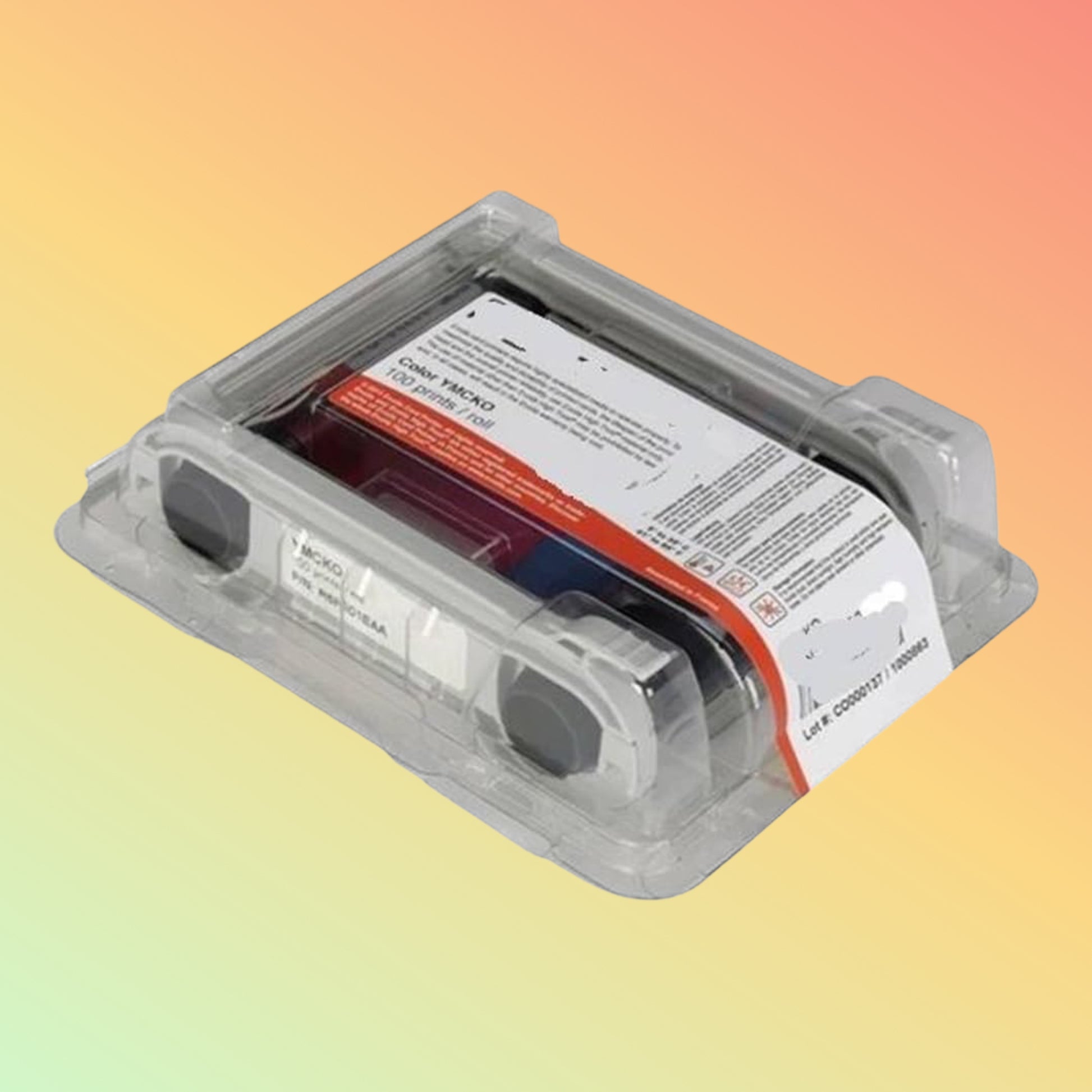

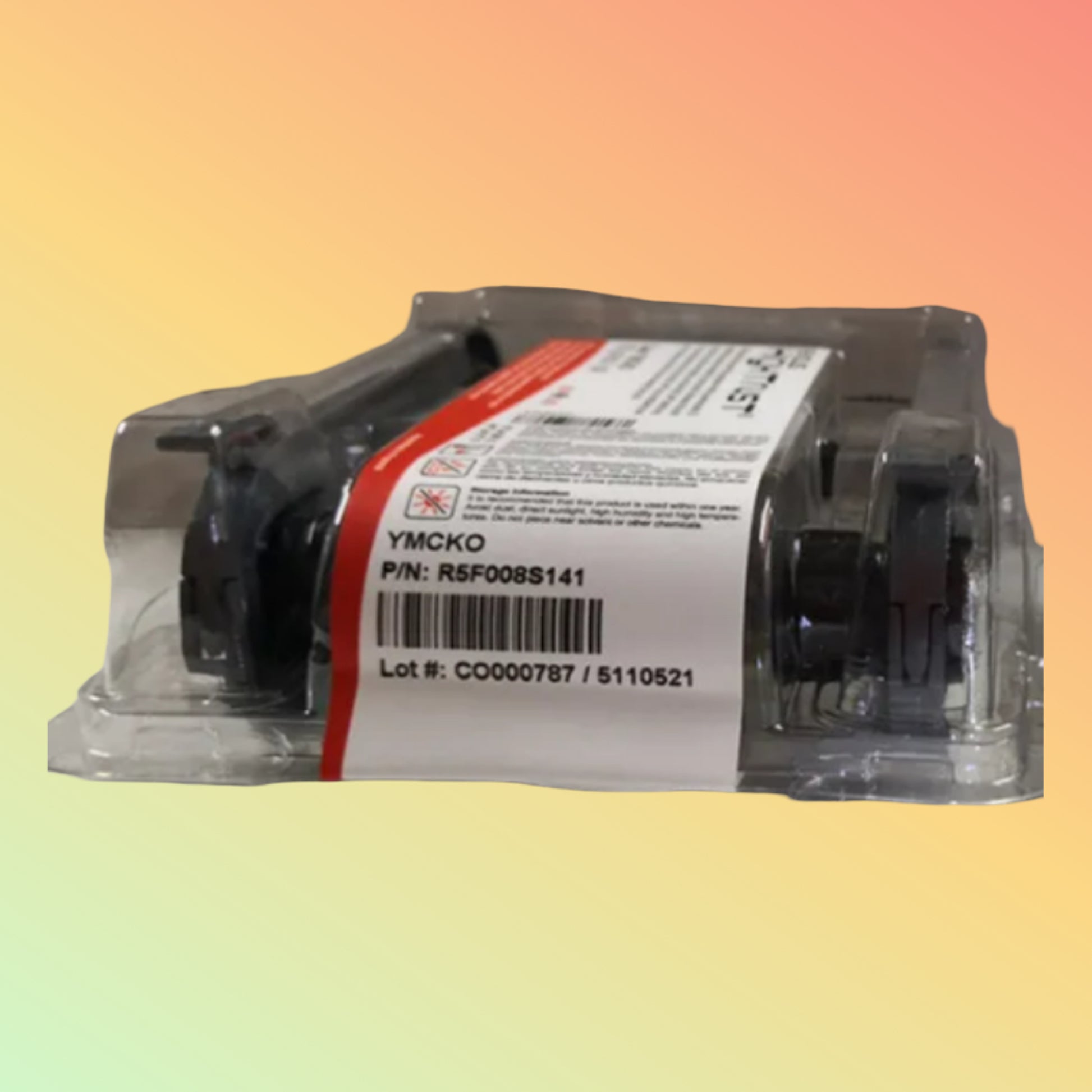

Five-panel YMCKO full-color ribbon for compatible Evolis Zenius and first-generation Primacy card printers, designed for color photo, text, graphics and protective overlay printing on plastic cards.

The Evolis R5F008S141 is a YMCKO full-color ribbon associated with compatible Evolis Zenius and first-generation Primacy direct-to-card printers.

It uses five sequential ribbon panels:

Y – Yellow

M – Magenta

C – Cyan

K – Black Resin

O – Overlay

Together, these panels allow a compatible Evolis printer to produce full-color card designs containing photographs, logos and graphics, while the black resin panel can produce defined black elements such as text and barcodes.

The final overlay panel applies a transparent protective layer over the printed surface.

The R5F008S141 is commonly identified with a yield of up to 300 card images per ribbon under the appropriate single-sided YMCKO printing workflow.

However, there is an especially important consideration with this part number: Evolis ribbon suffixes can be region-specific. Customers should verify that the complete R5F008S141 reference is recognized by their exact printer before ordering.

What Does YMCKO Mean?

YMCKO describes the five panels used during the card-printing process.

Y – Yellow

Provides the yellow component used when creating full-color images.

M – Magenta

Provides the magenta color component.

C – Cyan

Provides the cyan color component.

K – Black

A resin black panel used for defined black printing such as:

• Names
• Employee numbers
• Text
• Barcodes
• Other black design elements

O – Overlay

A clear overlay panel applied after the color and black printing stages.

The complete sequence is:

Yellow

↓

Magenta

↓

Cyan

↓

Black

↓

Overlay

This combination is commonly used for professional full-color identification cards.

What Can R5F008S141 Be Used to Print?

A compatible YMCKO card-printing workflow can produce cards containing combinations of:

• Employee photographs
• Names
• Company logos
• Department information
• Employee numbers
• Membership information
• Student photographs
• Expiry dates
• Access-card identification
• Conventional barcodes
• Colored backgrounds
• Branding elements
• Black text and graphics

The exact card design is controlled by the card-printing software rather than by the ribbon itself.

Why Is There a Separate Black Panel?

Full-color images are created primarily from the Yellow, Magenta and Cyan panels.

Although these colors can combine to create a dark appearance, they are not always the preferred method for printing defined black information.

The K resin panel provides a dedicated black printing layer.

This can be particularly useful for:

Names

Identification Numbers

Text

Barcodes

Other Defined Black Elements

This is one reason YMCKO is commonly used for photo identification cards rather than relying only on color dye panels.

What Does the Overlay Panel Do?

The final O panel is a clear overlay.

It is applied over the printed card surface after the color and black printing stages.

Its purpose is to provide an additional protective layer over the printed image.

The overlay should not be confused with a separate card lamination system.

YMCKO Overlay

A thin clear layer applied as part of the normal YMCKO ribbon printing cycle.

Lamination

A separate process available on particular card-printer and laminator configurations that can apply a more substantial protective laminate.

Therefore, a YMCKO ribbon does not convert a standard Zenius or Primacy printer into a laminating card system.

Up to 300 Prints

The R5F008S141 is identified as a 300-print YMCKO ribbon.

In a normal single-sided full-color YMCKO workflow, one complete set of:

Y + M + C + K + O

is consumed for each printed card side.

This means the ribbon is intended to provide approximately:

Up to 300 YMCKO card images

under the specified printing conditions.

Actual usable output can be affected by printer operation, ribbon initialization, rejected cards, test printing, cleaning or interrupted print jobs.

The 300-print figure should therefore be understood as the nominal manufacturer consumable yield rather than a guarantee that every installation will produce exactly 300 finished cards.

Compatible Printer Families

R5F008S141 is associated with compatible versions of:

• Evolis Zenius
• Evolis Primacy – First Generation

However, the complete ribbon reference and regional coding must be checked against the exact printer.

Do not purchase a ribbon solely because the printer carries the Evolis name.

Important Primacy vs Primacy 2 Difference

This is one of the most important points to verify before ordering.

Evolis Primacy

and

Evolis Primacy 2

are different printer generations.

The R5F008S141 belongs to the older R5F008... ribbon family associated with compatible first-generation Primacy and Zenius configurations.

Current Primacy 2 consumables use different references, including ribbon families beginning with references such as:

R5F208...

Therefore:

Primacy ≠ Primacy 2

and

R5F008S141 should not automatically be ordered for Primacy 2.

Always check the exact printer model and current consumable reference first.

Regional Ribbon Coding Is Important

The suffix at the end of an Evolis ribbon part number matters.

The R5F008S141 reference has been identified in distribution documentation as a region-coded consumable, and Evolis ribbon variants with otherwise similar specifications may carry different suffixes for different markets.

This means two ribbons can both appear to be:

YMCKO

300 Prints

Zenius / Primacy

but still carry different complete manufacturer references.

A printer may reject a ribbon intended for another regional configuration.

For this reason, NEOTECH® recommends confirming:

Exact Printer Model

Printer Region

Existing Ribbon Part Number

Required New Ribbon Part Number

before purchasing.

Do Not Choose by “YMCKO 300” Alone

This is particularly important with Evolis consumables.

A purchasing request stating only:

“Evolis YMCKO 300 prints”

may not provide enough information to identify the correct ribbon.

A safer requirement is:

Printer: Evolis Primacy

Generation: First Generation

Required Ribbon: YMCKO

Existing Ribbon Reference: R5F008S141

Yield: Up to 300 Prints

Region: Confirm Against Printer

This greatly reduces the possibility of ordering a physically similar but electronically incompatible consumable.

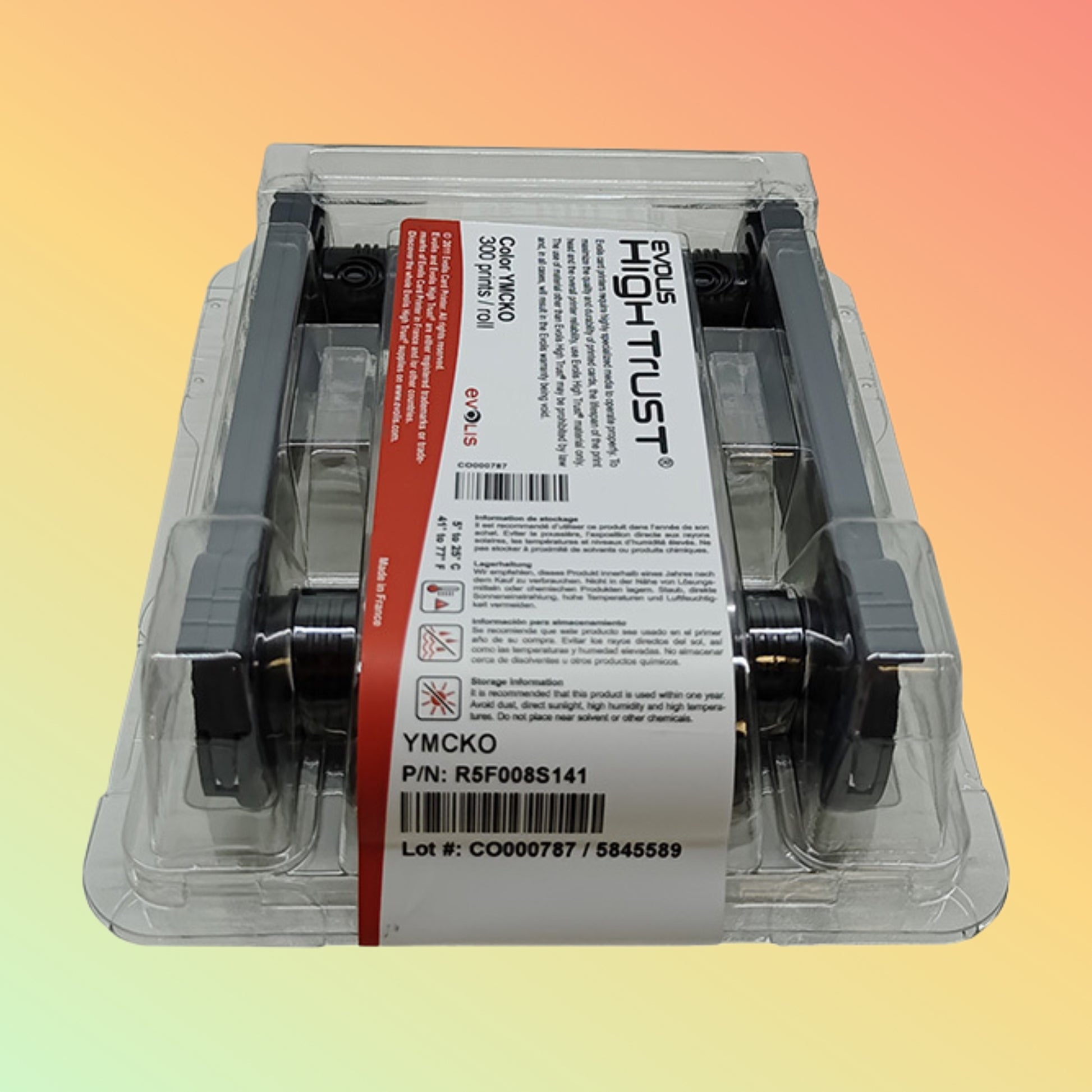

High Trust® Ribbon Identification

Evolis original consumables use the manufacturer's consumable-recognition system to help compatible printers identify the installed ribbon and apply appropriate printing parameters.

This is another reason the complete consumable reference matters.

A ribbon should not be selected merely because its cassette looks physically similar to another Evolis ribbon.

Direct-to-Card Printing

Compatible Zenius and Primacy printers use direct-to-card printing technology.

During printing, the card moves through the printer while the printhead transfers the required image from the ribbon directly onto the card surface.

A simplified process is:

Blank Compatible Card

↓

Yellow Panel

↓

Magenta Panel

↓

Cyan Panel

↓

Black Resin Panel

↓

Clear Overlay

↓

Finished Printed Card

The condition and construction of the card surface can affect the resulting print quality.

Typical Applications

R5F008S141 may be relevant for compatible card-printing environments producing:

• Employee ID cards
• Staff badges
• Membership cards
• Student cards
• Visitor cards
• Loyalty cards
• Access-control identification cards
• Club membership cards
• Event identification
• Photo identification cards
• Corporate credentials

Card suitability and encoding requirements should be evaluated separately from ribbon compatibility.

What the Ribbon Does Not Do

The R5F008S141 is a printing consumable.

It does not itself provide:

• Magnetic-stripe encoding
• Contact smart-card encoding
• Contactless RFID encoding
• MIFARE encoding
• Card design software
• Database management
• Access-control programming
• Card lamination
• Printer connectivity

Those functions depend on the printer configuration, encoder options, software and wider card system.

Is R5F008S141 Suitable for RFID Cards?

The presence of RFID technology inside a card does not by itself determine ribbon compatibility.

Several factors need to be considered, including:

• Exact card construction
• Card surface
• Chip location
• Card flatness
• Printer specification
• Card thickness
• Required encoding technology
• Printer encoder configuration

If smart cards or contactless cards are being personalized, both printing compatibility and electronic encoding requirements should be verified.

Technical Specifications

Brand: Evolis

Manufacturer Part Number: R5F008S141

Consumable Type: Color Card Printer Ribbon

Ribbon Type: YMCKO

Ribbon Panels: 5

Y: Yellow

M: Magenta

C: Cyan

K: Black Resin

O: Clear Overlay

Nominal Yield: Up to 300 Card Images

Printing Application: Full-Color Card Personalization

Primary Compatible Printer Families: Evolis Zenius and First-Generation Primacy, Subject to Exact Regional Compatibility

Technology: Dye-Sublimation Color + Resin Black + Overlay

Primacy 2 Compatibility: Do Not Assume; Primacy 2 Uses a Different Consumable Family

Regional Compatibility: Must Be Verified Using the Complete Ribbon Reference and Exact Printer

R5F008S141 vs Monochrome Ribbon

The correct ribbon depends on what needs to be printed.

Choose YMCKO When You Need

• Color photographs
• Colored logos
• Full-color graphics
• Black text
• Black barcodes
• Clear overlay

Consider a Monochrome Ribbon When You Need

• Black text only
• Simple numbering
• Basic monochrome information
• Certain barcode-only applications
• No full-color photograph

Using a full YMCKO ribbon for a simple black-only card may not be the most appropriate consumable strategy.

R5F008S141 vs YMCKOK

These two ribbon types should also not be confused.

YMCKO

Yellow + Magenta + Cyan + Black + Overlay

Typically used for full-color printing on one card side.

YMCKOK

Yellow + Magenta + Cyan + Black + Overlay + Black

Typically intended for workflows requiring full-color printing on one side and black printing on the reverse side with a compatible dual-sided printer.

If both sides of the card need printing, determine exactly what needs to appear on each side before selecting the ribbon.

Things to Verify Before Ordering

Brand: Evolis

Exact Ribbon Part Number: R5F008S141

Printer Model

Printer Generation

Printer Region

Existing Ribbon Reference

Required Ribbon Type: YMCKO

Required Print Yield

Single-Sided or Dual-Sided Printing

Color Requirement

Black Resin Requirement

Card Material

Card Thickness

Smart Card / RFID Requirement

Encoding Requirement

Required Quantity

Current Manufacturer Compatibility

Current Availability and Lead Time

Who Should Consider R5F008S141?

This ribbon may be appropriate where:

• The printer is a compatible Evolis Zenius
• The printer is a compatible first-generation Evolis Primacy
• Full-color photo ID cards are required
• Black resin text or barcodes are required
• A clear overlay is required
• The exact R5F008S141 regional reference matches the printer
• Approximately 300 full-color card images per ribbon suits the printing volume

Who May Need Another Ribbon?

Another ribbon may be required where:

• The printer is Evolis Primacy 2
• The printer belongs to another Evolis generation
• The printer requires another regional ribbon suffix
• Only monochrome printing is required
• Full color is needed on one side and black on the reverse
• Specialized security printing is required
• A different print yield is preferred
• The existing printer identifies another consumable part number

FAQ - Evolis R5F008S141 YMCKO Color Ribbon

Q: What is Evolis R5F008S141?

A: R5F008S141 is a YMCKO full-color card-printer ribbon reference associated with compatible Evolis Zenius and first-generation Primacy printers. It is commonly specified for up to 300 card images.

Q: What does YMCKO mean?

A: YMCKO stands for Yellow, Magenta, Cyan, Black and Overlay. These five panels provide full-color image printing, resin-black elements and a clear protective overlay.

Q: How many cards can R5F008S141 print?

A: The nominal yield is up to approximately 300 YMCKO card images under the intended printing workflow.

Q: Can R5F008S141 print photographs?

A: Yes. The Yellow, Magenta and Cyan dye panels are used together to produce full-color images such as photographs and logos.

Q: Can it print black barcodes?

A: The ribbon includes a dedicated black resin panel that can be used for defined black elements such as text and supported barcode designs.

Q: Is R5F008S141 compatible with Evolis Primacy?

A: It is associated with compatible first-generation Primacy printers, but the complete regional ribbon reference should be checked against the exact printer before ordering.

Q: Is R5F008S141 compatible with Primacy 2?

A: It should not automatically be treated as a Primacy 2 ribbon. Primacy 2 uses a newer consumable family with different part numbers. Verify the exact Primacy 2 ribbon reference before purchasing.

Q: Why is the S141 suffix important?

A: Evolis consumables can use region-specific coding. A ribbon with the correct YMCKO format but an incorrect regional suffix may not be recognized by the printer.

Q: Should I check my existing ribbon before ordering?

A: Yes. Comparing the complete part number on the existing recognized ribbon with the replacement requirement is one of the safest compatibility checks.

Q: Does the overlay mean the card is laminated?

A: No. The YMCKO overlay is a clear protective layer applied during normal ribbon printing. It should not be confused with a separate laminate applied by a dedicated lamination system.

Related Products

Evolis Zenius ID Card Printer

Evolis Primacy ID Card Printer

Evolis Primacy 2 ID Card Printer

Evolis YMCKOK Color Ribbon

Evolis Monochrome Ribbons

Evolis Card Printer Cleaning Kits

CR80 PVC Cards

Smart Cards and RFID Cards

ID Card Printing Accessories

Helpful Internal Links

NEOTECH® UAE

https://www.neotech.ae/

Why NEOTECH® UAE?

Card-printer ribbons can look almost identical while differing in printer generation, ribbon format, yield and regional coding.

For R5F008S141, checking only the words “Evolis,” “YMCKO” and “300 prints” is not enough.

Customers are encouraged to identify the exact printer, printer generation, existing recognized ribbon and full consumable part number before purchasing.

This is particularly important when distinguishing the original Primacy / Zenius ribbon family from newer Primacy 2 consumables.

Learn First. Decide Second. Buy Only If It Is Right for Your Needs.

The NEOTECH® Learning Center is free and open to everyone. You do not need to be a NEOTECH® customer to access or benefit from our educational content. Learn at your own pace, explore the information freely, and make informed decisions based on your own needs. There is no obligation or pressure to purchase from NEOTECH®.

There is no obligation or pressure to purchase. Customers are encouraged to verify the exact printer model, printer generation, regional ribbon coding, existing consumable reference and required printing configuration before ordering.

Delivery – UAE

NEOTECH® supports Evolis card-printer consumable requirements within the United Arab Emirates.

Exact part number, printer compatibility, regional coding, quantity, availability and lead time should be confirmed before ordering.

Contact NEOTECH® UAE

Website: https://www.neotech.ae/

Email: support@neotech.ae

Address: Store 13, Computer Bldg, Al Fahidi, Bur Dubai, Dubai 44245, United Arab Emirates

Disclaimer - NEOTECH® UAE

Evolis, Zenius, Primacy, Primacy 2 and associated product names and part numbers are trademarks or product identifiers of their respective owners.

Product information is provided for educational, compatibility and procurement-support purposes.

R5F008S141 is a region-specific consumable reference and should not be assumed compatible with every Evolis Zenius or Primacy printer worldwide. Ribbon compatibility can depend on printer generation and regional configuration.

Customers should verify the complete ribbon part number against their exact printer or currently recognized consumable before ordering. Primacy 2 uses a different consumable family and should not be assumed compatible with R5F008S141.

Last Updated: 02 September 2026  (GST, UTC+4)
