Exact Honeywell PD45S configuration with 203 dpi printing, 2.36-inch keyed LCD, thermal transfer and direct thermal capability, Ethernet, USB and industrial 4-inch label printing. Power cord not included.

Manufacturer: Honeywell
Product Family: PD45S
Model: PD45S0C
Exact Part Number / MPN: PD45S0C0010000200
Resolution: 203 dpi / 8 dots per mm
Printing: Thermal Transfer and Direct Thermal
Display: 2.36-inch Keyed LCD
Power Cord: Not Included

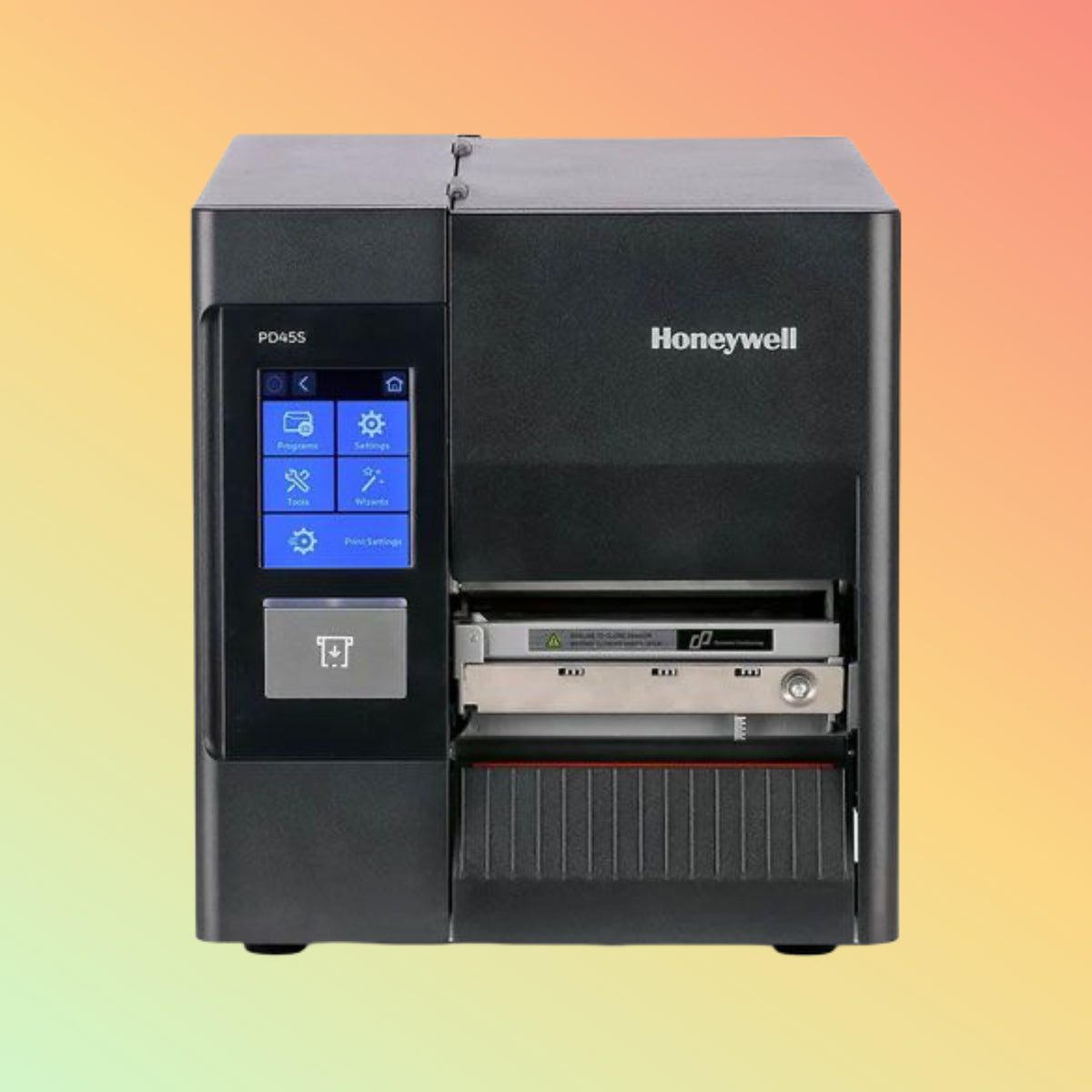

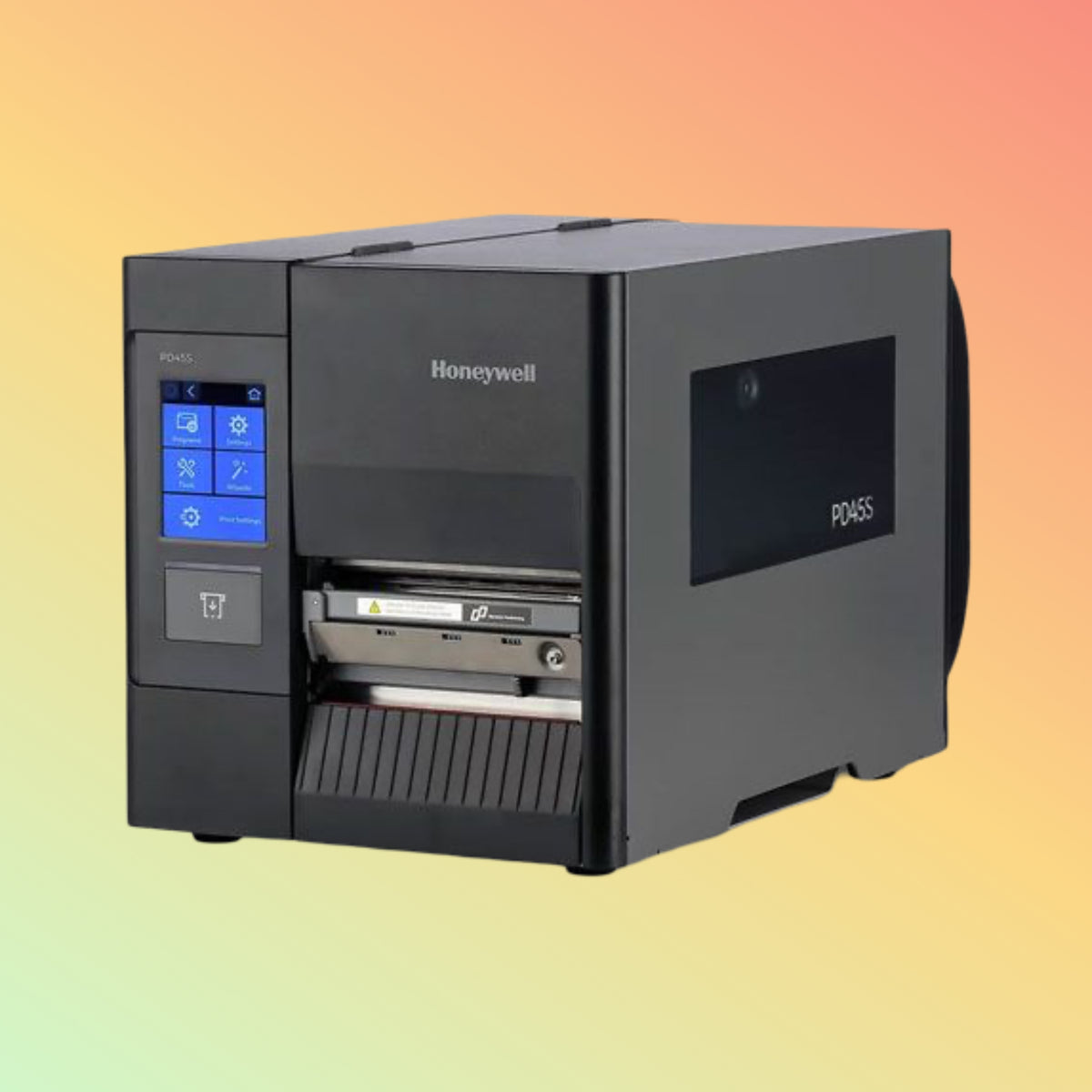

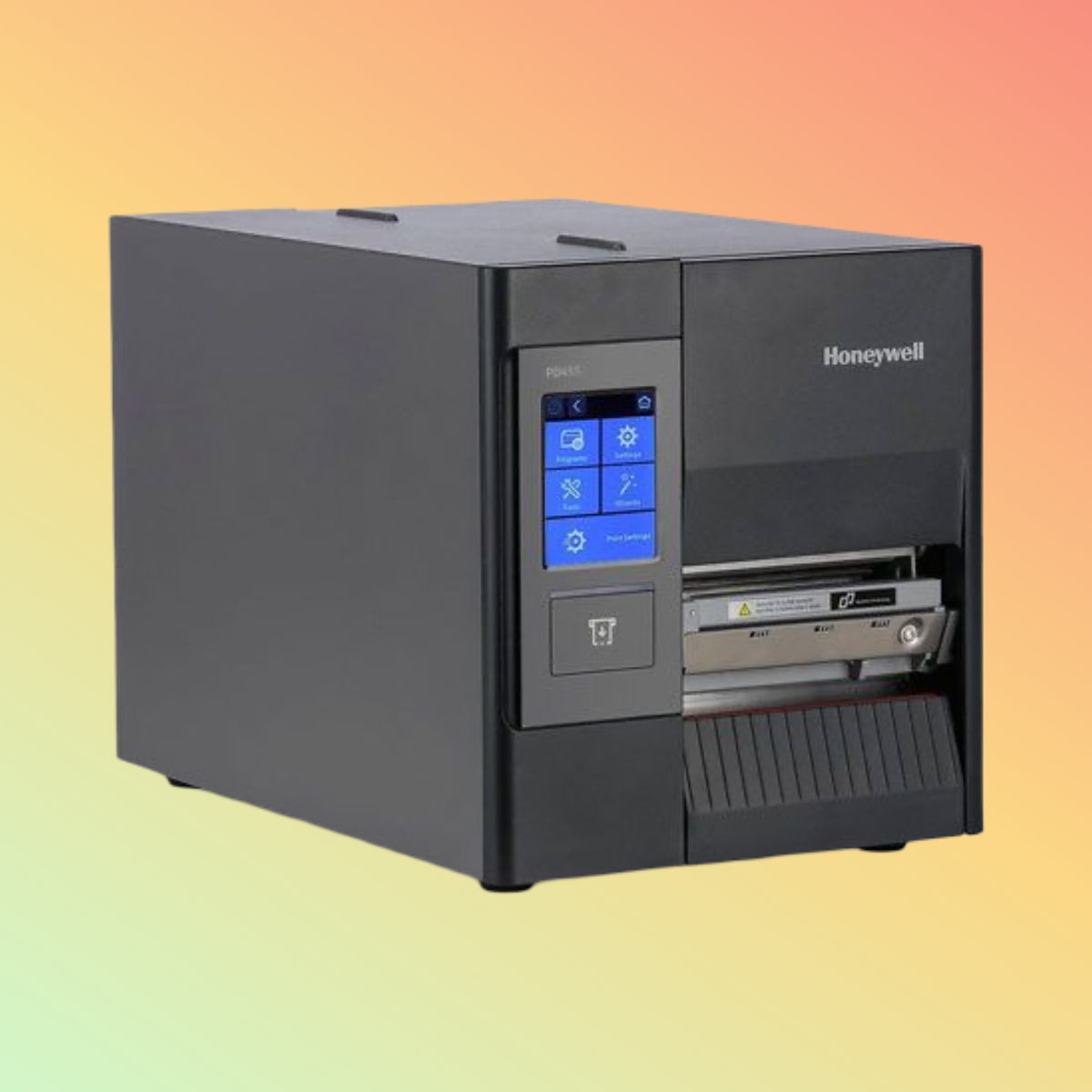

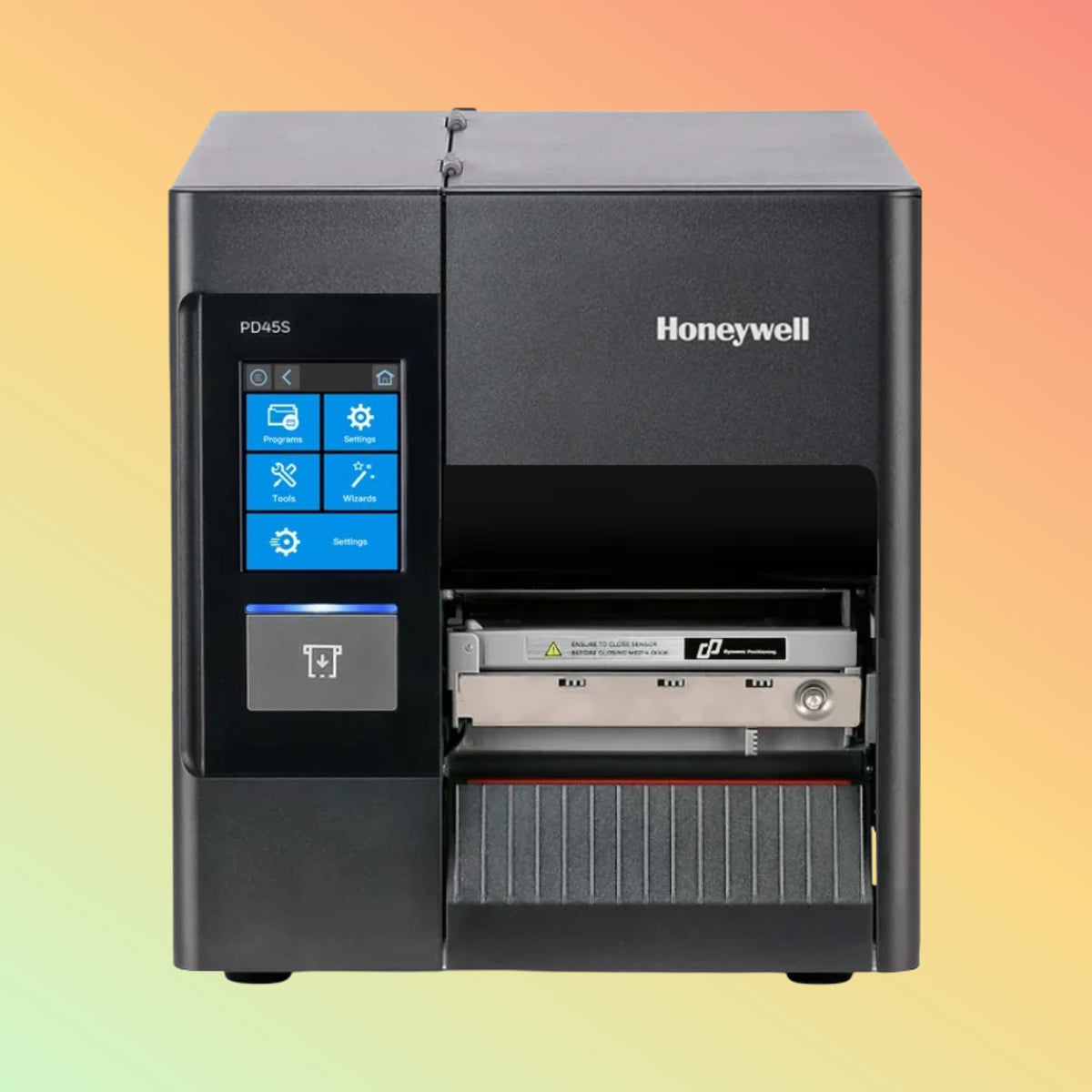

Honeywell PD45S0C0010000200

203 dpi Industrial Thermal Transfer Label Printer with 2.36-Inch Keyed LCD

The Honeywell PD45S0C0010000200 is a specific configuration of the Honeywell PD45S industrial barcode and label printer designed for manufacturing, warehousing, logistics, retail and other professional label-printing environments.

This exact manufacturer part number identifies a 203 dpi PD45S0C thermal-transfer printer with 2.36-inch keyed LCD, Ethernet connectivity, fixed media hanger and no power cord included.

The PD45S platform supports both thermal-transfer and direct-thermal printing, allowing businesses to select the printing method according to label material, required durability and application.

The exact MPN is important because Honeywell offers different PD45S configurations with different resolutions, displays, options and accessories.

For this page, the product being described is specifically:

PD45S0C0010000200

Exact Part Number Identification

Manufacturer: Honeywell

Product Family: PD45S

Model: PD45S0C

Manufacturer Part Number: PD45S0C0010000200

Resolution: 203 dpi

Display: 2.36-inch LCD with keypad

Printing Method: Thermal Transfer / Direct Thermal

Maximum Print Speed: Up to 250 mm/sec / 10 ips at 203 dpi

Ethernet: Yes

USB: Yes

Serial: Supported by the PD45S platform

Media Hanger: Fixed

Power Cord: Not included

This page should not be used to describe every PD45S configuration.

Product Overview

The Honeywell PD45S is an industrial printer built around an all-metal frame and intended for business environments requiring dependable barcode and label printing.

The PD45S0C0010000200 configuration uses a 203 dpi printhead, making it suitable for many general-purpose industrial barcode and identification labels where 300 dpi fine-detail printing is not required.

Its thermal-transfer capability allows printing with compatible ribbon and label combinations, while direct-thermal operation can be used with suitable heat-sensitive media.

Key Features

• Exact Honeywell MPN PD45S0C0010000200
• Honeywell PD45S0C industrial printer
• 203 dpi / 8 dots per mm
• Thermal transfer printing
• Direct thermal printing
• Up to 250 mm/sec / 10 ips print speed at 203 dpi
• Maximum print width up to 108 mm / 4.25 inches
• 2.36-inch keyed LCD
• Ethernet connectivity
• USB connectivity
• RS-232 Serial support
• 256 MB Flash memory
• 256 MB DDR3 SDRAM
• Built-in real-time clock
• Maximum ribbon length up to 450 m
• Maximum media roll diameter up to 203.2 mm / 8 inches
• Fixed media hanger
• Industrial all-metal frame
• Power cord not included

Technical Specifications

Manufacturer: Honeywell

Product Family: PD45S

Model: PD45S0C

Exact MPN: PD45S0C0010000200

Product Type: Industrial Barcode / Label Printer

Print Methods: Thermal Transfer and Direct Thermal

Print Resolution: 203 dpi / 8 dots per mm

Maximum Print Speed at 203 dpi: 250 mm/sec / 10 ips

Maximum Print Width: 108 mm / 4.25 inches

Maximum Continuous Print Length at 203 dpi: Approximately 4.8 m

Display: 2.36-inch Keyed LCD

Processor: Arm Cortex-A7, 800 MHz

Flash Memory: 256 MB

RAM: 256 MB DDR3 SDRAM

Real-Time Clock: Built in

Maximum Ribbon Length: 450 m / 1,476 ft

Maximum Media Roll Diameter: 203.2 mm / 8 inches

Media Hanger: Fixed

Ethernet: 10/100 Mbps

USB: Supported

RS-232 Serial: Supported

Wireless: Optional on applicable PD45S configurations; do not assume wireless is included with this MPN

Operating Voltage: 100–240V AC

Operating Frequency: 50–60Hz

Dimensions: Approximately 438 × 249 × 270 mm

Weight: Approximately 9.25 kg for PD45S0C

Operating Temperature: +5°C to +40°C

Power Cord: Not included

Important MPN: PD45S0C0010000200

Customers should order this printer using the complete manufacturer part number:

PD45S0C0010000200

This identifies the specific configuration more accurately than simply requesting:

Honeywell PD45S

or

Honeywell PD45S 203 dpi

Honeywell manufactures different PD45S configurations.

A quotation should therefore retain the complete MPN from inquiry through purchase order, supplier order and final delivery.

PD45S0C Configuration

The “0C” configuration identifies the PD45S version using a 2.36-inch LCD with keypad.

It should not be confused with other PD45S user-interface configurations.

This matters when replacing an existing printer or when the customer's operating procedures specifically require the keyed display.

203 dpi Printing

The PD45S0C0010000200 is a 203 dpi printer.

203 dpi is widely used for general industrial barcode and label applications including:

• Shipping labels
• Carton labels
• Inventory labels
• Warehouse labels
• Product identification
• Pallet labels
• Work-in-process labels
• Receiving labels
• Dispatch labels

Where labels contain extremely small text, very small barcodes or highly detailed graphics, a 300 dpi configuration may be more appropriate.

Higher resolution should be selected according to actual label requirements rather than simply assuming 300 dpi is always preferable.

Print Speed

Honeywell specifies the PD45S 203 dpi platform for print speeds from approximately:

50 to 250 mm/sec

or

2 to 10 inches per second

Actual usable speed depends on factors including:

• Label material
• Ribbon
• Print darkness
• Barcode density
• Label design
• Required print quality
• Application settings

Maximum rated speed should therefore not be interpreted as the appropriate operating speed for every label.

Thermal Transfer Printing

Thermal transfer printing uses a ribbon to transfer the image onto compatible media.

This method can be useful when labels require greater durability than ordinary short-life direct-thermal media.

Depending on the label material and application, ribbon formulations may include:

Wax

Wax-Resin

Resin

The correct ribbon should be selected according to the label substrate and required resistance.

Direct Thermal Printing

The PD45S platform also supports direct-thermal printing.

Direct thermal uses heat-sensitive media and does not require a thermal-transfer ribbon.

It may be suitable for applications such as:

• Shipping labels
• Short-life logistics labels
• Temporary identification
• Certain warehouse labels

Direct-thermal media may be affected by heat, light, abrasion and environmental exposure.

For long-term identification, the label requirement should be reviewed before choosing direct thermal.

450 Metre Ribbon Support

The PD45S supports thermal-transfer ribbons up to approximately:

450 metres / 1,476 feet

Longer industrial ribbons can reduce the frequency of ribbon changes compared with many desktop printers.

Before purchasing ribbon, verify:

• Ribbon width
• Ribbon length
• Ribbon core
• Winding
• Wax / wax-resin / resin formulation
• Label material
• Required durability

Ribbon size alone does not determine application suitability.

4-Inch Industrial Label Printing

The printer belongs to the 4-inch industrial printer class.

Honeywell specifies a maximum print width of approximately:

108 mm / 4.25 inches at 203 dpi

This makes the printer suitable for many common industrial label formats.

Actual label and media dimensions should still be checked against Honeywell's media specifications.

2.36-Inch Keyed LCD

The PD45S0C uses a 2.36-inch LCD with keypad.

The local interface allows operators to interact with printer functions and view printer information without relying exclusively on a connected computer.

This can be useful in warehouse and production environments where printer status needs to be visible at the workstation.

Ethernet Connectivity

The PD45S platform provides 10/100 Mbps Ethernet connectivity.

A wired network connection can be useful where:

• Multiple users need printer access
• The printer remains at a permanent workstation
• Stable network connectivity is preferred
• Centralized label printing is required

Network installation and business-application configuration remain dependent on the customer's IT environment.

USB Connectivity

USB connectivity allows applicable direct host connections and peripheral/storage functionality supported by the printer.

The exact intended connection should be checked against the customer's computer, operating system and printing application.

RS-232 Serial

The PD45S platform also supports RS-232 Serial connectivity.

Serial interfaces may remain relevant in manufacturing, industrial automation and legacy equipment environments.

Where Serial is specifically required, confirm the required cable, connector and host settings before ordering.

Optional Wireless Connectivity

Honeywell lists wireless connectivity as an option for applicable PD45S configurations.

PD45S0C0010000200 should not automatically be advertised as including Wi-Fi.

If wireless connectivity is required, the appropriate Honeywell configuration or wireless option should be confirmed before ordering.

Printer Languages

The PD45S platform supports multiple printer command languages, including applicable Honeywell and emulation environments such as:

• Direct Protocol
• Fingerprint
• IPL
• DPL
• ZSim2 / ZPL-II emulation
• XML-enabled workflows

The availability of a command language does not guarantee that an existing label application will work without configuration or testing.

For replacement projects, sample label files or the existing printer environment should be reviewed.

Manufacturing Applications

The PD45S0C0010000200 may be considered for:

• Product identification
• Component labels
• Work-in-process labels
• Production tracking
• Serial-number labels
• Quality-control labels
• Packaging identification
• Carton labels

Label and ribbon materials should be selected according to the actual manufacturing environment.

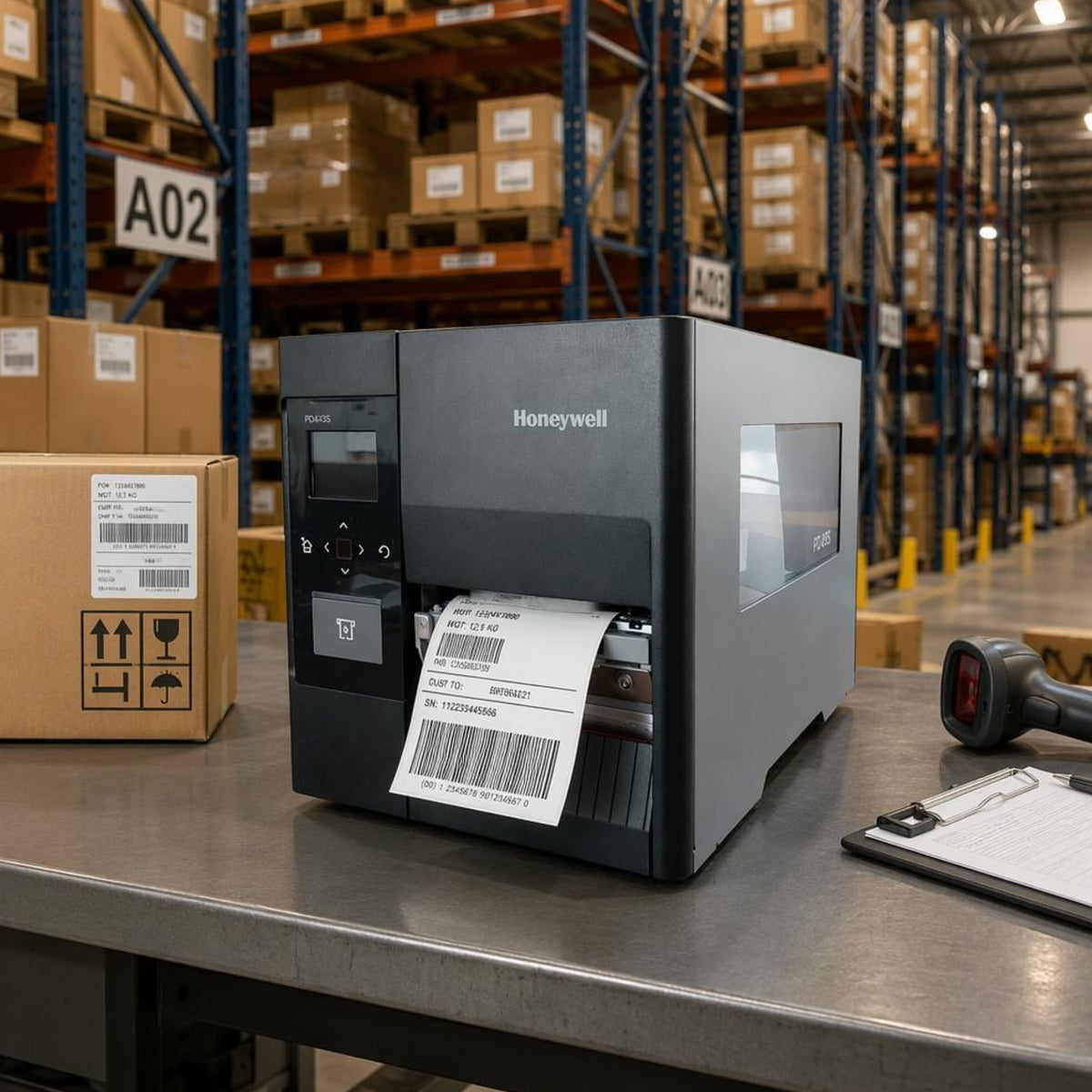

Warehouse Applications

Potential warehouse workflows include:

• Receiving
• Put-away
• Bin identification
• Picking
• Inventory
• Stock transfer
• Dispatch
• Pallet identification

For high-volume operations, expected daily label volume and duty cycle should be discussed before final printer selection.

Transportation and Logistics

Potential applications include:

• Shipping labels
• Parcel identification
• Routing labels
• Carton labels
• Dispatch labels
• Receiving labels
• Logistics tracking

The printer generates the physical barcode or label. Shipment management and tracking logic remain functions of the customer's software platform.

Retail Applications

Potential back-office retail applications include:

• Inventory labels
• Product labels
• Carton labels
• Receiving
• Distribution
• Warehouse replenishment

For small front-counter requirements, a desktop printer may sometimes be more appropriate than an industrial printer.

Healthcare Applications

Honeywell lists healthcare among the PD45S platform's application areas.

Possible label-printing workflows may include general inventory, logistics and identification applications.

Printer selection for regulated or patient-related healthcare workflows should be based on the organization's specific requirements, media, software and procedures.

The printer itself does not provide clinical validation.

Purpose of Use

A typical thermal-transfer workflow is:

Compatible Label Media

↓

Appropriate Thermal Transfer Ribbon

↓

Honeywell PD45S0C0010000200

↓

203 dpi Barcode / Text / Graphic Printing

↓

Product / Carton / Asset / Inventory / Shipment Identification

The printer produces the label.

ERP, WMS, inventory, manufacturing and logistics applications determine the data sent to the printer.

Important: No Power Cord Included

The exact PD45S0C0010000200 configuration is supplied without a power cord.

This is specifically stated in Honeywell's configuration documentation.

The printer supports an AC input range of approximately 100–240V AC, but the appropriate regional mains cable must be obtained separately where required.

Do not assume a UAE/UK-style power cord is included simply because the printer itself has a universal-range power supply.

What Is Included?

Honeywell's configuration guide identifies the box contents for this PD45S configuration as including:

• Honeywell PD45S printer
• Media guide
• Regulatory documentation
• Ribbon core

What Is Not Included?

Power Cord

The power cord must be sourced separately according to the required region and supplier configuration.

Labels and thermal-transfer ribbon should also not be assumed to be included unless explicitly stated in the quotation.

203 dpi vs 300 dpi

Honeywell offers the PD45S platform in both resolutions.

PD45S0C0010000200

203 dpi

Up to 10 ips

Maximum print width approximately 108 mm

PD45S0C0010000300

300 dpi

Up to 8 ips

Maximum print width approximately 105.7 mm

Customers should select the resolution according to label design rather than treating the two part numbers as interchangeable.

Compatibility

Before ordering PD45S0C0010000200, verify:

• Exact MPN
• 203 dpi requirement
• Label width
• Label length
• Label material
• Thermal transfer or direct thermal requirement
• Ribbon specification
• Barcode size
• Required print durability
• Ethernet/USB/Serial requirement
• Whether Wi-Fi is required
• Power-cord requirement
• Host operating system
• Label software
• Expected print volume

Things to Verify Before Ordering

Please confirm:

• Exact part number: PD45S0C0010000200
• Required quantity
• Label dimensions
• Label material
• Required ribbon
• Barcode type
• Required resolution
• Required connectivity
• Required regional power cord
• Software environment
• Existing printer model if replacing another printer
• Expected daily printing volume

Where possible, provide a sample label or existing label specification before purchasing media and ribbon.

Who Should Consider PD45S0C0010000200?

This exact configuration may be suitable for businesses requiring:

• Industrial label printing
• 203 dpi resolution
• Thermal-transfer printing
• Direct-thermal capability
• 4-inch-class media
• 2.36-inch keyed LCD
• Ethernet connectivity
• USB connectivity
• Serial connectivity
• Up to 450 m ribbon
• Fixed media hanger

Customers requiring 300 dpi should consider the appropriate 300 dpi MPN rather than this configuration.

Customers requiring wireless connectivity should confirm the appropriate wireless configuration or accessory.

Why NEOTECH® UAE?

With an industrial printer, identifying only the family name is not enough.

A request for:

“Honeywell PD45S”

can refer to multiple configurations.

For this product, NEOTECH® recommends keeping the complete part number throughout the procurement process:

PD45S0C0010000200

That allows the customer, NEOTECH® and the supplier to verify the same configuration before purchase.

We also recommend checking the power cord separately, because Honeywell specifically identifies this MPN as a No Power Cord configuration.

Learn First. Decide Second. Buy Only If It Is Right for Your Needs.

There is absolutely no obligation or pressure to proceed with the purchase with us.

Delivery – UAE

NEOTECH® supplies within the United Arab Emirates only.

Standard Shipping: Free

Order Cut-Off: 14:00 GST

Handling Time: 1–2 business days for applicable available items

Standard Transit: 3–5 business days

Estimated Standard Delivery: 4–7 business days

Availability and lead time for the exact PD45S0C0010000200 should be confirmed before ordering.

FAQ - PD45S0C0010000200

Q: What is Honeywell PD45S0C0010000200?
A: It is an exact Honeywell PD45S0C industrial-printer configuration with 203 dpi resolution, 2.36-inch keyed LCD, thermal-transfer capability, Ethernet and fixed media hanger.

Q: Is PD45S0C0010000200 a 203 dpi printer?
A: Yes. This exact part number is the 203 dpi version.

Q: What is the 300 dpi equivalent configuration?
A: Honeywell's configuration guide lists PD45S0C0010000300 as the corresponding 300 dpi PD45S0C configuration.

Q: Is PD45S0C0010000200 thermal transfer?
A: Yes. Honeywell identifies this exact MPN as a thermal-transfer configuration.

Q: Can it also print direct thermal labels?
A: Yes. The PD45S platform supports both direct thermal and thermal transfer printing.

Q: What is the maximum print speed?
A: Honeywell rates the 203 dpi PD45S at up to 250 mm/sec or 10 ips. Actual suitable speed depends on the label, ribbon and print requirements.

Q: What is the maximum print width?
A: Honeywell specifies up to approximately 108 mm / 4.25 inches for the 203 dpi PD45S.

Q: What ribbon length does it support?
A: The PD45S platform supports thermal-transfer ribbons up to approximately 450 metres.

Q: Does PD45S0C0010000200 have an LCD display?
A: Yes. The PD45S0C configuration uses a 2.36-inch keyed LCD.

Q: Does it have Ethernet?
A: Yes. This configuration includes Ethernet.

Q: Does it have USB?
A: Yes. USB is supported.

Q: Does it support Serial connectivity?
A: Yes. The PD45S platform supports RS-232 Serial.

Q: Does PD45S0C0010000200 include Wi-Fi?
A: Wi-Fi should not be assumed to be included with this exact MPN. Honeywell lists wireless connectivity as an option for applicable configurations.

Q: Does the printer include a power cord?
A: No. Honeywell specifically lists PD45S0C0010000200 as No Power Cord.

Q: Does “No Power Cord” mean the printer has no internal power supply?
A: No. It means the regional AC mains cord is not included. The printer itself is specified for 100–240V AC input.

Q: Can I use any power cable?
A: Use an appropriate compatible mains cable meeting the printer's connector, electrical and regional requirements. Verify the required Honeywell or supplier-recommended cable before ordering.

Q: Is this suitable for shipping labels?
A: It can be, provided the label dimensions, media, ribbon where applicable and software requirements are compatible.

Q: Is this an RFID printer?
A: RFID functionality should not be assumed for PD45S0C0010000200. This page describes the standard 203 dpi thermal-transfer configuration.

Q: What information should I provide for a quotation?
A: Please provide the exact MPN PD45S0C0010000200, quantity, label dimensions, label material, ribbon requirement, required interface and whether a UAE-compatible power cord is required.

Related Products

• Honeywell PD45S 203 dpi Industrial Printer
• Honeywell PD45S 300 dpi Industrial Printer
• Honeywell PD45 Industrial Printer
• Honeywell Industrial Printer Accessories
• 4-Inch Industrial Label Printers
• Thermal Transfer Ribbons
• Barcode Labels
• Industrial Printer Power Cords

Helpful Internal Links

• Honeywell Label Printers
• Industrial Barcode Printers
• Thermal Transfer Printers
• Barcode Labels
• Thermal Transfer Ribbons
• Printer Accessories
• Warehouse Identification Solutions
• NEOTECH® Learning Center

Contact - NEOTECH® UAE

For exact configuration verification and quotation:

Email: support@neotech.ae

Address: Store 13, Computer Bldg, Al Fahidi, Bur Dubai, Dubai 44245, UAE

Please provide the exact part number PD45S0C0010000200, required quantity, label dimensions, label material and intended application.

Disclaimer - NEOTECH® UAE

NEOTECH® is operated by NEOLYN TECHNOLOGY LLC in the UAE.

Honeywell, PD45S and associated trademarks belong to their respective owners. NEOTECH® does not claim manufacturer authorization or endorsement unless separately documented.

This page specifically describes Honeywell part number PD45S0C0010000200.

Other PD45S configurations may differ in resolution, display, connectivity, media handling and included accessories.

The exact PD45S0C0010000200 configuration is a 203 dpi thermal-transfer PD45S0C with 2.36-inch keyed LCD, Ethernet and fixed media hanger. Honeywell specifies this MPN as supplied without a power cord.

Wireless connectivity should not be assumed to be included.

Labels, ribbons and regional power cord should not be assumed included unless explicitly stated in the quotation.

Software, ERP, WMS, network and application compatibility depend on the customer's environment.

Images may show other PD45S configurations or optional accessories. Always verify the exact MPN before ordering.

Last Updated: 16 September 2026 (GST, UTC+4)
