Modular Rugged Windows Computing for Field, Utility and Industrial Workflows.

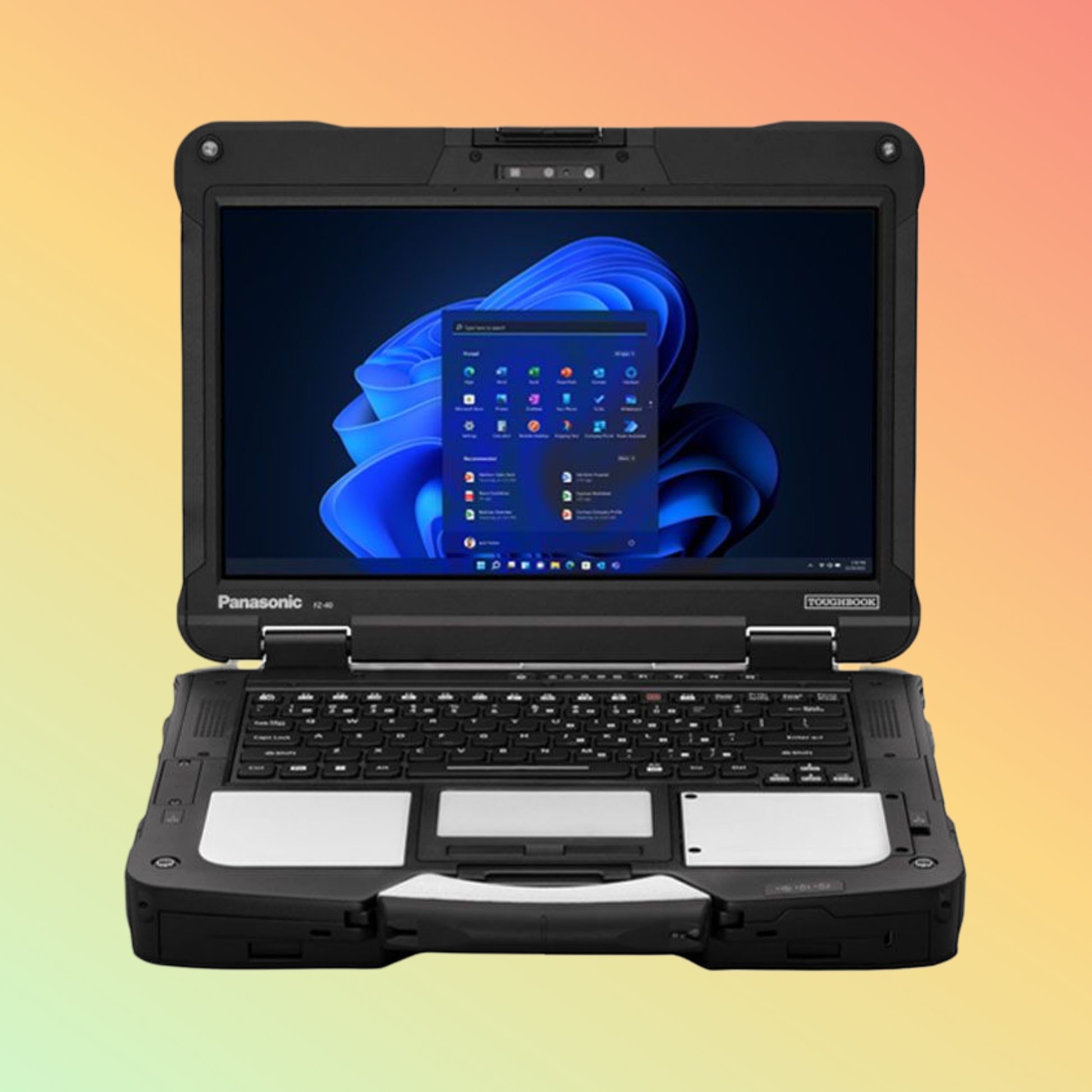

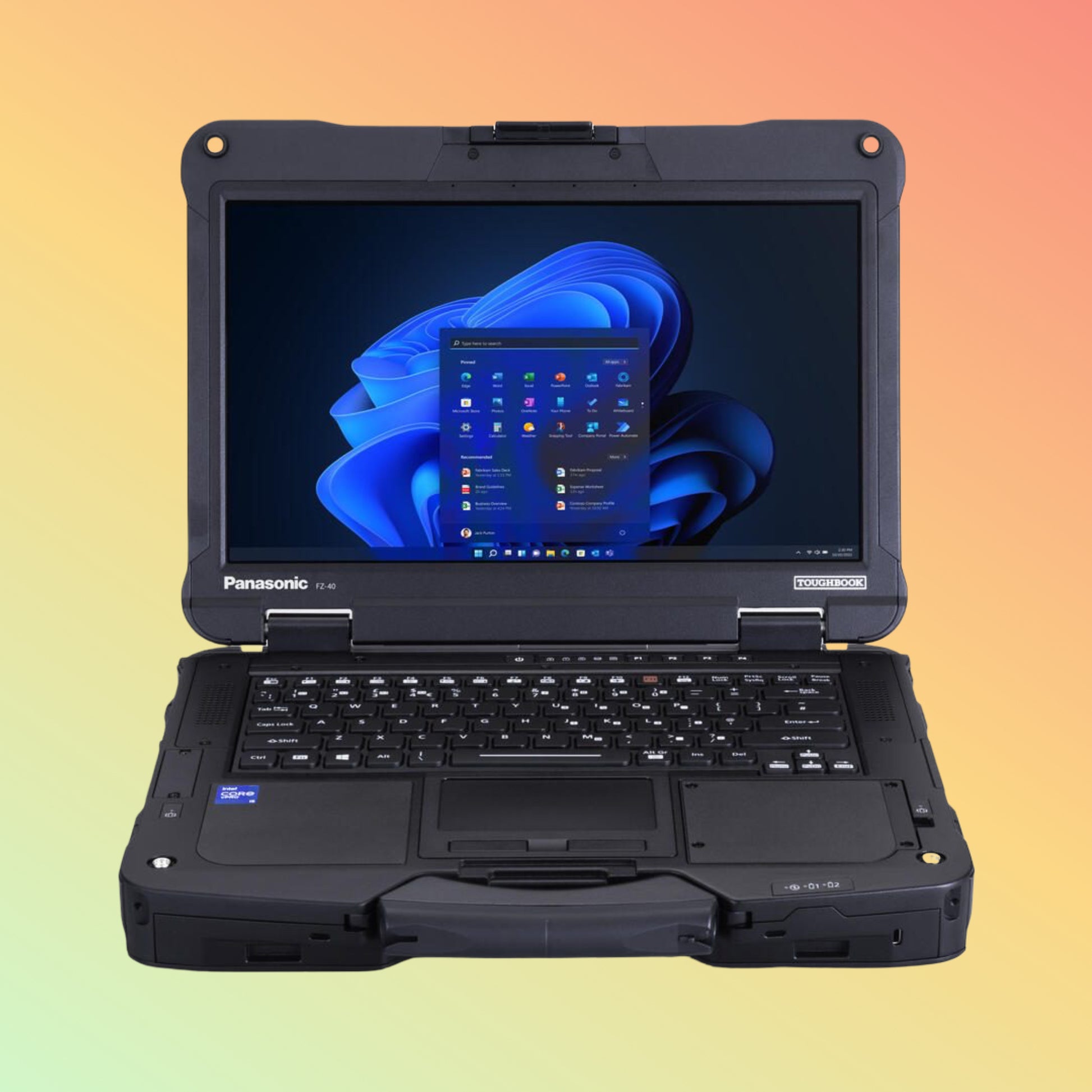

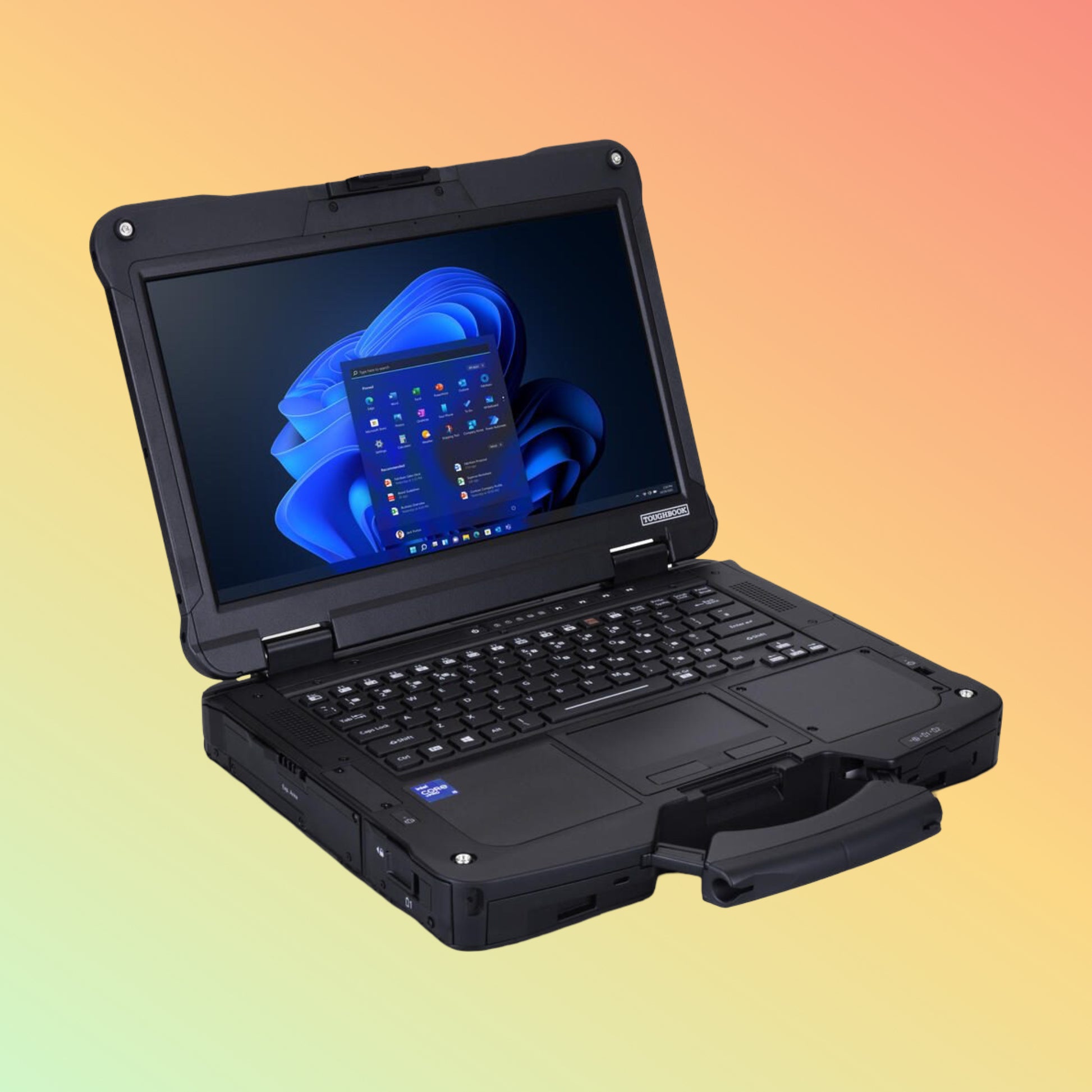

Panasonic FZ-40FZ00MB4 TOUGHBOOK 40 mk2 Rugged Notebook The Panasonic FZ-40FZ00MB4 TOUGHBOOK 40 mk2 is a rugged Windows notebook designed for field and mobile professionals who require a larger 14-inch display, modular expansion options and a protected chassis for use outside conventional office environments.

The TOUGHBOOK 40 platform is designed around a 14-inch Full HD touchscreen, modular user-replaceable components, wired and wireless connectivity, and multiple expansion areas that can be configured for different operational requirements.

For this page, the exact product reference is:

Manufacturer Part Number: FZ-40FZ00MB4
Series: TOUGHBOOK 40
Generation: mk2
Keyboard Layout: US
Display: Full HD
Bluetooth: 5.1 stated for the supplied configuration

Exact processor, RAM, SSD, wireless WAN and expansion modules should be verified before ordering.

Overview

The TOUGHBOOK 40 is intended for work environments where a standard commercial notebook may not provide sufficient protection, serviceability or interface flexibility.

Potential deployment areas include:

• Field service
• Utilities
• Manufacturing
• Transportation
• Public safety
• Maintenance
• Vehicle-based operations
• Site inspection
• Industrial diagnostics
• Technical documentation

The platform’s modular architecture allows certain components and expansion modules to be changed without replacing the complete notebook. Panasonic documents user-replaceable RAM, keyboard, battery, SSD and xPAK expansion modules on the TOUGHBOOK 40 family.

14-Inch Full HD Touch Display

Panasonic documents the TOUGHBOOK 40 family with a:

Display Size: 14 inches
Resolution: 1920 × 1080 Full HD
Panel: IPS
Touch: Capacitive touch with glove support on documented configurations
Brightness: Up to 1,200 nits on documented family specifications

This display format can be useful for field applications involving:

• Technical drawings
• Diagnostic software
• Mapping
• Forms
• Service manuals
• Enterprise applications
• Vehicle-based computing

Outdoor readability still depends on direct sunlight, screen settings and viewing angle.

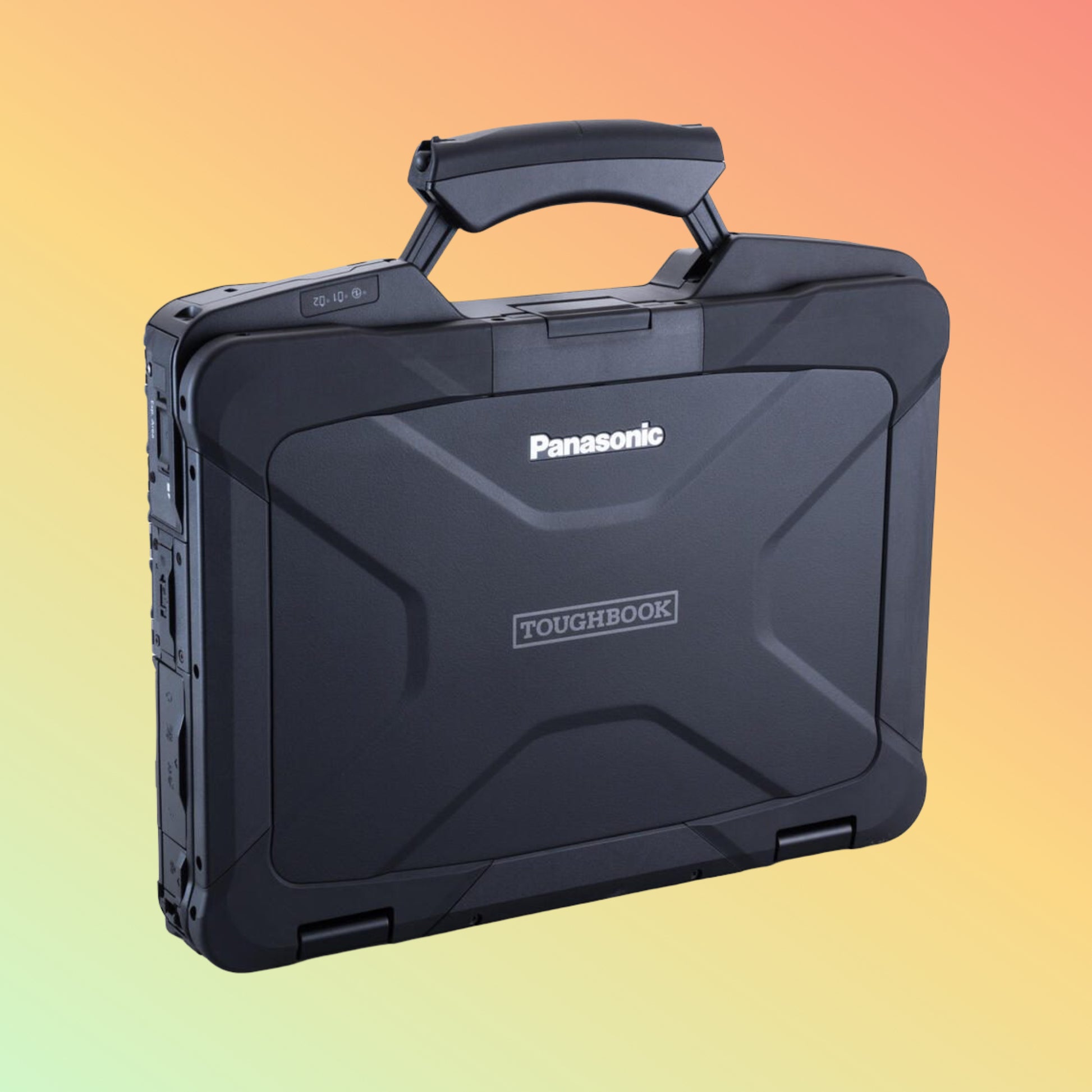

Rugged Construction

Panasonic documents the TOUGHBOOK 40 platform with:

• Magnesium-alloy chassis
• Integrated carrying handle
• Reinforced port covers
• Raised display bezel
• Replaceable screen protector
• MIL-STD-810H testing
• IP66 ingress protection
• 1.8 m / 6 ft drop testing on documented configurations

These ratings relate to defined test conditions and should not be interpreted as making the notebook damage-proof or suitable for every hazardous environment.

Modular xPAK Expansion

One of the strongest characteristics of the TOUGHBOOK 40 family is its modular expansion design.

Panasonic provides user-replaceable xPAK modules for selected expansion areas, which can include options such as:

• Barcode reader
• Smart card reader
• Additional SSD
• Additional USB
• Additional Ethernet
• Serial interface
• HDMI
• VGA
• Fingerprint reader
• Other compatible expansion modules

For mk2, Panasonic currently lists accessories such as the FZ-VBR402M barcode reader xPAK and FZ-V2F401T1M second SSD module as compatible with TOUGHBOOK 40 mk2 systems.

The exact installed modules on FZ-40FZ00MB4 should be confirmed separately.

Memory Expansion

Panasonic documents mk2-specific DDR5 memory modules for TOUGHBOOK 40.

For example, Panasonic currently lists FZ-BAZ2316 16GB DDR5 memory as compatible with TOUGHBOOK 40 mk2 and notes that the memory is user-upgradeable.

This indicates that the mk2 platform uses a different memory generation from earlier TOUGHBOOK 40 configurations.

The exact RAM fitted to FZ-40FZ00MB4 should be verified before publication or quotation.

Connectivity

The TOUGHBOOK 40 family supports a broad range of wired and wireless connectivity.

Documented family interfaces include:

• USB-C / Thunderbolt
• USB-A
• HDMI
• Ethernet
• MicroSD
• Audio
• Optional serial
• Optional additional Ethernet
• Optional wireless WAN
• Optional dedicated GPS

Earlier documented TOUGHBOOK 40 configurations list Bluetooth 5.1, which matches the Bluetooth detail you supplied for this SKU.

Because mk2 configurations can vary, exact Wi-Fi generation, cellular modem and port options should be checked against the full SKU specification.

Technical Specifications

Brand: Panasonic

Product Family: TOUGHBOOK 40

Model Generation: mk2

Part Number: FZ-40FZ00MB4

Product Type: Rugged Windows Notebook

Display Size: 14 inches

Display Resolution: Full HD / 1920 × 1080

Keyboard Layout: US

Bluetooth: 5.1 stated for this supplied configuration

Chassis: Magnesium-alloy TOUGHBOOK platform

Ingress Protection: IP66 at family level

Rugged Testing: MIL-STD-810H at family level

Expansion: Modular xPAK architecture

Memory: Exact fitted capacity to be confirmed

Storage: Exact SSD capacity to be confirmed

Processor: Exact mk2 CPU configuration to be confirmed

Wi-Fi: Exact wireless specification to be confirmed

Mobile Broadband: Optional depending on exact configuration

GPS: Optional depending on configuration

Battery: Removable; exact supplied battery configuration to be confirmed

Operating System: Verify exact Windows edition on supplied unit

The exact FZ-40FZ00MB4 configuration should be confirmed from Panasonic’s SKU data, supplier documentation or the product label before final purchase.

Field Service Applications

The TOUGHBOOK 40 platform may be considered for technicians who require Windows software while working around:

• Utility infrastructure
• Vehicles
• Industrial machinery
• Construction sites
• Remote facilities
• Maintenance environments

A typical workflow might include:

Technician → TOUGHBOOK 40 → Diagnostic / Enterprise Software → Wi-Fi / Cellular / Ethernet → Backend System

The notebook provides the computing platform; the application software is separate unless explicitly supplied.

Manufacturing & Maintenance

Potential applications include:

• Equipment diagnostics
• Production records
• Maintenance management
• Inspection reports
• Technical drawings
• Machine documentation
• Work orders
• ERP/MES access

Optional serial, Ethernet and barcode modules may be relevant where the notebook must interact with industrial equipment or data-capture workflows.

Transportation & Vehicle Use

The TOUGHBOOK 40 may also suit vehicle-based environments where organisations require a larger Windows notebook with:

• Protected construction
• Wired networking
• Optional GPS
• Optional mobile broadband
• Docking capability
• Replaceable batteries

Vehicle docks and mounting equipment should be selected specifically for the TOUGHBOOK 40 generation and exact configuration.

Barcode Data Capture Option

Panasonic provides a mk2-compatible barcode reader xPAK, FZ-VBR402M, which uses an N6703HD 1D/2D imager and installs into the left expansion area.

This can be useful where the notebook needs integrated barcode capture for:

• Asset identification
• Warehouse applications
• Field inventory
• Maintenance records
• Equipment tracking

The barcode module is optional and should not be assumed to be included with FZ-40FZ00MB4.

Storage Expansion

Panasonic also offers user-replaceable secondary SSD xPAK modules for TOUGHBOOK 40 mk2.

For example, Panasonic lists a 1TB FIPS-capable NVMe second-drive module compatible with mk2 and mk3 systems.

This modular design may be useful where:

• Additional local storage is required
• Separate project data is preferred
• Secure removable storage is part of the workflow

The exact SSD installed in this SKU should be verified.

Purpose of Use

The Panasonic FZ-40FZ00MB4 TOUGHBOOK 40 mk2 is intended for organisations that need a rugged Windows notebook with a large 14-inch display and modular expansion options.

It can be considered where the business requires:

• Windows desktop applications
• Field mobility
• Protected construction
• Replaceable components
• Optional industrial interfaces
• Optional barcode or secure-storage modules

Things to Verify Before Ordering

Please confirm:

• Exact part number: FZ-40FZ00MB4
• Processor model
• RAM capacity
• SSD capacity
• Windows edition
• Wi-Fi specification
• Bluetooth version
• 4G / 5G requirement
• GPS requirement
• Keyboard layout
• Touchscreen requirement
• Battery configuration
• Expansion xPAK modules
• Docking requirement
• Barcode reader requirement
• Smart card / fingerprint requirement
• Power adapter
• Package contents
• Warranty coverage for UAE supply

Because TOUGHBOOK 40 systems are highly configurable, the exact part number should be checked before quotation acceptance.

Why Choose NEOTECH® UAE

NEOTECH® can assist with product-level guidance for rugged mobile computing, including:

• TOUGHBOOK model selection
• Exact part-number review
• RAM and storage configuration
• Expansion-module requirements
• Barcode reader options
• Docking and vehicle accessories
• Cellular/GPS considerations
• Windows application requirements
• UAE availability confirmation

Learn First. Decide Second. Buy Only If It Is Right for Your Needs.

There is absolutely no obligation or pressure to proceed with the purchase with us.

UAE Delivery

NEOTECH® supplies within the United Arab Emirates.

Shipping: Free Standard Shipping
Order Cut-Off: 2:00 PM GST
Handling: 1–2 business days
Transit: 3–5 business days
Estimated Total Delivery: 4–7 business days

Special configurations, xPAK modules and accessories may require additional lead time.

FAQ - Panasonic FZ-40FZ00MB4 TOUGHBOOK

Q: What is Panasonic part number FZ-40FZ00MB4?
A: FZ-40FZ00MB4 is a TOUGHBOOK 40 mk2 rugged notebook configuration. The supplied description identifies a 14-inch Full HD display, US keyboard layout and Bluetooth 5.1. Processor, memory, storage and installed expansion modules should be confirmed from the exact SKU documentation.

Q: Is the Panasonic TOUGHBOOK 40 mk2 IP66 rated?
A: Panasonic documents the TOUGHBOOK 40 family with IP66 ingress protection and MIL-STD-810H testing under defined test conditions. These ratings do not make the notebook waterproof, indestructible or suitable for every hazardous environment.

Q: Can the TOUGHBOOK 40 mk2 be fitted with barcode scanning or additional storage?
A: Yes. Panasonic offers mk2-compatible xPAK modules including the FZ-VBR402M 1D/2D barcode reader and compatible secondary SSD modules. These are optional and should be specified separately.
