Compact 80 mm-class direct thermal printer mechanism designed for integration into compatible self-service kiosks, vending equipment, ticketing terminals and other embedded printing systems.

Product Overview

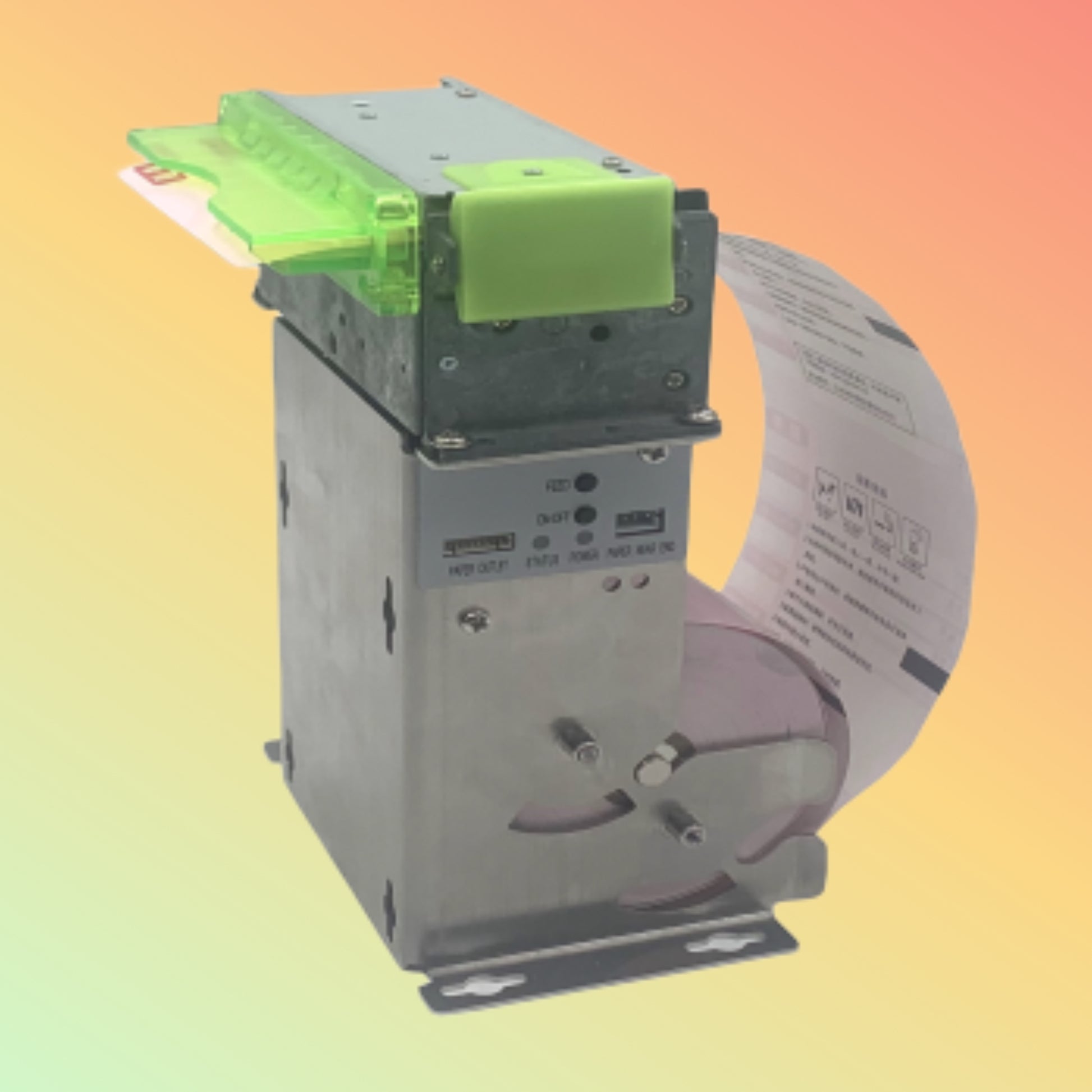

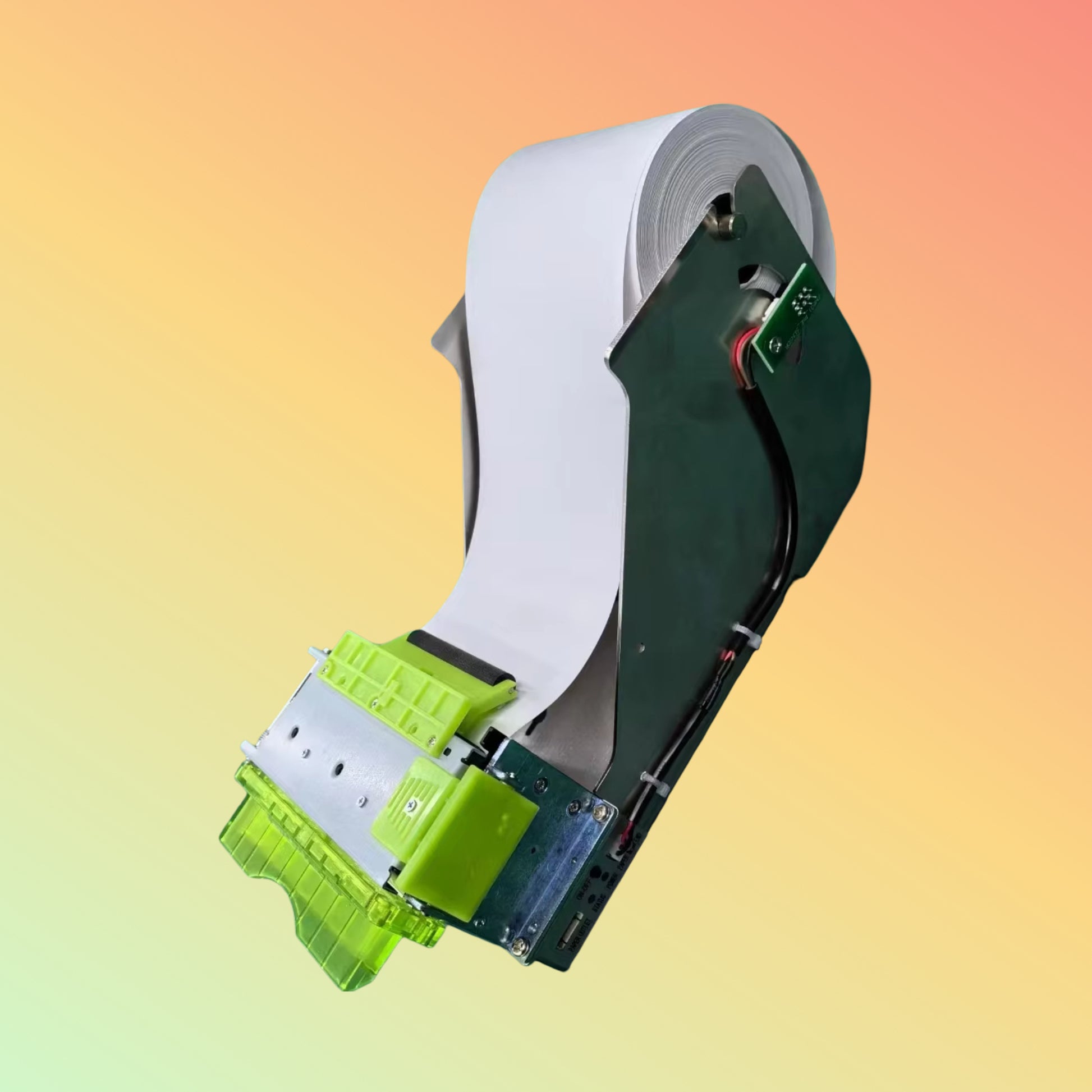

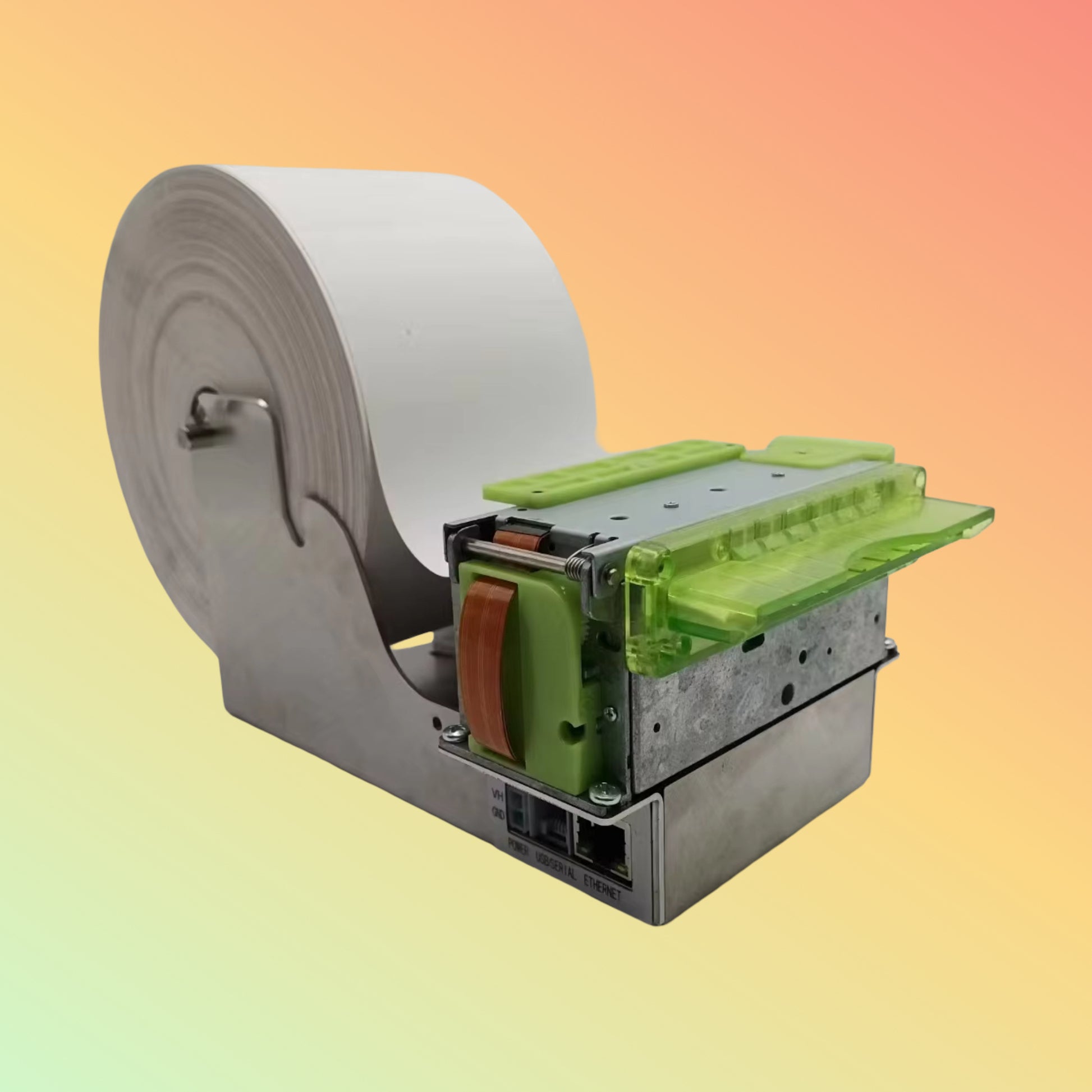

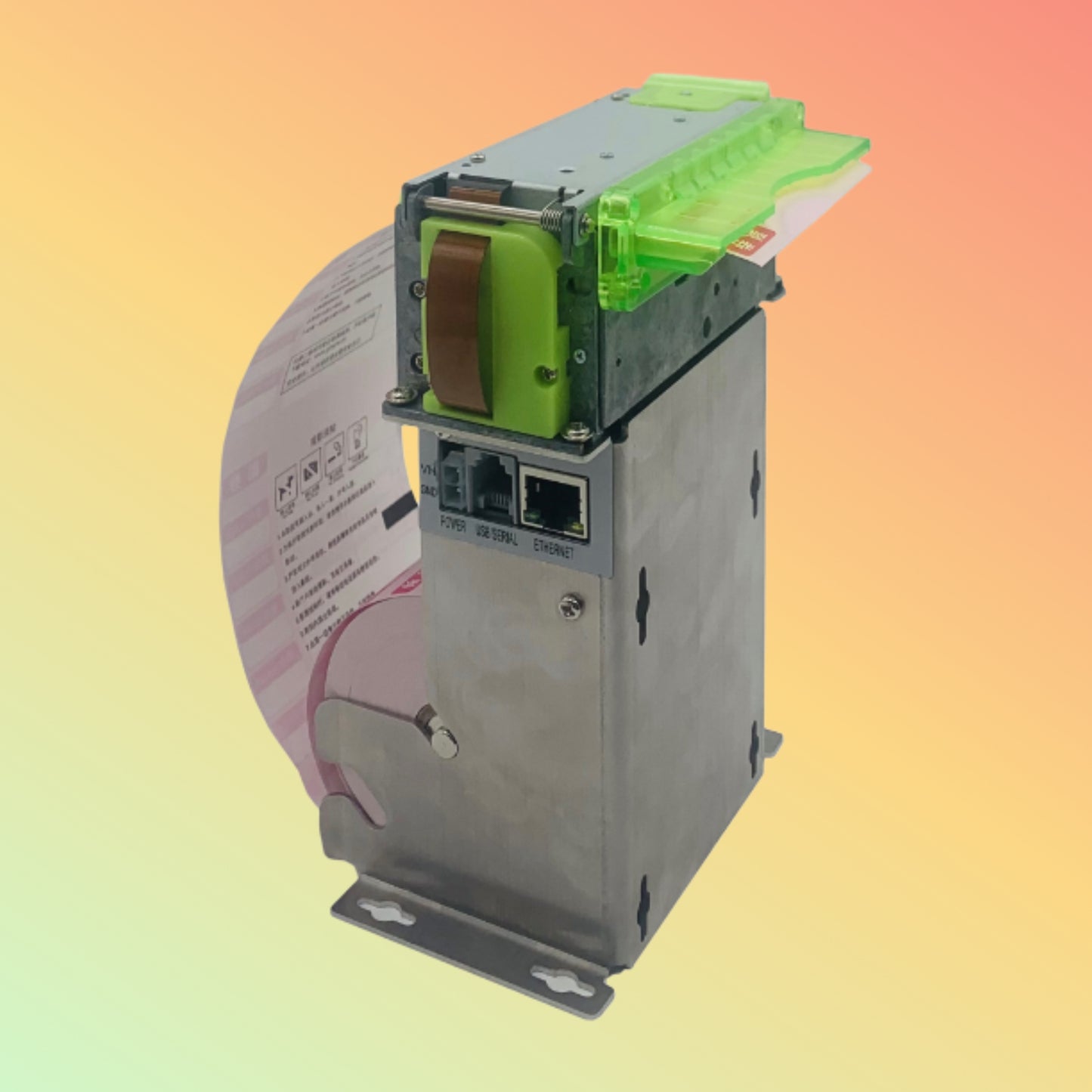

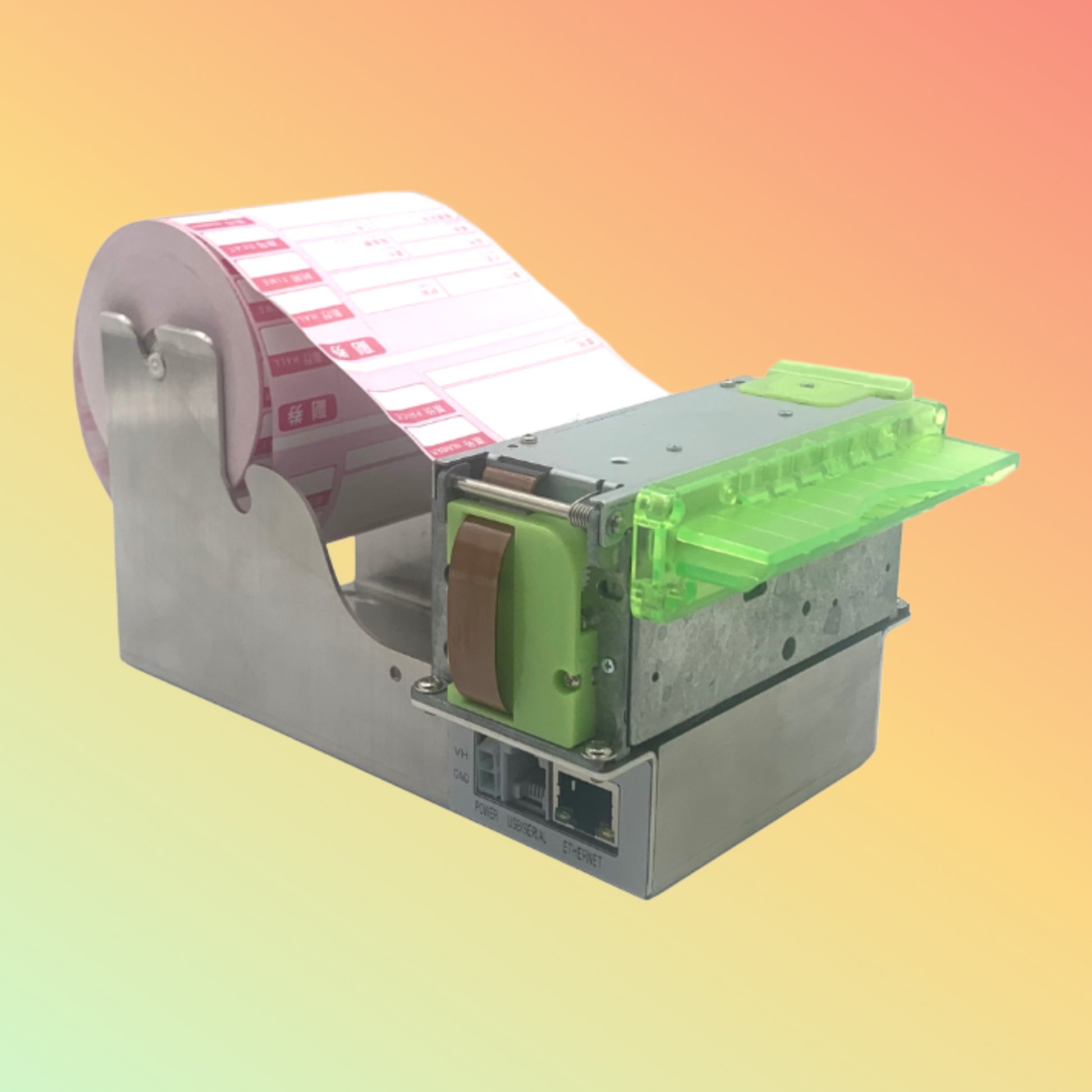

The QJ-80B is an embedded direct thermal printer mechanism intended for integration into compatible kiosks, vending machines, ticketing equipment and other self-service systems.

Unlike a conventional desktop receipt printer with a finished external enclosure, an embedded printer is designed to become part of a larger machine or equipment assembly.

The supplied QJ-80B technical information identifies a 203 dpi direct thermal print mechanism, support for media up to approximately 80 mm class, print speeds up to 250 mm/s, an automatic cutter and interface configurations including USB, serial and Ethernet.

Because embedded printers form part of another machine, successful deployment depends on much more than paper width. Mechanical mounting, power, communication interface, media path, paper presentation, software commands and service access should all be evaluated before ordering.

Learn First. Decide Second. Buy Only If It Is Right for Your Needs.

What Is an Embedded Kiosk Printer?

An embedded kiosk printer is a printing mechanism designed to be installed inside another piece of equipment.

Typical host equipment can include:

• Self-service kiosks
• Queue-management terminals
• Ticketing machines
• Vending equipment
• Information terminals
• Check-in systems
• Registration kiosks
• Payment-related kiosks
• Industrial terminals
• OEM equipment

The printer provides the printing function, while the complete kiosk or machine provides the enclosure, application software, user interface, power architecture and overall system functionality.

The QJ-80B should therefore be evaluated as an integration component, not as a complete self-service system.

Direct Thermal Printing

The QJ-80B uses direct thermal printing.

Direct thermal technology creates the printed image by applying heat to compatible heat-sensitive media.

This means a thermal-transfer ribbon is not normally required.

The suitability of direct thermal media depends on the intended application and required document life. Heat, sunlight, chemicals, abrasion and storage conditions can affect direct thermal output over time.

203 dpi Resolution

The supplied specification identifies:

203 dpi / 8 dots per mm

This resolution is commonly used for receipt, ticket, text and barcode printing where the required layout is compatible with 203 dpi output.

For very small barcodes, dense graphics or unusually fine text, the complete print design should be tested before deployment.

Print Speed

The supplied technical information states a maximum print speed of:

Up to 250 mm/s

Maximum rated speed should not be interpreted as guaranteed application throughput.

Actual performance can depend on:

• Print density
• Print content
• Media
• Communication interface
• Software
• Command language
• Cutting cycle
• Host equipment
• Power supply
• Operating conditions

Media Support

The supplier documentation identifies support for media including:

• Direct thermal paper
• Compatible die-cut thermal labels
• Black-mark media

It identifies a media-width range of approximately:

23–82 mm

However, media compatibility should be confirmed using the actual paper or label intended for the project.

Width alone does not establish compatibility.

Other important factors include:

• Media thickness
• Roll diameter
• Core diameter
• Thermal coating
• Label construction
• Gap or black-mark positioning
• Sensor location
• Media path
• Required cut position

Automatic Cutter

The QJ-80B incorporates an automatic cutting mechanism according to the supplied product information.

The documentation describes:

• Full cutting
• Partial cutting

This can be useful where individual receipts, tickets or documents need to be separated automatically after printing.

The supplier information provided to NEOTECH® contains conflicting cutter-life figures, so NEOTECH® does not state a definitive cutter-life rating on this page without model-specific manufacturer confirmation.

For high-volume projects, expected cutting cycles should be discussed before equipment selection.

Paper Presentation and Unattended Applications

The supplied information describes features intended to assist media handling in self-service environments, including paper presentation/take-up monitoring and access for clearing media or cutter problems.

These characteristics can be useful in unattended equipment.

However, no embedded printer should be described as jam-proof.

Paper quality, installation geometry, media path, environmental conditions, maintenance and user interaction can all affect reliability.

For unattended installations, testing the complete kiosk assembly under realistic operating conditions is recommended.

Interface Options

Supplier information for the QJ-80B refers to:

• USB
• Serial / RS-232
• Ethernet

However, the supplied material is not sufficiently consistent to establish that every QJ-80B unit includes all three interfaces simultaneously.

Before ordering, the required interface configuration should therefore be specified explicitly.

For example:

USB + RS-232

or

USB + Ethernet

should be confirmed against the exact unit being quoted.

Barcode and QR Code Printing

The supplied specification lists support for common barcode formats including:

1D

• UPC-A
• UPC-E
• EAN-13
• EAN-8
• Code 39
• ITF
• Codabar
• Code 93
• Code 128

2D

• QR Code
• PDF417

Barcode capability should still be tested with the actual application.

Successful scanning depends on factors including:

• Barcode dimensions
• Module size
• Quiet zone
• Print density
• Paper quality
• Scanner
• Reading distance
• Print speed
• Application-generated data

Command / Emulation Support

The supplied specification identifies support for:

• ESC/POS
• CPCL
• TSPL
• JPL

This information should be treated as a compatibility point to verify during integration rather than a guarantee that every command from another printer implementing one of these languages will behave identically.

For replacement projects, the existing printer model and commands used by the host application should be provided before ordering.

Technical Specifications

Model: QJ-80B

Product Type: Embedded / Kiosk Thermal Printer Mechanism

Print Method: Direct Thermal

Resolution: 203 dpi / 8 dots per mm

Maximum Rated Print Speed: Up to 250 mm/s

Media Class: Up to approximately 80 mm

Supplier-Stated Media Width: Approximately 23–82 mm

Media Types: Compatible thermal paper, die-cut thermal labels and black-mark media

Maximum Supplier-Stated Roll Diameter: Approximately 120 mm

Supplier-Stated Roll Core Inner Diameter: Approximately 13 mm

Automatic Cutter: Yes

Cut Type: Full / Partial according to supplied specification

Interfaces: USB / Serial / Ethernet depending on exact configuration

1D Barcodes: UPC-A, UPC-E, EAN-13, EAN-8, Code 39, ITF, Codabar, Code 93, Code 128 according to supplied specification

2D Codes: QR Code and PDF417 according to supplied specification

Command / Emulation: ESC/POS, CPCL, TSPL, JPL according to supplied specification

Supplier-Stated Dimensions: Approximately 112.23 × 103.48 × 175.3 mm

Supplier-Stated Printhead Life: 100 km

Operating Temperature: Supplier states approximately 0°C to 50°C

Storage Temperature: Supplier states approximately -20°C to 60°C

Specifications should be reconfirmed against the exact QJ-80B hardware revision before integration or volume procurement.

Important Power-Supply Note

The supplied information is inconsistent regarding the DC requirement, stating both:

24 V DC / 2 A

and

24 V DC / 2.5 A

For this reason, NEOTECH® does not recommend designing the kiosk power system around either value until the exact printer revision and manufacturer electrical specification have been confirmed.

This is particularly important for OEM integration.

Using an incorrect or inadequately specified power source can cause operational problems or equipment damage.

Mechanical Integration

Before selecting an embedded printer, confirm:

• Available installation space
• Mounting points
• Printer orientation
• Paper-roll location
• Paper-feed path
• Paper exit position
• Cutter clearance
• Service access
• Cover-opening clearance
• Cable routing
• Ventilation
• Media replacement access

The stated dimensions alone are not sufficient to guarantee that the mechanism will fit an existing kiosk.

A mechanical drawing should be obtained and checked before production integration.

Software Integration

Before ordering for a kiosk project, confirm:

• Host operating system
• Application software
• Required communication interface
• Printer commands
• Required barcode formats
• Character set
• Driver requirement
• USB/serial/network architecture
• Status monitoring requirements
• Error handling
• Paper-out detection
• Paper-near-end requirement
• Paper-taken monitoring requirement

An SDK being available from a supplier does not automatically mean that it supports every operating system or application environment.

Therefore, NEOTECH® recommends confirming the required software-development resources before selecting the printer for a new project.

Typical Applications

Subject to successful integration testing, the QJ-80B may be considered for:

• Self-service kiosks
• Information kiosks
• Queue-management terminals
• Ticketing machines
• Vending machines
• Check-in terminals
• Registration kiosks
• Receipt-dispensing equipment
• Parking-related terminals
• OEM self-service equipment

Applications involving banking, payments, gaming, lottery, aviation or other regulated systems may have additional technical, security, certification or regulatory requirements.

The presence of a thermal printer alone does not establish suitability or certification for those applications.

Who Should Consider the QJ-80B?

The QJ-80B may be worth evaluating when:

• An embedded printer rather than a desktop printer is required
• Direct thermal printing is appropriate
• Approximately 80 mm-class media is required
• 203 dpi is sufficient
• Automatic cutting is required
• The required interface is available
• The host system can support the printer's command/interface implementation
• Mechanical integration can be validated

Who May Need Another Solution?

Another printer should be considered when:

• A finished desktop receipt printer is required
• Thermal-transfer printing is required
• 300 dpi or higher resolution is necessary
• The printer will be exposed without a suitable enclosure
• A specific kiosk mounting standard is mandatory
• A particular software protocol cannot be confirmed
• Higher reliability requirements demand independently documented lifecycle specifications
• Certification is required for a regulated application
• The project's electrical or mechanical requirements cannot be matched

Things to Verify Before Ordering

For the QJ-80B, please confirm:

• Exact hardware revision
• Required quantity
• USB, RS-232 or Ethernet requirement
• Whether multiple interfaces are required simultaneously
• Paper width
• Paper type
• Paper thickness
• Roll diameter
• Core diameter
• Black-mark position if applicable
• Label dimensions if printing labels
• Full or partial cut requirement
• Required print speed
• Required barcode formats
• Required command language
• Host operating system
• Application/software
• Power requirement
• Connector specification
• Installation orientation
• Available installation dimensions
• Mounting requirements
• Required sensors
• Required SDK/driver
• Expected daily print/cut volume

For OEM projects, a sample unit should ideally be validated in the actual equipment before committing to volume integration.

FAQ - QJ-80B 80mm Embedded Kiosk

Q: Is the QJ-80B a normal desktop receipt printer?

A: No. It is an embedded thermal printer mechanism intended to be incorporated into compatible kiosks, vending machines or other OEM/self-service equipment.

Q: Does the QJ-80B require thermal-transfer ribbon?

A: No ribbon is required for normal direct thermal operation. It prints onto compatible heat-sensitive thermal media.

Q: Is the QJ-80B an 80 mm printer?

A: It is an 80 mm-class printer. The supplied specification states a media-width range of approximately 23–82 mm. Exact media compatibility should be confirmed with the intended roll or label.

Q: Does it have an automatic cutter?

A: The supplied specification identifies an automatic cutter supporting full and partial cuts. Cutter-life figures in the available supplier information are inconsistent, so the exact rated lifecycle should be confirmed before high-volume deployment.

Q: Does it support USB, serial and Ethernet?

A: These interfaces are identified within the supplier information, but the material also describes different interface combinations. The exact interface configuration of the unit being purchased should therefore be confirmed rather than assuming all interfaces are included simultaneously.

Q: Can it print QR codes?

A: The supplied specification lists QR Code and PDF417 alongside common 1D barcode formats. Actual barcode output should be validated with the application's media, layout and scanner.

Q: Can it be used in a vending machine or self-service kiosk?

A: Potentially, because that is the type of embedded application for which this printer is presented. Suitability depends on mechanical fit, electrical requirements, interface, software, media handling and the complete equipment design.

Q: Is it suitable for an ATM or payment kiosk?

A: A printer being physically suitable for kiosk integration does not establish compliance with banking or payment-system requirements. Any regulated application should be evaluated against the complete system's technical, security and certification requirements.

Related Products

80 mm Thermal Receipt Printers

Embedded Kiosk Printers

Thermal Ticket Printers

Kiosk Printer Mechanisms

Thermal Receipt Paper

Thermal Labels

POS Printers

Helpful Internal Links

NEOTECH® UAE

https://www.neotech.ae/

Why NEOTECH® UAE?

An embedded printer should not be selected from a headline such as “80 mm USB kiosk printer” alone.

Successful integration requires the printer mechanism, electrical supply, communication interface, software commands, paper path, mounting arrangement and intended media to work together.

NEOTECH® therefore encourages customers to verify the complete integration requirement before committing to an embedded printer.

Learn First. Decide Second. Buy Only If It Is Right for Your Needs.

The NEOTECH® Learning Center is free and open to everyone. You do not need to be a NEOTECH® customer to access or benefit from our educational content. Learn at your own pace, explore the information freely, and make informed decisions based on your own needs. There is no obligation or pressure to purchase from NEOTECH®.

There is no obligation or pressure to purchase. Customers are encouraged to verify the exact QJ-80B hardware revision, interface, power requirement, media, mechanical dimensions and software compatibility before ordering.

Delivery – UAE

Delivery available within UAE.

Delivery timing depends on destination and order confirmation.

For OEM or kiosk integration projects, exact configuration and technical requirements should be confirmed before procurement.

Contact NEOTECH® UAE

Website: https://www.neotech.ae/

Email: support@neotech.ae

Address: Store 13, Computer Bldg, Al Fahidi, Bur Dubai, Dubai 44245, United Arab Emirates

Disclaimer - NEOTECH® UAE

QJ-80B specifications can vary by supplier, hardware revision or configuration. The source information reviewed for this product contains conflicting values for certain specifications, including cutter lifecycle, DC power requirements and media thickness.

NEOTECH® therefore recommends verifying the exact manufacturer's datasheet, electrical specification, mechanical drawing and interface configuration for the unit being supplied before OEM integration or volume procurement.

References to kiosks, vending, ticketing or other applications describe potential use cases only and do not represent certification, approval or guaranteed compatibility with any particular third-party machine or regulated system.

There is absolutely no obligation or pressure to proceed with the purchase with us.

Last Updated: 08 September 2026  (GST, UTC+4)
