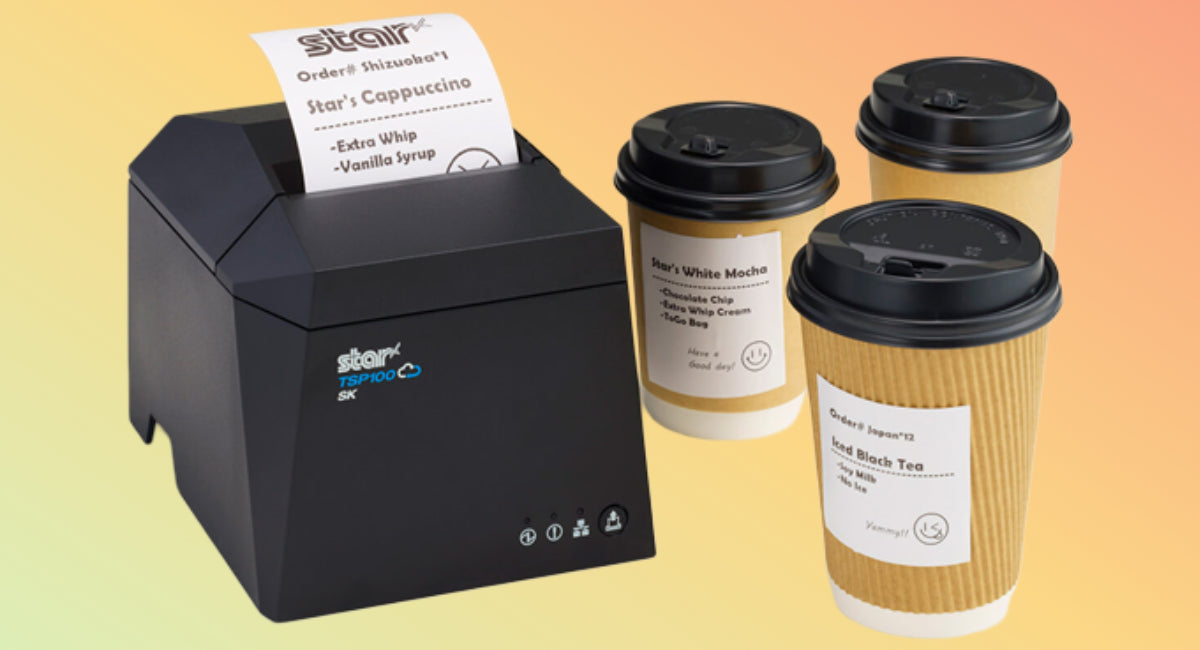

Multi-connectivity 80 mm thermal POS receipt printer with Wi-Fi, Bluetooth, Ethernet, USB-C, USB-A and Star CloudPRNT.

The Star TSP143IV X4 39473890 is a compact 80 mm direct thermal POS and mPOS receipt printer designed for businesses requiring flexible wired, wireless and cloud-connected printing from a single printer platform.

Also identified by Star as TSP143IV UEWB GY E+U, this grey UK/EU configuration combines USB-C, USB-A, Ethernet LAN, Bluetooth, dual-band Wi-Fi and Star CloudPRNT connectivity.

It prints at up to 250 mm per second at 203 dpi and incorporates an automatic cutter and internal power supply. It supports standard 80 mm thermal receipt paper as well as 58 mm paper when using the supplied paper guide.

Its broad connectivity makes the TSP143IV X4 relevant for traditional POS terminals, modern tablet-based mPOS environments and compatible cloud-based ordering or receipt-printing applications.

Exact Product Identification

Brand: Star Micronics

Product Family: TSP100IV

Model: TSP143IV X4

Star Model Code: TSP143IV UEWB GY E+U

Manufacturer Part Number / MPN: 39473890

GTIN: 4951319261643

Product Type: Thermal POS / mPOS Receipt Printer

Color: Grey

Regional Configuration: UK & EU

Using the complete 39473890 part number is recommended when requesting this exact configuration because other TSP100IV models have different connectivity and color combinations.

Key Features

• 80 mm direct thermal receipt printing
• Up to 250 mm/s print speed
• 203 dpi print resolution
• Automatic cutter
• USB-C connectivity
• USB-A connectivity
• Ethernet LAN
• Bluetooth
• Dual-band wireless LAN
• 2.4 GHz / 5 GHz Wi-Fi
• Wi-Fi 6 support
• WPA3 support
• Star CloudPRNT
• CloudPRNT MQTT
• Android Open Accessory support
• Compatible Android device communication and charging
• Cash drawer port
• Internal power supply
• 80 mm paper support
• 58 mm paper support using included guide
• Horizontal operation
• Vertical operation
• Wall-mount installation capability
• Compact POS-oriented design

Star's current X4 documentation confirms this connectivity combination and identifies Wi-Fi 6 dual-band WLAN, WPA3, Bluetooth, Ethernet LAN and USB connectivity for the UEWB configuration.

Technical Specifications

Brand: Star Micronics

Model: TSP143IV X4

Model Code: TSP143IV UEWB GY E+U

MPN: 39473890

GTIN: 4951319261643

Printer Type: POS / mPOS receipt printer

Print Method: Direct thermal

Print Resolution: 203 dpi

Maximum Print Speed: 250 mm/s

Paper Width: 80 mm / 58 mm with paper guide

Paper Type: Thermal paper roll

Supported Paper Thickness: 49–85 µm

Automatic Cutter: Yes

Cut Type: Partial cut

Maximum Columns: Up to 80 columns

Emulation: StarPRNT / Star Graphics Mode

USB-C: Yes

USB-A: Yes

Ethernet LAN: Yes

Wireless LAN: Yes

Wi-Fi Bands: 2.4 GHz / 5 GHz

Wi-Fi: Wi-Fi 6

Wireless Security: WPA3 supported

Bluetooth: Yes

CloudPRNT: Yes

CloudPRNT MQTT: Yes

Android Open Accessory: Yes

Cash Drawer Port: Yes

Paper-End Sensor: Yes

Cover-Open Sensor: Yes

Power Supply: Internal

Installation: Horizontal / vertical / wall mount

Dimensions: 140 × 169 × 123 mm

Weight: Approximately 1.30 kg

Color: Grey

Region: UK / EU configuration

These specifications are based on Star's current TSP143IV X4 documentation.

Multi-Connectivity POS Receipt Printer

One of the most important characteristics of 39473890 is connectivity.

The TSP143IV X4 provides several interfaces within the same printer:

USB-C

USB-A

Ethernet LAN

Wi-Fi

Bluetooth

CloudPRNT

This can be useful where businesses need flexibility in how the receipt printer connects to current and future POS equipment.

However, having an interface on the printer does not automatically mean that every POS application supports that connection method.

POS software compatibility should always be verified before ordering.

Dual-Band Wi-Fi

The TSP143IV X4 supports wireless LAN connectivity across 2.4 GHz and 5 GHz bands.

Star's current specifications identify Wi-Fi 6 and WPA3 support.

Wireless printing can be useful where a physical Ethernet connection is inconvenient or where the POS environment has been designed around compatible wireless devices.

Star also provides setup functionality intended to simplify WLAN configuration, including its Quick Setup Utility.

Bluetooth Connectivity

Bluetooth provides another wireless connection option for compatible POS and mPOS applications.

This can be useful in tablet-oriented environments where the selected application specifically supports the Star printer and its Bluetooth interface.

Again, Bluetooth availability should not be interpreted as universal software compatibility.

The operating system, POS application and printer connection method should be checked together.

Ethernet LAN

For businesses preferring a wired network connection, the TSP143IV X4 also incorporates Ethernet LAN.

Ethernet can be relevant for fixed POS installations where a stable wired network connection is preferred.

Having both Ethernet and wireless connectivity gives businesses additional flexibility when planning or modifying the POS environment.

USB-C and USB-A

The TSP143IV X4 provides both USB-C and USB-A connectivity.

Star also identifies Android Open Accessory support through USB-A for compatible Android tablets and mobile devices, including direct communication and charging functionality.

This can make the printer relevant for Android-based mPOS installations where the complete hardware and software configuration has been verified for compatibility.

What Is Star CloudPRNT?

Star CloudPRNT is designed to allow compatible cloud and web-based applications to communicate with supported Star printers for remote receipt and order printing.

This can be relevant for workflows such as:

Online orders

Cloud-based POS

Web ordering

Remote order printing

Hospitality ordering

Click-and-collect workflows

CloudPRNT support does not mean that every website or cloud POS system will automatically print to the TSP143IV X4.

The software platform must support the appropriate Star integration. Star identifies the TSP100IV family as cloud-ready through CloudPRNT technology.

250 mm/s Thermal Printing

The TSP143IV X4 has a specified maximum print speed of 250 mm per second.

Direct thermal printing means that normal receipt printing does not require an ink cartridge or toner cartridge.

Instead, the printer uses compatible thermal receipt paper.

This makes it suitable for transaction environments where regular receipt printing is required.

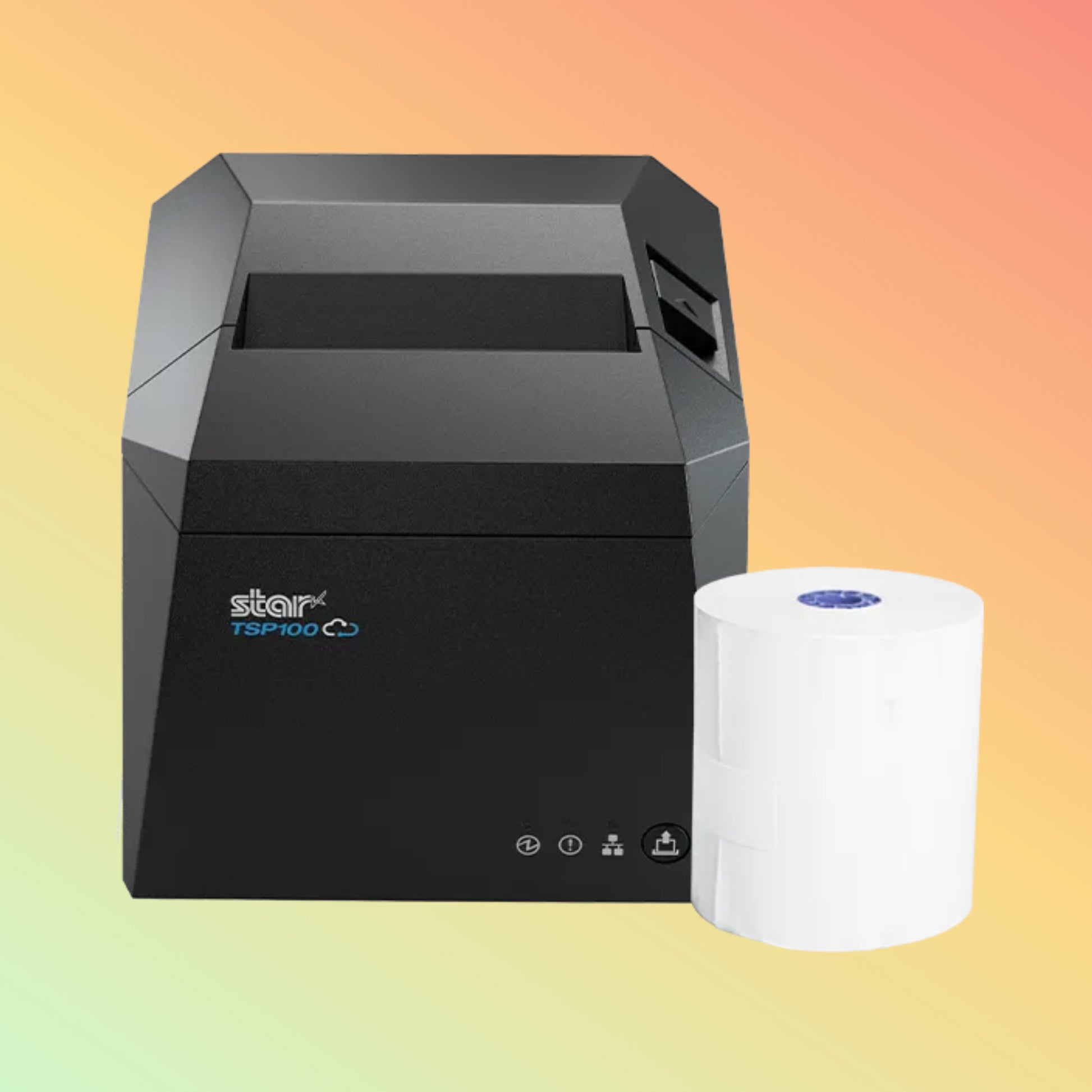

80 mm and 58 mm Paper

The printer is primarily designed for 80 mm thermal receipt paper.

It can also accommodate 58 mm paper using the included paper guide.

The appropriate paper width should be selected according to the POS application, receipt layout and business requirements.

For normal operation, use thermal paper meeting the printer manufacturer's applicable specifications.

Compact Installation

The printer measures approximately:

Width: 140 mm

Depth: 169 mm

Height: 123 mm

Weight: 1.30 kg

It can be operated:

Horizontally

Vertically

Wall mounted

The power supply is internal, reducing the need for a separate external power brick around the POS counter.

Applications

The Star TSP143IV X4 may be considered for:

Retail POS

Restaurants

Cafés

Hospitality

Supermarkets

Convenience stores

Pharmacies

Specialty retail

Service counters

Reception environments

Tablet-based mPOS

Android POS systems

Cloud POS applications

Online-order printing

Click-and-collect workflows

Kitchen or order receipt workflows where the application and environment are suitable

The printer should be evaluated according to the actual POS software and connection requirement.

Purpose of Use

The TSP143IV X4 is intended to provide businesses with a flexible thermal receipt-printing platform that can accommodate both traditional and newer POS architectures.

Rather than purchasing separate printer configurations simply to obtain different interfaces, 39473890 combines USB, Ethernet, Wi-Fi, Bluetooth and cloud connectivity within one model.

This may be particularly useful where a business expects its POS environment to change over time.

Compatibility

Before purchasing, verify compatibility with:

POS software

mPOS application

Windows environment, where applicable

Android POS application

Tablet or mobile device

Ethernet network

Wi-Fi network

Bluetooth connection method

Cloud-based POS platform

CloudPRNT integration

Cash drawer

Customer display

Barcode scanner

Receipt width and layout

Required printer drivers or SDK

Compatibility is especially important when replacing an older Star printer.

Replacing an Older Star TSP143III Printer

The TSP143IV X4 is a newer-generation Star receipt printer, but customers replacing an older TSP143III, TSP143IIIW or another legacy Star model should not assume automatic software compatibility.

The physical printer may be newer and offer additional connectivity, but the existing POS application must still support the required printer model, driver, interface or emulation.

Before replacing an older printer, verify:

Exact existing Star model

Existing connection method

Operating system

POS software

Printer driver

Receipt configuration

Cash drawer connection

Any application-specific printer integration

This check is especially important for older POS software that may have been configured specifically for a previous Star model.

Compatible Accessories

Star identifies several accessories for the TSP100IV ecosystem, including:

Star SCD222U Customer Display

Star mC-Sound MCS10

Star BU01 Buzzer

Star Cash Drawers

Star Barcode Scanners

Star mUnite Tablet Stands

Accessory compatibility should be verified against the exact installation and part number before ordering.

What's Included

Star's TSP143IV X4 documentation identifies the following with the printer:

Power cable

USB A-to-C cable

58 mm roll-paper guide

Rubber feet

Easy Setup Guide

Package contents can vary by region or supply channel, so the actual quotation should be checked before ordering.

Things to Verify Before Ordering

Exact MPN: 39473890

GTIN: 4951319261643

Model: TSP143IV X4 / TSP143IV UEWB GY E+U

Color: Grey

Region: UK / EU

Required Paper Width: 80 mm or 58 mm

POS Software Compatibility

Operating System Compatibility

Required Driver / SDK

USB Compatibility

Ethernet Network Requirements

Wi-Fi Compatibility

Bluetooth Compatibility

CloudPRNT Support

Android Device Compatibility

Cash Drawer Compatibility

Customer Display Requirements

Existing Star Printer Replacement Requirements

Receipt Layout

Installation Orientation

Confirming the software environment is particularly important before replacing an older POS receipt printer.

Who Should Consider This Printer?

The TSP143IV X4 may be suitable for businesses looking for an 80 mm thermal receipt printer with multiple connectivity options rather than being restricted to a single interface.

It may be particularly relevant for organizations using or planning:

Wireless POS

Tablet POS

Android POS

Ethernet POS

Cloud-based ordering

Traditional desktop POS

Businesses operating older software should verify compatibility before replacing an existing printer.

Why NEOTECH® UAE?

NEOTECH® encourages customers to select POS printers according to their actual software, interface and operating environment, rather than choosing solely by model age or connectivity features.

For Star 39473890, we recommend confirming the existing or intended POS software before ordering, particularly when the printer is replacing an older TSP143III-series device.

Learn First. Decide Second. Buy Only If It Is Right for Your Needs.

The NEOTECH® Learning Center is free and open to everyone. You do not need to be a NEOTECH® customer to access or benefit from our educational content. Learn at your own pace, explore the information freely, and make informed decisions based on your own needs. There is no obligation or pressure to purchase from NEOTECH®.

There is no obligation or pressure to purchase. Customers are encouraged to verify the exact model, software compatibility, operating system, connectivity, paper width and POS environment before ordering.

Delivery – UAE

NEOTECH® supplies within the United Arab Emirates.

Availability of Star 39473890 TSP143IV X4 and applicable commercial terms should be confirmed before ordering.

FAQ - Star TSP143IV X4 39473890

Q: What is Star part number 39473890?
A: 39473890 is the Star TSP143IV UEWB GY E+U, also known as the TSP143IV X4, a grey UK/EU 80 mm thermal receipt printer with USB-C, USB-A, Ethernet, Bluetooth, dual-band WLAN and CloudPRNT.

Q: Does Star 39473890 have Wi-Fi?
A: Yes. The TSP143IV X4 supports dual-band 2.4 GHz and 5 GHz wireless LAN. Star's current documentation also identifies Wi-Fi 6 and WPA3 support.

Q: Does it have Bluetooth?
A: Yes. Bluetooth is included on the 39473890 UEWB configuration.

Q: Does it have Ethernet?
A: Yes. Ethernet LAN is included.

Q: Does the TSP143IV X4 have USB?
A: Yes. It provides USB-C and USB-A connectivity.

Q: What paper size does it use?
A: It is designed for 80 mm thermal receipt paper and can also use 58 mm paper with the supplied paper guide.

Q: What is the print speed?
A: The specified maximum print speed is 250 mm/s.

Q: What is the print resolution?
A: The specified resolution is 203 dpi.

Q: Does it require ink or toner?
A: No. It uses direct thermal printing with compatible thermal paper.

Q: Can it print online orders?
A: The printer supports Star CloudPRNT for compatible cloud and web-based printing workflows. The relevant application or platform must support the required integration.

Q: Can it replace a Star TSP143IIIW?
A: It may be considered as a newer Star platform, but compatibility should be checked first. Older POS software may not automatically support the newer model, driver or connection method.

Q: Is 39473890 the grey version?
A: Yes. Star identifies 39473890 as the grey UK/EU TSP143IV X4 configuration. The corresponding white UEWB model is part number 39473790.

Related Products

Star TSP143IV X4 39473790 White Receipt Printer

Star SCD222U Customer Display

Star mC-Sound MCS10

Star Cash Drawers

80 mm Thermal Receipt Paper

58 mm Thermal Receipt Paper

POS Barcode Scanners

POS Terminals

Helpful Internal Links

NEOTECH® UAE
https://www.neotech.ae/

Star Micronics Printers | NEOTECH® UAE
Add the exact existing collection URL.

Thermal Receipt Printers | NEOTECH® UAE
Add the exact published collection URL.

POS Systems | NEOTECH® UAE
Add the exact published URL.

NEOTECH® Learning Center
Add the exact existing Learning Center URL.

We should continue using only confirmed live internal URLs rather than creating assumed Shopify links.

Contact NEOTECH® UAE

Website: https://www.neotech.ae/

Email: support@neotech.ae

Address: Store 13, Computer Bldg, Al Fahidi, Bur Dubai, Dubai 44245, United Arab Emirates

Disclaimer - NEOTECH® UAE

Product information is provided for identification and educational purposes. Star Micronics product names and identifiers remain the property of their respective owner.

Specifications, software support, accessories and package contents can vary or change. Customers should verify the exact 39473890 configuration, POS software compatibility, operating system, connectivity requirements and intended application before ordering.

CloudPRNT, Wi-Fi, Bluetooth, USB and Ethernet availability do not by themselves guarantee compatibility with every POS or cloud application.

Last Updated: 28 August 2026  (GST, UTC+4)
