300 dpi Industrial Label Printing for Identification, Barcode and Production Workflows.

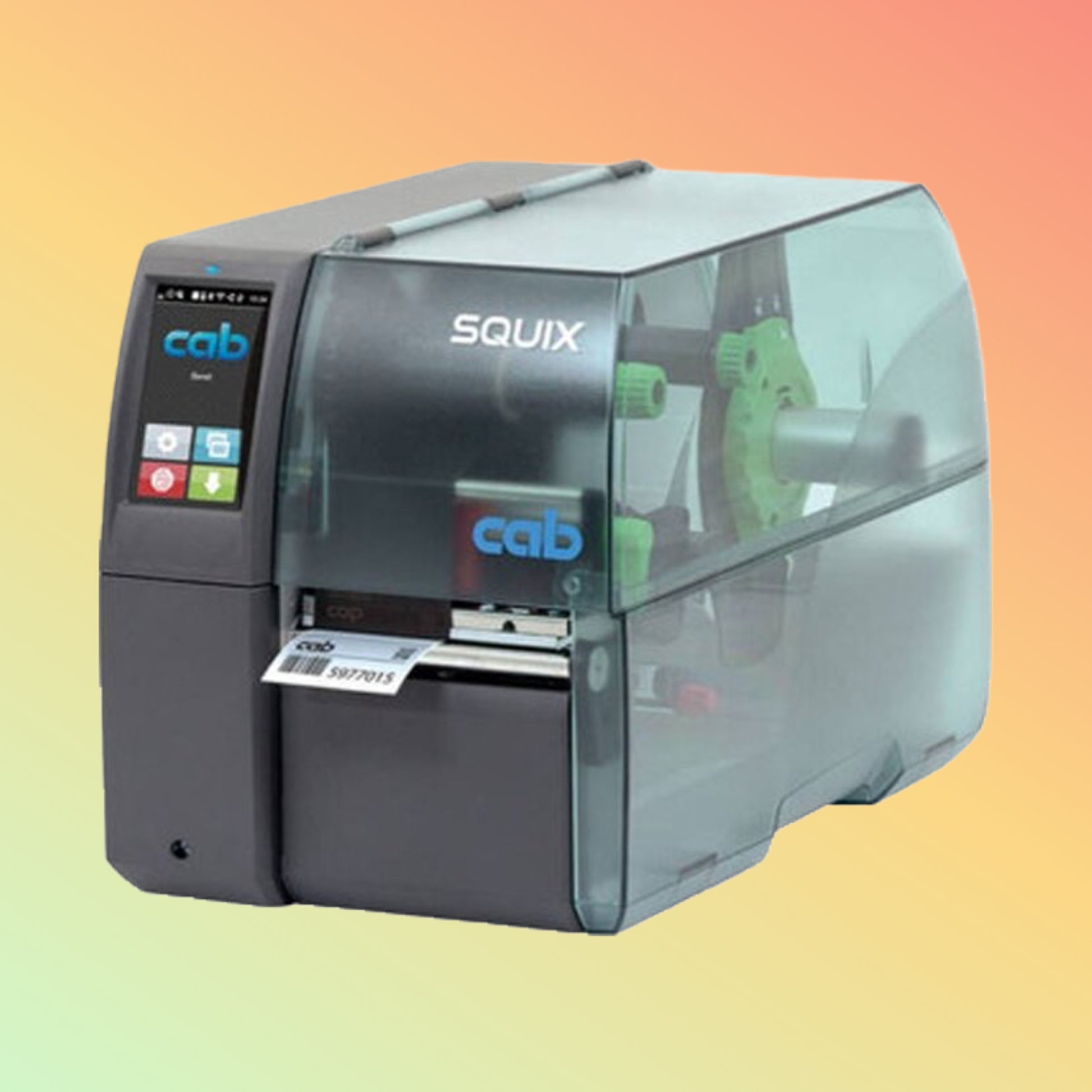

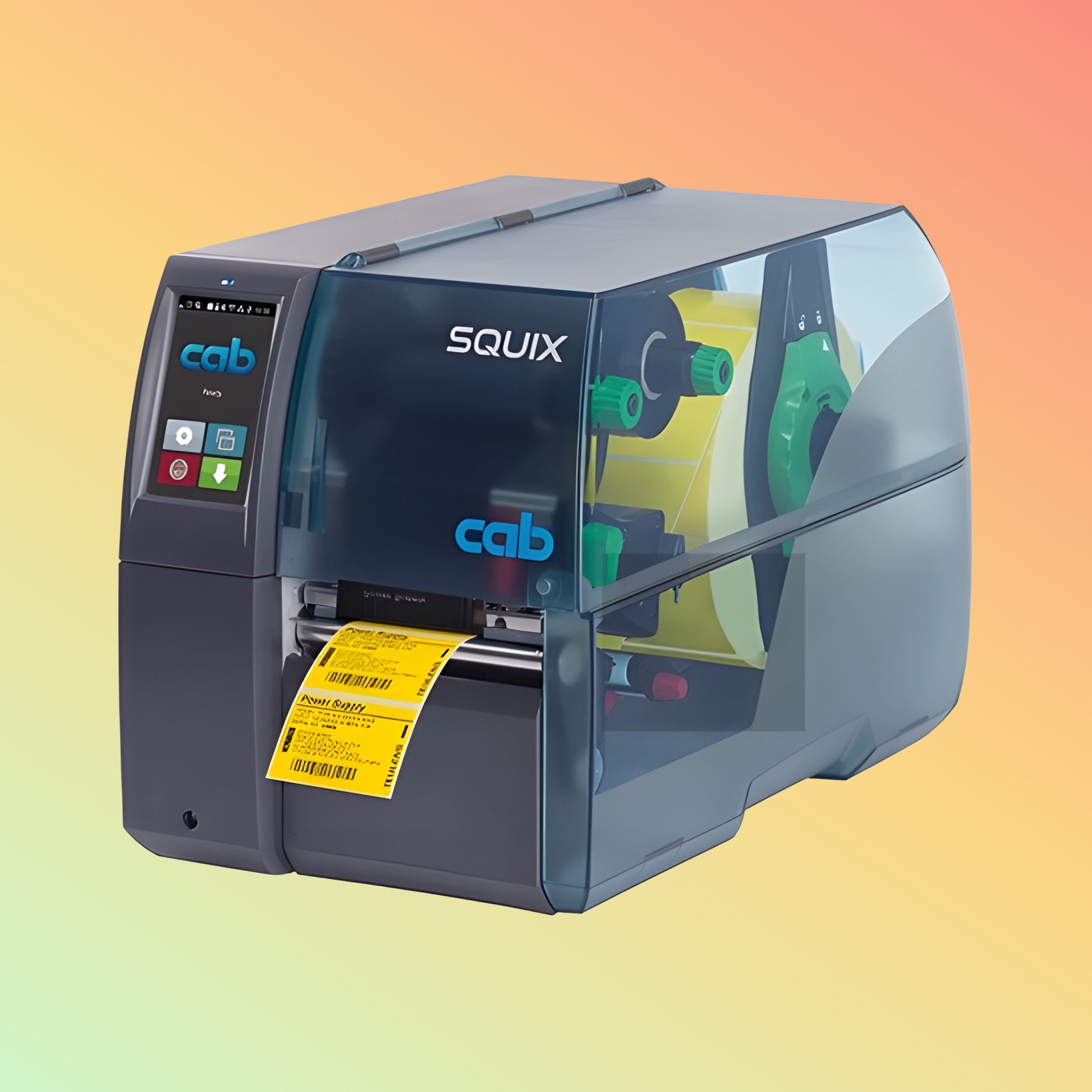

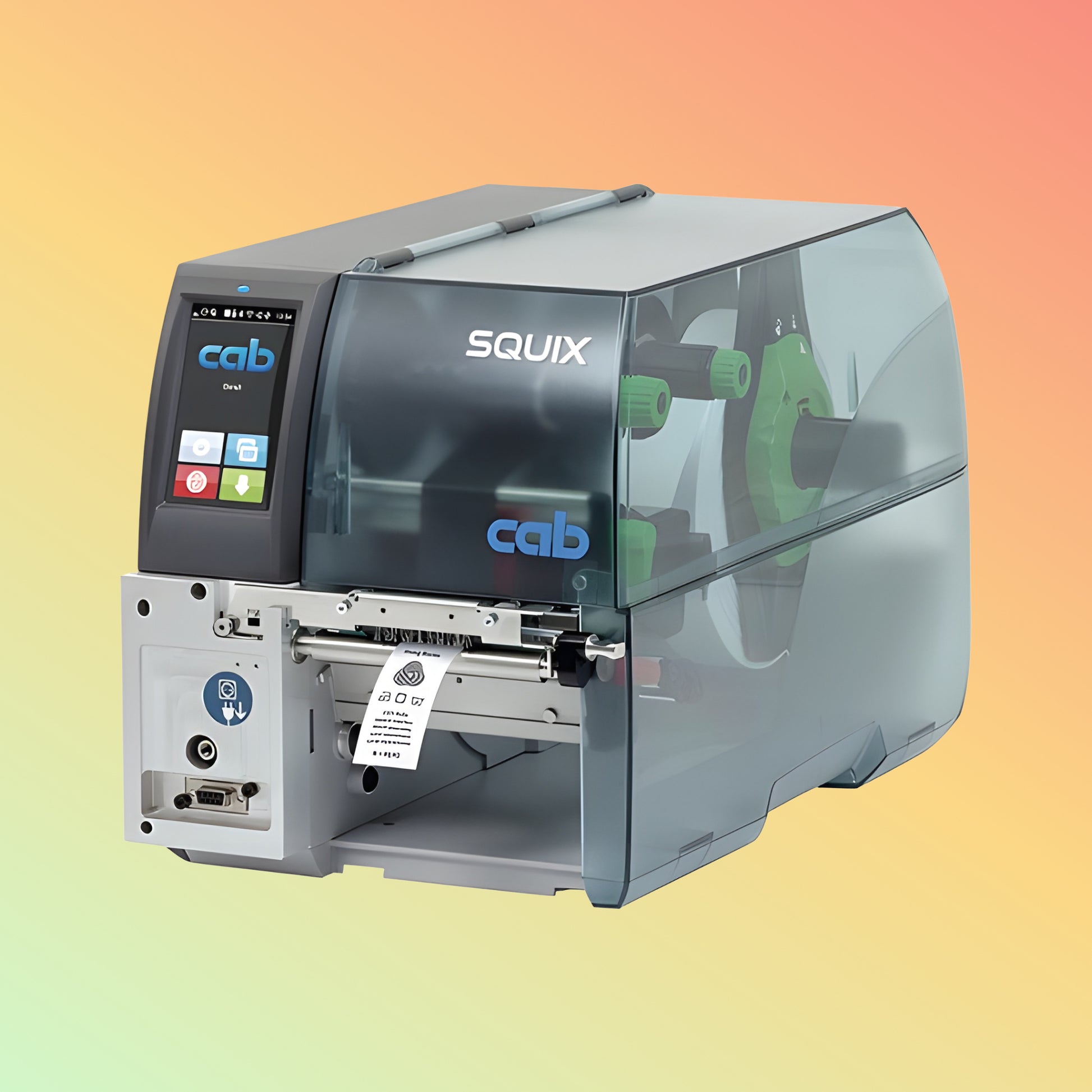

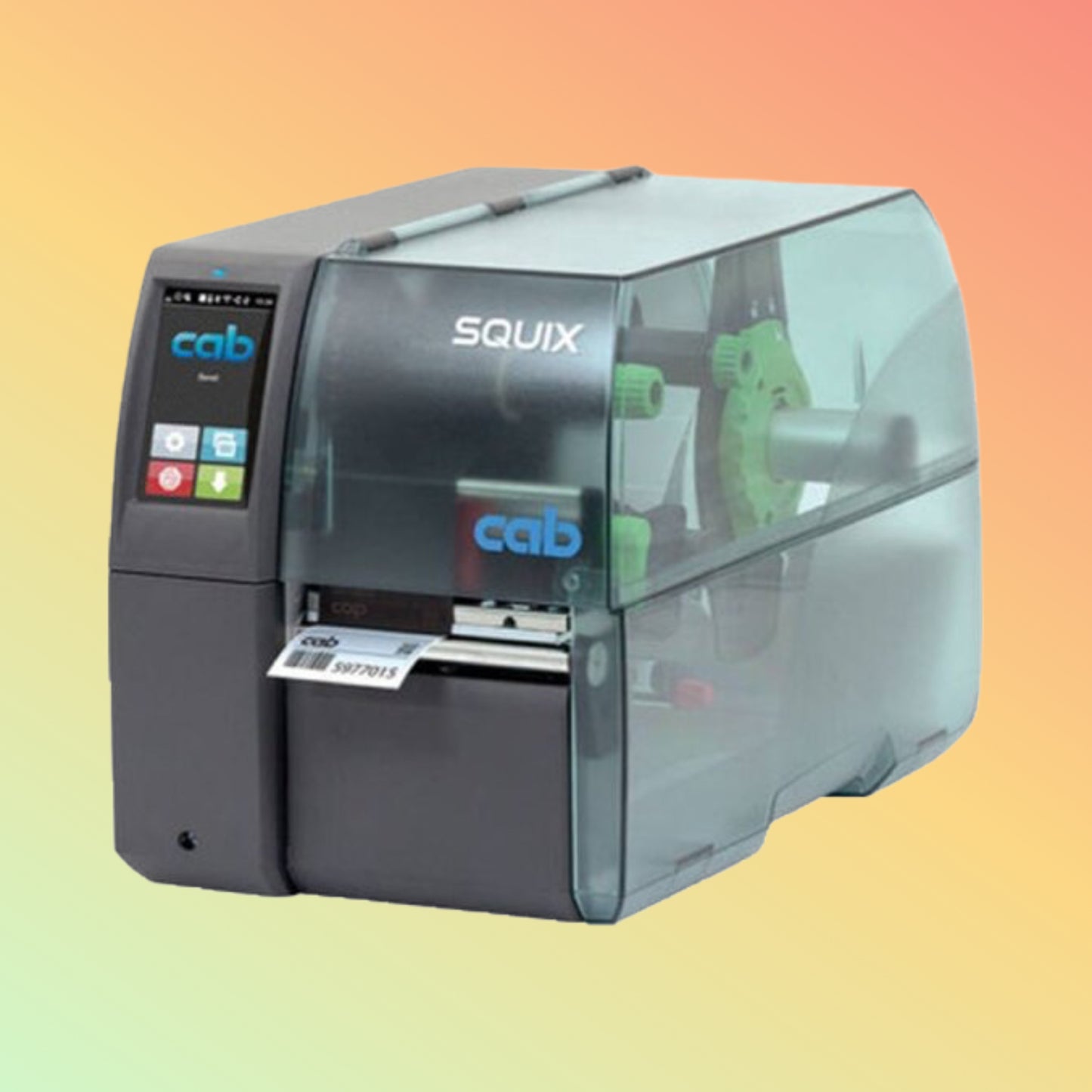

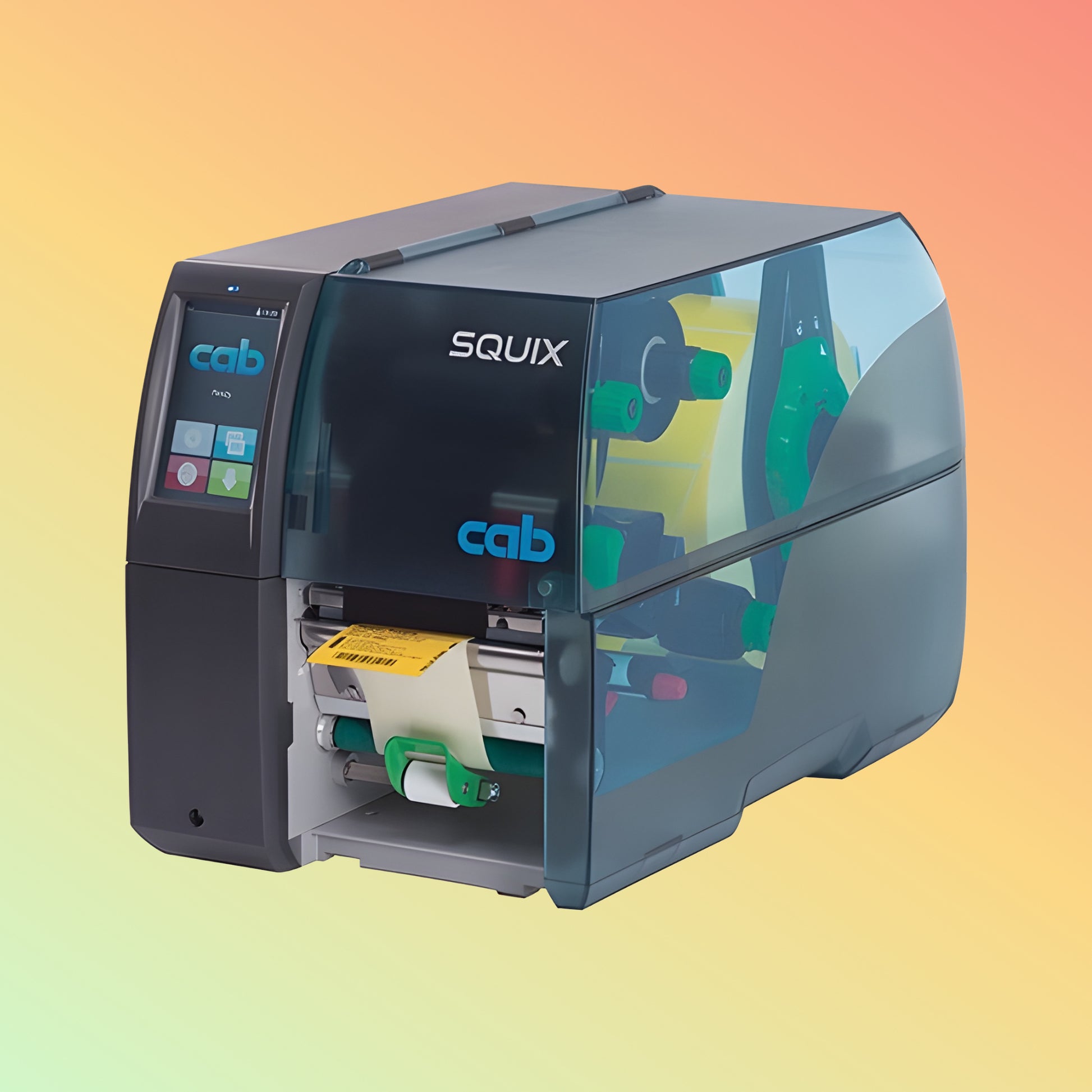

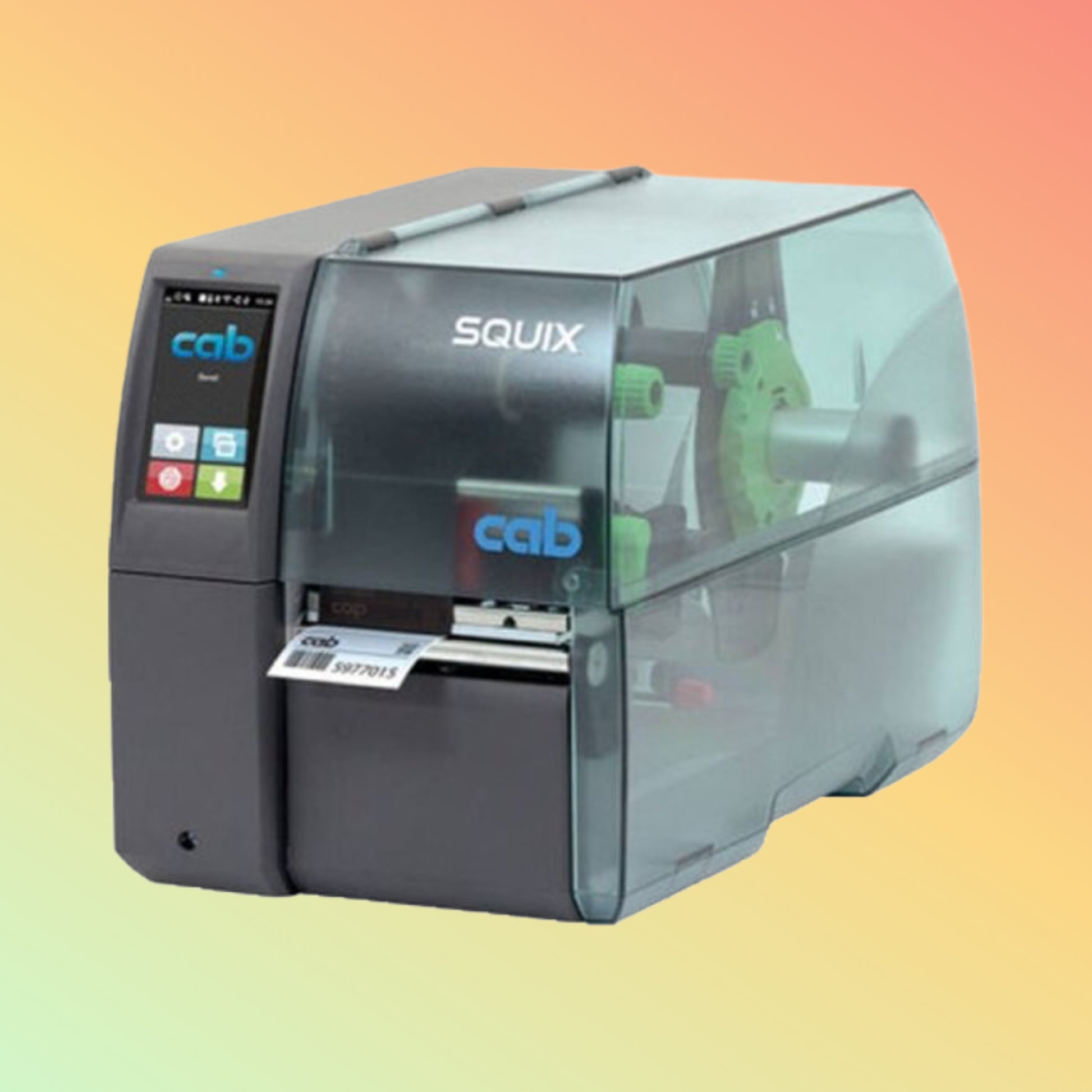

cab SQUIX 4.3/300 Industrial Label Printer – Part No. 5977015 The cab SQUIX 4.3/300, manufacturer part number 5977015, is an industrial label printer designed for professional identification and labelling workflows where dependable barcode, text and graphics printing is required.

This particular model provides 300 dpi print resolution, a maximum specified print speed of 300 mm/s, and a maximum print width of 108.4 mm.

It supports thermal transfer and direct thermal printing, allowing businesses to select the printing method according to the label material, expected label life and application.

The photographed original cartons identify the product as:

• Brand: cab
• Product: Label Printer
• Model: SQUIX 4.3/300
• Part No.: 5977015
• Print Resolution: 300 dpi model
• Product Type: Industrial Label Printer / Transfer Label Printer
• Product description on carton: Transfer Label Printer
• Manufacturer: cab Produkttechnik GmbH & Co. KG
• Manufacturer location: Karlsruhe, Germany
• Country of Manufacture: Germany
• Country marking: Made in Germany

This exact part-number identification helps buyers searching specifically for 5977015, SQUIX 4.3/300, or a replacement cab SQUIX industrial label printer distinguish this configuration from other SQUIX models.

Overview

The SQUIX series is cab's professional label-printing platform for identification applications.

The SQUIX 4.3/300 configuration combines:

• 300 dpi printing
• Up to 300 mm/s specified print speed
• Up to 108.4 mm print width
• Thermal transfer printing
• Direct thermal printing
• Roll and fanfold media support
• Industrial label and barcode applications
• Support for paper, cardboard and selected synthetic materials
• Large media and ribbon capacity
• Operator-accessible maintenance components

The 4.3 designation is important because cab offers several SQUIX widths, resolutions and configurations. Buyers replacing an existing unit should therefore verify both SQUIX 4.3/300 and part number 5977015 rather than relying only on the SQUIX family name.

Key Features

300 dpi Print Resolution

The SQUIX 4.3/300 provides 300 dpi resolution for printing information such as:

• 1D barcodes
• 2D codes generated by compatible software
• Product identification
• Serial numbers
• Batch information
• Asset labels
• Logistics information
• Text
• Symbols
• Graphics

Actual barcode readability depends on label design, barcode dimensions, media, ribbon, printer settings and the scanning equipment used.

Up to 300 mm/s Printing

cab specifies a maximum print speed of 300 mm/s for the SQUIX 4.3/300.

The appropriate production speed can vary according to media, ribbon, print density, label design and application requirements.

108.4 mm Maximum Print Width

The maximum print width is 108.4 mm, making this model relevant for many conventional industrial and logistics label formats.

Thermal Transfer Printing

Thermal transfer printing uses a ribbon to transfer the printed image onto compatible label material.

This method may be suitable when the application requires greater durability than conventional direct thermal media can provide.

The actual durability depends on the combination of:

Label Material + Ribbon + Environment + Application

Direct Thermal Printing

The SQUIX 4.3/300 also supports direct thermal printing with compatible heat-sensitive media.

Direct thermal operation does not require a thermal transfer ribbon, but label life and environmental suitability depend on the media selected.

Technical Specifications

Brand: cab

Product Family: SQUIX

Model: SQUIX 4.3/300

Manufacturer Part Number: 5977015

Product Category: Industrial Label Printer

Printing Methods: Thermal Transfer / Direct Thermal

Print Resolution: 300 dpi

Maximum Print Speed: 300 mm/s

Maximum Print Width: 108.4 mm

Maximum Print Length: 6,000 mm

Material Guidance: Left-aligned

Label Width: 20–116 mm

Label Height Without Backfeed: Minimum 4 mm

Label Height With Backfeed: Minimum 6 mm

Label Thickness: 0.03–0.6 mm

Liner Width: 24–120 mm

Continuous Material Width: 24–120 mm

Continuous Material Thickness: 0.03–0.5 mm

Maximum Continuous Cardboard Weight: 300 g/m²

Maximum Media Roll Diameter: 205 mm

Media Core Diameter: 38.1–76 mm

Media Winding: Outside or inside

Ribbon Ink Side: Outside or inside

Maximum Ribbon Roll Diameter: 80 mm

Ribbon Core Diameter: 25.4 mm

Maximum Ribbon Length: 600 m

Ribbon Width: 25–114 mm

Printer Dimensions: Approximately 252 × 288 × 460 mm (W × H × D)

Printer Weight: Approximately 10 kg

Specifications refer to cab's published SQUIX 4.3/300 configuration and should be checked against the exact supplied configuration where an application depends on a particular interface, accessory or option.

Supported Label Materials

According to cab's published SQUIX specifications, the platform supports materials including:

• Paper
• Cardboard
• PET
• PE
• PP
• PI
• PVC
• PU
• Acrylate
• Tyvec

Material suitability should not be determined from the material name alone.

For an actual installation, buyers should consider:

• Label adhesive
• Surface being labelled
• Operating temperature
• Chemical exposure
• Moisture
• Abrasion
• Outdoor exposure
• Required label life
• Ribbon/material compatibility

Barcode and Identification Label Applications

The cab SQUIX 4.3/300 may be considered for applications such as:

• Product identification labels
• Barcode labels
• Inventory labels
• Warehouse labels
• Logistics labels
• Shipping identification
• Manufacturing labels
• Work-in-process identification
• Asset identification
• Component labels
• Carton labels
• Packaging labels
• Serial-number labels
• Batch and lot identification

The printer creates the printed label; barcode data, database connectivity, ERP integration and label content are controlled by the connected software and business system.

Manufacturing & Production Labelling

Manufacturing environments often require labels to connect physical items with digital production information.

A typical workflow may be:

ERP / Production System → Label Software → SQUIX 4.3/300 → Product or Component Label

Depending on the software environment, the label may contain information such as:

• Product number
• Manufacturing reference
• Serial number
• Batch
• Lot
• Date
• Barcode
• QR or 2D code
• Internal tracking information

The SQUIX printer is the output device within that workflow; it does not independently provide ERP or production-management functionality.

Warehouse & Logistics Labelling

The printer can also form part of warehouse identification workflows for:

• Storage locations
• Inventory
• Products
• Cartons
• Internal logistics
• Dispatch identification
• Pallet-related labelling where the selected label size is compatible

Businesses should select label material according to the surface and environment rather than assuming that one label type is suitable for every warehouse application.

Product & Asset Identification

The 300 dpi configuration provides a balance between printing detail and production speed for many identification tasks.

Possible applications include:

Asset Label
Equipment ID, asset number, barcode and ownership information.

Product Label
SKU, product reference, barcode and descriptive information.

Component Label
Part number, batch, manufacturing or traceability data.

Carton Label
Product, logistics, quantity or routing information.

The final label design remains dependent on the customer's software and operational requirements.

SQUIX 4.3/300 vs Other SQUIX Models

The exact model number matters.

SQUIX 4.3/300 should not automatically be treated as interchangeable with:

• SQUIX 4.3/200
• SQUIX 4/300
• SQUIX 4/600
• SQUIX 4.3/300P
• SQUIX 4 M
• SQUIX 6.3
• SQUIX 8.3
• SQUIX RFID configurations

Resolution, media guidance, print width, peel-off capability and other characteristics can differ.

For replacement requirements, provide the complete model and part number whenever possible:

cab SQUIX 4.3/300 – 5977015

What Does Part Number 5977015 Identify?

The manufacturer's catalogue identifies:

5977015 → cab SQUIX 4.3/300 Label Printer

This is a particularly useful identifier when:

• Replacing an existing printer
• Matching an installed printer fleet
• Preparing a procurement request
• Comparing supplier quotations
• Searching using a manufacturer part number
• Confirming the correct SQUIX configuration

Using the exact manufacturer part number reduces ambiguity between similar SQUIX variants.

Verified Carton Identification

The actual product cartons supplied for reference show manufacturer labels containing:

cab Produkttechnik GmbH & Co. KG
Wilhelm-Schickard-Str. 14
D-76131 Karlsruhe
Label Printer
SQUIX 4.3/300
Part No. 5977015
Made in Germany

The photographed units also show firmware V5.47.12 and individual serial/date-code information.

Firmware and serial numbers are unit-specific and are therefore not specifications guaranteed for every SQUIX 4.3/300 supplied.

Made in Germany

The photographed manufacturer label identifies the SQUIX 4.3/300 as:

Made in Germany

The original packaging also carries cab branding and the wording “Quality Made In Germany.”

NEOTECH® reports these markings as product/manufacturer identification visible on the supplied cartons; they are not presented as an independent NEOTECH® certification or performance guarantee.

Media Selection Guidance

Before selecting labels for the SQUIX 4.3/300, determine:

1. Required label width and height
2. Surface material
3. Indoor or outdoor use
4. Required label lifespan
5. Temperature exposure
6. Moisture exposure
7. Chemical exposure
8. Abrasion requirements
9. Direct thermal or thermal transfer method
10. Required barcode density

For thermal transfer printing, ribbon chemistry should also be matched with the selected label material.

Ribbon Selection

Thermal transfer ribbons are generally available in different formulations depending on application requirements.

Rather than selecting ribbon solely by printer model, verify:

• Ribbon width
• Ribbon length
• Ink orientation
• Label face material
• Required resistance
• Print darkness
• Application environment

The SQUIX 4.3 platform supports ribbon widths within its specified range, but compatibility with the particular label stock should still be checked.

Integration & Software Considerations

The SQUIX platform is intended to operate as part of a label-printing environment.

Before deployment, verify:

• Host operating system
• cab driver availability
• Label-design software
• ERP/WMS application
• Required printer interface
• Network architecture
• Barcode format
• Database requirements
• Label dimensions
• Media and ribbon

Do not assume that possession of the printer alone provides ERP, WMS, database or label-design functionality.

Maintenance Considerations

cab designs the SQUIX platform with operator-accessible maintenance components.

Regular maintenance can include:

• Cleaning the printhead
• Cleaning the print roller
• Cleaning label sensors
• Removing adhesive or media residue
• Checking media path
• Inspecting ribbon movement

Cleaning intervals depend on operating volume, label material, ribbon and environmental conditions.

Use manufacturer-recommended procedures and suitable cleaning materials.

Purpose of Use

The cab SQUIX 4.3/300 is intended for professional label production where businesses require a 300 dpi industrial printer for identification information.

It may be appropriate for organizations that need to print labels internally rather than rely exclusively on preprinted variable-data labels.

Whether this model is the appropriate choice depends on the label dimensions, print volume, media, required resolution, application and integration environment.

Buyer Guidance Before Ordering

Please verify the following before purchasing:

• Brand: cab
• Model: SQUIX 4.3/300
• Part Number: 5977015
• Required Resolution: 300 dpi
• Required print width
• Label dimensions
• Direct thermal or thermal transfer requirement
• Label material
• Ribbon specification
• Required connectivity
• Software environment
• Required accessories
• Existing printer configuration if purchasing as a replacement

For replacement installations, a photograph of the existing printer's manufacturer label can help identify the correct configuration.

Why Choose NEOTECH® UAE

NEOTECH® focuses on helping businesses understand the hardware specification before making a purchasing decision.

For a cab SQUIX requirement, we can help review information such as:

✓ Exact model number
✓ Manufacturer part number
✓ Resolution requirement
✓ Label dimensions
✓ Printing method
✓ Media requirement
✓ Ribbon requirement
✓ Application type
✓ Replacement-printer identification

Our approach is simple:

Learn First. Decide Second. Buy Only If It Is Right for Your Needs.

There is absolutely no obligation or pressure to proceed with the purchase with us.

UAE Delivery

NEOTECH® supplies products within the United Arab Emirates.

Shipping: Free Standard Shipping

Order Cut-Off: 2:00 PM GST

Handling: 1–2 business days

Transit: 3–5 business days

Estimated Total Delivery: 4–7 business days

Stock and the exact product configuration should be confirmed before placing a time-sensitive order.

FAQ - Cab SQUIX 4.3/300

Q: What is cab part number 5977015?
A: Manufacturer part number 5977015 identifies the cab SQUIX 4.3/300 label printer. It is a 300 dpi model in the cab SQUIX industrial label-printer family.

Q: Does the cab SQUIX 4.3/300 support thermal transfer and direct thermal printing?
A: Yes. cab's published technical specifications identify both thermal transfer and direct thermal printing for the SQUIX 4.3/300. The appropriate method depends on the selected label material and application.

Q: Is the cab SQUIX 4.3/300 suitable for barcode, warehouse and manufacturing labels?
A: It may be suitable for these applications where its 300 dpi resolution, label dimensions, media support and printing method meet the requirement. The complete label workflow—including software, barcode format, media and ribbon—should be verified before deployment.

Helpful Internal Links

• Industrial Label Printers
• Thermal Transfer Label Printers
• Barcode Printing & Identification Solutions

Contact NEOTECH® UAE

NEOTECH®
Operated by NEOLYN TECHNOLOGY LLC

Email: support@neotech.ae

Address:
Store 13, Computer Building
Al Fahidi, Bur Dubai
Dubai 44245
United Arab Emirates

Disclaimer – NEOTECH® UAE

cab, SQUIX and associated product names and trademarks belong to their respective owners. NEOTECH® does not claim manufacturer status, authorization or affiliation unless separately documented.

Product specifications on this page are based on manufacturer information and identification visible on the photographed product packaging. Specifications, firmware, interfaces, accessories, package contents and product revisions may change or vary by configuration.

Serial numbers, date codes, firmware versions and warehouse identification labels visible in photographs identify individual units or shipments and should not be interpreted as specifications applicable to every SQUIX 4.3/300.

Customers should verify the exact model, part number 5977015, interface, media, ribbon, software compatibility and application requirements before ordering.

Product images may show actual packaging and are provided for product-identification purposes.

Last Updated: 13 August 2026  (GST, UTC+4)
