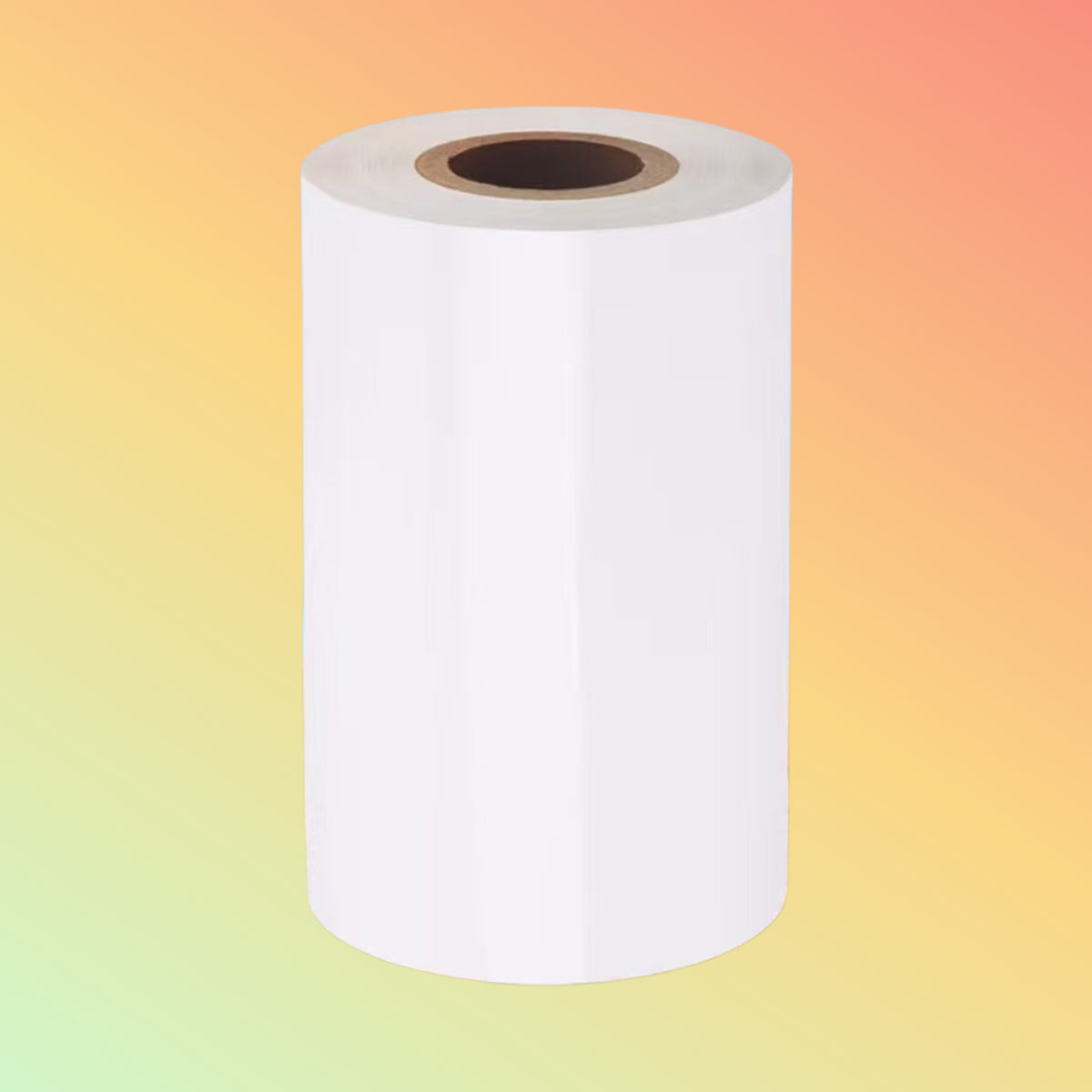

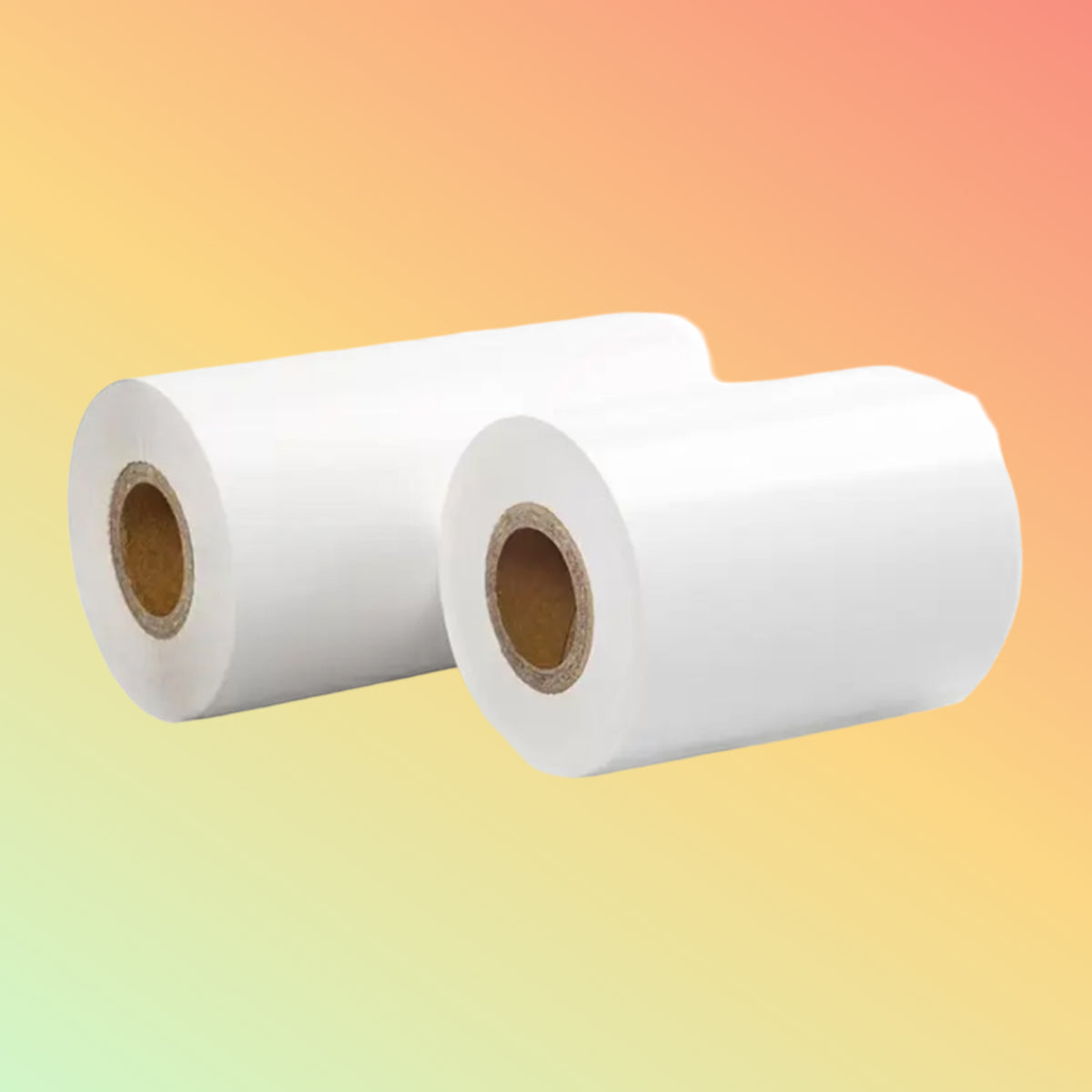

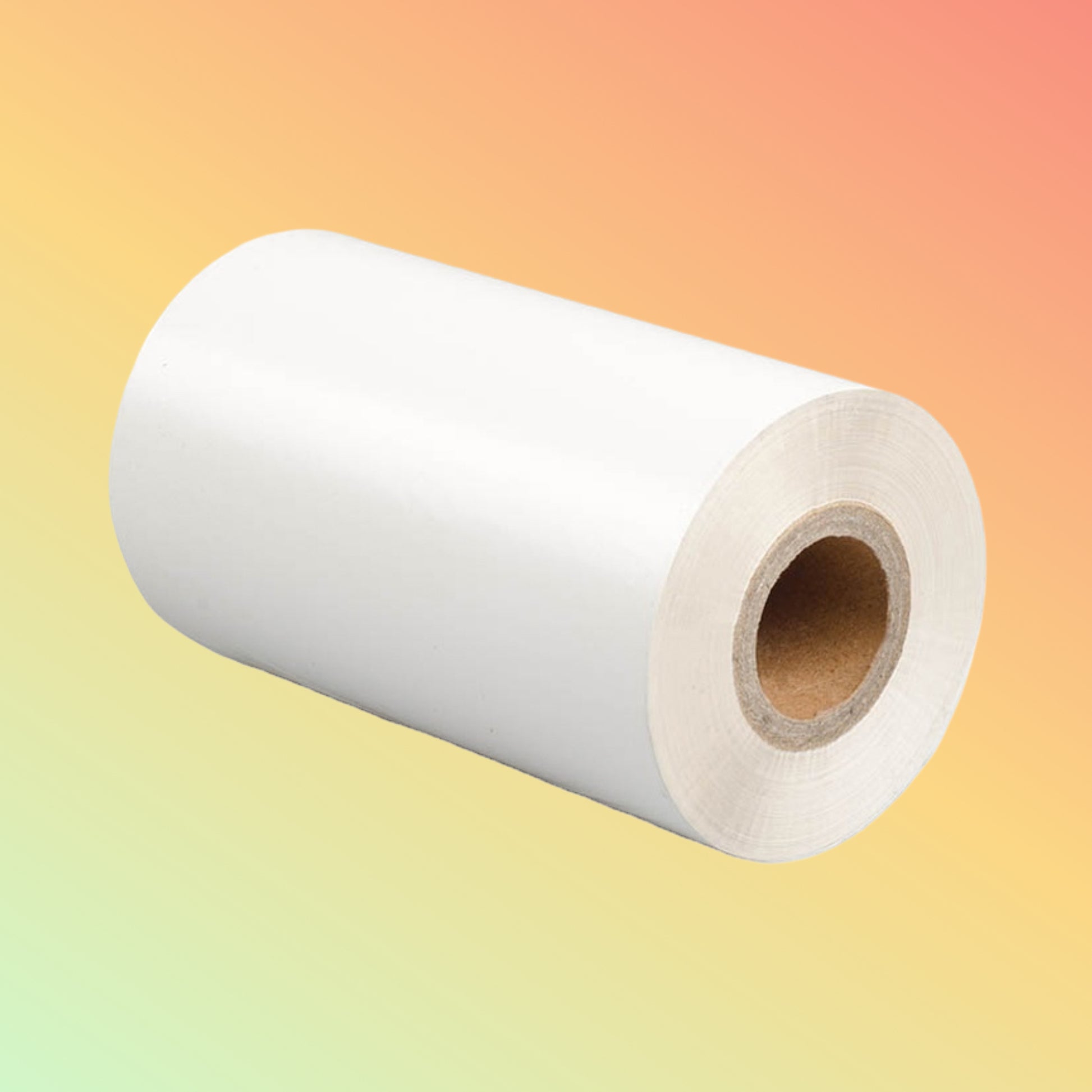

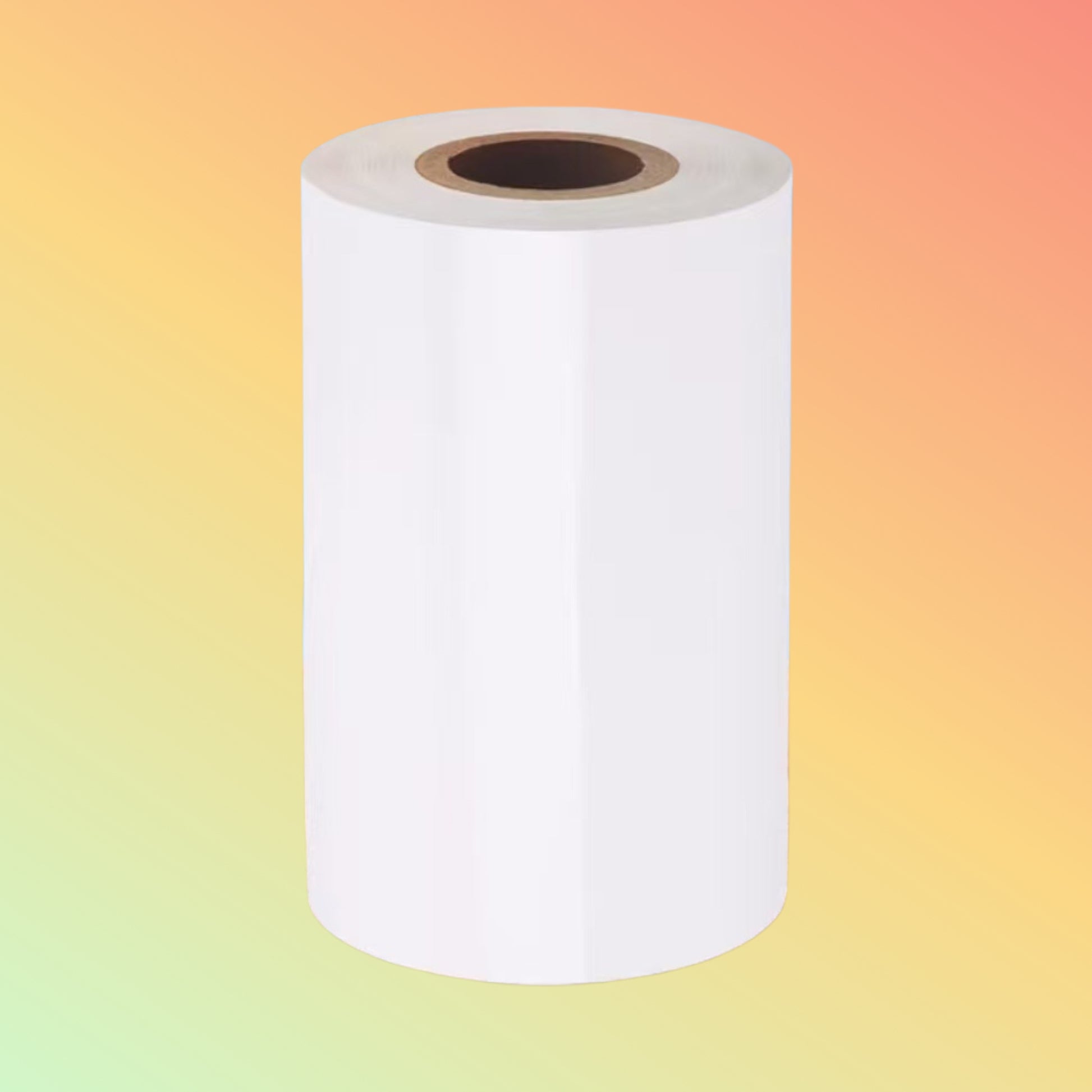

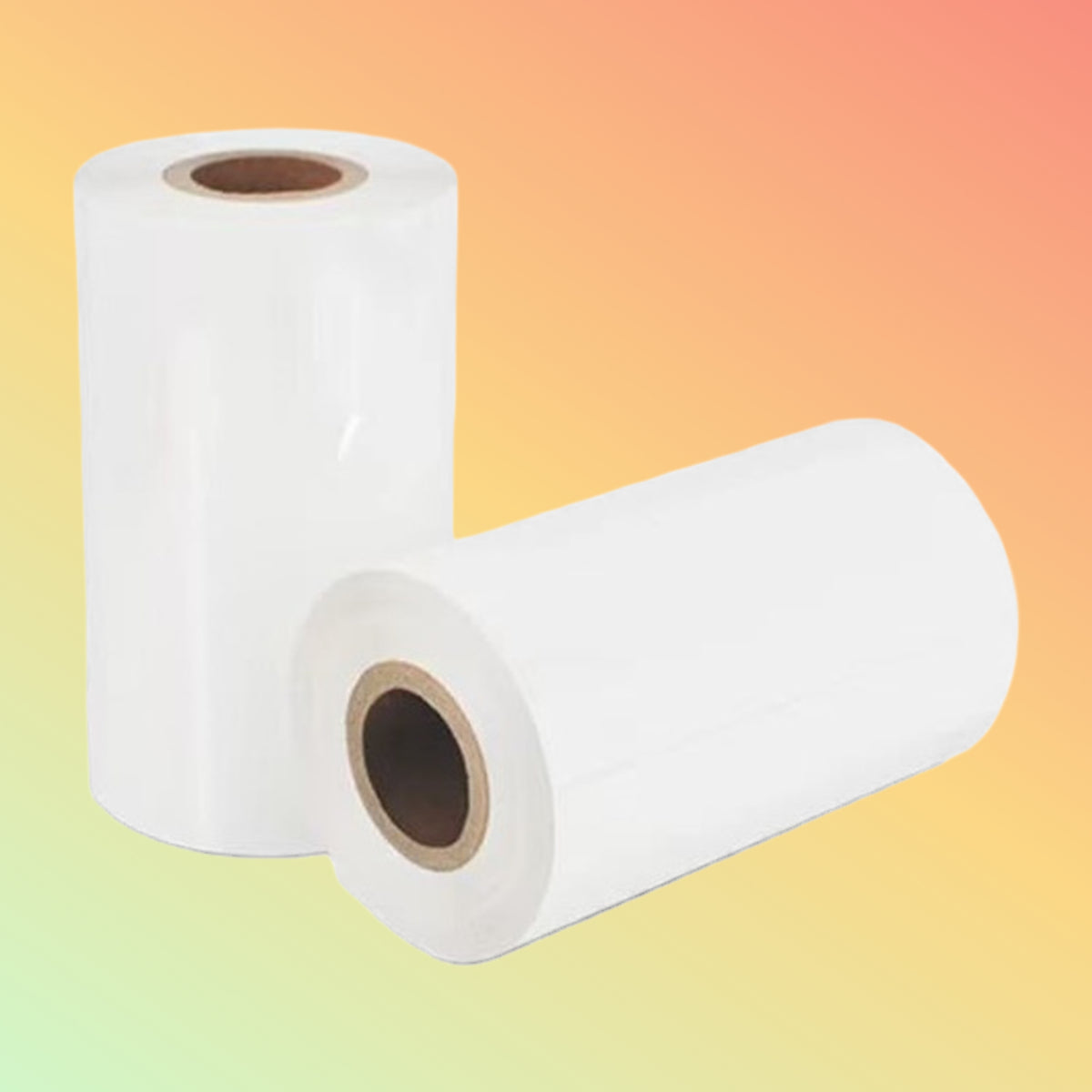

White resin thermal transfer ribbon for producing high-contrast white text, barcodes, QR codes, serial numbers, logos and variable information on compatible black, dark-coloured and specialty synthetic labels.

A white resin ribbon for black labels is a specialty thermal transfer consumable designed to transfer white pigment onto compatible dark-coloured label surfaces.

It can be useful when conventional black thermal transfer printing would provide insufficient visual contrast.

A typical application combines:

Thermal Transfer Barcode Printer

White Resin Ribbon

Compatible Black or Dark Label

to produce variable information such as:

• White text
• Serial numbers
• Product codes
• Batch numbers
• Model numbers
• Asset numbers
• Barcodes
• QR codes
• Symbols
• Logos
• Variable graphics

White resin ribbon is particularly relevant to synthetic and specialty label applications where both white visibility and greater print durability may be required.

The correct ribbon cannot be selected by colour alone. The printer, ribbon dimensions, winding direction, printhead technology, label material and required resistance should all be considered before ordering.

Why Print White on a Black Label?

Black and dark labels can provide a distinctive appearance for products and equipment, but they create an obvious printing challenge.

Consider conventional black thermal transfer printing:

Black Ribbon

↓

Black Label

↓

Very Low Visual Contrast

Changing to an appropriate white ribbon allows:

White Resin Ribbon

↓

Black Label

↓

Visible White Information

This makes white thermal transfer printing useful when variable information must be added to a pre-manufactured black or dark label.

Key Features

• White resin thermal transfer formulation
• Designed for compatible thermal transfer barcode printers
• Suitable for selected black and dark-coloured labels
• Strong white visual contrast on suitable dark media
• Available in different ribbon dimensions
• Suitable for selected synthetic label materials
• Can print variable text and numbering
• Suitable for graphics and logos
• Can produce barcodes where sufficient contrast and scanner compatibility are achieved
• Can produce QR codes subject to application testing
• Suitable for industrial and product-identification applications
• Multiple core and winding configurations may be available
• Flat-head and near-edge requirements must be identified separately
• Custom widths may be possible depending on ribbon type and quantity

What Is White Resin Thermal Transfer Ribbon?

A thermal transfer ribbon contains a coated layer that is transferred onto a label when selectively heated by the printer's thermal printhead.

With a white resin ribbon, that transferable layer contains a white resin-based printing formulation.

The process can be understood as:

Printhead Heats Selected Areas

↓

White Resin Coating Releases from Ribbon

↓

Coating Transfers to Compatible Label

↓

White Variable Image Is Created

The printer itself does not contain white ink.

The white image comes from the ribbon coating.

White Resin Ribbon vs White Ink

These technologies should not be confused.

White Resin Thermal Transfer Ribbon

Uses a ribbon and thermal printhead to transfer white material onto the label.

White Ink Printing

Uses a printing system specifically designed to deposit white ink.

A conventional thermal transfer barcode printer equipped with the correct white resin ribbon can therefore produce white variable information without functioning as an inkjet white-ink printer.

Why Use Resin for Black Synthetic Labels?

Resin thermal transfer formulations are commonly considered for compatible synthetic materials because they can provide stronger adhesion and greater resistance than general-purpose wax formulations.

Depending on the exact ribbon and label combination, white resin may be suitable for materials such as:

• Polyester / PET
• Polypropylene / PP
• Polyethylene / PE
• PVC
• Synthetic paper
• Nylon
• Specialty films
• Selected textile materials

However, resin does not mean universal compatibility.

A ribbon that performs well on one polyester coating may behave differently on another.

The actual ribbon and label should be matched.

White Resin Ribbon for Black Polyester Labels

Black polyester labels are an important application for white resin printing.

They may be used for:

• Electronics
• Electrical equipment
• Machinery
• Product identification
• Asset tracking
• Serial-number identification
• Automotive components
• Equipment plates
• Durable product labels

A compatible white resin ribbon can add changing information to a black polyester label after the base label has been manufactured.

For example:

Fixed Label Design

Product Logo
Branding
Background Graphics

•


Variable White Printing

Serial Number
Model Number
Production Date
Batch Code
Barcode

This allows one base label design to support changing production data.

White Resin Ribbon for Black PP Labels

Selected black polypropylene labels may also be suitable for white resin thermal transfer printing.

Potential applications include:

• Product labels
• Cosmetic packaging
• Bottles
• Retail products
• Personal-care products
• Specialty packaging

Because PP surfaces and coatings vary, sample testing is recommended before production quantities are approved.

High-Opacity White Printing

One of the most important characteristics of a white ribbon used on black media is opacity.

Opacity describes how effectively the white transferred image masks the dark material underneath.

If opacity is insufficient:

Black Label

↓

Dark Colour Influences White Layer

↓

White Print May Look Grey or Weak

A suitable high-opacity formulation can produce a more visually distinct white image.

However, not every product marketed as a white resin ribbon provides the same opacity.

The actual ribbon-label combination should be tested where appearance is critical.

Why Does White Ribbon Sometimes Print Grey?

A customer may install a white ribbon and expect brilliant white printing, only to see a greyish result.

Possible causes include:

• Insufficient ribbon opacity
• Incompatible label surface
• Poor ribbon-to-label matching
• Incorrect printer settings
• Excessive print speed
• Insufficient transfer energy
• Worn or dirty printhead
• Uneven printhead pressure
• Very glossy label surface
• Unsuitable ribbon formulation

Simply increasing the printer darkness setting is not always the correct solution.

Excessive heat can create:

• Ribbon wrinkling
• Image distortion
• Excessive ribbon transfer
• Reduced barcode definition
• Premature printhead stress

The objective is to find the correct printer + ribbon + label + settings combination.

Can White Resin Ribbon Print Barcodes on Black Labels?

White resin ribbon can physically produce barcode patterns on compatible black label material.

However, barcode printing and barcode readability are not exactly the same thing.

A barcode may look clear to a person but still perform poorly with a particular scanner.

Barcode readability depends on factors such as:

• Symbology
• Barcode orientation
• Bar width
• Quiet zones
• Print resolution
• Ribbon opacity
• Background reflectance
• Label gloss
• Print definition
• Scanner technology
• Scanning angle
• Application requirements

For operational barcode applications, the finished label should be tested with the actual scanners that will be used.

For controlled or regulated applications, formal barcode verification may also be appropriate.

White Barcode on Black Background

Conventional barcodes are commonly designed around dark bars on a lighter background.

White-on-black printing reverses that visual arrangement.

This can create a visually attractive label, but scanner behaviour should not be assumed.

Some scanning systems can process inverted or reversed symbols, while others may require configuration or may not provide consistent results.

Therefore:

Print

↓

Scan

↓

Verify

↓

Approve

is safer than assuming that every white barcode on a black label will work universally.

Can White Resin Ribbon Print QR Codes?

A thermal transfer printer can physically create a white QR-code pattern using white resin ribbon.

However, a white QR code on a black background is effectively an inverted 2D symbol.

Successful reading can depend on:

• QR-code construction
• Quiet zone
• Print resolution
• White opacity
• Label background
• Scanner or camera
• Mobile application
• Symbol size
• Surface reflection

If the QR code is operationally important, test it with the actual devices used by employees or customers.

Do not rely only on visual appearance.

White Text on Black Labels

Text is often a simpler white-on-black application than machine-readable barcodes.

White resin ribbon can be used for variable text such as:

• Product name
• Model
• Serial number
• Batch
• Lot number
• Manufacturing date
• Expiry information
• Voltage
• Technical data
• Warning information
• Asset number
• Company details

Legibility depends on font size, printer resolution, ribbon opacity and label surface.

White Serial Numbers on Black Labels

Serial-number printing is particularly suitable for thermal transfer because every label can contain different information.

For example:

SN000001

SN000002

SN000003

SN000004

The black label can be manufactured with fixed branding while the thermal transfer printer adds the changing serial number in white during production.

The same principle applies to:

• Batch numbers
• Lot numbers
• Production dates
• Asset IDs
• Equipment IDs
• Product variants

White Resin Ribbon for Electronics Labels

Electronics products frequently use black or dark identification labels.

White resin printing may be considered for:

• Serial-number labels
• Model labels
• Power-supply identification
• Adapter labels
• Device identification
• Component tracking
• Equipment asset labels
• Manufacturing traceability

Before selecting a ribbon, identify environmental requirements such as:

• Abrasion
• Heat
• Chemicals
• Cleaning agents
• Moisture
• Expected product life

The final resistance comes from the complete ribbon-label combination.

White Resin Ribbon for Automotive Labels

Automotive and component applications can involve demanding environmental conditions.

Potential requirements may include resistance to:

• Abrasion
• Oils
• Grease
• Chemicals
• Heat
• Handling
• Long service periods

A white resin ribbon may form part of such a labeling solution, but it should not automatically be described as automotive-grade.

The exact ribbon, label and adhesive must meet the application's requirements and should be tested or certified where necessary.

White Resin Ribbon for Chemical Labels

Resin ribbons are often considered when chemical exposure is a concern.

However, the phrase chemical resistant should never be applied universally to every white resin ribbon.

Resistance varies according to:

• Ribbon formulation
• Label face material
• Surface coating
• Chemical involved
• Concentration
• Exposure duration
• Temperature
• Mechanical abrasion

For chemical-label applications, request the appropriate manufacturer's resistance data and perform application testing where necessary.

White Resin Ribbon for Outdoor Labels

Resin printing can provide durable thermal transfer images on suitable synthetic labels, but ribbon alone does not make a label an outdoor solution.

Outdoor durability also depends on:

• Label face material
• Adhesive
• UV exposure
• Temperature
• Moisture
• Rain
• Surface being labelled
• Duration of exposure

If outdoor service life is important, evaluate the complete label construction, not just the ribbon.

White Resin Ribbon for Transparent Labels

White resin ribbon may also be useful with selected transparent synthetic labels.

Potential uses include:

• Clear product labels
• Bottle labels
• Cosmetic packaging
• Electronics
• Transparent identification films

The appearance depends strongly on the surface beneath the transparent label.

For example:

Clear Label + White Print + Black Product Surface

may appear very different from:

Clear Label + White Print + Transparent Bottle

Testing the complete finished application is recommended.

White Resin vs White Wax-Resin Ribbon

Both formulations can have legitimate uses.

White Resin Ribbon

Typically considered where the application involves:

• Synthetic labels
• Greater durability
• Abrasion resistance
• Industrial identification
• Black polyester
• Specialty films
• More demanding environmental conditions

White Wax-Resin Ribbon

May be considered where the application involves:

• Coated paper
• Selected synthetic materials
• Moderate durability requirements
• General product identification
• A balance between performance and cost

The correct choice should be determined by the label and application rather than assuming resin is automatically necessary.

White Resin vs White Wax Ribbon

Customers sometimes search for white wax ribbon when they simply need economical white thermal transfer printing.

However, white specialty ribbon availability varies by manufacturer.

Depending on the label material, the correct solution may actually be:

White Wax-Resin

or

White Resin

rather than a pure wax formulation.

If the label is black polyester or another durable synthetic, white resin is usually the more relevant category to investigate first.

White Resin Ribbon vs Black Resin Ribbon

The primary difference is the transferred color.

White Resin

Designed to create white images on compatible media.

Black Resin

Designed to create black images.

For example:

White Polyester Label + Black Resin

is a common conventional combination.

Whereas:

Black Polyester Label + White Resin

can be used when a dark label design is required.

The best choice depends on both functional and visual requirements.

Printer Compatibility

White resin ribbons can be available for thermal transfer printer families from manufacturers such as:

• Zebra
• Honeywell
• TSC
• SATO
• Toshiba Tec
• Citizen
• GoDEX
• POSTEK
• CAB
• Argox
• Datamax / Honeywell
• Intermec / Honeywell
• Other thermal transfer printer platforms

This list does not mean one white resin ribbon is universally compatible with all these printers.

The exact printer model must be identified.

Can Zebra Printers Print White on Black Labels?

Compatible thermal transfer Zebra printers may print white using an appropriately specified white thermal transfer ribbon.

Important specifications include:

• Exact Zebra model
• Ribbon width
• Ribbon length
• Ribbon core
• Winding direction
• Label material
• Printhead resolution
• Ribbon formulation

A Zebra direct-thermal-only printer cannot use a thermal transfer ribbon.

Can TSC Printers Print White on Black Labels?

Compatible TSC thermal transfer printers may also use suitable white ribbon configurations.

Again, the exact model matters.

A desktop TSC printer and an industrial TSC printer may require completely different ribbon dimensions.

Can Honeywell Printers Print White?

Compatible Honeywell thermal transfer printers can use white thermal transfer ribbon where an appropriate ribbon configuration exists for the exact printer.

Legacy Datamax and Intermec platforms may also have different winding, core and ribbon-length requirements.

Always provide the complete printer model when requesting a ribbon.

Ribbon Width

White resin ribbon is available in different widths.

Possible requirements may include sizes such as:

• 40mm
• 50mm
• 60mm
• 80mm
• 83mm
• 90mm
• 100mm
• 110mm

Other widths may be available.

Ribbon width should normally cover the required print area while remaining within the printer manufacturer's supported specification.

Ribbon Length

Different printers support different ribbon lengths.

Examples may include:

• 74m
• 110m
• 300m
• 450m
• 600m

These figures are examples rather than universal white-ribbon sizes.

The correct length must be matched to the printer.

Common White Resin Ribbon Size Examples

Depending on printer compatibility and ribbon availability, requirements may include:

60mm × 300m White Resin Ribbon

83mm × 450m White Resin Ribbon

110mm × 300m White Resin Ribbon

110mm × 450m White Resin Ribbon

110mm × 600m White Resin Ribbon

Other custom or standard widths may also be possible.

The dimensions alone do not establish compatibility.

CSI vs CSO

Ribbon winding direction is critical.

CSI – Coated Side In

The transferable coating faces inward on the wound ribbon.

CSO – Coated Side Out

The transferable coating faces outward.

Different thermal transfer printers require different configurations.

Ordering the correct width and length with the wrong coating direction can still result in an unusable ribbon.

How Can You Check the Coated Side?

If the ribbon configuration is unknown, the existing ribbon specification or printer manual is the safest reference.

Ribbon suppliers may also identify the configuration as:

CSI

or

CSO

Do not guess where an exact printer model can be checked.

Ribbon Core

Ribbon cores also vary.

Desktop printers commonly use different core and roll configurations from industrial printers.

Therefore a complete ribbon specification should include:

Color

Formulation

Width

Length

Core

CSI / CSO

Printer Compatibility

Flat-Head vs Near-Edge

Another important technical distinction is the printer's printhead technology.

Flat-Head

Common in many desktop and industrial barcode printers.

Near-Edge

Common in certain high-speed packaging and industrial printing systems.

Ribbon formulations can be designed specifically for one printhead architecture.

A white resin ribbon intended for flat-head printing should not automatically be used in a near-edge system.

Printer Resolution

White resin ribbon can be used with printers of different resolutions where the ribbon is compatible.

Common thermal transfer resolutions include:

• 203 dpi
• 300 dpi
• 600 dpi

Higher resolution can be useful for:

• Small text
• Fine graphics
• Dense barcodes
• Small labels
• Detailed identification

However, resolution alone does not determine print quality.

Ribbon-media compatibility remains important.

How to Choose the Correct White Resin Ribbon

Before requesting a quotation, identify:

Printer Brand

Exact Printer Model

Printer Resolution

Label Width

Label Material

Label Color

Required Ribbon Width

Supported Ribbon Length

Core Size

CSI or CSO

Flat-Head or Near-Edge

Required White Opacity

Text / Barcode / QR / Graphic Requirement

Abrasion Requirement

Chemical Requirement

Outdoor Requirement

Wash Requirement

Required Quantity

These details allow the ribbon to be selected around the actual application.

Recommended Sample-Testing Process

For a new black-label project, a sensible qualification process is:

Step 1 – Identify Printer

Confirm the exact thermal transfer printer model.

Step 2 – Identify Label

Confirm the black label material and surface.

Step 3 – Select Ribbon

Choose a white resin formulation intended for the printer and label type.

Step 4 – Print Actual Artwork

Use the real text, barcode, QR code or graphics.

Step 5 – Inspect White Opacity

Check whether the required visual appearance is achieved.

Step 6 – Test Barcode or QR Code

Use the actual scanning equipment.

Step 7 – Test Durability

Where relevant, evaluate abrasion, moisture, chemicals or other expected exposure.

Step 8 – Approve Production

Proceed with production quantities only after the application is satisfactory.

This approach is especially useful for unusual black-label projects.

Technical Specifications

Product Type: Thermal Transfer Ribbon

Ribbon Color: White

Primary Formulation: Resin

Printing Technology: Thermal Transfer

Typical Media: Compatible Synthetic and Specialty Labels

Typical Label Colors: Black and Dark-Coloured Media

Possible Media: Polyester/PET, PP, PE, PVC, Synthetic Paper and Other Compatible Materials

Print Content: Text, Numbers, Graphics, Logos, Barcodes and QR Codes Subject to Application Compatibility

Ribbon Width: Multiple Widths Available Depending on Requirement

Ribbon Length: Multiple Lengths Available Depending on Printer

Core: Printer Dependent

Winding: CSI or CSO Depending on Printer

Printhead Technology: Flat-Head or Near-Edge Must Be Confirmed

Printer Requirement: Thermal Transfer Capable

Direct Thermal Printer: Ribbon Cannot Be Used

Opacity: Depends on Exact White Resin Formulation and Label

Durability: Depends on Ribbon and Label Combination

Applications

White resin ribbon may be considered for:

• Black polyester labels
• Black synthetic labels
• Dark product labels
• Electronics labels
• Electrical equipment labels
• Asset labels
• Serial-number labels
• Equipment identification
• Machinery labels
• Automotive component labels
• Cosmetics labels
• Premium product labels
• Clear labels
• Industrial identification
• Laboratory identification
• Chemical labels
• Cable labels
• Product traceability
• Variable-data labels

Things to Verify Before Ordering

Exact Printer Brand

Exact Printer Model

Printer Resolution

Thermal Transfer Capability

Flat-Head or Near-Edge

Ribbon Width

Ribbon Length

Core

CSI or CSO

Label Width

Exact Label Material

Label Surface

Label Color

Required White Opacity

Required Barcode Type

QR-Code Requirement

Scanner Compatibility

Required Durability

Chemical Exposure

Abrasion Exposure

Outdoor Exposure

Temperature Conditions

Required Quantity

Sample Requirement

Who Should Consider White Resin Ribbon?

This product category may be suitable where:

• White printing is required on black labels
• White printing is required on dark synthetic media
• A thermal transfer printer is available
• Variable information changes between labels
• Greater durability is required than a general-purpose ribbon may provide
• White serial numbers are required
• White product identification is required
• White barcodes are being evaluated
• Black polyester labels are used
• Specialty industrial labels are required

Who May Need Another Solution?

Another printing technology or ribbon formulation may be preferable where:

• The printer is direct thermal only
• The label material does not accept resin transfer
• Multiple variable colors are required
• Full-color variable images are required
• White opacity cannot meet the application's requirements
• Barcode verification fails
• Specialized regulatory requirements apply
• The environment exceeds the tested ribbon-label performance

The correct objective is a reliable finished label, not simply using a particular ribbon chemistry.

FAQ - White Resin Ribbon

Q: What is a white resin ribbon?

A: A white resin ribbon is a thermal transfer consumable containing a white resin-based coating that a compatible thermal printhead transfers onto suitable label material.

Q: Can white resin ribbon print on black labels?

A: Yes. Printing white information on compatible black and dark labels is one of its important applications.

Q: What is the best ribbon for printing white on black polyester labels?

A: A compatible high-opacity white resin formulation is often a strong candidate, but the exact ribbon should be matched to the polyester surface and printer. Sample testing is preferable to selecting by ribbon color alone.

Q: Can white resin ribbon print barcodes?

A: Yes, it can physically print barcode patterns. Machine readability depends on barcode construction, contrast, label surface, white opacity and scanner capability, so testing is recommended.

Q: Can I print white QR codes on black labels?

A: White resin ribbon can produce the printed pattern, but a white-on-black QR code is an inverted symbol. Test it with the actual scanners, cameras or applications that will be used.

Q: Why does my white ribbon look grey on a black label?

A: The ribbon may have insufficient opacity for the substrate, or the ribbon, label and printer settings may not be properly matched.

Q: Is white resin ribbon waterproof?

A: It should not automatically be described as waterproof. Moisture resistance depends on the exact ribbon, label face material, adhesive and exposure conditions.

Q: Is white resin ribbon chemical resistant?

A: Some resin formulations provide strong resistance to particular chemicals, but performance varies. The exact formulation and label combination should be checked against the chemicals involved.

Q: Can I use white resin ribbon in a Zebra printer?

A: Compatible Zebra thermal transfer models may use white resin ribbon when the dimensions, core, winding and formulation are suitable for the exact model.

Q: Does white ribbon work in a direct thermal printer?

A: No. A ribbon requires a thermal transfer printer.

Q: What is CSI and CSO?

A: CSI means Coated Side In and CSO means Coated Side Out. They describe which direction the transferable ribbon coating faces on the roll.

Q: Should the ribbon be wider than the label?

A: The ribbon should adequately cover the required print area while remaining within the printer manufacturer's ribbon specifications. The appropriate width depends on the label and printer.

Q: Can white resin ribbon be used outdoors?

A: Outdoor suitability depends on the entire ribbon-label-adhesive combination and expected environmental exposure. Resin ribbon alone does not make a label suitable for outdoor use.

Q: Should I request a sample before ordering a large quantity?

A: For a new white-on-black application, sample testing with the actual printer, label and artwork is strongly recommended.

Related Products

White Barcode Ribbon for Black & Dark Labels

White Wax-Resin Thermal Transfer Ribbon

White Washable Resin Ribbon for Textile Labels

Black Resin Thermal Transfer Ribbon

Black Wax-Resin Ribbon

Black Wax Barcode Ribbon

Colored Thermal Transfer Ribbons

Black Polyester Labels

Black Synthetic Barcode Labels

Transparent Synthetic Labels

Thermal Transfer Barcode Printers

Helpful Internal Links

NEOTECH® UAE

https://www.neotech.ae/

Why NEOTECH® UAE?

For white-on-black thermal transfer printing, the question should not simply be:

“Do you have white resin ribbon?”

A more useful question is:

“Which white ribbon will work with my printer, black label material and required application?”

The answer depends on the complete combination of:

Printer + Printhead + Ribbon + Label + Artwork + Environment

For this reason, NEOTECH® encourages customers to provide their exact printer model and label details before selecting a white resin ribbon.

For new applications, testing a sample can also help confirm white opacity, adhesion, print definition and barcode readability before larger quantities are ordered.

Learn First. Decide Second. Buy Only If It Is Right for Your Needs.

The NEOTECH® Learning Center is free and open to everyone. You do not need to be a NEOTECH® customer to access or benefit from our educational content. Learn at your own pace, explore the information freely, and make informed decisions based on your own needs. There is no obligation or pressure to purchase from NEOTECH®.

There is no obligation or pressure to purchase. Customers are encouraged to verify the exact printer model, ribbon dimensions, core, CSI or CSO winding, printhead technology, black label material, white opacity, barcode readability and durability requirements before ordering.

Delivery – UAE

NEOTECH® supports white resin thermal transfer ribbon requirements within the United Arab Emirates.

Different printer models and label materials can require different ribbon widths, lengths, cores, winding directions and resin formulations.

Exact specifications, required quantity, availability and lead time should therefore be confirmed before ordering.

For specialized white-on-black applications, sample testing may be recommended before production quantities are supplied.

Contact NEOTECH® UAE

Website: https://www.neotech.ae/

Email: support@neotech.ae

Address: Store 13, Computer Bldg, Al Fahidi, Bur Dubai, Dubai 44245, United Arab Emirates

Disclaimer - NEOTECH® UAE

White resin ribbon performance depends on the exact printer, ribbon formulation, label material, printer settings and operating environment.

The terms resin, high-opacity, chemical resistant, abrasion resistant, outdoor suitable, waterproof and washable should not be assumed to apply universally to every white resin ribbon.

Barcode and QR-code readability must be evaluated using the actual finished label and intended scanning equipment, particularly when using reversed white-on-black symbols.

Where resistance to chemicals, abrasion, washing, temperature or outdoor exposure is important, customers should verify documented performance for the specific ribbon-label combination and conduct application testing where appropriate.

Last Updated: 03 September 2026  (GST, UTC+4)
