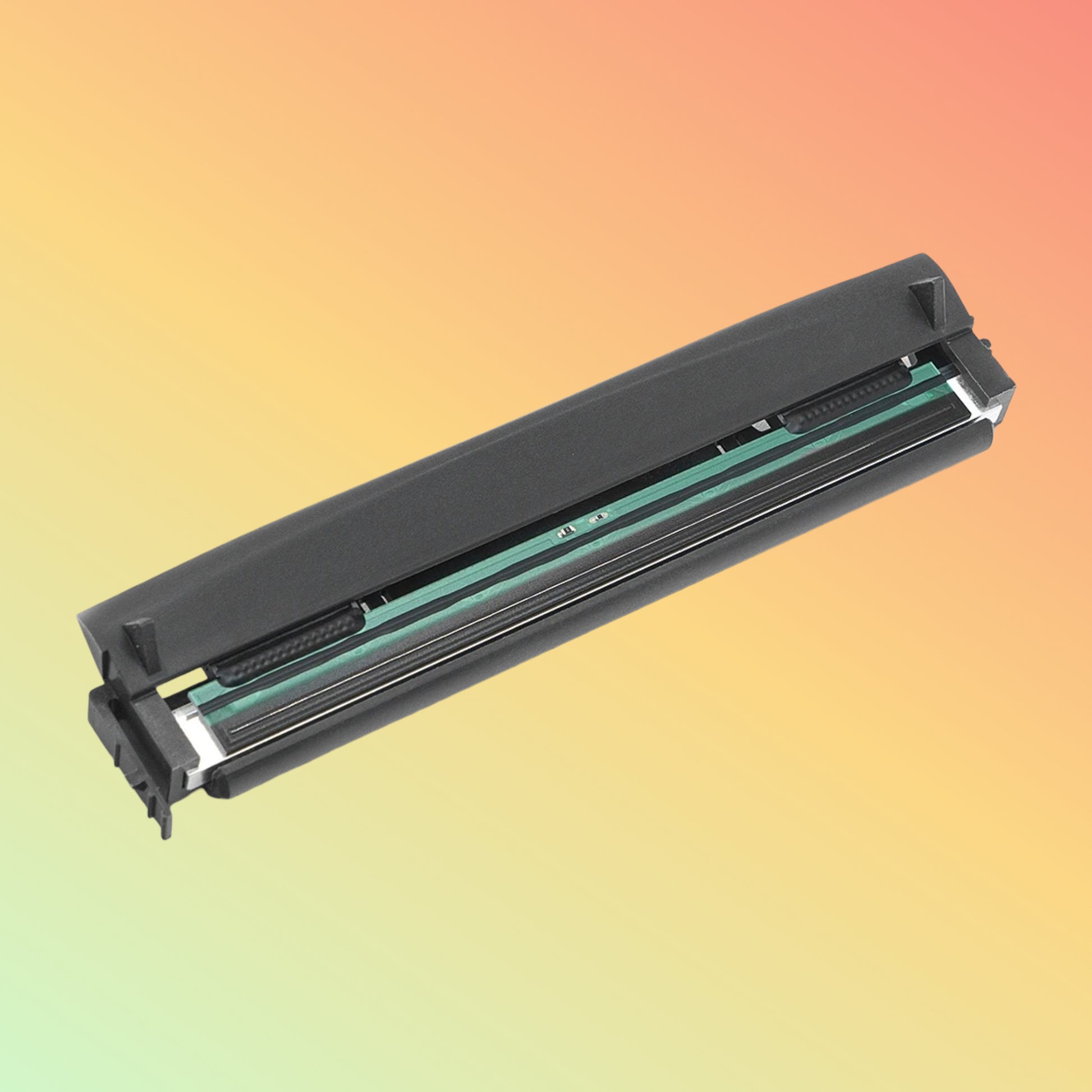

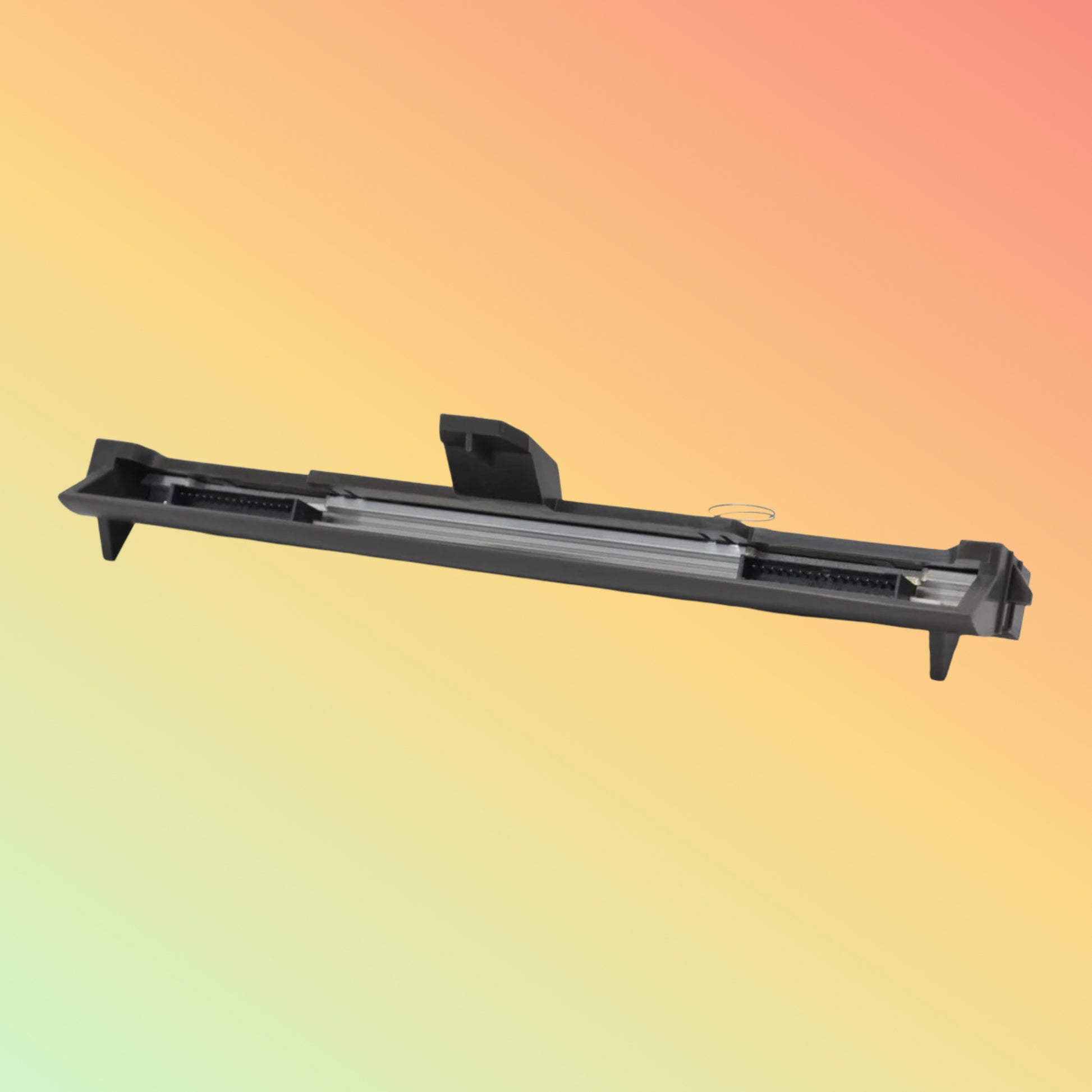

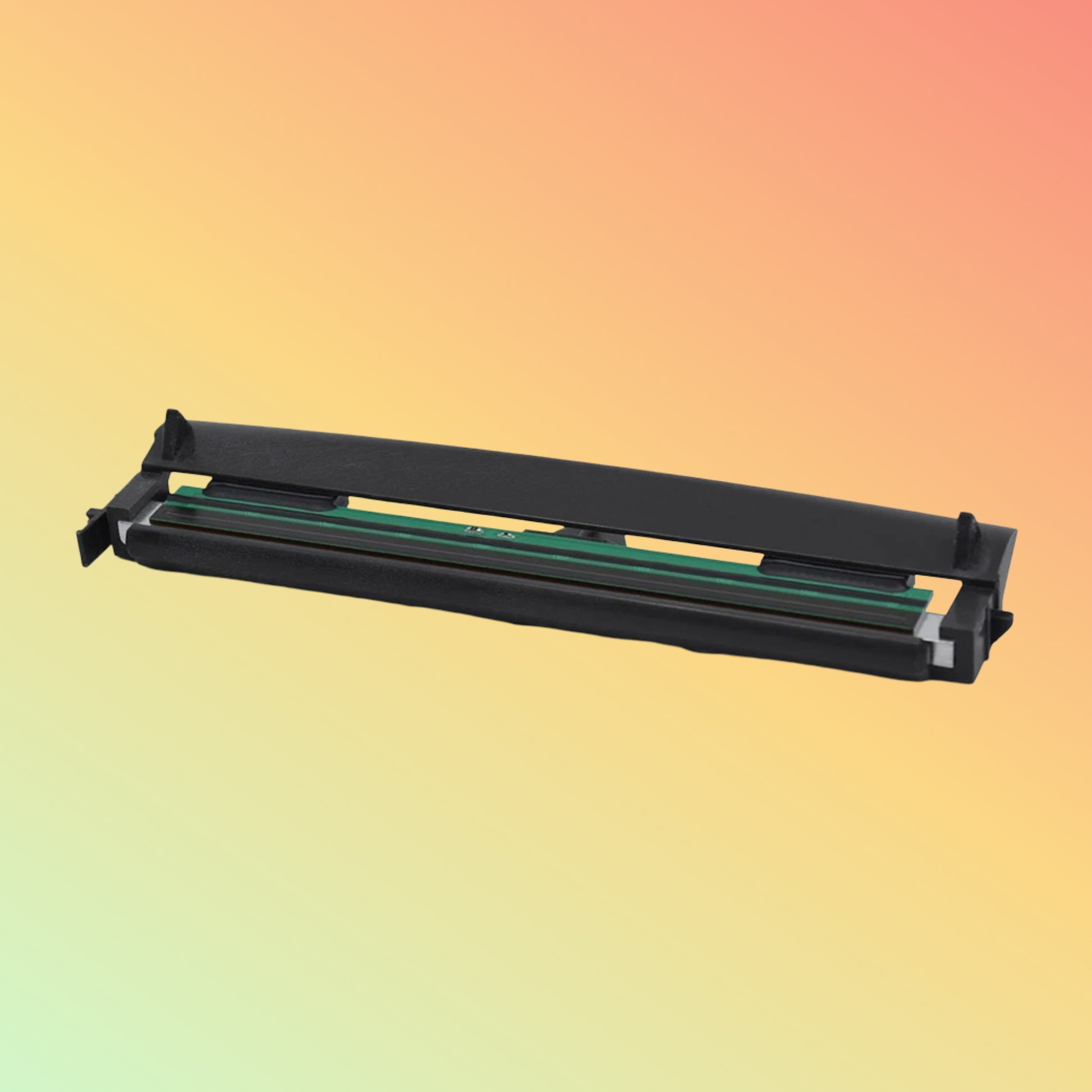

Replacement 300 dpi thermal printhead for compatible Zebra ZD621T and ZD621R desktop label printers. Verify the exact printer model, resolution and part number before ordering.

The Zebra P1112640-241 is a 300 dpi replacement printhead for compatible Zebra ZD621 thermal-transfer printer configurations, including ZD621T and ZD621R models where the 300 dpi printhead is specified.

Zebra’s current spare-parts documentation identifies P1112640-241 as the 300 dpi printhead for the ZD621 Thermal Transfer platform.

Because Zebra ZD621 printers are available in different print-resolution configurations, customers should confirm the exact printer model, installed DPI and existing printhead part number before ordering.

Key Features

• Zebra replacement thermal printhead
• Part number P1112640-241
• 300 dpi print resolution
• Designed for compatible ZD621 Thermal Transfer configurations
• Suitable for ZD621T where 300 dpi is specified
• Suitable for compatible ZD621R 300 dpi configurations
• Intended for barcode and label printing
• Supports compatible thermal-transfer and direct-thermal workflows according to printer configuration
• Exact fit depends on printer model and installed resolution
• Replacement component for printer maintenance

Exact Product Identification

Brand: Zebra Technologies

Part Number: P1112640-241

Product Type: Replacement Printhead

Print Resolution: 300 dpi

Primary Compatibility: Zebra ZD621 Thermal Transfer platform

Compatible Models: ZD621T / ZD621R where the 300 dpi printhead is specified

Zebra’s parts catalog lists the corresponding ZD621 Thermal Transfer printheads as:

203 dpi Printhead: P1112640-240

300 dpi Printhead: P1112640-241

Why the Exact Part Number Matters

Printheads should be selected by more than printer-family name.

A Zebra ZD621 may be configured for different print resolutions, and the 203 dpi and 300 dpi printheads use different part numbers.

For the applicable ZD621 Thermal Transfer platform:

203 dpi: P1112640-240

300 dpi: P1112640-241

A customer requiring a 300 dpi replacement should therefore verify that the installed printer is actually a 300 dpi configuration before ordering P1112640-241.

What Does 300 DPI Mean?

DPI means dots per inch.

A 300 dpi printhead provides more printing dots per inch than a 203 dpi printhead.

This can be useful where the application requires finer detail, such as:

• Small text
• Compact barcode labels
• High-density barcodes
• Detailed graphics
• Small product labels
• Asset identification
• Electronics labels
• Healthcare identification labels
• Other applications where finer printed detail is required

Higher resolution is not automatically necessary for every application.

The printer, software, label size and barcode requirements should determine whether 300 dpi is appropriate.

ZD621T Compatibility

The Zebra ZD621T is a thermal-transfer desktop label printer.

For compatible 300 dpi ZD621T configurations, Zebra identifies P1112640-241 as the replacement printhead in its current spare-parts documentation.

Customers should still check:

• Exact printer model
• Installed DPI
• Existing printhead part number
• Printer configuration label
• Serial/model information

before ordering.

ZD621R Compatibility

The ZD621R is part of Zebra’s RFID-capable desktop printer family.

Where the specific ZD621R configuration uses the same compatible 300 dpi thermal-transfer print mechanism, P1112640-241 may be the applicable replacement printhead.

Because RFID printer configurations can vary, customers should verify the exact ZD621R model and installed resolution before ordering.

203 DPI vs 300 DPI

This distinction is critical.

203 DPI

Part Number: P1112640-240

Suitable for compatible 203 dpi ZD621 Thermal Transfer configurations.

300 DPI

Part Number: P1112640-241

Suitable for compatible 300 dpi ZD621 Thermal Transfer configurations.

These are different replacement parts and should not be treated as interchangeable.

Thermal Transfer Printing

The ZD621T platform supports thermal-transfer printing.

Thermal-transfer printing uses a ribbon between the printhead and label material.

Heat from the printhead transfers ribbon material onto the label surface.

This method can be useful for applications requiring:

• Durable labels
• Different label materials
• Longer-lasting printed information
• Resin, wax or wax/resin ribbon combinations
• Product identification
• Barcode labeling

The correct ribbon and label combination should be selected according to the application.

Direct Thermal Printing

Compatible ZD621 thermal-transfer printers may also support direct-thermal printing.

Direct thermal printing uses heat-sensitive labels and does not normally require a ribbon.

Whether direct thermal or thermal transfer is appropriate depends on:

• Required label lifespan
• Environmental exposure
• Label material
• Temperature
• Light exposure
• Chemical exposure
• Storage conditions

When Might a Printhead Need Replacement?

Possible signs of printhead wear or damage can include:

• Persistent white vertical lines
• Missing barcode elements
• Incomplete text
• Uneven print density
• Repeated print defects in the same location
• Poor print quality that remains after proper cleaning
• Physical printhead damage

These symptoms can indicate a worn printhead, but other printer components should also be checked.

Poor Print Quality Does Not Always Mean a Failed Printhead

Before replacing the printhead, check:

• Printhead cleanliness
• Ribbon quality
• Ribbon compatibility
• Label material
• Print darkness
• Print speed
• Platen roller condition
• Media alignment
• Printer calibration
• Software settings
• Printhead pressure
• Contamination in the media path

Replacing the printhead may not solve the problem if the fault originates elsewhere.

Printhead Cleaning

Proper cleaning can help maintain print quality and service life.

General precautions include:

• Power off the printer before maintenance where appropriate
• Allow the printhead to cool
• Avoid touching the print line with fingers
• Remove ribbon and media carefully
• Use suitable printhead-cleaning materials
• Do not use sharp objects
• Keep adhesive and paper dust away from the printhead
• Follow Zebra’s maintenance instructions for the exact printer

Installation Considerations

Printhead replacement should be treated as a printer-maintenance procedure.

A general process may involve:

1. Power off the printer.
2. Disconnect power where appropriate.
3. Allow the printhead to cool.
4. Open the print mechanism.
5. Remove the ribbon and media if required.
6. Release the existing printhead according to the printer service procedure.
7. Disconnect the printhead carefully.
8. Install the correct P1112640-241 replacement.
9. Reconnect and secure the assembly.
10. Reload media and ribbon.
11. Power on the printer.
12. Perform a test print.
13. Confirm print quality and barcode readability.

This is general guidance only. Follow the applicable Zebra service procedure for the exact printer.

Technical Specifications

Brand: Zebra Technologies

Part Number: P1112640-241

Product Type: Thermal Printhead / Replacement Printhead

Resolution: 300 dpi

Primary Printer Platform: Zebra ZD621 Thermal Transfer

Compatible Printer Families: ZD621T / compatible ZD621R 300 dpi configurations

Printing Technology: Thermal Transfer / Direct Thermal depending on printer configuration

Replacement Type: Printer maintenance component

Applications

The printhead may be relevant for compatible Zebra ZD621 printers used for:

• Barcode labels
• Product labels
• Inventory labels
• Asset labels
• Healthcare labels
• Electronics labels
• Retail labels
• Logistics labels
• Shipping labels
• Manufacturing labels
• RFID label printing on compatible ZD621R systems

The exact application depends on the printer configuration, media and software.

Industries

Compatible Zebra ZD621 printers may be used in:

• Retail
• Healthcare
• Manufacturing
• Warehousing
• Logistics
• Electronics
• Transportation
• Asset management
• Inventory control
• Supply chain operations

Printhead suitability should be based on the printer configuration and application rather than industry name alone.

Print Quality Depends on the Complete Printing System

A replacement printhead is only one part of the printing system.

Final output quality also depends on:

• Printer resolution
• Ribbon
• Label material
• Print speed
• Darkness setting
• Platen roller
• Printer calibration
• Media cleanliness
• Label design
• Barcode size
• Software configuration

For barcode applications, printed output should be tested with the actual scanner or verification workflow.

Things to Verify Before Ordering

Brand: Zebra

Part Number: P1112640-241

Printer Model: ZD621T or compatible ZD621R

Required Resolution: 300 dpi

Existing Printhead Part Number

Printer Configuration

Printer Serial Number

Thermal Transfer / Direct Thermal Requirement

Ribbon Type

Label Material

Print Width

Current Printer Fault

Platen Roller Condition

Required Quantity

Current Availability

Do not order solely from the description “ZD621 printhead.”

The exact resolution must be confirmed.

Who Should Consider This Printhead?

P1112640-241 may be appropriate where:

• The printer is a compatible Zebra ZD621T or ZD621R
• The printer uses 300 dpi resolution
• The existing printhead requires replacement
• P1112640-241 has been confirmed as the correct part
• The rest of the printer is operational
• Printhead replacement is commercially sensible

Who May Need Another Part?

This product may not be appropriate where:

• The printer is a 203 dpi ZD621
• The existing printhead is P1112640-240
• The printer is another Zebra family
• Poor output is caused by the platen roller
• Ribbon or label material is unsuitable
• The printhead only requires cleaning
• Printer calibration is incorrect
• Another mechanical or electronic fault is present

Correct fault identification can help avoid unnecessary spare-part purchases.

FAQ - Zebra P1112640-241

Q: What is Zebra P1112640-241?
A: It is the 300 dpi replacement printhead identified by Zebra for compatible ZD621 Thermal Transfer printer configurations.

Q: Is P1112640-241 a 300 dpi printhead?
A: Yes. Zebra’s current spare-parts catalog identifies P1112640-241 as the 300 dpi printhead.

Q: Is P1112640-241 compatible with ZD621T?
A: Yes, for compatible ZD621T 300 dpi configurations. The exact printer resolution should be verified before ordering.

Q: Is P1112640-241 compatible with ZD621R?
A: It may be applicable to compatible ZD621R 300 dpi configurations using the corresponding thermal-transfer print mechanism. Verify the exact model and installed resolution before ordering.

Q: What is the 203 dpi version?
A: Zebra identifies P1112640-240 as the corresponding 203 dpi printhead for the ZD621 Thermal Transfer platform.

Q: Can a 300 dpi printhead replace a 203 dpi printhead?
A: This should not be assumed. The printer must be configured for the correct resolution and replacement part. Use the part specified for the exact printer.

Q: Does replacing the printhead guarantee better print quality?
A: No. Print quality also depends on ribbon, labels, printer settings, platen condition, calibration and cleanliness.

Q: Is this part suitable for RFID printing?
A: P1112640-241 can be relevant to compatible ZD621R 300 dpi configurations, but the exact RFID printer model and print mechanism should be verified before ordering.

Q: Is P1112640-241 the same as P1112640-240?
A: No. P1112640-240 is the 203 dpi version, while P1112640-241 is the 300 dpi version.

Related Products

Zebra P1112640-240 203 DPI Printhead

Zebra ZD621T Printer Parts

Zebra ZD621R Printer Parts

Zebra P1112640-252 300 DPI Platen Roller

Thermal Transfer Ribbons

Direct Thermal Labels

Barcode Labels

RFID Labels

Printhead Cleaning Supplies

Helpful Internal Links

NEOTECH® UAE
https://www.neotech.ae/

Why NEOTECH® UAE?

NEOTECH® encourages customers to identify the exact printer model, print resolution and manufacturer part number before ordering printer spare parts.

For Zebra ZD621 printers, this is particularly important because 203 dpi and 300 dpi printheads use different part numbers.

Learn First. Decide Second. Buy Only If It Is Right for Your Needs.

The NEOTECH® Learning Center is free and open to everyone. You do not need to be a NEOTECH® customer to access or benefit from our educational content. Learn at your own pace, explore the information freely, and make informed decisions based on your own needs. There is no obligation or pressure to purchase from NEOTECH®.

There is no obligation or pressure to purchase. Customers are encouraged to verify the exact printer model, installed DPI, existing printhead part number, media and printer compatibility before ordering.

Delivery – UAE

NEOTECH® supports product requirements within the United Arab Emirates.

Availability, exact product condition, quantity and lead time should be confirmed before ordering.

Contact NEOTECH® UAE

Website: https://www.neotech.ae/

Email: support@neotech.ae

Address: Store 13, Computer Bldg, Al Fahidi, Bur Dubai, Dubai 44245, United Arab Emirates

Disclaimer - NEOTECH® UAE

Zebra, ZD621T, ZD621R and associated product names and part numbers are trademarks or product identifiers of their respective owner.

Product information on this page is provided for educational, product-identification and procurement-support purposes.

Compatibility should be verified using the exact printer model, installed resolution and existing part number before ordering. References to P1112640-241 identify the Zebra 300 dpi replacement printhead listed for compatible ZD621 Thermal Transfer configurations. Product condition, packaging, availability and warranty may vary according to the supplied item and source.

Last Updated: 30 August 2026  (GST, UTC+4)
