AI-based multidirectional network camera with four 5 MP sensors, 360° overview, Lightfinder 2.0, Forensic WDR and AXIS Q60 PTZ integration

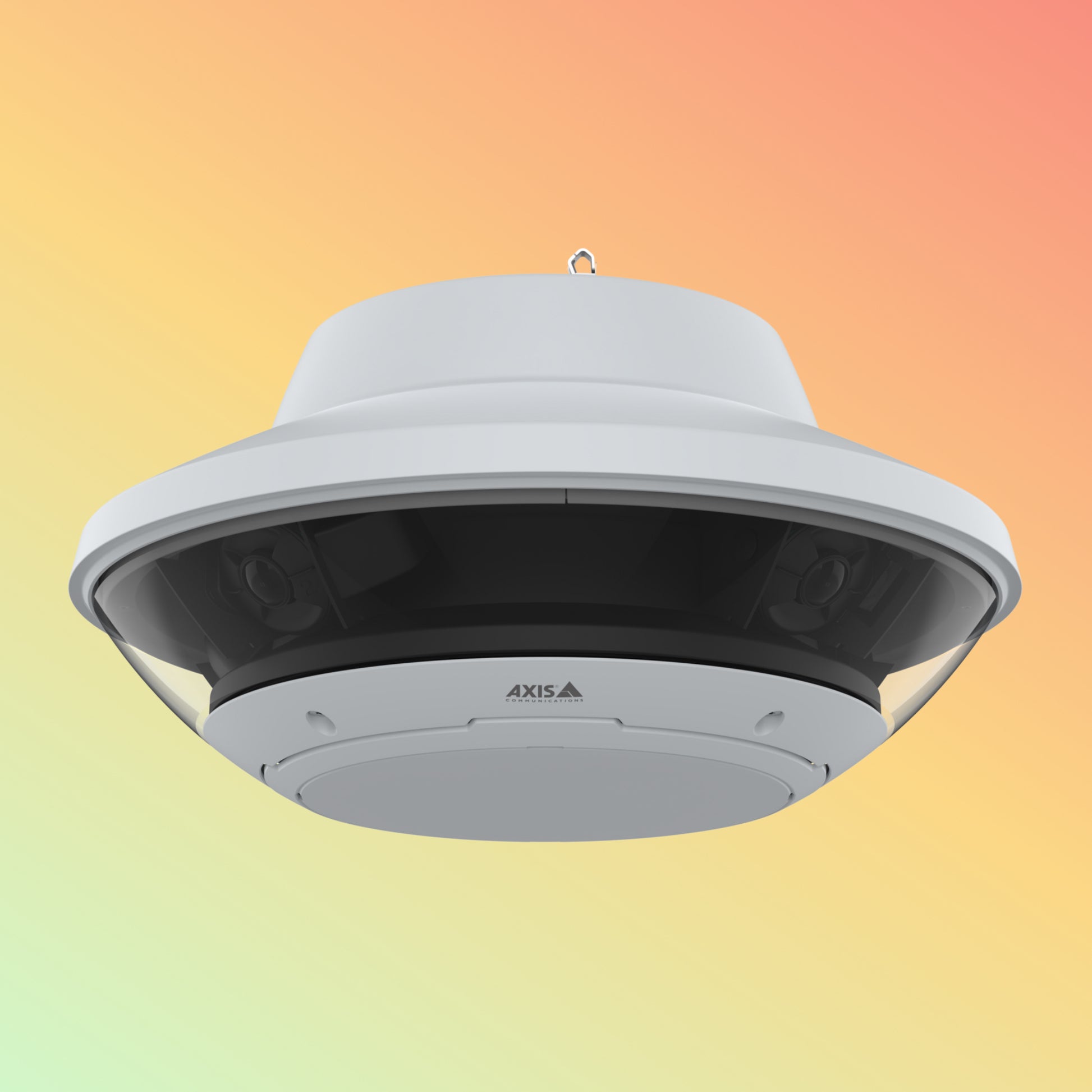

360° Situational Overview with Optional PTZ Detail The AXIS Q6020-E Panoramic Camera is an outdoor-ready multidirectional network camera built around four 5 MP image sensors to provide a full 360° overview.

Axis designed the Q6020-E specifically for use with compatible AXIS Q60 PTZ cameras, allowing operators to combine panoramic situational awareness with PTZ zoomed-in detail in the same surveillance solution.

The camera also incorporates:

• Four 1/2-inch image sensors
• 3.7 mm fixed lenses
• 360° overall horizontal coverage
• 108.4° horizontal field of view per sensor
• 84° vertical field of view
• Up to 30 fps
• Lightfinder 2.0
• Forensic WDR
• Axis Zipstream
• Deep learning processing
• Autofocus
• Auto-alignment with compatible PTZ setup
• Axis Edge Vault
• Outdoor-ready IP66 / IK10 housing

4 × 5 MP Multidirectional Imaging

The Q6020-E uses:

Image Sensors: 4 × 1/2-inch progressive-scan RGB CMOS
Maximum Resolution per Sensor: 2592 × 1944
Default Resolution: 2592 × 1944
Maximum Frame Rate: Up to 30 fps across supported resolutions
Pixel Size: 2.9 µm

The four independent sensors together provide panoramic coverage while preserving separate high-resolution views.

This architecture is useful where operators want to maintain continuous overview coverage instead of relying only on a moving PTZ camera.

360° Horizontal Coverage

The standard lens configuration uses:

Lens: 3.7 mm
Aperture: F2.0
Horizontal FOV: 360° overall
Horizontal FOV per sensor: 108.4°
Vertical FOV: 84°
Minimum Focus Distance: 1.0 m
Lens Mount: M14
Iris: Fixed
Focus: Autofocus

The individual camera heads can also be mechanically adjusted within defined pan, tilt and rotation ranges to fit the installation geometry.

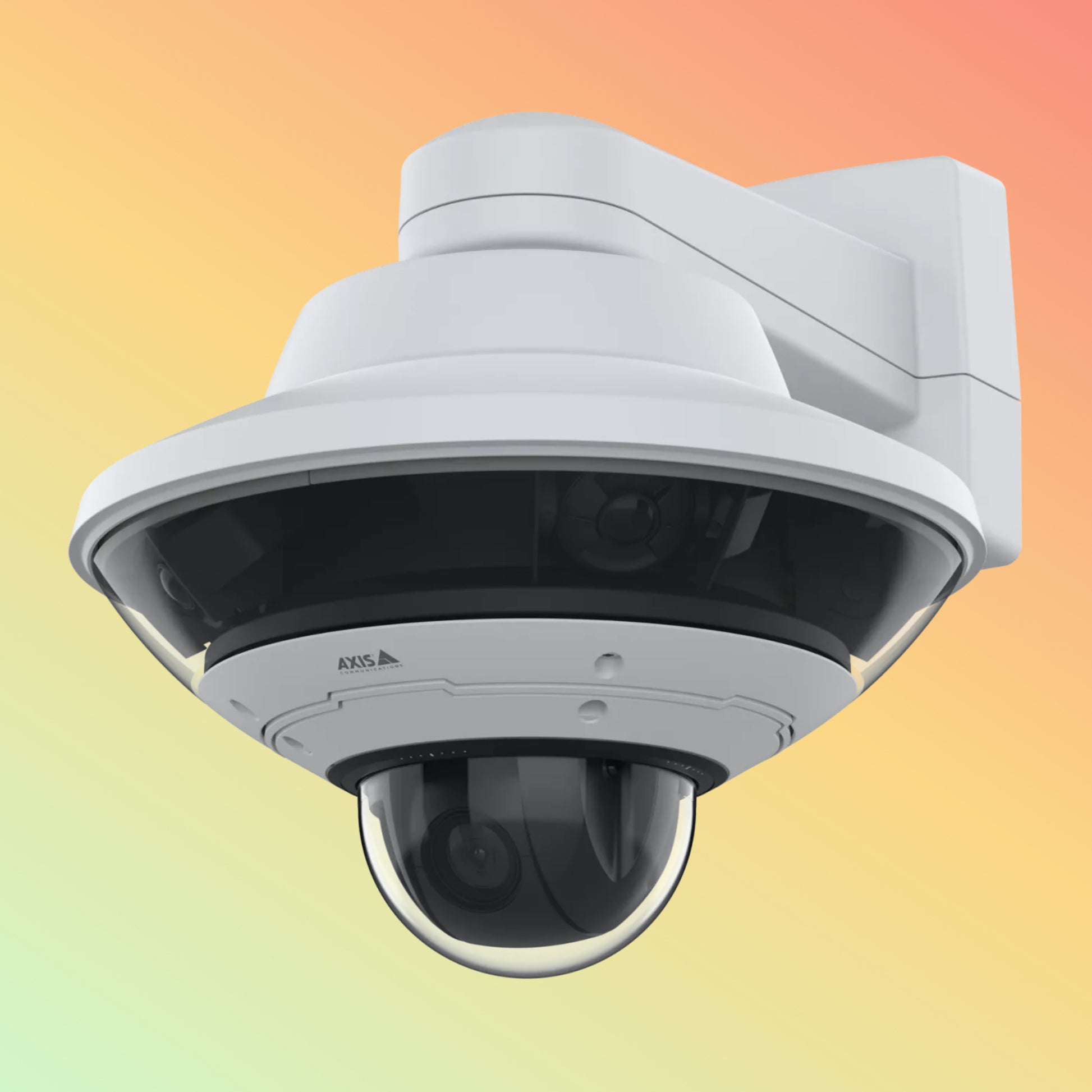

Designed for AXIS Q60 PTZ Integration

The Q6020-E is specifically designed for operation with the AXIS Q60 PTZ Camera Series.

This creates a two-layer surveillance approach:

Q6020-E: continuous 360° overview
Compatible Q60 PTZ: zoomed-in detail and active tracking

Axis states that users can move from overview to detailed PTZ views with one click when the devices are combined appropriately.

The panoramic camera should therefore not be described as having optical zoom itself.

Autopilot with Compatible Q60 PTZ

Axis’s Autopilot function can use object detection from the panoramic Q6020-E to redirect a compatible Q60 PTZ toward a moving target.

The PTZ can then provide a closer view and track the object.

This can help reduce operator workload where wide-area overview and detailed follow-up views are both required.

Actual tracking and identification performance depends on the PTZ model, scene, object characteristics, installation geometry and configuration.

Deep Learning Processing Unit

The Q6020-E includes a deep learning processing unit (DLPU) for running advanced analytics at the edge.

Axis lists:

System-on-Chip: 2 × ARTPEC-8
Memory: 8 GB RAM
Flash: 8 GB
Compute: Deep Learning Processing Unit

Edge processing allows selected analytics to run directly on the camera rather than depending exclusively on a centralized server.

Image Quality in Challenging Light

The camera includes:

Lightfinder 2.0

Supports usable color imaging in low-light environments.

Forensic WDR

Axis specifies Forensic WDR of up to 120 dB depending on the scene, intended to preserve detail where bright and dark areas appear at the same time.

Minimum Illumination

Color: 0.06 lux at 50 IRE, F2.0
Black & White: 0.03 lux at 50 IRE, F2.0

The camera uses an automatic IR-cut filter for day/night operation.

Video Compression & Streaming

Supported compression formats include:

• H.264 Baseline
• H.264 Main
• H.264 High
• H.265 Main Profile
• Motion JPEG

Axis also includes Zipstream technology for H.264 and H.265.

The Q6020-E supports up to 20 unique and configurable video streams, depending on configuration.

Bandwidth and storage requirements depend on resolution, frame rate, scene complexity, compression configuration and retention requirements.

Autofocus & Auto-Alignment

The Q6020-E supports autofocus.

When used as part of the intended Axis panoramic/PTZ solution, auto-alignment functionality can help align the camera sensors with the connected PTZ camera without requiring all fine-tuning to be done manually.

This can simplify commissioning where the panoramic and PTZ cameras are installed together.

Wi-Fi-Assisted Installation

The camera includes a USB port that can be used with a compatible Wi-Fi dongle during installation.

Axis describes this as allowing installers to view the camera image locally while adjusting the camera on site.

This is an installation aid and should not be interpreted as built-in Wi-Fi networking for normal camera operation.

Cybersecurity with Axis Edge Vault

The Q6020-E incorporates Axis Edge Vault, Axis’s hardware-based cybersecurity platform.

Axis also lists:

• Signed OS
• Secure Boot

for the camera.

Cybersecurity should still be managed at system level through secure credentials, firmware management, network design, access controls and other appropriate policies.

Outdoor & Environmental Protection

Axis currently lists the Q6020-E as:

Outdoor Ready: Yes
IP Rating: IP66
Vandal Rating: IK10
Operating Temperature: -50°C to 55°C

This makes it relevant for outdoor surveillance installations requiring environmental and impact protection.

The manufacturer's environmental ratings should still be respected during installation.

Camera Adjustment

Axis documents mechanical adjustment ranges of:

Pan: ±180°
Tilt: -40° to +75°
Rotation: ±95°

These adjustments help orient the individual sensor views during installation.

Audio

The Q6020-E supports audio functionality through:

• Speaker pairing
• Portcast technology

according to Axis documentation.

Audio deployment should always comply with applicable surveillance and privacy requirements.

Local Storage

Axis lists a memory card slot for local storage.

Storage capacity and recording duration depend on the chosen card, stream configuration, frame rate, resolution and event/continuous recording strategy.

A memory card should not be assumed to be included unless explicitly stated with the supplied unit.

Applications

The AXIS Q6020-E may be considered for wide-area surveillance applications such as:

• Large commercial premises
• Industrial sites
• Logistics yards
• Transportation environments
• Parking areas
• Campus environments
• Public spaces
• Warehouse exteriors
• Building perimeters
• Sites requiring simultaneous overview and PTZ detail

Suitability depends on required coverage, identification distance, lighting, analytics, PTZ integration and network architecture.

Why Combine Panoramic + PTZ?

A panoramic camera and a PTZ camera perform different jobs.

The panoramic camera provides continuous wide-area awareness.

The PTZ camera can provide closer, directional observation.

By combining the Q6020-E with a compatible Q60 PTZ, users can retain overview coverage while investigating selected activity in greater detail.

That is a stronger use case than depending on a PTZ alone, because a PTZ cannot look in every direction simultaneously.

Buyer Guidance

Before selecting the Q6020-E, confirm:

• Need for 360° overview
• Whether PTZ zoomed detail is required
• Compatible AXIS Q60 PTZ model
• Installation height
• Required coverage radius
• Identification requirements
• Lighting conditions
• Network bandwidth
• VMS compatibility
• Edge-storage needs
• Analytics requirements
• Power and network infrastructure
• Outdoor environmental conditions
• Mounting hardware

For surveillance projects, camera selection should be based on the complete scene and objective rather than resolution alone.

Why Choose NEOTECH® UAE

✔ Exact model-focused product information
✔ UAE-based supply through NEOLYN TECHNOLOGY LLC
✔ Compatibility-focused buyer guidance
✔ Transparent availability communication
✔ Clear UAE shipping and return policies
✔ No unsupported Axis authorization claims

Our approach is to help customers understand whether the product fits the intended application before purchase.

Learn First. Decide Second. Buy Only If It Is Right for Your Needs.

NEOTECH® Learning Center

NEOTECH® Learning Center is free and open to everyone. You do not need to be a NEOTECH® customer to access or benefit from our educational content.

Learn at your own pace, explore the information freely, and make informed decisions based on your own needs. There is no obligation or pressure to purchase from NEOTECH®.

FAQ - AXIS Q6020-E

Q: How many cameras are inside the AXIS Q6020-E?
A: The Q6020-E uses four 5 MP sensor modules, each based on a 1/2-inch progressive-scan CMOS sensor. Together they provide a 360° panoramic overview.

Q: Does the AXIS Q6020-E have optical zoom?
A: The panoramic Q6020-E itself uses fixed lenses and does not provide optical zoom. It is specifically designed to work with compatible AXIS Q60 PTZ cameras when zoomed-in detail is required.

Q: Can the AXIS Q6020-E automatically direct a PTZ camera toward moving objects?
A: Yes, Axis documents Autopilot functionality for the Q6020-E when used with compatible AXIS Q60 PTZ cameras. Object detection from the panoramic camera can be used to redirect and track with the PTZ.
