6-Inch Two-Color Industrial Label Printing for GHS-Compliant Chemical Labeling

NEOTECH® UAE – Industrial Two-Color Label Printing Solutions

Overview

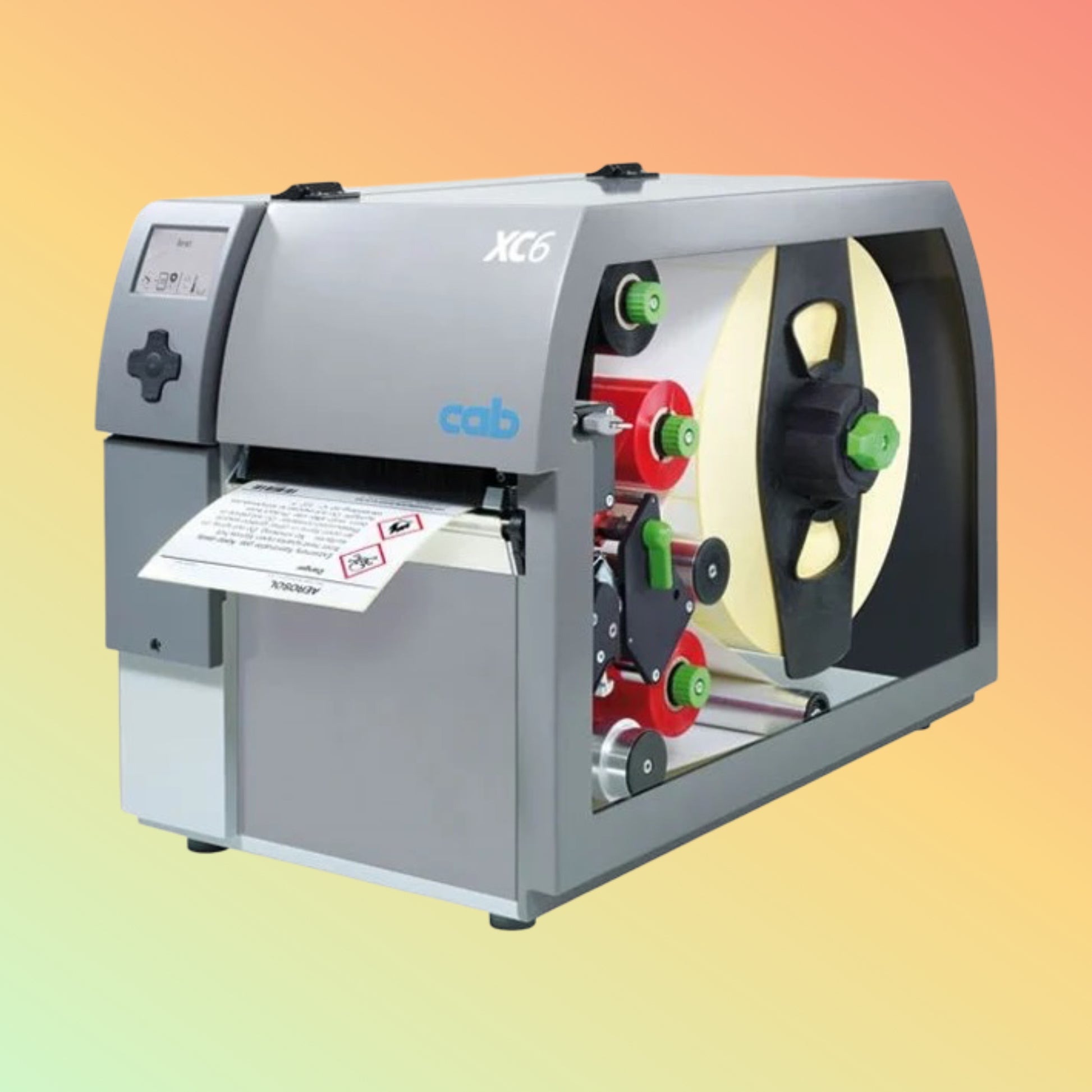

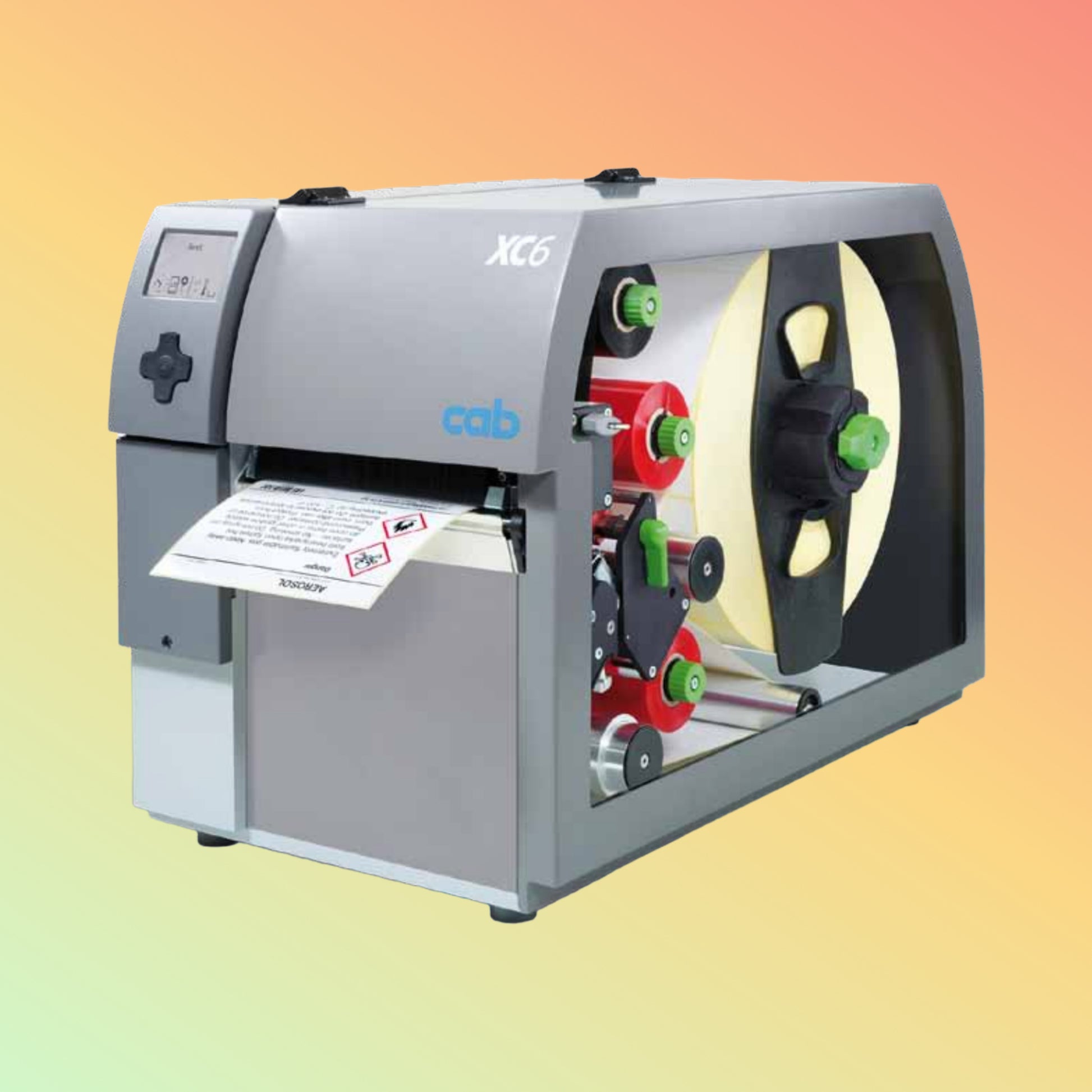

The CAB XC6 two-colour label printer is a 6-inch industrial thermal transfer printer designed for applications requiring simultaneous two-color printing, such as GHS-compliant chemical labeling.

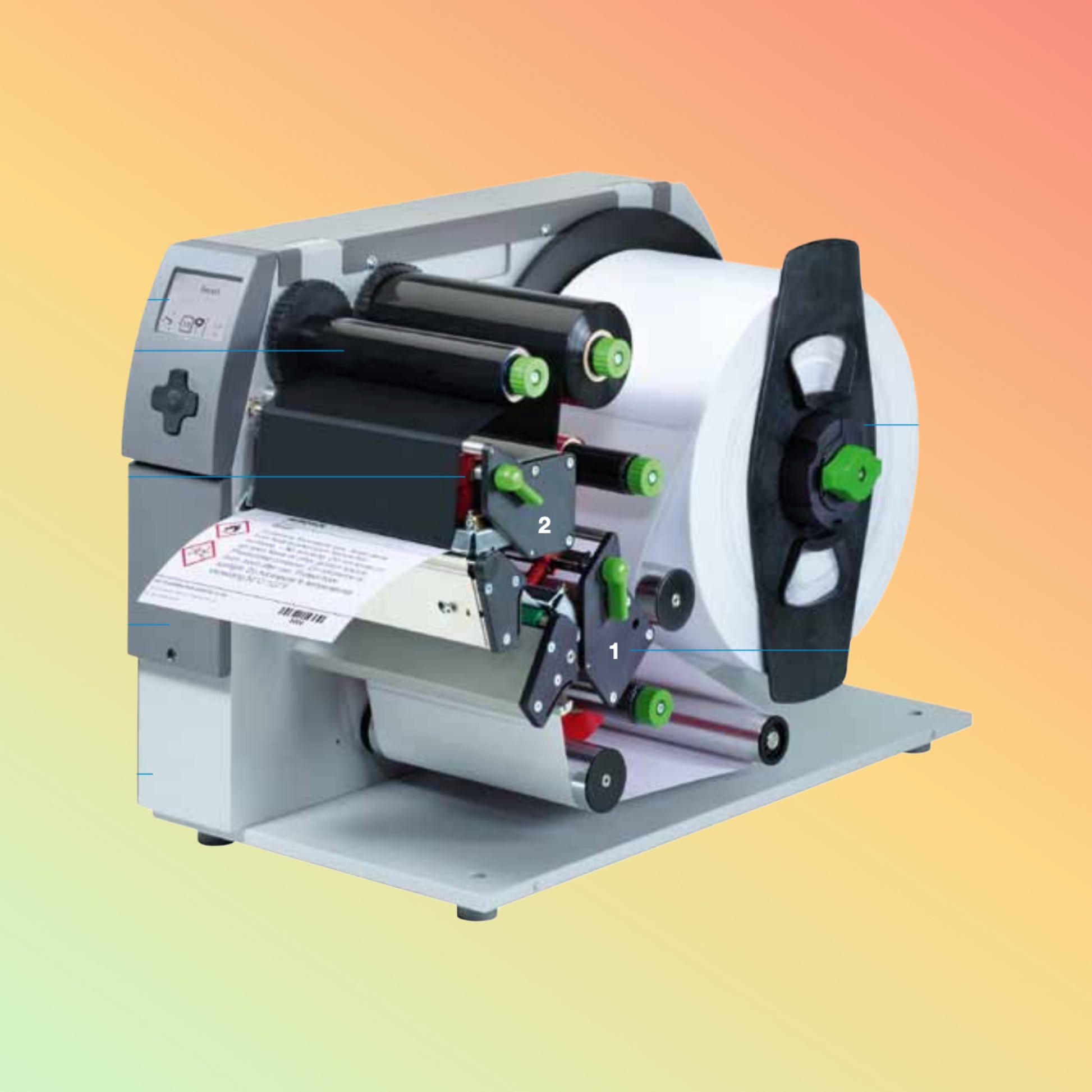

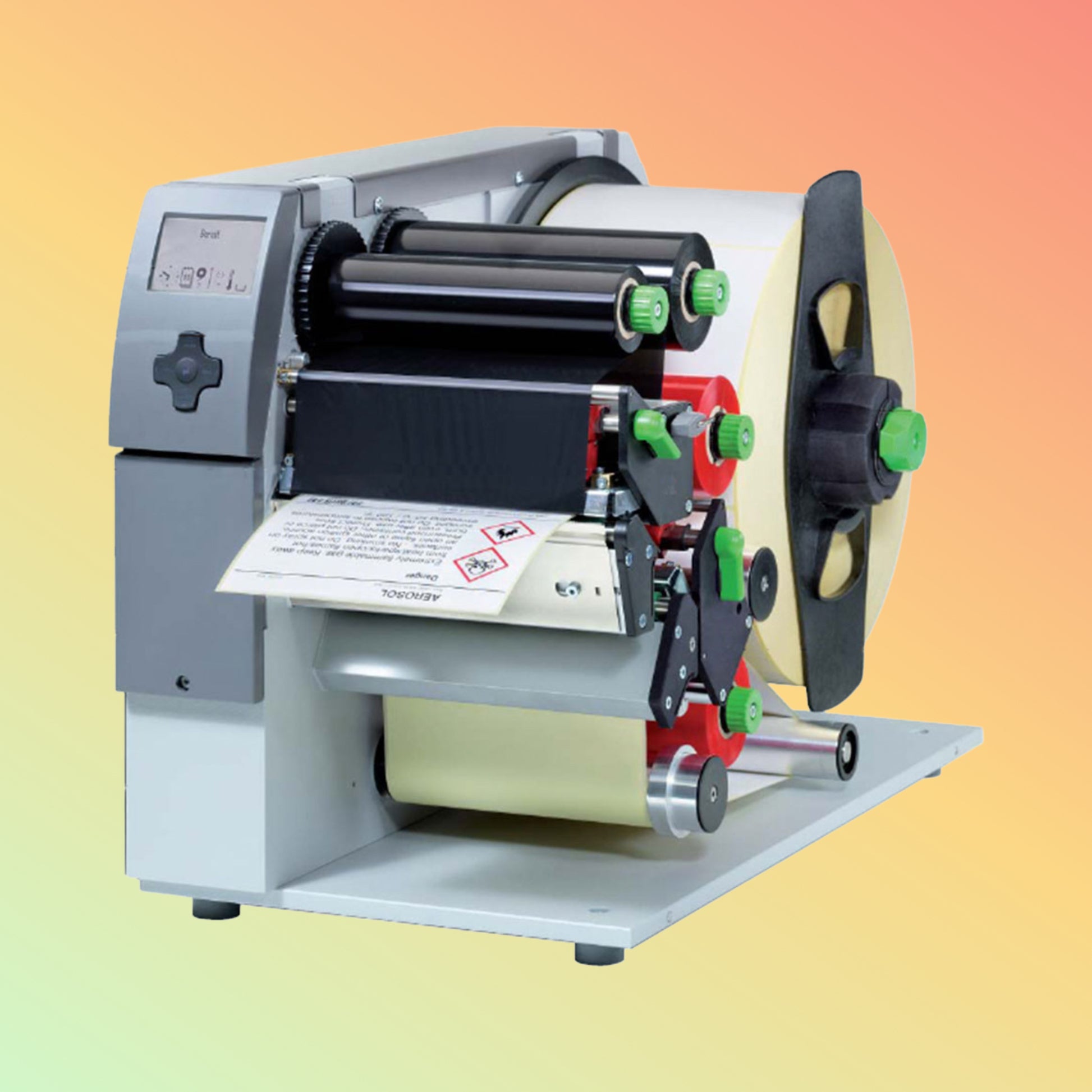

It features dual print stations, allowing two colors to be printed in a single pass. This improves workflow efficiency where labels require colored hazard symbols and standard text.

Key Features

• Dual print stations for simultaneous two-color printing
• 6-inch print width for large-format labels
• 300 dpi resolution for detailed label output
• Ribbon-saving function for optimized ribbon usage
• Industrial metal housing (die-cast aluminium construction)
• Supports large label rolls up to 300 mm diameter
• Multiple connectivity options including USB, RS232, and Ethernet
• Expandable with optional WLAN module
• Compatible with cablabel R2+ label design software
• Optional accessories such as cutter, rewinder, and stacker

Technical Specifications

Model: CAB XC6

Printing Method: Thermal Transfer
Print Resolution: 300 dpi
Print Speed: Up to 125 mm/s

Print Width: Up to 162.6 mm (6-inch class)

Media Handling:

• Maximum Roll Diameter: 300 mm
• Core Diameter: 76 mm
• Sensors: Gap sensor, Black mark sensor
• Adjustable media sensor: Yes

Memory:

• Flash: 8 MB
• RAM: 64 MB

Interfaces:

• USB
• RS232
• Ethernet (10/100)
• Optional WLAN (802.11 b/g)
• Additional USB ports for peripherals (scanner, keyboard)

Display: Large graphic display

Dimensions (W × D × H): 358 × 554 × 395 mm
Weight: Approx. 24 kg

Programming Language: J-Script / abc-Basic

Software: cablabel R2+

Applications (Industry-Focused)

Chemical & Manufacturing

• GHS-compliant labeling with colored hazard symbols

Industrial Packaging

• Multi-color product labels

Logistics & Warehousing

• Identification and large-format labeling

Regulatory Environments

• Labels requiring clear visual separation of content

Purpose of Use

The CAB XC6 is designed for industrial environments where two-color printing is required, particularly for compliance labeling and large-format industrial labels.

Why Choose NEOTECH® UAE

✔ Transparent product specifications
✔ UAE-based supply and coordination
✔ Suitable for industrial and compliance applications
✔ Clear return and refund policy
✔ Consistent communication via email

FAQ – CAB XC6 Industrial Printer UAE

Q: What is the benefit of two-color printing?
A: It allows printing of warning symbols and text in different colors in a single print process.

Q: Does this printer support large label rolls?
A: Yes, it supports rolls up to 300 mm diameter to reduce frequent media changes.

Q: Is wireless connectivity available?
A: WLAN is available as an optional module.

Delivery — UAE

Service Area: United Arab Emirates
Order Cut-Off: 2:00 PM GST
Handling Time: 1–2 business days
Transit Time: 3–5 business days

For non-stock items, delivery timelines will be confirmed after order verification.
