Compact 1D/2D fixed-mount scanning with red illumination, 5V USB connectivity and included USB cable for kiosks, OEM systems and automated barcode capture.

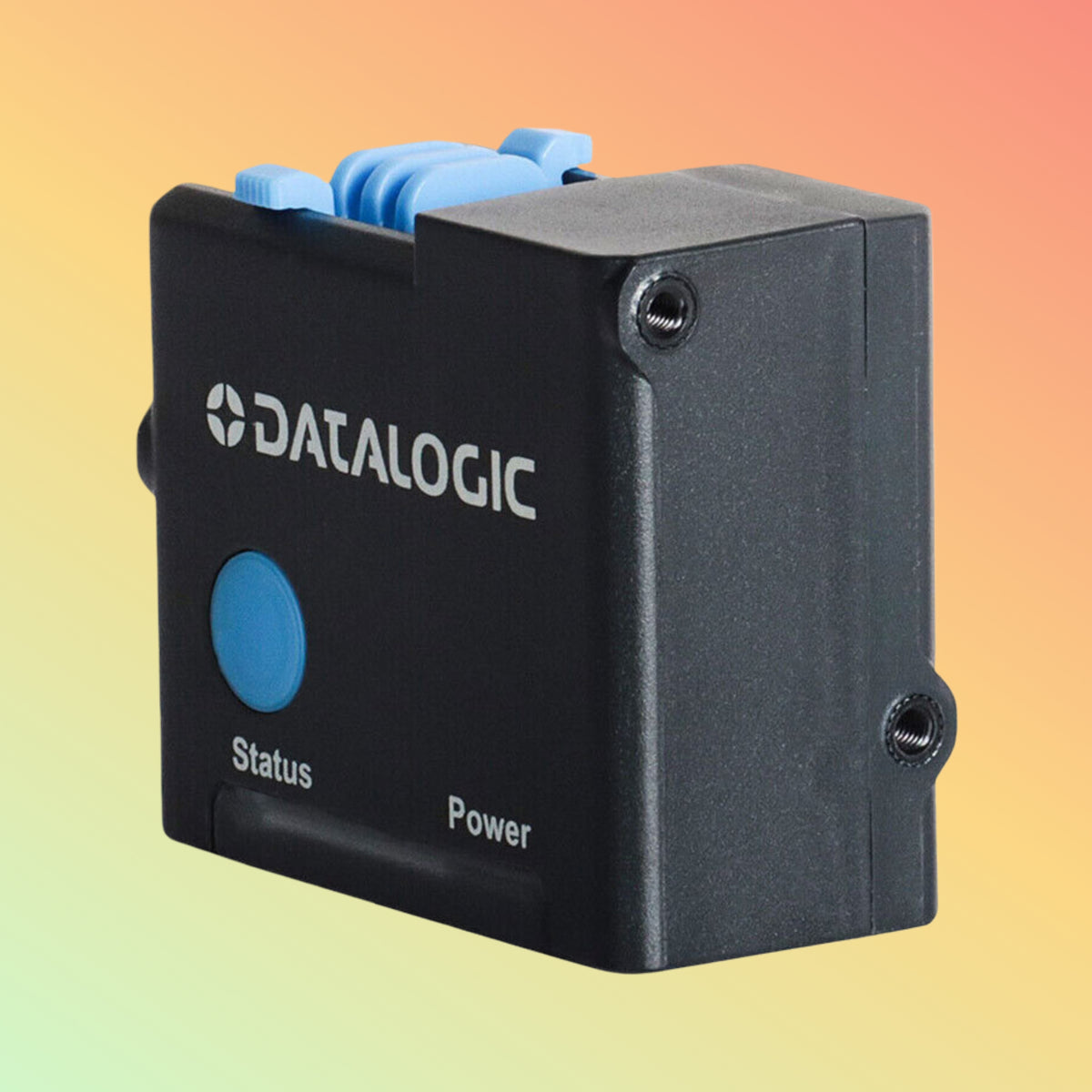

Datalogic Gryphon GFS4520-BKK1-RED 2D Fixed-Mount Barcode Scanner Kit UAE | Gryphon I GFS4520 USB-Only 2D Imager with Red Illumination, 5V Power and Included USB Cable 94A051968

Product Status & Manufacturer Identity

Brand: Datalogic
Manufacturer: Datalogic S.p.A.
Product Family: Gryphon 4500 Fixed Series
Model: Gryphon I GFS4520
Exact Part Number: GFS4520-BKK1-RED
Product Type: Fixed-Mount 1D/2D Area-Imaging Barcode Scanner Kit
Scan Engine: Megapixel Area Imager
Illumination: Red LED
Interface: USB Only
Connector: Micro-USB
Operating Voltage: 5V DC
Colour: Black
Included USB Cable: Datalogic 94A051968
Product Lifecycle: Listed in the manufacturer's Gryphon 4500 Fixed Series catalogue; current ordering availability should be confirmed.

The GFS4520-BKK1-RED is a specific Datalogic scanner kit. It should not be confused with the scanner-only GFS4520-BK-RED, white-illumination variants, RS-232 versions or older GFS4470 scanners.

Product Overview

The Datalogic Gryphon GFS4520-BKK1-RED is a compact fixed-mount barcode scanner kit designed for integration into self-service kiosks, automated identification equipment, point-of-sale systems and compatible OEM applications.

The kit combines a megapixel 2D imaging scanner with red illumination, a 5V USB-only interface and the manufacturer-specified USB cable.

Unlike conventional handheld scanners, the GFS4520 is intended for applications where the scanner remains installed in a fixed position and users or automated systems present barcodes within its reading field.

It supports compatible 1D and 2D barcode formats, making it relevant for QR-code ticketing, retail identification, access-control workflows, document identification and other application-dependent barcode-reading tasks.

The scanner requires a suitable host system, software and installation arrangement. It is not a standalone computer, complete kiosk or payment terminal.

Professional Highlights

• Genuine Datalogic Gryphon I GFS4520 fixed-mount scanner model.
• Exact kit part number GFS4520-BKK1-RED.
• Megapixel area-imaging technology.
• 1280 × 800 pixel image sensor.
• Reading of supported 1D and 2D barcode symbologies.
• Red LED illumination.
• Blue LED aiming system.
• 5V DC USB-only configuration.
• Micro-USB connector.
• Includes Datalogic USB cable 94A051968.
• Compact housing approximately 28 × 48 × 55mm.
• Scanner weight approximately 52g, excluding the supplied cable.
• IP54-rated protection.
• Ambient-light tolerance up to 120,000 lux.
• Operating temperature range of −20°C to +50°C.
• Datalogic Green Spot good-read feedback.
• Designed for fixed-mount, kiosk and OEM integration.
• Suitable for compatible retail, ticketing, hospitality, logistics and access-control applications.

Detailed Product Description

Fixed-Mount Barcode Scanning

The GFS4520 is designed for equipment manufacturers, system integrators and businesses requiring a scanner that can remain permanently installed within a device or enclosure.

Its compact design makes it useful where a handheld scanner would be impractical, such as self-service kiosks, access-control terminals and automated barcode presentation stations.

Correct mounting position, barcode presentation distance and host-system integration are essential for reliable operation.

Megapixel 2D Imaging

The scanner uses a 1280 × 800 pixel imaging sensor to capture and decode supported barcodes.

The imaging technology supports linear and two-dimensional barcode formats, including compatible QR Code, Data Matrix and PDF417 symbols.

Reading performance depends on the barcode size, contrast, print quality, surface, scanning distance and operating conditions.

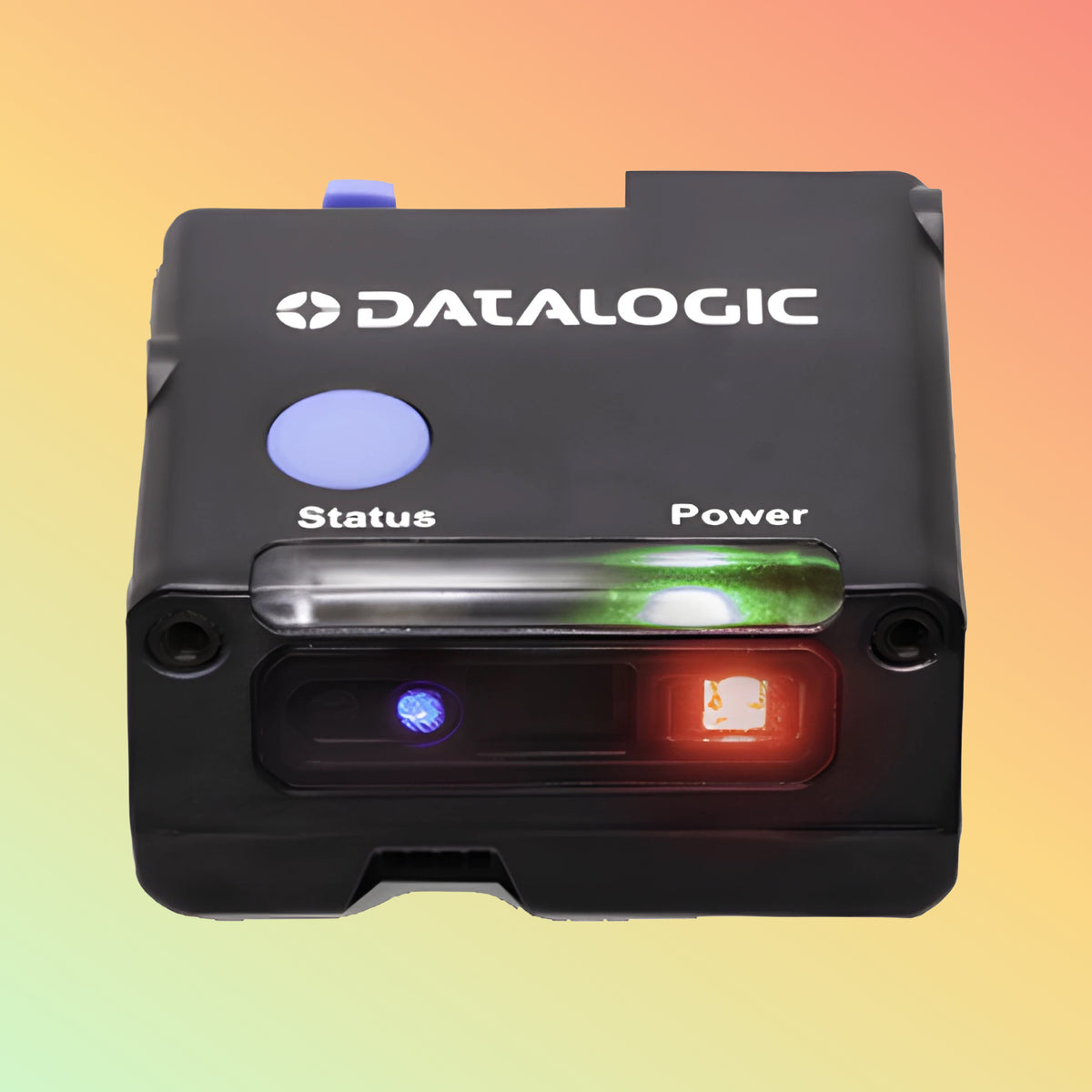

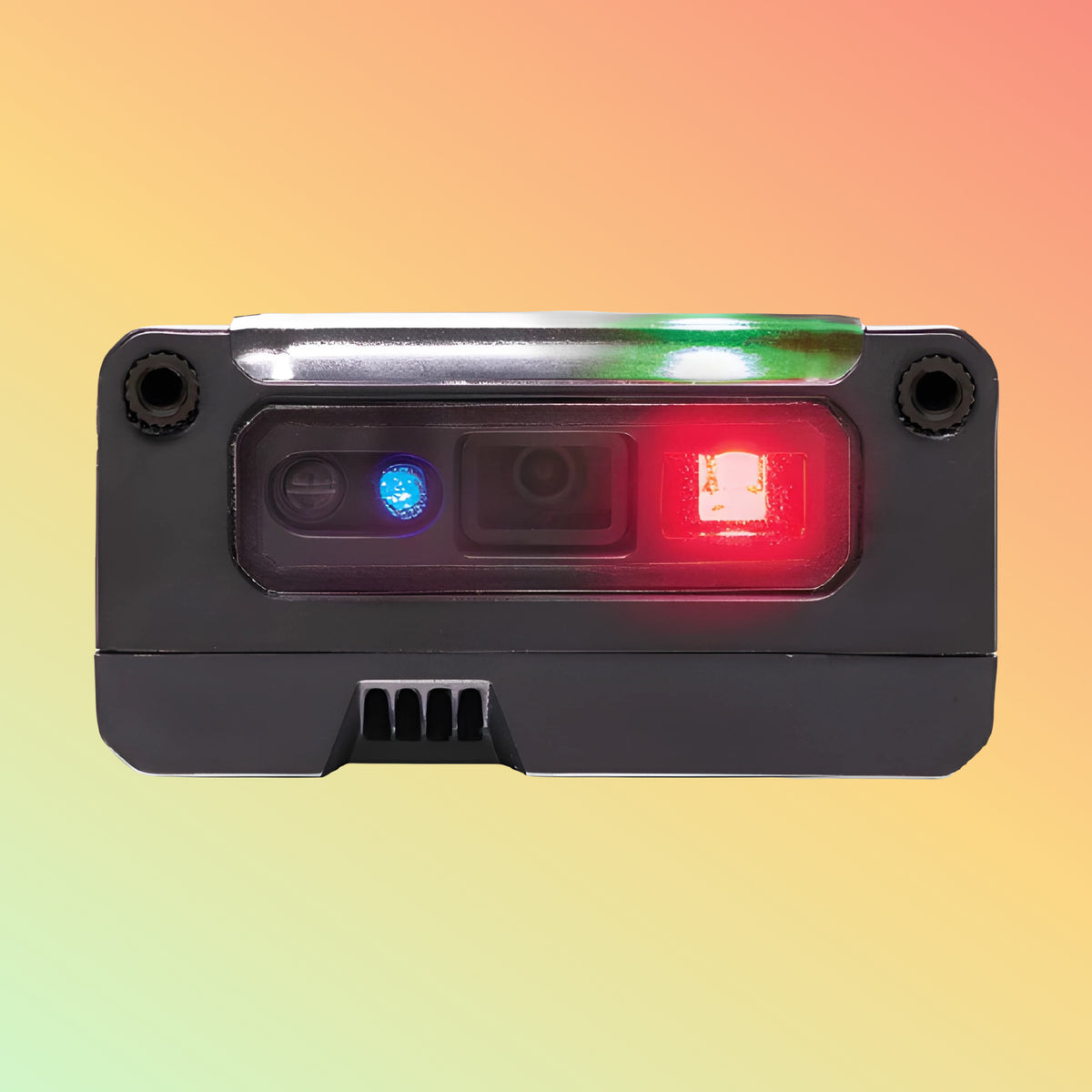

Red LED Illumination

The GFS4520-BKK1-RED uses red LED illumination.

Datalogic specifies a separate blue LED aiming system to assist barcode presentation.

The red-illumination version must not be confused with the GFS4520 white-illumination models.

Customers replacing an existing scanner should confirm whether their application requires red or white illumination.

USB-Only Interface

This specific kit is designed for 5V USB connectivity through a micro-USB connector.

It includes the manufacturer-listed USB cable 94A051968.

The GFS4520-BKK1-RED is not an RS-232 scanner and should not be ordered for applications requiring a native serial interface without first confirming a suitable alternative.

USB host compatibility and communication settings should be checked against the intended application.

Compact Integration

The scanner's compact enclosure supports integration into equipment where internal space is limited.

Its approximate dimensions of 28 × 48 × 55mm make it suitable for selected embedded applications, subject to mechanical clearance, cable routing and the manufacturer's mounting guidance.

Barcode Presentation and Feedback

The scanner supports configurable barcode-reading behaviour and provides visual or audible reading feedback.

Datalogic Green Spot technology can indicate a successful scan.

The exact operating mode, trigger configuration and host communication behaviour should be established during system integration.

Product Facts

Brand: Datalogic
Model: Gryphon I GFS4520
Part Number: GFS4520-BKK1-RED
Family: Gryphon 4500 Fixed Series
Device Type: Fixed-Mount Barcode Scanner
Imaging Technology: Megapixel Area Imager
Barcode Support: Compatible 1D and 2D Symbologies
Illumination: Red LED
Aiming: Blue LED
Host Interface: USB Only
Connector: Micro-USB
Power Requirement: 5V DC
Housing Colour: Black
Included Cable: 94A051968
Primary Applications: Kiosks, OEM Equipment and Automated Barcode Capture

Technical Specifications

Imaging and Decoding

Image Sensor: 1280 × 800 pixels
Imaging Technology: 1-Megapixel Area Imager
Frame Rate: Up to 60 full frames per second
Field of View: Approximately 51° horizontal and 32° vertical
Illumination: Red LED, approximately 617nm
Aiming: Blue LEDs, approximately 470nm
Minimum Print Contrast: 15% under manufacturer-specified conditions
Motion Tolerance: Up to 70 inches per second for EAN/UPC under specified conditions

Barcode Reading Capability

Supported barcode families include:

• Common 1D linear barcodes.
• GS1 DataBar linear formats.
• QR Code and Micro QR Code.
• Data Matrix.
• PDF417 and MicroPDF417.
• Aztec Code.
• MaxiCode.
• Selected postal-code formats.
• Supported stacked and composite symbologies.
• Other symbologies identified in the applicable manufacturer documentation.

Specific symbology settings and decoding behaviour may depend on firmware and configuration.

Optical Reading Resolution

1D Linear Codes: Down to approximately 3 mil
Data Matrix: Down to approximately 5 mil
PDF417: Down to approximately 5 mil

These values describe manufacturer-specified maximum resolution capability and do not guarantee reading at every distance or under every condition.

Scanning Angles

Pitch: ±60°
Roll: ±180°
Skew: ±60°

Actual reading performance depends on the barcode and presentation conditions.

Electrical Specifications

Input Voltage: 5V DC ±5%
Interface: USB Only
Connector: Micro-USB
Operating Current: Typically below 225mA, according to manufacturer specifications
Idle Current: Depends on configured operating mode

Power delivery must meet the requirements of the exact scanner and host arrangement.

Physical Specifications

Dimensions: Approximately 28 × 48 × 55mm
Scanner Weight: Approximately 52g
Colour: Black
Installation: Fixed-Mount / Embedded
Cable: USB cable 94A051968 included in this kit

Environmental Specifications

Ingress Protection: IP54
Operating Temperature: −20°C to +50°C
Storage / Transport Temperature: −40°C to +70°C
Ambient Light Tolerance: 0 to 120,000 lux
Drop Resistance: Manufacturer-specified resistance to repeated drops from 1.5m onto concrete
Vibration Resistance: Manufacturer-specified vibration tolerance under defined test conditions

IP54 does not mean the scanner is waterproof or suitable for immersion.

Configuration and Software Tools

The Gryphon 4500 Fixed Series supports configuration through applicable Datalogic software tools, including Datalogic Aladdin.

Host integration may require appropriate USB settings, drivers, communication modes or application configuration.

The availability of OPOS, JavaPOS or other utilities does not guarantee compatibility with every operating system or POS application.

Product Quality and Performance

The GFS4520 is designed for consistent barcode capture in compatible commercial and embedded applications.

Its megapixel imaging, compact construction and configurable operating modes can help support workflows where a barcode is presented to a fixed scanning position.

Successful performance depends on:

• Barcode size and resolution.
• Print contrast and quality.
• Reading distance.
• Barcode orientation.
• Surface reflectivity.
• Lighting conditions.
• Scanner mounting position.
• Host-system configuration.
• USB communication settings.
• Application software.

For high-volume or unattended applications, testing the exact scanner with representative barcodes is recommended before deployment.

Industry Applications

Self-Service Kiosks

The GFS4520 can support compatible kiosk applications involving:

• QR-code identification.
• Ticket verification.
• Customer check-in.
• Voucher scanning.
• Membership identification.
• Transaction-related barcode capture.

A complete kiosk solution requires compatible application software and other necessary hardware.

Retail and Supermarkets

Potential applications include:

• Fixed-position barcode scanning.
• Customer loyalty-code reading.
• Coupon and voucher verification.
• Self-service retail workflows.
• Product identification.
• Compatible POS transactions.

The scanner is not a complete supermarket checkout system.

Restaurants, Cafés and Hospitality

The scanner can be considered for compatible:

• Digital voucher redemption.
• QR-code customer identification.
• Loyalty programmes.
• Order collection verification.
• Hospitality check-in.
• Ticketed dining or event access.

Application and software compatibility must be verified.

Ticketing and Events

Suitable applications may include:

• Event ticket verification.
• QR-code entry systems.
• Visitor registration.
• Exhibition check-in.
• Transport ticket validation.
• Automated access workflows.

The scanner reads barcode data; the host application determines whether a ticket or credential is valid.

Access Control and Visitor Management

The GFS4520 can be integrated into compatible systems for:

• Barcode-based visitor credentials.
• QR-code access requests.
• Membership identification.
• Reception check-in.
• Controlled-entry workflows.

It is not a standalone door controller or security system.

Logistics and Parcel Identification

Potential uses include:

• Parcel barcode verification.
• Shipment identification.
• Collection-point kiosks.
• Pickup-code scanning.
• Automated parcel-service workflows.

For moving conveyors, long-distance scanning or specialised industrial environments, a different industrial scanner may be more appropriate.

Healthcare Administration

The scanner may support compatible administrative workflows involving:

• Patient check-in.
• Appointment-code verification.
• Visitor registration.
• Document identification.
• Queue-management applications.

Any healthcare-specific safety, data-protection or regulatory requirements must be assessed separately.

OEM and Equipment Manufacturing

The GFS4520 is particularly relevant to system integrators requiring:

• Compact fixed-mount scanning.
• USB host communication.
• 2D barcode decoding.
• Integration into custom enclosures.
• Automated barcode presentation.
• Repeatable scanning positions.

Mechanical and software integration should follow the applicable Datalogic documentation.

Purpose of Use

The GFS4520-BKK1-RED is best understood as a USB fixed-mount barcode scanning component, not a complete business solution.

Its role is to capture barcode information and transmit decoded data to a compatible host system.

The final application depends on the software and equipment connected to the scanner.

For example, a kiosk may use the scanner to capture a QR code, but the kiosk application must separately interpret that code, retrieve the relevant record and decide what action to perform.

USB Integration Guidance

Before selecting this kit, verify:

• The host provides compatible USB connectivity.
• The host can supply the required 5V power.
• The application supports the scanner's configured USB communication mode.
• The included cable is suitable for the installation.
• The mounting location allows correct cable routing.
• The scanner can be positioned at the required reading distance.
• The operating environment is within the device specifications.

A USB connector alone does not guarantee plug-and-play compatibility with every POS terminal, Android device or embedded computer.

Barcode Scanning Guidance

The scanner's actual reading performance depends on the application.

Customers should consider:

• 1D versus 2D barcode requirements.
• QR-code size.
• Barcode print resolution.
• Screen-displayed versus printed barcodes.
• Barcode damage or distortion.
• Reading distance.
• Presentation angle.
• Ambient light.
• Scan frequency.
• User interaction.
• Required response time.

For demanding applications, test representative barcode samples with the exact scanner configuration.

Compatibility

Compatibility should be assessed against the complete host environment.

Important considerations include:

• Host operating system.
• USB communication mode.
• POS or kiosk application.
• Barcode symbologies.
• Application data format.
• Device drivers.
• Power requirements.
• Mounting arrangement.
• Scanner configuration.
• Integration and testing procedures.

The GFS4520-BKK1-RED should not be represented as universally compatible with all Windows, Android, Linux or POS systems.

Things to Verify Before Ordering

Please confirm:

• Exact part number GFS4520-BKK1-RED.
• Red illumination is required.
• USB-only interface is suitable.
• Micro-USB connector is acceptable.
• Included cable 94A051968 meets the installation requirements.
• Host USB compatibility.
• Required barcode formats.
• Required scanning distance.
• Mechanical mounting requirements.
• Operating environment.
• Software and driver requirements.
• Quantity.
• Current availability.
• Lead time.
• Warranty and support terms.
• Price including VAT.
• Delivery and return conditions.

For OEM and kiosk projects, sample testing before quantity procurement is recommended.

Buyer Guidance

When to Choose GFS4520-BKK1-RED

This kit is a suitable candidate when the requirement is specifically for:

• Datalogic Gryphon I GFS4520.
• Fixed-mount 2D barcode scanning.
• Red illumination.
• 5V USB connectivity.
• Micro-USB connection.
• Included manufacturer-specified USB cable.
• Compact OEM or kiosk integration.

When Another Model May Be Better

Consider a different configuration if the requirement involves:

• Native RS-232 connectivity.
• White illumination.
• A handheld scanner.
• Long-range industrial barcode scanning.
• Outdoor installation beyond the specified environmental limits.
• A complete POS or kiosk system.
• Specialised mounting or cabling not supported by the selected kit.

GFS4520-BKK1-RED vs Other Gryphon Models

GFS4520-BKK1-RED: Red illumination, USB-only scanner kit including USB cable 94A051968.

GFS4520-BK-RED: Red-illumination scanner version without the same manufacturer-defined kit contents.

GFS4520-BKK1-WHT: USB scanner kit with white illumination.

GFS4550: Different interface configuration intended for RS-232 applications.

GFS4470: Earlier Gryphon fixed-mount scanner model with different hardware specifications.

These models should not be treated as automatically interchangeable.

How to Use

1. Confirm the kit part number and included cable.
2. Identify a compatible USB host.
3. Select a suitable mounting position.
4. Install the scanner according to Datalogic mounting instructions.
5. Connect the supplied USB cable.
6. Configure the scanner and host communication mode as required.
7. Enable the necessary barcode symbologies.
8. Test barcode reading using representative samples.
9. Confirm successful data transmission to the application.
10. Validate the complete workflow before production deployment.

Package Contents, Dimensions and Weight

Manufacturer-Defined Kit Contents

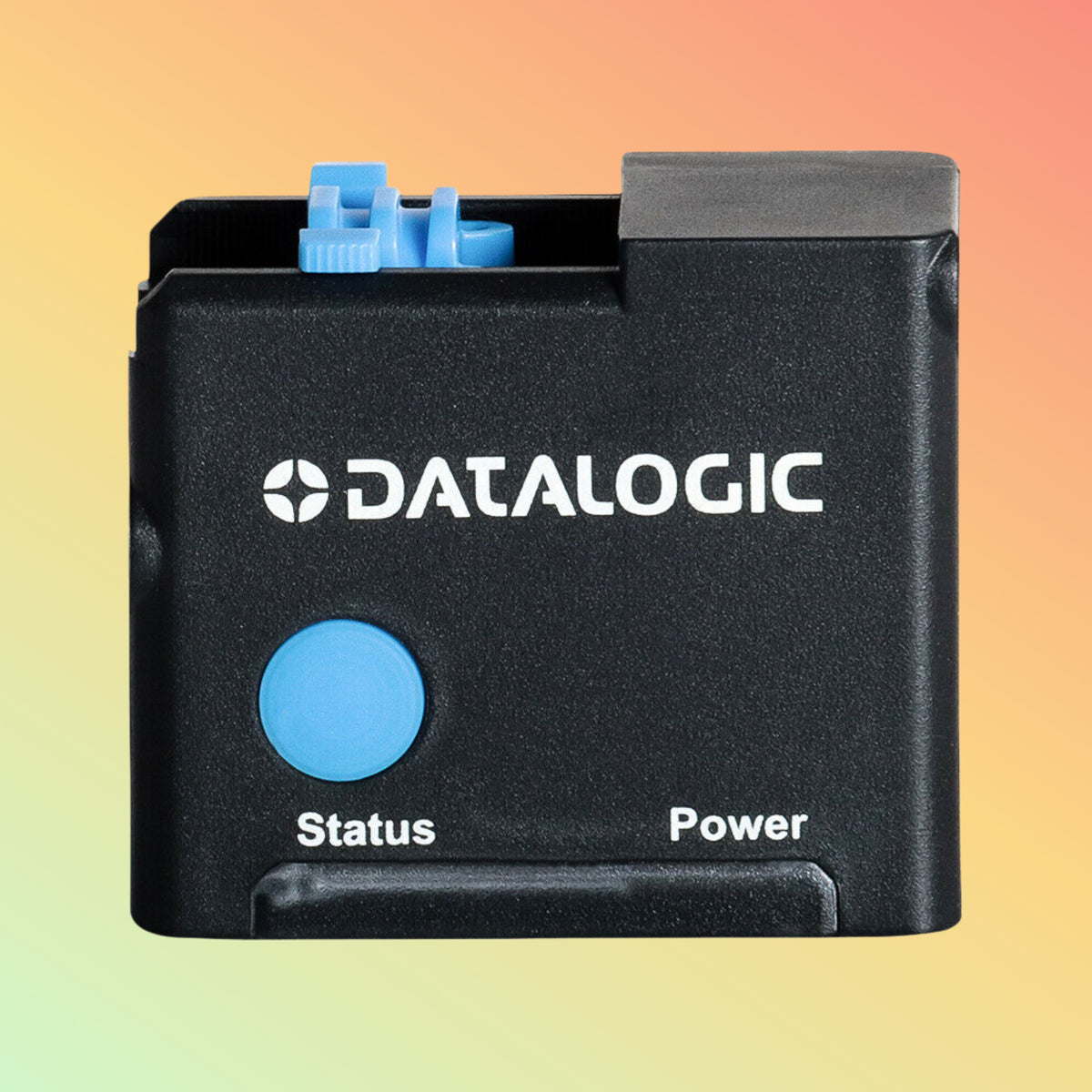

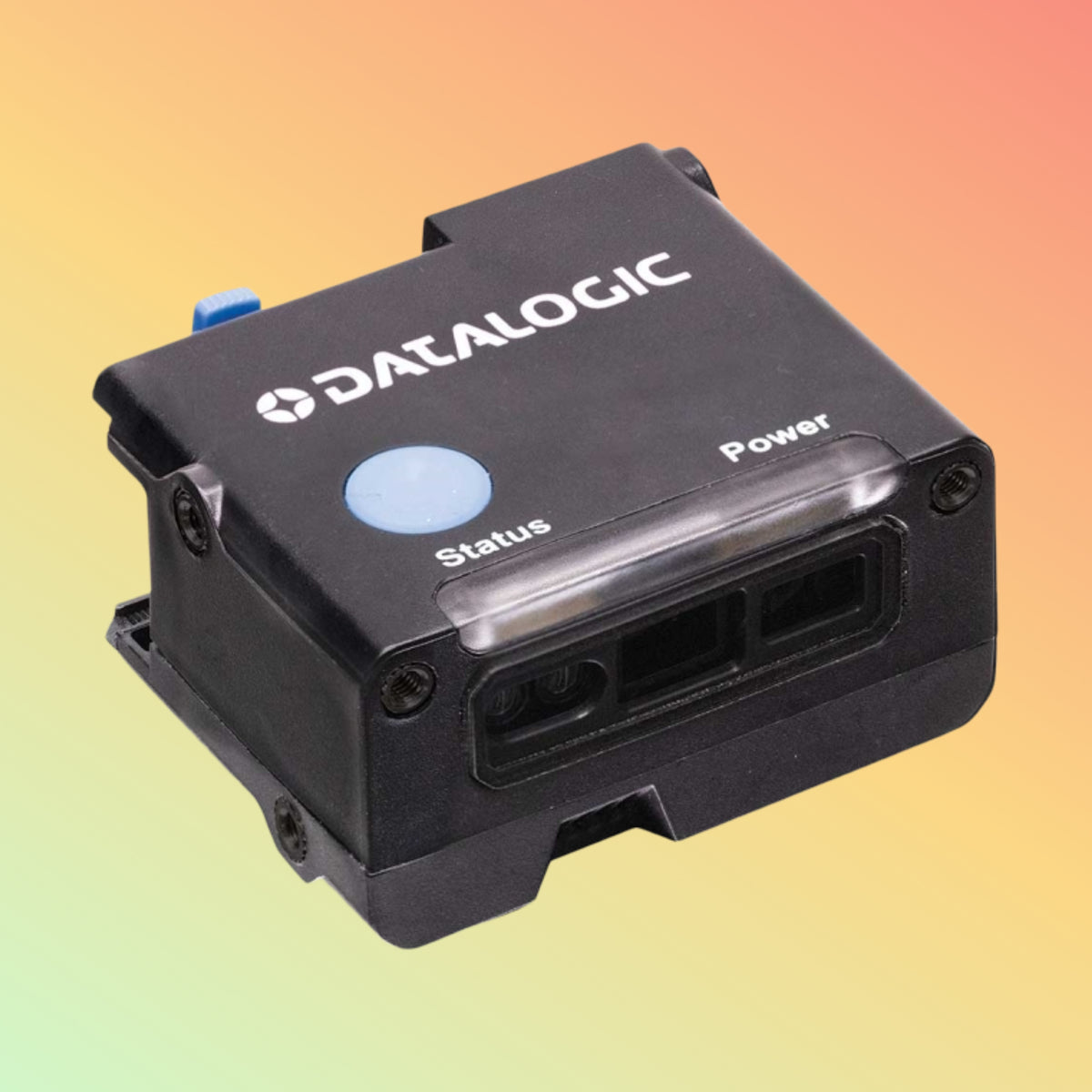

• 1 × Datalogic Gryphon I GFS4520 scanner, red illumination, black housing.
• 1 × Datalogic USB cable, part number 94A051968.

Physical Information

Scanner Dimensions: Approximately 28 × 48 × 55mm
Scanner Weight: Approximately 52g, excluding the USB cable

Mounting hardware, external power accessories and additional integration components should not be assumed included unless separately confirmed.

Warranty and After-Sales Support

Datalogic publishes a five-year factory warranty specification for the GFS4500 series.

The applicable warranty start date, eligibility, exclusions, service location and claim procedure must be confirmed for the actual unit supplied.

NEOTECH® will identify the applicable warranty terms in the quotation or order documentation.

Custom software integration, on-site installation, equipment modification and maintenance services are not included unless separately agreed in writing.

Delivery & Returns UAE

NEOTECH® can arrange delivery within the United Arab Emirates.

Availability: Subject to stock and supplier confirmation.
Lead Time: Confirmed for the exact kit and quantity.
Delivery Charges: As stated in the quotation or checkout.
Special Orders: Procurement and return conditions confirmed before payment.
Returns: Subject to NEOTECH®'s published return policy and applicable UAE law.

Customers should verify the exact part number, configuration, compatibility, price, VAT, availability, warranty and delivery terms before payment.

Request a Quote or Order in the UAE

For a quotation, please provide:

• Product: Datalogic GFS4520-BKK1-RED.
• Required quantity.
• Intended application.
• Host device or kiosk model.
• Operating system.
• Required barcode formats.
• Delivery location within the UAE.
• Required delivery timeframe.

NEOTECH® will review the requirement and provide a quotation based on verified availability and commercial terms.

Why NEOTECH® UAE?

At NEOTECH®, we believe customers should understand exactly what they are purchasing.

For specialist products such as the Datalogic GFS4520-BKK1-RED, this means distinguishing the exact manufacturer part number, interface, illumination type, included accessories and application requirements.

Our approach focuses on:

• Accurate product identification.
• Manufacturer-supported specifications.
• Practical compatibility guidance.
• Transparent quotations.
• Clear commercial conditions.
• UAE business enquiries and delivery arrangements.
• Avoiding unsupported claims about compatibility or availability.

Learn First. Decide Second.

Helpful Internal Links

Barcode Scanners UAE
https://neotech.ae/collections/barcode-scanner

Existing Datalogic Gryphon GFS4470 Scanner
https://neotech.ae/products/gryphon-gfs4470-2d-omnidirectional-mini-barcode-scanner

Shipping Policy
https://neotech.ae/policies/shipping-policy

Refund Policy
https://neotech.ae/policies/refund-policy

Related Products

Datalogic Gryphon GFS4470 2D Fixed-Mount Barcode Scanner

An earlier Gryphon model that may be relevant to customers replacing an existing scanner. Interface and mechanical compatibility must be checked.

Other Gryphon 4500 Fixed Series configurations may be considered where different illumination or communication interfaces are required.

Contact – NEOTECH® UAE

NEOTECH® UAE
Operated by NEOLYN TECHNOLOGY LLC

Email: support@neotech.ae
Location: Store 13, Computer Building, Al Fahidi, Bur Dubai, Dubai, UAE
Website: https://neotech.ae

FAQ – Datalogic GFS4520-BKK1-RED

Q: What is the Datalogic GFS4520-BKK1-RED?
A: It is a Datalogic Gryphon I GFS4520 fixed-mount 2D barcode scanner kit with red illumination, USB-only connectivity and an included USB cable.

Q: What is included in the kit?
A: The manufacturer lists the GFS4520 scanner and USB cable 94A051968.

Q: Is this a handheld scanner?
A: No. It is designed for fixed-mount and embedded applications.

Q: Does the GFS4520-BKK1-RED support 1D and 2D barcodes?
A: Yes. It supports compatible linear and two-dimensional barcode symbologies.

Q: Can it read QR codes?
A: Yes, compatible QR codes are supported.

Q: Does it support Data Matrix?
A: Yes, Data Matrix is included among the supported 2D symbologies.

Q: What illumination does this version use?
A: Red LED illumination.

Q: Does the scanner use a blue aiming light?
A: Yes. The manufacturer specifies blue LED aiming.

Q: What connection does this kit use?
A: It uses a USB-only interface with a micro-USB connector.

Q: Does it support RS-232?
A: This exact kit is USB-only. Customers requiring RS-232 should consider an appropriate alternative configuration.

Q: What voltage does the scanner require?
A: The GFS4520 uses 5V DC, within the manufacturer's stated tolerance.

Q: What is the image sensor resolution?
A: The manufacturer specifies a 1280 × 800 pixel megapixel sensor.

Q: Can the scanner read barcodes displayed on mobile phones?
A: It can be considered for compatible screen-displayed barcodes, but actual performance should be tested with the intended screens, applications and presentation conditions.

Q: Is the scanner suitable for kiosks?
A: Yes. Fixed-mount kiosk integration is one of its relevant applications, subject to mechanical and software compatibility.

Q: Can it be used for ticket validation?
A: It can capture supported ticket barcodes. Ticket validation itself is performed by the connected application.

Q: Is it suitable for supermarket POS systems?
A: It can be used in compatible fixed-position retail scanning applications. It is not a complete POS terminal.

Q: Can it work with Android POS equipment?
A: Compatibility depends on the Android host, USB support, communication mode and POS application.

Q: Does it work with Windows?
A: It can be integrated with compatible Windows systems, subject to the required communication settings and software.

Q: Is the GFS4520 waterproof?
A: No. It has IP54-rated protection, which does not mean waterproofing or immersion resistance.

Q: What are the scanner dimensions?
A: Approximately 28 × 48 × 55mm.

Q: What is the scanner weight?
A: Approximately 52g, excluding the supplied cable.

Q: Is the GFS4520 the same as the GFS4470?
A: No. They are different scanner models with different hardware specifications.

Q: What is the difference between GFS4520-BKK1-RED and GFS4520-BKK1-WHT?
A: The RED kit uses red illumination, while the WHT kit uses white illumination.

Q: Does the kit include mounting hardware?
A: The manufacturer-defined kit identifies the scanner and USB cable. Additional mounting accessories should not be assumed included.

Q: What warranty is available?
A: Datalogic publishes a five-year factory warranty for the GFS4500 series. Applicable coverage and claim conditions must be confirmed for the supplied unit.

Q: Is the GFS4520-BKK1-RED available in Dubai?
A: Stock availability and lead time must be confirmed before order acceptance.

Q: Can NEOTECH® supply multiple units?
A: Customers may request a quantity-based quotation, subject to supplier availability and agreed commercial terms.

Q: Does NEOTECH® deliver across the UAE?
A: UAE delivery can be arranged according to the confirmed order terms.

Q: What should customers verify before payment?
A: Confirm the exact part number, USB interface, red illumination, cable requirements, software compatibility, quantity, price including VAT, availability, lead time, warranty, delivery and return conditions.

Disclaimer – NEOTECH® UAE

This listing describes the exact manufacturer part number GFS4520-BKK1-RED.

Specifications are based on Datalogic's Gryphon 4500 Fixed Series documentation and may change with manufacturer revisions.

Barcode-reading performance depends on barcode quality, distance, presentation, lighting, configuration and host-system compatibility.

The scanner is a barcode-reading component and does not include a complete kiosk, POS application, payment system or custom integration service.

USB connectivity does not guarantee compatibility with every computer, Android terminal or POS application.

Availability, warranty and commercial terms must be verified before order acceptance.

All manufacturer names and trademarks belong to their respective owners. NEOTECH® is an independent UAE supplier and does not claim authorised Datalogic distributor status unless officially documented.

Last Updated: 17 October 2026 (UAE)
