Portable Three-Track HiCo / LoCo Magnetic Card Reader, Writer and Encoder with Bluetooth and USB Connectivity

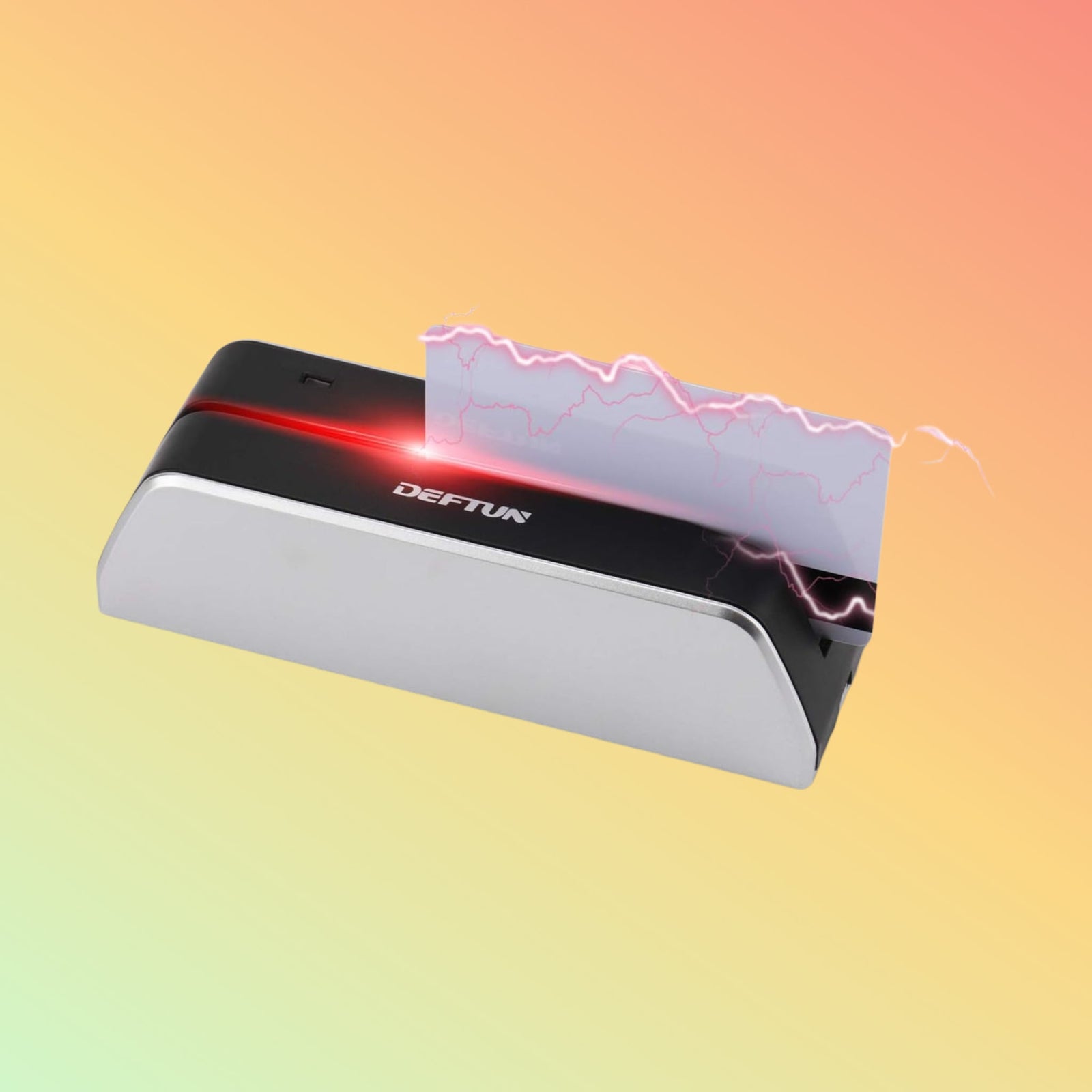

The DEFTUN MSR X6(BT), also identified as MSRX6BT, is a compact rechargeable magnetic stripe card reader, writer and encoder designed for portable and desktop card-management applications.

It combines Bluetooth and USB connectivity, allowing compatible operation with computers, smartphones and tablets.

The device can read, write and erase magnetic stripe data across Tracks 1, 2 and 3 and supports compatible HiCo and LoCo magnetic stripe cards.

For mobile operation, DEFTUN provides its EasyMSR application for compatible iOS and Android devices.

Professional Highlights

✅ Bluetooth Connectivity — Wireless connection for compatible smartphones, tablets and computers

✅ USB Connectivity — Supports wired computer connection and charging

✅ Three-Track Operation — Reads, writes and erases compatible Track 1, Track 2 and Track 3 data

✅ HiCo & LoCo Support — Suitable for compatible high- and low-coercivity magnetic stripe cards

✅ 300–4000 Oe Range — Software-selectable magnetic coercivity for supported cards

✅ 75 / 210 BPI Selection — Configurable magnetic-track density

✅ Rechargeable Design — Internal rechargeable power supports portable Bluetooth operation

✅ EasyMSR Software Support — Compatible software/app provides card-management functions

✅ Compact Form Factor — Approximately 140 × 42 × 42 mm for portable use

Product Description

The DEFTUN MSR X6(BT) provides magnetic stripe reading and encoding capabilities in a compact portable format.

Unlike a conventional read-only magnetic stripe reader, the X6(BT) can perform read, write, erase and verification operations on compatible magnetic stripe cards when used with the appropriate DEFTUN software.

Bluetooth connectivity makes it particularly useful where card-management work needs to be performed from a compatible mobile device or without maintaining a permanent wired connection.

USB connectivity provides an alternative connection method for compatible computers and is also used for charging.

Three-Track Magnetic Stripe Operation

The MSR X6(BT) supports:

• Track 1
• Track 2
• Track 3

Compatible tracks can be selected according to the required card format and software configuration.

Available operations include:

• Read
• Write
• Erase
• Verify
• Compare
• Sequential write
• Read to file
• Write from file

Available functions can depend on the software platform and version being used.

HiCo and LoCo Support

The MSR X6(BT) supports compatible magnetic stripe media across a selectable coercivity range of approximately:

300–4000 Oe

This allows the device to work with supported:

• High-Coercivity (HiCo) magnetic cards
• Low-Coercivity (LoCo) magnetic cards

The appropriate coercivity setting should be selected according to the card being encoded.

Track Density

The device supports selectable magnetic-track density of:

• 75 BPI
• 210 BPI

The required density depends on the card format and application.

Correct track configuration should be established before writing production cards.

Read and Write Speed

Reading Swipe Speed: Approximately 5–55 inches per second

Writing Swipe Speed: Approximately 5–35 inches per second

Cards should be swiped smoothly through the magnetic head for reliable reading and encoding.

Bluetooth Connectivity

Bluetooth allows the MSR X6(BT) to communicate wirelessly with compatible devices.

This can be useful for:

• Mobile card-management applications
• Portable card issuance
• Field service
• Temporary card-programming stations
• Tablet-based workflows
• Smartphone-based authorized card operations

Bluetooth compatibility depends on the host device, operating system and supported software/app version.

USB Connectivity

The MSR X6(BT) also supports USB connectivity for compatible computer-based operation.

USB can be used for:

• Computer connection
• Card-management software communication
• Device charging

This provides flexibility between portable Bluetooth operation and a conventional desktop workflow.

Rechargeable Operation

The MSR X6(BT) incorporates rechargeable power for wireless operation.

Charge the device before initial Bluetooth use and recharge it using a suitable USB power source.

Actual operating time per charge varies according to:

• Battery condition
• Device age
• Bluetooth usage
• Frequency of card operations
• Charging condition
• Operating environment

No fixed runtime should be assumed for every application.

EasyMSR Software

DEFTUN provides EasyMSR software/app functionality for compatible MSR devices.

Depending on the platform and software version, functions can include:

• Reading magnetic tracks
• Writing magnetic tracks
• Erasing selected tracks
• Comparing card data
• Sequential writing
• Reading data to a file
• Writing data from a file
• Selecting track parameters
• Selecting BPI
• Selecting HiCo or LoCo operation
• Configuring supported card data

Software availability and functionality should be checked for the intended operating system before purchase.

Operating-System Compatibility

DEFTUN provides MSR X6(BT) support across multiple computing and mobile environments, including versions of:

• Windows
• macOS
• Linux
• iOS
• Android

Compatibility should still be confirmed for the exact current operating-system version and EasyMSR software/app version being used.

An operating system being generally supported does not guarantee compatibility with every future OS update or host-device configuration.

Technical Specifications

• Brand: DEFTUN
• Model: MSR X6(BT)
• Alternate Model Reference: MSRX6BT
• Product Type: Magnetic Stripe Card Reader / Writer / Encoder
• Functions: Read / Write / Erase / Verify compatible magnetic stripe data
• Supported Tracks: Track 1 / Track 2 / Track 3
• Card Types: Compatible HiCo / LoCo magnetic stripe cards
• Coercivity Range: Approximately 300–4000 Oe
• Track Density: 75 / 210 BPI selectable
• Reading Speed: Approximately 5–55 ips
• Writing Speed: Approximately 5–35 ips
• Connectivity: Bluetooth + USB
• Power: Rechargeable operation / USB charging
• Dimensions: Approximately 140 × 42 × 42 mm
• Software: EasyMSR-compatible workflow

Applications

The DEFTUN MSR X6(BT) can be considered for authorized applications involving compatible magnetic stripe cards, including:

• Membership-card issuance
• Loyalty cards
• Employee identification
• Student identification
• Visitor cards
• Access-control administration
• Hotel or hospitality card applications
• Event-management cards
• Internal identification systems
• Magnetic-card testing
• Card-system development
• Portable card-management applications
• Field-service applications

Compatibility depends on the card, magnetic characteristics, software, host device and application requirements.

Purpose of Use

The MSR X6(BT) is designed for users who require more functionality than a basic read-only magnetic stripe reader.

Its combination of read/write capability, Bluetooth connectivity and rechargeable portable operation makes it suitable for authorized card-management workflows where mobility is useful.

It is a magnetic stripe encoding device rather than a complete access-control, membership, identification or payment system.

Appropriate application software and system configuration are required.

MSR X6 vs MSR X6(BT)

Customers should distinguish between the model variants when ordering.

The MSR X6(BT) is the Bluetooth-enabled version intended for wireless operation with compatible host devices.

If Bluetooth operation is required, confirm that the exact product supplied is marked MSR X6(BT) / MSRX6BT rather than relying only on the general X6 family name.

Compatibility

Before ordering, confirm compatibility with:

• Required model: MSR X6(BT) / MSRX6BT
• Magnetic card type
• HiCo or LoCo requirement
• Required coercivity
• Track requirements
• BPI requirements
• Host computer or mobile device
• Operating-system version
• EasyMSR software/app version
• Bluetooth requirements
• USB requirements
• Existing card-management application

A magnetic stripe alone does not guarantee that every card or application will be compatible.

Responsible Use

The DEFTUN MSR X6(BT) is a general-purpose magnetic stripe reader/writer intended for lawful and authorized card-management applications.

Only read, write, erase, reproduce or modify magnetic stripe information when you own the card/data or have explicit authorization to perform the operation.

The device should not be used to reproduce payment credentials, identification credentials, access credentials or other protected information without lawful authorization.

Things to Verify Before Ordering

Please confirm:

• Exact model required
• Bluetooth requirement
• USB requirement
• Track 1 / 2 / 3 requirements
• HiCo or LoCo card type
• Magnetic coercivity
• Required track density
• Operating-system version
• Mobile-device compatibility
• EasyMSR software/app compatibility
• Intended card application
• Required package contents
• Current UAE availability
• Applicable warranty

Who Should Consider the MSR X6(BT)?

The device may be suitable for:

• Membership organizations
• Card-issuance departments
• Loyalty-program administrators
• Access-control administrators
• Educational institutions
• Hospitality operations
• Event-management organizations
• Authorized system integrators
• Software developers
• Card-system testing environments
• Field-service teams requiring portable magnetic-card equipment

Users requiring only simple card reading may find a read-only MSR more appropriate.

How to Use

1. Charge the MSR X6(BT) before initial wireless use.
2. Install the appropriate EasyMSR software or compatible application.
3. Connect the device through Bluetooth or USB.
4. Confirm that the device is recognized by the software.
5. Select the required operation.
6. Configure the appropriate track and coercivity settings.
7. Position the magnetic stripe correctly.
8. Swipe the card smoothly through the device.
9. Verify the resulting data or write operation.
10. Test the complete card workflow before production use.

Only encode or modify card data where you have authorization to do so.

Request a Quote or Order in the UAE

Looking for the DEFTUN MSR X6(BT) Bluetooth Magnetic Stripe Card Reader Writer for an authorized card-management application?

NEOTECH® can assist with product availability, quotation and pre-order compatibility checks for customers across the UAE.

Before ordering, please confirm your required model, card type, Track 1/2/3 requirements, HiCo/LoCo requirement, operating system and Bluetooth or USB workflow.

For price, availability or a formal quotation:
Email: support@neotech.ae

Ready to order? Add the product to your cart when available, or contact us if you need compatibility confirmation before purchase.

Learn First. Decide Second.

Delivery – UAE

Delivery is available within the United Arab Emirates.

Order Cut-Off: 14:00 GST
Handling: 1–2 business days where applicable
Standard Transit: Approximately 3–5 business days after handling
Typical Total Delivery: Approximately 4–7 business days for confirmed available products

If the product is unavailable, becomes out of stock when the order is placed, or requires special procurement, delivery may extend to approximately 10–15 working days or up to 25 working days after payment/order confirmation, depending on supplier availability.

Please confirm current availability before ordering.

FAQ - DEFTUN MSR X6(BT)

Q: What is the DEFTUN MSR X6(BT)?
A: It is a portable magnetic stripe card reader, writer and encoder with Bluetooth and USB connectivity.

Q: What is the exact model?
A: The Bluetooth version is identified as MSR X6(BT) or MSRX6BT.

Q: Can it read and write magnetic stripe cards?
A: Yes. It supports reading and writing compatible magnetic stripe cards.

Q: Can it erase magnetic stripe data?
A: Yes. Compatible software provides functions for erasing selected magnetic tracks.

Q: How many tracks does it support?
A: It supports Track 1, Track 2 and Track 3.

Q: Does it support HiCo cards?
A: Yes. It supports compatible high-coercivity magnetic stripe cards.

Q: Does it support LoCo cards?
A: Yes. Compatible low-coercivity cards are also supported.

Q: What coercivity range does it support?
A: Approximately 300–4000 Oe, depending on the selected configuration and compatible media.

Q: Does it have Bluetooth?
A: Yes. The MSR X6(BT) is specifically the Bluetooth-enabled X6 variant.

Q: Does it also support USB?
A: Yes. USB connectivity is available for compatible computer operation and charging.

Q: Is the device rechargeable?
A: Yes. It uses rechargeable power for portable wireless operation.

Q: Can it work with a smartphone or tablet?
A: Yes, when used with a compatible mobile device and supported EasyMSR application.

Q: Does it support Android?
A: DEFTUN provides an EasyMSR mobile workflow for compatible Android devices. Confirm compatibility with your current Android version before ordering.

Q: Does it support iPhone and iPad?
A: DEFTUN provides EasyMSR support for compatible iOS devices. Current device and app compatibility should be confirmed.

Q: Can it work with Windows?
A: Yes, subject to compatibility with the current DEFTUN software and the Windows version being used.

Q: Can it work with macOS?
A: DEFTUN identifies Mac compatibility for this product family, but current software compatibility should be checked for the exact macOS version.

Q: Is EasyMSR required?
A: EasyMSR is DEFTUN's software/app solution for supported card operations. The exact software required depends on the host platform and intended workflow.

Q: Can it encode membership and loyalty cards?
A: Yes, where compatible writable magnetic stripe cards and an authorized card-management system are used.

Q: Is this a payment terminal?
A: No. The MSR X6(BT) is a magnetic stripe reader/writer and is not itself a payment terminal or acquiring device.

Q: Can it copy any magnetic card?
A: No. Both technical compatibility and lawful authorization are required. Protected credentials should not be reproduced without explicit authorization.

Q: What should I verify before buying?
A: Confirm the exact MSR X6(BT) model, magnetic-card type, tracks, coercivity, host operating system, Bluetooth/USB requirements and software compatibility.

Related Products

• MSR605X Magnetic Stripe Card Reader Writer
• Magnetic Stripe Card Readers
• HiCo Magnetic Stripe Cards
• LoCo Magnetic Stripe Cards
• PVC ID Cards
• Card Printers
• RFID Card Readers

Helpful Internal Links

• Magnetic Card Readers & Writers UAE
• ID Card Solutions UAE
• Card Printers UAE
• PVC Cards UAE
• POS Accessories UAE
• Access Control Accessories

Contact - NEOTECH® UAE

For compatibility verification, current availability or quotation:

Email: support@neotech.ae
Address: Store 13, Computer Building, Al Fahidi, Bur Dubai, Dubai 44245, UAE

Disclaimer - NEOTECH® UAE

DEFTUN and MSR X6(BT) are used to identify the product described on this page.

Software, app support, operating-system compatibility, accessories, package contents and specifications can vary according to production version and supplied configuration. Customers should verify the exact model, card requirements, host platform, software compatibility, package contents, availability and applicable warranty before ordering.

The MSR X6(BT) is intended for lawful and authorized magnetic stripe applications. Users are responsible for ensuring that any reading, writing, erasing or modification of card data is authorized by the card owner, system operator and applicable requirements.

Last Updated: 26 September 2026 (GST, UTC+4)
