Configurable Xeon and Core X Workstation Platform for Professional Computing Workloads.

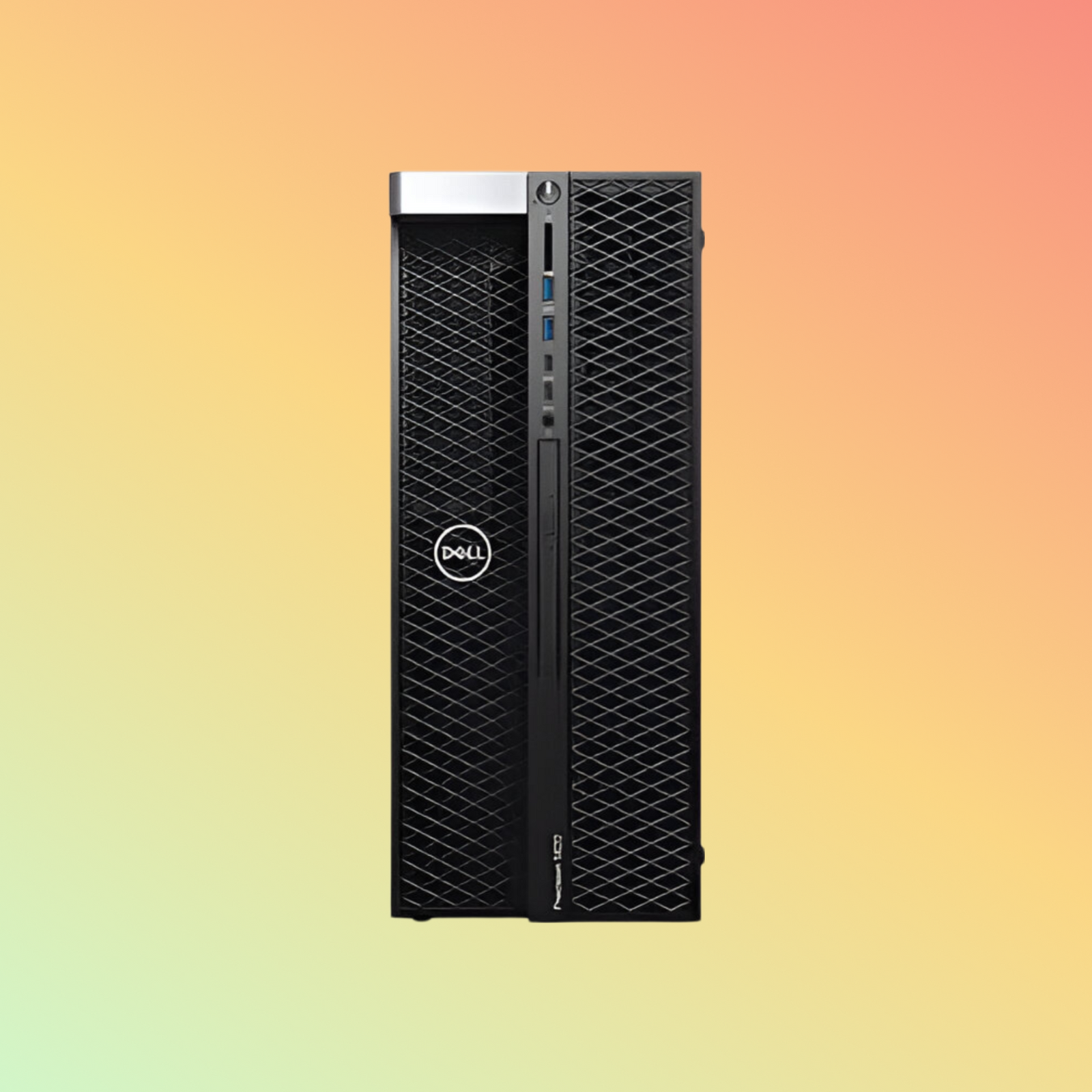

Dell Precision 5820 Tower Professional Workstation The Dell Precision 5820 Tower is a configurable professional workstation platform developed for workloads that can benefit from higher CPU core counts, ECC memory support, professional graphics and extensive internal expansion.

Depending on configuration, the Precision 5820 was available with Intel Xeon W-series or Intel Core X-series processors, NVIDIA or AMD professional graphics, multiple storage technologies and a range of PCIe expansion options.

Because this model was sold in many configurations, buyers should evaluate the exact installed CPU, memory, GPU, storage and power supply rather than assuming that every Precision 5820 has the same performance or capabilities.

Overview

The Precision 5820 platform can include:

• Intel Xeon W-series processors
• Intel Core X-series processors
• Up to 18 CPU cores on supported Xeon configurations
• Eight DDR4 DIMM slots
• ECC RDIMM support with Xeon W processors
• Up to 512GB memory on supported later Xeon configurations
• Professional NVIDIA Quadro / RTX graphics options
• AMD Radeon Pro graphics options
• NVMe, SATA and supported SAS storage
• Multiple PCIe expansion slots
• Gigabit Ethernet
• USB Type-A and USB Type-C connectivity
• 425W or 950W power-supply configurations

Dell’s current owner’s manual lists processors including the Xeon W-2295 with 18 cores / 36 threads.

Xeon W vs Core X Configurations

One of the most important things to understand about the Precision 5820 is that the processor platform affects other system capabilities.

Xeon W-Series

Xeon W configurations can support:

• DDR4 ECC RDIMM
• Larger memory capacities
• Professional workstation workloads
• Higher-end configurations

Dell documents processor examples including:

• Xeon W-2125
• Xeon W-2135
• Xeon W-2145
• Xeon W-2223
• Xeon W-2245
• Xeon W-2275
• Xeon W-2295

The W-2295 is listed at 18 cores / 36 threads.

Core X-Series

Dell also offered Core X processors, including examples such as:

• Core i7-7800X
• Core i7-9800X
• Core i9-9820X

Core X configurations use different memory rules and should not automatically be assumed to support ECC or the same maximum memory as Xeon systems.

Memory Capacity

Dell currently documents:

Memory Slots: 8 DIMM

Xeon W: DDR4 ECC RDIMM supported

Core X: DDR4 non-ECC UDIMM supported

Dell’s current manual states:

• Up to 256GB for supported Skylake CPU configurations
• Up to 512GB for supported Cascade Lake CPU configurations

This is why the old page’s simple “up to 256GB” statement was incomplete.

ECC Memory

ECC memory can detect and correct certain memory errors and is commonly used in professional workstation environments.

However:

ECC support depends on the installed Xeon W processor and compatible memory configuration.

A Precision 5820 using a Core X processor should not automatically be described as an ECC workstation.

Professional Graphics Options

The Precision 5820 was configurable with a wide range of NVIDIA and AMD professional graphics cards.

Depending on production period and configuration, the platform supported families including:

• NVIDIA Quadro
• NVIDIA Quadro RTX / RTX professional cards
• AMD Radeon Pro

These graphics options can be relevant to:

• CAD
• 3D modelling
• Rendering
• Visualisation
• Video production
• Engineering applications

Performance depends heavily on the exact installed graphics card.

A Precision 5820 fitted with an entry-level GPU should not be described as equivalent to one configured with a high-end professional GPU.

Storage & RAID

The Precision 5820 supports multiple storage technologies depending on configuration, including:

• NVMe PCIe SSD
• SATA SSD
• SATA HDD
• Supported SAS drives
• RAID configurations
• PCIe storage expansion

This flexibility can be useful for separating:

Operating system / applications

from

Project data / archive storage

or configuring redundancy where the supported controller and drives permit it.

I would avoid publishing one universal maximum storage figure because actual capacity depends on drive type, bays, controller and installed expansion hardware.

PCIe Expansion

One of the main strengths of a tower workstation is expandability.

The Precision 5820 supports multiple PCIe slots for compatible hardware such as:

• Professional GPUs
• Additional NVMe storage
• RAID controllers
• Network adapters
• Other supported PCIe expansion cards

Compatibility should be checked before adding hardware because slot bandwidth, GPU size, PSU capacity and thermal requirements can matter.

USB & Network Connectivity

Depending on configuration, the Precision 5820 provides a range of front and rear connections, including:

• USB Type-A
• USB Type-C
• Gigabit Ethernet
• Audio
• Serial
• PS/2 on documented configurations

Wi-Fi and Bluetooth were optional rather than universal; Dell maintains a separate Wi-Fi/Bluetooth module installation guide for the platform.

Thunderbolt Guidance

The old page broadly listed Thunderbolt as though it were a standard system feature.

I would not state that.

Thunderbolt capability depends on the installed expansion configuration, and the Precision 5820 should not be advertised as having Thunderbolt 4.

If a customer specifically requires Thunderbolt, confirm the actual system and expansion card before purchase.

Operating-System Guidance

The Precision 5820 is an older workstation platform.

Historically, Dell offered configurations for Windows and Linux environments.

A currently supplied unit may have been:

• Reconfigured
• Upgraded
• Reinstalled
• Refurbished

Therefore, NEOTECH® should state the actual operating system installed on the offered unit, rather than generically promising Windows 11 Pro.

CAD & Engineering

A suitably configured Precision 5820 may still be considered for applications such as:

• AutoCAD
• Mechanical CAD
• 3D modelling
• Engineering analysis
• GIS
• Technical visualisation

Suitability depends on the requirements of the software version being used.

Media & Content Creation

Depending on CPU, GPU, RAM and storage, the workstation may also be useful for:

• Video editing
• Rendering
• Animation
• Image processing
• Media production

The workstation model alone does not determine application performance.

Data Analysis & Scientific Workloads

Higher-core-count Xeon configurations and large memory capacity may be relevant to selected:

• Data analysis
• Simulation
• Scientific computing
• Technical workloads

However, AI or machine-learning suitability should be assessed against the actual GPU, framework and workload, rather than advertised generically.

Security Features

The Precision 5820 platform includes business/workstation security features such as TPM support on applicable configurations.

Security effectiveness depends on:

• Firmware configuration
• Operating system
• Encryption
• User policies
• Network security
• IT administration

The hardware alone does not guarantee protection of sensitive data.

Tool-Accessible Upgrade Design

The tower chassis allows access to major internal components for maintenance and upgrades.

Potential changes may include:

• Memory
• Storage
• GPU
• Network adapter
• PCIe expansion

However, upgrades should always be checked for electrical, firmware, slot and PSU compatibility before installation.

Technical Specifications

Brand: Dell

Series: Precision

Model: Precision 5820 Tower

Product Type: Professional Tower Workstation

Processor Families: Intel Xeon W-series / Intel Core X-series

Maximum CPU Core Count: Up to 18 cores on supported configurations

Memory Slots: 8 DIMM

Memory Type: DDR4

ECC: Supported with compatible Xeon W configurations

Maximum Memory: Up to 512GB on supported Cascade Lake Xeon W configurations; lower limits apply to other CPU generations

Graphics: Configurable NVIDIA professional or AMD Radeon Pro graphics

Storage: NVMe PCIe, SATA and supported SAS configurations

RAID: Supported on applicable storage/controller configurations

Ethernet: Gigabit Ethernet

Expansion: Multiple PCIe Gen 3 slots

Power Supply: 425W or 950W depending on configuration

Platform Status: Older / legacy Precision generation

Dell continues to host current support documentation for the Precision 5820 Tower.

Important Legacy Workstation Guidance

The Precision 5820 is not a current-generation Dell workstation platform.

That does not automatically make it unsuitable.

An older workstation may still be commercially sensible where:

• The price reflects its age
• The configuration meets the software requirement
• Upgrade options remain adequate
• The user understands its lifecycle
• Current-generation hardware is unnecessary

But for a new long-term deployment, newer Precision systems should also be considered.

Exact Configuration Matters More Than the Model Name

Two Precision 5820 Towers may perform very differently.

For example:

System A: Xeon + 128GB ECC + professional GPU + NVMe SSD

and

System B: Core X + 16GB RAM + entry-level graphics + HDD

are both technically “Precision 5820 Tower” systems.

Therefore, always verify:

• Exact CPU
• CPU generation
• RAM quantity
• ECC or non-ECC
• GPU
• SSD/HDD
• RAID
• PSU
• Network hardware
• Operating system
• Product condition
• Warranty
• Included accessories

before comparing prices.

Buyer Guidance

Before purchasing a Precision 5820, ask:

1. Which application will run on it?
2. What CPU does that application require?
3. Is ECC RAM required?
4. How much RAM is needed?
5. Which GPU is installed?
6. Does the software require certified GPU drivers?
7. How much storage is needed?
8. Is NVMe required?
9. Which PSU is installed?
10. Is the unit new, used or refurbished?
11. What warranty actually applies to this specific unit?
12. Would a newer workstation provide better long-term value?

Why Choose NEOTECH® UAE

NEOTECH® encourages customers to compare actual workstation configurations, not just product-family names.

We can help clarify:

• Xeon vs Core X
• ECC vs non-ECC memory
• GPU requirements
• NVMe and storage requirements
• Upgrade considerations
• Legacy vs current workstation choices

Learn First. Decide Second. Buy Only If It Is Right for Your Needs.

There is absolutely no obligation or pressure to proceed with the purchase with us.

NEOTECH® Learning Center

NEOTECH® Learning Center is free and open to everyone. You do not need to be a NEOTECH® customer to access or benefit from our educational content. Learn at your own pace, explore the information freely, and make informed decisions based on your own needs. There is no obligation or pressure to purchase from NEOTECH®.

Educational information on workstation processors, ECC memory, professional graphics, storage and upgrade compatibility can help businesses evaluate equipment before purchasing.

UAE Delivery

NEOTECH® supplies within the UAE.

Shipping: Free Standard Shipping
Order Cut-Off: 2:00 PM GST
Handling: 1–2 business days
Transit: 3–5 business days
Estimated Total Delivery: 4–7 business days

Exact configuration and availability should be confirmed before ordering.

FAQ - Dell Precision 5820 Tower

Q: Does the Dell Precision 5820 support 512GB RAM?
A: Dell’s current documentation lists up to 512GB DDR4 memory on supported Cascade Lake Xeon W configurations. Earlier Skylake configurations have a documented maximum of 256GB.

Q: Does every Precision 5820 support ECC memory?
A: No. Dell documents ECC RDIMM support with Xeon W processors, while Core X configurations use non-ECC UDIMM memory. The installed processor should therefore be checked first.

Q: Is the Dell Precision 5820 still suitable for professional work?
A: It can be, if the exact processor, RAM, GPU and storage meet the requirements of the current software. Because it is an older workstation generation, buyers should compare its configuration and price with newer alternatives before deciding.
