Reliable Wireless Data Collection for Inventory Use

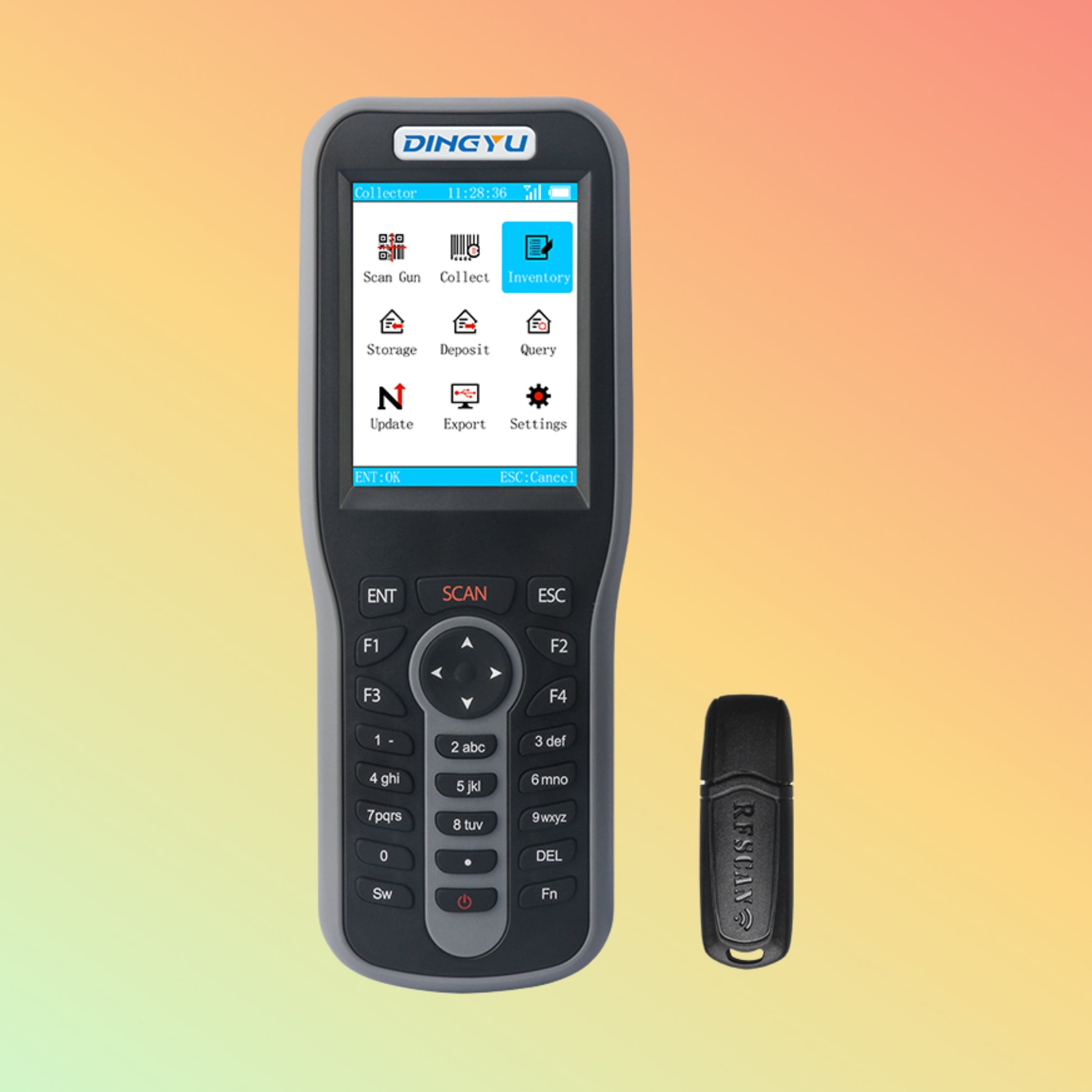

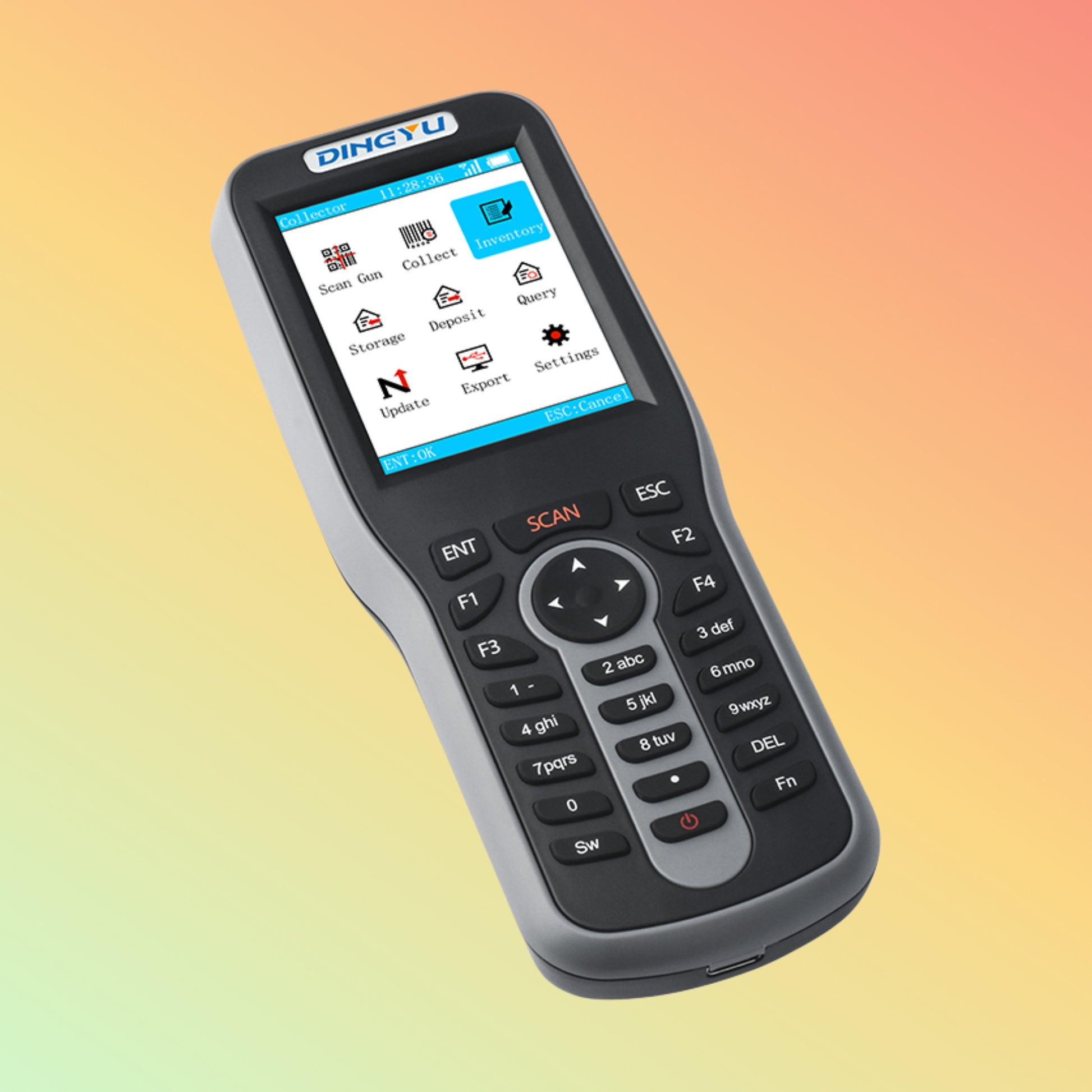

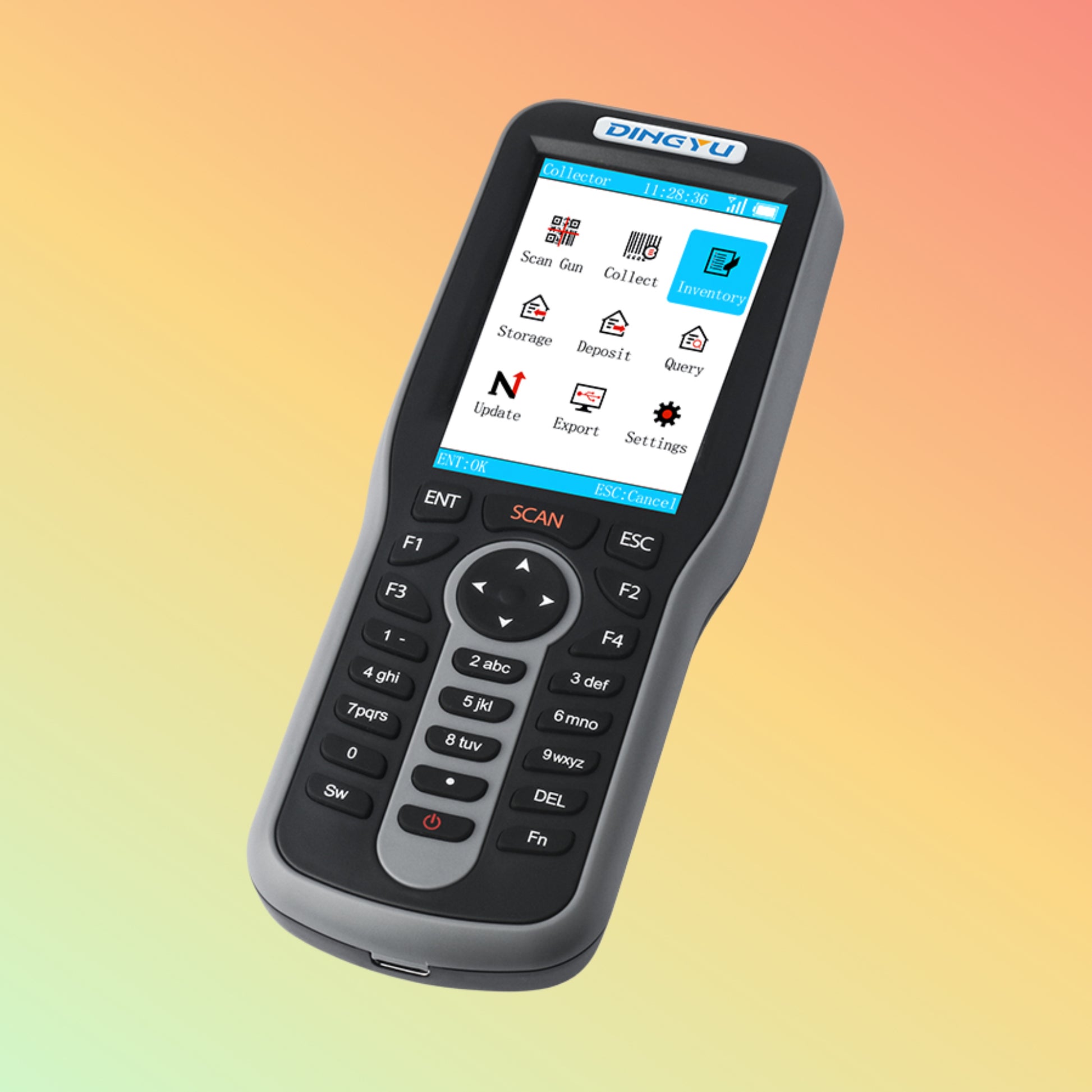

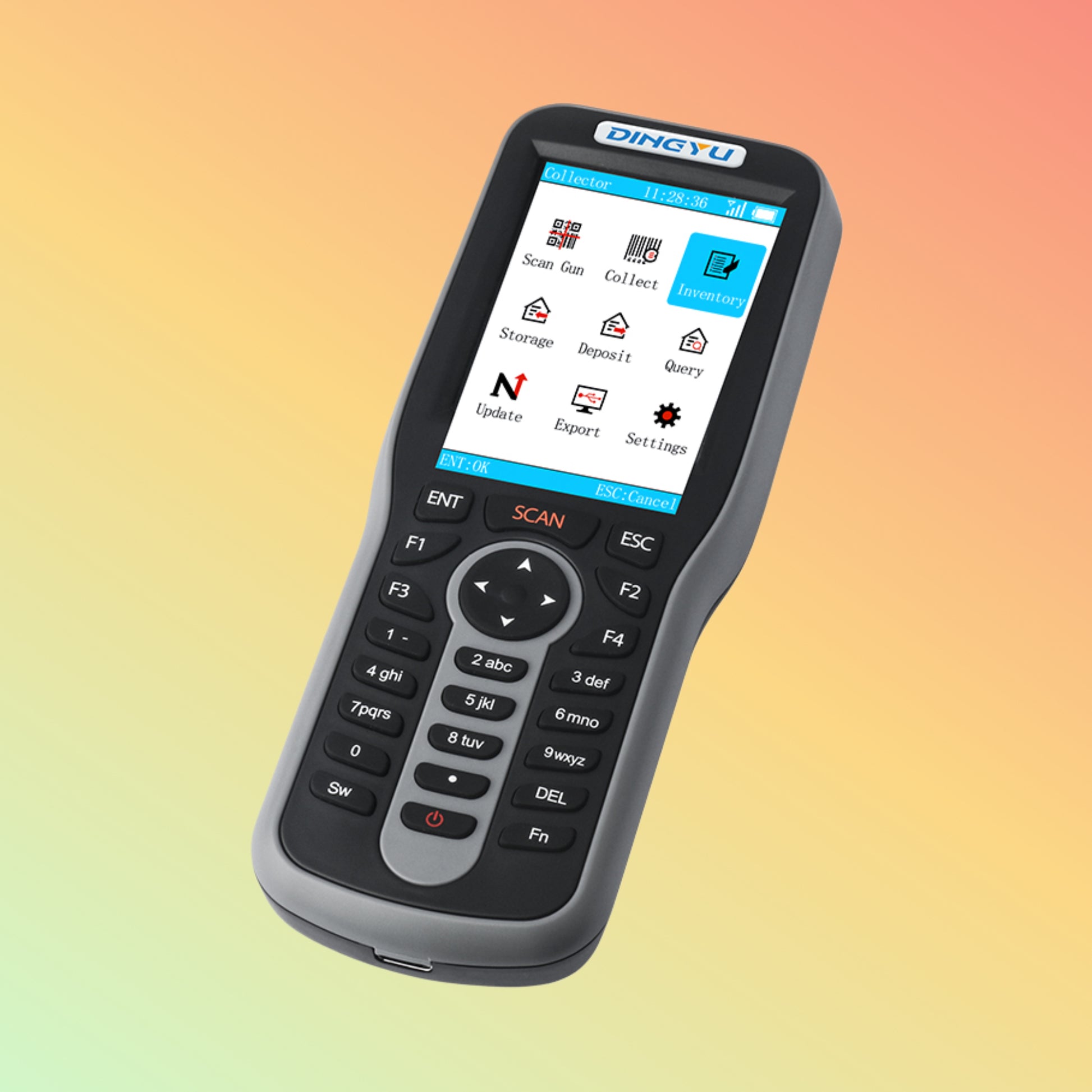

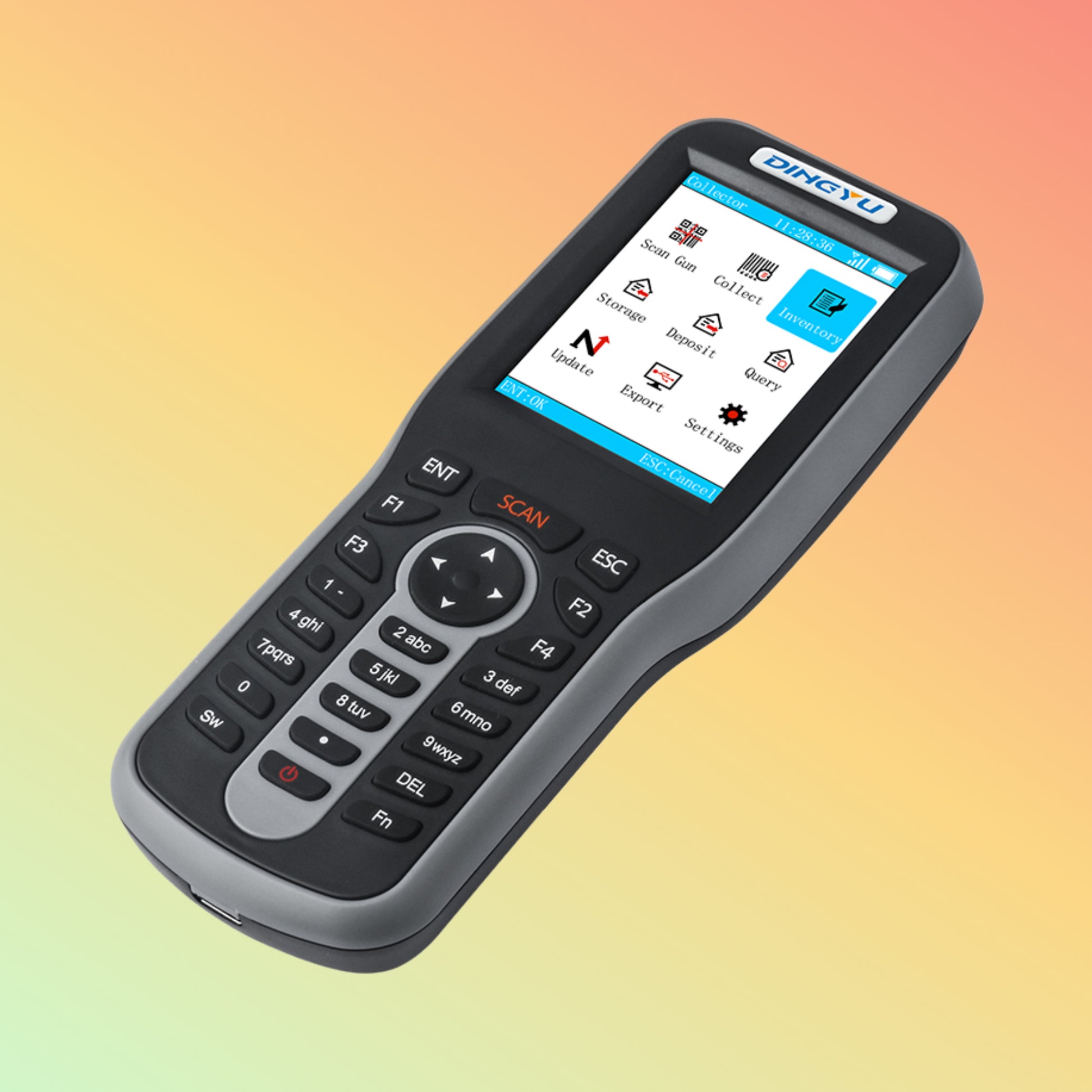

The DYscan DI9202-2D is a handheld wireless barcode scanner designed for inventory and warehouse data collection. It features a built-in 2.8-inch color display, internal memory for offline storage, and wireless communication via 2.4G RF.

This model supports 1D and 2D barcode scanning, including QR codes and Data Matrix, and can read barcodes from printed labels and compatible digital screens.

Overview

The DI9202-2D operates using a 32-bit ARM processor and includes 16MB flash memory capable of storing over 400,000 scanned records. It communicates through 2.4GHz wireless or USB connection and includes a rechargeable 1400mAh lithium battery.

Designed for indoor warehouse and retail environments, it provides structured inventory scanning and data upload to host systems.

Key Specifications

• Model: DI9202-2D
• Scan Type: CMOS 2D Imager
• Supported Codes (2D): QR Code, PDF417, Micro PDF417, Data Matrix, Aztec
• Supported Codes (1D): Code39, Code128, EAN-13, UPC-A, GS1-128 and others
• Display: 2.8” TFT Color LCD (240 × 320 resolution)
• Memory: 16MB Flash (stores 400,000+ records)
• Processor: 32-bit ARM CPU
• Wireless Communication: 433MHz & 2.4GHz RF
• Wireless Range:
• Indoor: up to 50 meters
• Outdoor: up to 100 meters
• Battery: 1400mAh rechargeable lithium polymer
• Working Time: Approx. 20 hours (intermittent scanning)
• Charging: DC 5V via USB
• Interface: Mini USB / Type-C
• Keyboard: 23-key silicone keypad
• Material: ABS engineering plastic
• Color: Black & Grey
• Dimensions: 170 × 62 × 32 mm
• Weight: Approx. 175g (Receiver 7g)

Operating Conditions

• Working Temperature: 0°C to 45°C
• Storage Temperature: -20°C to 85°C
• Humidity: 10% – 80% (non-condensing)

Screen Barcode Reading

• DI9202-2D supports reading barcodes from compatible mobile and computer screens.
• DI9202-LS does not support screen barcode reading.

Package Contents

• DI9202-2D Scanner × 1
• USB Receiver × 1
• USB Cable × 1
• User Manual × 1

Suitable Applications

• Warehouse inventory counting
• Stock management
• Retail back-office scanning
• Asset tracking
• Distribution and logistics

Compatibility

The scanner supports USB communication and wireless RF connection. It can be used with compatible Windows-based systems and inventory software that accepts USB or RF data input.

SDK support is available for integration where required.

Delivery & Returns (UAE)

• UAE delivery only
• Order cutoff: 2:00 PM GST (UTC+4)
• Handling: 1–2 business days
• Transit: 3–5 business days
• Returns: 30 days (new condition only)
• Refund processing within 15 days

For full policy details:
Shipping Policy and Refund Policy pages.

Frequently Asked Questions

Q: Does this scanner read QR codes?
A: Yes, the DI9202-2D supports QR Code, Data Matrix, PDF417, and other 2D symbologies.

Q: Can it scan barcodes from a mobile screen?
A: Yes, DI9202-2D supports scanning from compatible digital screens.

Q: What is the wireless range?
A: Up to 50 meters indoors and up to 100 meters outdoors, depending on environment.

Disclaimer

Product specifications are based on manufacturer data and may change without prior notice. Please confirm compatibility with your software before purchase.

Last Updated: 3 March 2026 (GST, UTC+4)
