Advanced banknote sorting with multi-currency detection and verification control.

Overview

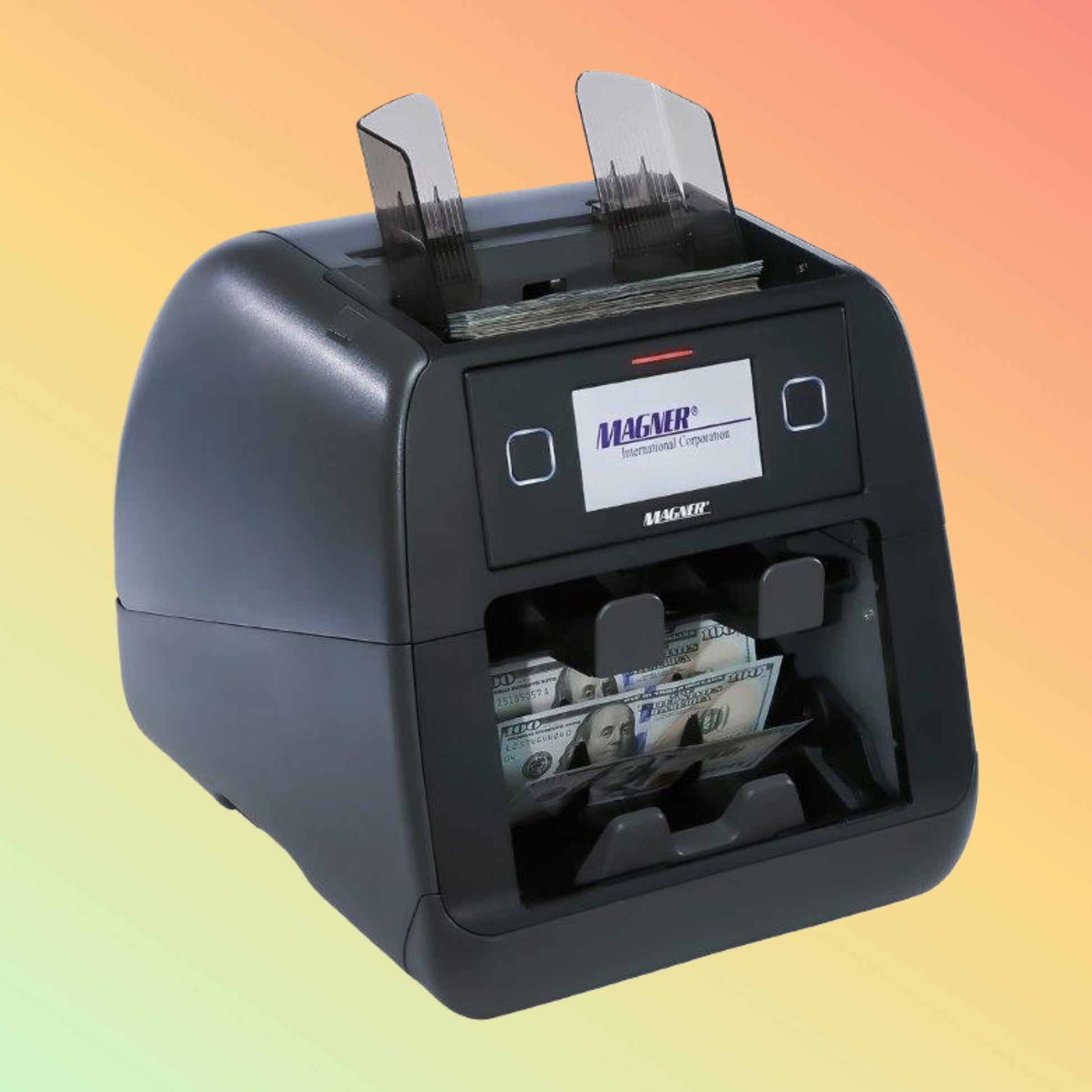

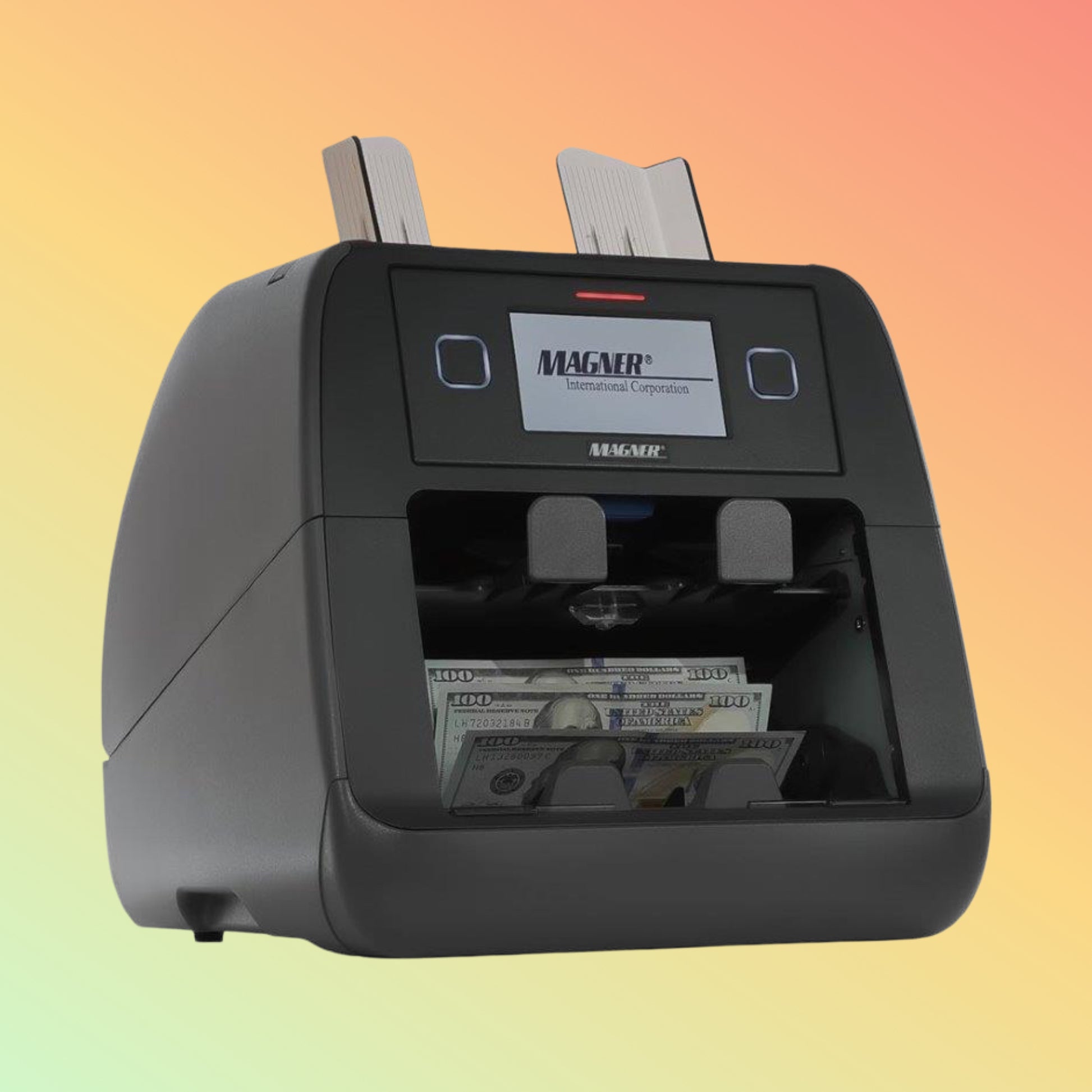

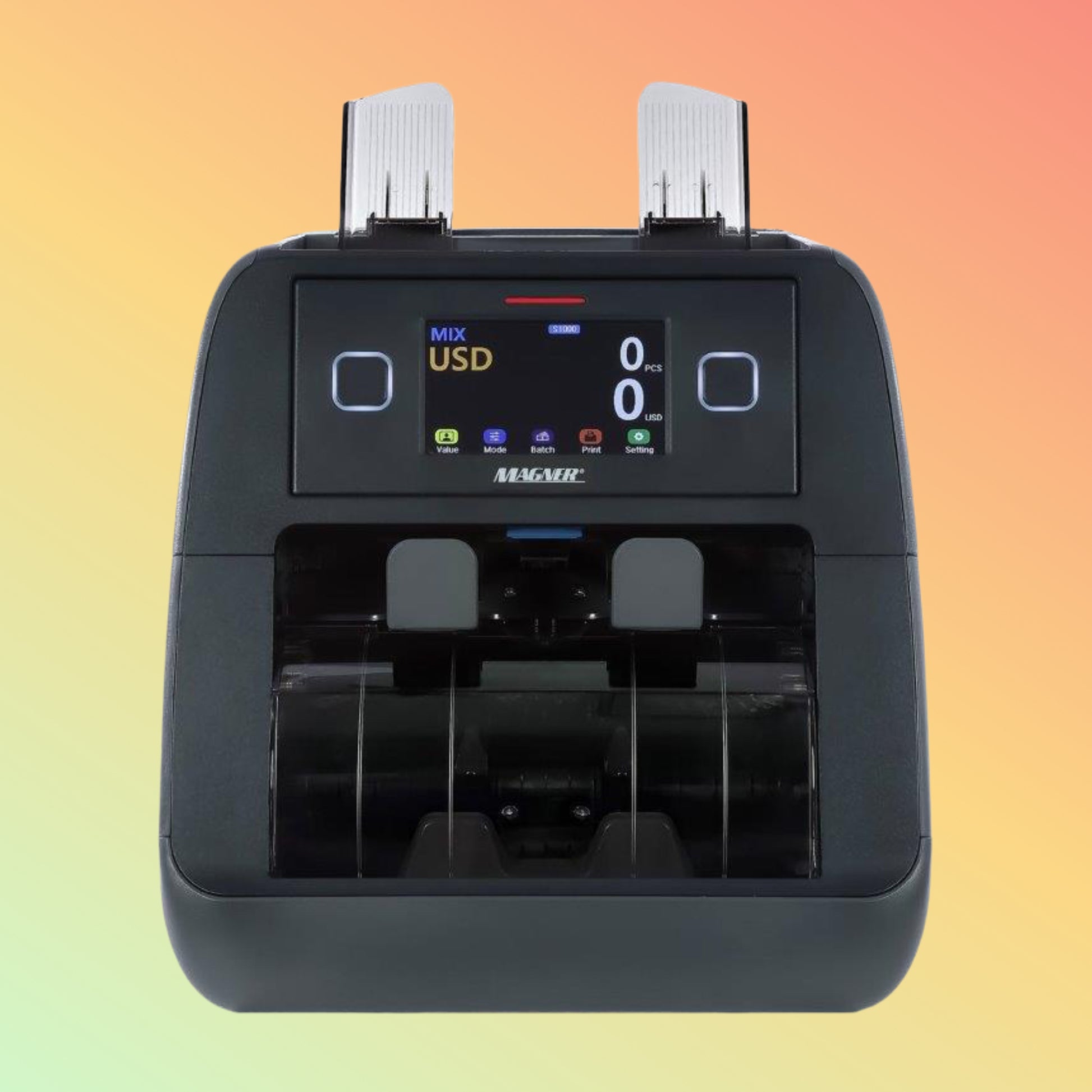

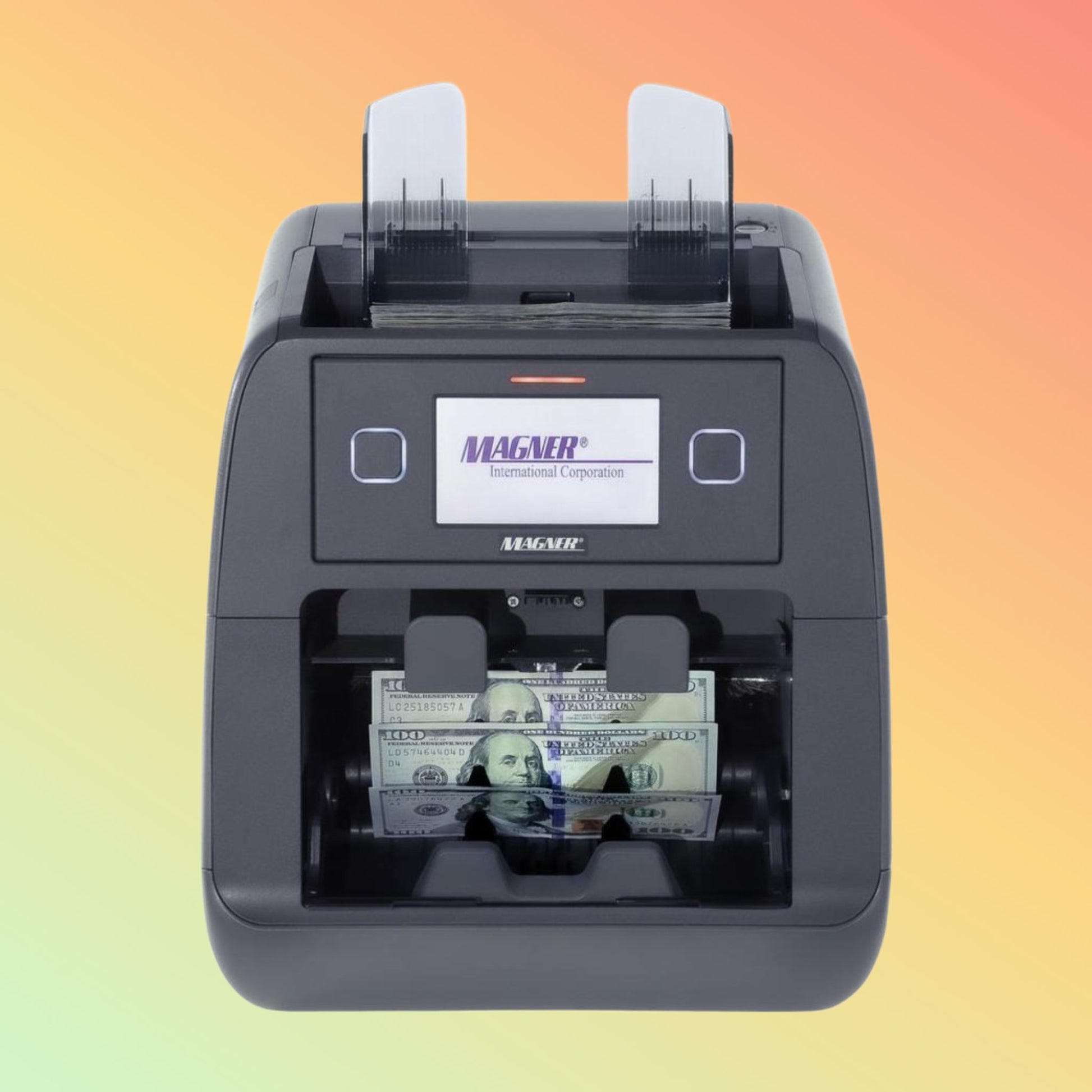

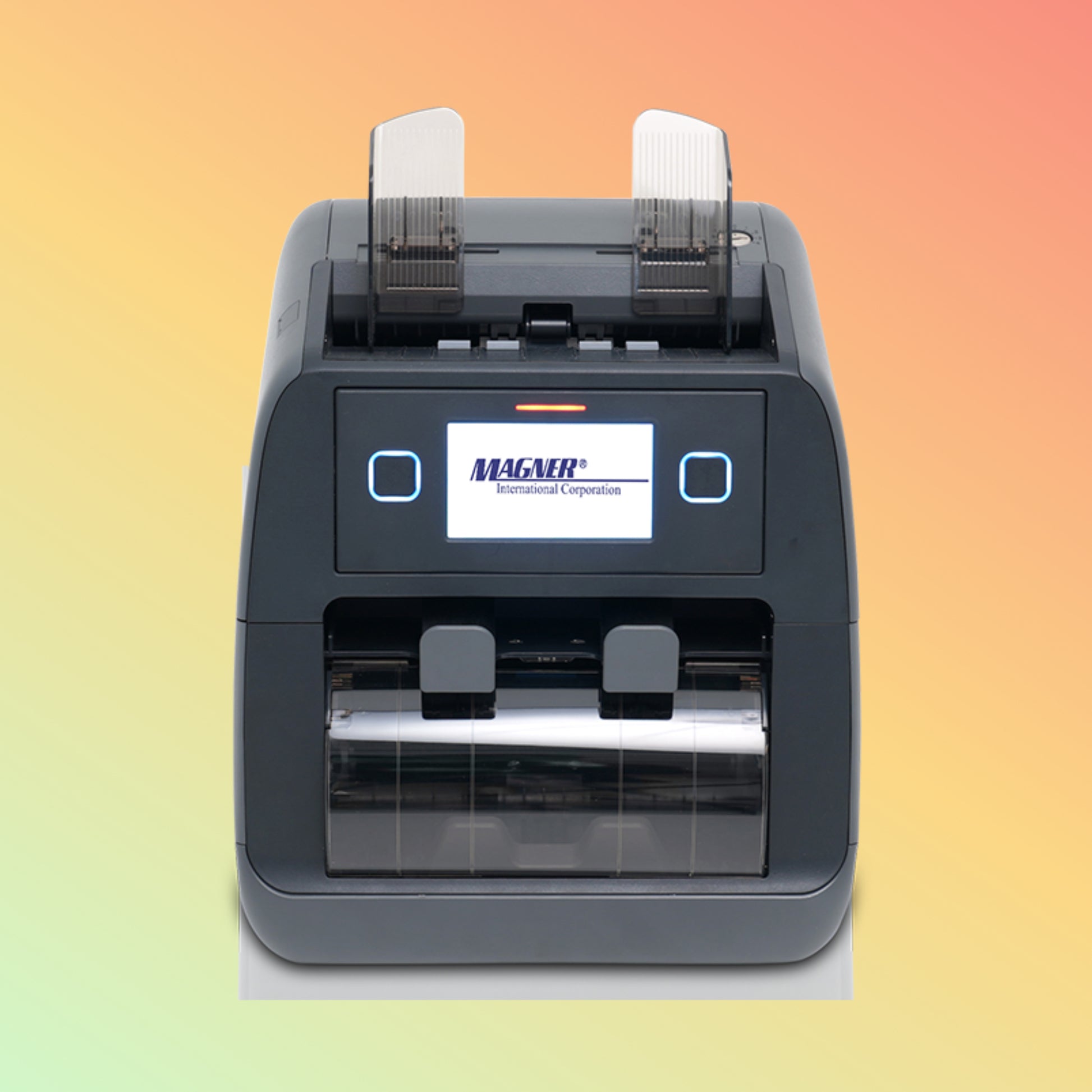

The Magner 2000 Series is a 2-pocket banknote sorter and counter designed for high-accuracy cash processing in professional environments. It supports multi-currency handling, counterfeit detection, and serial number recognition, making it suitable for financial institutions and high-volume cash operations.

This system is built for businesses that require reliable note authentication, sorting, and counting in a single workflow.

Key Features

• 2-pocket sorting system for continuous counting with reject function
• Multi-currency and automatic currency detection capability
• Integrated counterfeit detection using multiple sensor technologies
• Serial number recognition and comparison function
• Internal transaction memory for record tracking
• Large color touchscreen display for operation and control
• Multi-user operation support
• LAN, USB, Serial, and SD card connectivity
• Optional ionizer for note cleaning support

Technical Specifications

• Counting Speed: 800 / 1,000 / 1,200 / 1,300 notes per minute
• Hopper Capacity: Approx. 500 notes
• Stacker Capacity: Approx. 250 notes
• Reject Pocket Capacity: Approx. 100 notes
• Display: 4.3-inch color touchscreen LCD
• Currency Size Range: Width 60–185 mm | Height 50–120 mm
• Thickness Range: 0.03 – 0.15 mm
• Dimensions: Approx. 460 × 400 × 420 mm
• Weight: Approx. 12.5 kg
• Power Supply: 100–240V, 50/60 Hz
• Power Consumption: Approx. 150W

Detection & Verification System

• Dual CIS (Contact Image Sensors)
• UV (Ultraviolet) detection
• MG (Magnetic) full-line detection
• IR Transmission and Reflection (IRT / IRR)
• TDS (Tape Detection Sensor)

Fitness Detection Includes:
Tape, stains, folds, tears, holes, thickness variation, damaged or repaired notes

Applications

• Banks and financial institutions
• Currency exchange centers
• Cash handling companies
• Retail cash offices and back-end operations
• Transportation and ticketing systems

Purpose of Use

The Magner 2000 is used to automate banknote counting, sorting, and authentication. It reduces manual handling errors and helps maintain accuracy in environments where large volumes of mixed banknotes are processed daily.

Why Choose NEOTECH® UAE

✔ UAE-based business with consistent legal identity
✔ Clear, factual specifications without misleading claims
✔ Suitable for banking and professional cash environments
✔ Support available for product selection and integration
✔ Transparent delivery and return policies

FAQ - Magner 2000 Series

Q: What is a 2-pocket sorter in the Magner 2000?
A: It allows continuous counting by separating rejected or suspicious notes into a second pocket without stopping the process.

Q: Does this machine support multiple currencies?
A: Yes, it supports multi-currency detection and automatic currency recognition modes.

Q: Can it detect counterfeit banknotes?
A: Yes, it uses multiple detection technologies such as UV, IR, magnetic, and CIS sensors for verification.

Helpful Internal Links

• Shipping Policy: https://neotech.ae/policies/shipping-policy
• Return Policy: https://neotech.ae/policies/refund-policy
• Warranty Policy: https://neotech.ae/pages/warranty-amp-repair-policy

Contact NEOTECH® UAE

NEOLYN TECHNOLOGY LLC
Store 13, Computer Building
Al Fahidi, Bur Dubai, Dubai, UAE
Email: support@neotech.ae

Disclaimer – NEOTECH® UAE

Specifications, features, and detection performance may vary depending on currency type, condition of notes, and configuration. Optional features such as ionizer and external devices may require separate purchase. Information is subject to change without prior notice.
