Three-Track HiCo / LoCo Magnetic Card Reader, Writer and Encoder with USB Connectivity

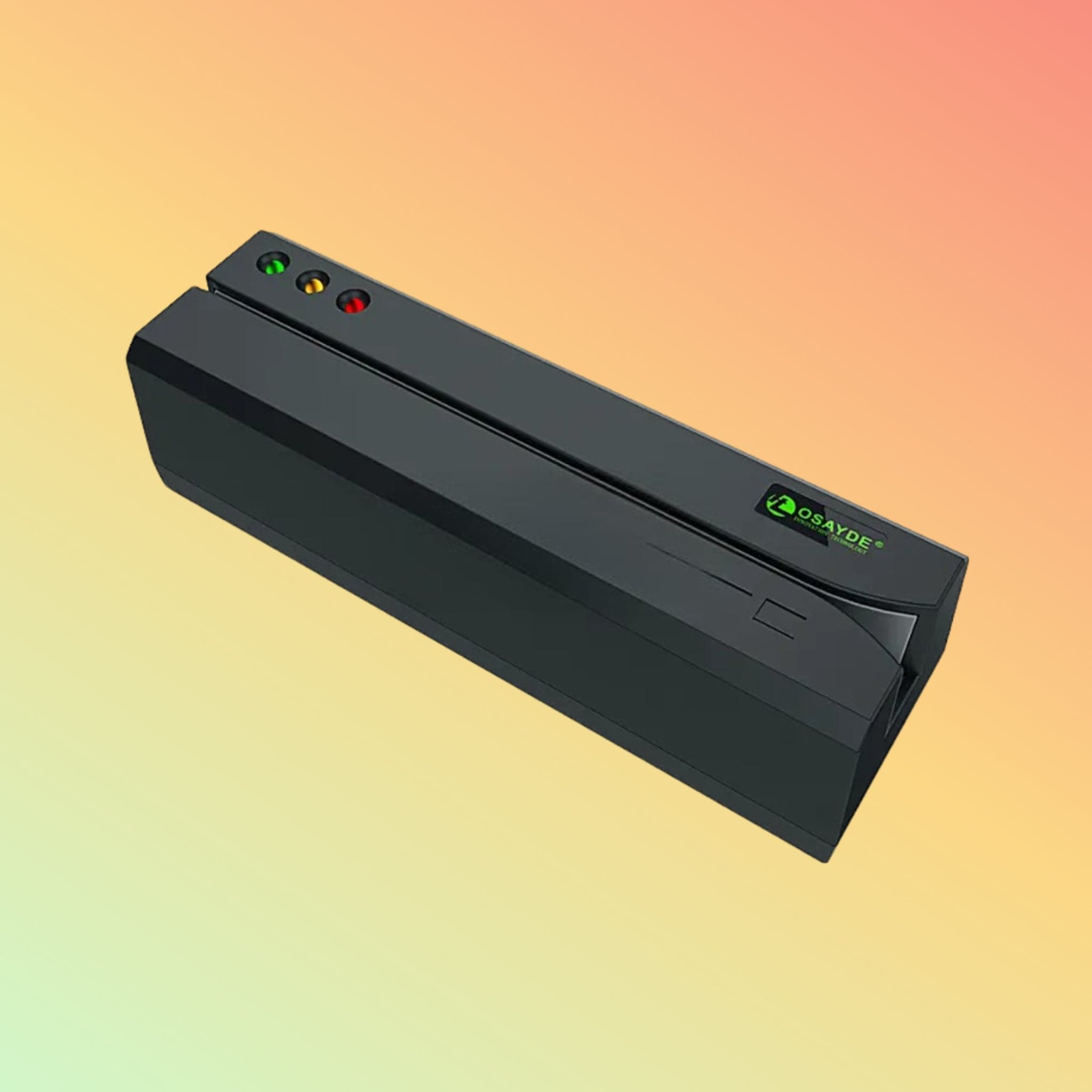

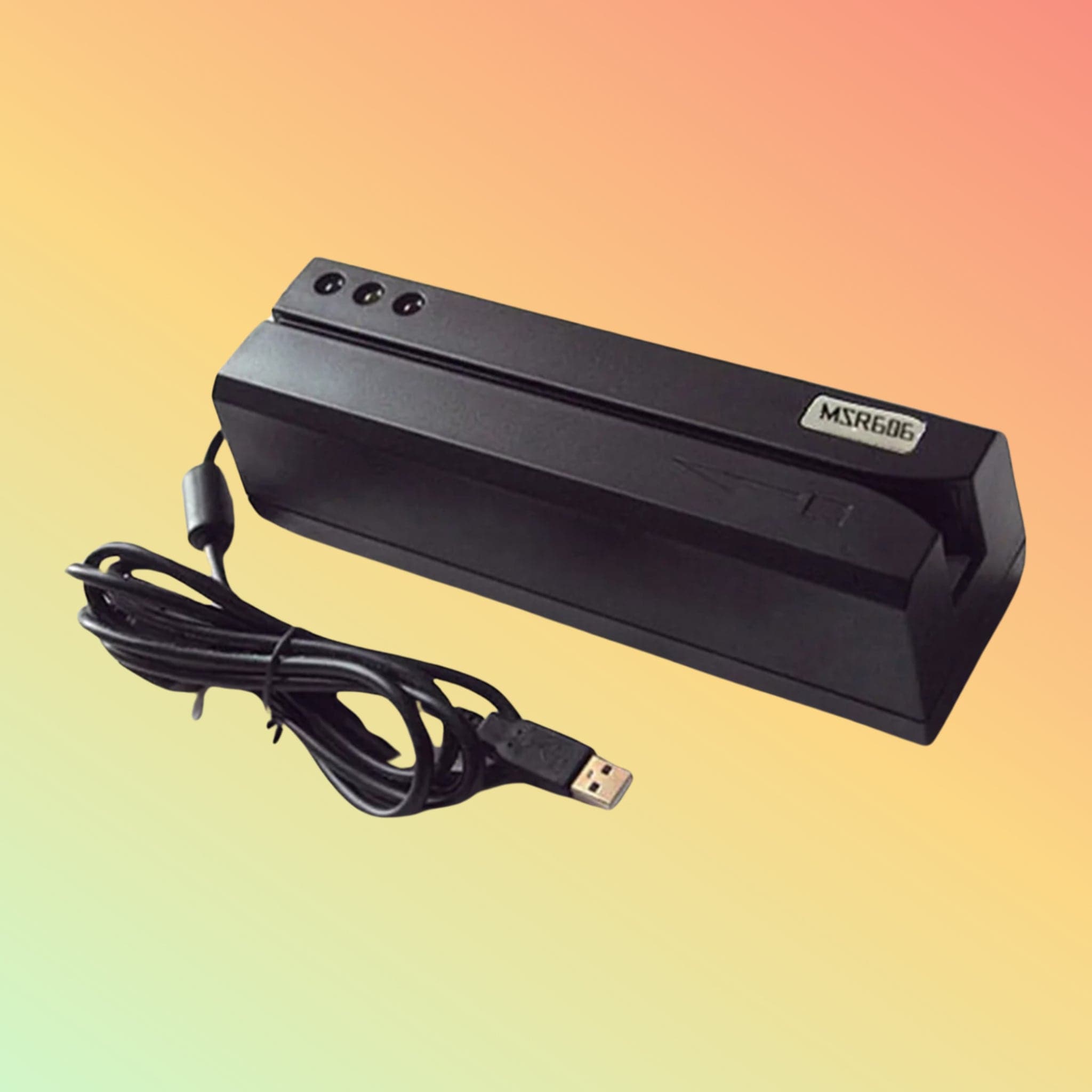

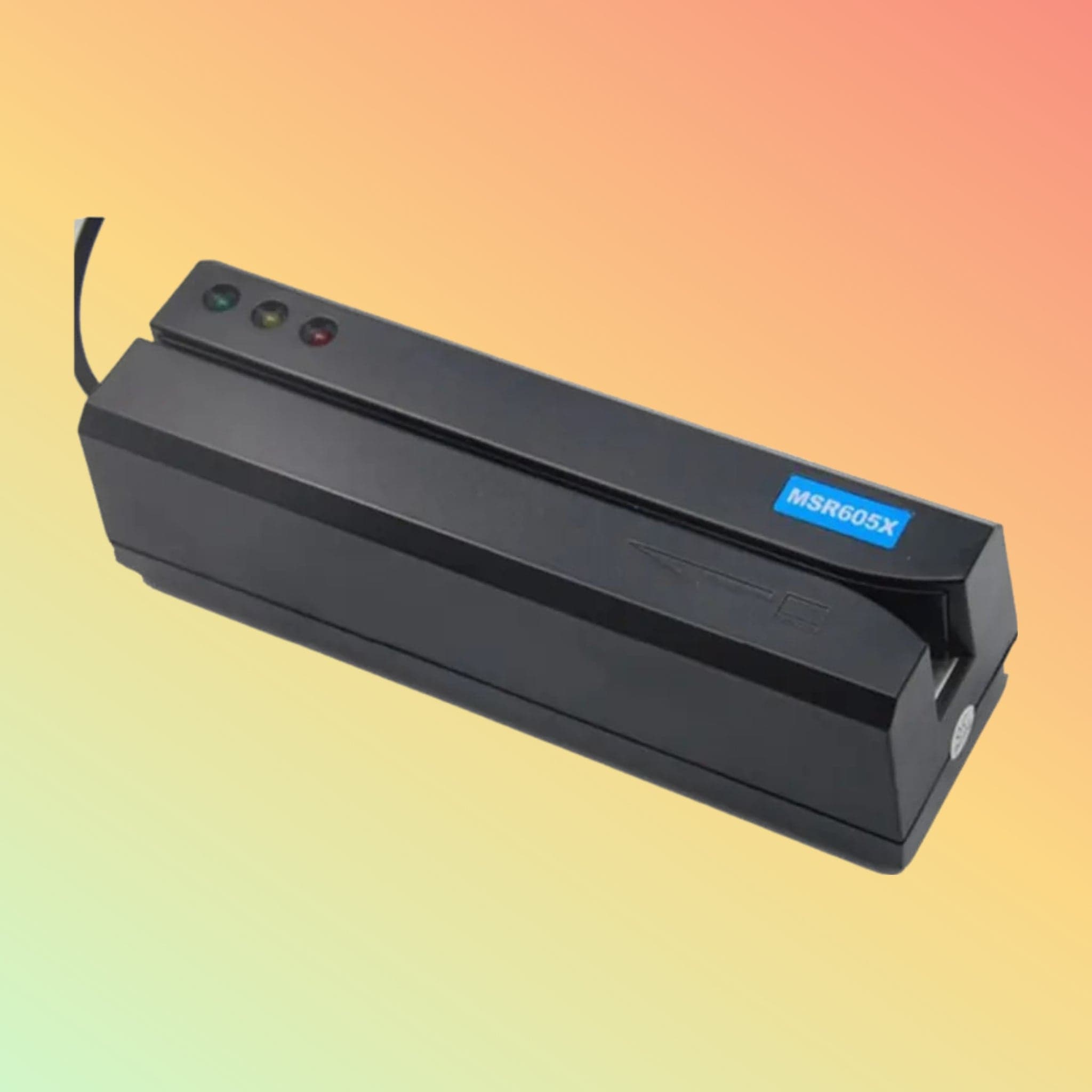

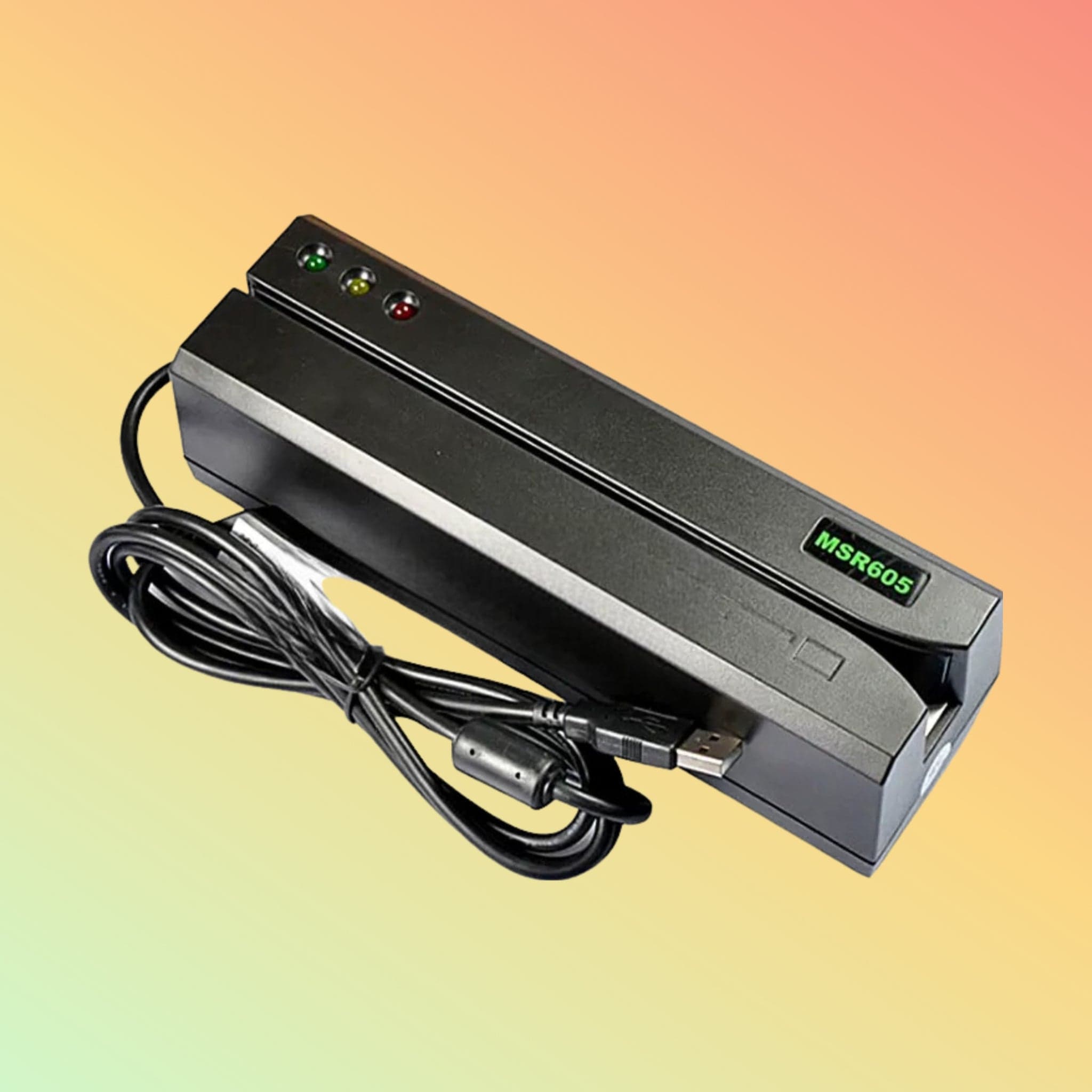

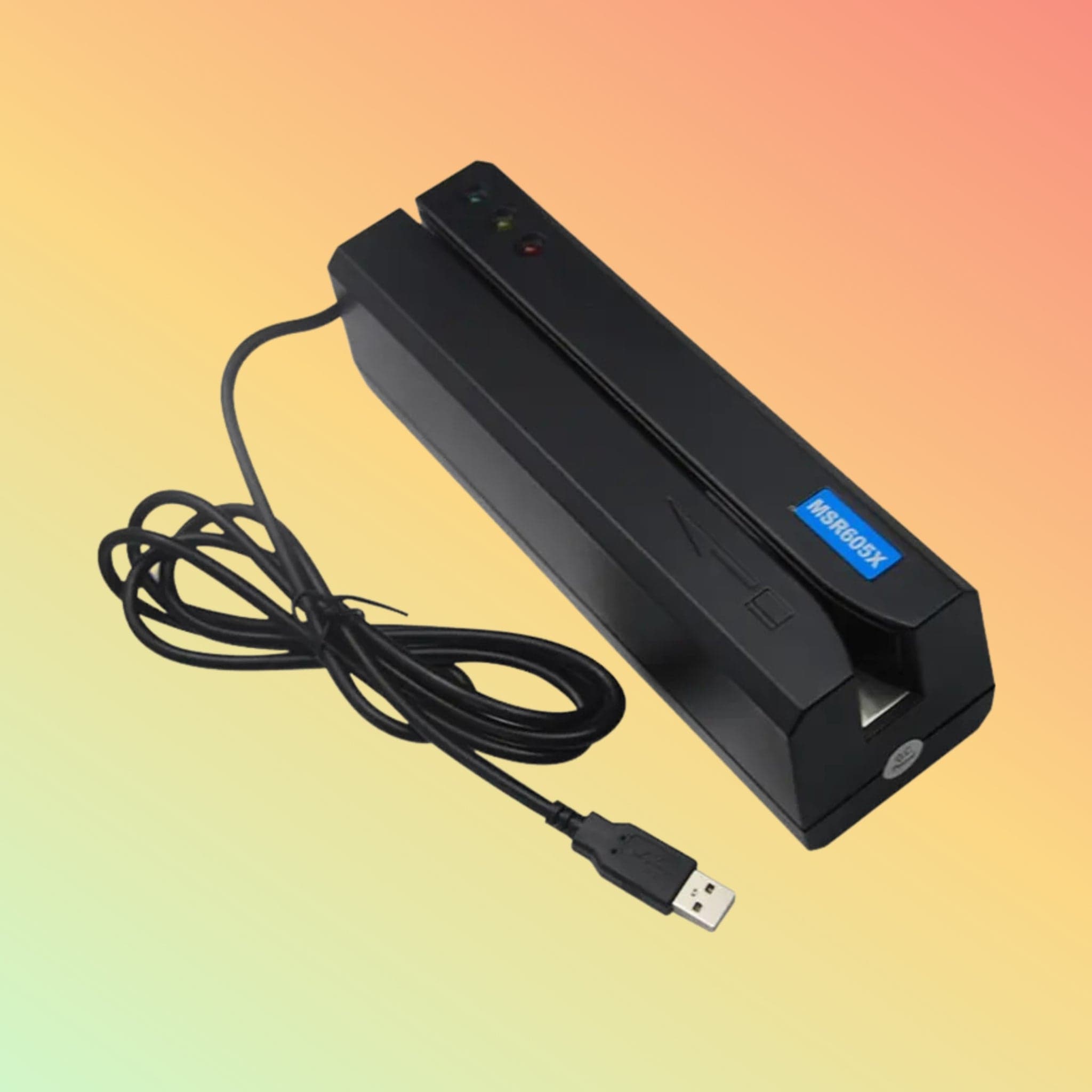

The MSR605X Magnetic Stripe Card Reader Writer is a USB-connected desktop device designed for reading, writing, encoding and verifying compatible magnetic stripe cards.

It supports Tracks 1, 2 and 3, together with both high-coercivity (HiCo) and low-coercivity (LoCo) magnetic stripes across a supported coercivity range of 300–4000 Oe.

The MSR605X can be used for legitimate card issuance, membership, identification, loyalty, access-control and other authorized magnetic-stripe applications where compatible software and card formats are available.

Professional Highlights

✅ Read & Write Capability — Reads and encodes compatible magnetic stripe cards

✅ Three-Track Support — Supports Track 1, Track 2 and Track 3

✅ HiCo & LoCo Support — Compatible with supported magnetic cards from 300–4000 Oe

✅ USB Interface — Connects to a compatible computer for communication

✅ ISO Magnetic Stripe Support — Designed for compatible ISO-format magnetic cards

✅ Selectable Track Configuration — Supports single, dual or triple-track operations

✅ 75 / 210 BPI Options — Track-density configuration according to supported track requirements

✅ Manual Swipe Operation — Simple desktop design for controlled card reading and encoding

Product Description

The MSR605X provides read/write functionality for businesses and organizations working with compatible magnetic stripe cards.

Unlike a read-only magnetic stripe reader, the MSR605X can both retrieve existing supported track data and write authorized data to compatible writable magnetic stripes.

Its three-track architecture provides flexibility for different card formats and applications, while selectable high- and low-coercivity encoding supports a wider range of compatible magnetic cards.

The unit is intended to operate with suitable MSR605X software on a compatible computer.

Three-Track Magnetic Stripe Support

The MSR605X supports:

• Track 1
• Track 2
• Track 3

It can perform compatible operations on a single track or multiple tracks according to the selected software configuration and card format.

Track configuration and data structure must match the requirements of the intended authorized application.

HiCo and LoCo Card Support

Magnetic stripe cards are manufactured with different magnetic coercivity levels.

The MSR605X supports compatible magnetic stripes within approximately:

300–4000 Oe

This enables operation with supported LoCo and HiCo magnetic stripe cards.

Card coercivity should be selected according to the requirements of the card system and intended application.

Read and Write Speeds

The MSR605X is a manual-swipe encoder.

Reading Speed: 5–55 ips
Writing Speed: 5–30 ips

For reliable reading and writing, cards should be passed smoothly through the device.

Uneven, excessively slow or interrupted swiping may affect the operation.

Magnetic Stripe Density

Supported track-density configurations include:

• Track 1: 210 BPI
• Track 2: 75 / 210 BPI
• Track 3: 210 BPI

The correct density and data format depend on the card system being used.

Card Thickness

Supported card thickness is approximately:

0.76–1.2 mm

The card must also have a suitable magnetic stripe and physical construction for the intended read/write operation.

USB Connectivity

The MSR605X connects to a compatible computer through USB for communication with its card-reading and encoding software.

Software and driver compatibility should be checked against the computer's operating system before ordering, particularly for newer operating-system versions.

Software Requirement

The MSR605X requires compatible software to perform functions such as:

• Reading magnetic tracks
• Writing magnetic tracks
• Verifying written data
• Selecting tracks
• Selecting coercivity
• Configuring supported formats

Software availability and operating-system compatibility can vary according to the supplied unit and software version.

Customers using a current Windows, macOS or Linux environment should confirm software and driver compatibility before purchase rather than assuming universal support.

Technical Specifications

• Model: MSR605X
• Product Type: Magnetic Stripe Card Reader / Writer / Encoder
• Card Operation: Manual swipe
• Tracks: Track 1 / Track 2 / Track 3
• Magnetic Coercivity: 300–4000 Oe
• Card Type: Compatible HiCo / LoCo magnetic stripe cards
• Track 1 Density: 210 BPI
• Track 2 Density: 75 / 210 BPI
• Track 3 Density: 210 BPI
• Read Speed: 5–55 ips
• Write Speed: 5–30 ips
• Card Thickness: 0.76–1.2 mm
• Interface: USB
• Dimensions: Approximately 212 × 64 × 63 mm
• Operation: Read / Write / Verify compatible magnetic stripe data

Applications

The MSR605X can be considered for authorized applications such as:

• Membership-card issuance
• Loyalty cards
• Employee identification
• Student identification
• Club membership
• Access-control cards
• Attendance applications
• Visitor cards
• Event cards
• Internal identification systems
• Magnetic-card testing
• Card-system development
• Compatible data-collection applications

Compatibility depends on the magnetic card, software, data format and system requirements.

Purpose of Use

The MSR605X is designed for organizations requiring a desktop magnetic stripe reader and writer rather than a simple read-only MSR.

It can be used to read existing supported magnetic-track data and encode authorized information onto compatible writable magnetic stripe cards.

The device itself does not create a complete membership, access-control, loyalty or identification system. Suitable software and system integration are required.

Read-Only MSR vs MSR605X

A standard POS magnetic stripe reader generally reads existing card data and passes it to the host application.

The MSR605X provides additional writing/encoding functionality.

This makes it more appropriate for applications involving authorized card issuance or magnetic-stripe programming.

Customers who only need to read employee, membership or loyalty cards may not require an encoder and can consider a simpler read-only MSR instead.

Compatibility

Before ordering, verify compatibility with:

• Required card type
• Magnetic stripe coercivity
• Track requirements
• BPI requirements
• Card thickness
• Data format
• Operating system
• MSR605X software
• Required drivers
• Existing card-management system

The fact that a card has a magnetic stripe does not automatically guarantee compatibility.

Responsible Use

The MSR605X is a general-purpose magnetic stripe encoding device intended for lawful and authorized applications.

Only read, write, copy or modify magnetic stripe data when you own the card/data or have explicit authorization to do so.

Do not use the device to duplicate payment credentials, identification credentials, access credentials or other protected data without lawful authorization.

Things to Verify Before Ordering

Please confirm:

• Model required: MSR605X
• Read/write functionality required
• Track 1 / 2 / 3 requirements
• HiCo or LoCo card requirement
• Magnetic coercivity
• BPI requirements
• Card thickness
• Card format
• Operating-system version
• Software compatibility
• Driver compatibility
• USB connection requirement
• Required package contents
• Current UAE availability
• Applicable warranty

Who Should Consider the MSR605X?

The MSR605X may be suitable for:

• Card-issuance departments
• Membership organizations
• Loyalty-program operators
• Access-control administrators
• Schools and universities
• Clubs
• Hotels
• Authorized system integrators
• Software developers
• Card-system testing environments

Users requiring only basic card reading should consider whether a read-only MSR would be simpler and more economical.

How to Use

1. Connect the MSR605X to a compatible computer.
2. Install the appropriate driver and software where required.
3. Launch the compatible MSR application.
4. Select the required card operation.
5. Configure the correct track, coercivity and data format.
6. Insert the magnetic-stripe card in the correct orientation.
7. Swipe the card smoothly through the reader/writer.
8. Verify the operation using the software.
9. Confirm encoded data using the authorized card-management system where applicable.

Always test the complete workflow before deploying the device for production card issuance.

Delivery – UAE

Delivery is available within the United Arab Emirates.

Order Cut-Off: 14:00 GST
Handling: 1–2 business days where applicable
Standard Transit: Approximately 3–5 business days after handling
Typical Total Delivery: Approximately 4–7 business days for confirmed available products

If the product is unavailable, becomes out of stock when the order is placed, or requires special procurement, delivery may extend to approximately 10–15 working days or up to 25 working days after payment/order confirmation, depending on supplier availability.

Please confirm current availability before ordering.

FAQ - MSR605X Reader Writer

Q: What is the MSR605X?
A: The MSR605X is a desktop magnetic stripe card reader and writer used to read, encode and verify compatible magnetic stripe cards.

Q: Can the MSR605X both read and write cards?
A: Yes. It supports both reading and writing on compatible magnetic stripe cards.

Q: How many magnetic tracks does it support?
A: It supports Track 1, Track 2 and Track 3.

Q: Does it support HiCo cards?
A: Yes. It supports compatible high-coercivity magnetic stripe cards within its supported coercivity range.

Q: Does it support LoCo cards?
A: Yes. Compatible low-coercivity magnetic stripe cards are also supported.

Q: What coercivity range does it support?
A: The supported range is approximately 300–4000 Oe.

Q: What is the reading speed?
A: The specified manual reading speed is approximately 5–55 inches per second.

Q: What is the writing speed?
A: The specified writing speed is approximately 5–30 inches per second.

Q: Does it support all three tracks simultaneously?
A: The MSR605X supports single, dual and triple-track operations according to the selected software configuration and card requirements.

Q: What interface does it use?
A: It uses USB connectivity for communication with a compatible computer.

Q: Does it require software?
A: Yes. Compatible software is required for reading, writing, configuring and verifying magnetic stripe data.

Q: Does it work with Windows 11?
A: Software and driver compatibility should be confirmed for the exact MSR605X unit and software package before purchase.

Q: Does it work with macOS?
A: Some MSR605X variants and software packages are advertised for Mac environments, but compatibility varies. Confirm support for your exact macOS version before ordering.

Q: Does it work with Linux?
A: Linux compatibility depends on the required software, drivers and intended integration. Confirm the complete application before purchase.

Q: Can it encode membership cards?
A: Yes, where the membership system uses compatible writable magnetic stripe cards and suitable software.

Q: Can it be used for access-control cards?
A: It may be used for authorized compatible magnetic-stripe access applications. The card format and access-control software must be compatible.

Q: Is this a payment terminal?
A: No. The MSR605X is a magnetic stripe reader/writer and should not be treated as a payment terminal or acquiring device.

Q: Can it copy any magnetic card?
A: No. Technical compatibility and legal authorization are both required. Protected or credential-bearing cards should only be accessed or reproduced where the user has explicit lawful authorization.

Q: Is POSTECH PT-605X a different device from MSR605X?
A: This product should be identified primarily by its hardware model MSR605X. Confirm the model printed on the physical device before ordering if matching an existing installation.
