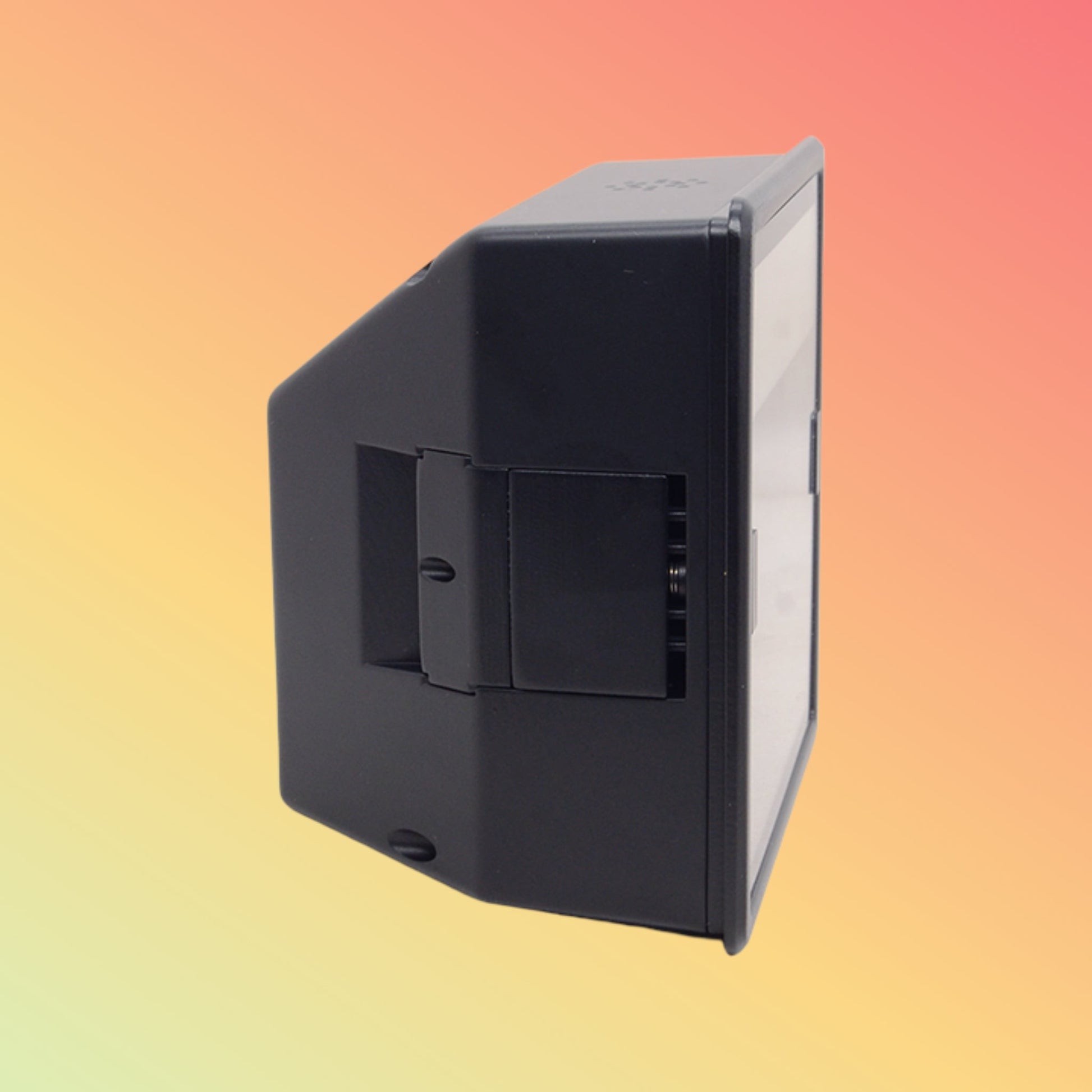

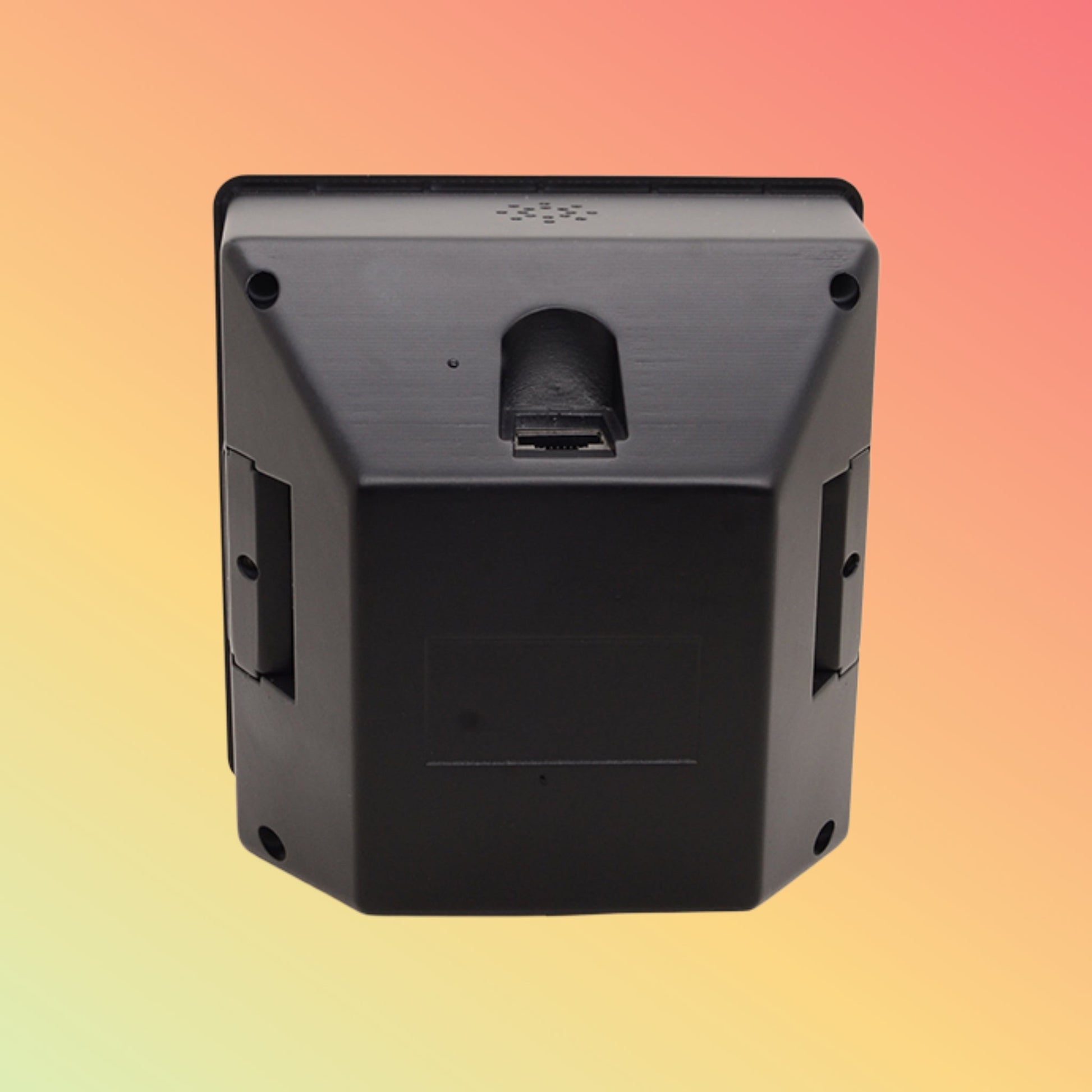

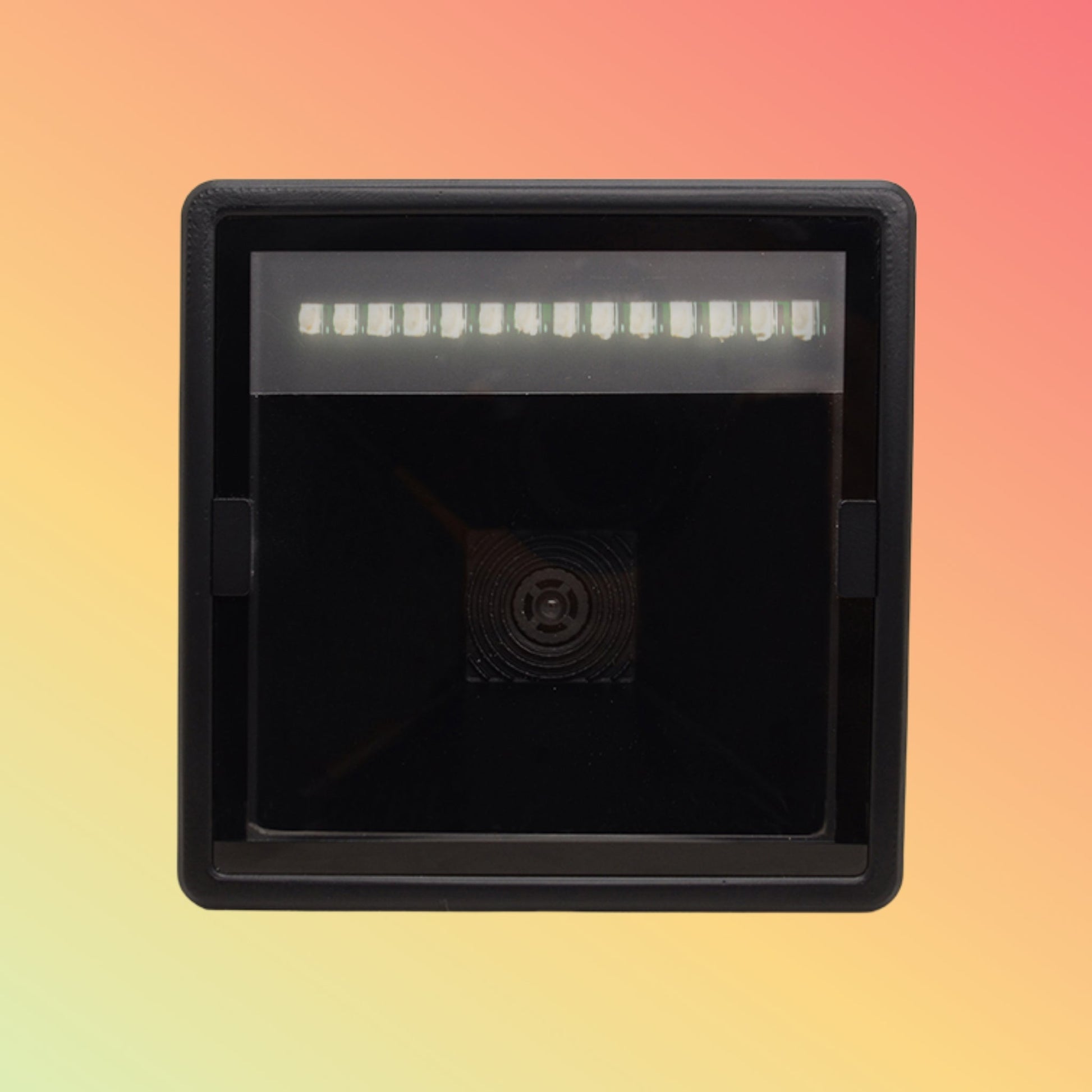

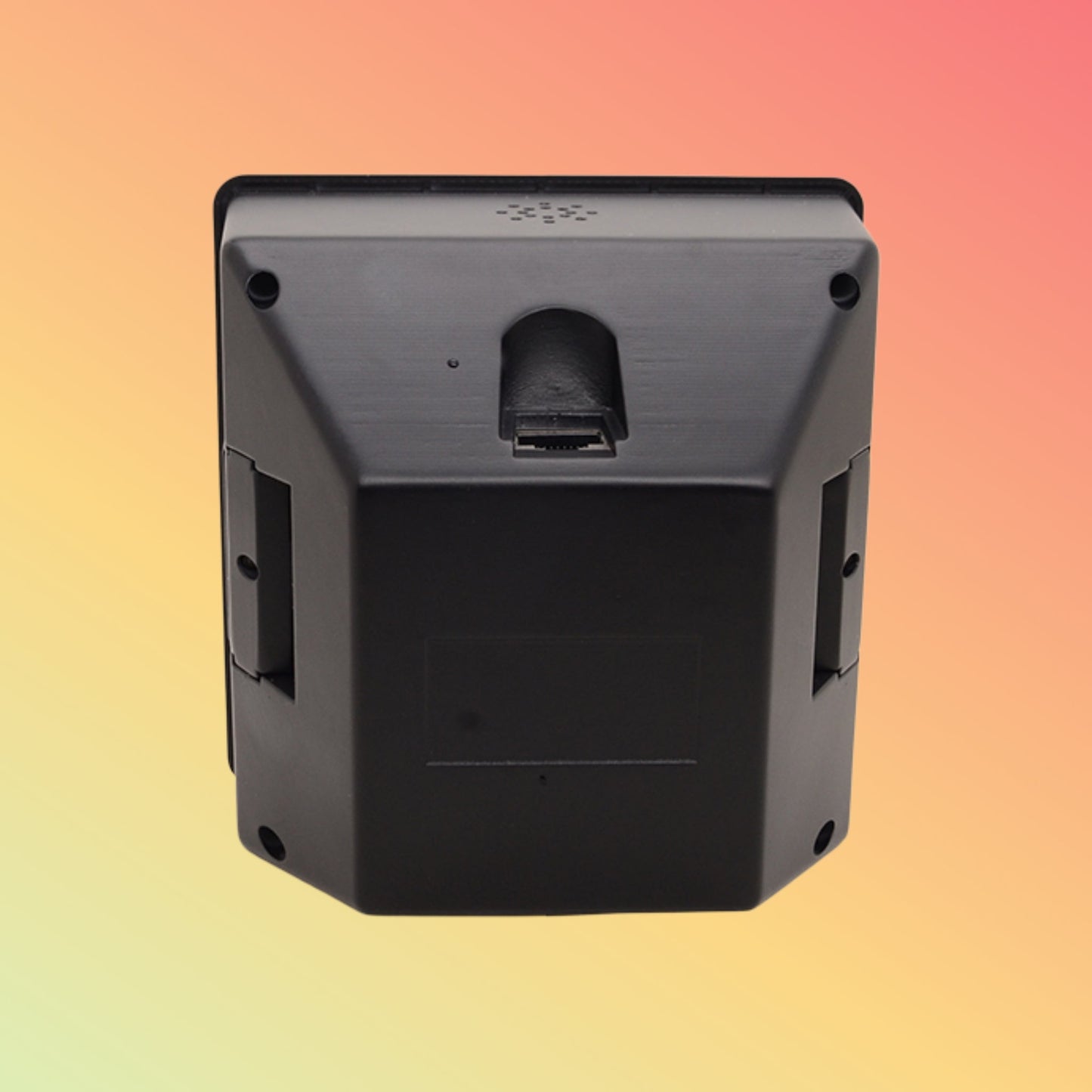

Luckydoor KS700H Embedded 2D Barcode Scanner QR Code Reader for Kiosk

KS700H fixed 2D kiosk module—360° omni-scan, 640×480 CMOS, USB HID & TTL-UART. Shop at NEOTECH.

Overview

Embed high-speed barcode capture into kiosks and terminals with the KS700H. Its omni-directional mirror head decodes QR, PDF417, Data Matrix & 1D codes at up to 120 scans/sec. Stream data via USB HID or TTL-UART, all in a slim PCB-mount form factor.

Internal Link: Explore our Embedded Scanner Modules.
External Link: Learn barcode standards on the GS1 website.

Product Description

The KS700H packs a 640×480 CMOS sensor and precision mirror array onto a compact PCB (48 × 38 × 18 mm). Snap it flush into your bezel; the module auto-detects USB HID or 115 200 bps TTL-UART. LED aimer and buzzer confirm every read. Ideal for self-service kiosks, ticket dispensers, and bespoke terminals.

Key Features

• 360° omni-directional mirror scan head

• 2D & 1D decoding: QR, PDF417, Data Matrix, UPC/EAN, Code 128

• High speed: up to 120 scans/sec

• Interfaces: USB HID & TTL-UART (5 V TTL)

• Low-profile PCB: 48 × 38 × 18 mm for embedded use

• Feedback: bright LED aimer + ≥ 85 dB buzzer

• Power: 5 V DC via USB or header

Specifications

Supported OS / Applications / Industries

• OS: Any USB HID host (Windows, Linux, Android)

• Use Cases: Kiosks, ticket machines, POS terminals

• Industries: Retail, Hospitality, Transportation, Self-service

Benefits & Compatibility

• Embed-ready PCB fits tight bezel cutouts

• Dual interfaces for maximum flexibility

• Angle-free scanning speeds transactions

• Plug-and-play USB HID for driverless setup

• Low-power design suits battery-backed units

Purpose of Use

Perfect for self-service kiosks, ticket dispensers, vending machines, and any embedded terminal requiring reliable, hands-free barcode capture.

How to Use

1. Mount PCB module behind bezel with sensor window aligned

2. Connect USB or TTL headers to host

3. Power with 5 V DC

4. Present barcode to mirror head

5. Receive data via HID or UART in your application

Packaging / Weight / Dimensions

• Includes: KS700H PCB module, USB cable, TTL jumper wires, quick-start guide

• Module size: 48 × 38 × 18 mm

• Package weight: ~ 40 g

Warranty & FAQs

• Warranty: 1 year limited

• FAQs:

  • Q: Handles curved labels?
    A: Yes—omni-mirror head adapts to slight curves.

  • Q: Switch to UART mode?
    A: Use jumper per manual; module auto-detects signal.

  • Q: Dust/moisture tolerance?
    A: Conformal-coated PCB resists light dust and splashes.

Performance, Quality, Durability & Reliability

Engineered with precision optics and conformal coating, the KS700H achieves MTBF ≥ 30 000 hrs and delivers first-pass reads on worn or low-contrast codes.

Best Price Guarantee

Found a lower price on a similar embedded scanner? NEOTECH will match it—no drama.

Shop Today & Delivery Across the UAE!

Order your KS700H now for express shipping to Dubai, Abu Dhabi, Sharjah, Ajman & beyond. Track in real time.

Customer Reviews & Testimonials

Got yours? Leave a quick review on our site and help others integrate smarter.

After-Sales Support

Need integration tips or firmware? Our UAE support squad is a call or email away. We’ll guide you through smooth deployment or RMA.

Get in Touch

For bulk orders, custom firmware, or SDK access, contact our sales team for samples, demos & pro advice.

Stock Availability

Confirm live inventory with our sales team before ordering—lead times may vary for bulk orders.

Disclaimer

Specs, pricing, and availability subject to change. Images are illustrative; actual product may vary. Always verify details with NEOTECH before purchase.
