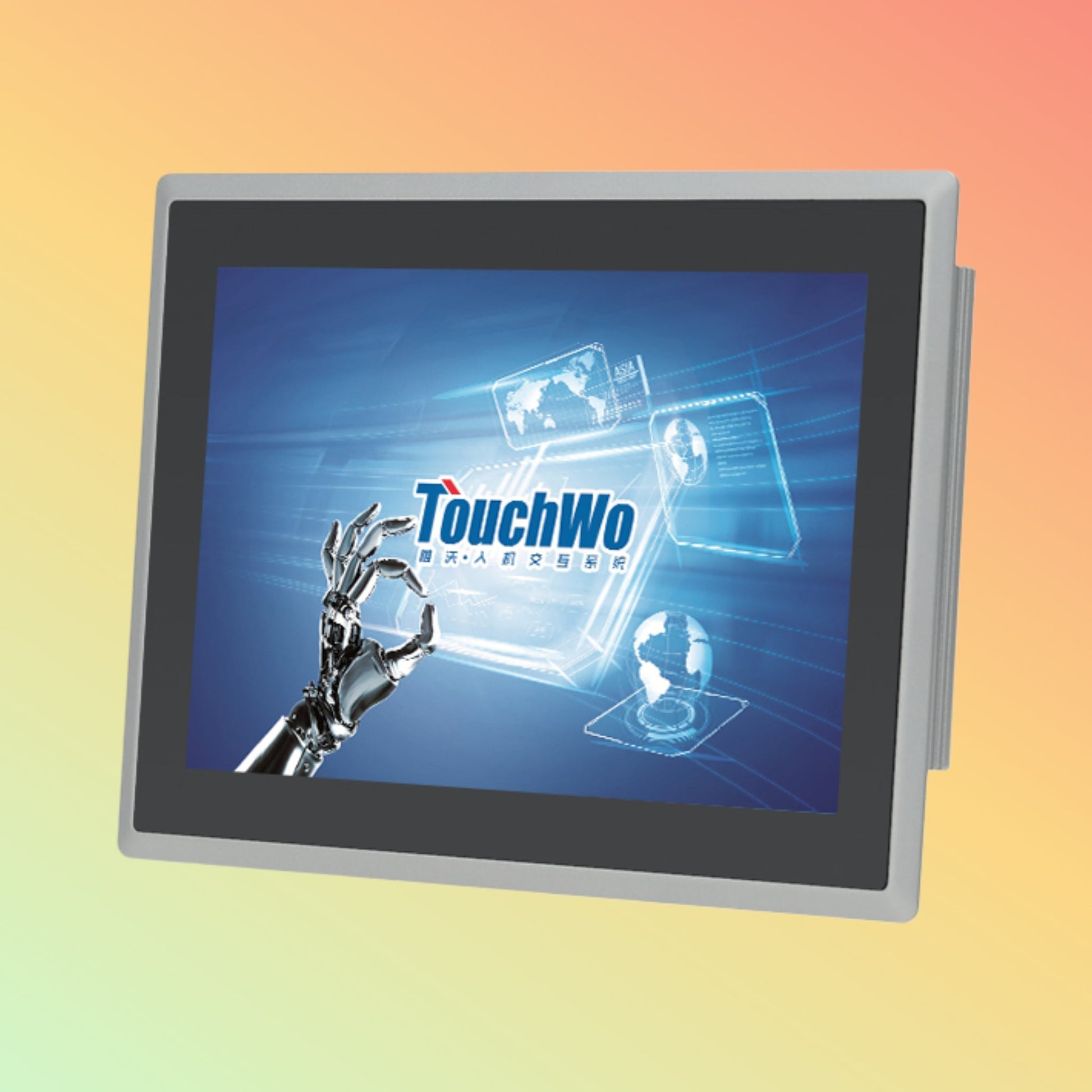

Touchwo DM080NG 8″ Industrial Touch Monitor

8″ rugged industrial touch monitor by TouchWo. Compact, IP-rated, fanless, and ideal for kiosks, HMIs, and automation. Fast, plug-and-play interface.

✅ Overview

The TouchWo DM080NG 8″ Industrial Touch Monitor is built for embedded, industrial, and commercial applications where reliability, compact design, and responsive touch are essential. With a ruggedized body, bright display, and IP-rated front panel, it’s ideal for control systems, kiosks, and factory automation.

✅ Product Description

The DM080NG features a high-resolution 8-inch touchscreen with capacitive multi-touch technology, housed in an industrial-grade fanless chassis. It supports plug-and-play functionality across Windows, Android, and Linux systems, making it perfect for human-machine interface (HMI), smart terminals, and compact kiosk setups.

With an IP65-rated front panel for splash and dust resistance, and a slim, silent fanless aluminum alloy enclosure, this monitor delivers commercial-grade performance in a compact footprint—ideal for tight enclosures and harsh environments.

✅ Key Features

• 🖥️ 8″ capacitive multi-touch (10-point) touchscreen

• 💡 350–400 nits brightness with anti-glare screen

• 🧱 IP65 front protection against dust and splashes

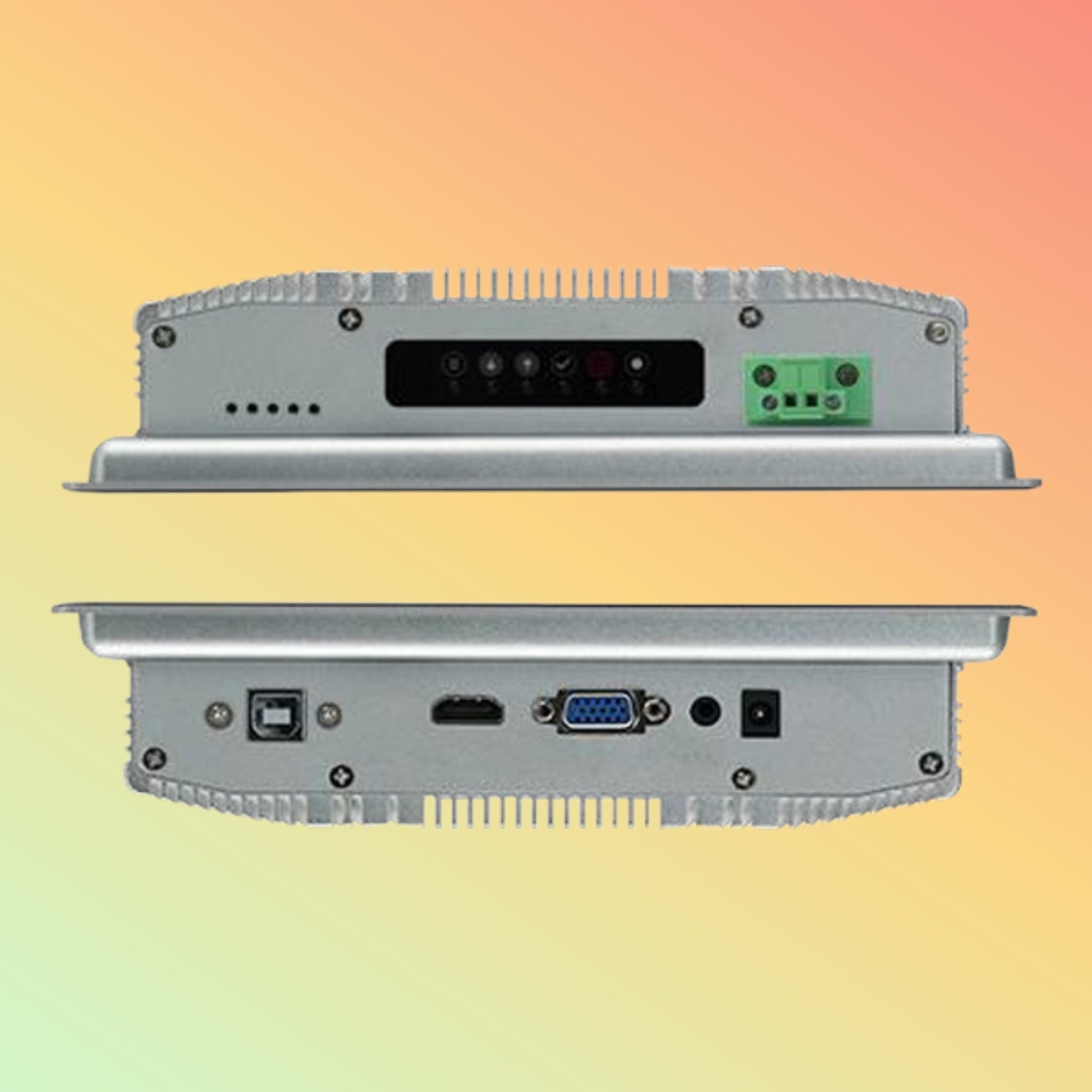

• 🔌 Interfaces: HDMI, VGA, USB (touch), Audio-in

• ⚙️ Fanless design for quiet, continuous operation

• 🧊 Operating temp: -10°C to +60°C

• 🌐 Supports Windows, Linux, Android OS

• 🛠️ Mounting: VESA 75x75, embedded, or desktop

✅ Specifications

• Screen Size: 8 inches

• Resolution: 1024 x 768 (4:3 aspect ratio)

• Touch Type: 10-point capacitive

• Brightness: 350–400 cd/m²

• Contrast Ratio: 800:1

• Viewing Angle: 160° H / 140° V

• Response Time: <5ms

• Input Ports: HDMI, VGA, USB, Audio-in

• Power Input: 12V DC / 2A

• Body Material: Anodized aluminum alloy

• Mounting Options: VESA 75x75, embedded frame

• Dimensions: ~215 × 170 × 40 mm

• Net Weight: ~1.6 kg

✅ Supported OS / Applications / Industries

• OS Compatibility: Plug-and-play with Windows, Linux, Android

• Applications: HMI, POS terminals, automation control, vending kiosks, smart displays

• Industries: Manufacturing, energy, smart retail, logistics, transportation, industrial automation

✅ Benefits & Compatibility

• 🧠 Seamless OS integration—no extra drivers needed

• 🛡️ Industrial-grade materials for rugged use

• 💧 IP-rated for use in dust or splash-prone zones

• 🔧 Compact for embedded or confined-space installs

• 🧩 Compatible with embedded systems, SBCs, and mini PCs

✅ Purpose of Use

Designed for embedded touchscreen environments like factory machine panels, interactive kiosks, or compact control systems, the DM080NG combines functionality with durability for mission-critical use.

✅ How to Use

1. Mount the unit using VESA or flush frame

2. Connect HDMI or VGA for display signal

3. Plug USB cable to enable touch input

4. Connect power via 12V adapter

5. Power up—monitor is ready to operate instantly

✅ Packaging / Weight / Dimension

• Box Includes: Monitor, power adapter, HDMI + USB cables, quick setup guide

• Weight: ~1.6 kg

• Packaging Size: ~25 x 22 x 10 cm

• Protection: Industrial-grade, anti-static, foam-lined packaging

✅ Warranty and FAQs

• Warranty: 12-month limited hardware warranty

• Returns: Covered under NEOTECH’s standard RMA process

• Support: Installation help and OS setup assistance via phone/email

• FAQs: Visit our NEOTECH Support Center for calibration and mounting guides

✅ Performance, Quality, Durability, and Reliability

The DM080NG delivers continuous, low-power, and fanless operation in demanding work environments. Its rugged body and long-lasting touch screen make it ideal for 24/7 operation, especially where durability, uptime, and space optimization are essential.
