Silent 10.1″ fanless LED touch panel PC with capacitive screen, VGA & HDMI out. Rugged IP54 front, Windows & Linux ready. Fast UAE shipping.

Overview

Upgrade your industrial HMI with this 10.1″ fanless LED touch panel PC. Its IP54-rated front keeps dust and splashes out, while passive cooling guarantees zero noise. Dual video outputs (VGA + HDMI) let you drive legacy displays and modern monitors. Preloaded for Windows 10 IoT or Ubuntu Linux, it boots in seconds and delivers rock-solid performance on the factory floor.

Product Description

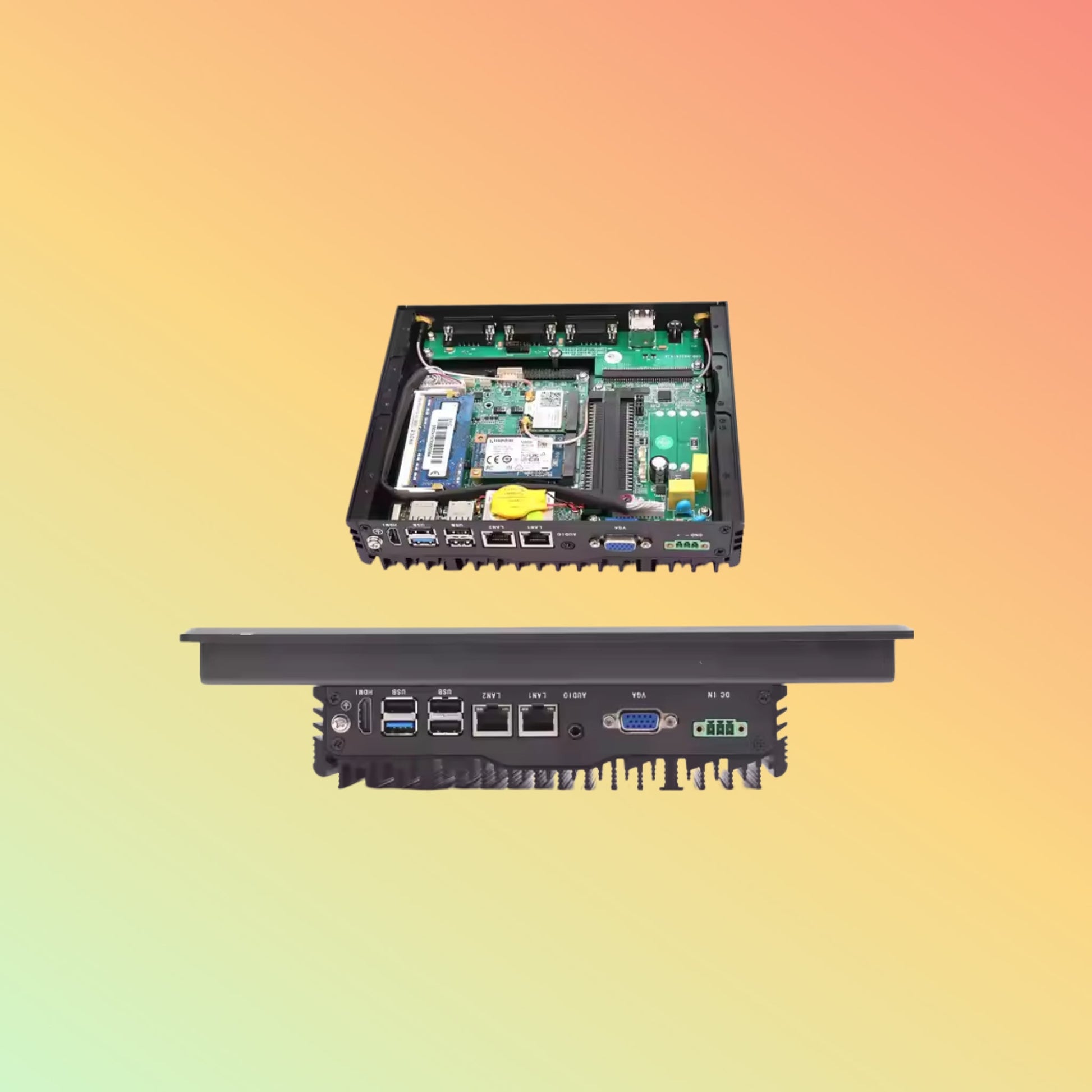

Built in a die-cast aluminum chassis, this panel PC uses heat-pipe technology to dissipate CPU heat without fans or filters. The 10.1″ LED Full HD capacitive touchscreen supports multi-touch input even with gloves on. Under the hood, pick a dual-core Intel® Celeron® or upgrade to Core™ i3 for extra horsepower. Dual video outputs—one VGA and one HDMI—let you connect older control screens and new HD displays simultaneously. Six USB ports, dual Gigabit LAN, and RS-232/485 ensure broad device compatibility. Mount flush via VESA or panel-cutout kits for a clean, secure install.

Key Features

• Fanless, passive-cooling heat-pipe design

• 10.1″ LED Full HD capacitive multi-touch display

• Video: 1× VGA + 1× HDMI outputs

• CPU options: Intel® Celeron® N3450 or Core™ i3-7100U

• IP54-rated front bezel for dust & splash resistance

• 4× USB 3.0 + 2× USB 2.0, dual Gigabit LAN, 2× RS-232/485

• Preloaded Windows 10 IoT or Ubuntu Linux

• VESA 75×75 mm & panel-mount kits included

Specifications

Supported OS / Applications / Industries

• Operating Systems: Windows 10 IoT, Ubuntu Linux

• Applications: HMI control, data logging, digital signage

• Industries: Manufacturing, food & beverage, warehousing, kiosks

Benefits & Compatibility

• Zero Noise: Fanless design eliminates dust ingress

• Dual Display Support: VGA for legacy, HDMI for HD

• Glove-Ready: Capacitive touch works with PPE

• Sealed Front: IP54 rating survives washdowns

• Versatile I/O: USB, serial, ethernet for all gear

Purpose of Use

Perfect for control cabinets, washdown zones, and kiosk displays that require silent, reliable panel computing with dual-display flexibility.

How to Use

1. Cut the panel opening per supplied template.

2. Secure with panel-mount clamps or VESA bracket.

3. Wire 9–36 V DC power and network cables.

4. Connect VGA and HDMI monitors as needed.

5. Boot into Windows 10 IoT or Linux—launch your apps.

Packaging / Weight / Dimensions

• Packaging: Foam-lined, recyclable carton

• Weight: ~2.7 kg

• Dimensions: 280 × 190 × 55 mm (incl. bezel)

• Cutout Size: 263 × 173 mm

Warranty and FAQs

Warranty: 12 months full coverage
FAQs:

• Q: Can I use both VGA and HDMI at once?
  A: Yes, dual outputs run in clone or extended mode.

• Q: Is the touchscreen glove-compatible?
  A: Capacitive mode supports standard work gloves.

• Q: Does it handle light spray?
  A: Front bezel is rated IP54 for splashes.

Performance, Quality, Durability, and Reliability

• Industrial-Grade: Components rated for 24/7 operation

• Vibration & Shock: Tested to MIL-STD-810G standards

• Wide Temp: -10 °C to +60 °C continuous use

• Sealed Build: Dust and splash resistant for harsh floors

Best Price Guarantee

Spotted a lower UAE price? We’ll match it—shop NEOTECH worry-free.

Shop Today & UAE-Wide Fast Delivery

3-day shipping to Dubai, Abu Dhabi, Sharjah, and all emirates. Each unit fully tested before dispatch.

Request for Customer Reviews and Testimonials

Tried it on your line? Drop a review and help peers choose the right panel PC.

After-Sales Support

NEOTECH offers 24/7 remote diagnostics, firmware updates, and RMA services—your partner beyond purchase.

Get in Touch

Need custom I/O mappings or volume quotes? Reach out to our tech squad for rapid assistance.

Stock Availability

Confirm live stock before ordering—most units ship within 3 business days.

Disclaimer

All specs, images, and pricing are indicative and may change without notice. Verify final details with NEOTECH sales before purchase.
