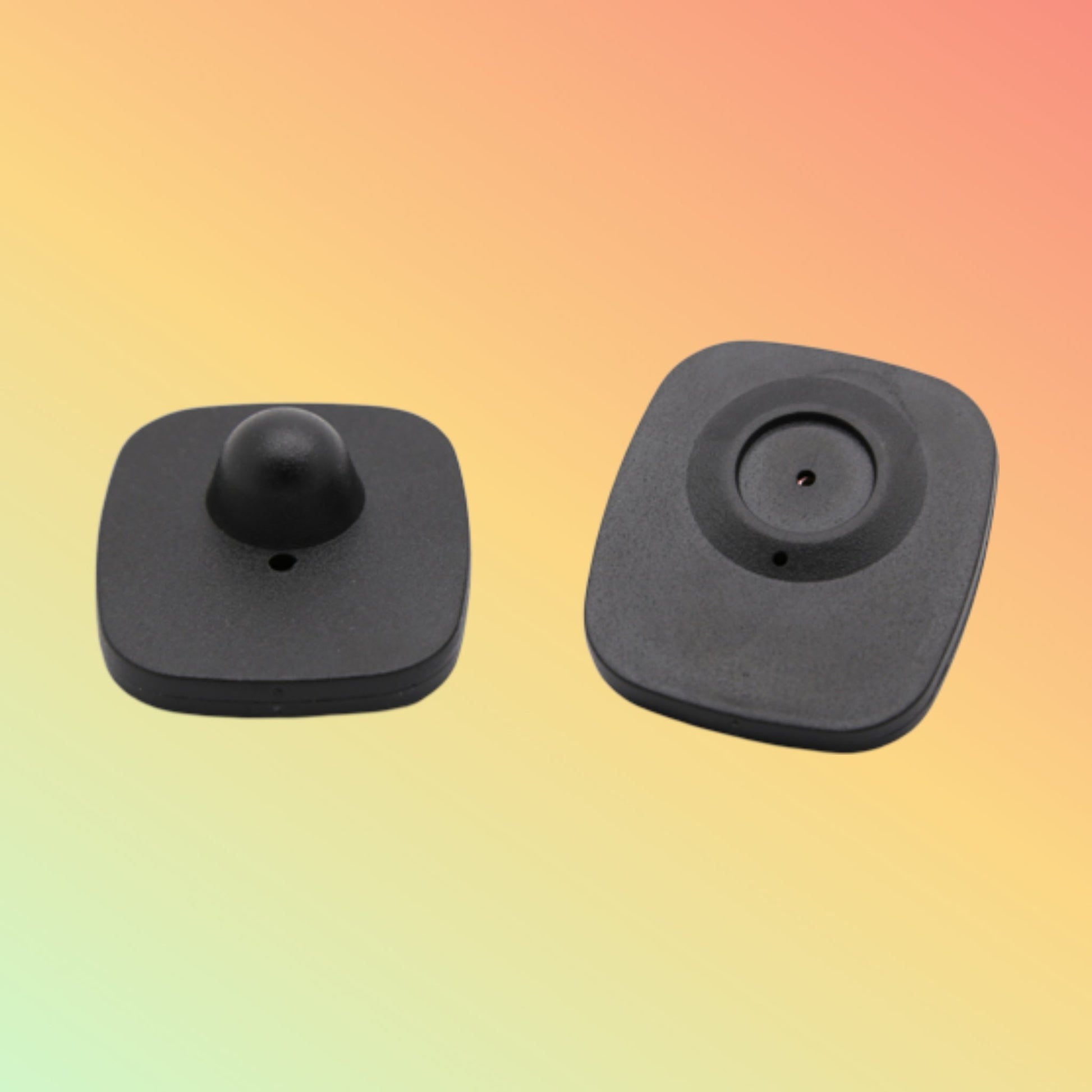

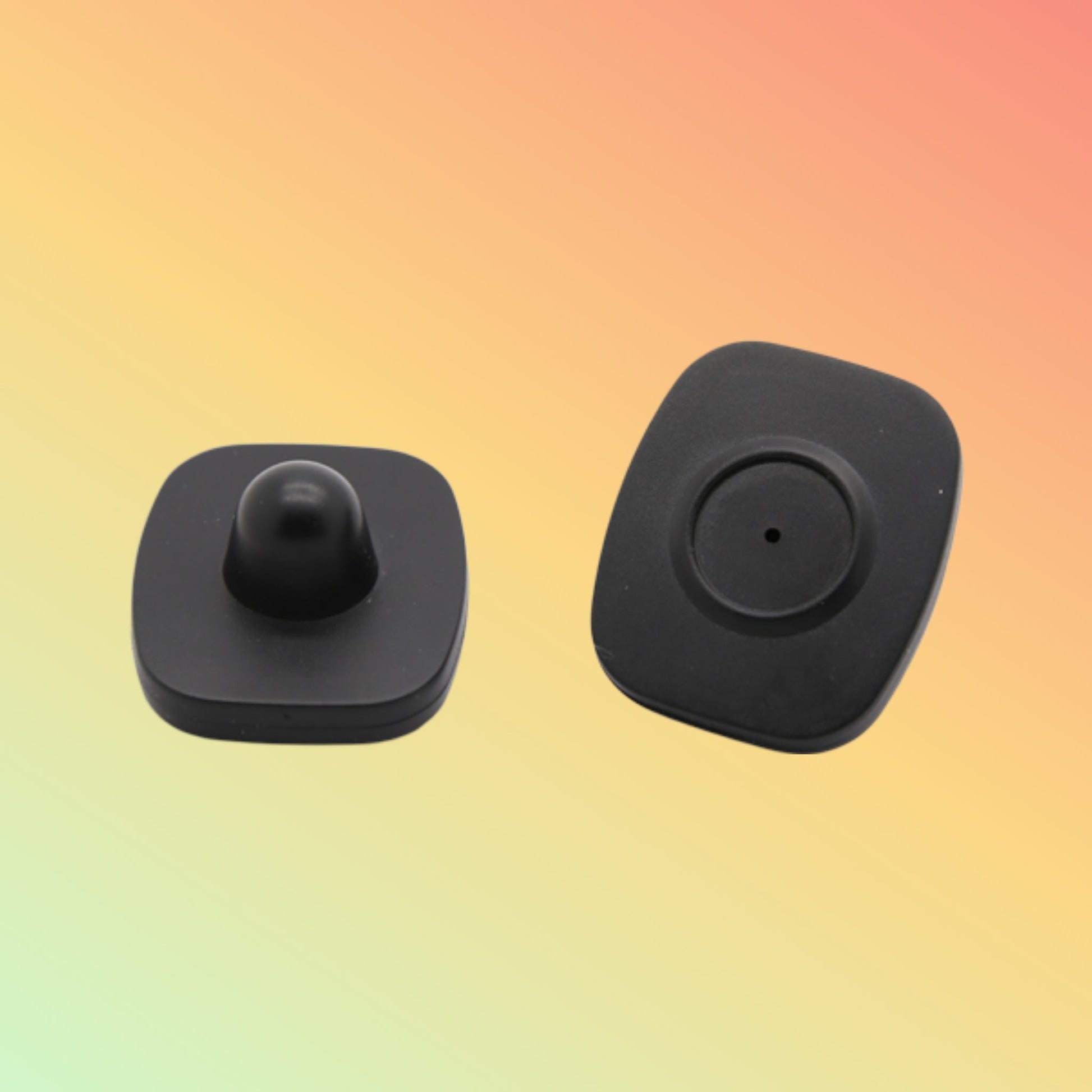

Epowsens HT003 RFID hard tag

Tiny RFID tag for compact metal tools. Waterproof, heat-resistant, and ideal for tracking assets in rugged industrial environments.

✅ Overview

The Epowsens HT003 RFID Hard Tag is a micro-sized, industrial-grade UHF RFID tag, engineered for metal-based, space-restricted tracking applications. Designed for high-temperature, high-wear environments, this ultra-compact tag is ideal for use on tools, jigs, trays, and metal assets in demanding conditions.

✅ Product Description

With a size of just 22 × 10 × 6 mm, the HT003 is the smallest model in the Epowsens HT-series. Despite its compact profile, it delivers up to 2.5 meters of read range when mounted on metal and scanned with a fixed UHF RFID reader. Built from heat-resistant PPS plastic, the tag tolerates temperatures up to 200°C short-term and 160°C continuously.

This tag features IP68 protection, making it dust-tight, waterproof, and resistant to oil and chemicals. It offers versatile mounting with screw or adhesive support, making it suitable for embedding or external attachment in high-rotation workflows.

✅ Key Features

• Micro-size: 22 × 10 × 6 mm

• On-metal optimized design

• IP68 waterproof and chemical-resistant

• Heat tolerance up to 200°C (short-term)

• Read range up to 2.5 meters

• Supports adhesive and screw mounting

• Durable PPS shell for high-cycle reuse

✅ Specifications

• Material: PPS engineering-grade plastic

• Dimensions: 22 × 10 × 6 mm

• Weight: 3g

• Operating Temp: -40°C to +200°C

• Continuous Temp: Up to +160°C

• Mounting Options: ø 2.5 mm screw hole or adhesive

• Ingress Protection: IP68

• RFID Protocol: ISO 18000-6C / EPC Class 1 Gen2

• Read Range: Up to 2.5 meters

• Color: Black

• ID Format: Laser engraving (optional)

✅ Supported OS / Applications / Industries

• Applications:

  • RFID tool control

  • Mold and jig tracking

  • Tray and container tagging

  • Asset management in tight spaces

• Industries:

  • Aerospace & Defense

  • Automotive Manufacturing

  • Industrial Automation

  • Electronics Assembly

  • Food, Pharma & Sterilization Systems

• System Compatibility:

  • Works with UHF RFID systems

  • Compatible with WMS, ERP, MES platforms

✅ Benefits & Compatibility

• Ideal for embedding into small metal surfaces

• Performs in heat, water, and chemical exposure

• Compatible with handhelds, portals, and fixed UHF readers

• Delivers stable read performance despite its size

• Low-profile design avoids interference or mechanical contact

✅ Purpose of Use

Made for high-precision RFID tracking on small or embedded metal parts, the HT003 is perfect for tools, surgical trays, and rotating fixtures exposed to frequent sterilization, cleaning, or heat.

✅ How to Use

1. Prep mounting area (clean/dry metal surface)

2. Apply with adhesive or screws

3. Register in your RFID system

4. Begin scanning and asset monitoring

✅ Packaging / Weight / Dimension

• Weight per Unit: 3g

• Qty per Carton: 1,000 units

• Carton Size: 33 × 24 × 18 cm

• Total Weight: Approx. 6.8 kg

• Packaging Type: Foam tray or sealed protective box

✅ Warranty and FAQs

Warranty: 12-month warranty for manufacturing defects

FAQs:
Q: Can I use it on rotating or vibrating tools?
A: Yes, it’s built for mechanical durability in high-motion environments.

Q: Is this suitable for autoclave or sterilizer cycles?
A: Yes, it handles up to 200°C and is reusable post-sterilization.

Q: What if I need to mount it flush in metal?
A: Its size makes it ideal for embedded flush-mount installations.

✅ Performance, Quality, Durability, and Reliability

The HT003 combines miniature size, maximum resilience, and signal consistency for environments where size, heat, and durability are non-negotiable. Trusted in high-precision industrial workflows, it performs reliably in the toughest field conditions.

✅ Best Price Guarantee

NEOTECH ensures the best market price for HT003 in the UAE. Found it cheaper? We’ll match it — and include local tech support and warranty coverage.

✅ Shop Today & Receive Your Delivery Across the UAE!

Quick shipping across Dubai, Abu Dhabi, Sharjah, and all UAE regions. Bulk orders available with express delivery options.

✅ Request for Customer Reviews and Testimonials

Already implemented the HT003? Share how it improved your asset traceability or tracking accuracy to help others choose smart.

✅ After Sales Support

From integration support to field troubleshooting, NEOTECH’s expert team offers full after-sales service, both remotely and on-site.

✅ Get in Touch

Need technical comparison with HT004 or HT005? Our specialists are ready to assist with selection, datasheets, and deployment planning.

✅ Stock Availability

HT003 is typically available in stock. For bulk or urgent requirements, contact our sales team for real-time inventory status.

✅ Disclaimer

All product details are subject to change. Product images are illustrative. Please confirm all specifications with NEOTECH before ordering.
