Fanless IP65 panel PC with Intel J1900/J6412 or Core™ i3–i7 CPUs, dual LAN, RS-232, 10-point touch, and VESA mount.

Overview

This fanless embedded touch panel PC combines rugged IP65-rated protection with a slim, all-in-one design. Available with Intel® J1900, J6412, Core™ i3, i5, or i7 processors, it delivers reliable Windows-based HMI and control in harsh industrial settings.

Product Description

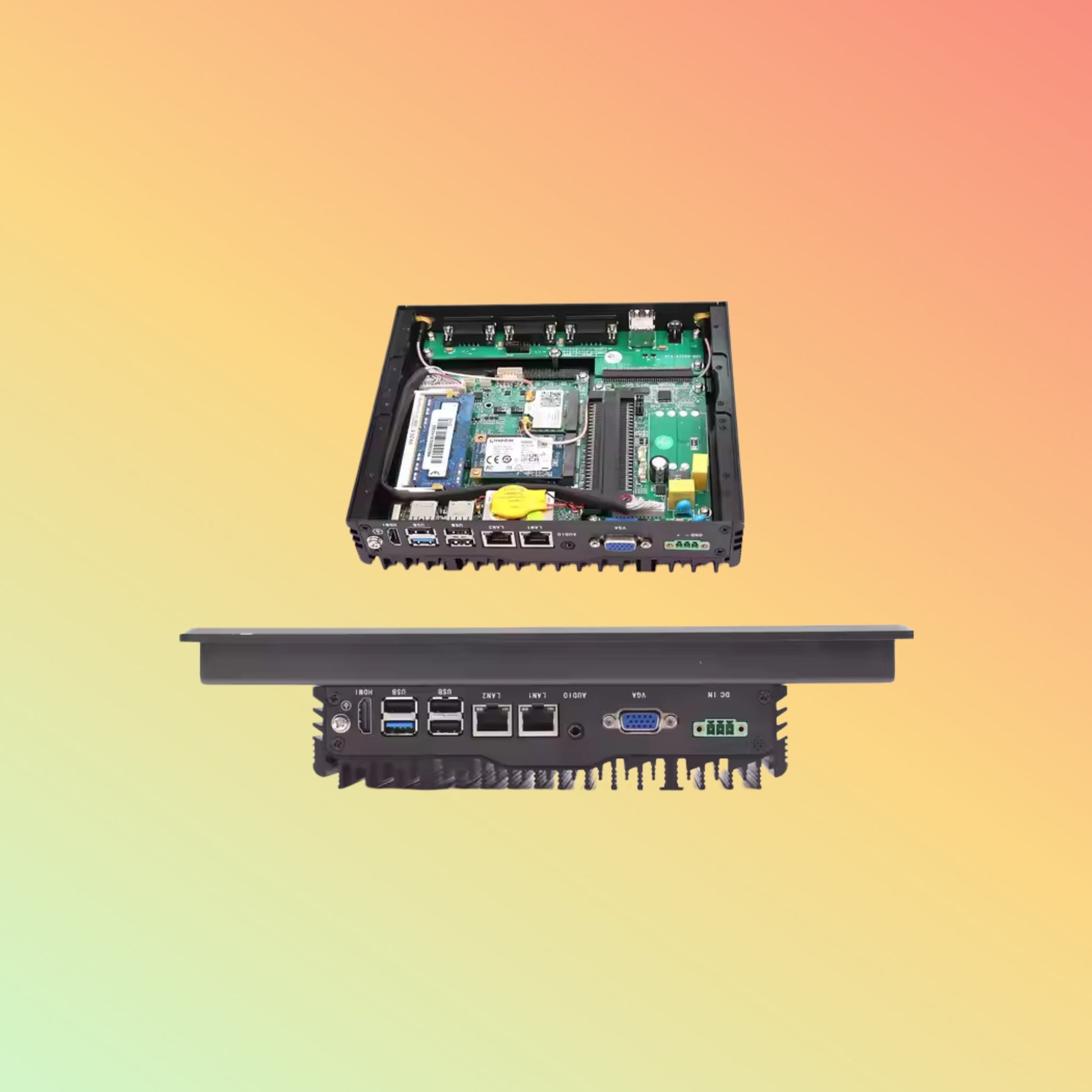

Engineered for factory automation, machine vision, and kiosk applications, this panel PC integrates compute, display, and I/O in a sealed enclosure. The 10-point PCAP touchscreen ensures precise input even with gloves. Passive cooling eliminates moving parts for maintenance-free operation. Dual Gigabit LAN, RS-232/485, USB 3.0, HDMI, audio, and GPIO interfaces support seamless connection to PLCs, sensors, and cameras. Storage expands via M.2 NVMe or 2.5″ SATA, and memory scales to 16 GB DDR4.

Key Features

• IP65-rated front panel for dust and water-jet protection

• Fanless, passive-cooling design for zero-maintenance uptime

• CPU choices: J1900, J6412, Core™ i3-7100U, i5-7200U, i7-7500U

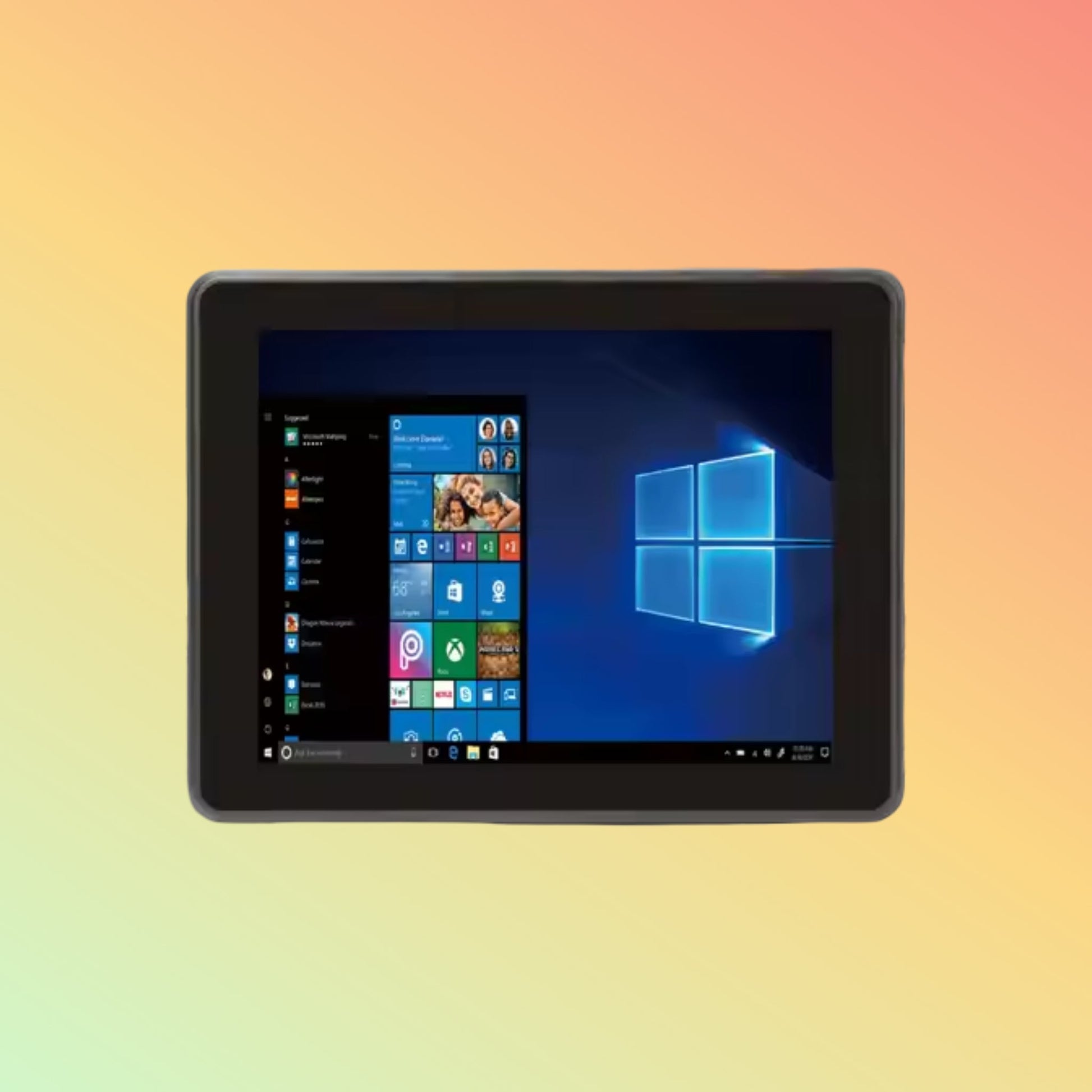

• 10-point PCAP capacitive touchscreen

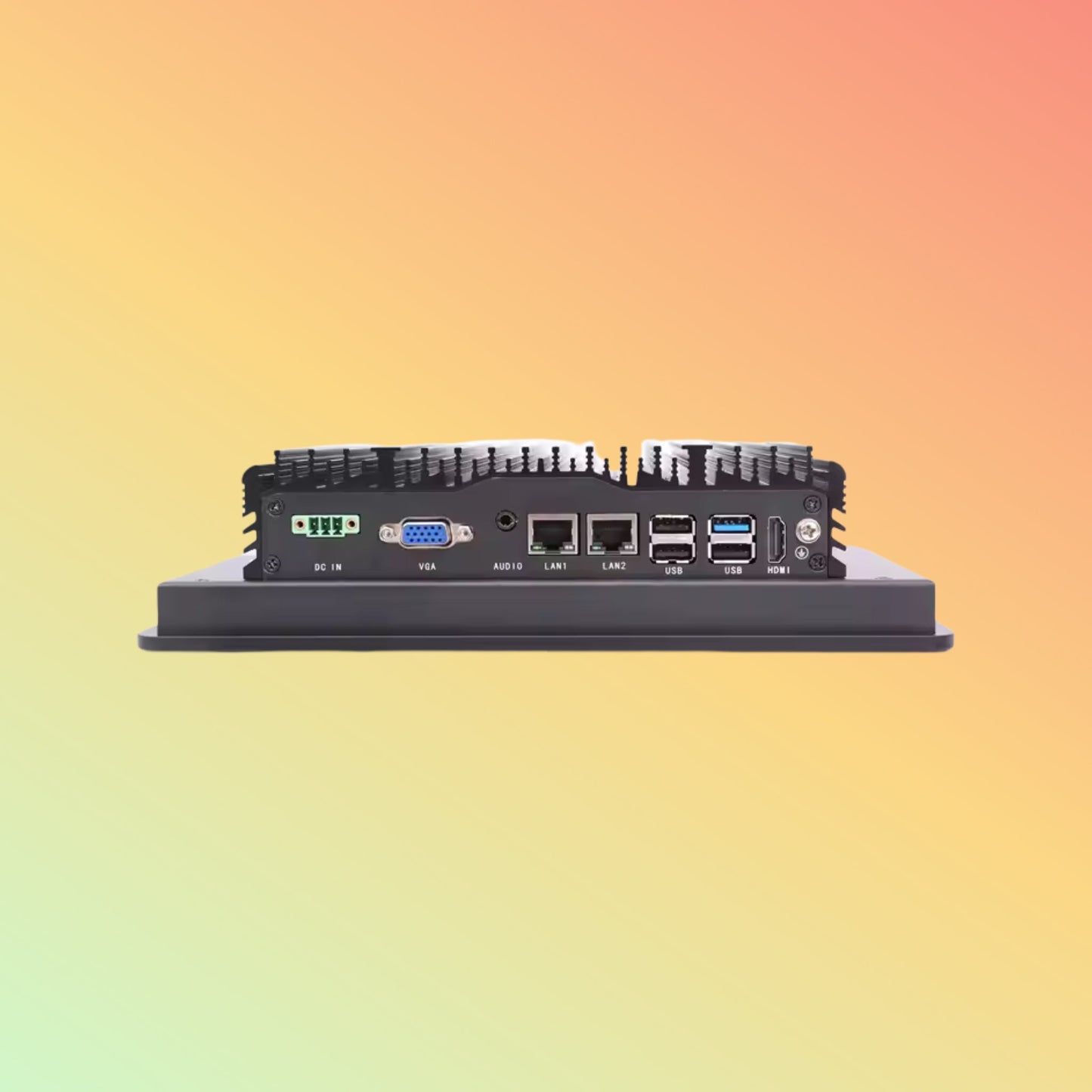

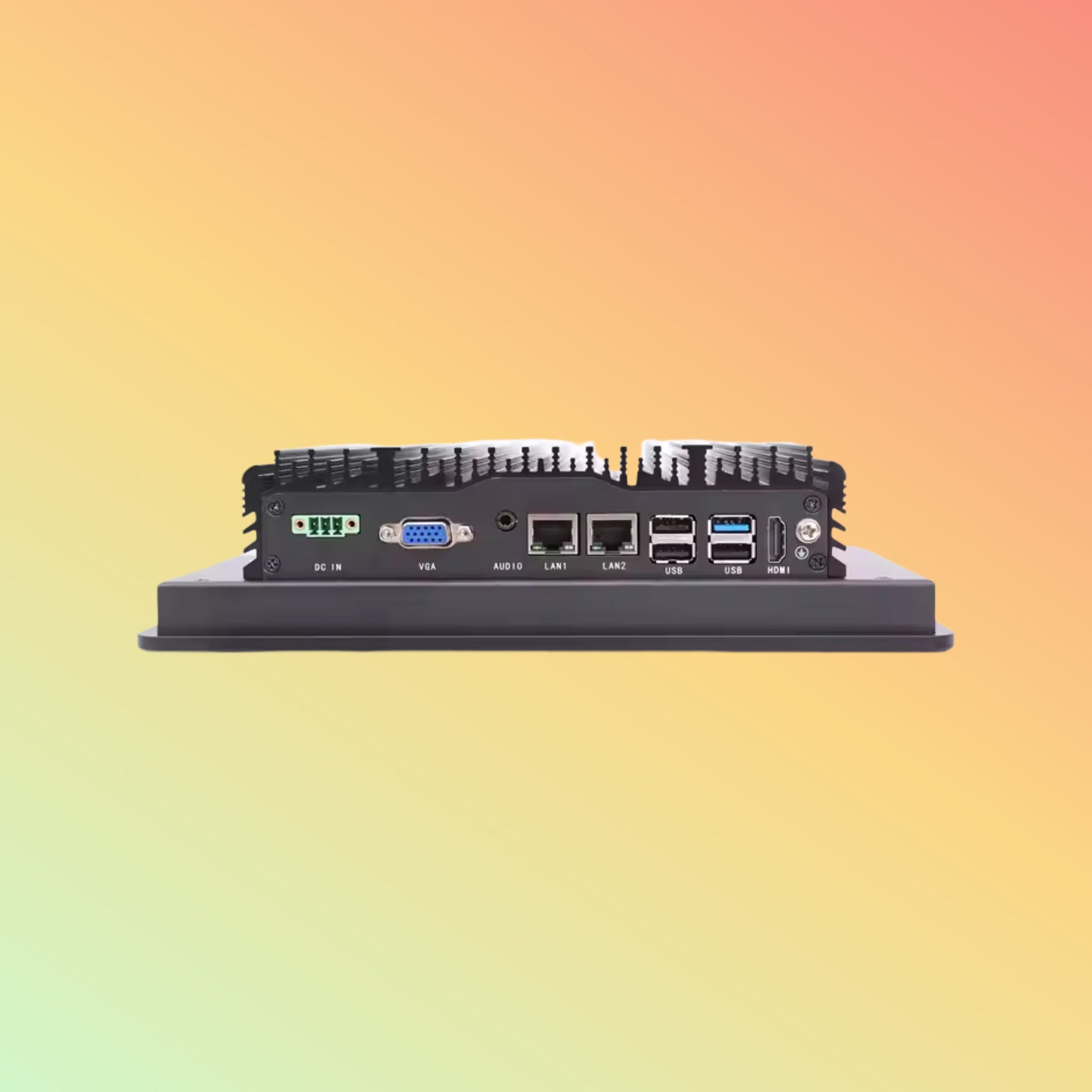

• Dual GbE LAN and 2× RS-232/485 for industrial networking

• 4× USB 3.0, HDMI, audio I/O, and 8-channel GPIO

• VESA and panel-cut mounting options

• Wide 9–36 V DC input for flexible power sources

Specifications

Supported OS / Applications / Industries

• Operating Systems: Windows 10/11, Ubuntu Linux, Yocto

• Applications: HMI/SCADA, machine vision, AGV control, data logging

• Industries: Manufacturing, logistics, food & beverage, pharmaceuticals

Benefits & Compatibility

• Maximum Uptime: Fanless design removes moving parts and dust ingress

• Seamless Integration: Standard industrial protocols (Modbus, OPC UA) supported

• Flexible Deployment: Wide voltage range and multiple mount options

Purpose of Use

Ideal for Windows-based human–machine interfaces on assembly lines, outdoor kiosks, and vision-inspection stations. It provides a robust touchscreen interface and compute power for real-time monitoring and control.

How to Use

1. Install into panel cut-out or onto a VESA bracket.

2. Connect 9–36 V DC power and Ethernet/serial cables.

3. Boot into Windows, install your HMI or vision software, and calibrate the touchscreen.

Packaging / Weight / Dimension

• Packaging: Anti-static foam inserts in corrugated box

• Net Weight: 2.3 kg (15.6″ model)

• Gross Weight: 2.8 kg

• Box Size: 380 × 300 × 70 mm

Warranty and FAQs

• Warranty: 12-month limited warranty covering manufacturing defects

• FAQs:

  • Can I upgrade the RAM? Yes—two SO-DIMM slots support up to 16 GB.

  • Is PoE supported? No; use an external PoE splitter if needed.

Performance, Quality, Durability, and Reliability

Tested to IEC 60068 standards for shock, vibration, and temperature extremes. The all-metal, passively cooled housing doubles as a heatsink, ensuring stable operation up to 60 °C ambient and eliminating moving-part failures.
