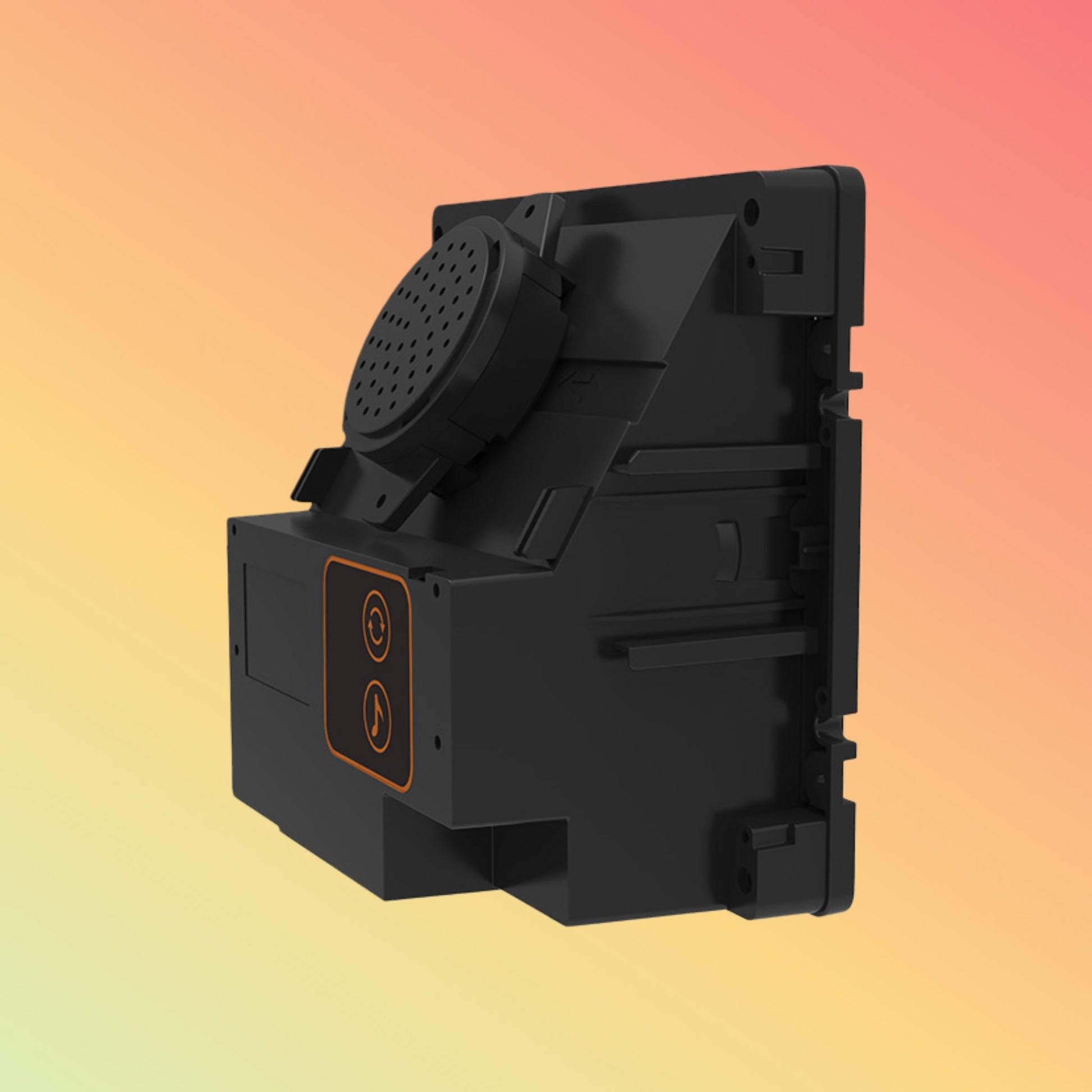

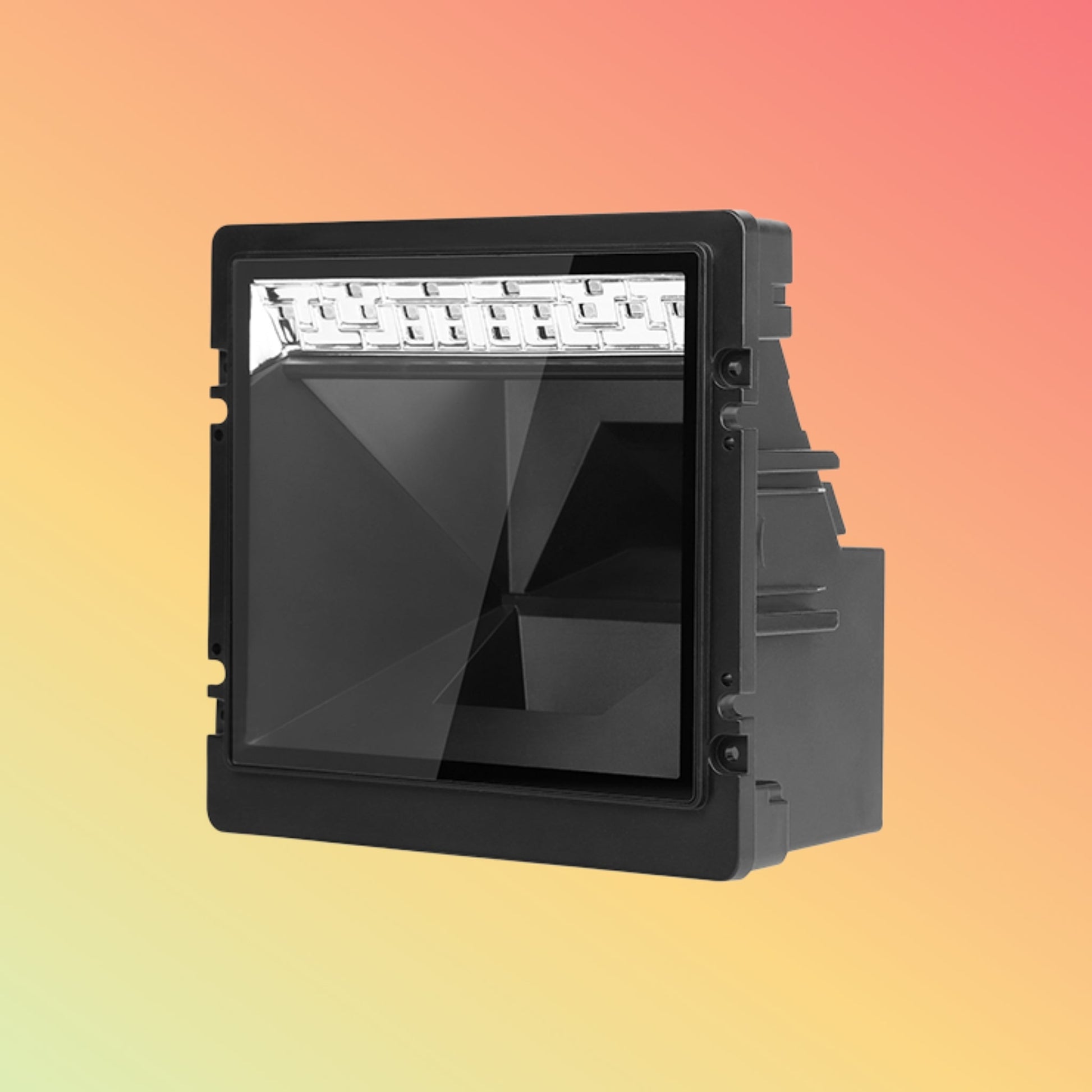

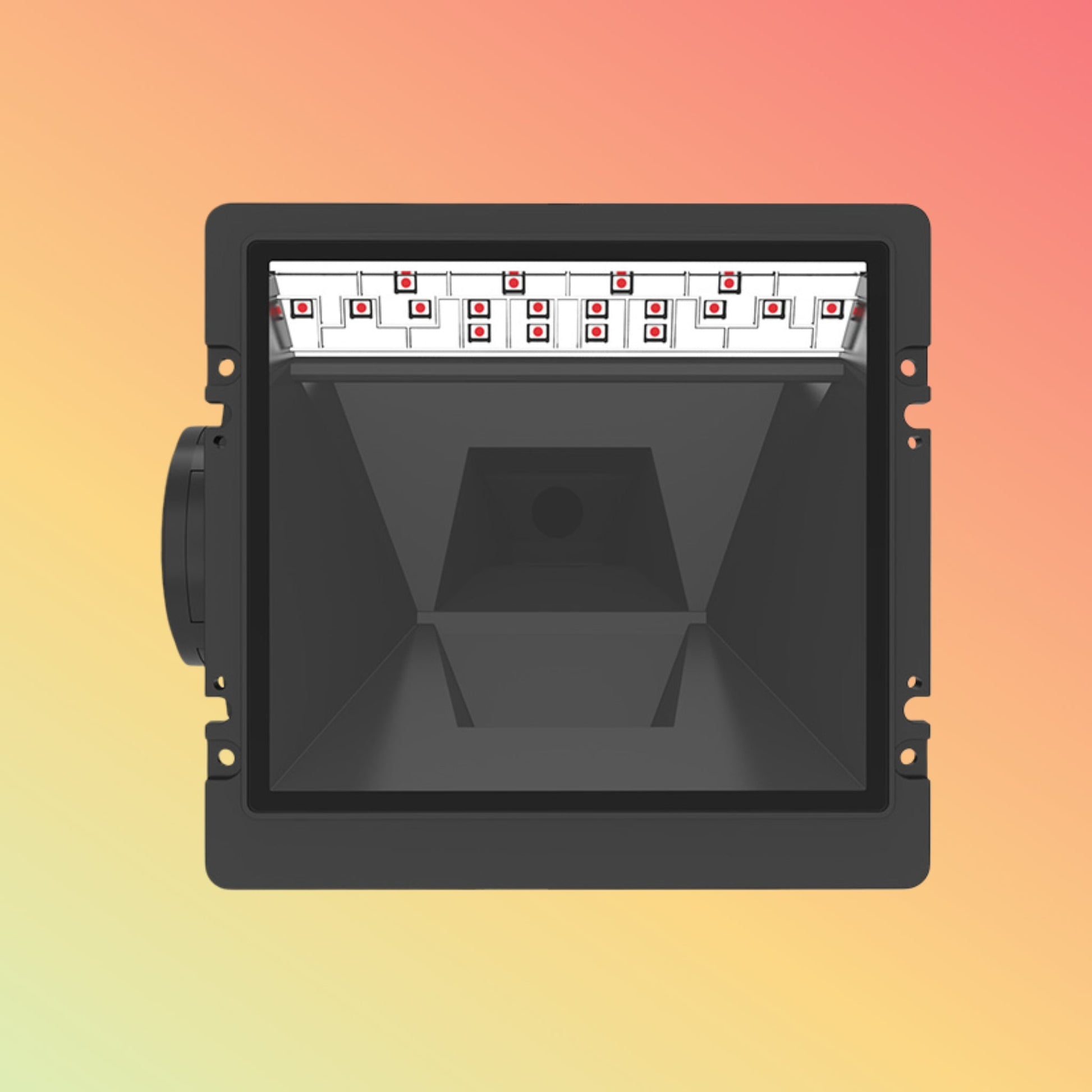

Luckydoor KS800 Embedded 2D Barcode Scanner QR Code Reader for Kiosk

KS800 embedded 2D scanner—fast omni-directional QR/1D reading, USB/TTL interface. Ideal for kiosks, ATMs & self-service terminals.

Overview

Transform your kiosk or ATM with the Luckydoor KS800 Embedded 2D Scanner. This ultra-compact module reads 1D & 2D codes (QR, Data Matrix, PDF417) at any angle—no aiming needed. With USB HID, USB CDC (serial) and TTL options, it slots into any self-service hardware and delivers lightning-fast scans up to 150 scans/sec.

Product Description

The KS800 packs pro-grade scanning into a tiny footprint. Its high-sensitivity CMOS sensor captures low-contrast and damaged codes, while integrated decode firmware handles error correction on-board. Snap it into your kiosk faceplate or embed it behind glass—its robust optics penetrate through protective windows. No external drivers—just power and data for seamless integration.

Key Features

• 1D & 2D decoding: UPC/EAN, Code 128, QR, Data Matrix, PDF417

• Omni-directional scan pattern—reads at any tilt or rotation

• High-speed: up to 150 scans/sec (CMOS)

• Multi-interface: USB HID, USB CDC (virtual COM), TTL serial

• Embedded firmware: on-board decode, no PC required

• Through-glass capable: reads through 2 mm glass/panel

• Compact module: 50×30×15 mm for tight enclosures

• LED & beeper: visual/audio confirmation

Specifications

Supported OS / Applications / Industries

• OS: Windows, Linux, Android, iOS (via HID)

• Apps: Kiosk firmware, POS systems, ticketing platforms

• Industries: Banking, Retail, Transportation, Hospitality, Self-Service

Benefits & Compatibility

• Invisibly embedded—fits behind panels or glass

• Angle-free scanning—no need to line up codes

• Versatile I/O—choose HID, COM or TTL to match your board

• On-board decode—offloads your CPU

• Rugged design—works in harsh kiosk environments

Purpose of Use

Perfect for ATMs, vending kiosks, check-in terminals, ticket dispensers, and any self-service device where space and reliability matter.

How to Use

1. Mount KS800 module behind your bezel or glass

2. Connect power (5 V DC) and data interface (USB or TTL)

3. Configure via on-board settings or config barcode sheet

4. Point your code and it auto-scans—no trigger needed

5. Read data straight into your application

Packaging / Weight / Dimension

• Includes: KS800 scanner module, USB cable (optional), mounting bracket, config guide

• Module size: 50×30×15 mm

• Module weight: 20 g

• Package weight: ~50 g

Warranty & FAQs

• Warranty: 1-year limited

• FAQs

  • Q: Can it read through glass?
    A: Yes, up to 2 mm thickness.

  • Q: How do I switch interfaces?
    A: Use the on-board jumper or config barcodes.

  • Q: Does it handle low-contrast codes?
    A: Yep, built-in exposure and decode tuning.

Performance, Quality, Durability & Reliability

Engineered for continuous operation, the KS800 boasts an MTBF ≥ 10,000 hrs, industrial-grade optics, and a sealed design that resists dust and splashes.

Best Price Guarantee

Found a lower price on the same spec module? NEOTECH will match it—no sweat.

Shop Today & Receive Your Delivery Across the UAE!

Order the KS800 now for express shipping to Dubai, Abu Dhabi, Sharjah, and beyond. Keep your kiosks running without pause.

Request for Customer Reviews & Testimonials

Installed KS800? Drop a quick review to help other integrators choose the best embed scanner.

After-Sales Support

Need integration tips or troubleshooting? Our UAE support team is one call or email away. If remote help can’t fix it, we’ll guide you through a smooth RMA.

Get in Touch

For bulk quotes, custom firmware, or SDK integration, contact NEOTECH’s engineering experts for samples, demos, and pro advice.

Stock Availability

Confirm real-time stock with our sales team before ordering—lead times may vary for custom firmware requests.

Disclaimer

Specs, pricing, and availability are subject to change without notice. Images are illustrative; actual module may vary. Verify all details with NEOTECH before purchase.
