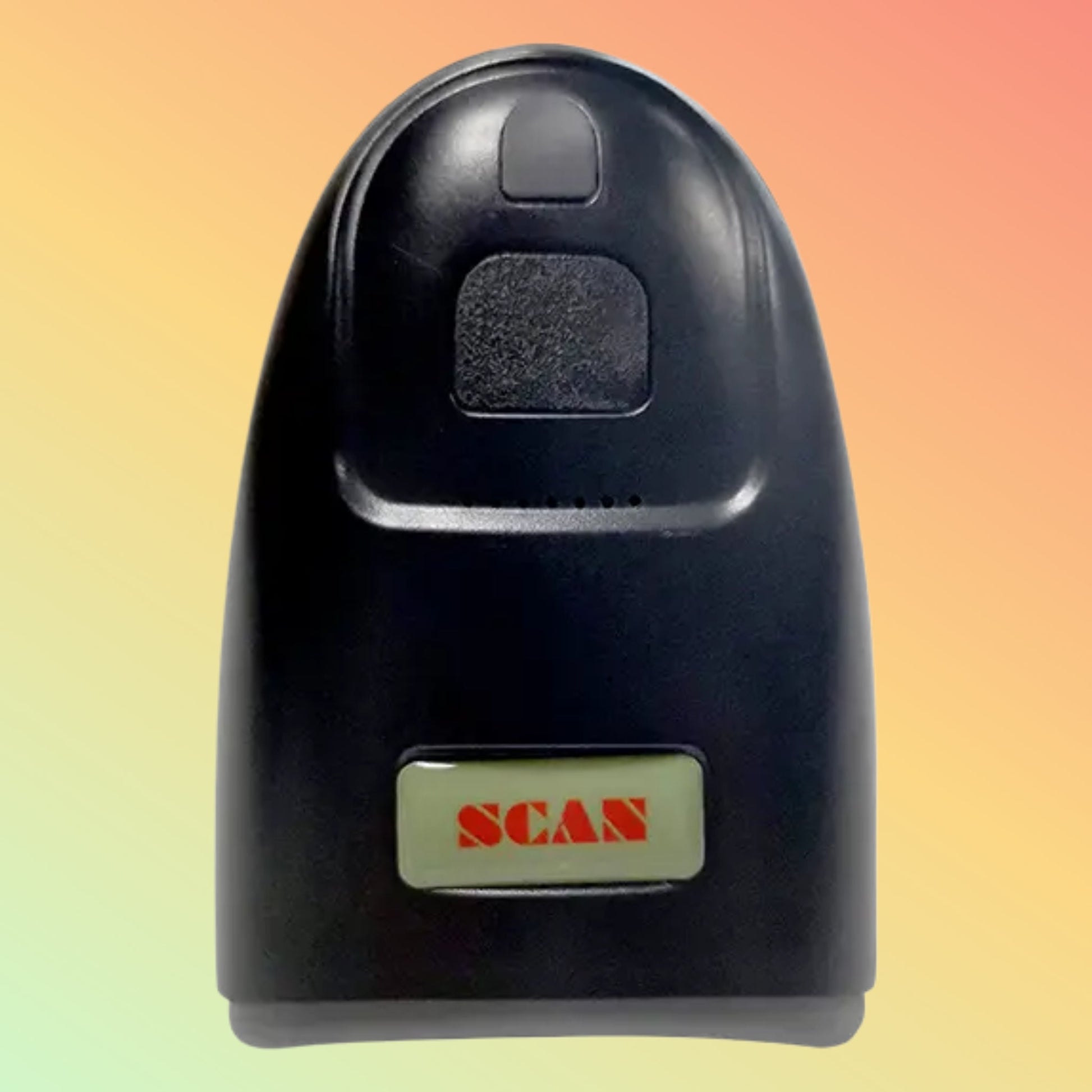

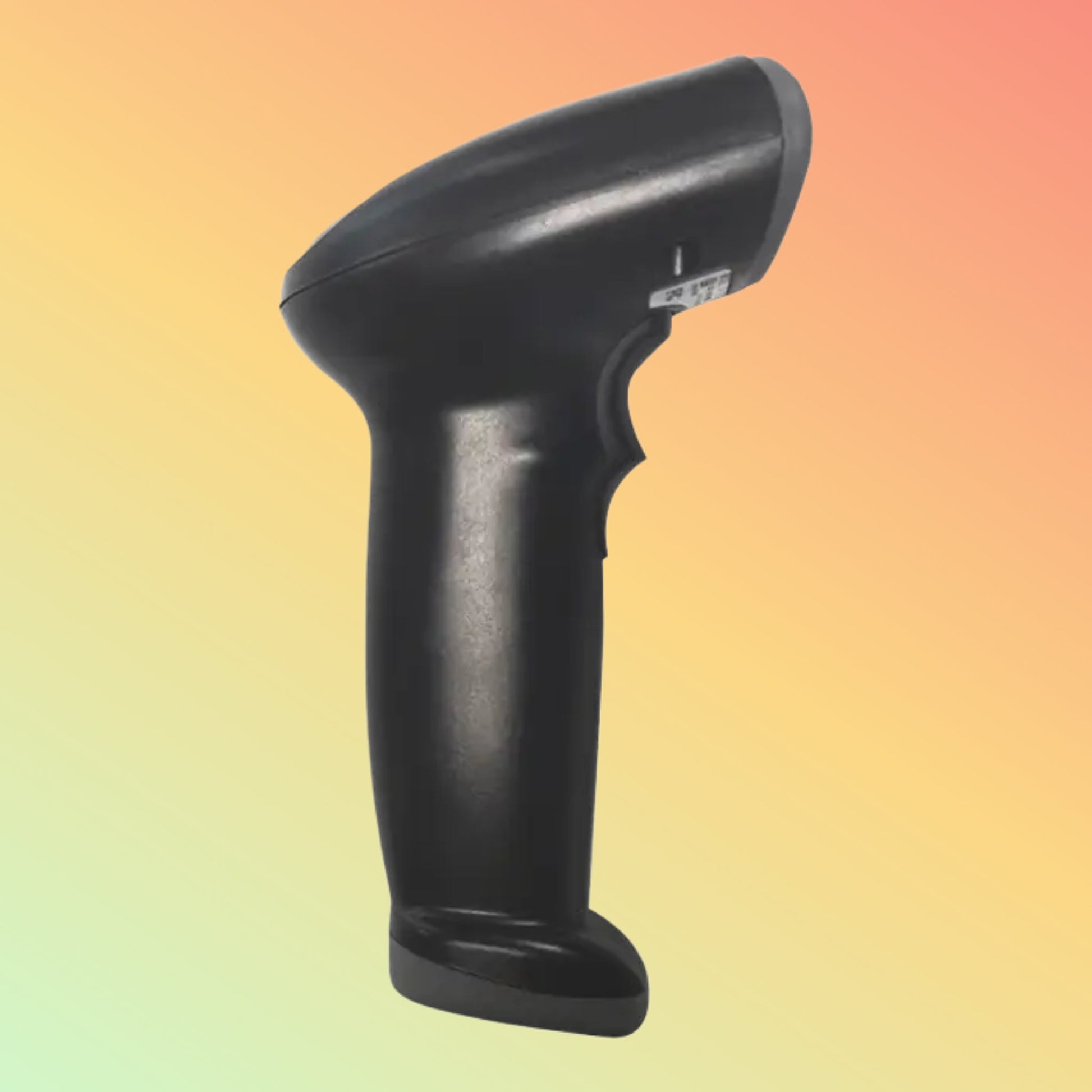

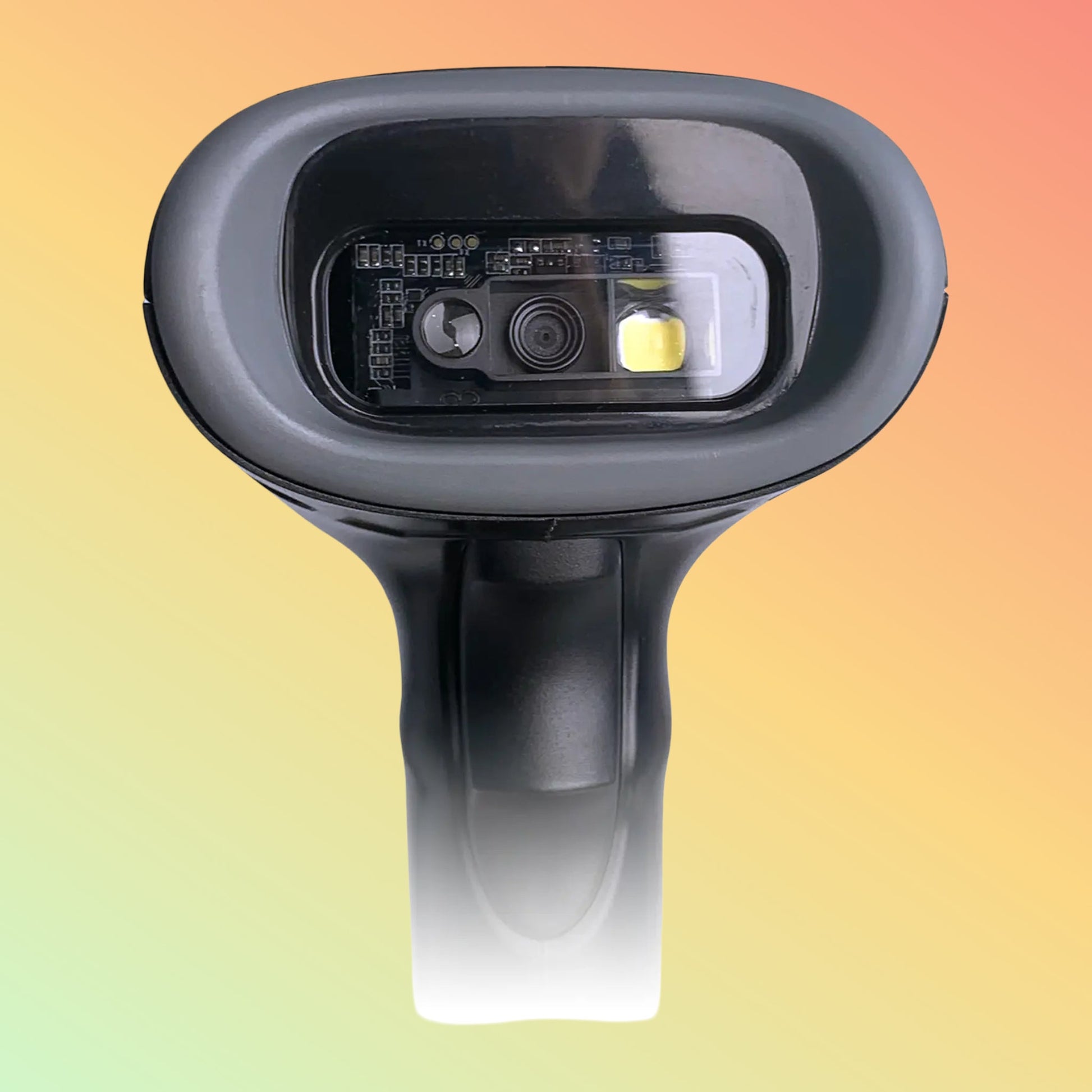

DEWOD wired handheld scanner For DPM codes

High-performance DEWOD Wired Handheld Scanner for DPM codes. Reliable industrial-grade barcode reader for manufacturing & logistics. Shop NEOTECH UAE today!

Overview

The DEWOD Wired Handheld Scanner for DPM (Direct Part Marking) Codes is designed for industrial applications where barcodes are etched, engraved, or laser-marked directly onto surfaces. With advanced optics and decoding algorithms, it delivers fast, accurate, and reliable scanning in manufacturing, automotive, aerospace, and electronics industries.

Product Description

Unlike standard barcode scanners, this DPM code reader is engineered to handle low-contrast, reflective, or irregular surface markings. Its wired USB/RS232 connectivity ensures stable communication with factory systems and POS platforms. Built with industrial-grade housing, it withstands demanding environments while providing precise scanning of 1D and 2D codes, including QR, Data Matrix, and etched barcodes.

Key Features

• Specialized for DPM (Direct Part Marking) codes

• Supports 1D & 2D barcodes including QR & Data Matrix

• High-resolution CMOS imaging for low-contrast and engraved codes

• Wired connectivity via USB / RS232

• Rugged industrial-grade design for harsh environments

• Ergonomic, handheld design for all-day use

• Ideal for manufacturing, automotive, aerospace & logistics

Specifications

• Model: DEWOD Wired DPM Handheld Scanner

• Technology: CMOS imaging with advanced decoding algorithms

• Supported Codes: DPM codes, QR, Data Matrix, 1D barcodes

• Interfaces: USB / RS232 wired connection

• Resolution: ≥ 640 × 480 pixels

• Scan Speed: 100+ scans per second

• Durability: Industrial-grade housing, drop-resistant

• Dimensions: 165 × 90 × 70 mm

• Weight: Approx. 230g

Supported OS / Applications / Industries

• Operating Systems: Windows, Linux, Android, macOS

• Applications: DPM code reading, part tracking, industrial inventory management

• Industries: Automotive, Aerospace, Manufacturing, Electronics, Logistics

Benefits & Compatibility

• Optimized for etched, engraved, and laser-marked barcodes

• Stable wired connection for real-time data capture

• Reads codes on metal, plastic, and glass surfaces

• Rugged build ensures durability in factory floors

• Fully compatible with NEOTECH automation and logistics systems

Purpose of Use

• Scan Direct Part Marking codes in manufacturing lines

• Verify and trace components in automotive & aerospace sectors

• Use in logistics & industrial warehousing for asset tracking

• Ensure quality control in electronics production

How to Use

1. Connect scanner via USB or RS232 to PC/automation system.

2. Configure with compatible software for DPM code capture.

3. Aim scanner at DPM-marked surface (metal, plastic, or glass).

4. Decode and transmit data instantly for tracking or verification.

Packaging / Weight / Dimensions

• Box Includes: DEWOD DPM Handheld Scanner, USB/RS232 Cable, User Manual

• Weight: Approx. 230g

• Dimensions: 165 × 90 × 70 mm

Warranty & FAQs

• Warranty: 1-Year Manufacturer Warranty

• FAQs:

  • Can it read normal barcodes? Yes, supports standard 1D/2D codes.

  • Is it drop-resistant? Yes, built for rugged industrial use.

Performance, Quality, Durability & Reliability

The DEWOD DPM scanner is engineered for demanding industries, with a rugged build and optimized decoding engine to read challenging codes on curved, reflective, or textured surfaces. Its wired stability ensures error-free data transfer for industrial processes.

Best Price Guarantee

NEOTECH offers the lowest UAE price with our best price guarantee.

Shop Today & Receive Your Delivery Across the UAE

Order now for same-day dispatch and fast UAE shipping.

Request for Customer Reviews and Testimonials

We encourage manufacturers and logistics operators to share their experience with this DPM scanner.

After Sales Support

NEOTECH provides 24/7 industrial support, integration guidance, and quick replacements.

Get in Touch

For OEM projects, bulk orders, or factory automation integration, contact NEOTECH support.

Stock Availability

The DEWOD Wired DPM Handheld Scanner is in stock and ready for immediate UAE delivery.

Disclaimer

Specifications may change without prior notice. Images shown are for reference only.
