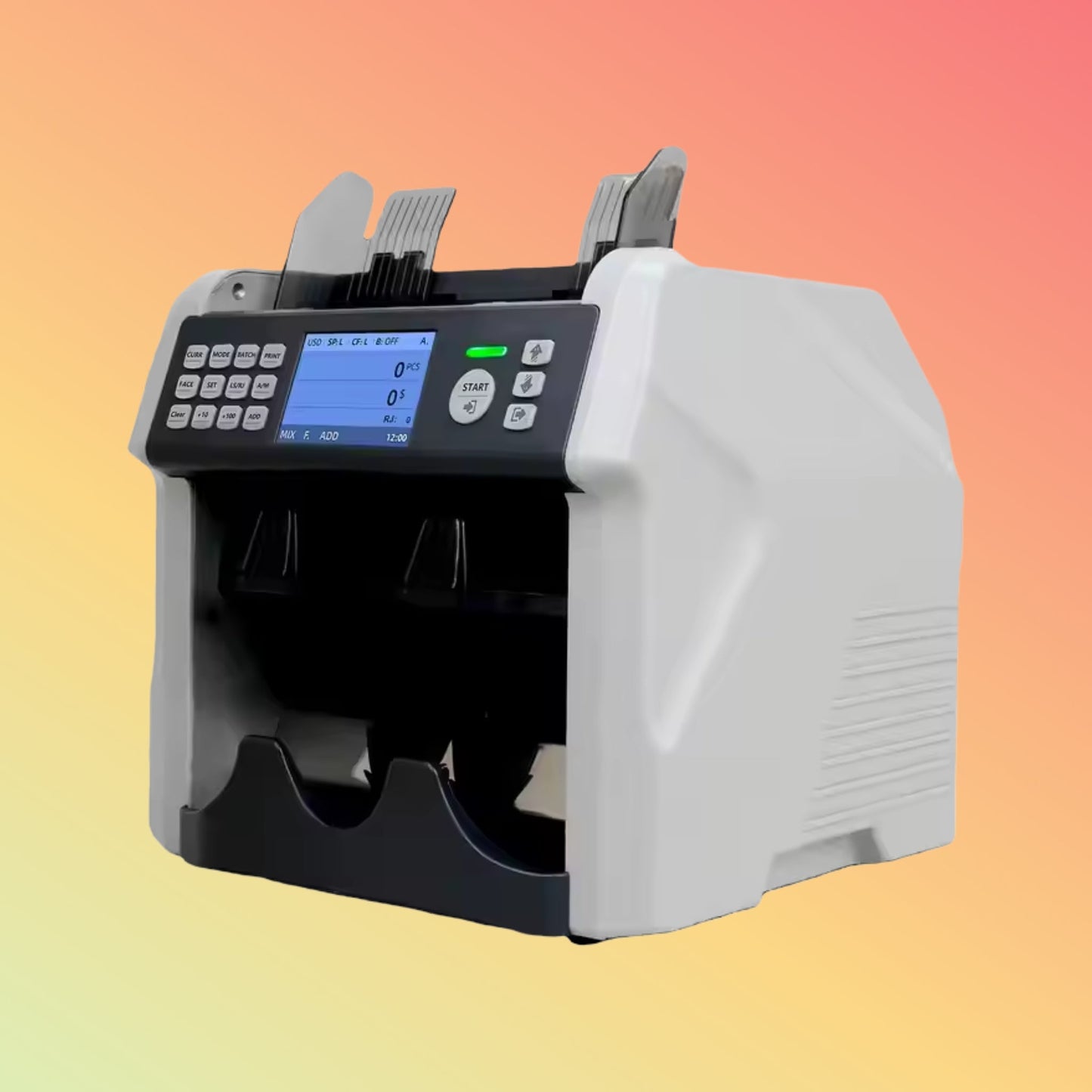

UN-200A 2025 Top Bill Counter Machine 2 Pocket Automatic CIS IMAGE Money Counting Machine
Couldn't load pickup availability
UN-200A 2-pocket CIS bill counter sorts, counts 800 n/min, auto-detects fakes & offers external LCD. Portable, precise & audit-ready.
Overview
The UN-200A is a top-load, 2-pocket automatic bill counter designed for busy cash points. It processes up to 800 notes/min with dual CIS imaging, auto-sorting into main and reject pockets. A compact build and optional external LCD make it ideal for retail tills, bank counters or back-office teams.
Product Description
Slide mixed stacks into the top hopper and press Start. Dual-surface CIS sensors scan both faces, auto-detecting counterfeit bills via UV/MG checks. Genuine notes flow into the main pocket; suspect bills divert to pocket 2 without pausing. An intuitive control panel shows count, batch and error codes. Hook up the external LCD display for clear customer-facing feedback. USB export delivers audit logs in seconds.
Key Features
-
Dual CIS imaging scans full note surfaces on both sides
-
2-pocket auto-sorting: 500-note main, 100-note reject
-
800 notes/min continuous counting speed
-
UV & MG detection flags ≥ 99.9 % of fakes
-
Add & Batch modes for custom counts
-
External LCD option for live display
-
USB export for instant audit-ready logs
-
Compact design with built-in handle
Specifications
| Specification | Detail |
|---|---|
| Model | UN-200A |
| Counting Speed | 800 notes/min |
| Hopper Capacity | 600 notes |
| Main Pocket Capacity | 500 notes |
| Reject Pocket Capacity | 100 notes |
| Imaging | Dual-CIS full-surface scan |
| Detection | UV & Magnetic-Ink (MG) |
| Modes | Count, Add, Batch |
| Display | Built-in LED; ext. LCD optional |
| Connectivity | USB data export |
| Power | AC 100–240 V, 50/60 Hz |
| Dimensions (W×D×H) | 350×220×260 mm |
| Net Weight | 3.5 kg |
Supported Applications & Industries
Standalone operation—no PC needed. Ideal for supermarkets, bank teller stations, casino cages and retail outlets.
Benefits & Compatibility
Zero-pause sorting keeps queues moving. Mixed-currency handling for any standard note. External LCD improves customer trust. USB logs simplify reconciliation. Sturdy ABS shell stands up to daily use.
Purpose of Use
Perfect for high-volume cash environments that require fast, accurate counts and reliable counterfeit checks—checkout lanes, cash offices and mobile cash teams.
How to Use
-
Plug in and power on.
-
Load notes into the top hopper.
-
Select Count, Add or Batch mode.
-
Press Start—notes auto-sort by authenticity.
-
Plug USB to export CSV logs or view on external LCD.
Packaging / Weight / Dimensions
-
Includes: UN-200A unit, power cable, dust cover, cleaning brush, user manual
-
Box Size: 380×260×300 mm
-
Net Weight: 3.5 kg
Warranty & FAQs
Warranty: 1 year NEOTECH parts & labor
FAQs:
-
Can it mix currencies? Yes—auto-handles mixed stacks.
-
External LCD sold? Optional accessory via SKU NEO-EXTLCD.
-
Data format? CSV via USB port.
Performance, Quality, Durability & Reliability
Tested for over 500 k note cycles with 99.9 % accuracy. Industrial motors and CIS sensors ensure years of nonstop performance.
Best Price Guarantee
Find it cheaper in the UAE? We’ll match that price—guaranteed.
Shop Today & UAE Delivery
Fast, secure shipping to Dubai, Abu Dhabi, Sharjah & beyond. Arrives in 3–5 working days.
Request for Customer Reviews & Testimonials
Loving your UN-200A? Leave a quick review to help peers choose wisely.
After-Sales Support
24/7 remote diagnostics, spare-part dispatch and on-site service plans keep you counting without downtime.
Get in Touch
Bulk quotes or demos?
📧 support@neodgital.com
Stock Availability
Confirm live stock before ordering—high-demand units restock daily. Just ask!
Disclaimer
Specifications, pricing and visuals may change without notice. Illustrations are for reference only. Verify details with NEOTECH before purchase.
