Detect & count mixed currency fast with UNION C15. MG/UV/IR/DD/MT checks, dual-pocket sorting & 1,000 notes/min—perfect for banks & retail.
Overview

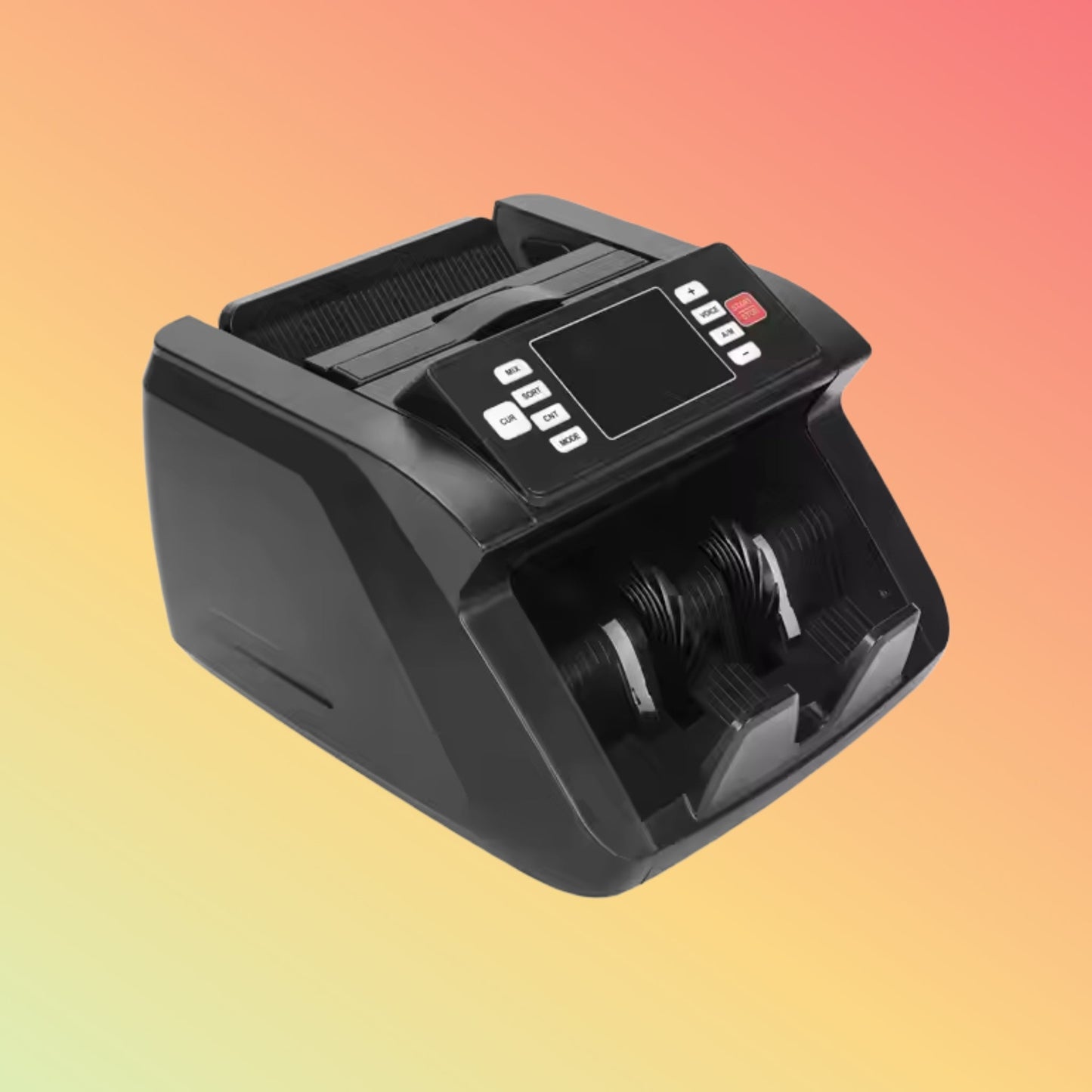

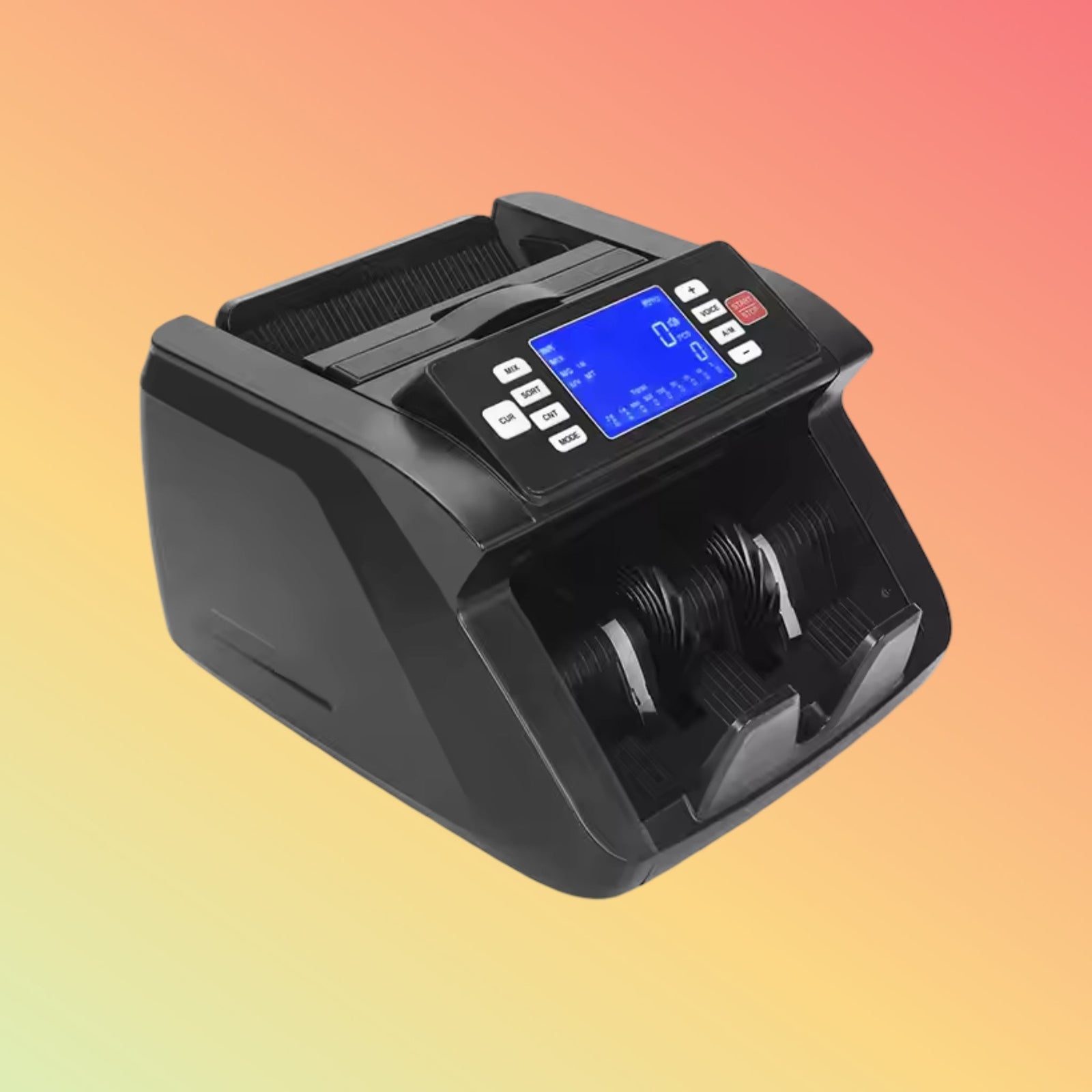

Level up your cash game with the UNION C15 Universal Fake Bill Counter. It auto-detects counterfeits via magnetic (MG), ultraviolet (UV), infrared (IR), double-dimension (DD) & magnetic thread (MT) sensors, sorts legit vs. suspect into two pockets, and zips through 1,000 notes/min on a bright LCD.
Product Description
Load mixed banknotes into the hopper and hit Start. The UNION C15’s 5-sensor suite scans each note for security features; genuine bills funnel to Pocket 1, rejects to Pocket 2. Its 1,000 n / min motor keeps lines moving. A large LCD shows counts, error codes and batch settings. Built in a rugged steel chassis with a quiet gearbox (< 60 dB), it integrates via USB/RS-232 for data export or firmware updates.
Key Features
-
5-Point Detection: MG + UV + IR + DD + MT
-
High Speed: 1,000 notes/min counting
-
Dual Pockets: accept vs. reject sorting
-
Large LCD: live count, batch & error display
-
Batch, Add, Auto-Stop Modes for flexibility
-
Metal Chassis: rugged commercial build
-
Interfaces: USB 2.0 & RS-232
-
Quiet Operation: < 60 dB
Specifications
| Spec |
Detail |
| Model |
UNION C15 |
| Speed |
Up to 1,000 notes/min |
| Hopper Capacity |
500 notes |
| Stacker Capacity |
200 notes |
| Reject Capacity |
100 notes |
| Detection Methods |
MG, UV, IR, DD, MT |
| Display |
4″ backlit LCD |
| Modes |
Count, Add, Batch, Auto-Stop |
| Connectivity |
USB 2.0, RS-232 |
| Power |
AC 100–240 V, 50/60 Hz |
| Dimensions (W×D×H) |
310 × 290 × 280 mm |
| Weight |
8.2 kg |
Supported Industries & Use Cases
-
Bank teller stations & vaults
-
Retail & supermarket checkouts
-
Currency exchange desks
-
Casino cash cages
-
Armored transport reconciliation
Benefits & Compatibility
-
Total Fraud Defense: 5-sensor counterfeit checks
-
Boosts Throughput: 1,000 n/min for peak hours
-
Plug-and-Play: USB/serial integration with back-office
-
Quiet & Durable: steel frame, low noise gearbox
-
Flexible Counting: batch and add modes
Purpose of Use
Engineered for any high-volume cash environment—automate counting and authentication so you can focus on service and security.
How to Use
-
Plug into AC and connect USB/RS-232
-
Load up to 500 mixed notes in the hopper
-
Select mode (Count/Add/Batch) on the LCD
-
Press Start → machine scans, counts & sorts
-
Retrieve genuine notes from Pocket 1, rejects from Pocket 2
Packaging / Weight / Dimensions
-
Includes: unit, power cord, USB cable, RS-232 cable, user manual, cleaning brush
-
Carton Size: 360 × 330 × 320 mm
-
Gross Weight: ~ 9.5 kg
Warranty & FAQs
FAQs
Performance, Quality & Reliability
Tested to central-bank standards with < 0.01% error rate. Precision motor and sensors ensure consistent, accurate results shift after shift.
