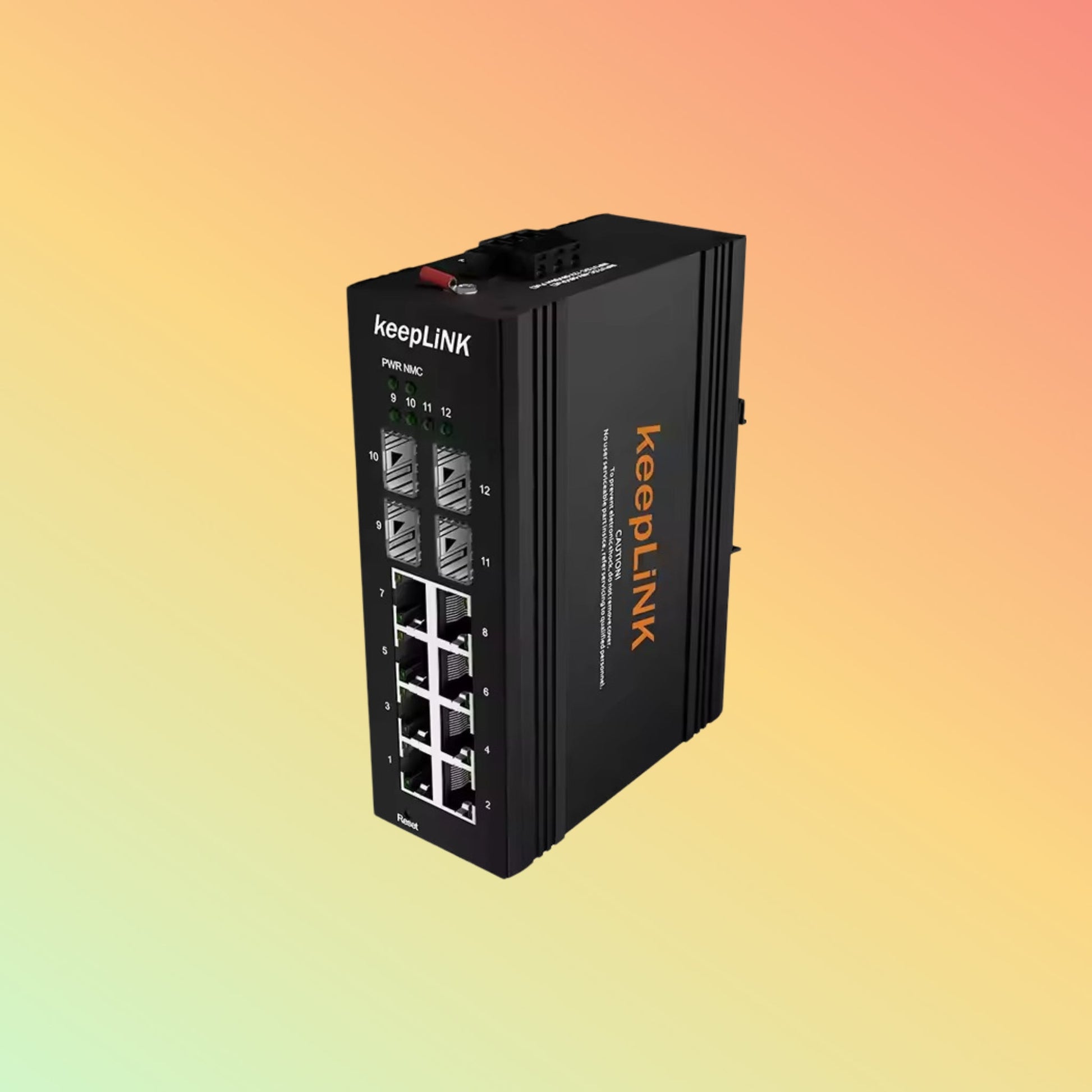

100 1000M 4 Fiber to 8 RJ45 Din Rail Ethernet 12 Ports Switch in Stock

In-stock 12-Port Industrial Switch with 4 SFP Fiber + 8 RJ45 ports. DIN-rail mount, 100/1000M speeds, rugged build. Shop NEOTECH UAE now.

✅ Overview

This rugged 12-Port Industrial Ethernet Switch features 4 fiber SFP ports and 8 RJ45 ports, offering flexible 100/1000M connectivity in high-performance networks. DIN-rail mountable and compact, it’s engineered for smart infrastructure, surveillance, and automation deployments needing fiber uplinks and reliable copper ports.

✅ Product Description

Built for speed and stability, this industrial-grade switch integrates 4 x 100/1000Mbps SFP fiber ports and 8 x RJ45 Ethernet ports in a single, unmanaged unit. It supports seamless communication over long distances via fiber, while delivering high-speed LAN connectivity through the RJ45 ports.

Ideal for remote deployments and outdoor enclosures, the switch operates reliably in extreme temperatures and electrical noise. With a DIN-rail-ready compact housing, passive cooling, and robust voltage flexibility, it's the perfect plug-and-play solution for modern industrial networks.

✅ Key Features

• 4 x 100/1000 Mbps SFP Fiber Ports

• 8 x 10/100/1000 Mbps RJ45 Ethernet Ports

• Auto-sensing fiber & copper port speeds

• DIN-rail mountable with industrial chassis

• Operating temp: -40°C to 75°C

• Wide voltage DC input (12–57V DC)

• Fanless passive cooling design

• Surge & ESD protection for industrial safety

✅ Specifications

• Ports: 4 x SFP (100/1000 Mbps), 8 x RJ45 (10/100/1000 Mbps)

• Switching Capacity: 24 Gbps

• Forwarding Rate: 17.8 Mpps

• Power Input: 12–57V DC

• Material: Rugged aluminum alloy

• Mounting: DIN-rail or wall-mounted

• Cooling: Passive (fanless)

• Operating Temperature: -40°C to 75°C

• Dimensions: Approx. 160mm x 110mm x 45mm

• Weight: ~0.85 kg

✅ Supported OS/Application/Industries

• Platform: OS-independent (unmanaged)

• Applications: NVRs, IP cameras, PLCs, fiber backbone

• Industries: Smart Cities, Rail Networks, Energy, Industrial Automation

✅ Benefits & Compatibility

• Combines fiber and copper in a single unit

• Ideal for LAN-to-fiber aggregation in remote areas

• Easy installation with DIN-rail mounting

• Highly compatible with standard SFP modules

• No software needed—just plug and connect

✅ Purpose of Use

Perfect for combining long-distance fiber connections with local Ethernet endpoints. Commonly used in surveillance hubs, control rooms, or fiber-to-the-cabinet networking.

✅ How to Use

1. Mount switch on DIN-rail or flat surface

2. Insert SFP modules for fiber uplink

3. Connect RJ45 ports to edge devices

4. Supply 12–57V DC power

5. System begins operating instantly—no config needed

✅ Packaging/Weight/Dimension

• Dimensions: 160mm x 110mm x 45mm

• Weight: ~0.85 kg

• Package Includes: 1x Switch Unit, DIN-rail kit, Power Terminal Block, User Guide

✅ Warranty and FAQs

Warranty: 12 months standard warranty
FAQs:
Q1: Are the fiber ports combo or dedicated?
A1: They are dedicated SFP slots.
Q2: Can I use it with single-mode SFPs?
A2: Yes, compatible with standard 100/1000M modules.
Q3: Is this switch PoE capable?
A3: No, it does not support PoE.

✅ Performance, Quality, Durability, and Reliability

Designed for industrial reliability, this switch withstands harsh field conditions, offering uninterrupted operation with passive heat dissipation, EMI protection, and fiber-grade transmission stability.

✅ Best Price Guarantee

Found this model cheaper in the UAE? NEOTECH matches the price so you get the best value—guaranteed.

✅ Shop Today & Receive Your Delivery Across the UAE!

Fast delivery to Dubai, Abu Dhabi, Sharjah, Ras Al Khaimah, and beyond. Order now and experience fast, secure shipping from NEOTECH.

✅ Request for Customer Reviews and Testimonials

Already installed this unit in your network? Tell us how it performed and help fellow professionals make informed decisions.

✅ After Sales Support

We’re here post-purchase. Need guidance with fiber modules or power supply matching? Contact our expert support team anytime.

✅ Get in Touch

Questions about deployment or integration? Our sales and technical teams are ready to help you choose the right industrial solution.

✅ Stock Availability

This product is in stock now. Contact us for bulk orders or to reserve units for time-sensitive projects.

✅ Disclaimer

Specifications are subject to change. Images are for reference only. Please confirm all details with NEOTECH before placing your order.
