CR5000: Rugged fixed-mount scanner for high-volume 1D/2D reads. USB/RS-232, IP65-rated housing, 30 FPS. Ideal for conveyors & kiosks. Order in UAE.

Overview

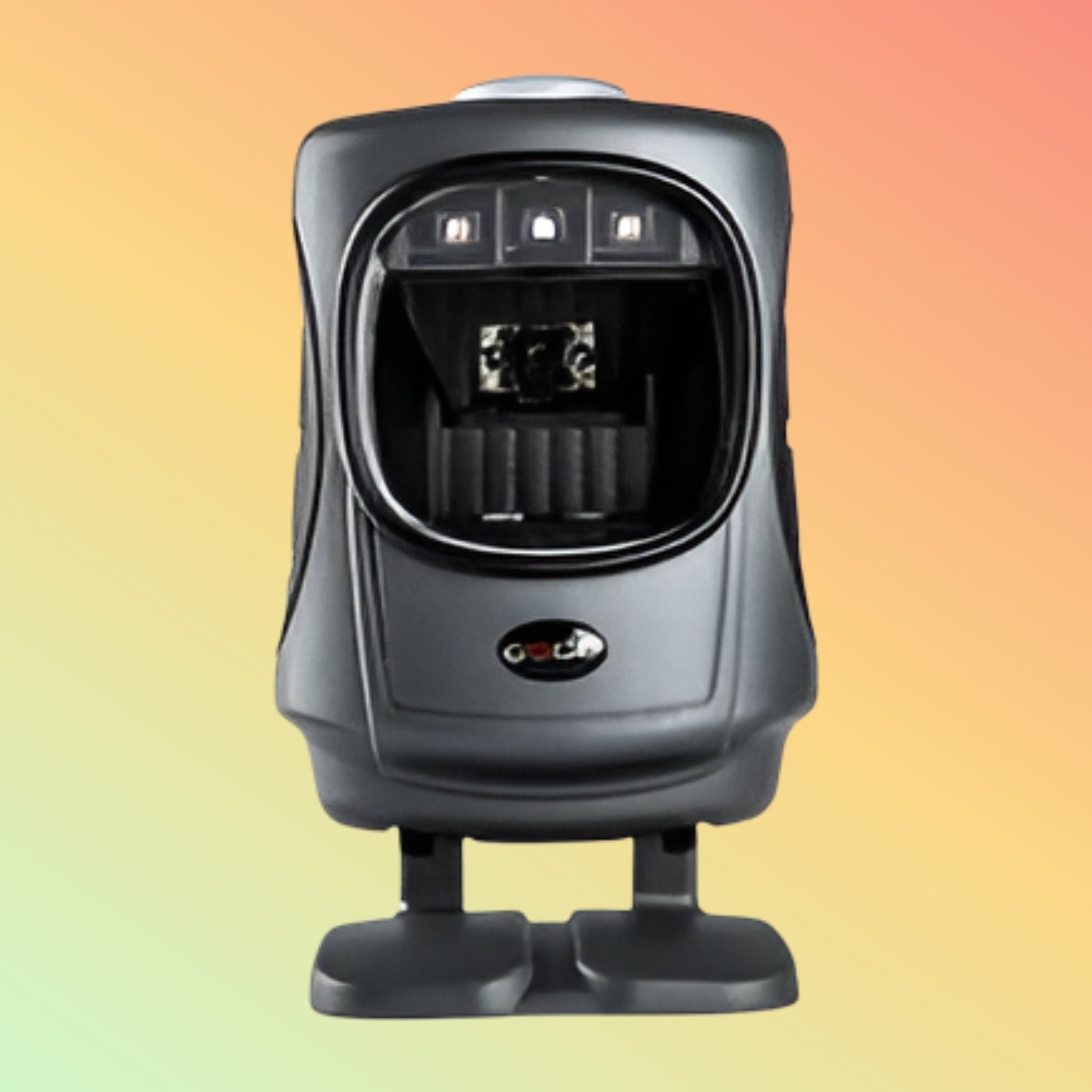

The Code by Brady CR5000 delivers hands-free, high-reliability barcode capture in industrial and self-service environments. Designed for conveyor lines, kiosks, and automated stations, it features omnidirectional imaging at 30 frames per second, an IP65-rated die-cast housing, and universal POS/WMS integration.

Product Description

Built to excel in continuous-use settings, the CR5000 captures 1D and 2D codes on paper, plastic, or mobile displays—even under harsh lighting. Its global-shutter sensor and wide FOV eliminate misreads at high speed. Mount with standard M12 brackets, connect via USB or RS-232, and configure through built-in web-UI. The CR5000’s sealed front and shock-resistant design ensure 24/7 uptime in dust- and splash-prone zones.

Key Features

• 30 FPS Omnidirectional Imaging – Rapid, hands-free code reads

• Wide Field of View – 60° horizontal × 45° vertical for broad coverage

• IP65 Dust/Water Protection – Sealed for harsh environments

• Multi-Interface – USB-C HID & RS-232 for legacy and modern hosts

• Global-Shutter Sensor – Blur-free scans on fast-moving items

• LED & Buzzer Feedback – Customizable pass/fail indicators

Specifications

• Sensor: 1.2 MP Global-Shutter CMOS

• Frame Rate: 30 frames per second

• Resolution: 1280 × 960 pixels

• Field of View: 60° H × 45° V

• Interfaces: USB-C (HID), RS-232 serial

• Mounting: M12 threaded bracket (included)

• Ingress Rating: IP65 front; IP42 rear

• Power: 5 V DC via USB-C or external 5 V supply

• Dimensions: 120 × 80 × 80 mm

• Weight: 450 g

• Operating Temp: –20 to 50 °C

Supported OS / Applications / Industries

• OS: Windows 10/11, Linux (HID-compliant)

• Applications: Conveyor scanning, self-checkout, item verification, parts tracking

• Industries: Manufacturing, logistics, retail kiosks, pharmaceuticals

Benefits & Compatibility

• Seamless Integration: HID-class USB and RS-232 for plug-and-play deployment

• Continuous Reliability: IP-rated enclosure and industrial-grade components reduce downtime

• Versatile Mounting: Standard M12 bracket adapts to conveyors or kiosk frames

• Broad Code Support: 1D, 2D, and DPM readability ensures universal coverage

Purpose of Use

Ideal for:

• High-speed package or box scanning on conveyor belts

• Fixed installations in self-service kiosks and ticketing booths

• Automated parts and component tracking in production lines

• Pharmaceutical label verification under clean-room conditions

How to Use

1. Mount the CR5000 on its M12 bracket at the desired angle.

2. Connect via USB-C or RS-232 to your host controller.

3. Power on, then use the web-UI or config utility to set scan parameters.

4. Position items in the FOV; the scanner triggers automatically.

5. Monitor pass/fail via LEDs or buzzer; integrate results into your system.

Packaging / Weight / Dimension

• Box Includes: CR5000 scanner, M12 bracket, USB-C cable, quick-start guide

• Packed Weight: 700 g

• Box Size: 180 × 120 × 100 mm

• Protection: Molded foam insert

Warranty and FAQs

• Warranty: 12-month limited coverage

FAQs:

• Can I power via PoE? No; it requires 5 V DC input via USB-C or external supply.

• Does it handle direct-part marks? Yes, supports DPM down to 10 mil.

• How do I adjust illumination? Use the built-in web-UI to tweak LED intensity.

Performance, Quality, Durability & Reliability

Tested to 5 million scan cycles and 1.5 m drop resistance, the CR5000 meets IEC vibration and shock standards. Its IP65 front seal and die-cast housing ensure uninterrupted operation—even in dusty, wet, or high-traffic areas.

Best Price Guarantee

Found a lower UAE price? We’ll match it—guaranteed. Leverage Brady’s global supply to secure top performance at the best value.

Shop Today & Receive Your Delivery Across the UAE!

Enjoy next-day shipping to Dubai, Abu Dhabi, Sharjah, and all Emirates. Secure checkout and real-time tracking for complete peace of mind.

Request for Customer Reviews and Testimonials

Deploying the CR5000 in your facility? Share your insights to help peers optimize their workflows. Submit a review.

After Sales Support

From setup to troubleshooting, our tech team is on call via email, phone or live chat. We’ve got your back post-purchase.

Get in Touch

Need design-in guidance or volume quotes? Contact our barcode experts for tailored advice and rapid replies.

Stock Availability

Stocks update daily. For urgent or bulk orders, confirm availability before checkout. Standard lead time: 1–2 days; bulk deployments may require 7–10 business days.

Disclaimer

All specifications and pricing are subject to change without notice. Product images are illustrative. Verify final details with our sales team before ordering.
