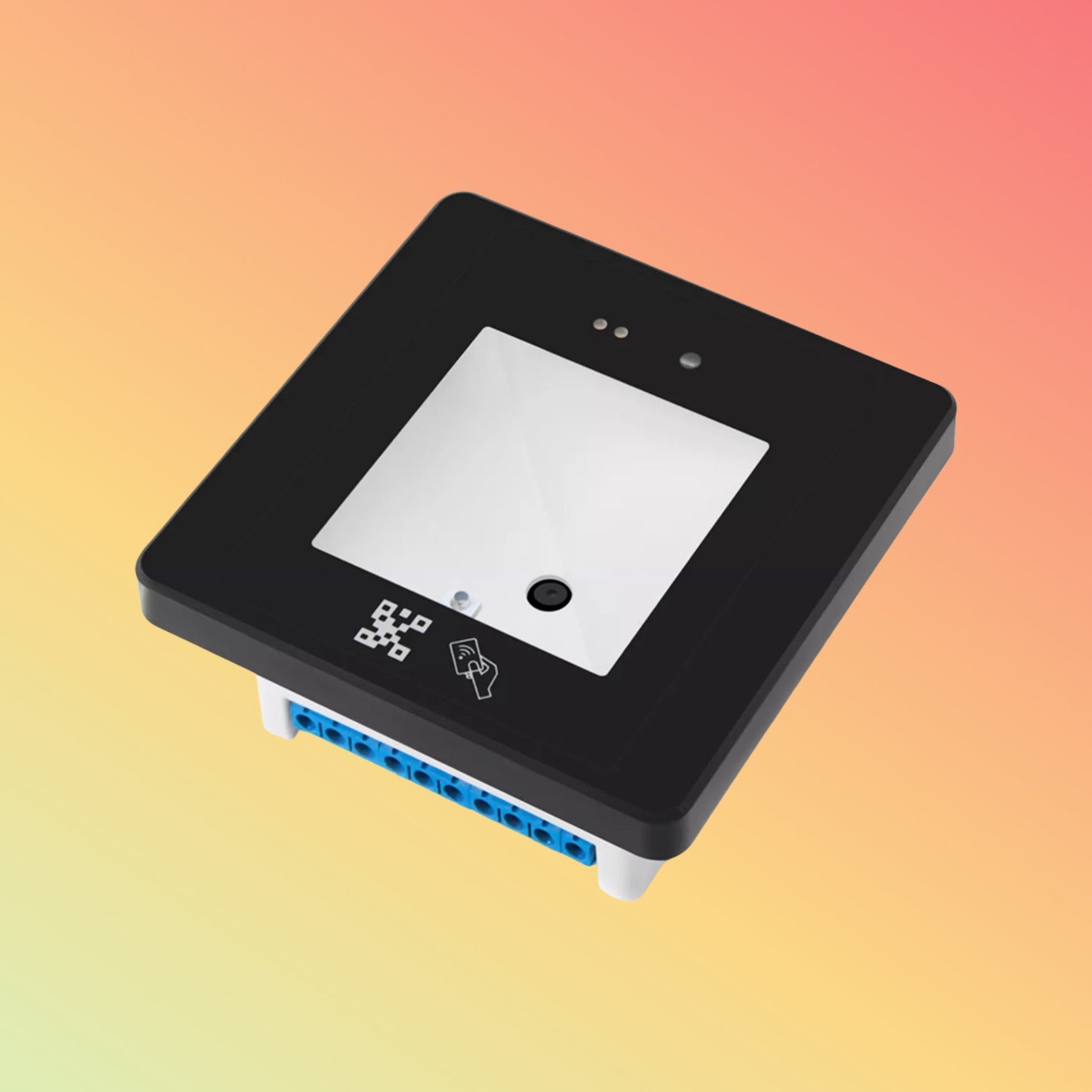

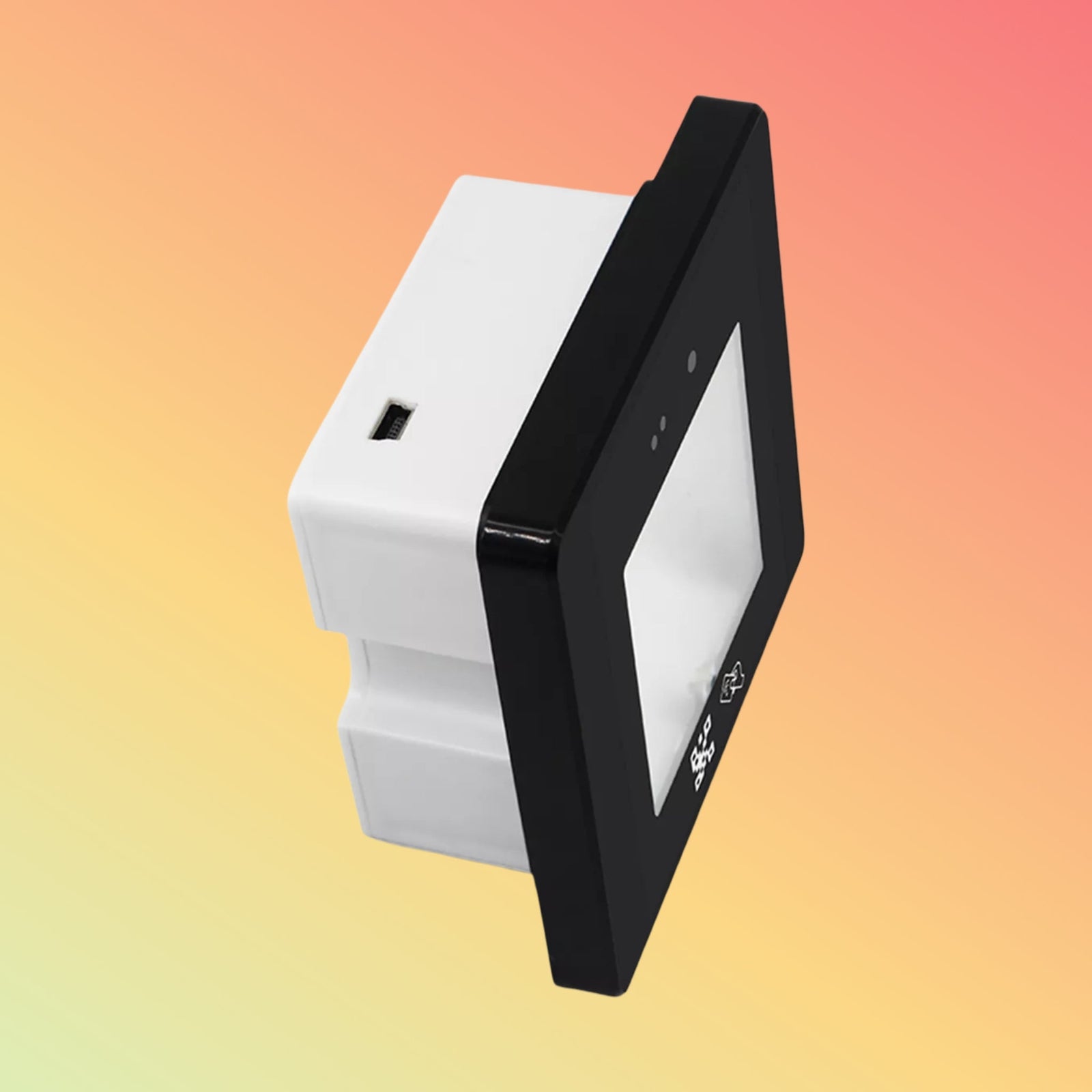

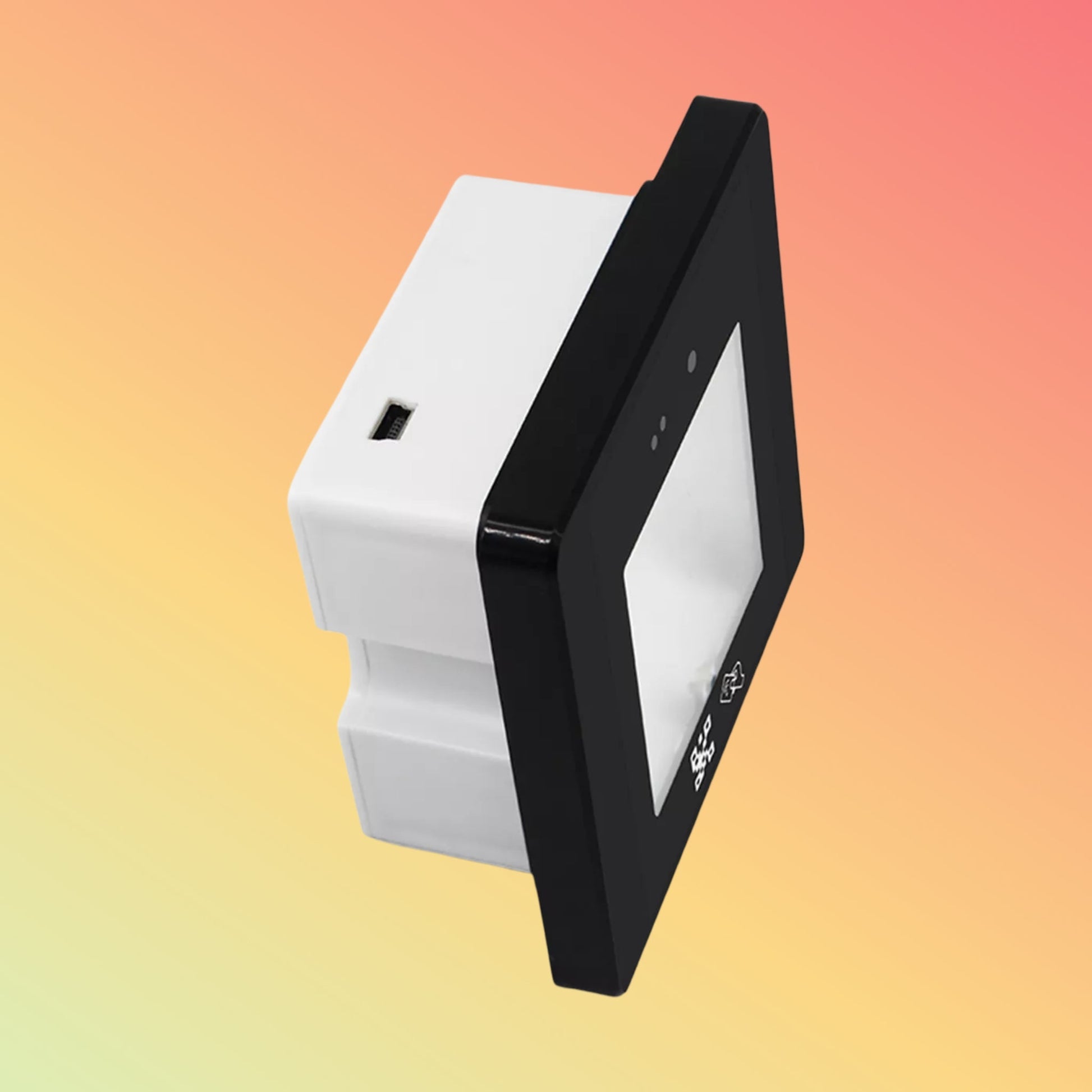

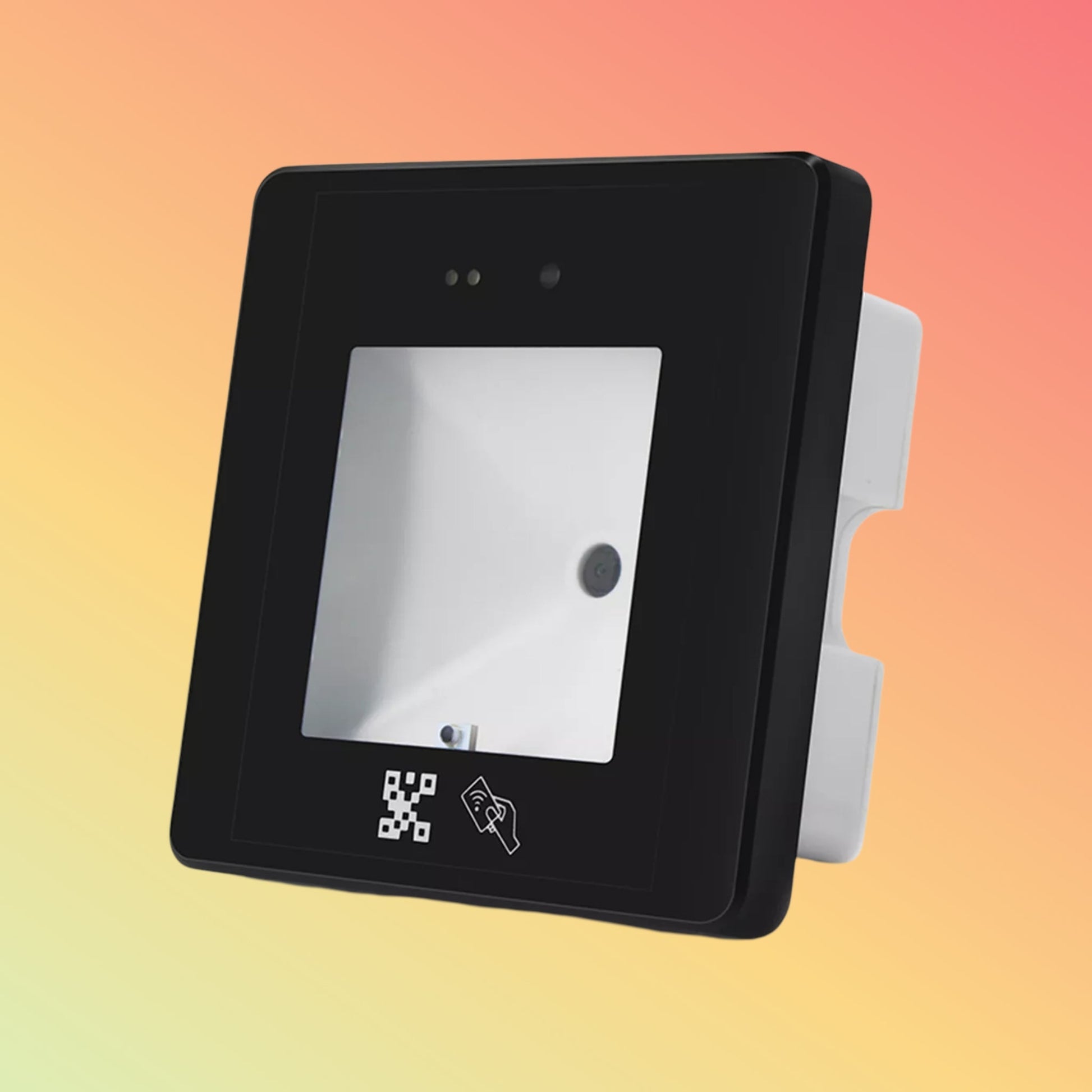

13.56MHz 2D Embedded Barcode Mifare/Ntag Access Card Reader HM20-IC

13.56MHz 2D Embedded Barcode Mifare/Ntag Access Card Reader HM20-IC

AED 0.00
AED 0.00
Sale Available on Request
Shipping calculated at checkout.

HM20-IC reads 2D barcodes, MIFARE/Ntag cards at 13.56 MHz. USB/UART plug-in, fast (<200 ms), compact module. Ideal for access control embeds.

✅ Overview

The NEOTECH HM20-IC is a slim, embedded module that merges 2D barcode scanning with 13.56 MHz NFC & MIFARE/Ntag card reading. In under 200 ms it decodes QR/data matrices or authenticates smart cards via USB or UART. Perfect for kiosks, access panels, vending machines or any integrated system.

✅ Product Description

HM20-IC packs a high-speed CMOS imager and RF front-end into a 60×40 mm PCB. It reads 1D/2D codes—UPC, Code 128, QR, PDF417—and handles ISO14443A/B & ISO15693 smart cards seamlessly. Choose USB-HID for driver-free PC embeds or UART/TTL for microcontroller control. An LED confirms each read, while its onboard processor outputs parsed data ready for your app. Low power draw and a robust metal shield make it ideal for always-on installations.

✅ Key Features

  • Dual-Mode Sensing: 2D barcode + NFC/MIFARE/Ntag card

  • Fast Decode: < 200 ms per scan or tag read

  • Interfaces: USB-HID & UART/TTL (3.3 V)

  • Compact PCB: 60×40×12 mm module for easy embed

  • Multi-Standard: ISO14443 A/B, ISO15693, NFC Forum tags

  • On-Board Processing: Outputs plain text data

  • LED Indicator: Scan success/failure feedback

  • Low Power: < 120 mA active current

✅ Specifications

  • Optical Sensor: 640×480 CMOS imager

  • RF Frequency: 13.56 MHz

  • Supported Tags: MIFARE Classic, Ntag, ICODE, DESFire, etc.

  • Barcode Symbologies: QR, DataMatrix, PDF417, UPC/EAN, Code 39/128

  • Decode Time: < 200 ms

  • USB Interface: USB 2.0 HID, 5 V DC

  • UART Interface: 3.3 V TTL, up to 921 600 bps

  • Dimensions: 60 × 40 × 12 mm

  • Operating Voltage: 3.3 – 5 V DC

  • Current Draw: Active < 120 mA; standby < 50 mA

  • Operating Temp: –20 °C – 60 °C

✅ Supported Applications / Industries

  • Applications: Access control panels, parking kiosks, vending machines, embedded POS

  • Industries: Security, Retail, Transit, Hospitality, Manufacturing

✅ Benefits & Compatibility

  • Seamless Integration: PCB-mount form factor for OEM designs

  • Versatile Reads: Scans barcodes and authenticates contactless cards

  • Plug-and-Play: USB-HID mode needs no extra drivers

  • Developer-Friendly: UART output for custom firmware projects

  • Reliable: Industrial-grade RF and optics for 24/7 uptime

✅ Purpose of Use

Ideal for embedding in any device that requires fast barcode capture plus secure smart-card authentication—all from one module.

✅ How to Use

  1. Solder or mount HM20-IC onto your PCB.

  2. Power with 3.3–5 V DC.

  3. Connect USB or UART to host.

  4. Present barcode or tap card near sensor.

  5. Read plain-text data via HID keystrokes or serial port.

✅ Packaging / Weight / Dimension

  • Includes: HM20-IC module, antenna cable, quick-start guide

  • Module Size: 60 × 40 × 12 mm

  • Net Weight: 18 g

✅ Warranty and FAQs

  • Warranty: 1 Year NEOTECH coverage

  • FAQs

    • Q: Which cards are supported? MIFARE Classic, Ntag, ICODE, DESFire, plus ISO14443A/B.

    • Q: Driver required? USB-HID mode is driver-free.

    • Q: UART baud rates? Up to 921 600 bps supported.

✅ Performance, Quality, Durability & Reliability

Engineered for embedded OEM use, HM20-IC’s sealed optics and RF front-end deliver consistent reads in harsh industrial or retail environments.

✅ Best Price Guarantee

Spotted a lower UAE price? Send proof and we’ll match it—NEOTECH always delivers the best deal.

✅ Shop Today & Receive Your Delivery Across the UAE!

Order now for express shipping to Dubai, Abu Dhabi, Sharjah, and beyond. HM20-IC modules ready to dispatch!

✅ Request for Customer Reviews and Testimonials

Integrating HM20-IC? Drop a quick review to show how it streamlined your product’s scanning and authentication.

✅ After Sales Support

Our support team is on call via chat, email, or phone—ready to help with integration, firmware, or troubleshooting.

✅ Get in Touch

Bulk orders or custom firmware? Contact us and we’ll assist you promptly.

✅ Stock Availability

High demand—confirm stock before placing bulk or urgent orders to secure your modules.

✅ Disclaimer

All specs and images are for reference and may change without notice. Verify final details with our sales team before purchase
