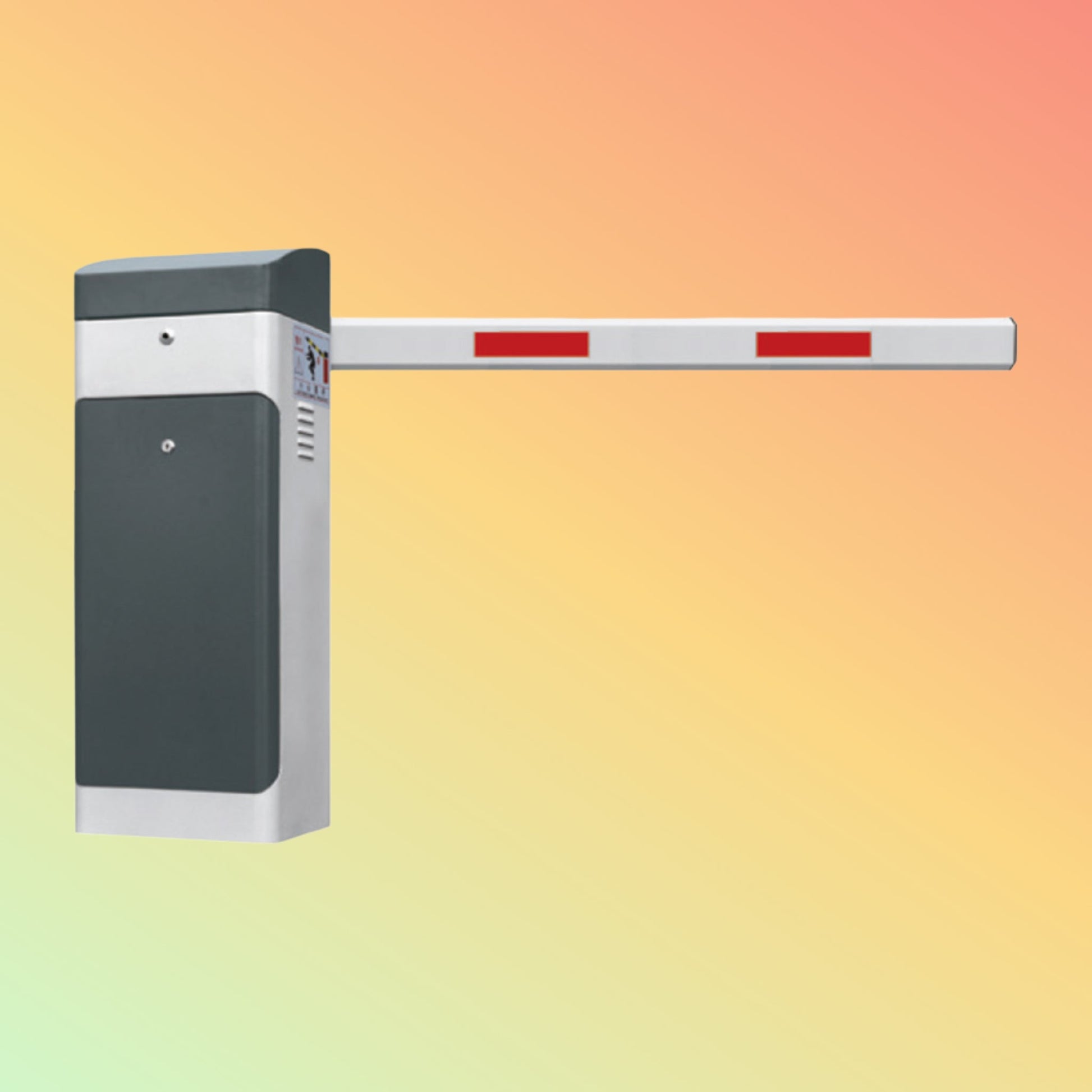

Granding 902-FE-L-60 barriers

Secure vehicle flow with Granding 902-FE-L-60 heavy-duty barrier gate. 6 m reach, high-speed lift, IP54 rated. Order from NEOTECH UAE today!

Overview

The Granding 902-FE-L-60 is a premium 6 m “fail-secure” barrier gate engineered for high-traffic entry points. With a reinforced boom arm, swift lift/lower cycle, and industrial-grade IP54 enclosure, it’s built to handle continuous operation in extreme environments.

Product Description

Designed for toll plazas, logistics hubs, and commercial parking, the 902-FE-L-60 integrates a fat-boom arm profile for wind resistance up to 15 m/s and rapid 1.8–3 s open/close cycles. Its DC brushless motor, combined with soft-start/stop control, minimizes wear while delivering smooth, precise movements. Built-in diagnostics and emergency release ensure uptime and safety.

Key Features

• 6 m reinforced aluminium-steel composite boom

• High-torque 24 V DC brushless motor

• Fast cycle: 1.8–3 s (configurable)

• IP54 weatherproof steel cabinet

• Wind-resistant design (up to 15 m/s)

• Integrated loop detector & photoelectric sensors

• RS485 + dry-contact I/O for easy integration

• Emergency manual release lever

• LED status display & audible alarm

Specifications

• Model: 902-FE-L-60

• Boom Length: 6 m

• Motor: 24 V DC brushless, 120 W

• Cycle Time: 1.8–3 s

• Duty Cycle: 100% continuous

• Protection: IP54

• Operating Temp: -35 °C to +75 °C

• Cabinet Size: 1020 × 310 × 310 mm

• Weight: 52 kg

• Control Interface: RS485, dry-contact I/O

• Power: AC 220 V ± 10%, 50/60 Hz

Supported Applications / Industries

• Toll booths & highways

• Airport & port terminals

• Logistics parks & warehouses

• Multi-storey car parks

• Gated communities & campuses

• Industrial complexes

Benefits & Compatibility

• Ultra-fast throughput reduces congestion

• Robust construction for coastal and desert climates

• Seamless integration with NEOTECH ANPR cameras, RFID readers, ticket dispensers

• High wind resistance for exposed sites

• Remote monitoring via network diagnostics

Purpose of Use

Deploy the 902-FE-L-60 to:

• Automate secure vehicle entry/exit

• Enforce paid-parking and access policies

• Improve site safety with precise barrier control

• Streamline fleet and visitor management

How to Use

1. Bolt cabinet to a level foundation

2. Connect power, loop detectors, photoelectric sensors

3. Mount and align the 6 m boom arm

4. Configure open/close timings and I/O triggers

5. Integrate external devices (RFID, camera, keypad)

6. Test safety stops & emergency release, then go live

Packaging / Weight / Dimensions

• Includes: Barrier unit, 6 m boom arm, detector kit, mounting hardware, manual

• Packaged Size: 1100 × 400 × 350 mm

• Gross Weight: ~60 kg

• Crate: Reinforced plywood with shock-absorbing foam

After Sales Support

From design advice to remote troubleshooting, our field engineers and hotline are on standby. Firmware upgrades and on-site service options keep you running.

Get in Touch

Need a turnkey solution? Speak with our access-control architects for customized layouts, quotes, and rapid delivery timelines.

Stock Availability

Inventory updates daily. For urgent or bulk orders (5+ units), please confirm availability before checkout. Lead time: 10–15 business days.

Disclaimer

All specifications are for general guidance and may change without notice. Illustrations are representative. Confirm final details and pricing with our sales team before ordering.
