Smooth, secure pedestrian access with BYX Smart RFID Swing Gate Turnstile. IP54, anti-tailgate, RFID/biometric ready. Order NEOTECH UAE today!
Overview

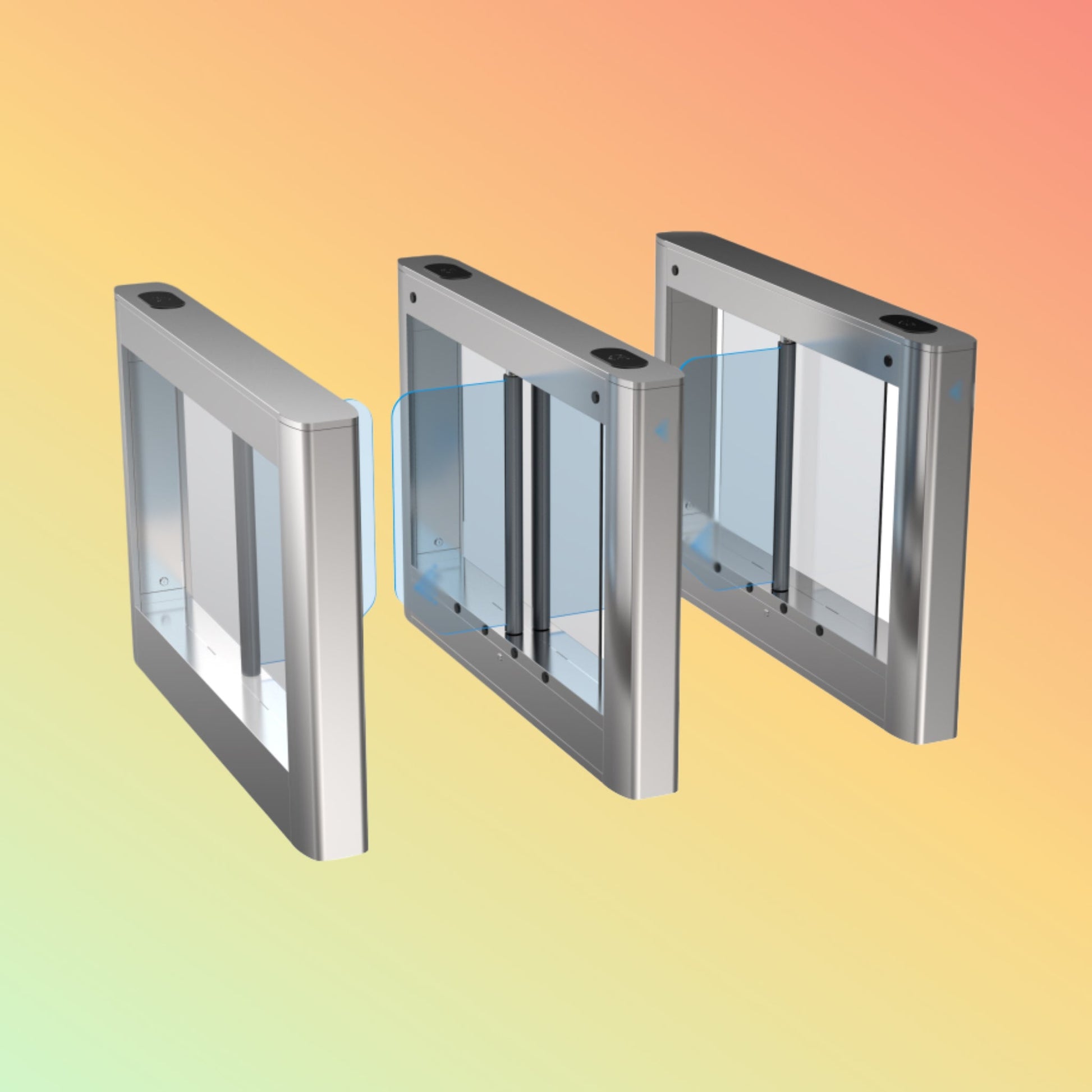

The BYX Smart RFID Swing Gate Turnstile combines elegance and security in a slim swing-gate module. Engineered for corporate lobbies, hospitality venues, and premium facilities, it offers silent operation, fast throughput, and seamless RFID or biometric integration.
Product Description
Built around a precision motor and stainless-steel frame, this swing gate opens in under 0.5 s upon authorized read. Its tempered-glass wing swings smoothly and locks securely to prevent tailgating. IP54-rated for indoor/outdoor use, the cabinet conceals wiring and supports plug-and-play RFID, fingerprint, or facial-recognition panels.
Key Features
-
Rapid swing action: ≤0.5 s open/close cycle
-
Tempered-glass or acrylic wing options
-
Anti-tailgate & anti-pinch infrared sensors
-
IP54-rated stainless-steel housing
-
Dry-contact & Wiegand 26/34 interfaces
-
Built-in LED status indicators & voice prompts
-
Optional RFID, fingerprint, or face-scan modules
-
Emergency-fail-open on power loss
-
Throughput up to 25 persons/min
Specifications
-
Passage Width: 600 mm
-
Cycle Time: 0.3–0.5 s
-
Power Supply: AC 220 V ± 10%, 50/60 Hz
-
Motor: 24 V DC brushless, 50 W
-
Housing: SUS304 stainless steel, IP54
-
Wing Material: 10 mm tempered glass or acrylic
-
Control I/O: Dry contact, Wiegand 26/34 bit
-
Operating Temp: –20 °C to +60 °C
-
Dimensions: 1200 × 200 × 980 mm (L×W×H)
-
Weight: 55 kg
Supported Applications / Industries
-
Corporate & government lobbies
-
Hotels, clubs & hospitality venues
-
Airport lounges & customs areas
-
Data centers & R&D facilities
-
Premium residential complexes
Benefits & Compatibility
-
Architectural elegance with glass swing wing
-
Smooth, silent fanless motor drive
-
Scalable integration via RFID, biometrics, or QR
-
Compact footprint fits narrow corridors
-
Robust safety with anti-pinch and tailgate alarms
Purpose of Use
Deploy the BYX swing gate to:
-
Enforce one-person-per-credential entry
-
Integrate multi-factor authentication (card + biometrics)
-
Provide ADA-friendly wide-lane access
-
Automate emergency-egress fail-open mode
How to Use
-
Anchor unit to finished floor with bolts
-
Wire power, network, and reader modules per manual
-
Configure I/O in your access-control panel
-
Calibrate sensor heights and swing timing
-
Test access flow and safety responses
Packaging / Weight / Dimensions
-
Includes: Turnstile cabinet, swing wing, control board, power adapter, installation guide
-
Crate Size: 1350 × 300 × 1100 mm
-
Gross Weight: ~65 kg
Warranty & FAQs
Warranty: 1 year on electronics and motor
FAQs
-
Q: What if power fails?
A: Gate swings open for safe exit.
-
Q: Can wing reverse if blocked?
A: Yes—anti-pinch sensors trigger auto-reverse.
-
Q: Is wide-lane version available?
A: Yes—900 mm model for wheelchair access.
Performance, Quality & Reliability
Rated for 3 million cycles, its corrosion-resistant motor and sealed bearings ensure long-term uptime in high-traffic environments.
Best Price Guarantee
NEOTECH offers factory-direct pricing on BYX swing gates. Found a lower UAE quote? We’ll match it.
Shop Today & Receive Your Delivery Across the UAE
Order now for fast dispatch—Dubai, Abu Dhabi, Sharjah, and beyond. Installation and training services available.
Request for Customer Reviews & Testimonials
Using BYX swing gates? Share your installation story to be featured in our case studies and earn rewards.
After Sales Support
Our 24/7 support team provides remote diagnostics, firmware updates, and on-site maintenance options. Contact us via email, phone, or live chat.
Get in Touch
📧 Email: support@neotech.ae
📞 Phone: +971-XXX-XXXX
💬 Live Chat: 9 AM–6 PM GST
Stock Availability
🟢 In Stock
✔️ Ships in 5–7 Business Days
🔄 Bulk orders (3+ units): lead time 4–6 weeks
Disclaimer
Specifications subject to change without notice. Illustrations are representative. Verify final details and pricing with our sales team before ordering.
