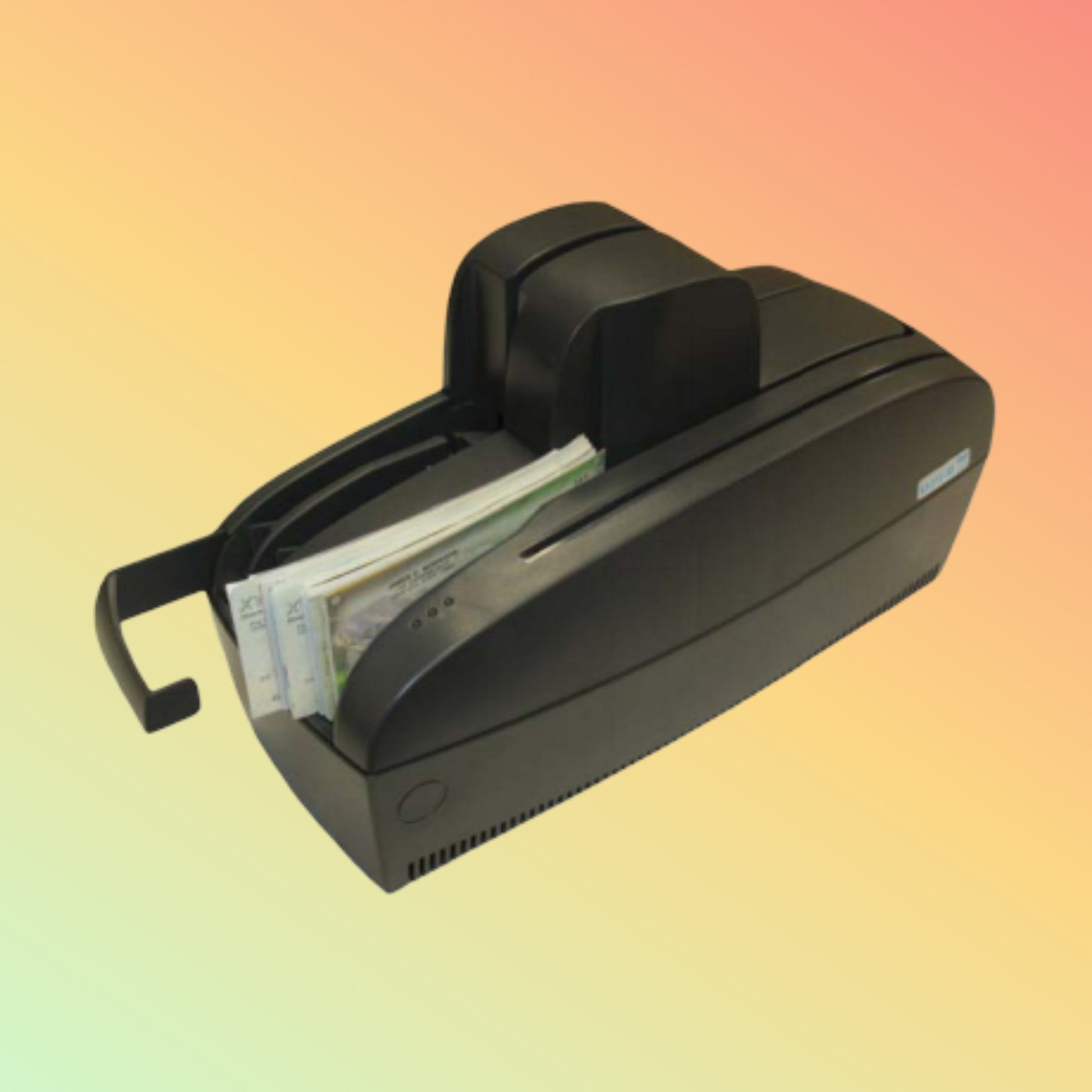

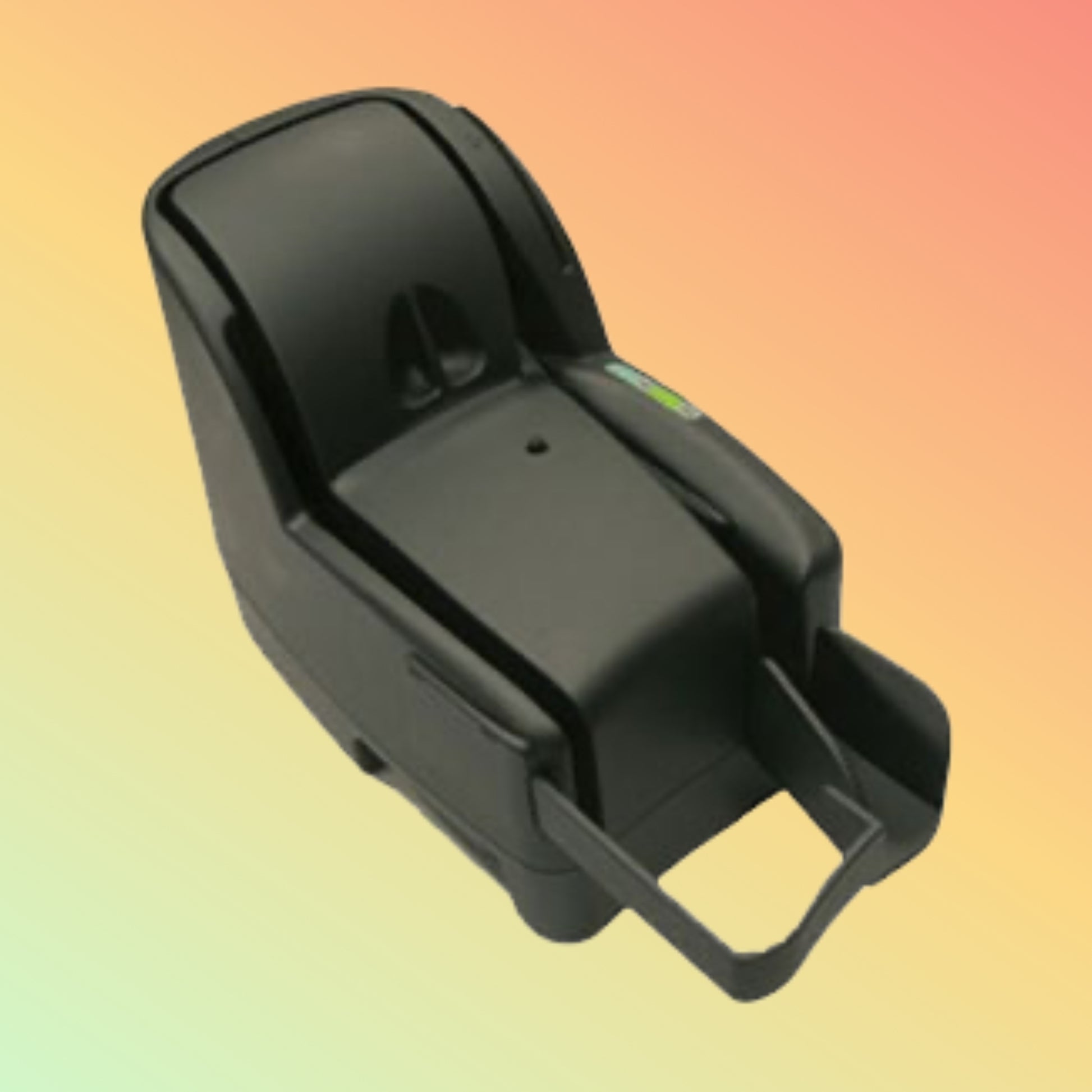

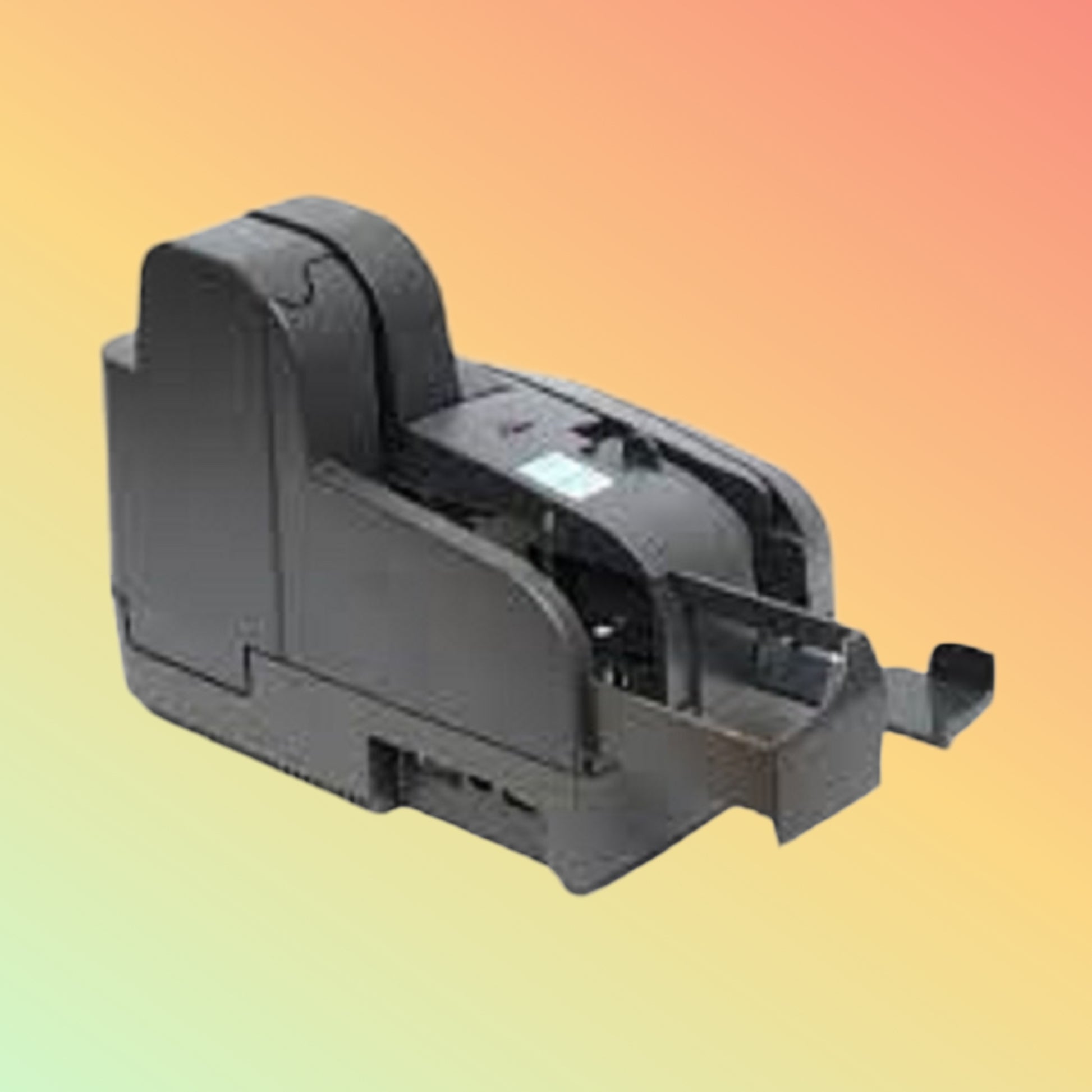

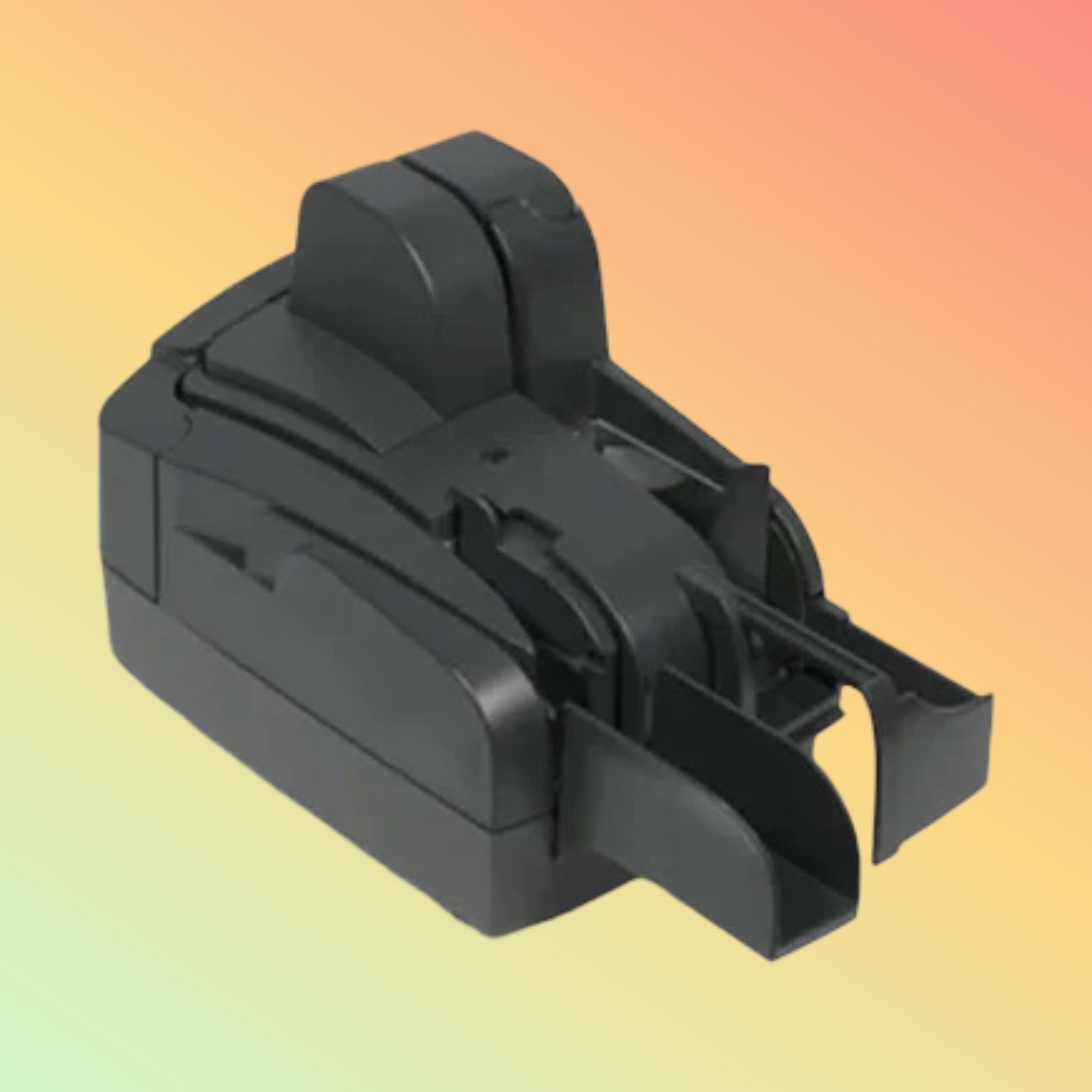

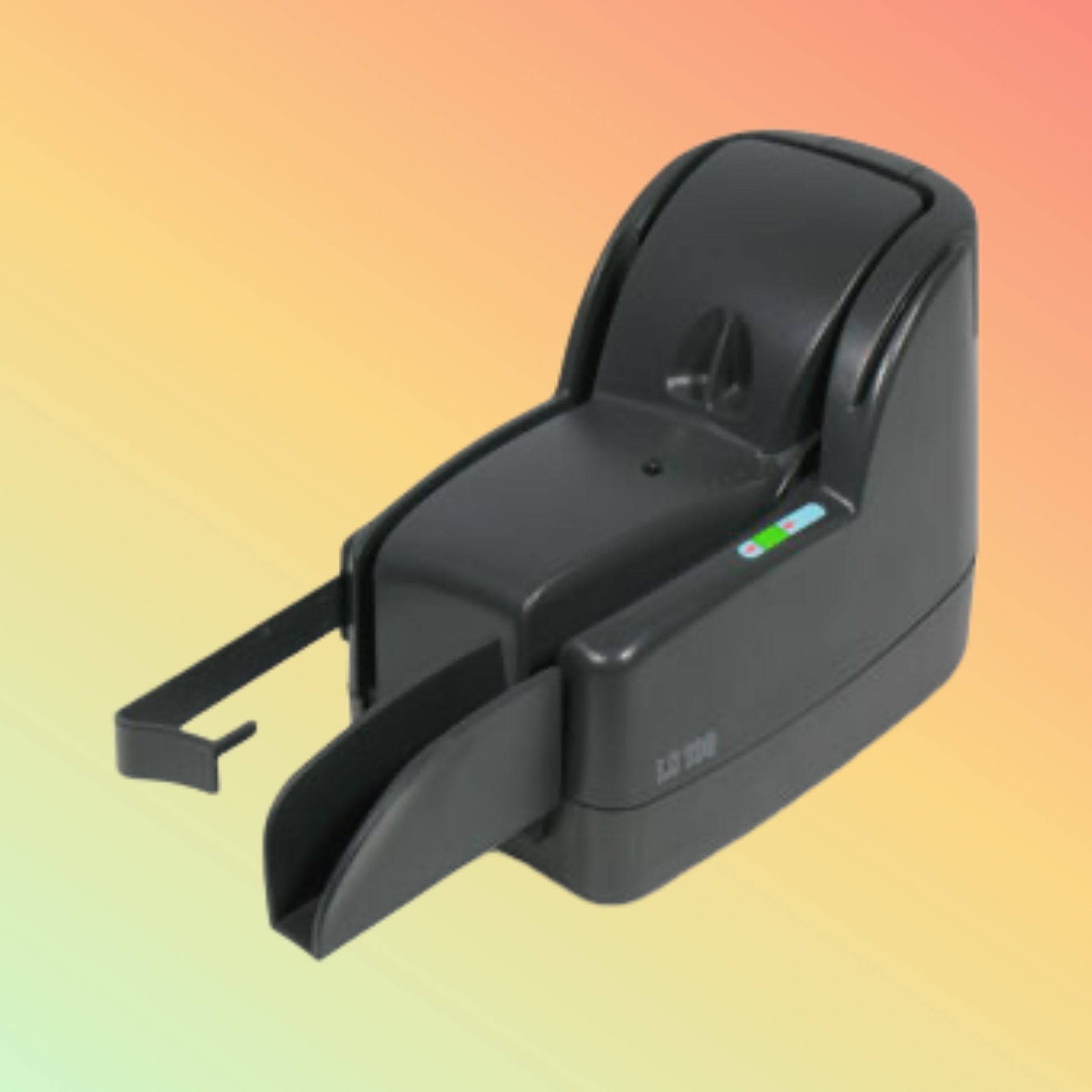

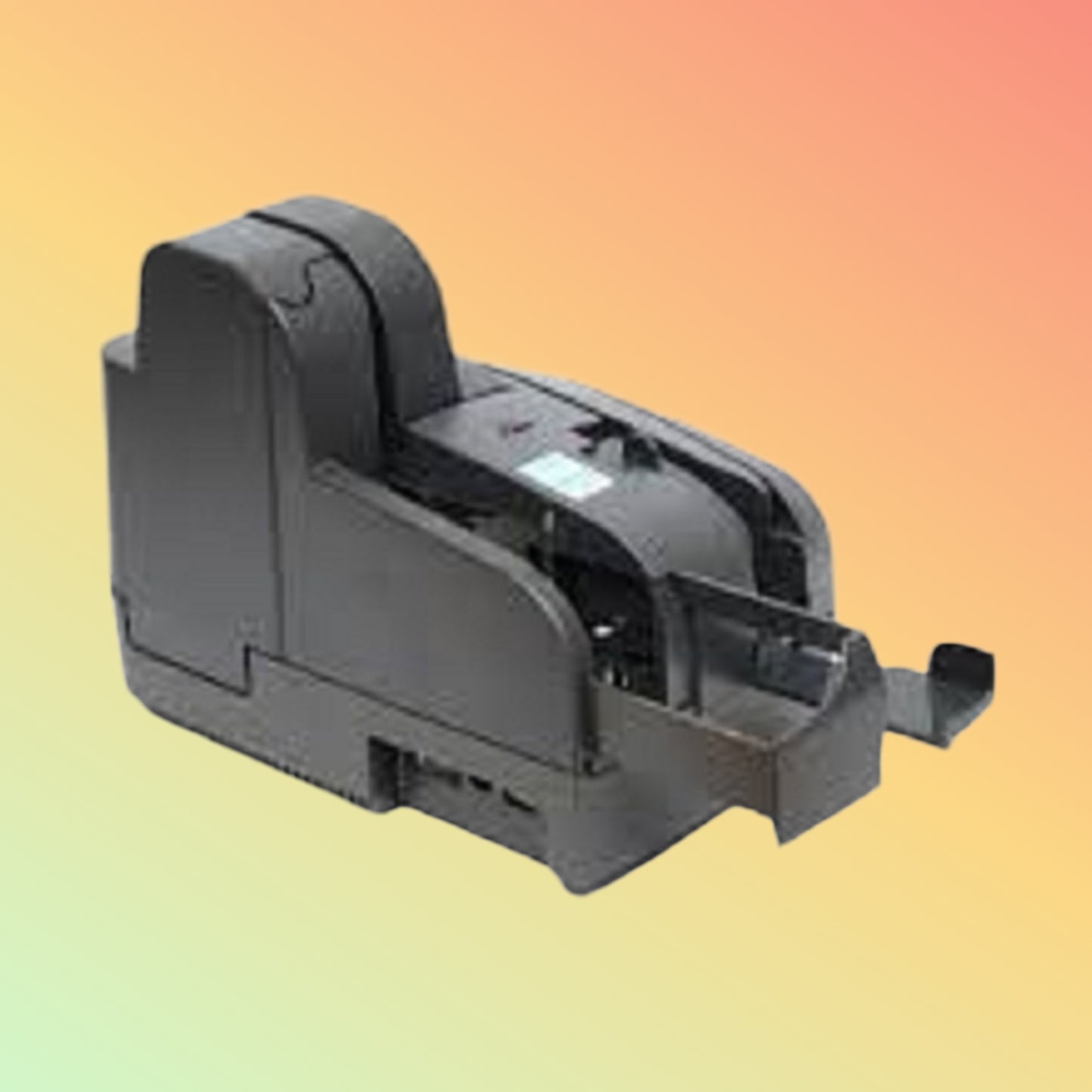

Arca LS100 Cheque Scanner with Franker NEOTECH® UAE

Compact Check Scanner for Teller and Remote Deposit Applications

Arca LS100 cheque scanner designed for processing checks and financial documents in banking, retail, and office environments across the United Arab Emirates.

Overview

The Arca LS100 is a compact document scanner used for cheque processing, image capture, and MICR data reading. It is suitable for teller counters, small business environments, and remote deposit capture applications.

This device supports document scanning, endorsement printing, and data extraction depending on configuration.

Key Features

• Automatic feeder with up to 20 document capacity
• Single-pass front and rear document imaging
• MICR reader with E13B and CMC7 auto detection
• Rear endorsement printing and front franking capability
• OCR, ICR, and barcode recognition (software dependent)
• USB connectivity with optional Ethernet support
• Double-feed detection sensors

Technical Specifications

• Model: Arca LS100
• Feeder: Automatic (up to 20 documents)
• Speed: Approx. 50 documents per minute
• Reader: MICR (E13B / CMC7 auto detect)
• Resolution: 100 / 120 / 200 / 240 dpi
• Image Formats: BMP, JPEG, TIFF
• Document Size: Approx. 1.9" x 4.3" to 3.94" x 8.5"
• Thickness: 0.003" – 0.004"
• Connectivity: USB 2.0
• Optional Connectivity: Ethernet / Wi-Fi (via add-on)
• Drivers: Windows, Linux, Mac OS (driver dependent)
• Dimensions: 6.3" x 8.47" x 4.92"
• Weight: Approx. 4.41 lbs

Applications

• Bank teller cheque processing
• Remote deposit capture systems
• Retail and merchant cheque handling
• Financial document scanning and archiving

Purpose of Use

This scanner is used for capturing, reading, and processing cheque and financial documents within banking and business workflows.

Optional Features

• Endorsement printing and document marking
• Magnetic stripe and card reading capability
• Image quality assurance (IQA) tools
• OCR and barcode data extraction modules (software dependent)

Why Choose NEOTECH® UAE

✔ Transparent product information and sourcing communication
✔ UAE-based operations under NEOLYN TECHNOLOGY LLC
✔ Support for banking and automation hardware
✔ Clear return and refund policy
✔ Business-focused supply solutions

FAQ - Arca LS100

Q: What is the Arca LS100 used for?
A: It is used for cheque processing, MICR reading, and document scanning in banking and retail environments.

Q: Does it support cheque endorsement printing?
A: Yes, it includes rear endorsement and front franking functionality depending on configuration.

Q: Is this suitable for small offices or teller counters?
A: Yes, it is designed for compact environments such as teller desks and small business locations.

Q: Do you supply this device outside UAE?
A: No. Supply, delivery, and support are available within the United Arab Emirates only.

Delivery — UAE

Service Area: United Arab Emirates
Order Cut-Off: 2:00 PM GST
Handling Time: 1–2 business days (when stock is available)
Transit Time: 3–5 business days within UAE
Delivery Time: 4–7 business days
