Compact Direct Thermal Receipt Printer with USB, Ethernet & Serial Interface Options

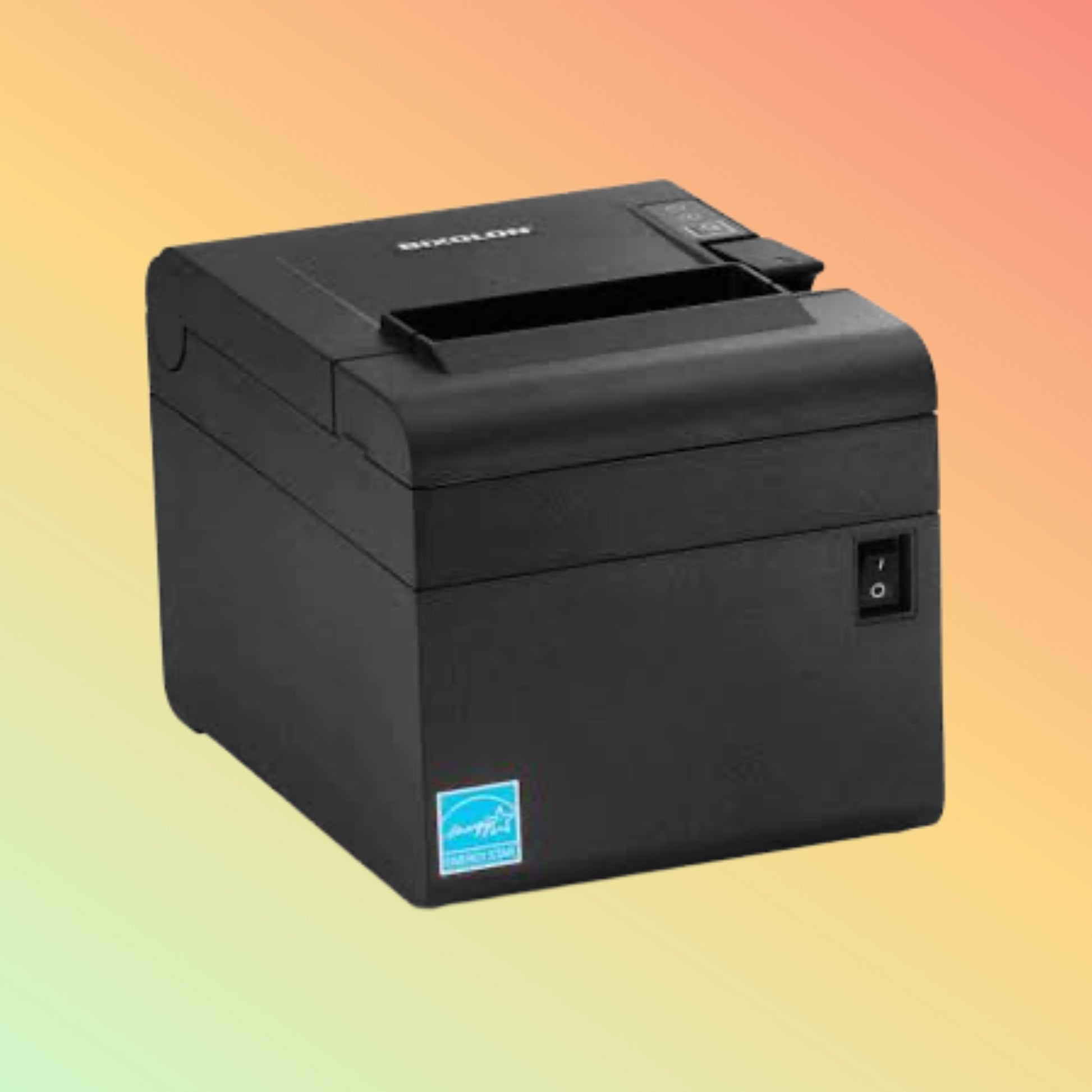

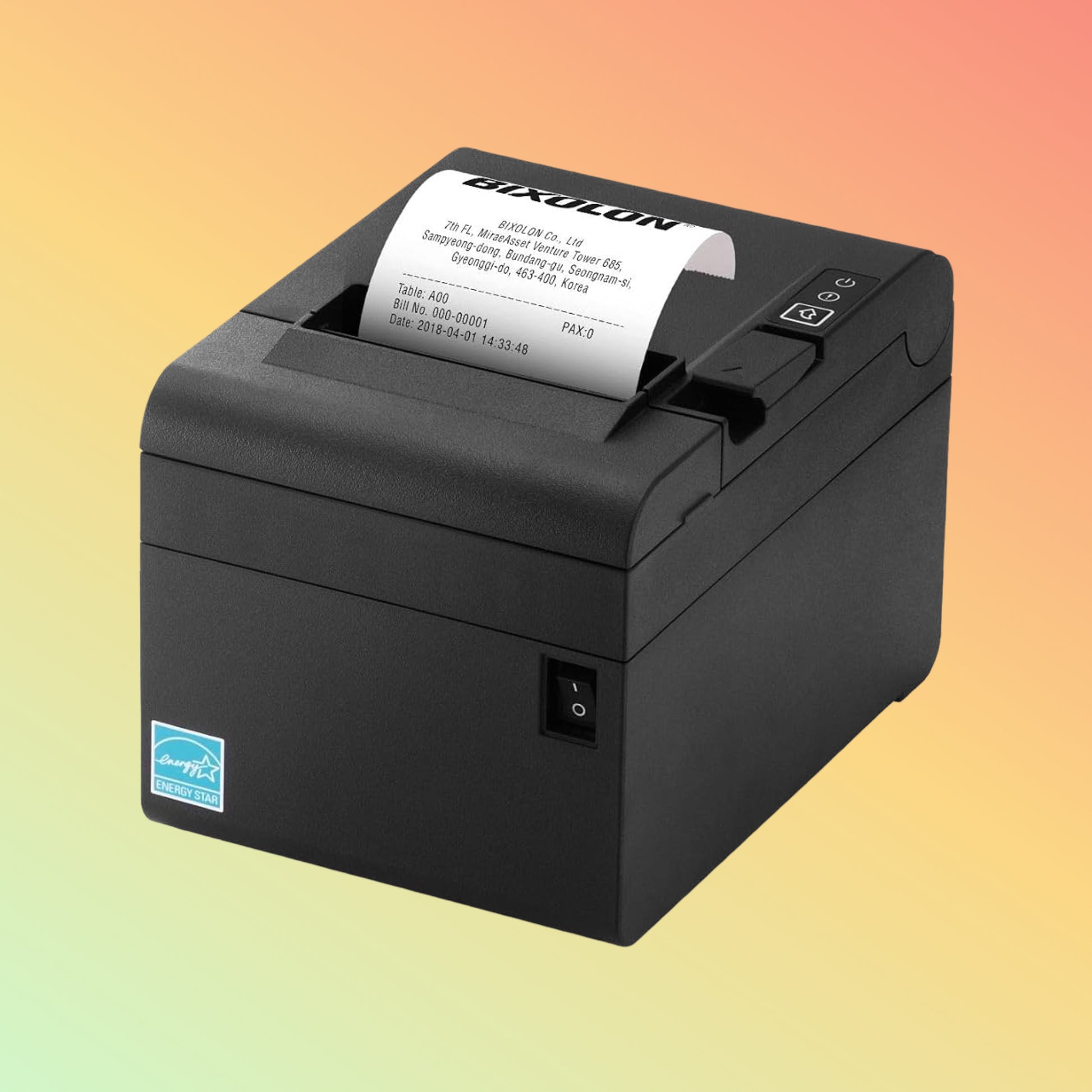

The BIXOLON SRP-E300 is a compact 3-inch direct thermal receipt printer designed for point-of-sale environments. It supports receipt printing at speeds of up to 220 mm/sec and is available in 180 dpi and 203 dpi models. The printer is suitable for retail stores, restaurants, hospitality businesses, kiosks, and other receipt-printing applications requiring reliable day-to-day operation.
Key Features
✔ Direct thermal receipt printing
✔ Printing speed up to 220 mm/sec
✔ Available in 180 dpi and 203 dpi models
✔ Maximum print width of 72 mm
✔ Easy drop-in paper loading
✔ Supports paper rolls up to 83 mm diameter
✔ Compact desktop design
✔ Optional wall-mount installation
✔ LED indicators for power, paper status and error notification

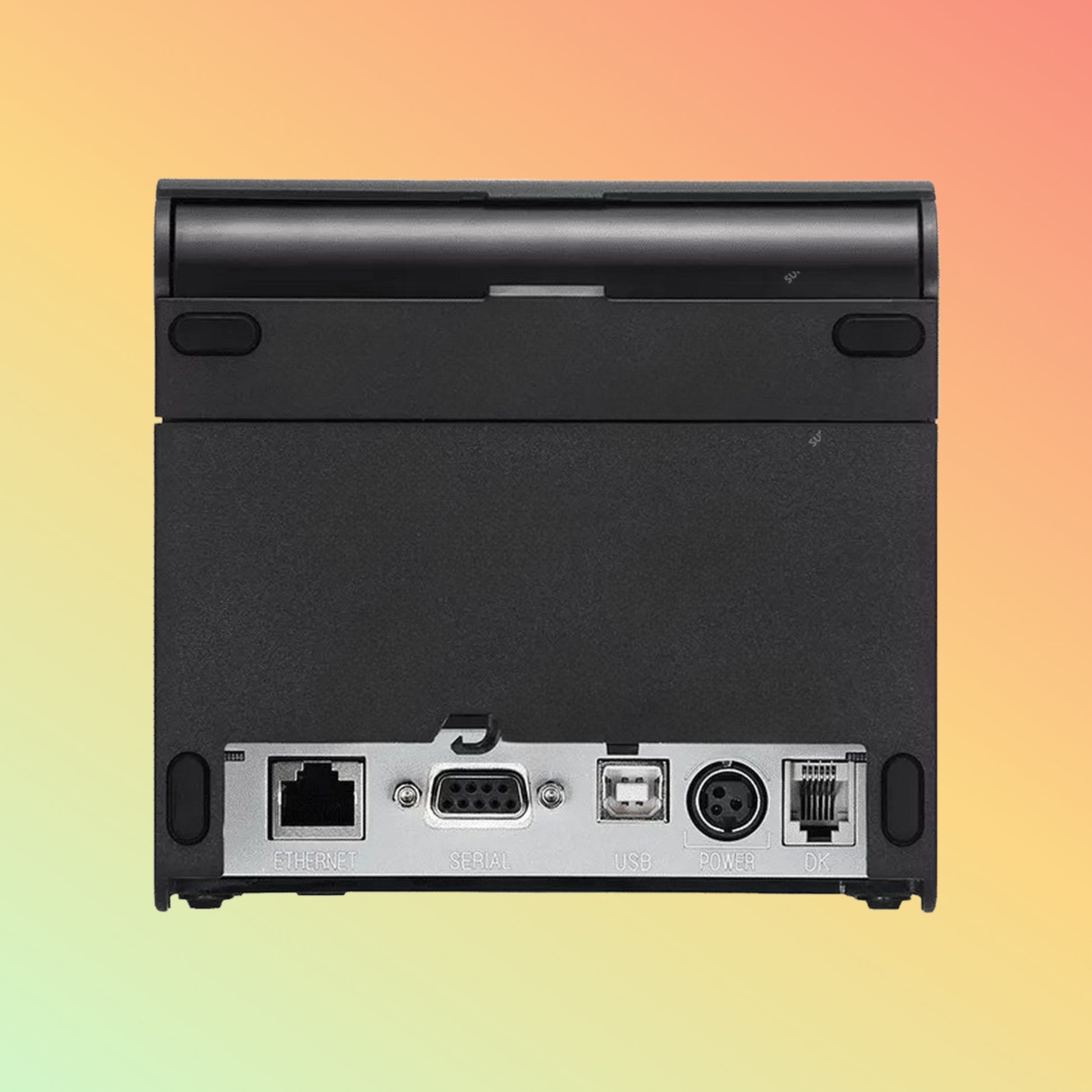

✔ Available interface configurations:
- USB 2.0
- USB + Ethernet + Serial
✔ Supports ESC/POS-compatible command language through BXL/POS emulation
✔ Paper saving mode supported
✔ ENERGY STAR® Certified (manufacturer specification)
Technical Specifications
- Brand: BIXOLON
- Model: SRP-E300
- Printer Type: Direct Thermal POS Receipt Printer
- Print Method: Direct Thermal
- Maximum Print Speed: Up to 220 mm/sec
- Resolution Options:
- SRP-E300: 180 dpi
- SRP-E302: 203 dpi
- Maximum Print Width: 72 mm
- Media Type: Thermal Receipt Paper
- Paper Width: 80 mm
- Maximum Roll Diameter: Up to 83 mm
- Paper Thickness: 0.05–0.08 mm
- Paper Loading: Easy Drop-in Loading
- Sensor: Paper End
- Memory:
- NV Memory: 768 KB
- Receive Buffer: 4 KB
- User Defined Buffer: 12 KB
- Standard Interface Options:
- USB 2.0 Full Speed
- USB 2.0 Full Speed + Ethernet + Serial
- Power Supply:
- External Adapter
- Input: 100–240 VAC
- Frequency: 50/60 Hz
- Drawer Port: 2 Ports (via Y-Type Adapter)
- Dimensions: 132 × 182.4 × 128.5 mm
- Weight: Approximately 1.01 kg
- Operating Temperature: 0°C to 40°C
- Storage Temperature: -20°C to 60°C
- Operating Humidity: 10%–80% RH
- Storage Humidity: 10%–90% RH
Fonts, Graphics & Barcode Support
Fonts
- Font A
- Font B
- Font C
- International Character Sets
- Multiple Code Pages
Supported 1D Barcodes
- UPC-A
- UPC-E
- EAN-8
- EAN-13
- Code 39
- Code 93
- Code 128
- Codabar
- ITF
- GS1 DataBar
Supported 2D Barcodes
- QR Code
- PDF417
- Data Matrix
Software Support
Supported software includes:
- Windows Driver
- OPOS / JPOS Driver
- Linux / macOS CUPS Driver
- Virtual COM USB/Ethernet Driver
- Android SDK
- Windows SDK
- Linux SDK
- Xamarin SDK
- Chrome SDK
- Cordova Plugin
- Utility Program
- Print Application (Android / iOS)
Applications
Suitable for:
- Retail Stores
- Supermarkets
- Convenience Stores
- Restaurants
- Cafés
- Hospitality
- Food Service
- Kitchen Receipt Printing
- Self-Service Terminals
- POS Checkout Counters
- Pharmacy
- Ticket Printing
Purpose of Use
The SRP-E300 is designed for printing thermal receipts in retail, hospitality and service environments. It may be integrated into POS systems requiring reliable receipt printing with USB or network connectivity depending on the selected interface model.
Compatibility
Compatible with many POS software environments supporting:
- Windows
- Linux
- macOS
- Android
- iOS
The printer supports integration with compatible POS systems using supported printer drivers and communication interfaces.
Why Choose NEOTECH® UAE
✔ Transparent product information and sourcing communication
✔ UAE-based technical assistance
✔ Support for POS, barcode, kiosk and automation hardware
✔ Assistance in selecting compatible POS peripherals
✔ Clear return and refund policy
✔ Business-focused supply solutions
Delivery – UAE
Service Area: United Arab Emirates
Order Cut-Off: 2:00 PM GST
Handling Time: 1–2 business days (subject to stock availability)
Transit Time: 3–5 business days within the UAE
For internationally sourced products or project quantities, delivery schedules will be confirmed after order verification.
Frequently Asked Questions
Category: Receipt Printer
Q: Does the SRP-E300 print labels?
A: The SRP-E300 is primarily designed for thermal receipt printing. Application suitability should be verified based on your media and software requirements.
Category: Interfaces
Q: Which interface options are available?
A: Depending on the model, the printer is available with USB or USB + Ethernet + Serial interface configurations.
Category: Paper Size
Q: What paper width does the printer support?
A: The printer supports 80 mm thermal receipt paper with a maximum print width of 72 mm.
Category: Operating Systems
Q: Which operating systems are supported?
A: Manufacturer software support includes Windows, Linux, macOS, Android and iOS using compatible drivers and SDKs.
Category: Installation
Q: Can the printer be wall-mounted?
A: Yes. According to the manufacturer, the printer supports both desktop installation and optional wall mounting.
