Professional Card Lamination for Durable ID Production

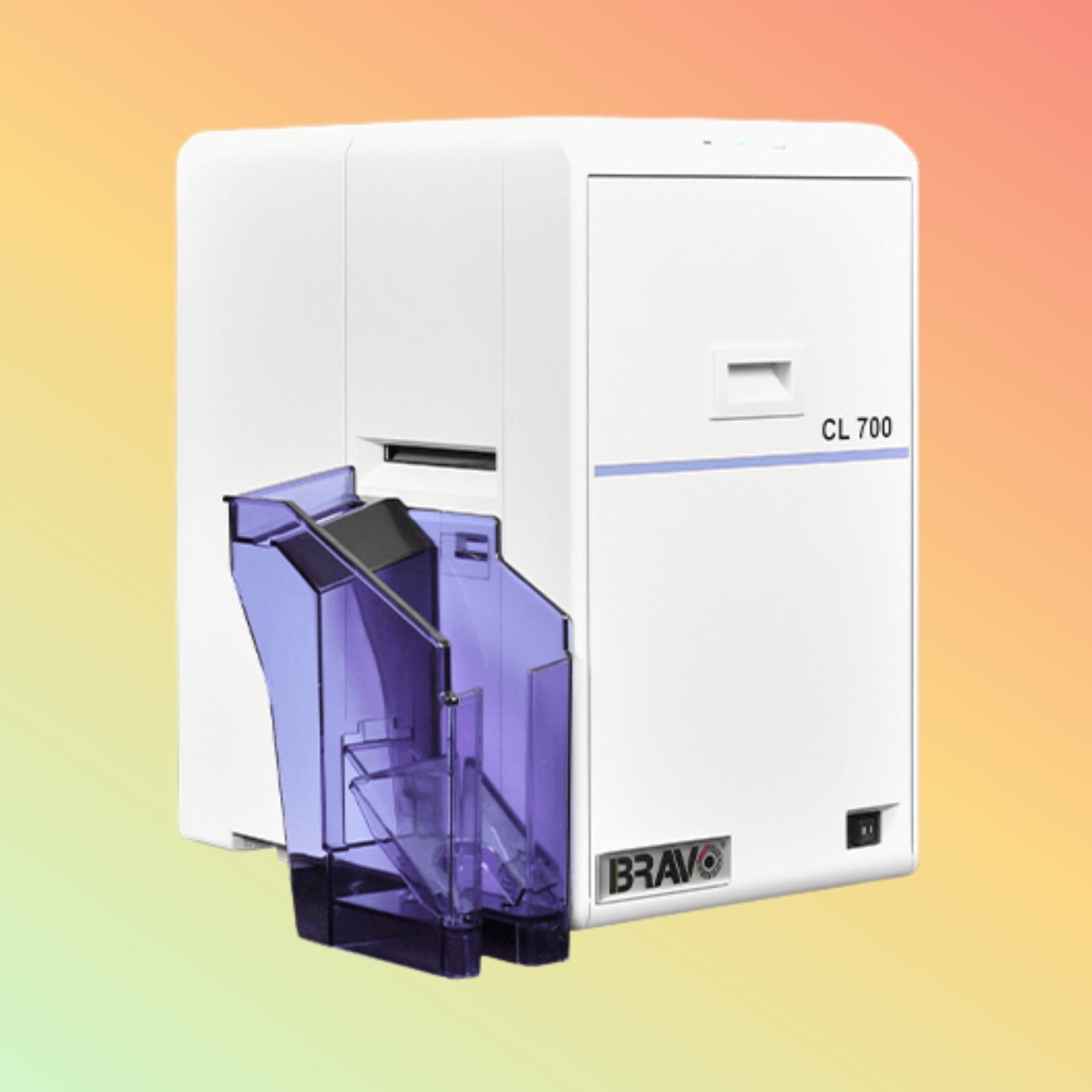

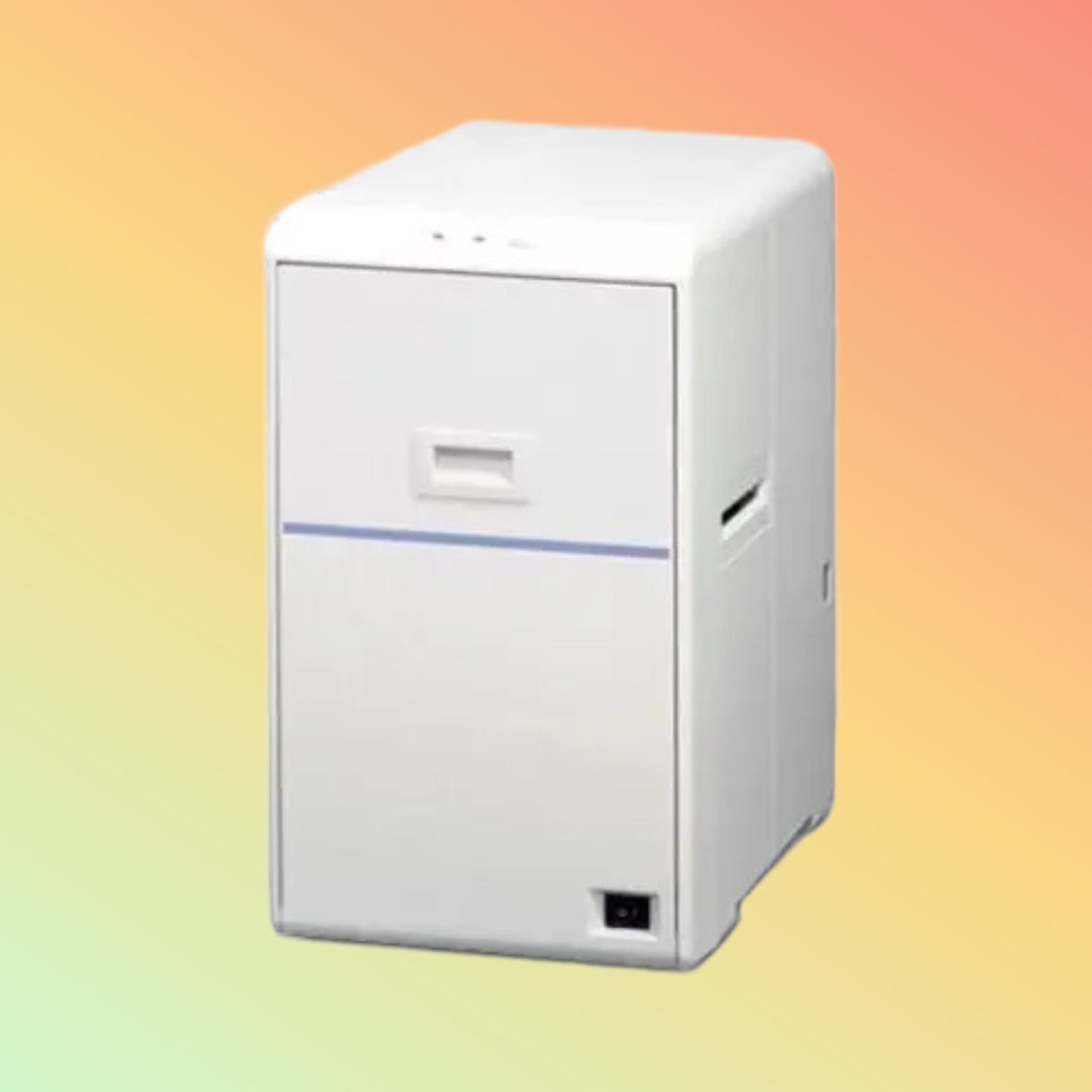

The BRAVO CX CF-L700 Card Laminator is designed for professional card lamination in structured ID production environments. It supports single or dual-sided lamination and integrates with BRAVO CX-7000 and CX-7600 printers.

Suitable for organizations that require extended card durability and consistent lamination results.

Product Description

The CF-L700 laminator uses thermal transfer lamination technology to apply protective overlay films to PVC cards. It supports adjustable temperature and speed settings, allowing operators to optimize lamination for different card materials.

Infrared (IR) connectivity enables integration with compatible BRAVO CX printers for streamlined operation.

Designed for institutional and commercial identification programs.

Key Features

• Thermal transfer lamination
• Single-side (CL700S) and dual-side (CL700D) models
• Up to 120 cards per hour (manufacturer specification)
• Infrared communication with CX-7000 & CX-7600
• Adjustable temperature & speed (11-stage control)
• 100-card output hopper
• Secure locking mechanism for card and consumable areas
• Supports standard and holographic overlay films

Technical Specifications

• Laminating Method: Thermal transfer
• Laminating Sides: Single or Dual (model dependent)
• Speed: Up to 120 cards/hour
• Communication: Infrared (IR)
• Card Size: 54 × 85.6 mm
• Card Thickness: 0.76 mm
• Supported Materials: PET-G (heat-resistant)
• Operating Temperature: +15°C to +28°C
• Humidity: 35%–60% RH (non-condensing)
• Power Consumption:
– Single Side: Approx. 170W
– Dual Side: Approx. 260W
• Dimensions: 210 × 330 × 360 mm
• Weight:
– Single: Approx. 8.5 kg
– Dual: Approx. 9.5 kg

Final configuration should be confirmed before purchase.

Supported Applications

• Corporate employee ID cards
• Educational institution ID cards
• Membership cards
• Access cards (system compatibility required)
• Event identification badges

Purpose of Use

The CF-L700 laminator enhances card durability by applying protective overlay films. It is suitable for organizations managing internal ID programs where card longevity is important.

How to Use

1. Connect the laminator to a compatible BRAVO CX printer via IR.
2. Load overlay film and cards.
3. Adjust temperature and speed settings as required.
4. Select single or dual-side lamination.
5. Cards will automatically output into the hopper after lamination.

Professional setup is recommended for first-time installation.

Why Choose NEOTECH® UAE

✔ UAE-based supplier (Dubai)
✔ New equipment only
✔ VAT-compliant invoicing
✔ 30-day return policy (new condition only)
✔ Pre-sales consultation available
✔ Compliance-first operations

NEOTECH® is operated by NEOLYN TECHNOLOGY LLC, Dubai, UAE.

Delivery Information (UAE Only)

• Order Cutoff: 2:00 PM GST (UTC+4)
• Handling Time: 1–2 business days
• Delivery Time: 4–7 business days within UAE
• Free standard shipping

Special configurations may require confirmation before dispatch.

FAQ - BRAVO CX CF-L700

Q: Is the CF-L700 compatible with all card printers?
A: No. It is designed for use with BRAVO CX-7000 and CX-7600 printers.

Q: Does it support holographic overlay films?
A: Yes. It supports standard and holographic films within supported thickness specifications.

Q: Is dual-sided lamination available?
A: Yes. Dual-side lamination is available in the CL700D model.

Contact NEOTECH®

📞 Mobile / WhatsApp: +971507391234
📧 Email: support@neotech.ae
📍 Store 13, Computer Building, Al Fahidi – Bur Dubai, Dubai, UAE

Please confirm compatibility and availability before ordering.

Warranty

Manufacturer warranty applies as per official supplier terms. Warranty coverage may vary by distributor channel.

Disclaimer

Specifications, speed ratings, and compatibility details are based on manufacturer documentation and may vary by model. Product images are illustrative. NEOTECH® supplies new equipment only. Confirm compatibility before deployment.
